Yale Real Living Technical specifications

Yale Real Living™ Touchscreen Deadbolt
Installation and Programming Instructions
For Technical Assistance call Yale at 1-800-810-WIRE (9473)
NOTE TO INSTALLER
FAILURE TO FOLLOW THESE INSTRUCTIONS
COULD RESULT IN DAMAGE TO THE PRODUCT
AND VOID THE FACTORY WARRANTY
An ASSA ABLOY Group brand
P/N AYRD220-INST-FUL Rev C
This document is available on our website in printed Spanish and French. Go to www.yalerealliving.com.
Click “Product Information & Documentation” and then “Installation Instructions”.
Este documento está disponible en español en nuestra página de internet. Vaya a www.yalerealliving.com.
Presione “Información del Producto y Documentación” y luego “Instrucciones de Instalación”.
Ce document est disponible sur notre site Web dans le français imprimé. Allez à www.yalerealliving.com.
Cliquez sur le “ ; Information sur le produit et Documentation” et puis “Installation Instructions”.

2
An ASSA ABLOY Group brand
P/N AYRD220-INST-FUL Rev C
Warnings ..................................................................................................................... 2-3
Introduction .....................................................................................................................3
Installation
Components and Tools .............................................................................................4
Prepare Lock for Installation .....................................................................................5
Install Lock ............................................................................................................ 6-8
Programming

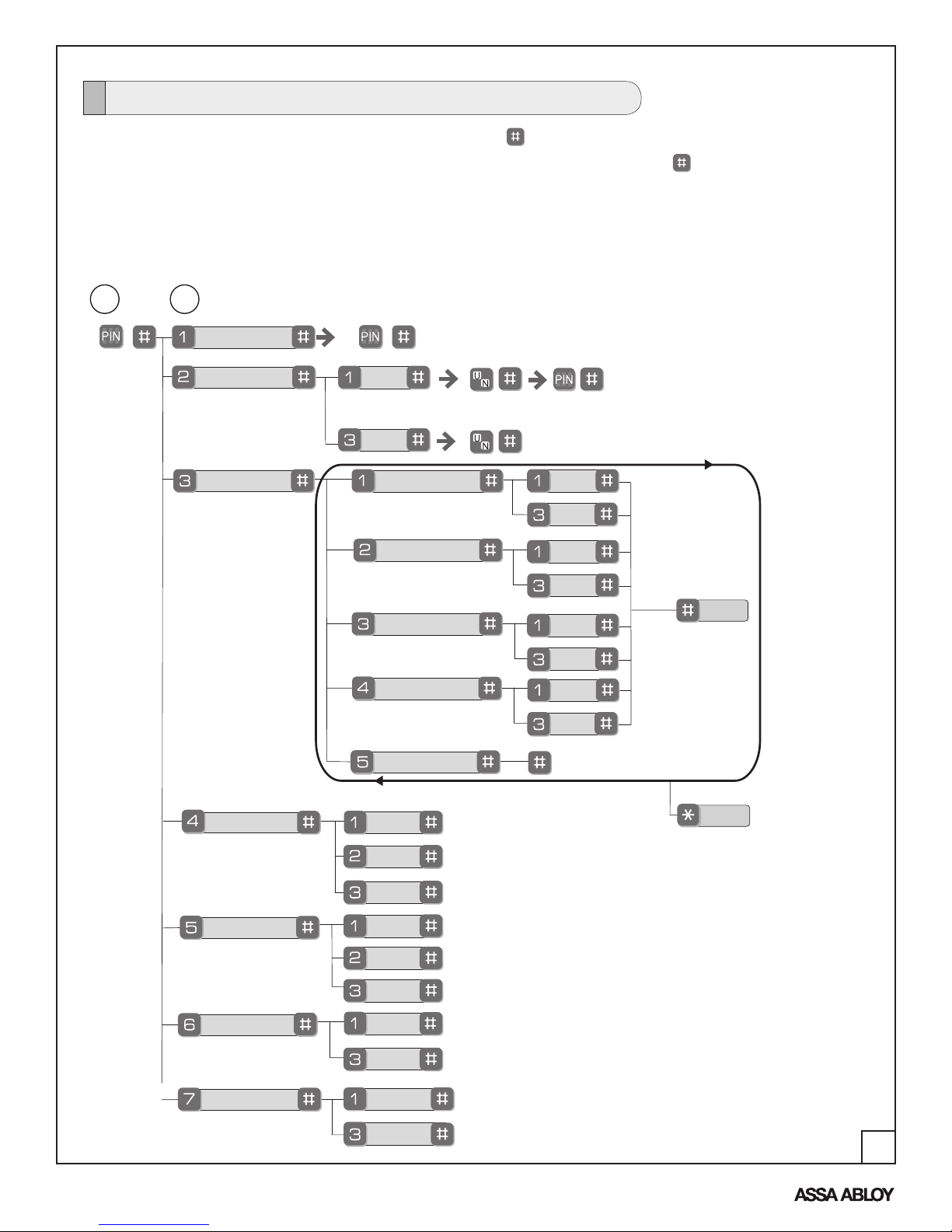

Programming Features-Menu Keys-Definitions ................................................. 9-10
Operation .......................................................................................................... 11-14
Miscellaneous Information
Hardware Troubleshooting ......................................................................................15
Programming Troubleshooting ...............................................................................16
Installing the Network Module ................................................................................17
Replace/Install Cylinder ..........................................................................................18
Sample Pin Code Management Sheets ........................................................... 19-20
TABLE OF CONTENTS
WARNINGS
FCC:
FCC ID: U4A-YRHCPZW0 (Z-Wave); U4A-YRHCPZB0 (Zigbee)
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful Interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
IMPORTANT: The accuracy of the door preparation is critical for the proper functioning and
security of this product. Misalignment can cause performance degradation and a lessening of
security.
Finish Care: This lockset is designed to provide the highest standard of product quality and
performance. Care should be taken to ensure a long-lasting finish. When cleaning is required
use a soft, damp cloth. Using lacquer thinner, caustic soaps, abrasive cleaners or polishes
could damage the coating and result in tarnishing.
Warning: Changes or modifications to this device not expressly approved by Yale Security, Inc.
could void the user's authority to operate the equipment.

3
An ASSA ABLOY Group brand
P/N AYRD220-INST-FUL Rev C
INTRODUCTION
The Yale Real Living™ Stand-alone Touchscreen Deadbolt Lock combines a robust lockset with a
contemporary electronic aesthetic.
Users benefit from an interactive touchscreen that makes day-to-day access effortless, as well as
offering voice-guided programming for simple updates to user information in the event of staffing
changes or security breaches. Yale Real Living™ is engineered for quick and easy installation and
fits in place of a standard deadbolt lock door prep (ANSI/BHMA A156.115).
If this is an RF-enabled network lock, it needs to be located within 50 - 100 feet of another network
controller. That distance is influenced by objects between the lock and the controller and may be
expanded depending on proximity to other RF network devices. Also, if the lock is connected to a
network controller, it is recommended that it is programmed through the centralized user interface
(PC or hand-held device) to ensure communication between the lock and the controller unit.
Industry Canada:
Canadian ID: 6982A-YRHCPZW0 (Z-Wave); 6982A-YRHCPZB0 (Zigbee)
This Class B digital apparatus meets all requirements of the Canadian Interference Causing Equipment
Regulations. Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
Cet appareillage numérique de la classe B répond à toutes les exigences de l’interférence canadienne
causant des règlements d’équipement. L’opération est sujette aux deux conditions suivantes: (1) ce
dispositif peut ne pas causer l’interférence nocive, et (2) ce dispositif doit accepter n’importe quelle
interférence reçue, y compris l’interférence qui peut causer l’opération peu désirée.
For the U4A-YRHCPZB0 and 6982A-YRHCPZB0, the following statement applies:
“This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm between
the radiator and your body. This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.”
Section 7.1.2 of RSS-GEN Under Industry Canada regulations, this radio transmitter may only operate
using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry
Canada. To reduce potential radio interference to other users, the antenna type and its gain should be
so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for
successful communication.
En vertu des règlements d'Industrie Canada, cet émetteur radio ne peut fonctionner avec une antenne
d'un type et un maximum (ou moins) approuvés pour gagner de l'émetteur par Industrie Canada. Pour
réduire le risque d'interférence aux autres utilisateurs, le type d'antenne et son gain doivent être choisies
de façon que la puissance isotrope rayonnée équivalente (PIRE) ne dépasse pas ce qui est nécessaire
pour une communication réussie.
Section 7.1.3 of RSS-GEN This Device complies with Industry Canada License-exempt RSS standard(s).
Operation is subject to the following two conditions: 1) this device may not cause interference, and 2)
this device must accept any interference, including interference that may cause undesired operation of
the device.
Cet appareil est conforme avec Industrie Canada RSS standard exemptes de licence(s). Son
fonctionnement est soumis aux deux conditions suivantes: 1) ce dispositif ne peut causer des
interférences, et 2) cet appareil doit accepter toute interférence, y compris les interférences qui peuvent
causer un mauvais fonctionnement du dispositif.

4
An ASSA ABLOY Group brand
P/N AYRD220-INST-FUL Rev C
Lock Installation
#2 Phillips screwdriver
Door Prep
2-1/8" (54mm) hole saw
1" (26mm) boring bit
7/64" (2.5mm) drill bit
Chisel & hammer
Parts Illustrations
Tools Needed
COMPONENTS AND TOOLS
INSTALLATION
Inside
Escutcheon 4 AA Alkaline
Batteries
(2) Through
bolts Keys
Bolt
Quick Start Guide
Installation Instructions
Door Marker
Outside Escutcheon
Bolt
Strike Plate
Screw Pack (see below)
Keys
Included in the box. . .
Inside Escutcheon
Inside Mounting Plate
Battery Cover
4 AA Alkaline Batteries
Strike Plate
(4) Bolt & Strike Plate
Mounting Screws
(3) Inside Escutcheon
Mounting screws
Network Module
(Optional)
Inside Mounting Plate
with Gasket
(back of Inside Escutcheon)
Battery Cover
Outside
Escutcheon

5
An ASSA ABLOY Group brand
P/N AYRD220-INST-FUL Rev C
PREPARE LOCK FOR INSTALLATION
Unpack the Lock
The lock is packed representative of how it will install
on the door.
Before installing the lock on the door:
A. Inside escutcheon
1. Loosen the screw (Phillips #2) holding the
battery cover.
(The screw remains attached to battery cover)
2. Slide the battery cover up and out (note the two tabs
at bottom of battery cover).
3. Remove the inside mounting plate (with gasket) from
the back (door side) of the inside escutcheon.
Battery Cover
Inside Escutcheon
C. The outside escutcheon (with gasket) remains assembled.
B. Bolt
Note: Bolt ships with backset in 2-3/8" posi-
tion. If required, press small black button on
underside of bolt and pull to extend to 2-3/4"
backset position (Fig.3B).
Inside Escutcheon & Mounting Plate
(with gasket)
Outside Escutcheon
1
2
3
Figure 3B
Figure 3A
a. Ensure that gasket
on Inside Mounting
Plate is properly
fitted. Note the
positioning of the
gasket's five rubber
nubs (Figure 3A).

6
An ASSA ABLOY Group brand
P/N AYRD220-INST-FUL Rev C
1. Install bolt in door.
NOTE: The bolt must be in a retracted (unlocked) position
when installing the lockset.
Attach with two (2) M4 x 25.4mm [8-32 x 1"] screws supplied.
2. Install strike on the door frame, making sure to allow
for the bolt to be centered in the strike.
INSTALL LOCK
(2) M4 x 25.4mm
[8-32 x 1"]
Flat Head
Combination Screws
(2) M4 x 25.4mm
[8-32 x 1"]
Flat Head
Combination Screws
1
2
3. Install outside escutcheon.
As you position the outside escutcheon, route the
wire harness through 2-1/8" diameter hole (Figure 3A).
NOTE: Wire harness goes under bolt (Fig. 3B).
Figure 3B
5. Secure both assemblies using (2)
M6 x 59.5mm pan head machine
screws (Fig. 4B), making sure that
outside escutcheon is vertically
aligned. Hand-tighten until snug.
Do not over-tighten.
Inside of Door
Figure 4B
Figure 4A
“Tongue”
Inside of Door
4. Holding the outside escutcheon flush to the door,
position the inside mounting plate by first routing the
wire harness through the mounting plate's 1/2" hole
(Fig. 4A), then inserting mounting plate “tongue“ into
groove at bottom of outside escutcheon.
Figure 3A

7
An ASSA ABLOY Group brand
P/N AYRD220-INST-FUL Rev C

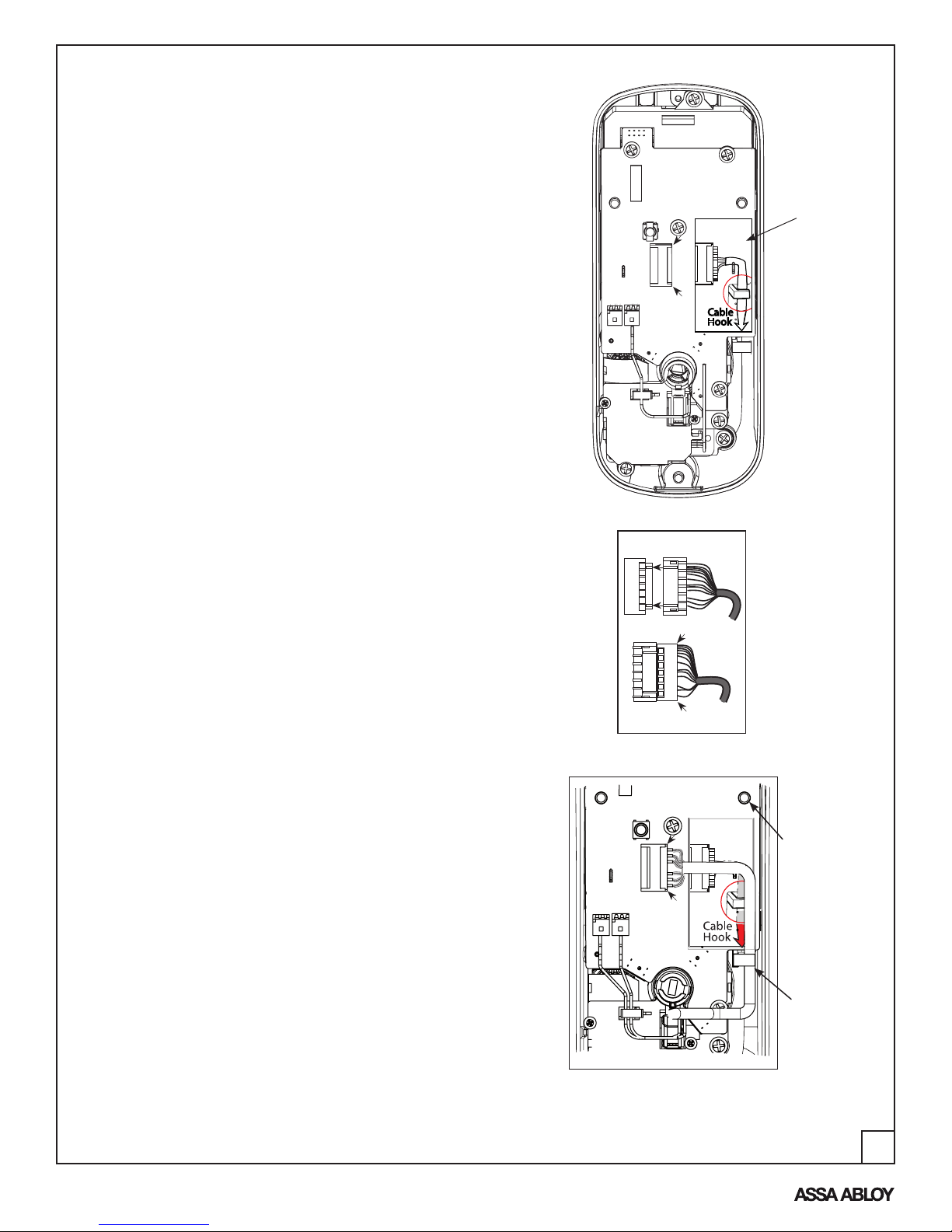

6. Attach cable assembly connector to the inside
escutcheon PC board by lining up notches on top of
cable connector to slots on PCB connector (Fig. 6B).
Figure 6B
Figure 6A
CAUTION:
Position and bend cable, using care when assembling
to ensure that the cable lies against the back recessed
area of the inside escutcheon.
Use the cable hook (Note label on circuit board) as
shown in Figures 6A & 6B to prevent binding when
installing the escutcheon over the mounting plate.
NOTE: Connector should be pressed in firmly using
thumbs until completely seated.
Proper position is indicated by arrows on PCB
as in Figures 6A, 6B and 6C.
Route cable
as indicated -
do not cover
hole
Cable Hook
(Harness Clip)
Label
Figure 6C

8
An ASSA ABLOY Group brand
P/N AYRD220-INST-FUL Rev C

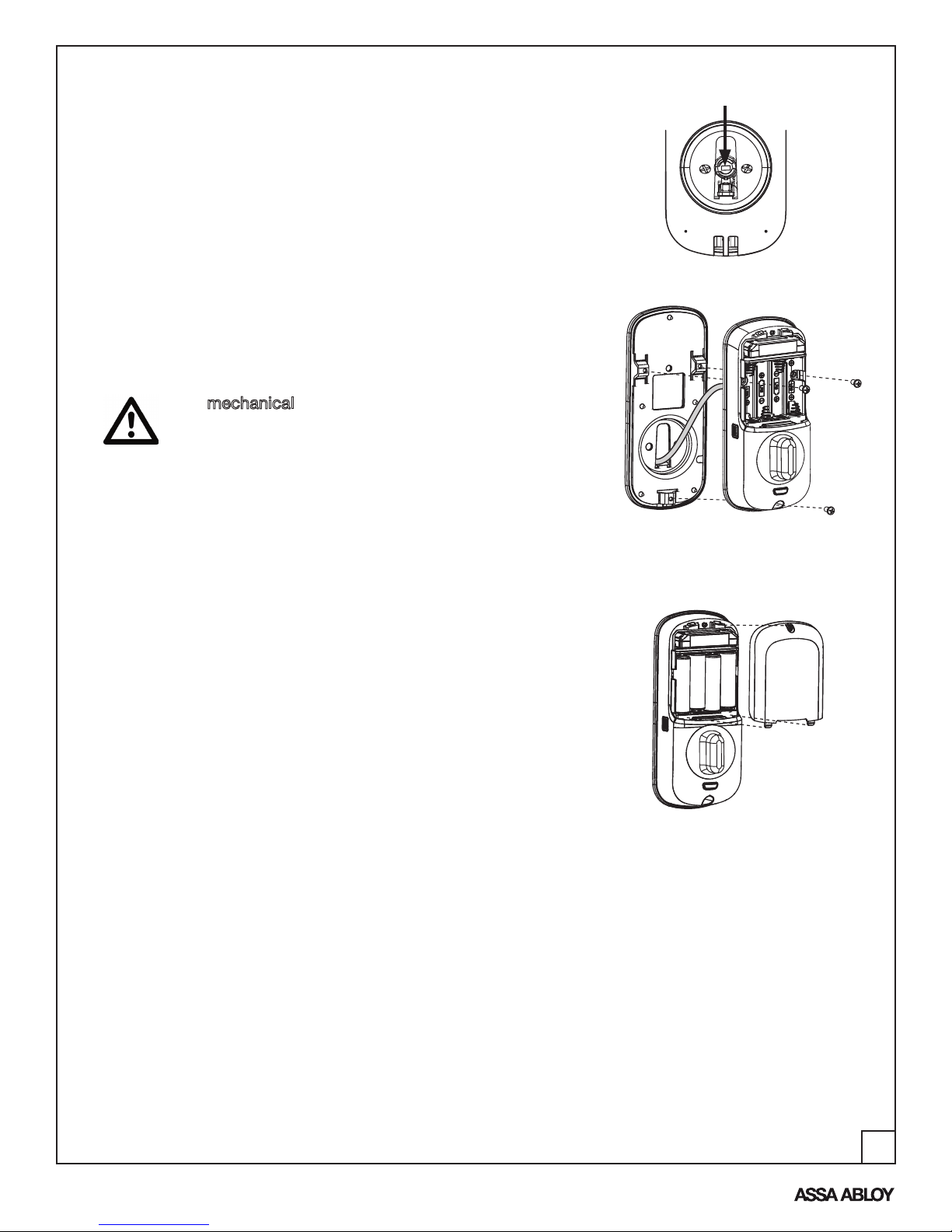

8. Install and secure using (3) M4 x 8mm [8-32 x 5/16"]
pan head screws through the inside escutcheon into
the mounting plate (Fig. 8).
IMPORTANT: Before installing the batteries, test
the mechanical operation of the lock by operating
the thumbturn. The movement of the bolt should be
smooth and unobstructed.
If operation is not smooth, review the previous
steps to ensure proper installation.
9. Insert four (4) AA alkaline batteries. The lock will flash,
beep several times and respond with the vocal prompt:
"Welcome to Yale Real Living".
When activating the lock for the first time, the lock will
adjust for proper handing.
Note: Refer to programming instructions in following section prior
to completion of next step (10).
10. Install battery cover and tighten Phillips head screw.
NOTE: The bolt must be in a retracted (unlocked) position
prior to installing the batteries. Figure 8
Figure 9
7. Install inside escutcheon on inside mounting plate.
Figure 7
Note the horizontal orientation of the tailpiece (Fig. 7)
as you insert the inside escutcheon; the thumbturn
should be vertical.
(3) Pan head
screws

9
An ASSA ABLOY Group brand
P/N AYRD220-INST-FUL Rev C
PROGRAMMING
PROGRAMMING FEATURES - MENU KEYS - DEFINITIONS
Programming Features-Menus-Keys-Definitions ............................................... 9-10
Operation .......................................................................................................... 11-14
Phillips Head Screw
Network Module Slot
Alkaline Batteries
4 AA Type
Thumbturn
Status Indicator
Battery Cover
Outside Inside
Speaker Hole
Lockout Mode
Cylinder
Low Battery
Indicator
Numbers
Touchscreen “ P ” Key
(Return to Previous)
Privacy Mode Button
Menu Keys and Icons Used in This Guide
Touch the screen with back of hand or
fingers to begin and end actions. Repeat operation using settings indicated.
Press the indicated number. Enter Master PIN code* (4-8 digits in
length).
Press the Star key on the touchscreen to
Enter or Accept entry. Enter User PIN code. Can be 4-8 digits
in length.
Press the Pound key on the touchscreen
to enter Menu mode.
User Number (1-25);
RF Network-Controlled (1-250).
Press this key to return to the previous
step or menu setting.
M
U
~
*A unique Master PIN Code must be entered prior to any further programming of the lock.
(See section on page 11 "Register Master PIN Code Before Programming")

10
An ASSA ABLOY Group brand
P/N AYRD220-INST-FUL Rev C

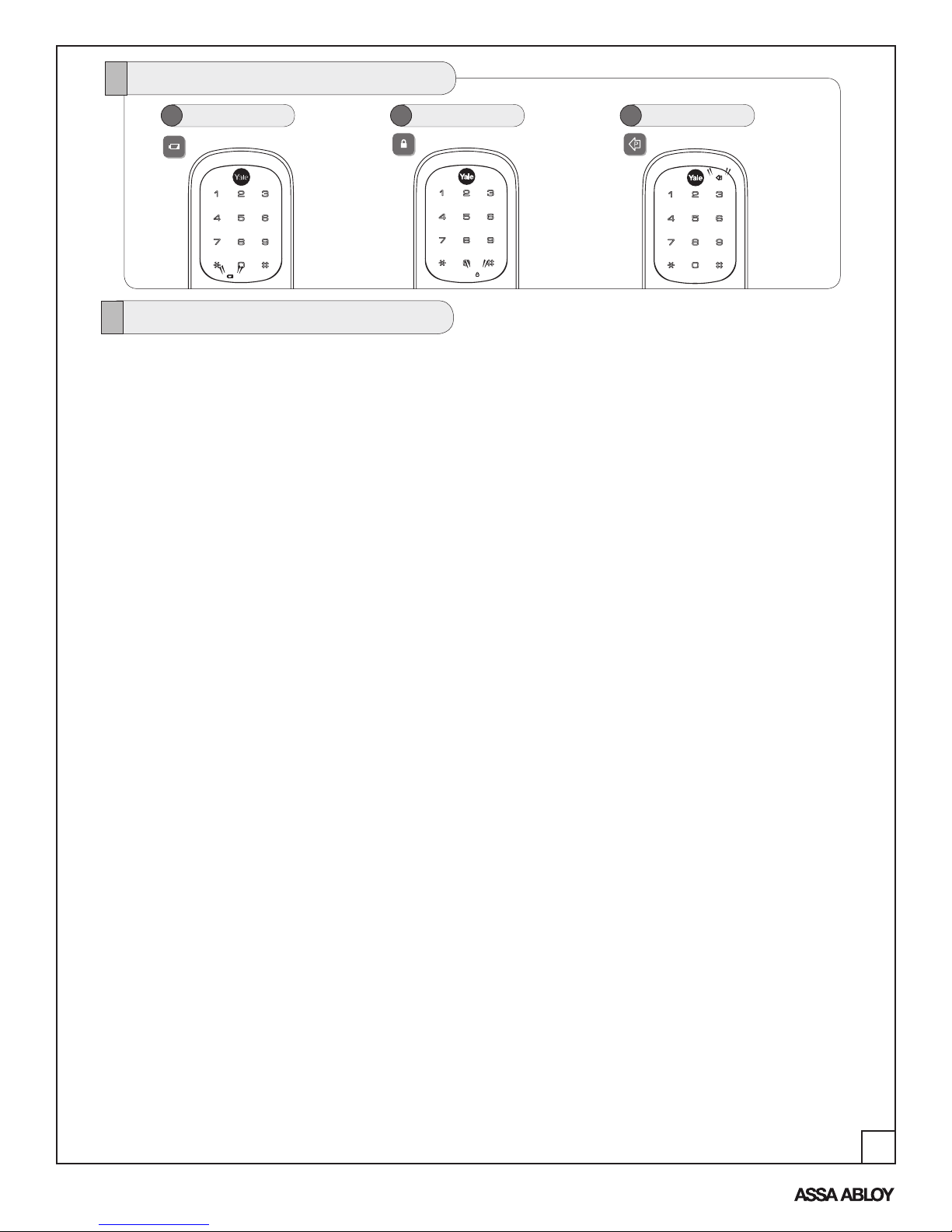

Definitions
Low Battery Warning
1 All Code Lockout Mode 2 Return to previous step 3
Status Indicators
**Adjustable only when using Network Module
All Code Lockout Mode: This feature is enabled by the Master PIN code. When enabled, it restricts all user PIN
code access (except the Master PIN code). When the unit is in Lockout Mode, the red locked padlock (see above)
will appear on the screen when attempting to enter a PIN code.
Automatic Re-lock Time: After successful code entry and the unit unlocks, it will automatically re-lock after a
default of thirty (30) seconds. Re-lock time is adjustable** from 10- 240 seconds (with Network Module 10 seconds
is default).
Inside Indicator Light: Located on the inside escutcheon, it shows active status (Locked) of lock and can be
enabled or disabled in the Advanced Lock Settings (Main Menu selection #3).
Language Setting Mode: Choosing English (1), Spanish (2) or French (3) becomes the (default) setting for the
lock's voice prompts.
Low Battery: When battery power is low, the Low Battery Warning Indicator flashes RED. If battery power is com-
pletely lost, use the cylinder key override.
Master PIN Code: The Master code is used for programming and for feature settings and must be registered
prior to programming the lock. The Master code will also operate the lock.
Network Module Setting: With the optional Network Module installed, this setting becomes available through
the Main Menu (7) and allows the lock to connect with a network controller.
One Touch Locking: When the latch is retracted, activating the keypad will extend the latch (during Automatic
Re-lock duration or when Automatic Re-lock is disabled). When One-Touch Re-lock is not in use (disabled), any
valid PIN code will re-lock the lock.
Previous: While in Menu Mode, pressing this icon (#3 above) cancels the current operation and returns the user to
the previous step.
Privacy Mode Button: Pressing and holding the Privacy button (found below thumbturn) for a duration of four
beeps deactivates the keypad, and because it is set from the inside, provides a secure lock for the convenience of
the occupant(s).
Shutdown Time: The unit will shutdown (flashing RED) for a default** of sixty (60) seconds and not allow opera-
tion after the wrong code entry limit (5 attempts) has been met.
Tamper Alert: Audible alarm if attempting to forcibly remove outside lock from door.
User PIN Code: The User code operates the lock. Maximum number of user codes is 250 with Network Module;
without Network Module, maximum is 25 user codes. When deleting User PIN code(s), screen will display User
Number (not PIN code) being deleted.
Volume Setting Mode: The volume setting for PIN code verification is set to Low (2) by default; otherwise it can
be set to Silent (3) for quiet areas, or it can be set to High (1).
Wrong Code Entry Limit: After a specified number of unsuccessful attempts at entering a PIN code the unit will
shut down and not allow operation. Limit is adjustable** from one (1) to ten (10) times. (With no RF network enabled
default is 5; 10 with RF network enabled).

11
An ASSA ABLOY Group brand
P/N AYRD220-INST-FUL Rev C
Press the key to
activate.
Touch screen with
fingers spread to
activate.
1
Enter the new Master PIN code (4~8
digits), followed by the key.
Lock Activation
The touchscreen can be activated in several ways:
Touch screen with
back of hand or
fingers to activate.
Register Master PIN Code Before Programming*
*This initial step must be performed upon installation or after resetting the lock to factory default.
Programming and subsequent use of the lock is not possible until this step has been successfully completed.
Touch screen with the back
of your hand or fingers to
activate.
Press the key followed
by the key.
OPERATION
Protect your privacy; always shield your PIN code entry.
1. Touch the screen with the back of your hand or fingers to activate .
2. Press the key.
Lock Response: “Register Master Code; press the key to continue.”
3. Press the key.
Lock Response: “Enter a 4 to 8 digit PIN code followed by the pound key."
4. Enter new 4-8 digit Master PIN code followed by the key.
Lock visually confirms PIN code selection, announces "Registered".

12
An ASSA ABLOY Group brand
P/N AYRD220-INST-FUL Rev C
Factory Default Settings
To reset the lock to factory default, see the following:
The following procedure returns the lock to its factory defaults
by deleting all user codes (including the Master PIN code*) and
returning all programming features to their original default settings
(see below).
1. Remove the batteries and then remove the interior escutcheon
to access the reset button.
2. The reset button (see image at right) is located above the
PCB cable connector.
3. Hold down the reset button (for a minimum of 3 seconds) and
then reinstall the batteries; once the batteries are properly
installed, release the reset button.
All features, including adjustable settings** (see below) should
now be returned to factory default.
Upon reset, Master Code Registration is the only option available
and must be performed prior to any other programming of the lock.
See "Operation" in this manual for programming instructions.
Reset Lock to Factory Default
**Adjustable only when using Network Module
*The Master PIN code must be registered prior to any other programming of the lock.
Cable
Reset
Button
Inside Escutcheon
Settings Factory Default
Master PIN Code Registration required*
Automatic Re-lock Disabled
Inside Indicator Light Disabled (Off)
One Touch Locking Enabled
Audio/Volume Enabled (Low)
Privacy Mode Disabled
Automatic Re-lock Time **30 Seconds
Wrong Code Entry Limit **5 Times
Shutdown Time **60 Seconds

13
An ASSA ABLOY Group brand
P/N AYRD220-INST-FUL Rev C

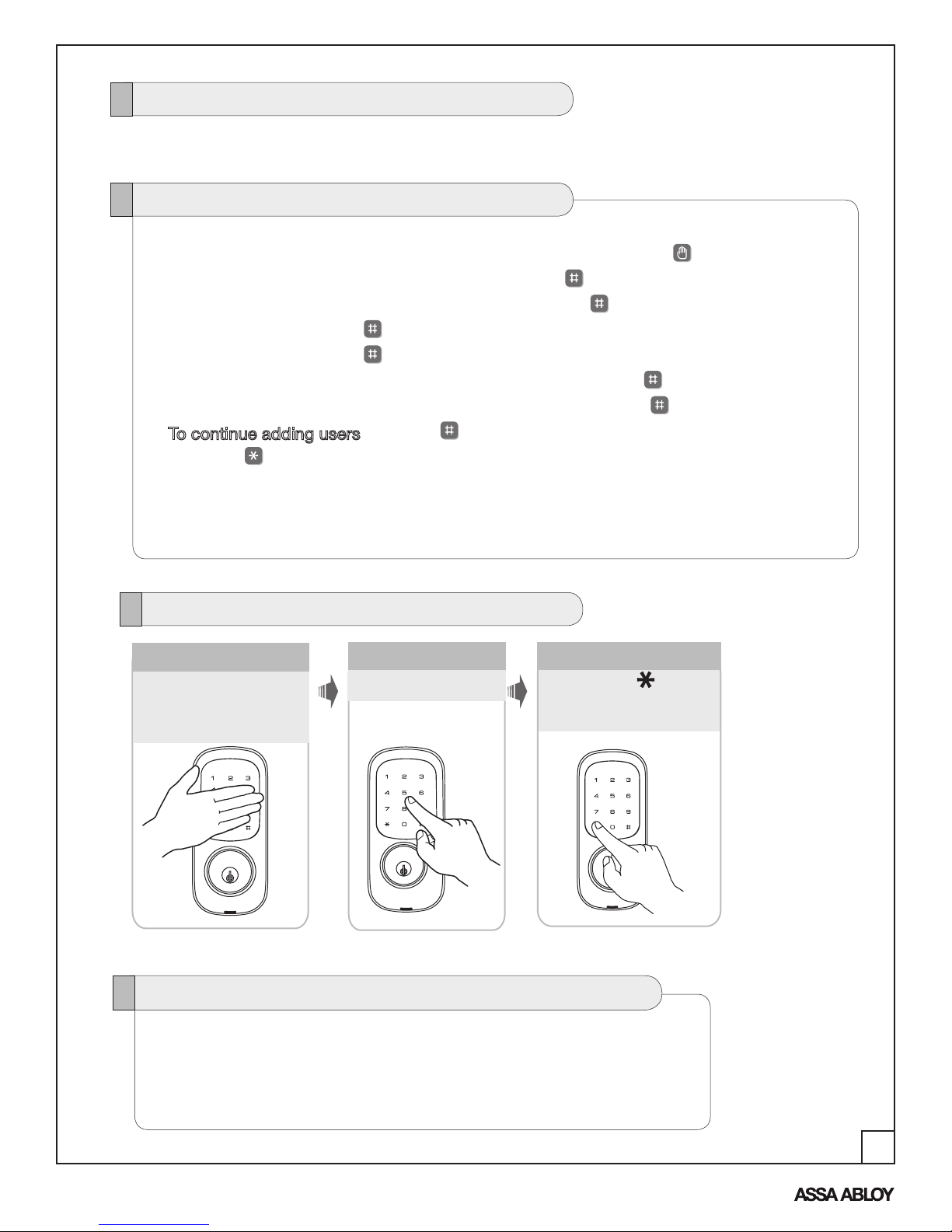

User PIN Codes can only be programmed through the Master PIN Code*.
1. Touch the screen with the back of your hand or fingers to activate .
2. Enter the 4-8 digit Master PIN code followed by the key.
Lock Response: “Menu mode, enter number, press the key to continue.”
3. Enter “2” followed by the key.
4. Enter “1” followed by the key.
5. Enter the User Number to be registered (1-25) followed by the key.
6. Enter a 4-8 digit PIN code for the User number followed by the key.
7. To continue adding users press the key.
8. Press the key to complete the process and conclude the programming session.
Set Up User PIN Codes
Note: When registering User codes, the code must be entered within 20 seconds or
time expires. Lock Response: “Time expired”, no codes are registered and the process
must be re-started.
3
Press the key
to confirm the
selection.
Enter PIN code.
2
1
Touch lock with
back of hand or
fingers to activate.
PIN code structure
Maximum number of user codes is 250 with Network Module; without Network Module,
maximum is 25 user codes.
Open Door with PIN Code
All Code Lockout is a Menu feature (6) that restricts Pin code access (except Master).
Privacy mode is set by pressing and holding the privacy button (found below thumbturn)
for a duration of four beeps. This deactivates the keypad and sound, and because it is set
from the inside, provides a secure and silent lock for the convenience of the occupant(s).
Privacy Mode vs. All Code Lockout Mode
*Master PIN code must be registered before User codes can be added.

14
An ASSA ABLOY Group brand
P/N AYRD220-INST-FUL Rev C
Master PIN Code Setting
MM
User PIN Code Registration
Register
Delete
Advanced Lock Settings
All Code Lockout Mode
**Network Module Setting Join the network
Enable
Disable
Exit the network
User Number (UN)
1~25: without network module
1~250: with network module
1 2
U
**This function appears only
with RF network module
installed.
Automatic Re-lock Enable
Disable
Inside Indicator Light
One Touch Locking Enable
Disable
Feature Programming Through Menu Mode Using Master PIN code*
Note: If the lock is connected to a network controller, it is
recommended that it is programmed through the centralized
user interface (PC or hand-held device) to ensure communi-
cation between the lock and the controller unit.
*The Master PIN code must be registered prior to any other programming of the lock.
Enable
Disable
Privacy Button Setting
Handing the Lock
Enable
Disable
1. Enter the 4-8 digit Master PIN code followed by the key.
2. Enter digit corresponding to the function to be performed followed by the key.
Note: If the lock is connected to a network controller, it is recommended that it is
programmed through the centralized user interface (PC or hand-held device) to en-
sure communication between the lock and the controller unit.
Performs automatic handing
of the lock
Language Setting Mode
English
Spanish
French
Continue
Complete
Volume Setting High
Silent
Low

15
An ASSA ABLOY Group brand
P/N AYRD220-INST-FUL Rev C
Cycle the lock in both the locked and the unlocked positions. If problems are found:
TROUBLESHOOTING
Symptom Suggested Action
Door is binding a. Check that door and frame are properly aligned and door is free swinging.
b. Check hinges: They should not be loose or have excessive wear on knuckles.
Bolt will not deadlock a. Check for sufficient clearance of the bolt within the strike-side jamb. Correct this by increasing
the depth of the pocket for the bolt.
b. Check for misalignment of bolt and/or strike which may be preventing bolt from properly
entering the strike. With the door open, extend and retract the bolt; if it is smooth, check the
strike alignment.
Bolt does not extend or retract smoothly a. Bolt and strike are misaligned, see above.
b. Check the backset of door relative to adjustments already made to bolt.
c. Verify proper door preparation and re-bore holes that are too small or misaligned.
d. Verify keypad wire harness is routed under the bolt (see Fig. A).
e. Verify bolt is installed with correct side up (Fig. A).
Hardware Troubleshooting
MISCELLANEOUS
Hardware Troubleshooting ......................................................................................15
Programming Troubleshooting ...............................................................................16
Installing the Network Module ...............................................................................17

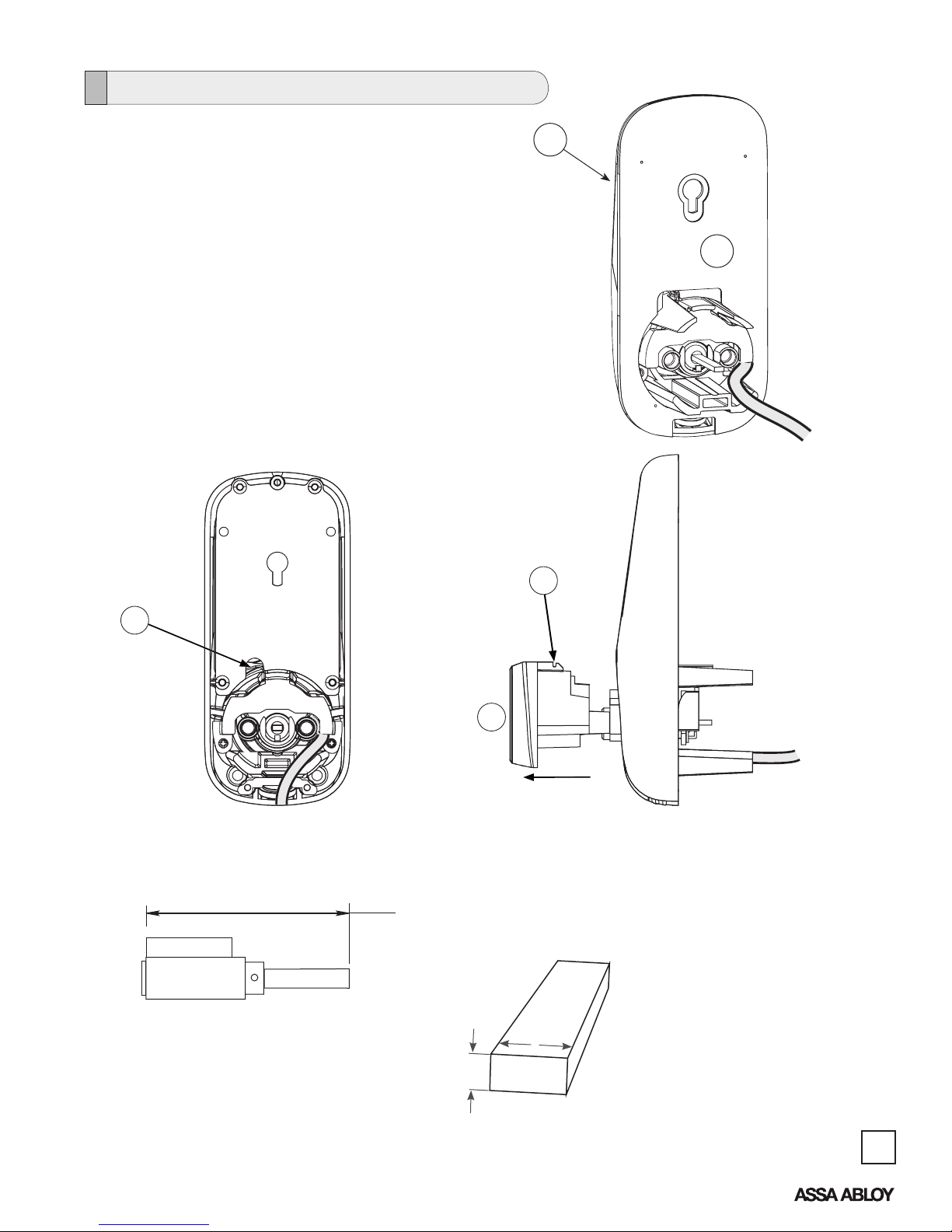

Replace/Install Cylinder .........................................................................................18
Sample Pin Code Management Sheets ........................................................... 19-20
Figure A

16
An ASSA ABLOY Group brand
P/N AYRD220-INST-FUL Rev C
Symptom Suggested Action
Lock does not respond – door is open
and accessible. The touchscreen will become active when pressed with the back of hand or fingers in at least 3 areas simultaneously.
Use a larger area of the hand or fingers and verify contact with at least 3 areas.
If touchscreen numbers are visible, check to see if they respond when pressed.
Check batteries are installed and oriented correctly in the battery case.
Check batteries are in good condition; replace batteries* if discharged.
Check to see if touchscreen wire harness is fully connected and not pinched.
Lock does not respond – door is
locked and inaccessible. Lock may be in Privacy mode (set from inside room). Mechanical key will grant access.
Batteries may be completely discharged.
Use mechanical key to gain entry and replace batteries*.
The unit is on for a while, and then
shows no reaction. Lights dim. The batteries do not have enough power. Replace the batteries*.
Unit chimes to indicate code accep-
tance, but the door will not open. Check to see if there is an existing lock device on the door.
Check the door gaps for any foreign objects between door and frame.
Check that the wire harness is firmly connected to the PCB.
Unit operates to allow access, but will
not automatically re-lock. Automatic Re-Lock has been disabled; enable in Menu Mode Advanced Settings.
If low battery indicator is lit, replace batteries*.
PIN codes will not register. Registration/management of PIN codes is set by the authority of Master Code.
The Master PIN code must be registered prior to adding any users.
PIN codes must consist of 4 to 8 digits to register.
The same PIN code cannot be used for multiple users.
Contact the Master user.
User codes must be entered within 5 seconds (while the touchscreen is active) or the process
will have to be restarted.
The star (*) or pound (#) can not be used as part of the PIN code.
Upon entering a PIN code and press-
ing the star (*) key, the unit displays
an “invalid code” error or the lock
times out without responding.
All Code Lockout Mode is enabled.
Only the Master Code can enable All Code Lockout Mode.
Contact the Master user.
Upon entering a PIN code and press-
ing the (*) key, the red padlock icon
appears and there are different tones.
Check to see if lock is set** at All Code Lockout Mode.
Setting/managing All Code Lockout Mode is done through Master Code only. Contact the
Master user.
The unit operates, but it makes
no sound. Check to see if Silent Mode is enabled (pages 8, 11).
The unit responds “Low Battery” This is the voice alarm alerting that it is time to replace the batteries. Replace all four (4)
batteries with new AA Alkaline batteries*.
Upon entering a PIN code and press-
ing the star (*) key, the unit responds
“Wrong number of digits.”
The digits entered were incorrect or incomplete. Re-enter the correct code.
Programming Troubleshooting
* When batteries are replaced, Network Module locks have a real time clock that will be set through the User Interface; it is
recommended to verify correct date and time particularly those locks operating under Daylight Saving Time (DST).
** Network module units only

17
An ASSA ABLOY Group brand
P/N AYRD220-INST-FUL Rev C
IMPORTANT: The batteries must be removed prior to removing and/or inserting the
network module:
• Remove battery cover
• Remove batteries
• Remove and/or insert network module
• Reinstall batteries
Installing the Network Module
Use feature programming step 7 (page 14) for enrollment of the
Network Module.

18
An ASSA ABLOY Group brand
P/N AYRD220-INST-FUL Rev C
1. Remove cylinder:
A. Remove outside escutcheon from door.
B. Remove rubber gasket.
C. Insert small flathead screw driver under spring;
(gently) lift spring.
D. Note: notch on top of cylinder engages
spring
E. Remove cylinder by pulling (outward) towards
outside of door.
Before installing cylinder, please be sure tailpiece
is correct length (see below).
How to Replace or Install Cylinder
1-3/8"* to 2" thick doors, L = 3-1/2" (88.8mm)
2" to 2-1/4" thick doors, L = 3-3/4" (95.3mm)
*Requires addition of Thin Door Kit.
A
B
D
C
L
Cylinder tailpiece information:
T = .098" (2.5mm)
W = .2" (5.2mm)
w
T
Tailpiece
E
2. Install new cylinder:
A. Reverse previous steps for removing cylinder.

19
An ASSA ABLOY Group brand
P/N AYRD220-INST-FUL Rev C
PIN CODE MANAGEMENT SAMPLE SHEETS
PIN Code Management (No Network Module - Up to 25 Users)
Location: Door Number: User User Name User # PIN Code
User Type User Name User # PIN Code
Master User 13
User 01 User 14
User 02 User 15
User 03 User 16
User 04 User 17
User 05 User 18
User 06 User 19
User 07 User 20
User 08 User 21
User 09 User 22
User 10 User 23
User 11 User 24
User 12 User 25

20
An ASSA ABLOY Group brand
P/N AYRD220-INST-FUL Rev C
PIN Code Management (With Network Module - Up to 250 Users) - Duplicate Sheet to record entries
User Type User Name User # PIN Code User User Name User # PIN Code
Master User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
