INTRODUCTION
Congratulations and thank you for the purchase of great product! It is our sole desire for
you to enjoy the quality workmanship and performance of any of our helicopters. We
believe we have the latest designs and technology incorporated into our model
helicopters. Our CNC parts are produced using the best high density materials &
anodized using material hardening finishes with the tightest of tolerances. Our new
helicopters feature the latest advances in R/C helicopter design. The simple and
mechanically superior EMS design (also known as CCPM) ensures a helicopter that will
be more responsive and more stable than any other R/C helicopter you have ever
flown. In the GasHer, three servos are attached in a push-pull system ensuring precise
control. Frames are specially designed with “floating system” engine mounting. This
new design eliminates most engine vibrations. The GasHer kit comes in 2 versions:
Sport with G-10 composite frames, and Pro with carbon fiber composite frames. Each
frame is 3mm thick offering the utmost in rigidity and strength. This helicopter features a
separately purchased kit allowing the owner to change the helicopter from a belt-
powered tail rotor to a torque-tube-drive system. The owner may also purchase the
helicopter initially with the torque-tube-drive system. Along with great products, our staffs
are RC guys that fly and have hands on experience with total manufacturing & testing of
our helicopters. In addition, we stand behind all our products 100% with satisfaction
guaranteed. Our kits will be shipped 100% complete and we can assure you that once
you fly your helicopter you will love it.
The Gas-Her
We believe you hold in your hands one of the best helicopters manufactured in the world
today. The brand new Gas-Her is the newest version of our Big Gas Quick line. It
has bigger, stronger frames and is a powerful machine. This baby delivers amazing
power smoothly throughout the entire range of its gas engine. Its functions are very
responsive and stable. The Gas-Her Pro version features a fully machined
dual-spindle head, metal tail rotor, metal grips, carbon fiber frames, bigger carbon rudder
push rod, carbon linkage rods, and carbon fiber boom supports. The Gas-Her
Sport version features a G10 fiberglass frame, fully machined metal head,
carbon boom supports, carbon rudder push rod, and molded tail blade grips. Our
helicopters are carefully designed and tested, and manufactured of the highest quality
materials available.
In a short time, you can be flying.
We ask that you please read the entire manual before starting the construction of the
Gas-Her, and if you have any questions our technical support staff can be reached
at [phone] M-F 9-6, S 9-4 Eastern time,
or by email at [email protected].
For the latest information and updates, please visit our website at
www.quickworldwide.com

Page 4 of 104
CUSTOMER SERVICE
Quickworldwide
201 South 3rd. St. & 309 N.
Coopersburg, PA 18036
Phone: [phone]
Fax: [phone]
Websites:
http://www.hhiheli.com
http://www.quickheli.com
http://www.giantscaleplanes.com
E-mail:
[email protected]
Office Hours: Mon – Fri: 8:30 – 6:00
Sat: 8:30 – 1:30
(Eastern Daylight Time)
Technical Support Personnel:
Chuck – [email protected]
Jon – [email protected]

Page 5 of 104
FEATURES
Gas-Her
1. Frame Construction: Gas-Her frames are made of the highest quality Carbon Fiber
or Black G-10. These frames are not only thick and rigid but will provide excellent vibration
absorption.
2. One-Way Hex Start Shaft System:The one-way bearing allows the engine to
continue to run after the starter motor has been stopped.
3. Constant Tail Rotor Drive System: provides full tail authority during motor off
maneuvers.
4. Belt Driven/Torque Tube Tail: Smooth, reliable, and low maintenance.
5. High Quality Ball Bearings: Gas-Her offers high quality ball bearings on all
moving parts.
6. EMS Collective System:The EMS Collective design allows ease of setup with
fewer moving parts. EMS demonstrates overall design simplicity and represents the future of
helicopter technology.
7. Heavy-Duty Clutch System: Based on the same design as our famous heavy-
duty clutch upgrade that fits most popular machines, this clutch will give many years of problem
free operation.
7. Control Linkages: The control linkages are high quality 2.3mm stainless steel rods
with Delrin® acetal resin rod ends. Pro version comes with 2.5mm carbon rods.
8. Floating Engine Mount: rigid but flexible, will absorb most of vibration.
9. Advanced Airfoil Fly-bar Paddles: These paddles will provide the best flight
characteristics for both 3D & Sport flying: Smooth forward flight, with quick response upon
demand.
10. Rearward facing Engine Design: This design provides quick access to the
glow plug and is advantageous for easy engine removal.
11. Heavy-Duty Bearing Blocks: Bearing Blocks are specially designed for this
model. They couple to high quality bearings to carry and support all high speed moving
operations.

Page 6 of 104
PRE-ASSEMBLY INFORMATION
Warning
The radio-controlled model helicopter contained in this kit is not a toy.
Rather, it is a sophisticated piece of equipment. This product is not recommended for
use by children without adult supervision. Radio controlled models such as this are
capable of causing both property damage and/or bodily harm to both the
operator/assembler and spectators if not properly assembled and operated. Hobbies &
Helis assumes no liability for damage that could occur from the mis-assembly and/or
use/misuse of this product.
Academy of Model Aeronautics
We strongly encourage all prospective and current R/C aircraft pilots to join the
Academy of Model Aeronautics. The AMA is a non-profit organization that provides
services to model aircraft pilots. As an AMA member, you will receive a monthly
magazine entitled Model Aviation, as well as a liability insurance plan to cover against
possible accident or injury. All AMA charter aircraft clubs require individuals to hold a
current AMA sporting license prior to the operation of their model. For further information,
please contact AMA at:
Academy of Model Aeronautics
5161 East Memorial Drive
Muncie, IN 47302-9252
USA
Phone: [phone]
www.modelaircraft.org
Before you begin
Quick Helicopter kits are packaged with care and attention to detail. We recommend
when you are ready to begin building this model that you examine the kit carefully,
inspect the contents of each package, and read and understand these instructions
thoroughly before starting assembly. It is suggested that you purchase a parts box for
the small fasteners and hardware, or use small bowls or other containers.

Page 7 of 104
REQUIRED TOOLS

HARDWARE & OPTIONAL ACCESSORIES
GLUES AND THREAD LOCK COMPOUNDS
RADIO MOUNTING ACCESSORIES
Page 8 of 104

Page 9 of 104
ENGINES, SPARK PLUG, ENGINE KILL SWITCH AND EXHAUST
SYSTEM
ENGINES: we recommend Zenoah G260PUH
SPARK PLUGS:
RZ7C
MUFFLER
ENGINE KILL SWITCH
FUEL SYSTEM
OTHER HARDWARE & OPTIONAL ACCESSORIES

3MM FLYBAR STIFFENERS
HHI 402
60 SIZE SKID STOPS
HHI 200 AVAILABLE IN COLORS
SERVO ARM SET
LANDING GEAR DAMPENERS
HHI 2004
BASE LOAD ANTENNA
HHI 53**
AVAILABLE IN BLUE, GOLD,
PURPLE
AND IN 40, 50, AND 72 MHz
Page 10 of 104
FINISHING CAPS
•Adds color and style
•Distributes force across larger surface area
3mm 4mm
(20 pcs in a package) (8 pcs in a package)
BLACK HHIM11100B ---
W
ITHOUT BLUE HHIM11103 HHIM11108
GOLD HHIM11101 HHIM11106
GREEN HHIM11100G ---
PURPLE HHIM11100 HHIM11105
W
ITH RED HHIM11100R ---
SILVER HHIM11100 HHIM11107

Page 11 of 104
OTHER REQUIREMENTS
Radios:
Any radio that supports EMS/CCPM Mixing will work fine. Hobbies & Helis & its
distributors carry various lines of helicopter radios.
Note: Please consult the instruction for your Gyro for setting the overall travel
and limits to ensure proper operation and travel of Tail Pitch Slider.
Servos:
Any sport servo will offer acceptable performance. However, because servos
operate all critical functions of the helicopter, they can be the single most
important component that contributes to proper function of the helicopter. Due to
the nature of EMS collective, we suggest the use of digital servos to enhance
and ensure matched servo timing without servo interaction.
Locktite Warning (CRITICAL):
This is a general warning about the use of Locktite and its
importance. Locktite must be used anywhere that a metal
fastener i.e. (M2, M3, M4 Cap Head Bolts, Set Screws etc.) is
threaded into a metal part i.e. (Bearing Blocks, Cross-members,
etc.). Failure to use Locktite can result in loosening of critical
operating components, loss of control of the model, and can
lead to a crash.

PART LIST
•In your kit, parts are bagged according to each major assembly and are labeled “Bag
1, Bag 2, etc.” You will note that the heading for each assembly indicates which bag
correlates with each assembly.
•For a good installation, only open up the bags that you need for particular assembly.
•Please check the parts in that bag against the parts list shown for each assembly as
well as each subassembly to make sure there are no missing parts.
•Small parts such as nuts and bolts can be put into containers or trays to prevent
losing parts.
•Part No. with ***** means that part is not included in the kit.
•The colors of drawings and appearances of parts in this manual may look different
from the parts you have in the kit.
No. Bag No. Description Quantity Check
1 Bag 1 For Upper Frame Assembly 1
2 Bag 2 For Lower Frame Assembly 1
3 Bag 3 Landing Gear 1
4 Bag 4 Driving System 1
5 Bag 5 For Tail Assembly 1
6 Bag 6 Control System 1
7 Bag 7 Head Rotor 1
8 Bag 8 Linkage 1
9 Frame Frame 1
10 HB Hardware Bag 1
11 Loose in Box
Canopy
Carbon Rudder Push Rod
Carbon Boom Support
2.5mm Carbon Linkage Rod
Tail Timing Belt
Tail Boom
Flybar
Fuel Tank and Accessories
Decal Sheet
Instruction CD
Canopy Template
1
1
2
3
1
1
1
1
1
1
1
Page 12 of 104

SECTION 1: UPPER FRAMES Bag 1
•In your kit, parts are bagged according to each major assembly and are labeled “Bag
1, Bag 2, etc.” You will note that the heading for each assembly indicates which bag
correlates with each assembly.
•For a good installation, only open up the bag that you need for particular assembly.
•Please check the parts in that bag against the parts list shown for each assembly as
well as each subassembly to make sure there are no missing parts.
•Small parts such as nuts and bolts can be put into containers or trays to prevent
losing parts.
•No. with ***** means that part is not included in the kit.
•Colors of the parts in the drawings and appearances of parts may look differently
from ones in the kit.
Page 13 of 104

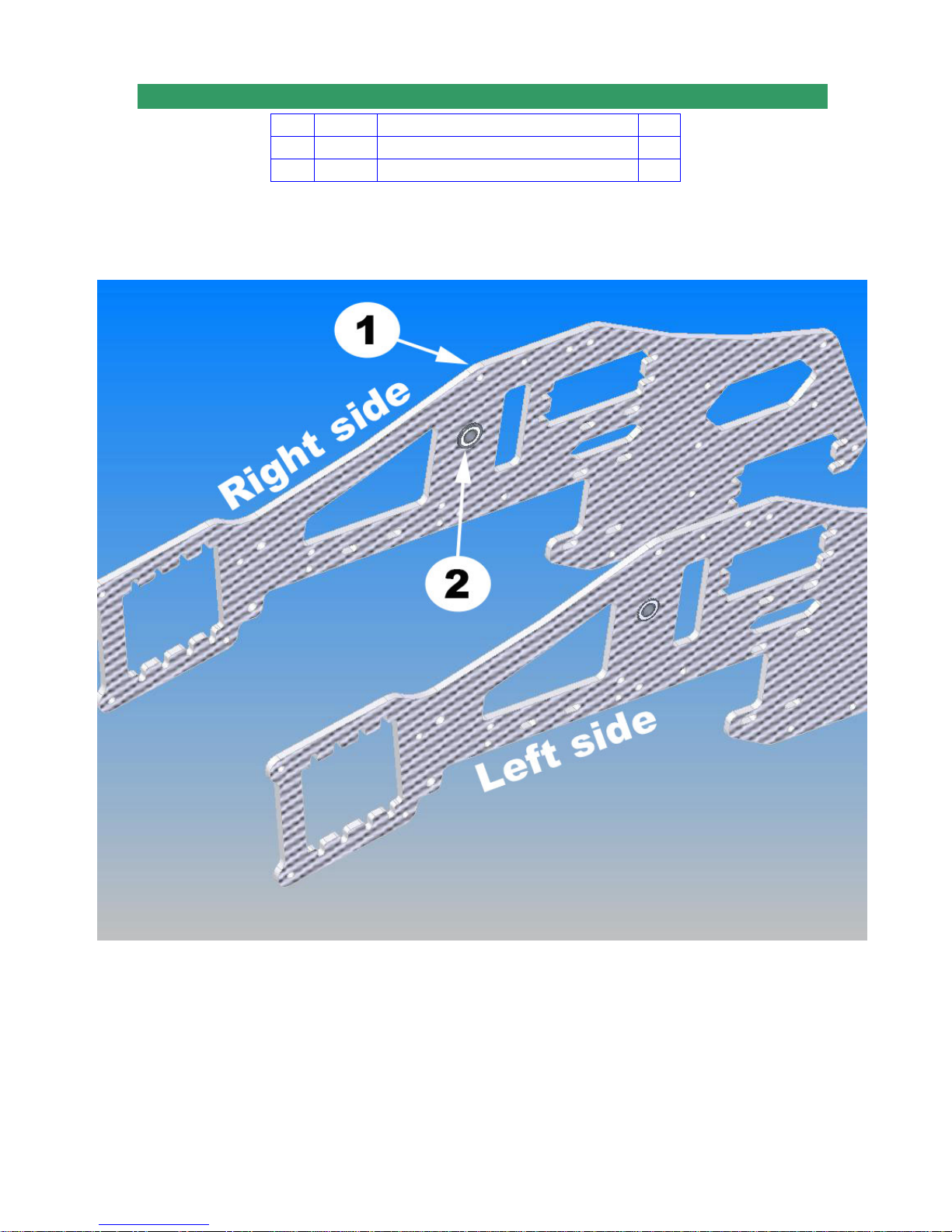

1-1 ELEVATOR SHAFT BEARINGS
No. Bag# Description Qty
1 Frame Upper Frame (from Frame Bag) 2
2 1 5X10X4 Flanged Bearing 2
Note: The holes on the frames are designed for “push-fit” feature. Sometime you may
have to sand them a little bit before pushing the bearings in. The bearing flange mates
against the inside of the frame.
Page 14 of 104

1-2 LEFT AILERON & RUDDER SERVO SUBASSEMBLY
No. Bag# Description Qty
1 Step 1-1 L. Upper Frame Subassembly 1
2***** Servo 2
3 HB M2.5x16 Cap Head Bolt 8
4 HB M2.5 Locknut 8
5 HB Fixing Plate 4
Remember to apply
Loctite for the Screws
( see “Locktite Warning”
section )
***** Part No. with ***** means that part is not included in the kit.
Note: Be sure to use the rubber grommets and eyelets that are provided by the servo
manufacturer.
Page 15 of 104

1-3 RIGHT AILERON & ELEVATOR SERVO SUBASSEMBLY
No. Bag# Description Qty
1 Step 1-1 R. Upper Frame Subassembly 1
2***** Servo 2
3 HB M2.5x16 Cap Head Bolt 8
4 HB M2.5 Locknut 8
5 HB Fixing Plate 4
***** Part No. with ***** means that part is not included in the kit.
Note: Be sure to use the rubber grommets and brass eyelets that are provided by the
servo manufacturer.
.
Page 16 of 104

1-4 INNER ELEVATOR CONTROL ARM SUBASSEMBLY
No Bag # Description Qty
1 1 Inner Elevator Control Arm 1
2 1 Elevator Control Shaft 1
3 HB M3x5 Set Screw 1
4 HB M3x4 Pivot Ball Stud 1
Remember to apply
Loctite for the Screws
( see “Locktite Warning”
section )
Page 17 of 104

1-5 TAIL TRANSMISSION ASSEMBLY
No Bag# Description Qty
1 1 Counter Gear 1
2 1 Counter Gear Shaft 1
3 1 Counter Gear Lock Pin 1
4 1 M4 E-clip 1
5 1 Counter Gear Bearing Block 2
6 1 Pulley Gear 1
7 HB M3x3 Set Screw 1
8 ***** JP Weld glue 1
The Bearing Blocks shown may look differently
-Install Counter Gear to Counter Gear Shaft using Counter
Gear Lock Pin (No. 3) and M4 E-clip to secure it. Apply JP
Weld around the Pin.
-Put Counter Gear Bearing Block (the lower) in with the
Flange facing down
-Install Counter Gear Bearing Block (the upper) with the
Flange facing up
-Install Pulley Gear (No. 6)
-Secure Pulley Gear with the M3x3 Set Screw (No. 7)
Note: Counter Gear Bearing Blocks may look differently. Ensure that the Counter Gear Lock Pin
is seated all the way down in the slot in the Counter Gear. If it is not seated it will not allow the
Bearing Block to go to the proper position and will bind on the Pulley or Gear.
Page 18 of 104

1-6 ELEVATOR CONTROL ARM-RIGHT SIDE
No. Bag# Description Qty
1 Step 1-3 R. A&E Arm Subassembly (step 1-3) 1
2 Step 1-4 Inner El. Ctrl. Arm Subassembly (step 1-4) 1
3 1 Outer Elevator Control Arm 1
4 HB M3x5 Set Screw 1
5 HB M3x4 Pivot Ball Stud 5
6 1 Right Aileron Control Lever 1
7 HB M3x12 Cap Head Bolt 1
Note: The Elevator Control Shaft is designed to fit tight in the bearings. Sometime, you might
have to sand it a little to get it go into the bearings.
Page 19 of 104

1-7-A ANTI-ROTATION GUIDE ASSEMBLY SPORT VERSION
No. Bag# Description Qty
1 Step 1-6 Right Upper Frame Subassembly 1
2 1 Washout Anti-Rot. Guide 1
3 HB M3x40 Cap Head Bolt 2
Note: The frame shown is pro version.
Page 20 of 104
