Hobbies & Helis Octane Dominator 20 User manual

Page 1 of 105

Page 2 of 105
TABLE OF CONTENTS
INTRODUCTION 3
CUSTOMER SERVICE 4
FEATURES 5
FRE-ASSEMBLY INFORMATION 6
REQUIRED TOOLS 7
HARDWARE & OPTIONAL ACCESSORIES 8
OTHER HARDWARE & OPTIONAL ACCESSORIES 9
OTHER REQUIREMENTS 11
PART LIST 12
SECTION 1: UPPER FRAMES 13
SECTION 2: LOWER FRAMES 29
SECTION 3: LANDING GEAR ASSEMBLY 47
SECTION 4: DRIVING SYSTEM 50
SECTION 5: TAIL ASSEMBLY 53
SECTION 6: CONTROL SYSTEMS 62
SECTION 7A: ROTOR HEAD SPORT VERSION 67
SECTION 7B: ROTOR HEAD PRO VERSION 70
SECTION 8: LINKAGE RODS AND SETTINGS 78
FRE-LIGHT CHECKS 97
WARNINGS 98
ADJUSTMENTS 99
HOW TO HOVER 100
HOW TO FLY FORWARD 102
AFTER FLIGHT CHECKS 104
WHAT IF THE HELICOPTER CRASHED 104
SPECIFICTION 104

Page 3 of 105
INTRODUCTION
Congratulations and thank you for the purchase of great product! It is our sole desire for you to enjoy
the quality workmanship and performance of any of our helicopters. We believe we have the latest
designs and technology incorporated into our model helicopters. Our CNC parts are produced using
the best high density materials & anodized using material hardening finishes with the tightest of
tolerances. Our new helicopters feature the latest advances in R/C helicopter design. The simple
and mechanically superior EMS design (also known as CCPM) ensures a helicopter that will be more
responsive and more stable than any other R/C helicopter you have ever flown. In the Gasser, three
servos are attached in a push-pull system ensuring precise control. Frames are specially designed
with “floating system” engine mounting. This new design eliminates most engine vibrations. The
Gasser kit comes in 2 versions: Sport with G-10 composite frames and Pro with carbon fiber composite
frames. Each frame is 3mm thick offering the utmost in rigidity and strength. This helicopter features a
separately purchased kit allowing the owner to change the helicopter from a belt-powered tail rotor
to a torque-tube-drive system. The owner may also purchase the helicopter initially with the torque-
tube-drive system. Along with great products, our staffs are RC guys that fly and have hands on
experience with total manufacturing & testing of our helicopters. In addition, we stand behind all our
products 100% with satisfaction guaranteed. Our kits will be shipped 100% complete and we can
assure you that once you fly your helicopter you will love it.
We believe you hold in your hands one of the best helicopters manufactured in the world today. The
brand new Little Dominator is the newest version of our Big 26CC Gas Dominator. It has thicker 2.0MM
frames and is a powerful machine. This baby delivers amazing power smoothly throughout the entire
range of its gas engine. Its functions are very responsive and stable. The Little Dominator Pro version
features a fully machined dual-spindle head, metal tail rotor, metal grips, carbon fiber frames, bigger
carbon rudder push rod, carbon linkage rods, and carbon fiber boom supports. The Little Dominator
Sport version features a G10 fiberglass frame, fully machined metal head, carbon boom supports,
carbon rudder push rod, and molded tail blade grips. Our helicopters are carefully designed and
tested, and manufactured of the highest quality materials available.
In a short time, you can be flying.
We ask that you please read the entire manual before starting the construction of the Little
Dominator, and if you have any questions our technical support staff can be reached at
[phone] M-F 9-6, S 9-4 Eastern time,
or by email at [email protected].
For the latest information and updates, please visit our website at
www.quickworldwide.com

Page 4 of 105
CUSTOMER SERVICE
Quickworldwide
201 South 3rd. St. & 309 N.
Coopersburg, PA 18036
Phone: [phone]
Fax: [phone]
Websites:
http://www.hhiheli.com
http://www.quickheli.com
http://www.giantscaleplanes.com
E-mail:
Jon or chris or
[email protected]
Office Hours: Mon – Fri: 8:30 – 6:00
Sat: 8:30 – 4:00
(Eastern Time)
Technical Support Personnel:
Irwin – [e-mail]
Jon – [e-mail]

Page 5 of 105
FEATURES
Little Dominator
1. Frame Construction: Little Dominator frames are made of the highest quality Carbon Fiber or
Black G-10. These frames are not only thick and rigid but will provide excellent vibration absorption.
2. One-Way Hex Start Shaft System: The one-way bearing allows the engine to continue to
run after the starter motor has been stopped.
3. Constant Tail Rotor Drive System: provides full tail authority during motor off maneuvers.
4. Belt Driven/Torque Tube Tail: Smooth, reliable, and low maintenance.
5. High Quality Ball Bearings: Little Dominator offers high quality ball bearings on all moving
parts.
6. EMS Collective System: The EMS Collective design allows ease of setup with fewer moving
parts. EMS demonstrates overall design simplicity and represents the future of helicopter technology.
7. Heavy-Duty Clutch System: Based on the same design as our famous heavy-duty clutch
upgrade that fits most popular machines, this clutch will give many years of problem free operation.
7. Control Linkages: The control linkages are high quality 2.3mm stainless steel rods with Delrin®
acetyl resin ball ends. Pro version comes with 2.5mm carbon rods with CNC threaded ends.
8. Floating Engine Mount: rigid but flexible, will absorb most of vibration.
9. Advanced Airfoil Fly-bar Paddles: These paddles will provide the best flight
characteristics for both 3D & Sport flying: Smooth forward flight, with quick response upon demand.
10. Rearward facing Engine Design: This design provides quick access to the SPARK plug
and is advantageous for easy engine removal.
11. Heavy-Duty Bearing Blocks: Bearing Blocks are specially designed for this model. They
couple to high quality bearings to carry and support all high speed moving operations.

Page 6 of 105
PRE-ASSEMBLY INFORMATION
Warning
The radio-controlled model helicopter contained in this kit is not a toy. Rather, it is a
sophisticated piece of equipment. This product is not recommended for use by children without adult
supervision. Radio controlled models such as this is capable of causing both property damage
and/or bodily harm to both the operator/assembler and spectators if not properly assembled and
operated. Hobbies & Helicopter’s assumes no liability for damage that could occur from the mis-
assembly and/or use/misuse of this product.
Academy of Model Aeronautics
We strongly encourage all prospective and current R/C aircraft pilots to join the Academy
of Model Aeronautics. The AMA is a non-profit organization that provides services to model aircraft
pilots. As an AMA member, you will receive a monthly magazine entitled Model Aviation, as well as a
liability insurance plan to cover against possible accident or injury. All AMA charter aircraft clubs
require individuals to hold a current AMA sporting license prior to the operation of their model. For
further information, please contact AMA at:
Academy of Model Aeronautics
5161 East Memorial Drive
Muncie, IN 47302-9252
USA
Phone: [phone]
www.modelaircraft.org
Before you begin
Quick Helicopter kits are packaged with care and attention to detail. We recommend
when you are ready to begin building this model that you examine the kit carefully, inspect the
contents of each package, and read and understand these instructions thoroughly before starting
assembly. It is suggested that you use the parts box for the small fasteners and hardware, that is now
included in our packaging.

Page 7 of 105

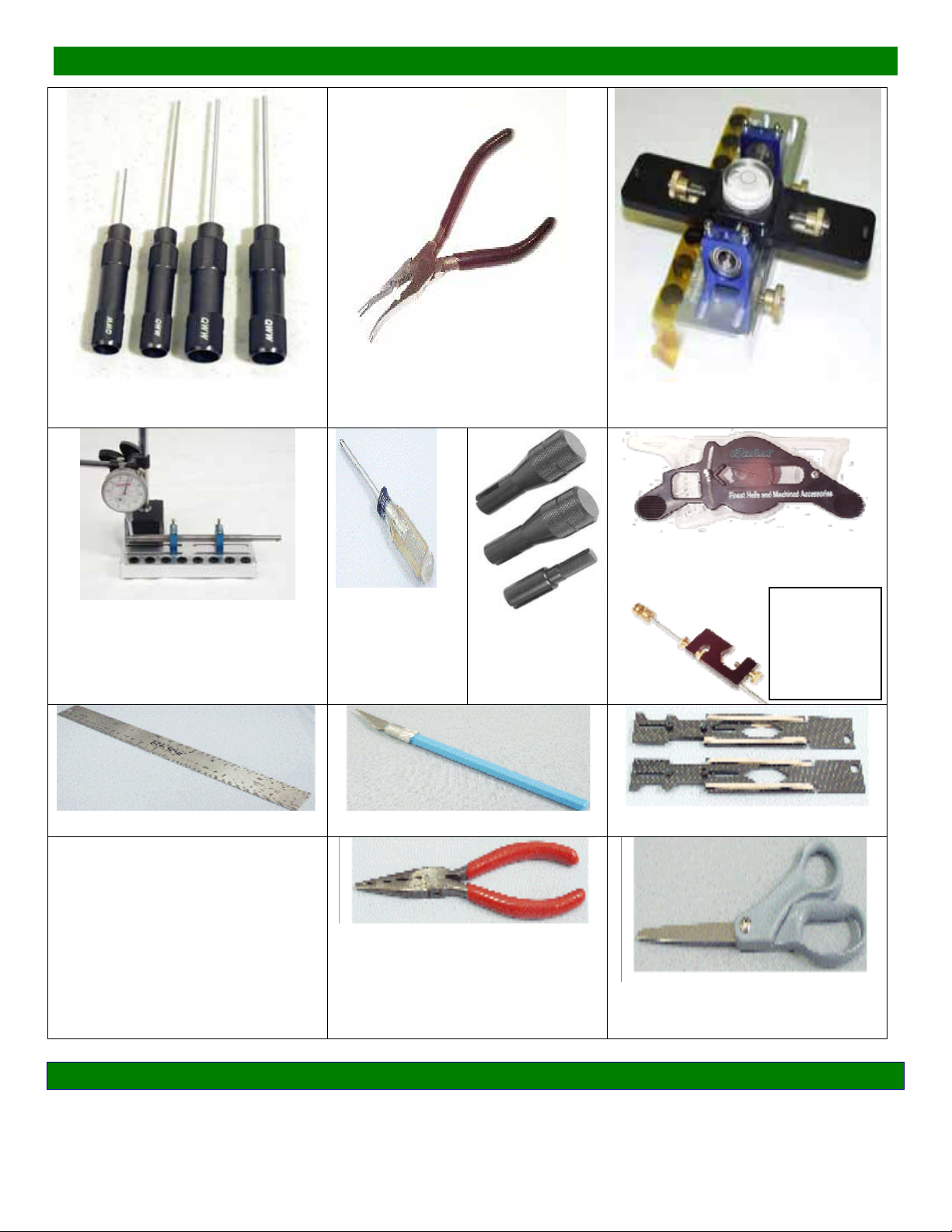

REQUIRED TOOLS
Dremel Tools and sandpaper would be helpful for building.
HHI 7332 (4) piece Allen Driver Set
HHI 7052 Ball end drivers
MAT 1001
Ball link pliers set
HHI 7010
Bubble Balancer
HHI 7005
Shaft Checker
Phillips Screw
Driver
Ball end drivers
HHI7050,7051 +
¼ ADAPTER
Pitch Guage
HHI7001
Metric Ruler Hobby Knife
Composite Paddle Guages
Needle Nosed Pliers
Scissors
Universal
Fly bar
Lock
HHI7040

Page 8 of 105
HARDWARE & OPTIONAL ACCESSORIES
GLUES AND THREAD LOCK COMPOUNDS
RADIO MOUNTING ACCESSORIES
Velcro Pads (VEL1)
Receiver Hold down Straps
HHI55** 2 pk $4.99 (yellow, orange, Pink, Black)
HHI55-4 4 pk $8.99 (2yellow &
2orange or 2Pink & 2Black)
Wire Ties
HHIWT01X Spiral Wrap
HHI2811 3’ Combo Pk (3’ small, 3’ medium)
HHI2812 5’ Combo Pk (5’ small, 5’ medium)
HHI 2200
Receiver Strong Box

Page 9 of 105

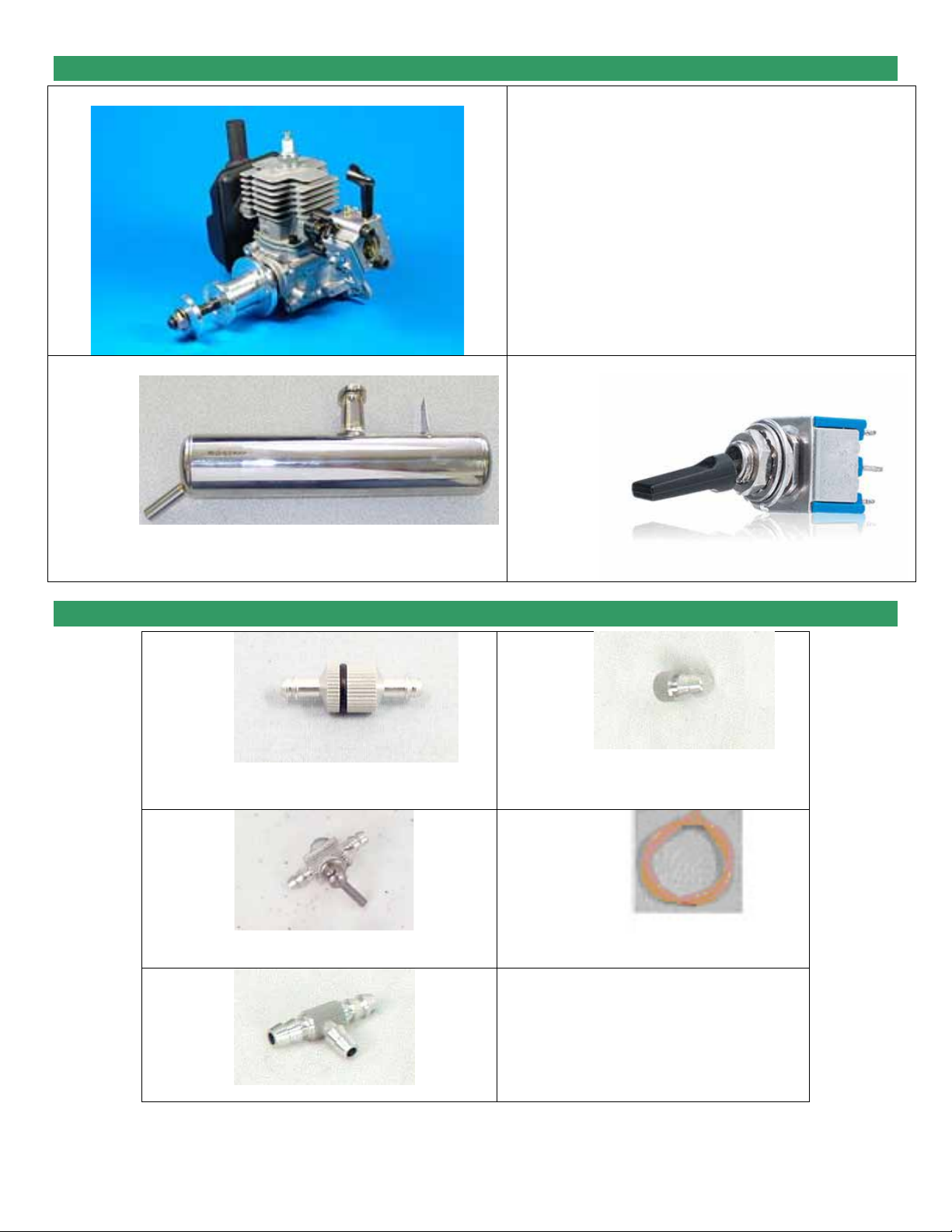

ENGINES, SPARK PLUG, ENGINE KILL SWITCH AND EXHAUST SYSTEM
ENGINES: we recommend Zenoah G200PUH
Tuned Pipes
TK4000
MUFFLER
Zimmerman TK 4005-2
ENGINE KILL SWITCH
FUEL SYSTEM
Fuel Filter Part # QUI9002
Tube Ends Part # QUI9001
Mini Cock Straight Part # QUI9
Dubro #505
Tygon Fuel Tubing
Triangle Joint Part # QUI9

Page 10 of 105
OTHER HARDWARE & OPTIONAL ACCESSORIES

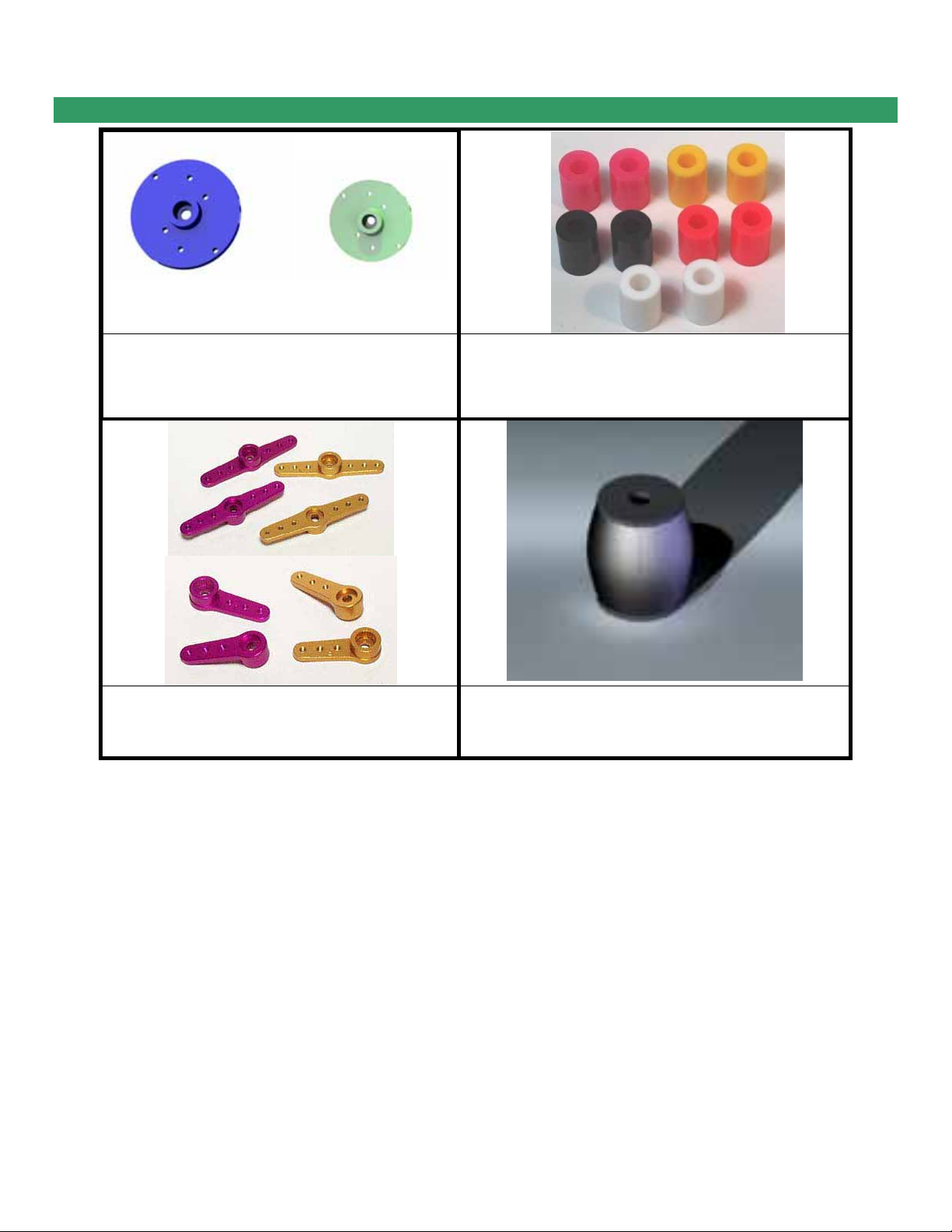

Servo Wheels
HHI1010B(blue), HHI1010G(GOLD)
60 SIZE SKID STOPS
HHI 200 AVAILABLE IN COLORS
SERVO ARM SET HHI 2004B LANDING GEAR DAMPENERS

Page 11 of 105
BASE LOAD ANTENNA
HHI 53**
AVAILABLE IN BLUE, GOLD, PURPLE
AND IN 40, 50, AND 72 MHz
FINISHING CAPS
•Adds color and style
•Distributes force across larger surface area
3mm 4mm
(20 pcs in a package) (8 pcs in a package)
BLACK HHIM11100B HHIM11100
BLUE HHIM11103 HHIM11108
GOLD HHIM11101 HHIM11106
GREEN HHIM11100G ---
PURPLE HHIM11100 HHIM11105
RED HHIM11100R ---
SILVER HHIM11100 HHIM11107
W
ITH
W
ITHOUT

Page 12 of 105
OTHER REQUIREMENTS
Radios:
Any radio that supports EMS/CCPM Mixing will work fine.
Note: Please consult the instruction for your Gyro for setting the overall travel and
limits to ensure proper operation and travel of Tail Pitch Slider.
Servos:
Any premium, sport, or high quality servo will offer acceptable performance.
However, because servos operate all critical functions of the helicopter, they can be the
single most important component that contributes to proper function of the helicopter. Due
to the nature of EMS collective, we suggest the use of digital servos to enhance and ensure
matched servo timing without servo interaction.
Loctite Warning (CRITICAL):
This is a general warning about the use of Loctite and
its importance. Loctite must be used anywhere that a metal
fastener i.e. (M2, M3, M4 Cap Head Bolts, Set Screws etc.) is
threaded into a metal part i.e. (Bearing Blocks, Cross-members,
etc.). Failure to use Loctite can result in loosening of critical
operating components, loss of control of the model, and can
lead to a crash.

Page 13 of 105
PART LIST
•In your kit, parts are bagged according to each major assembly and are labeled “Bag
1, Bag 2, etc.” You will note that the heading for each assembly indicates which bag correlates with
each assembly.
•For a good installation, only open up the bags that you need for particular assembly.
•Please check the parts in that bag against the parts list shown for each assembly as well
as each subassembly to make sure there are no missing parts.
•Small parts such as nuts and bolts can be put into containers or trays to prevent losing
parts.
•Part No. with ***** means that part is not included in the kit.
•The colors of drawings and appearances of parts in this manual may look different from
the parts you have in the kit.
No. Bag No. Description Qty Check
1 Bag 1 For Upper Frame Assembly 1
2 Bag 2 For Lower Frame Assembly 1
3 Bag 3 Landing Gear 1
4 Bag 4 Driving System 1
5 Bag 5 For Tail Assembly 1
6 Bag 6 Control System 1
7 Bag 7 Head Rotor 1
8 Bag 8 Linkage 1
9 Frame Frame 1
10 HB Hardware Bag 1
11 Loose in
Box
Canopy
Carbon Rudder Push Rod
Carbon Boom Support
2.5mm Carbon Linkage Rod
Tail Timing Belt
Tail Boom
Fly bar
Fuel Tank and Accessories
Decal Sheet
Instruction CD
Canopy Template
1
1
2
3
1
1
1
1
1
1
1

Page 14 of 105
Step 1
Read the entire manual to become familiar with the layout of the machine and
these instructions. Verify the parts in each bag with the Pick list that came with your kit. Be
careful to set up a good work area so parts do not get lost and always reseal the bags
when you are finished working or have taken out the parts you plan to install in the current
work session.
Secure and organize the tools you need at your work area so they are close by
when you need them, you will thank yourself later. Check the assembly table for each
section to find the tools and parts you will need before you start.
It is easiest to build the main assembly in the order given here although separate
sub assemblies such as the head, washout, swashplate, and tail assemblies can be built at
any time and set aside for when you need them for the main assembly. Shown below is the

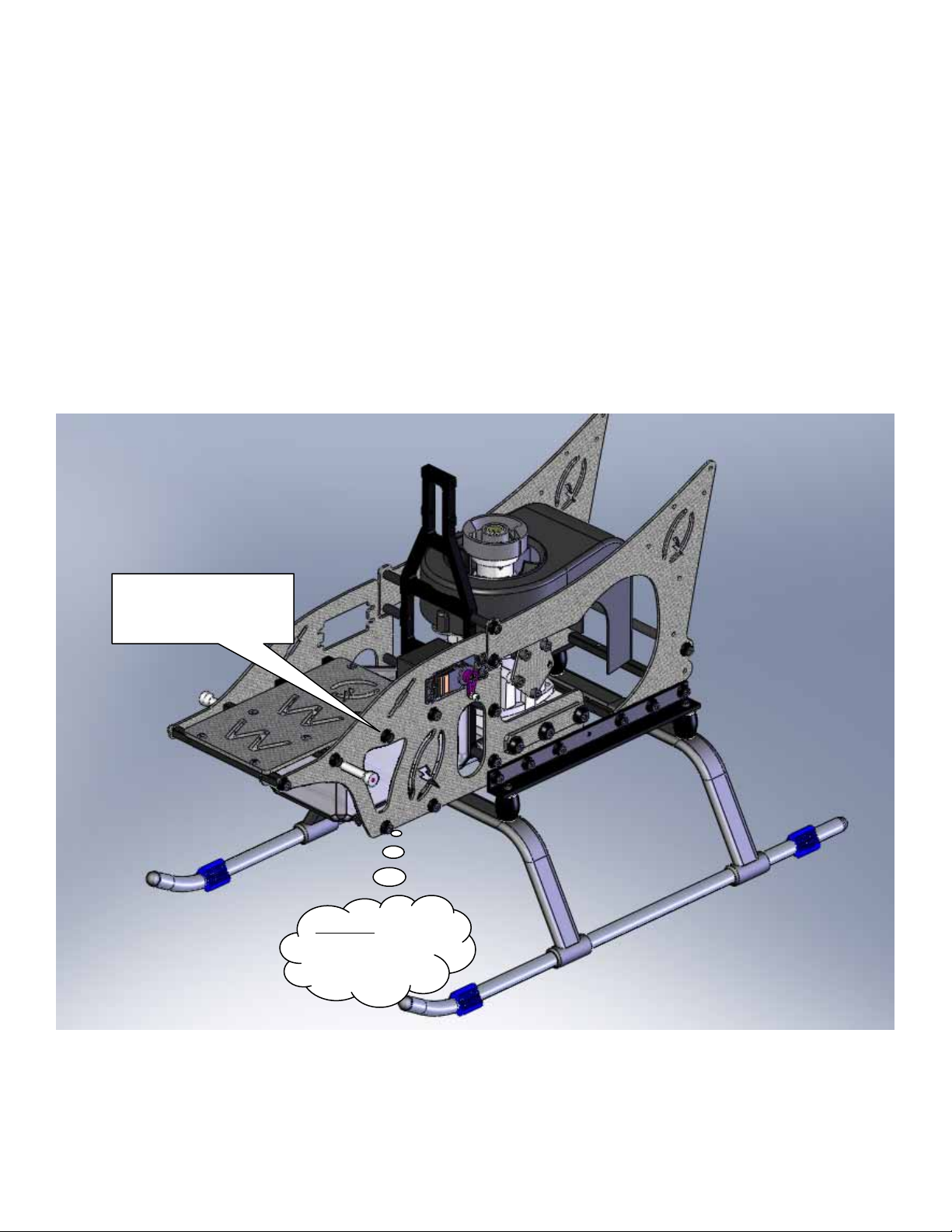

finished Lower frame assembly with engine installed.
Left side: As if
you were sitting
in the pilot’s seat.
Optional Finishing Caps
for extra holding power

Page 15 of 105
Step 2

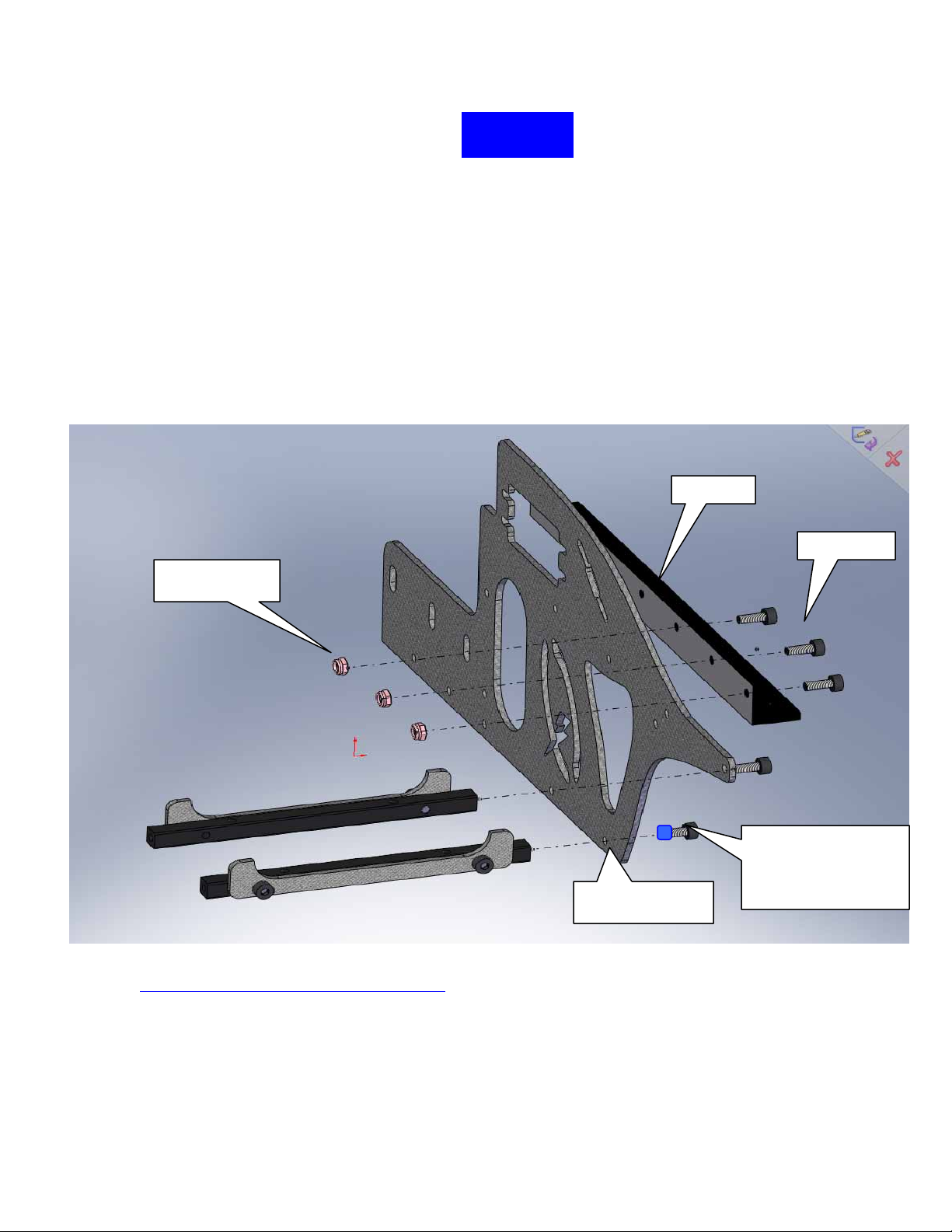

Check and layout the parts for the lower frame assembly. The table below shows
the parts and tools necessary for this work session. Building this part first will give you a strong
base for the entire assembly. It will help to keep your hands free eliminating the need for a
third hand.
ITEM
NO. QTY PART NO. DESCRIPTION
1 1 QF654 Little Dominator Bulkhead
2 8 QFG018 Frame spacer
3 2 QFG004B_LD Lower Front Frame Little Dominator
4 2 QFG006LD Little Dominator Lower Frame
5 2 QF604 Frame Angle
6 4 Fuel Tank Frame Assembly
7 1 QFG015C_LD Radio Tray Carbon
8 2 QFG014 3X6X100 SQUARE CROSS MEMBER
9 4 QFG009 100MM CROSS MEMBER
10 1 QF501A Q-50-60-70-90 GAS TANK
11 1 Servo and Throttle arm
12 2 QF328FL M3x6x28 Short Canopy standoff
13 32 HHI3M08C DIN912-12 M3x8 SHCS
14 4 HHI3M25C DIN912-12 M3x25 SHCS
15 6 HHI3MFLN M3 Flat Locknut
16 8 HHI3M06FH 3mm x 6mm Flathead screws
ITEM# TOOL
1 3mm SHCS Allen Head Driver
2 3mm Nut Driver

Page 16 of 105
2-1 FUEL TANK SUB FRAME ASSEMBLY
No. Part# Description QTY
1 QFG014 M3X100 Square Cross 4
2 QFG013 Fuel Tank Sub frame 4
3 HHI3M08C M3x8 Cap Head Bolt 8

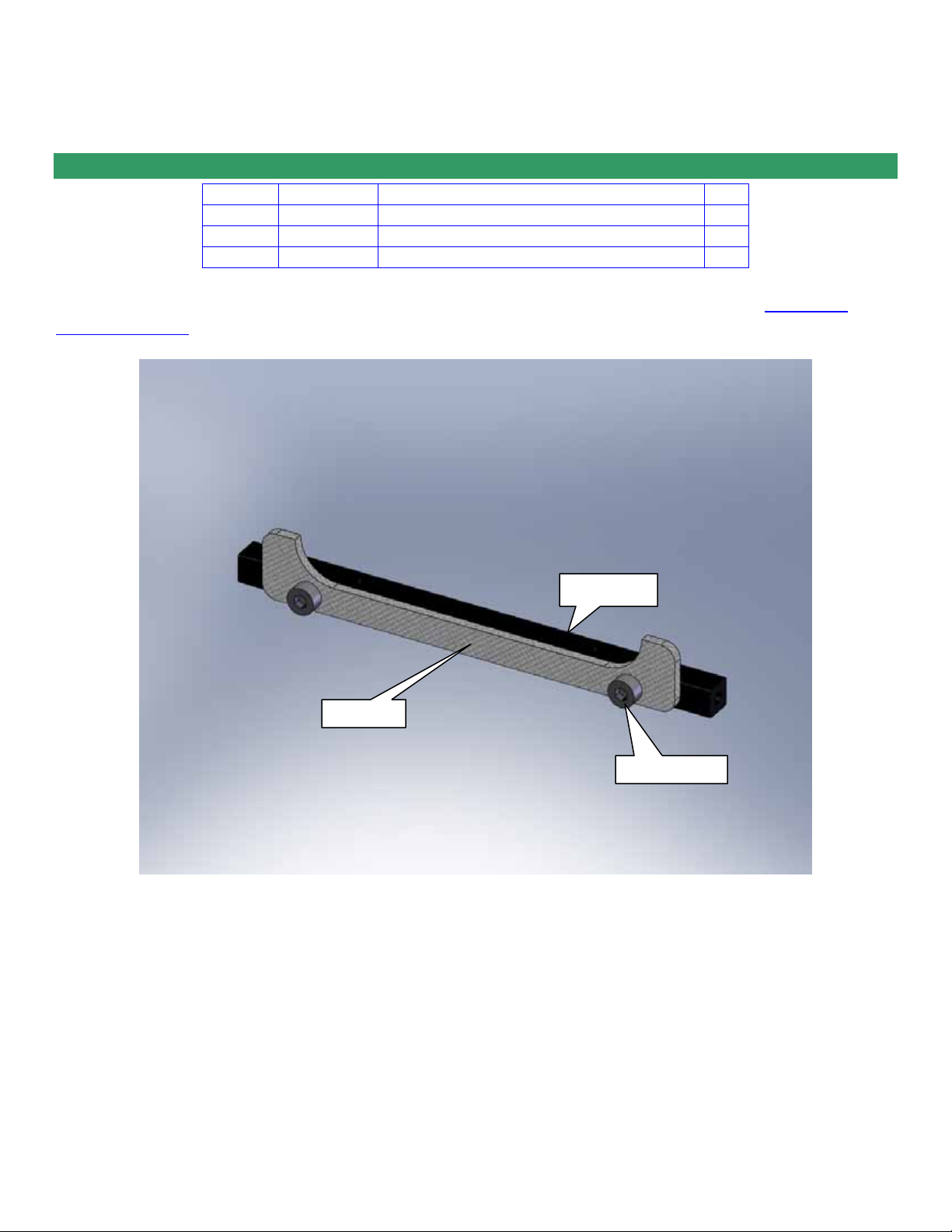

Assemble the frames to the crossmembers with 2-(3mm x 8mm SHCS).Fuel Tank
Frame Assy.avi
Set these aside and proceed to step 3.
Q
FG014
QFG013
HHI3M08C

Page 17 of 105
Step 3
Attach the gas tank assemblies to the right lower frame with two 3 x
8mm SHCS as shown below. Be sure to face them away from each other as it
will make the area that touches the tank larger and more stable. Use a frame
angle or any flat surface to press against the bottom of the crossmembers
making them aligned parallel to each other as you tighten them. Now the
frame piece will stand up while you work on it. Next attach the frame angle
through the first three holes of the frame angle and the last three holes of the
frame. Use 3 x 8mmSHCS for the nuts and a 3mm locknut as shown below.
Lower Frame Assembly(step 2).avi
HHI3M08C
Use a little dab of blue
Loctite for the
crossmember screws.
QF604
QFG004B_LD
HHI3MFLN
HHI3M10

Page 18 of 105
Step 4
Attach bulkhead to left side of frame:
Insert 3 x 25 mm screws through holes as shown. Put a standoff QFG018 on each
one and thread into bottom two holes of bulkhead.
HHI3M25C
QFG018RND
QFG654
Again blue
Loctite here
Shown to the left with finishing Caps applied to the
frame and frame angle.

Page 19 of 105
Step 5
Attach right side of frame:
Take right side of frame and insert two 3mm x 25mm screws as shown. Slide on the
standoffs and attach to bulkhead. Insert screws for fuel tank sub assemblies and the lower
frame will now stand on its own, giving you a solid base from which to build.
Q
FG0018RND
HHI3M12C
HHI3M25C
Again apply a little
dab of Loctite to these
screws.

Page 20 of 105
Step 6
Attach Right Side Frame Angle:
Insert 3mm x 12mm socket head cap screw through third hole in right side frame
angle, then through the last bottom hole in the right side front lower frame, then thread into
cross member 3. Insert a 3mm x 8 mm SHCS through the holes as shown and assemble with 3
mm flat locknuts.
HHI3MFLN
HHI3M10C
Q
F604
