HOMCOM 823-039V70CW User manual

1
IN221200127V01_UK
823-039V70CW
Mobile air conditioner.
ASSEMBLY INSTRUCTION
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY

2
CONTENTS
Safety--------------------------------------------------------------------1
Identification of parts--------------------------------------------------8
Control panel Remote-------------------------------------------------9
controller Protection--------------------------------------------------11
Maintenance-----------------------------------------------------------13
Trouble shooting ------------------------------------------------------14
Installation
Accessories and Select the best location-------------------------15
Installation

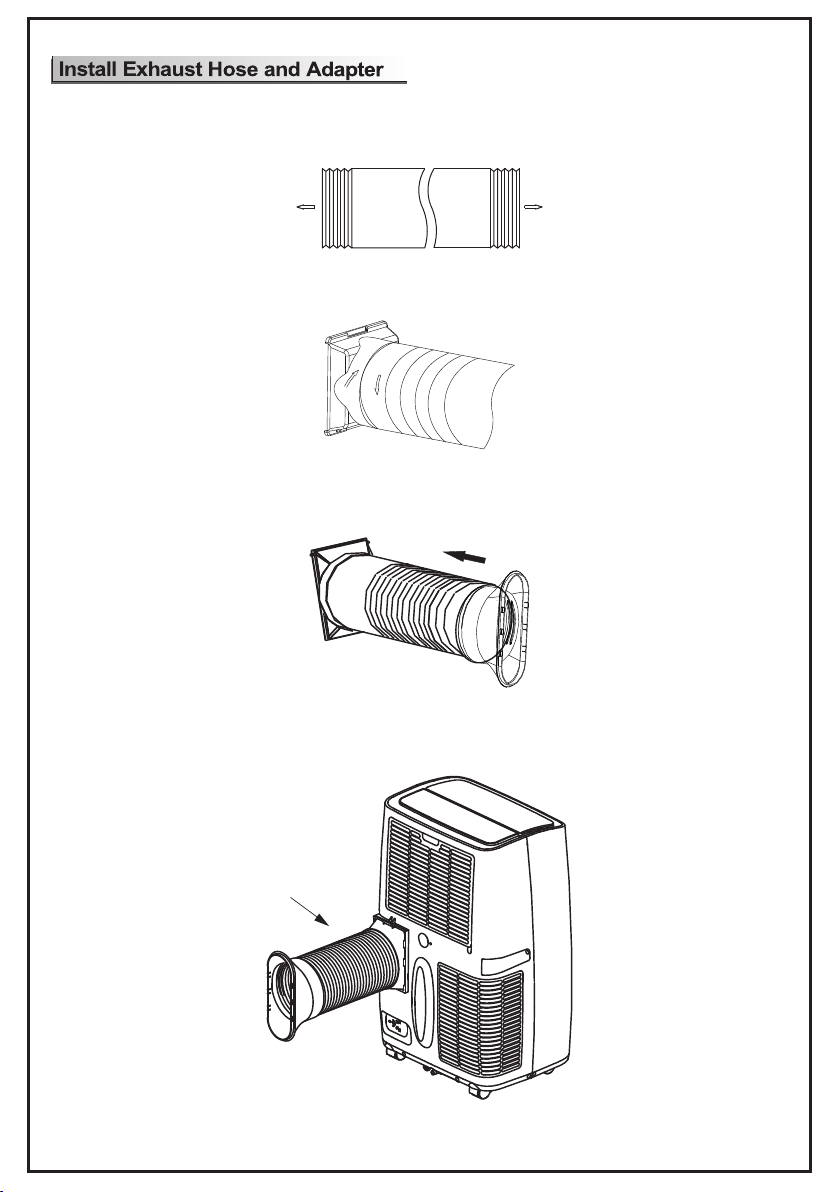

Install Exhaust Hose and Adapter----------------------------------18
Technical Specification---------------------------------------------- 19

3
Safety
Before you start:
Please read the following instructions carefully and retain for future
reference.
CAUTION: FIRE, ELECTRIC SHOCK, PHYSICAL INJURY AND
PROPERTY DAMAGE HAZARDS.
● When using, assembling and maintaining the air conditioner, always follow
these instructions.
● Do not wet the housing or control panel.
● Do not cover the air outlet while in use.
● Do not allow children to play with the control or drop any objects into the air
outlet.
● Do not place any objects or sit on top of the unit.
● Always turn off and unplug the unit when cleaning.
● Do not attempt to remove any part of the casing, unless you are an
authorised technician.
● Remove the plug from the socket if the unit is not being used for long
periods.
● Always connect this appliance to a 220-240 V~ mains power socket.
● Do not operate the unit with a damaged plug or loose socket.
● Do not use ways to accelerate the defrosting process or to clean, other than
those recommended by the manufacturer.
● Do not store the appliance near sources of heat, such as open flames,
operating gas or an electric heater.
● Do not pierce or burn. Be aware that refrigerants may not contain an odour.
● Ensure the appliance is placed, used and stored in a room with a floor area
2
larger than 12.5m .
WARNING: KEEP VENTILATION OPENINGS CLEAR OF
OBSTRUCTION.
● Servicing shall be performed only as recommended by the
manufacturer.
WARNING: KEEP THE APPLIANCE IN A WELL-VENTILATED AREA,
WHERE THE ROOM SIZE CORRESPONDS TO THE ROOM AREA AS
SPECIFIED FOR OPERATION.

4
● Never use sources of ignition when searching for refrigerant leaks. Do not
use a halide torch (or any other naked flame).
● For leak detection, the use of detergents containing chlorine must be
avoided.
● If a leak is suspected, all naked flames shall be removed/extinguished.
● Call the service agent immediately and keep far away from the product.
● If disposal is needed, please contact the service agent or authorised
personnel to do it. Do not dispose the product yourself.
● Install the appliance in accordance with national wiring regulations.
● The maximum refrigerant charge amount: 200g.
● Keep the appliance in a ventilated area. If there is a refrigerant leak, there is
less likely of a explosion or fire hazard happening.
● Check cords regularly, ensuring there is no damage, wear or corrosion.
● The following leak detection methods are deemed acceptable for systems
containing flammable refrigerants.
● Electronic leak detectors shall be used to detect flammable refrigerants, but
the sensitivity may not be adequate or may need recalibration (detection
equipment shall be calibrated in a refrigerant-free area).
● Ensure the detector is not a potential source of ignition and is suitable for the
refrigerant used.
● Leak detection equipment shall be set at a percentage of the LFL of the
refrigerant and shall be calibrated to the refrigerant employed and the
appropriate percentage of gas (25% maximum) is confirmed.
● Leak detection fluids are suitable for use with most refrigerants, but the use
of detergents containing chlorine shall be avoided as the chlorine may react
with the refrigerant and corrode the copper pipe.
● If a leakage is found which requires brazing, all of the refrigerant shall be
recovered from the system, or isolated (by shutting off valves).
● Oxygen free nitrogen (OFN) shall then be purged through the system both
before and during the brazing process.
● Before carrying out this procedure, it is essential that the technician is
completely familiar with the equipment and all its detail. It is recommended
that all refrigerants are recovered safely. Prior to the task being carried out,
an oil and refrigerant sample shall be taken, in case analysis is required
before reusing the reclaimed refrigerant. It is essential that electrical power
is available before the task is commenced.
● Become familiar with the equipment and its operation.
● Isolate system electrically.
● Before attempting the procedure, ensure that:
– Mechanical handling equipment is available, if required, for handling
refrigerant cylinders.
– All personal protective equipment is available and being used correctly.
– The recovery process is supervised at all times by a competent adult.
– Recovery equipment and cylinders conform to the appropriate standards.

5
● Pump down refrigerant system, if possible.
● If a vacuum is not possible, make a manifold, so the refrigerant can be
removed from various parts of the system.
● Make sure that cylinder is situated on the scales before recovery takes place.
● Start the recovery machine and use in accordance with manufacturer’s
instructions.
● Do not overfill cylinders (no more than 80% volume liquid charge).
● Do not exceed the maximum working pressure of the cylinder, even
temporarily.
● When the cylinders have been filled correctly and the process completed,
make sure the cylinders and the equipment are removed from site promptly
and all isolation valves on the equipment are closed off.
● Recovered refrigerant shall not be charged into another refrigeration system,
unless it has been cleaned and checked.
● Label all equipment, stating that it has been decommissioned and emptied
of the refrigerant. The label must be dated and signed.
● Ensure there are labels on the equipment, stating it contains flammable
refrigerant. When removing the refrigerant from a system, either for servicing
or decommissioning, it is recommended that all refrigerants are removed
safely.
● When transferring the refrigerant into cylinders, ensure that only appropriate
refrigerant recovery cylinders are employed. Ensure the correct number of
cylinders for holding the total system charge are available. All cylinders to be
used are designated for the recovered refrigerant and labelled for that
refrigerant (i.e. special cylinders for the recovery of refrigerant). Cylinders
must be complete with a pressure relief valve and associated shut off valves.
Empty recovery cylinders are removed and, if possible, cooled before
recovery occurs.
● The recovery equipment must be in good working condition, with a set of
instructions concerning the equipment that is at hand and shall be suitable
for the recovery of flammable refrigerants. In addition, a set of calibrated
weighing scales are available and are in good condition. Hoses shall be
complete with leak-free disconnect couplings and in good condition. Before
using the recovery machine, ensure it is in satisfactory working condition,
has been properly maintained and that any associated electrical components
are sealed to prevent ignition in the event of a leak. Consult the manufacturer
if in doubt.
● The recovered refrigerant shall be returned to the refrigerant supplier in the
correct recovery cylinder, and the relevant Waste Transfer Note arranged. Do
not mix refrigerants in recovery units and especially not in cylinders.
● If removing compressors or compressor oils, ensure they have been
evacuated to an acceptable level, so the flammable refrigerant does not
remain within the lubricant. The evacuation process shall be carried out prior
to returning the compressor to the suppliers. Only electric heating to the
compressor body shall be employed to accelerate this process. When oil is
drained from a system, it shall be carried out safely.

6
● Service shall only be performed as recommended by the equipment
manufacturer. Maintenance and repair operations requiring the assistance of
other skilled personnel shall be carried out under the supervision of the
person competent in the use of flammable refrigerants.
● Any person who is involved with working on or breaking into a refrigerant
circuit, should hold a current valid certificate from an industry-accredited
assessment authority, which authorises their competence to handle
refrigerants safely in accordance with an industry recognized assessment
specification.
● Please note, this product has non-serviceable parts. The coolant gas in this
appliance cannot be replaced.
● Under guided supervision, this appliance can be used by children aged eight
years and above, provided they understand the potential risks and hazards.
Under guided supervision, the appliance can be used by persons with
disabilities or persons without experience, provided they understand the
potential risks and hazards.
● Children shall not play with the appliance.
● Cleaning and user maintenance shall not be made by children without
supervision.
● Ensure there is at least 31cm of space between the wall and back of the unit.
Keep the unit away from curtains or drapes, so they cannot fall against the
back air intake.
● If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons to avoid a hazard.
● If using this appliance with an extension lead, do not exceed the maximum
rated wattage.
● Do not use this appliance in bathrooms or wet environments/locations.
● Appliance must not be used in closed cupboards or changing rooms.
● Do not cover the appliance with clothing or other fabrics.
● Appliance must be kept at a suitable distance from walls, furniture and
curtains to prevent overheating due to poor ventilation.
● Do not use the appliance if no one is at home. If you are away for long
periods, turn off the power and remove the plug from the socket.
● The filter should be cleaned or replaced periodically to prevent insufficient air
flow, caused by a build up of dust. Poor air flow will cause overheating,
reduce the performance of the unit and add more hazard risks.
● This appliance is designed for INDOOR DOMESTIC USE ONLY.
● Do not install the appliance in a laundry room.

7
RECYCLING & DISPOSAL
The packaging of your new product has a recycle mark on it.
Please dispose of it as recycled paper. Waste electrical products
should not be disposed of with general household waste. This is to
prevent the possible harm to the environment and human wellbeing.
Contact your local council or government for information, regarding the
collection schemes in your area.
CAUTION
RISK OF FIRE

8

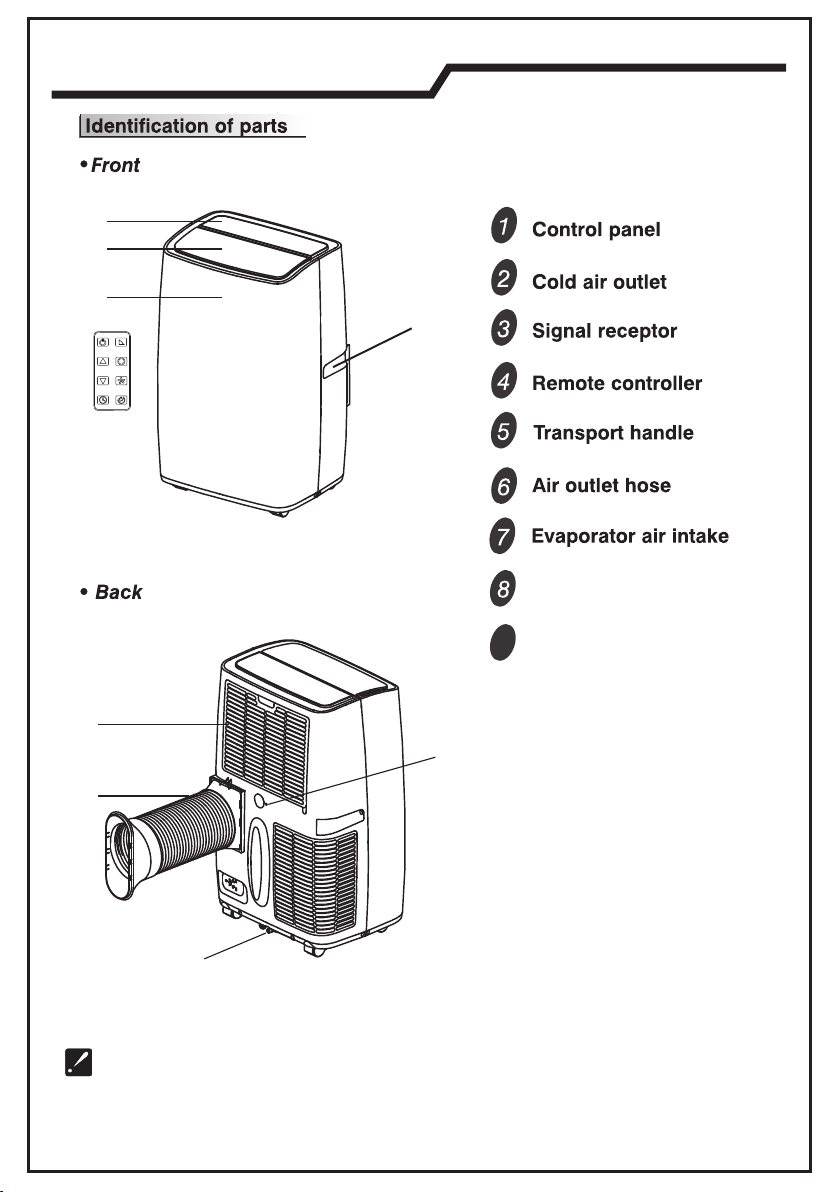

Identification of parts
4
5
1
2
3
7
8
6
The figures in this manual are based on the external view of a standard model.
However, the shape may differ from that of the air conditioner you have selected.
9
Lower drain port
Upper drain port
9

9
FAN

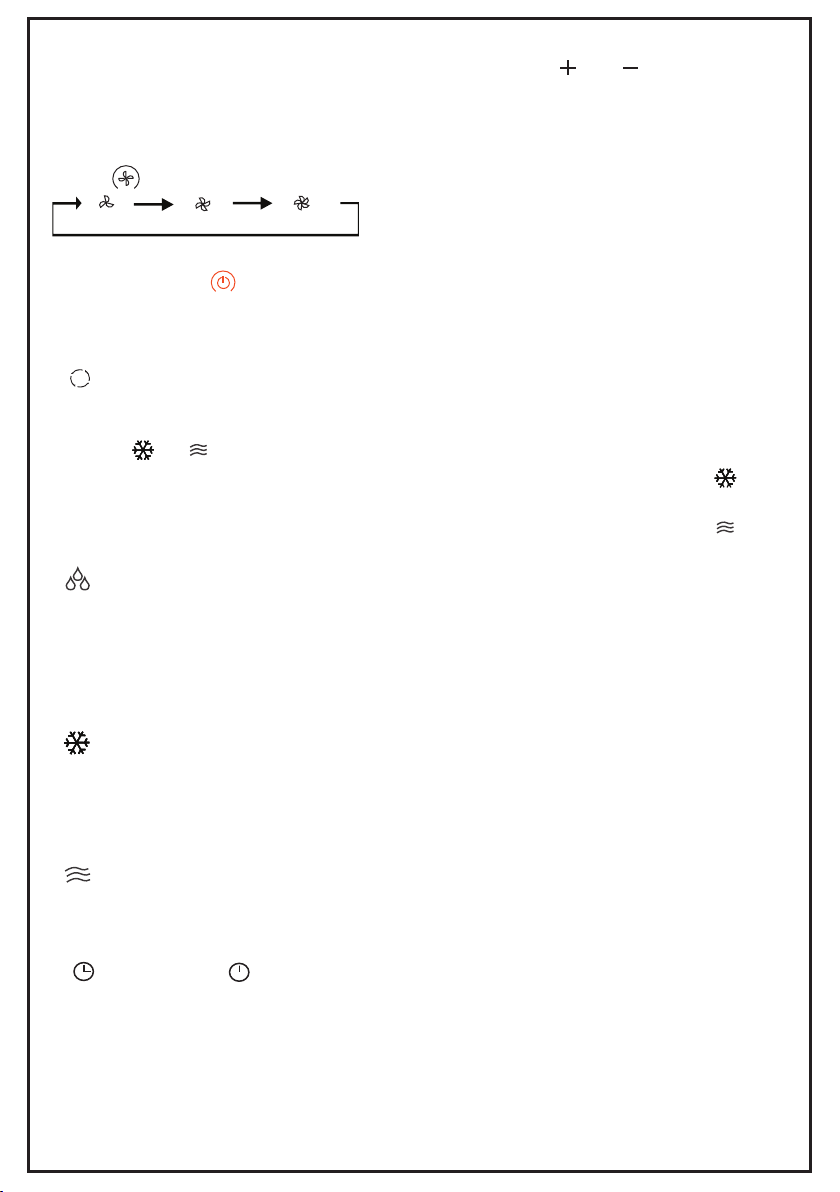

Control Panel
This section explains how to use this appliance.
Low fan speed
Automatic swing
Dehumidify
Automatic
Middle fan speed
Cool
Timer on
High fan speed
Fan
Timer off
Control Panel Operation
● Automatic, cool,fan and dehumidify.
1. Turn on the unit
a) Plug in - the unit beeps once.
b) Press to turn the unit on.
The LED displays the room temperature.
Press the button again to turn the unit off.
2. Select operating mode
Press - each time the mode will circle as below. When the mode indicator
flashes and no button is pressed for several seconds, the operation mode will
be selected.
Indicators
3. Adjust Temperature
When in cool mode, the temperature can be set between 15- 31 °C.
Press or once to increase or decrease the temperature by 1 °C.
The unit LED shows the target temperature for five seconds, then displays the
room temperature.

10
To Shift the unit between Celsius and Fahrenheit, hold and
simultaneously when the appliance is on. The corresponding indicator of °C
and °F will light up.
4. Adjust Fan Speed
Press the to select a desired fan speed, as shown below.
5. Power
When you press again, the unit will beep and turn off.
Notice:
Each mode working principle
● Automatic mode
1. Once the automatic operation is selected, the indoor temperature sensor
detects room temperature automatically - it will select the desired operation
mode or °C, the unit will automatically select mode.
2. When the room temperature ≥24°C, the unit will automatically select
mode.
3. When the room temperature ＜24°C, the unit will automatically select
mode.
● Dehumidify mode
1. The up centrifugal fan will run at a low speed. The speed cannot be adjusted.
2. The unit adopts a constant temperature during dehumidifying mode. You
cannot adjust the temperature.
3. If using the dehumidification for long periods, connect the drain hose to the
unit.
● Cool mode
1. When the room temperature is higher than set temperature, the compressor
starts to run.
2. When the room temperature is lower than set temperature, the compressor
stops and upper fan operates at original set speed.
● Fan mode
1. The fan runs at set speed - the compressor does not run.
2. The adjustment of temperature is not effective.
● Timer on and Timer off function
1. Press 'Timer' while the unit is running, so the unit automatically turns off at a
certain time. The icon will be lit.
2. Press 'Timer' while the unit is on standby, so the unit automatically turns on
at a certain time The timer icon be lit.
3. The time can be adjusted between 1-24 hours. Press the temp up (+) or
temp down (-) button to increase or decrease the time one hour.

11
● Sleep mode
1. The operation is effective when the unit is under mode.
2. Press the button in mode, then the unit will work under sleep mode and
the up centrifugal fan will turn to the low speed automatically (the speed icon
light remains on the previous setting). The set temperature will increase by
1°C after one hour, then increase by 2°C after two hours. After six hours the
unit will stop running.
3. Child lock
Press and hold for a few seconds – the display will show ‘LC’ and the child
lock function will be activated. Press and hold the button for a few seconds
again to cancel the child lock function.
● Automatic swing
1. When the swing button is activated, the blade goes up and down
automatically. If you want to stop, press the button again.
Except the 'AUTO' mode, the appliance has memory function: When the
appliance is turned on, it will return to the last mode used.
Remote controller
ON/OFF SWING
UP MODE
DOWN SPEED
TIMER SLEEP

12
Inserting batteries
Remote controller
Slide the cover to open. Be sure the
direction is correct.
1. Open the back cover and take off the isolating film on the batteries.
2. Put the batteries inside the slot, with anode and cathode in the right
directions.
3. Put on the back cover.
Note:
1) The anode and cathode of the batteries must be corresponding to the
signs of '+' and '-' on the remote control.
2) Do not mix new and old batteries.
3) If not using for long periods, take out the batteries.
4) To prevent environmental pollution, take out the used batteries and
dispose safely and appropriately.
● How to Use
To operate the air conditioner, aim the remote controller at the signal
receptor. The remote controller will operate the air conditioner at a distance
of up to 5m (16.4 feet) when pointing at the signal receptor.
Signal receptor

13
5
Dehumidifying
Cooling
5
Protection
●
●
Special reminder: There is condensing water within this unit. The water is
partly kept between the condenser and water plate.
When the water level rises to the upper level, the float switch and water full
indicator (E4) lights on - this is a reminder to drain the water. Please cut off
the power supply, move the appliance to a suitable place, remove the drain
plug and drain water completely. Once drained, reinstall the plug or the
appliance may leak and make your floor wet.
lf the appliance is placed in a position admitting drain water, you also can
connect the drain hose to the drain port to drain water.
Operating condition
Features of protector
Drain water

14
1. If the appliance is not being used for long periods, pull out the primary and
secondary rubber plug from the port, so the water can drain.
2. Keep the appliance running with the fan for half a day, so the inside can dry and
prevent mould.
3. Stop and unplug the appliance, then take out the batteries of the remote control.
Store the appliance properly.
4. Clean the filter and reinstall it.
5. Remove the air hoses and store them properly. Ensure the hole is covered tightly.

15
- The protector trip or fuse has blown.
- Wait for three minutes and start again
- the protector device may prevent the
unit from working.
- Batteries in remote control could be
dead and need replacing.
- Plug is not properly plugged in.
The following cases may not always be a malfunction, please check
suggestions below before asking for service.

16

17
Installation
Installation accessories
4
1
5
3
2
- Beside a window or door.
- There must be at least 60 cm of space between all sides of the unit and the
wall.
- Fix one end of the air hose to the air outlet, which is on the underside of the
appliance.
- Extend the air hose, ensuring the other end of the air hose has space between
the window, door or any other opening.
- Do not block the air outlet or intake.

18

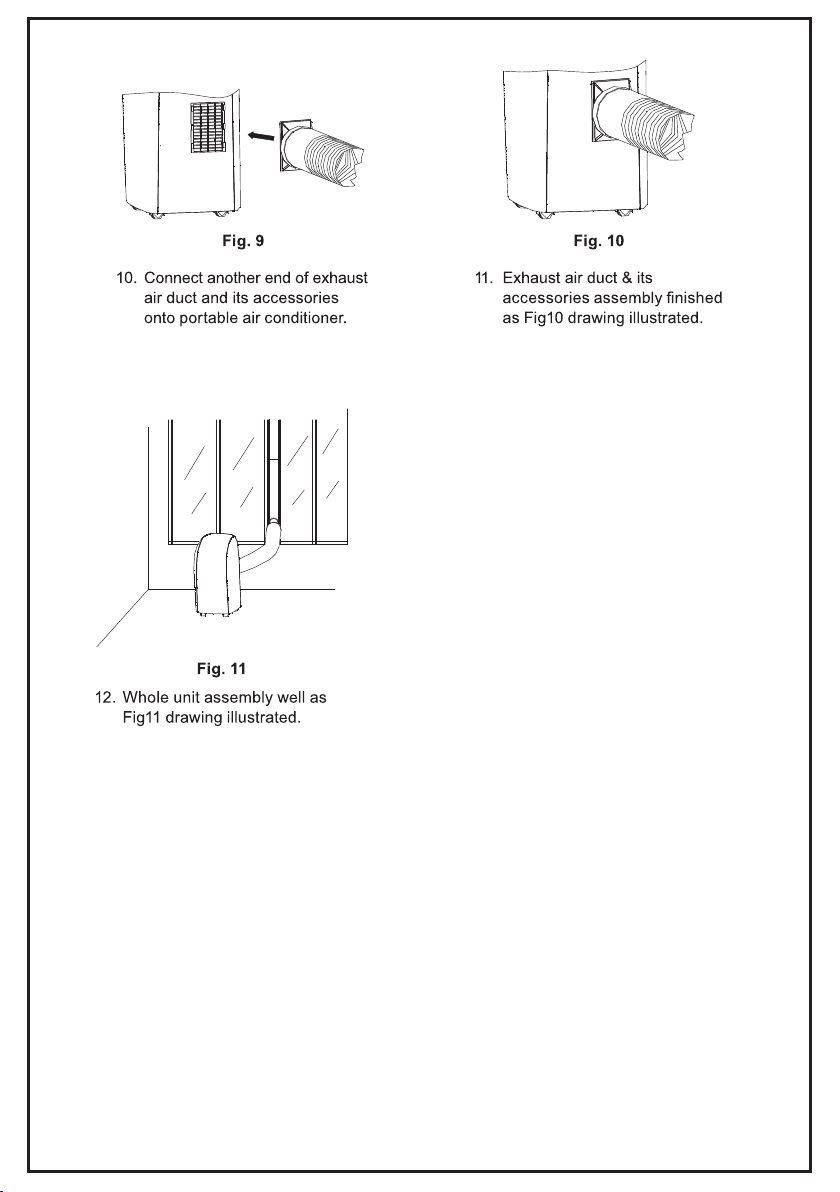

How to connect the connectors to the Air exhaust duct
1. Extend the air exhaust duct by drawing out the two ends of the duct.
2. Screw the air exhaust duct into its connector.
3. Screw the connector of window into the plastic connector.
4. Place the connector of the air exhaust duct onto the unit.

19
Fig. 6

20
