HOMCOM EF140N User manual

1
INSTALLATION AND USER INSTRUCTION GUIDE
IN230500369V01_UK
820-345V73_820-345V74
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
820-345V73 (EF140N)
820-345V74 (EF150N)

2
IMPORTANT: BEFORE USE, READ ALL INSTRUCTIONS CAREFULLY. KEEP THIS
MANUAL FOR FUTURE REFERENCE!
Important Safety Instructions
When using this electrical appliance, follow basic precautions to reduce the risk of fire,
electric shock and injury to persons, including the following:
● Under guided supervision, this appliance can be used by children aged eight years and
above, provided they understand the potential risks and hazards. Under guided
supervision, this appliance can be used by persons with disabilities or persons without
experience, provided they understand the potential risks and hazards.
● Children must not play with this appliance. Only adults should handle the cleaning and
maintenance of this appliance.
● Small children must be constantly supervised when near this appliance.
● Children from three years and less than eight years, shall only switch on/off the
appliance, provided it has been placed in its intended position and they have been given
supervision or instruction concerning the use of the appliance, understanding the
hazards involved. Small children must not plug in, regulate, clean or maintain this
appliance.
● To ensure safe operation, use this heater only with an AC power supply that matches the
voltage marked on the appliance.
● Before switching the appliance on, ensure it is properly installed as described in this
manual.
● To avoid fire hazards, keep this appliance at least one metre away from furniture,
curtains and other flammable materials.
● Never leave the appliance unattended when connected to the mains supply.
● This appliance is for household use only. Do not use for industrial purposes.
● Occasionally check the cord for damage. If there are damages to the cord or any part of
the appliance, do not use the appliance.
● Do not use this appliance if the plug or cord is damaged, or if it has been drooped or
malfunctioned in any way.
● Repairs to electrical appliances should only be performed by a qualified electrician.
Improper repairs may place the user at serious risk.
● Do not run the mains cable under carpets, rugs etc.
● Do not allow the mains cable to hang over sharp edges or touch hot surfaces.
● WARNING: To avoid overheating, do not cover or obstruct the heater in any way.
● Overheating will result if it is accidentally covered.
● Never submerge the product in water or any other liquids.
● Do not use the appliance outdoors.
● Never use this appliance with wet hands.
● Never use the appliance on or near hot surfaces.
● Before cleaning, unplug the appliance and wait for it to cool down completely.
● Do not clean the appliance with abrasive chemicals.
● Never use accessories that are NOT recommended or supplied by the manufacturer. It
could cause danger to the user or damage to the appliance.
● Do not lift the appliance by the front panel.
● CAUTION: To avoid hazards due to inadvertent resetting of the thermal cutout, do not
use this appliance through an external switching device, such as a timer or connected to
a circuit that is regularly switched on and off by the utility.
● WARNING: Do not use this heater in small rooms with people who cannot leave on their
own, unless constantly supervised.

3
● If the supply cord is damaged, it must be replaced by the manufacturer, its service agent
or similarly qualified persons to avoid hazards.
● Do not place the heater directly below a socket outlet.
● Never use the heater near bathtubs, showers, swimming pools or other bodies of water.
● CAUTION — some parts of this product can become very hot and cause burns.
Particular attention must be given where children and vulnerable people are present.
WARNING: To avoid overheating, do not cover the heater.
Getting Started
● Remove the appliance from the box.
● Remove any packaging from the product.
● Place the packaging inside the box and either store or dispose of safely.
Contents of Carton
● Heater
● Wall-fixing bracket
● Fixing screws and wall plugs
● Remote control
● Instruction manual
Helpful Advice before Fitting
● Before throwing away the packaging, check the list to ensure that all parts are present.
● The packaging contains small items. Keep away from small children.
● It is recommended to place all parts into a container. This way, you reduce the risk of
losing small pieces.

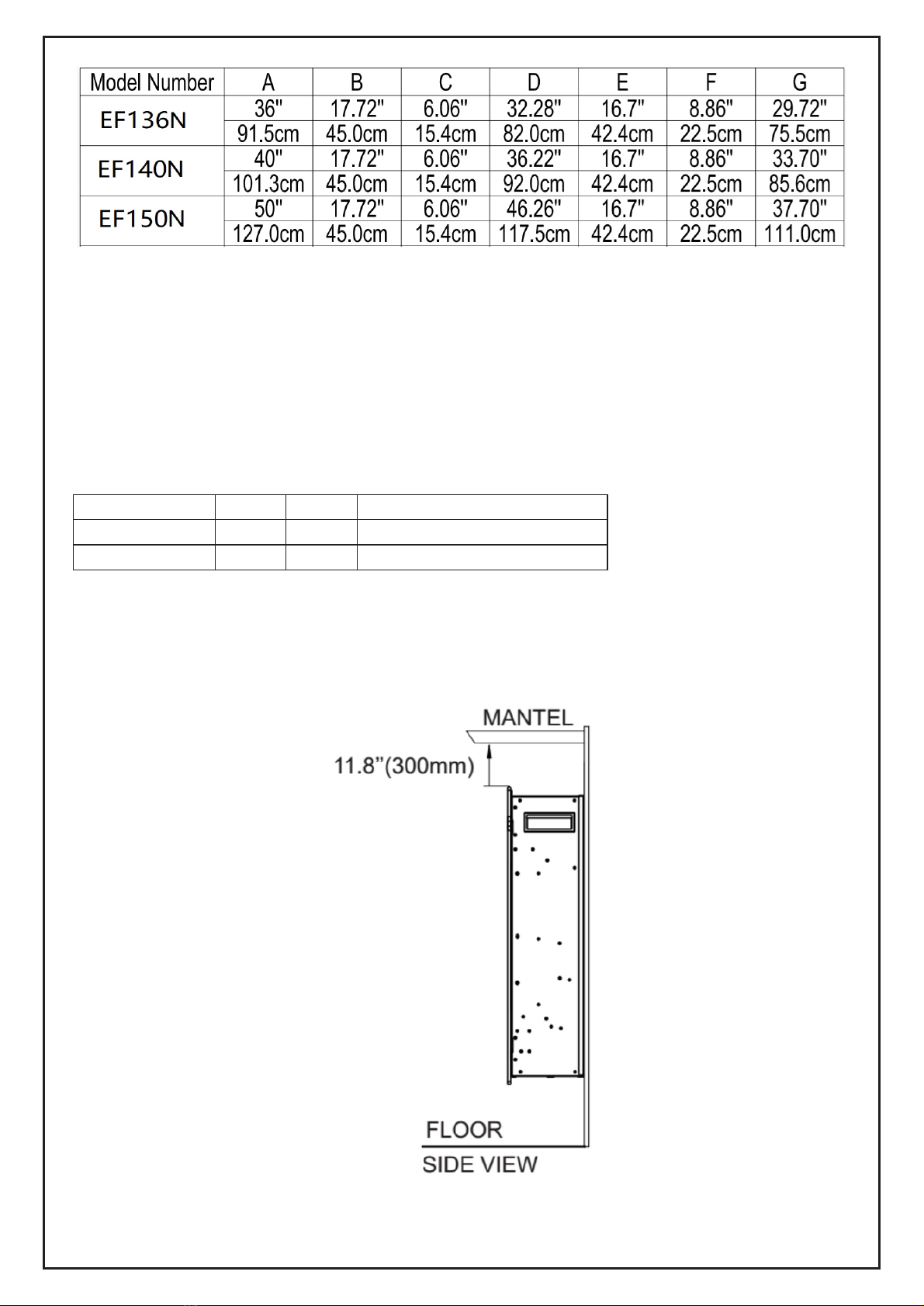

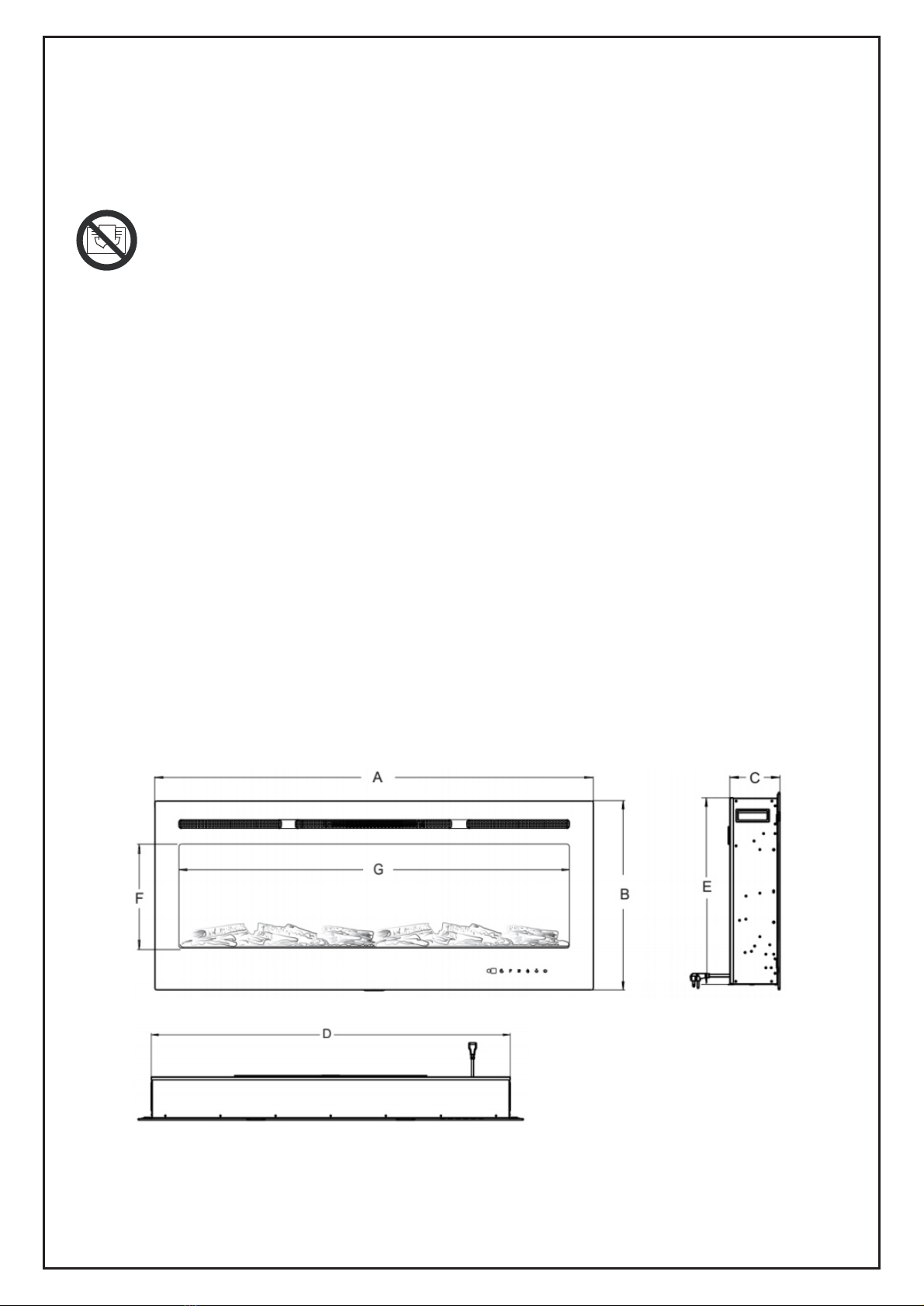

Specification and Dimensions

4
Installation of fixing appliances
This appliance is designed to be mounted to a wall.
Choose a suitable location that is not prone to moisture. Keep the appliance away from
congested areas, furniture and drapes.
NOTE: Follow all national and local electrical codes.
Minimum clearance to combustibles
Note: Measurements are taken from the glass front.
Bottom
Sides
Back
0”
0”
0”
Top
Top
8” (300mm) to mantel
8” (300mm) to ceiling
Minimum clearance to mantel
WARNING: To avoid discolouration, use heat-resistant paint or lacquer when finishing the
mantel.

5
INSERT INSTALLATION
Note: The included wall-mount fasteners are to be used on concrete walls only. For wood
walls, cinder blocks or other wall types, consult a professional for the best attachment
methods.

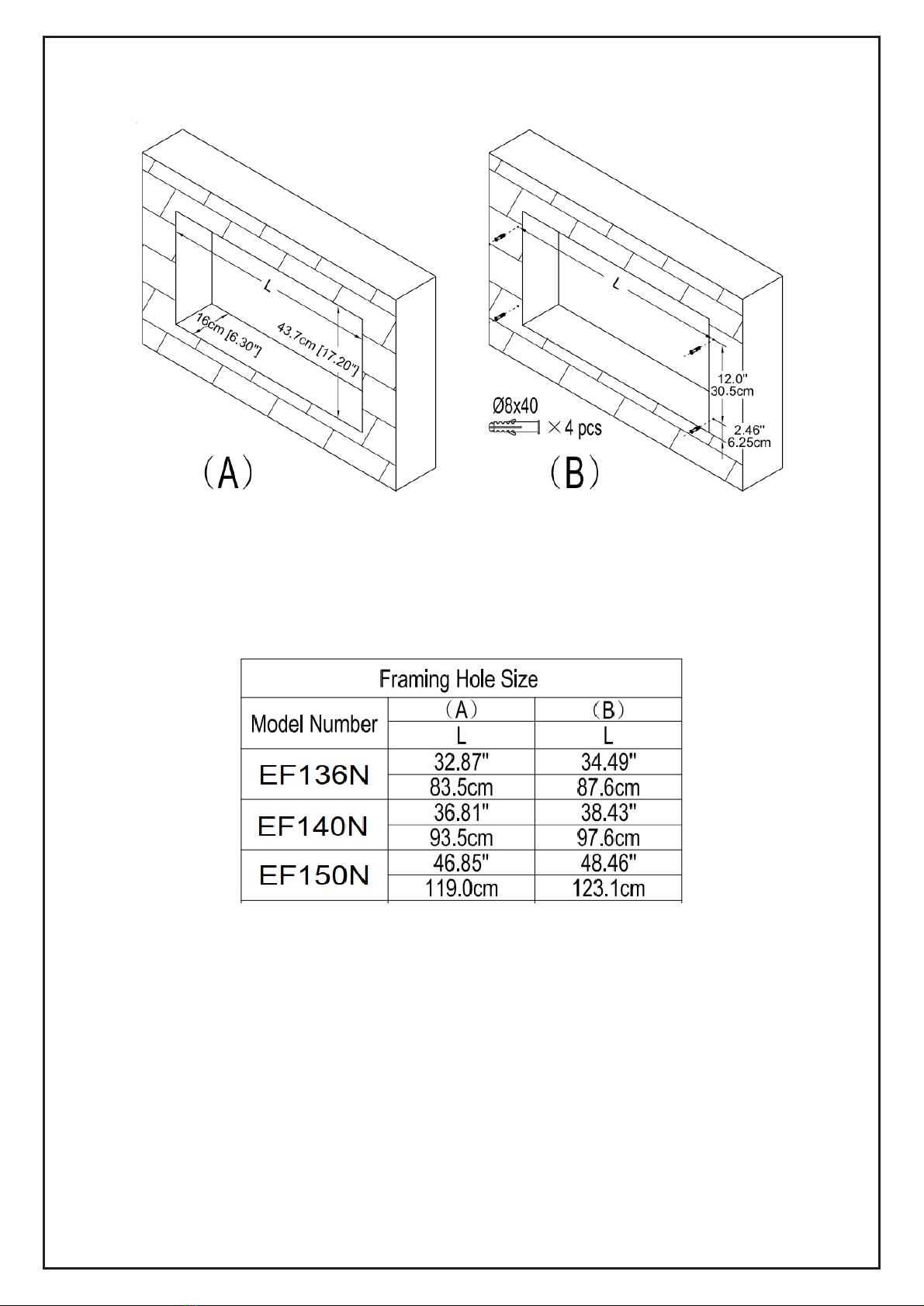

STEP A. Choose a drywall and create an opening for the appliance. Create a hole using
the chart below in Figure (A).
STEP B. Using the dimensions shown in the diagram, attach the four anchors to each side
of the appliance, as shown in Figure (B).

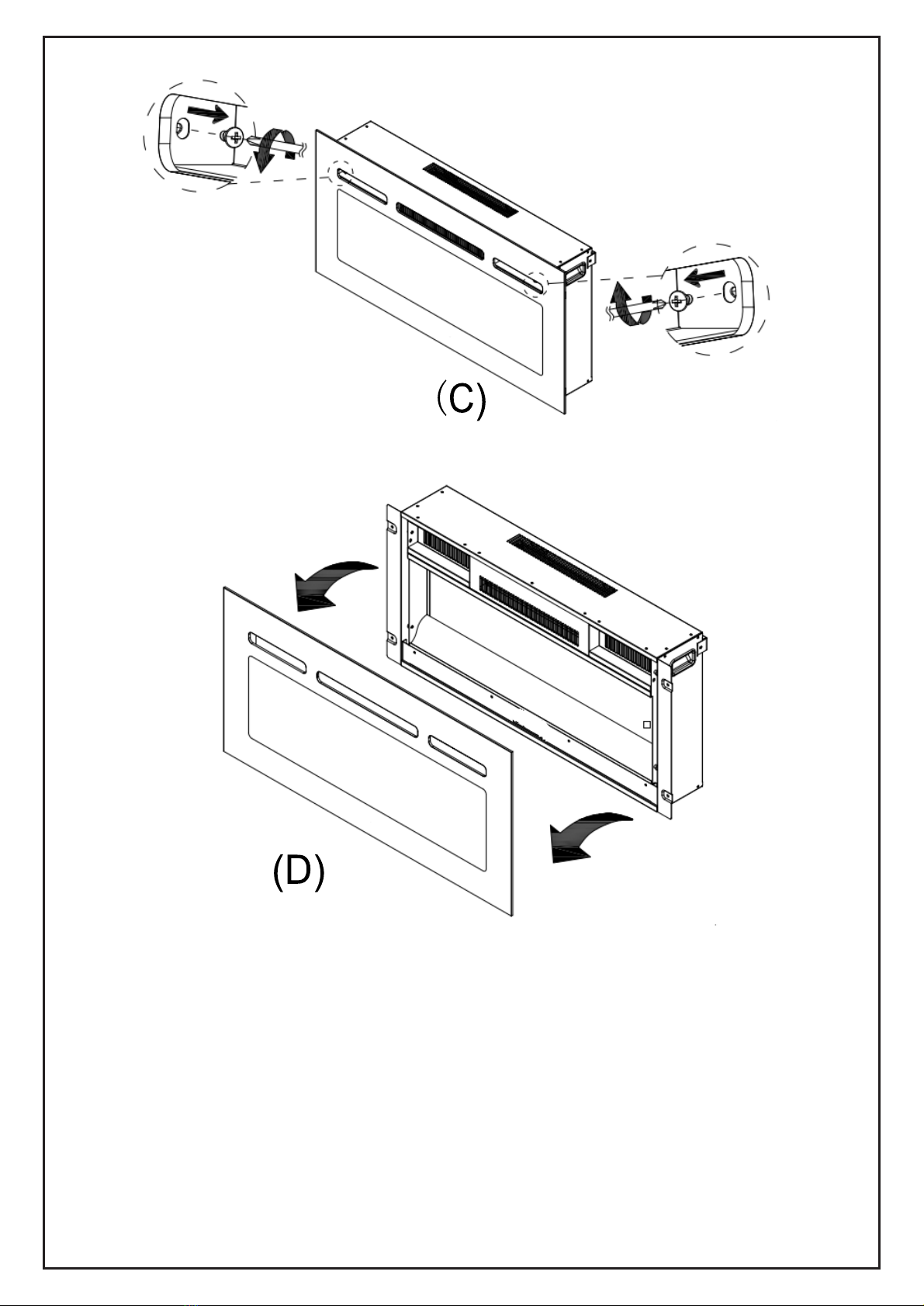

STEP C. Remove the two screws from both sides of the appliance Figure (C).
STEP D. With at least two people, remove the glass panel from the appliance. Place it on a
soft and clean surface, as shown in Figure (D).

6
STEP E. With at least two people, move the appliance into the wall hole.
If the appliance is fully recessed into the wall:
1) Using the four screws provided, secure the appliance to the wall with the existing side
flanges, as shown in Figure (E).
2) Install the fireplace media and reattach the glass front.
STEP F. Place the front panel to secure the appliance, as shown in Figure (F).

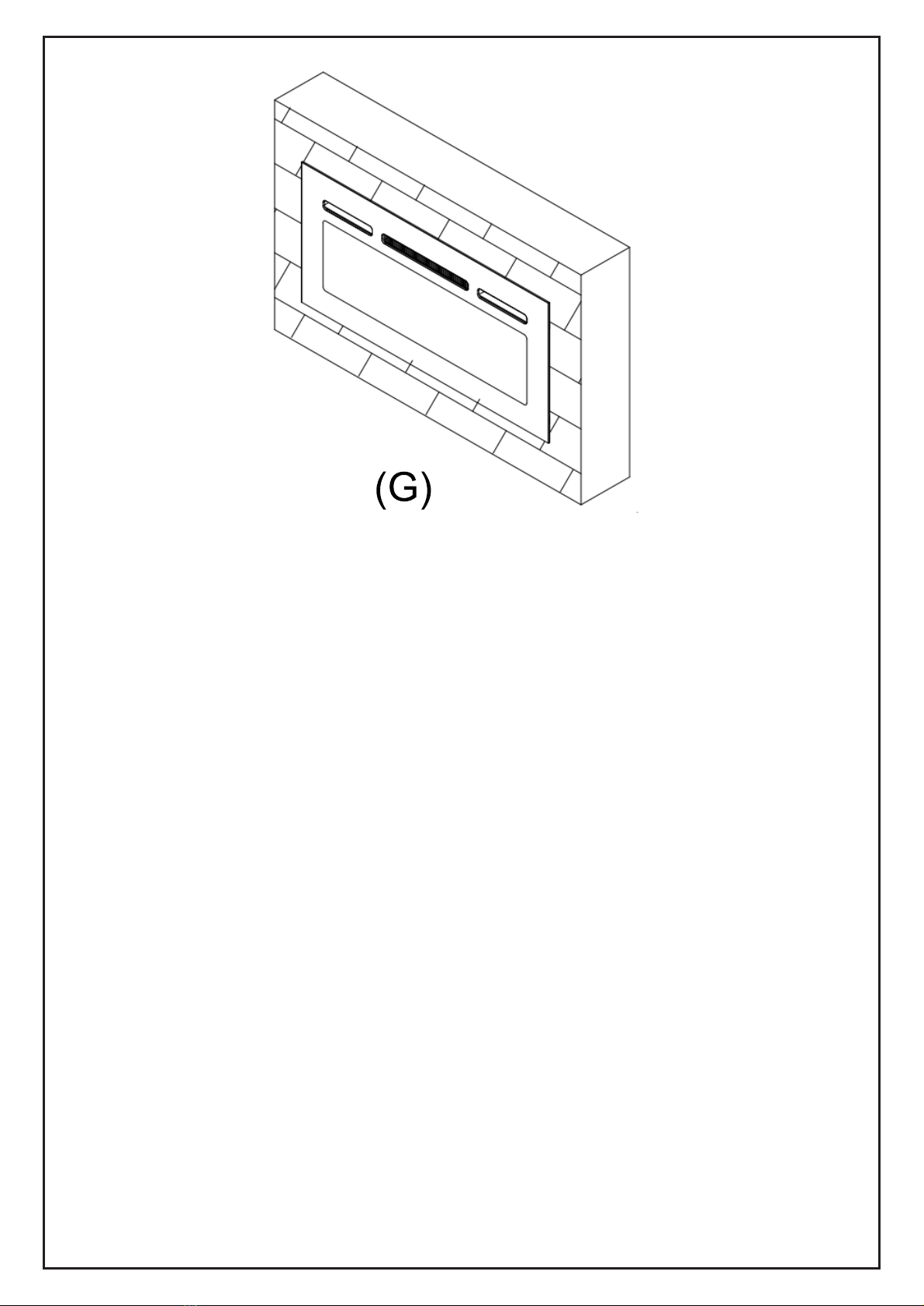

STEP G. Once installed, the fireplace should look like the picture in Figure G.

7

8
Wall-mounting installation
To install this appliance safely and correctly, it is strongly recommended that you seek
advice from a local builder before installation, as different wall materials may require
specific installation methods.
A. Choose a location that is at least 36 inches (914mm) away from combustible materials,
such as furniture, bedding, paper, curtains and drapes. Ensure the location is free from
moisture.
B. With two people, hold the appliance against the wall to determine its final location.

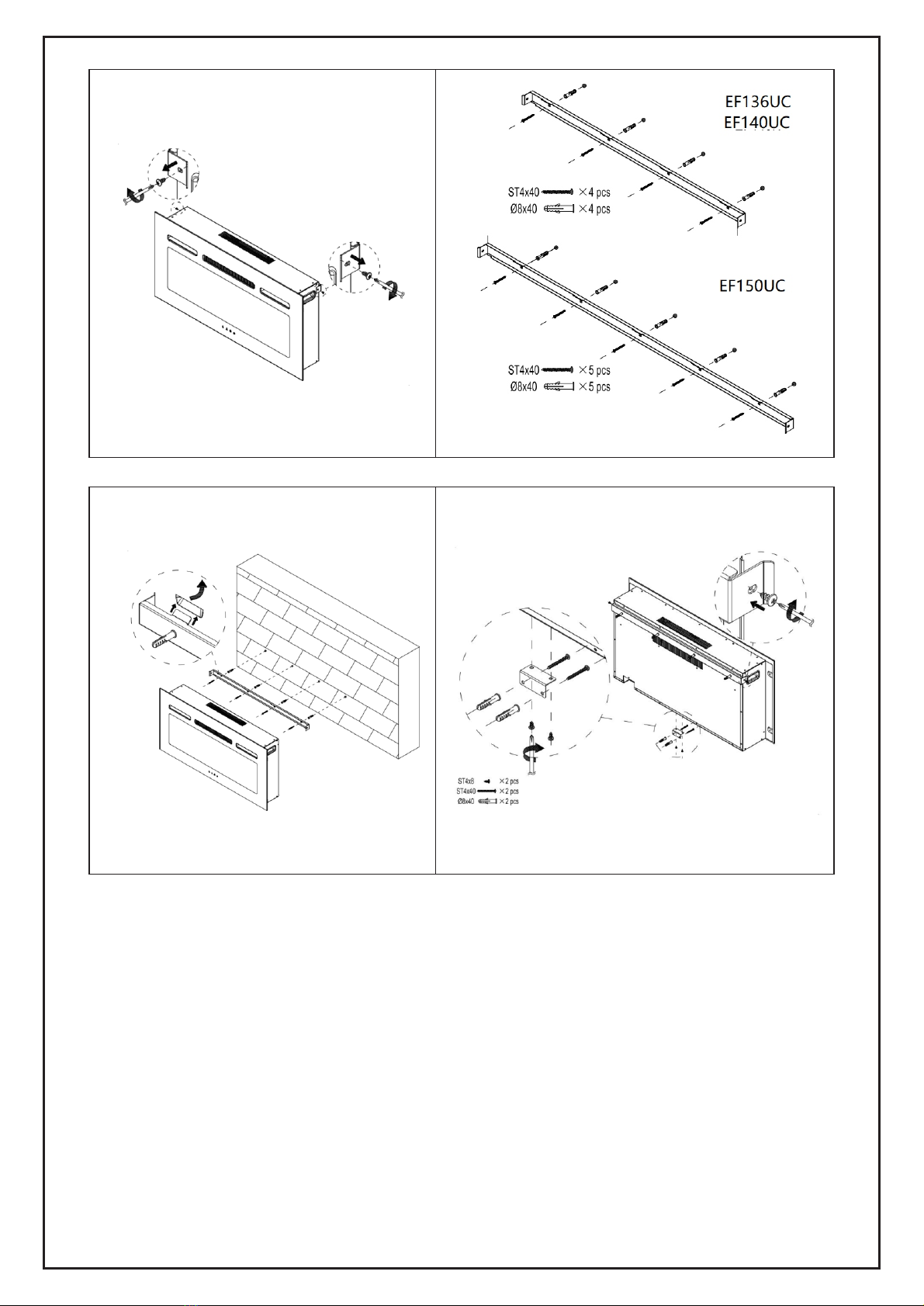

C. Place the appliance face down on a soft, non-abrasive surface. Remove the bracket
from the back of the appliance by removing the screws (Figure 1).
D. First, mark the desired location on the wall. Next, using the screws provided, mount the
bracket(s) onto the wall. Ensure the hooks of the bracket face upwards and the bracket
is mounted level.
NOTE: It is recommended to screw the mounting bracket into wall studs if possible. If wall
studs cannot be used, ensure you use the supplied plastic anchors to attach the bracket to
the wall and secure it firmly.
E. Once the wall-mounting bracket is installed, two people need to lift the appliance and
attach the two hooks, which are on the bracket, into the two slots on the back of the
appliance.
F. Mark the position for the two bottom holes, then remove the appliance, ensuring the
bottom fixing bracket is rotated up. Drill and fit the wall plug.
G. Reattach the appliance to the wall fixing bracket, rotating the bottom fixing bracket into
place. Use the provided screw to securely fasten the appliance in place.
H. Tighten the screws on the side of the fireplace to firmly secure the heater to the wall
bracket.

9
Instructions for use
WARNING: Before plugging in or using this appliance, ensure you have read and
understood this entire manual, including all safety information. Failure to do so could
result in electric shock, fire, serious injury or even death.
Methods of operation
Control the fireplace with the switch, located on the right side of the cold air inlet. Or use
the remote control.
Manual Operation
The switches are on the right side of the cold air inlet. Ensure the standby switch is on.
Press the power button to turn on the appliance and fire effect. A red indicator light will
appear, meaning the function is on. Hold the power button for three seconds – this will
control the colour of the flame.
Press the 1000W button for the low heat setting. Press again to switch it off.
Press the 2000W button for the high heat setting. Press again to switch it off.

10
Remote Operation
Ensure the standby switch, located on the right side of the cold air inlet, is switched on.
It takes some time for the receiver to respond to the transmitter. For correct use, do not
press the buttons repeatedly within two seconds.
1. Boot steps
● Press the power button on the remote control to turn on/off the appliance and fire effect.
● Press the 1000W button for the low heat setting. Press again to switch it off.
● Press the 2000W button for the high heat setting. Press again to switch it off.
● Press the colour button to change the flame to your desired colour.
2. Automatic heating
Press the ‘IC’ button on the remote controller to enter and exit the automatic heating.
When turned on, the appliance automatically changes the heating mode, depending on
the set temperature and room temperature.
During a timed starting process, it is possible to start heating before schedule.
3. Setting the day and time
1) Use the remote controller for changing the settings.
2) Press the ‘DATE TIME’ button, then press ▲ or ▼ to select the day.
3) Press the ‘DATE TIME’ button again, then press the + or - to set the hour.
4) Press the ‘DATE TIME’ button again, then press + or - to set the minute.
5) Press ‘OK’ to complete.
4. Temperature setting
The default temperature is 20℃. Press + or - on the remote controller to adjust the
temperature, which ranges from 15-30℃.
NOTE: For the heat to work, the set temperature must be higher than room temperature.
5. Timer setting
1) Description of timer setting
● You can set up to 10 timers, each with a date, power-on time and shutdown time. Each
timer can last for a maximum 23 hours and 50 minutes.
● You can choose which days of the week each timer will be active.
● If the shutdown time fails on the next day, you only need to set the shutdown time and
not the date.
2) Steps to view the timer setting
● Press the ‘TIMER SET’ button.
● Press + or – to cycle through the timer settings and view the power-on time for each one.
● To check the shutdown time of the timer, press the ▲ button.
Press + or – to continue viewing.
To delete the current setting, press ‘C’.
3) Steps for timer setting
(I) Select the settings of the serial number
● Press the ‘TIMER SET’ button. The item number will start blinking.
● Press + or – to change the serial number to the desired setting you need to modify or
set.

11
(II) Select date
● Press the ‘TIMER SET’ button once again. The cursor on the left side of the day starts
blinking.
● Press ▲ or ▼ to select the desired day, then press + to add it or - to delete it. Repeat
until all days are selected.
(III) Set the start time
● Press the ‘TIMER SET’ button until the hour starts blinking.
● Press + or - to adjust the hour.
● Continue to press the ‘TIMER SET’ button until the minute starts blinking.
● Press + or - to adjust the minute.
(IV) Set the shutdown time
● Press the ‘TIMER SET’ button until the display turns off and the hour starts blinking.
● Press + or - to adjust the hour.
● Continue to press the ‘TIMER SET’ button until the minute starts blinking.
● Press the + or - to adjust the minute.
(V) Set temperature
● Press the ‘TIMER SET’ button until the temperature set starts blinking. When this
happens, the temperature displayed is the set temperature, which can be adjusted by
pressing + or -.
(VI) Press ‘TIMER SET’ to continue with the settings. Press ‘OK’ to complete the
setting.
6. Timer switch
● The ‘TIMER ON/OFF’ function is used to control the timed opening and closing of the
appliance.
● After a power outage, the original timer setting is preserved, but the current date and
time must be reset.
Note: When the weekly timer is activated, the heating function must also be turned on.
Otherwise, when the appliance restarts, only the flame effect will work.
Troubleshooting
Problem Solution
The appliance does not work.
The flame effect does not work.
Ensure the appliance is properly
plugged into the socket outlet.
Check if the safety cut-off is active.
The LED system must be checked by
a qualified electrician.
Bulbs replacement
● This appliance does not use standard bulbs for the flame effect. It uses an electronically
controlled LED system, therefore no parts need to be replaced. There are no user-
serviceable parts on this appliance. Only a qualified electrician is allowed to service this
appliance.
Maintenance
● Warning: Before cleaning or maintenance, unplug the appliance and wait for it to cool
down completely.
● This remote control uses two 1.5V AAA batteries. Make sure the batteries are installed
correctly in the remote control.

12
Cleaning
● Warning: Always unplug the appliance before cleaning.
● For general cleaning, use a soft duster – never use abrasive cleaners. Gently clean the
glass viewing screen with a soft cloth. DO NOT use proprietary glass cleaners.
Technical Specification
● Voltage:220V-240V~50Hz
● Rated power: 2000W
Waste electrical products should not be disposed of with household waste.
Please recycle where facilities exist. Check with your local authority or retailer
for recycling advise.
When you purchase a new appliance, the retailer is legally required to take
back your old appliance for disposal, usually free of charge.
If you have any questions, please contact our customer care center.
Our contact details are below:
0044-800-240-4004
[e-mail]
IMPORTER ADDRESS:
MH STAR UK LTD
Unit 27, Perivale Park,
Horsenden lane South
Perivale, UB6 7RH
MADE IN CHINA

13
Table for information requirements for electric local space heaters
Model identifier(s): 820-345V73 (EF140N), 820-345V74 (EF150N)
Type of heat input, for electric storage local
space heaters only (select one)
Nominal heat
output Pn o m 2.0 kW Manual heat charge control with integrated thermostat [NA]
[NA]
[NA]
Minimum
heat output
(indicative)
Pm i n 1.0
2.0
Manual heat charge control with
room and/or outdoor temperature
feedback
Electronic heat charge control with
room and/or outdoor temperature
feedback
kW
kW
kW
Pm a x
Maximum
continuous
heat output
At nominal
heat output elm a x
0.014 (fan
motor)
Fan assisted heat output
Type of heat output/room temperature
control (select one)
[NA]
kW
At minimum
heat output elm i n
elS B 0.38 W
In standby
mode
Single stage heat output and no
room temperature control
Two or more manual stages, no
room temperature control
With mechanic thermostat room
temperature control
With electronic room temperature
control
Electronic room temperature
control plus day timer
Electronic room temperature
control plus week timer
[no]
[no]
[no]
[no]
[yes]
[no]
[no]
[no]
[no]
[no]
[yes]
[no]
Contact
details:
Remark:
For electric local space heaters, the measured seasonal space heating energy efficiency ηs
cannot be worse than the declared value at the nominal heat output of the unit.
IMPORTER ADDRESS:
MH STAR UK LTD
Unit 27, Perivale Park,
Horsenden lane South
Perivale, UB6 7RH
MADE IN CHINA
Symbol Value UnitItem Item Unit
Heat output
Auxiliary electricity consumption
Room temperature control, with
presence detection
Room temperature control, with
open window detection
With distance control option
With adaptive start control
With working time limitation
With black bulb sensor
Other control options (multiple selections
possible)
0.014 (fan
motor)

14
