HOMCOM 370-006 User manual

Please keep this manual for future reference as it contains important
information.
Before first time use, charge the battery for at least 4-6 hours.
CHILDREN'
ELECTRIC TOY CAR
INfaa022V01_UK
370-006_370-009
OWNER'S MANUAL
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY

Table of Contents
About Your New Vehicle
Thank you for your purchasing our products, we wants your child to enjoy this product for years to
come. Keep these points in mind as you read this guide:
1. About Your New Vehicle
2. Parts List
3. Parts Diagram
4. Assembly Steps
5. How To Operation Your Vehicle
6. Charging The Vehicle
7. Troubleshooting Guide
8. Maintaining Your Vehicle
9. Disposal Of Battery
WARNING!
FOR THE SAFETY OF YOUR CHILD, PLEASE READ ALL WARNINGS AND
ASSEMBLY/USE INSTRUCTIONS. KEEP THIS GUIDE FOR FUTURE REFERENCE.
• ADULT ASSEMBLY REQUIRED.The product contains small parts, which are for adult
assembly only. Keep small children away when assembling.
• Always remove protective material and poly bags and dispose before assembly.
Suitable age: 37~96 Months Battery: 6V 4AH *1
Load Capacity:
Under 25kg
Size of car: 95*50*63 CM
Speed: 2.5KM/H
Power way:
Charging type
Charger:
Input: depend on local voltage
Output: DC 6V500mA
Average
battery life:
Approximately
300 times
Charge time: 8-12 Hours Fuse: 10A
VER:SMS-B19-EN-190907

NO.
34
56
78
9
1
2
2
1
11
2
1
2
1
21
2
11
1
Par t Par t
10
11
13
12
14

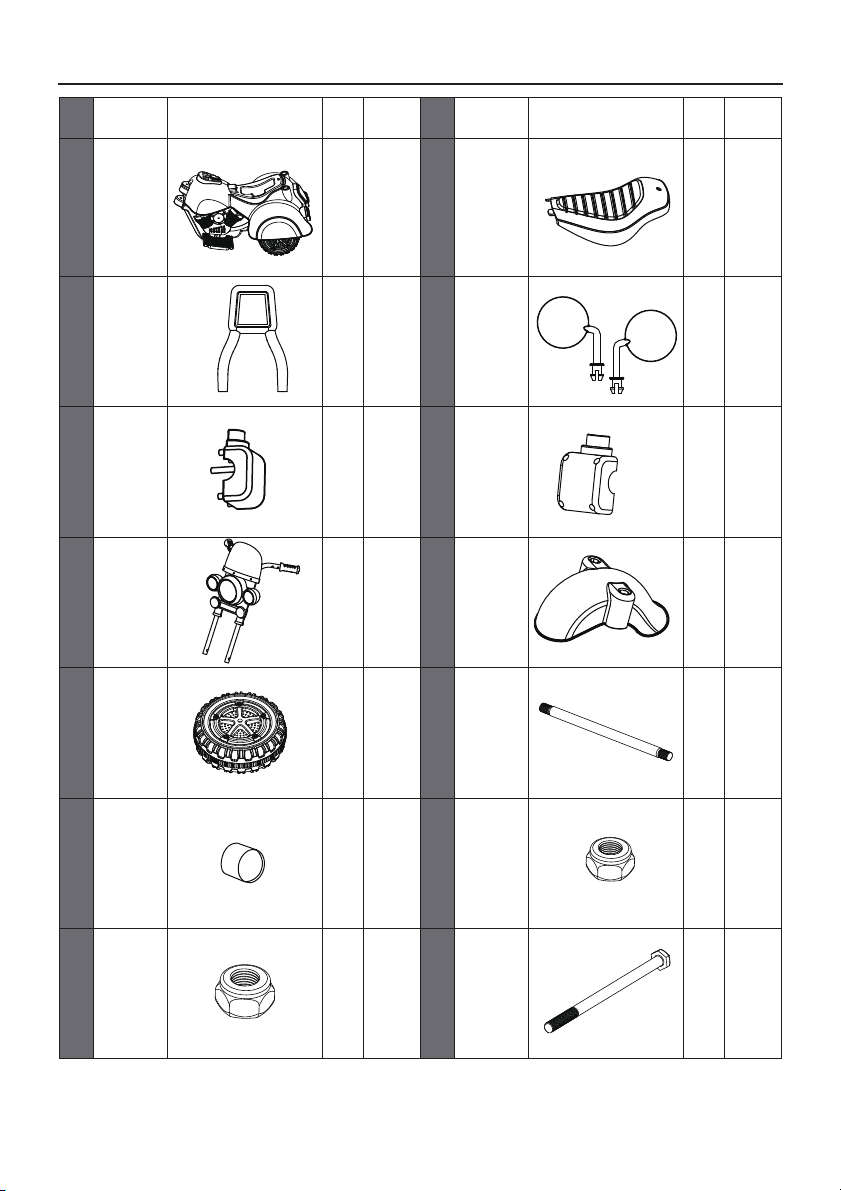

Parts List
PART
NO.
PART
NAME
Q’ty
(pcs)
REMARKS
PART
NO.
PART
NAME
Q’ty
(pcs)
REMARKS
Vehicle
body
Backrest
Handlebar
Mirror
base
(front)
Mirror
base
(back)
Mirror
Fender
Bush
Front
wheel
Front
axle
M8X140
bolt
Ø8 nut
Ø10 nut
Seat
Placed
on the
handle
bar
Placed
on the
handle
bar
Placed
on the
vehicle
body
Placed
on the
handle
bar
Placed
on the
handle
bar
Placed
on the
handle
bar

NO.
Par t Par t
28
11
16
15
17 18
2
20
2
19
Parts List
PART
NO.
PART
NAME
Q’ty
(pcs)
REMARKS
PART
NO.
PART
NAME
Q’ty
(pcs)
REMARKS
Placed
on the
handle
bar
Placed
on the
seat
Placed
in the
assembly
package
Placed
in the
assembly
package
Iron
bush
Ø3x8
screw
Charger
Spanner
M5x12
machine
screw
Ø5x25
machine
screw

2
5
8
11
14
3
6
9
12
15
1
10
4
7
13
16 17 18
1
2
3
4
45
6
6
7
7
8
8
9
10
11
12
18
13
13
14
14
15
16
17
18
Parts Diagram
Tools Required
Screwdriver(not included) Spanner
Vehicle body *1
Mirror *2
Mirror base(back) *2
Handle bar *1
Mirror base(front) *2
Ø3x8 screw *8
Ø8 nut *1
Ø10 nut *2
Front wheel *1 Seat *1
Bush *2 Front axle *1
Fender *1
M8x140 bolt *1 Iron bush *2
Backrest *1
M5x12 machie screw *1
Ø5x25 screw *2

Assembly Steps
• Your new vehicle requires adult assembly. Please set aside at least 40 minutes for
assembly. Children can be harmed by small parts, sharp edges and sharp points in the
vehicle's unassembled state. Care should be taken in unpacking and assembly of the
vehicle. Children should not handle parts, or help in assembly of the vehicle.
• Please identify all parts before assembly and save all packaging material until assembly
is complete to ensure that no parts are discarded.
• Assembly tool for need: screwdriver(Not included) and spanner.
• Install the screw that the parts uses, already with the tape glue to stick at correspond of
install parts up.
1. Battery assembly
●Use a screwdriver to remove the battery
cover, and insert two dry(AA) batteries.
●Replace the battery cover.
NOTE: The product does not included
dry(AA) battery.
● Non-rechargeable batteries are not to be recharged.
● Rechargeable batteries are to be removed from the toy before being charged.
● Rechargeable batteries are only to be charged under adult supervision.
● Different types of batteries or new and used batteries are not to be mixed.
● Batteries are to be inserted with the correct polarity.
● Exhausted batteries are to be removed from the toy.
● The supply terminals are not to be short-circuited.
BATTERY INFORMATION

Assembly Steps
Bush
Bush
Front axle
Front wheel
M8x140 bolt
Iron bush
Iron bush
Ø8 nut
Ø10nut
Ø10nut

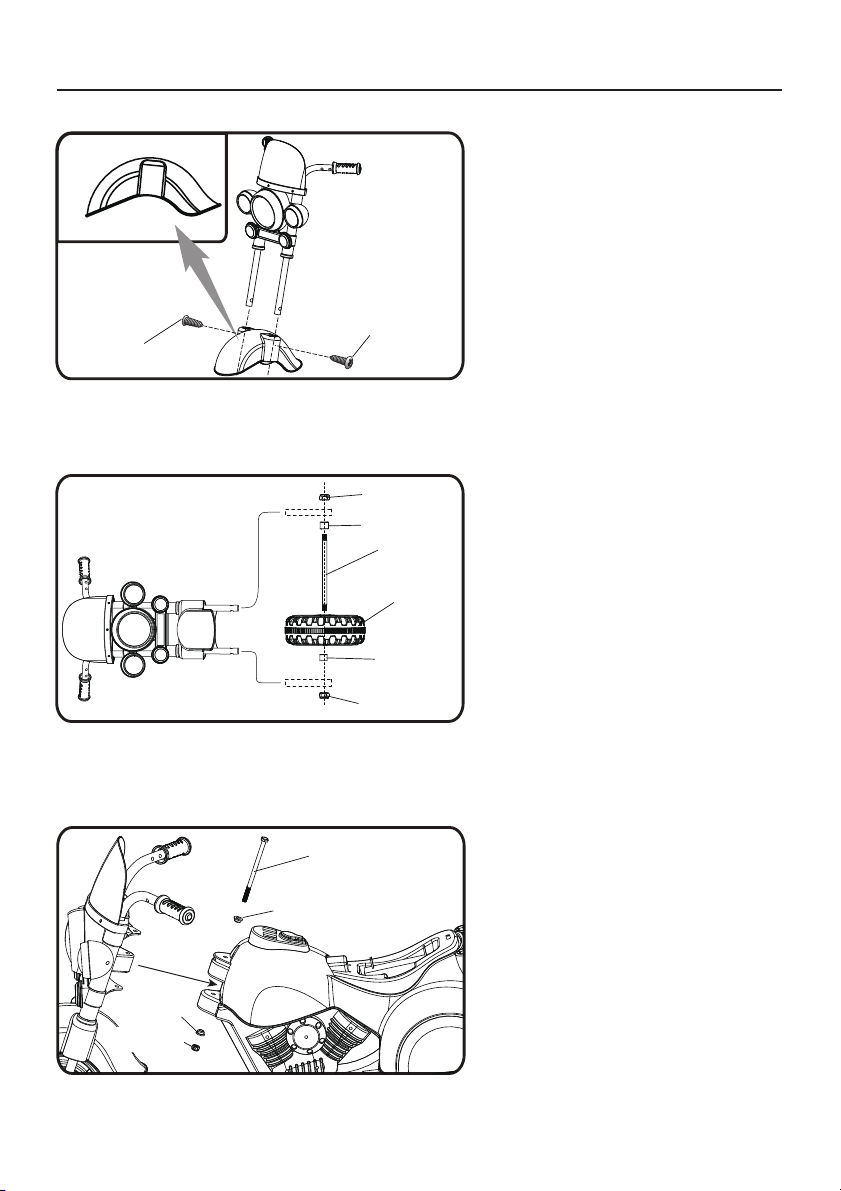

2. Fender assembly
3. Front wheel assembly
4 Handle bar assembly
Ø5x25
screw
Ø5x25
screw
● Remove the front axle, bush, 2*Ø10 nut
from the handle bar.
●Fit the fender into the handle bar.
●Secure it with a Ø5x25 screw. Repeat for
the other side.
●Insert the front wheel into the handle bar.
●Place a bush on the hole in the middle of
the front wheel ,repeat for the other side.
●Insert the front axle through the handle bar,
bush*2, and front wheel.
●Tighten a Ø10 nut(do not over tighten).
Repeat for the other side.
●Remove the M8x140 bolt , Iron bush *2 ,
and Ø8 nut from the handle bar.
●Fit the handle bar into the vehicle body.
●Slide a iron bush onto the M8x140 bolt.
●Insert the M8x140 bolt into the hole on
vehicle body.
●Slide another iron bush and tighten the Ø8
nut on downside.
Front
Fender

Assembly Steps
6. Seat assembly

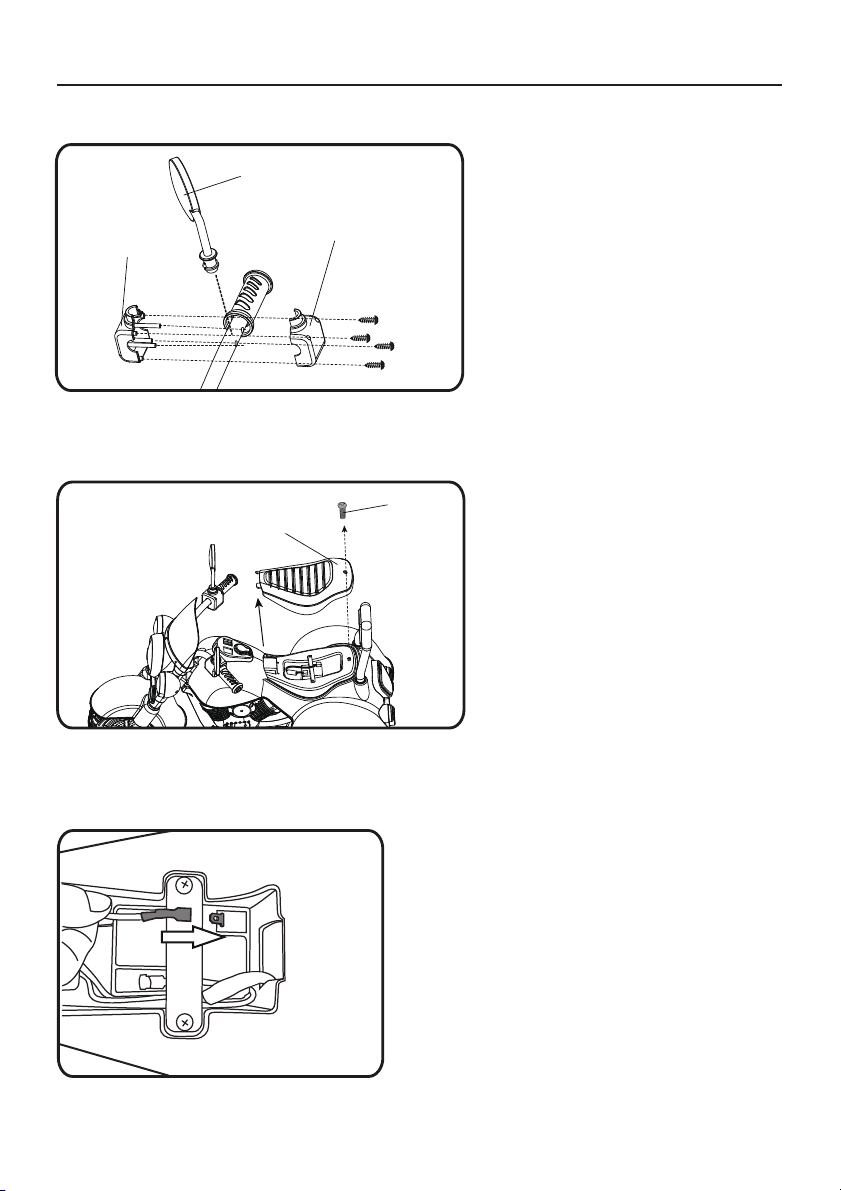

5. Mirror assembly
7. Connect the power supply
M5x12
machine
screw
●Insert the mirror base(front) into the holes
on handle bar.
●Fit the mirror into the mirror base(front).
●Fit the mirror(back) into the mirror(front).
●Use 4*Ø3x8 screws to secure it.
●Repeat for the other side.
●Plug the connector into the terminal on
battery as shown.
●Use a screwdriver to replace the seat.
●Use a screwdriver to remove the M5x12
machine screw at the rear of the seat.
●Remove the seat.
Mirror
Seat
Mirror base(back)
Mirror
base
(front)

Assembly Steps
8. Backrest assembly
Fit the backrest into the holes on vehicle
body. Push until you hear this click into place.
Backrest

How To Operate Your Vehicle
WARNING!
PREVENT INJURIES AND DEATHS:
• NEVER LEAVE CHILD UNATTENDED.DIRECT ADULT SUPERVISION IS
REQUIRED. Always keep child in view when child is in vehicle.
• Never use in roadways, near cars, on or near steep inclines or steps,
swimming pools or other bodies of water.
• Always wear shoes.
• Always sit on the seat.
• Suitable for age 37~96 months; Maximum user weight is 25kg.
• Always wear a helmet when riding.
• Direct Adult Supervision Required.
• Keep Children within Safe Riding Areas:
• Never use in roadway, near motor vehicles, on lawn space, on or near steep inclines or steps, swimming
pools or other bodies of water;
• Use the toy only on flat surfaces. such as inside your house, garden or playground.
• Never use in the dark. A child could encounter unexpected obstacles and have an accident. Operate the
vehicle only in the daytime or a well-lit area.
• It is not recommended to drive the vehicle on wet surfaces or on lopes of greater than 15 degrees.
• Do not use this vehicle outdoors when it is raining or snowing.
• Make sure you come to a complete stop before changing directions from forward to back.
• Please follow the correct weight and age limits allowed to drive this vehicle.
• It is prohibited to change the circuit or add other electric parts
• Inspect wires and connections of the vehicle periodically.
• In order to avoid accidents, please ensure the vehicle is safe before riding.
• Do not let any child touch the wheels or be near them when the car is moving .
Rules for Safe Riding
READ THESE RULES ALOUD TO YOUR CHILD AND THEIR PLAYMATES AND MAKE SURE
THEY UNDERSTAND THEM!
• Important! Before using the vehicle for the first time, the battery needs to be charged for 4 to 6 hours, no
more than 10 hours. Only an adult can charge or recharge the battery.
• Finishing the complete car to assemble according to the steps that the manual described. The plug-in
package of storage battery has already been inserted well, the power has already been put through.
• All places to need the screw guarantee the screw has already been locked.
Must confirm before using that following work which is already finished:

How To Operate Your Vehicle
Charging Your Vehicle
Use Operation(Ensure the power switch has been turned on)
FORWARD
1.Press the “Forward-backward switch” on the “Forward” position.
2.Press the “Foot pedal”, the vehicle drives forward.
REVERSE
The vehicle will brake automatically, when your child’s foot remove from the “Foot pedal”.
STOP
1.Press the “Forward-backward switch” on the “Backward” position.
2.Press the “Foot pedal”, the vehicle drives backward.
SOUND BUTTONS
Press the buttons on the handle bar for sound playing.
HEADLIGHT BUTTON
Press the button on the handle bar to turn on the headlight; Press it again to turn the head light off.

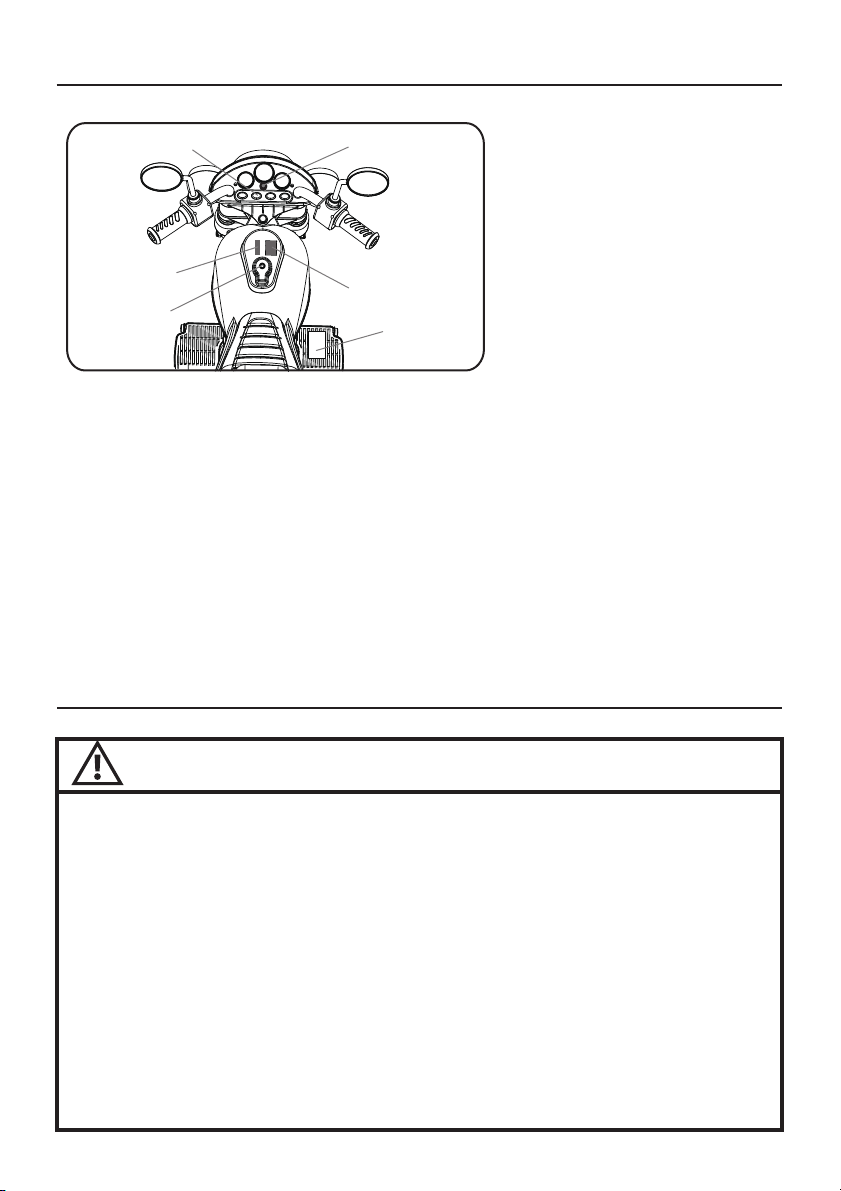

Forward-backward
switch
Foot pedal
Power switch
Audio input
Sounds button Headlight button IMPORTANT!
Always stop vehicle when changing the
speed or direction to avoid damage the
gear box and motor.
ONLY AN ADULT CAN CHARGE AND RECHRGE THE BATTERY!
• PREVENT FIRE AND ELECTRIC SHOCK:
WARNING!
- Use the only rechargeable battery and charger supplied with your vehicle. NEVER substitute the battery
or the charger with another brand. Using another battery or charger my cause a fire or explosion.
- Do not use the battery or charger for any other product. Overheating, fire or explosion could occur.
- NEVER modify the electric circuit system. Tampering with the electric system may cause a shock, fire or
explosion or my permanetly damage the system.
- Do not allow direct contact between battery terminals. Fire or explosion can occur.
- Do not allow any type of liquid on the battery or its components.
- Explosive gasses are created during charging. Do not charge near heat or flammable materials. Charge
the battery in a well-ventilated area ONLY.
- NEVER pick up the battery by the wires or charger. Damage can occur to the battery and may cause a
fire. Pick up the battery by the case ONLY.
- Charge the battery in a dry area ONLY.
• Battery posts, terminals and related accessories contain lead and lead compounds, chemicals
known to the State of California to cause cancer and reproductive harm. Wash hands after

2
1
Charging Your Vehicle
• The charging input socket is ABOVE THE FOOT PEDAL.
• The POWER SWITCH must be turned in OFF position when charging.
• Before the first use, you should charge the battery for 4-6 hours. Do not recharge the battery for
more than 10 hours to avoid overheating the charger.
• When the vehicle begins to run slowly, recharge the battery.
• After each use or once a month minimum recharge time as 8 to 12 hours, less than 20 hours at
most.
handling.
• Do not open the battery. Battery contains lead acid and other materials that are toxic and
corrosive.
• Do not open the charger. Exposed wiring and circuitry inside case may cause electric shock.•
Only adults may handle or charge the battery. NEVER allow child to handle or charge the
battery. Battery is heavy and contains lead acid (electrolyte).
• Do not drop the battery. Permanent damage to the battery could occur or cause serious injury.
• Before charging the battery, check for wear or damage to the battery, charger, its supply cord
and the connectors. DO NOT charge the battery if any damage to parts has occurred.
• Do not allow the battery to drain completely. Recharge the battery after each use or once a
month if not used regularly.
• Do not charge battery upside down.
• Always secure the battery with the bracket. Battery can fall out and injure a child if vehicle tips
over.

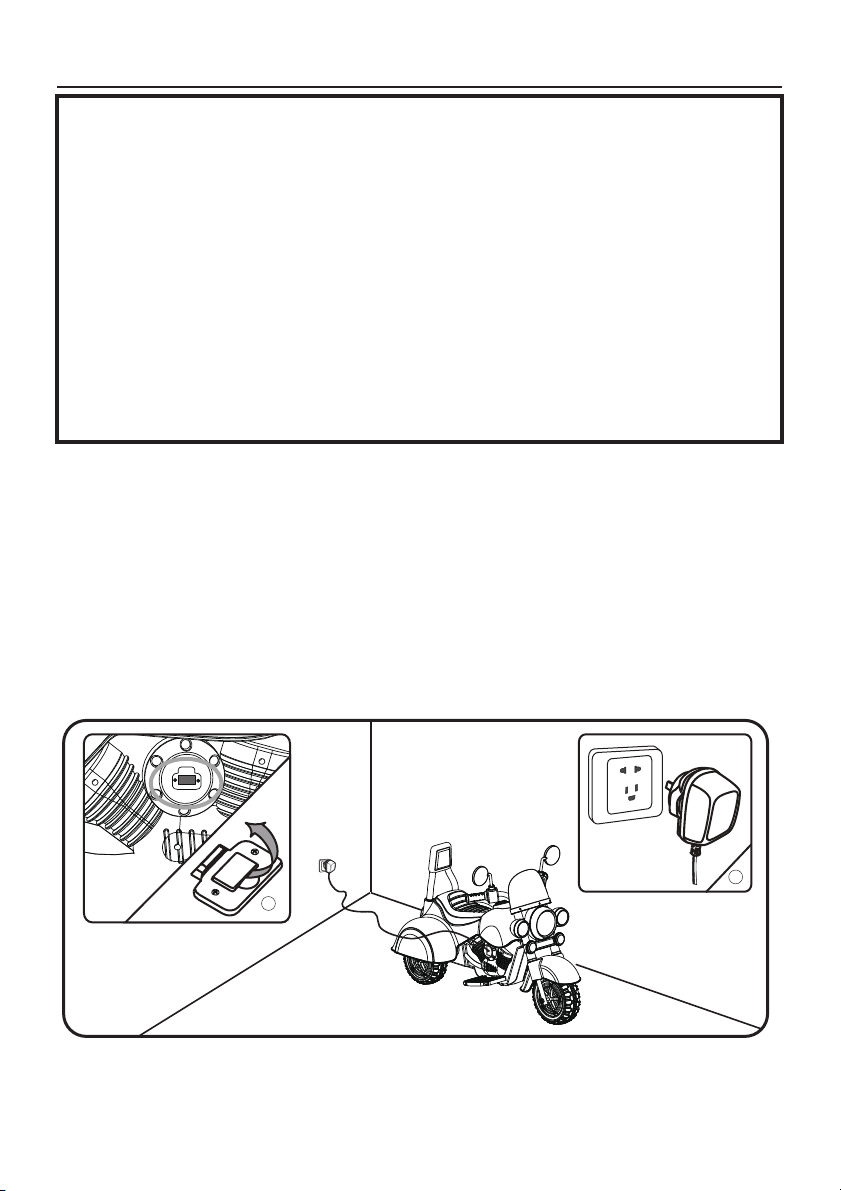

1. Open the cover of the socket (the socket is above the foot pedal.).
2. Plug the charger port into the input socket.
3. Plug the charger plug into a wall outlet. The battery will begin charging.

Troubleshooting Guide
PROBLEM: The vehicle does not run
PROBLEM CAUSE: The battery may low on power.
After each use, or once a month minimum, charge the battery for a full 10 hours. Do not leave the
battery on the charger for more than 20 hours.
POSSIBLE CAUSE: Thermal fuse has tripped.
POSSIBLE CAUSE: Wheel nuts are loose.
POSSIBLE CAUSE: Battery connector or wires are loose.
POSSIBLE CAUSE: Battery is dead.
POSSIBLE CAUSE: Electric system is damaged.
Water may have corroded the system, or loose dirt, gravel or sand might have jammed the switch.
Make sure the battery connector and adapter connector are firmly plugged together.
Make sure the charger is plugged into the wall outlet and the power flow to the outlet is on.
POSSIBLE CAUSE: Motor is damaged.
The motor needs professional repair.
If the nuts are not tight, the wheels will not engage the forward gears. Tighten the nut with the nut wrench.
Make Sure the battery connectors are firmly plugged in to each other.
Have you properly maintained the battery according to the directions? Is the battery old? Your battery
may need to be replaced.
■
■
PROBLEM: The battery will not recharge.
POSSIBLE CAUSE: Battery connector or adapter connector is loose.
POSSIBLE CAUSE: Charger is not plugged in.
POSSIBLE CAUSE: Charger is not working.
Is the charger warm while charging? If not, the charger may be broken and may need to be replaced.
When the vehicle won't work or can not be charged, please check the fuse first and see whether
it is burnt out If the fuse is broken, please change with a new one, there is a spare fuse in the
fuse package. The fuse is under seat.
Spare fuse
Burnt out
Fine
Pay attention: Fuse 10A

Troubleshooting Guide
Maintaining Your Vehicle
POSSIBLECAUSE: Battery may be undercharged.
POSSIBLE CAUSE: Battery is old.
PROBLEM: Battery buzzes or gurgles when charging.
PROBLEM: Charger feels warm when recharging battery.
This is normal and not a cause for concern.
PROBLEM: The vehicle does not run very long.
■
■
■
You may not be charging the battery long enough. After each use, or once a month minimum, charge
the battery for 8 to 10 hours. Do not leave the battery on the charger for more than 20 hours.
The battery will eventually lose the ability to hold a charge. Depending on the amount of use, and
varying conditions, the battery should operate for one to three years. Replace the battery with a new
one.
This is normal and not a cause for concern. It may also be silent when charging, which is also normal.
• It is parents' responsibility to checkt main parts of the toy before using, Must regularly examine for potential
hazard, such as the battery, charge,cable or cord, plug, screws are fastening enclosure of other parts and
that in the event of such damage, the toy must not be until that damage had been properly removed.
• Make sure the plastic parts of the vehicle are not cracked or broken.
• Occasionally use a lightweight oil to lubricate moving parts such as wheels.
• Park the vehicle indoors or cover it with a tarp to protect it from wet weather.
• Keep the vehicle away from sources of heat, such as stoves and heaters. Plastic parts may melt.
• Recharge the battery after each use. Only an adult can handle the battery. Recharge the battery at least
once a month when the vehicle Raider is not being used.
• Do not wash the vehicle with a hose. Do not wash the vehicle with soap and water. Do not drive the vehicle
in rainy or snowy weather. Water will damage the motor, electric system and battery.
• Clean the vehicle with a soft, dry cloth. To restore shine to plastic parts, use a non-wax furniture polish. Do
not use car wax. Do not use abrasive cleaners.
• Do not drive the vehicle in loose dirt, sand or fine gravel which could damage moving parts, motors or the
electric system.
• When not using, all the electrical source should be turn off. Turn off the power switch and disconnect the
battery connection.

Disposal Of Battery
Disposal Of Battery
●Your sealed lead-acid battery must be recycled or disposed of in an environmentally
sound manner.
●Do not dispose of your lead-acid battery in a fire. The battery may explode or leak.
●Do not dispose of a lead-acid battery in your regular, household trash. The incineration,
land filling or mixing of sealed lead-acid batteries with household trash is prohibited by
law.
●Return an exhausted battery to your local approved lead-acid battery recycle, such as a
local seller of automotive batteries.
●Contact your local waste management officials for other information regarding the
environmentally sound recycling and disposal of lead-acid batteries.
Our products are suitable for
ASTM F963; GB6675; EN71 and EN62115 standard.
091014
