Home Decorators Collection AK83-EB User manual

TUILENE 21 INCH CEILING FAN
USE AND CARE GUIDE
THANK YOU
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
Visual instruction of how to install this fan:
Visit www.homedepot.com and enter either the Item or Model number to nd
this fan and click the link of visual instruction in the product overview section.
Item #1005 462 868
#1005 462 857
#1005 462 841
Model #
AK83-EB
# AK83-MBK
# AK83-TM

Table of Contents ..........................................................
Safety Information .........................................................
Warranty .........................................................................
Pre-installation ..............................................................
Specications ..........................................................................
Tools Required .........................................................................
Hardware Included ..................................................................
Package Contents ....................................................................
Installation .....................................................................
Assembly ........................................................................
Hanging the Fan .......................................................................
2
3
4
4
4
4
5
6
7
8
9
Disassembling Your Fan .............................................
Operation ......................................................................
Remote Control Operating Instructions ..................................
Reverse Switch Operating Instructions ..................................
Care and Cleaning .......................................................
Troubleshooting ..........................................................
Service Parts ...............................................................
13
14
14
15
15
16
17
Table of Contents
2
READ AND SAVE THESE INSTRUCTIONS

Safety Information
3 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
1. To reduce the risk of electric shock, ensure electricity has
been turned off at the circuit breaker or fuse box before
beginning.
2. All wiring must be in accordance with the National Electrical
Code “ANSI/NFPA 70-1999” and local electrical codes.
Electrical installation should be performed by a qualied
licensed electrician.
3. The outlet box and support structure must be securely
mounted and capable of reliably supporting a minimum of 35
lbs (15.9 kg) or less. Use only UL-listed outlet boxes marked
“FOR FAN SUPPORT.”
4. The fan must be mounted with a minimum of 7 ft (2.1m)
clearance from the trailing edge of the blades to the oor.
5. Avoid placing objects in the path of the blades.
6. To avoid personal injury or damage to the fan and other
items, be cautious when working around or cleaning the fan.
7. Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be
suitable for most cleaning.
8. After making electrical connections, spliced conductors
should be turned upward and pushed carefully up into the
outlet box. The wires should be spread apart with the
grounded conductor and the equipment-grounding conductor
on one side of the outlet box and ungrounded conductor on
the other side of the outlet box.
9. All setscrews must be checked and retightened where
necessary before installation.
10. Suitable for use with solid-state speed control (AP-3RDL
only.)
11. This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must
accept any interference received, including interference that
may cause undesired operation.
WARNING: Changes or modications to this unit not
expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for
help.
The following responsible party designated in FCC §2.909 is
responsible for this declaration:
Model Number: AK83-TM, AK83-MBK, AK83-EB
Company Name: TAL INTERNATIONAL CORPORATION
Company Address: 2919 E. Philadelphia St., Ontario, CA 91761, U.S.A.
Full Name: James Lai Title: Manager
Telephone Number: [phone] Fax: [phone]
WARNING: To reduce the risk of electric shock, this fan
must be installed with an isolating wall control/switch.
WARNING: To reduce the risk of personal injury, do not
bend the blade arms (also referred to as anges), when
installing the brackets, balancing the blades or cleaning the
fan.
WARNING: Do not insert foreign objects between rotating
fan blades.
WARNING: To reduce the risk of re, electric shock or
personal injury, mount the fan to the outlet box marked
acceptable for fan support with the screws provided with the
outlet box.
CAUTION: To reduce the risk of personal injury, use only
the screws provided with the outlet box.

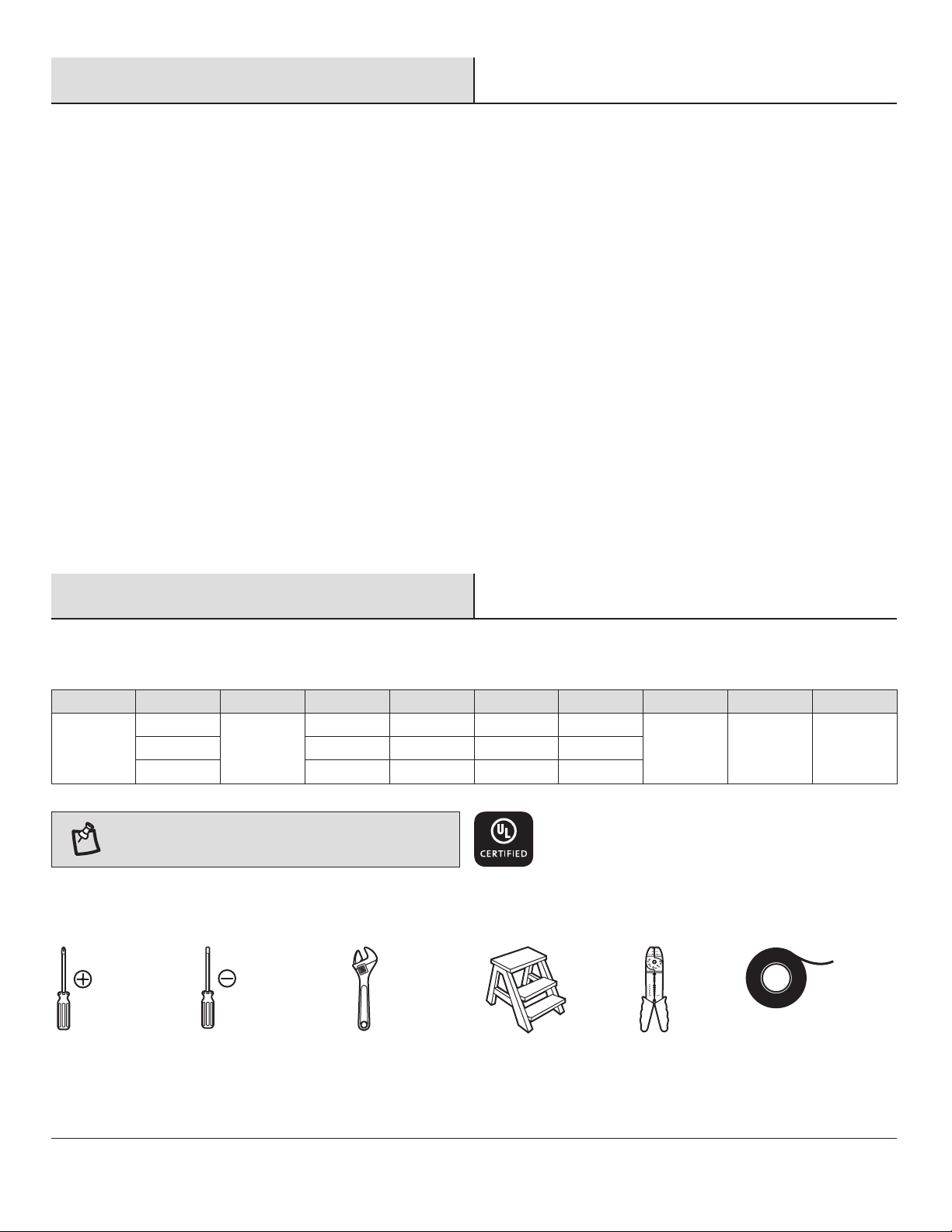

SPECIFICATIONS
SPECIFICATIONS
TOOLS REQUIRED
TOOLS REQUIRED
NOTE: These are approximate measures. They do not
include amps and wattage used by the light kit.
Warranty
4
Pre-InstallationPre-Installation
21 in.
Low
Medium
High
120
Fan size
Fan size
Watts
Watts
RPM
RPM
CFM
CFM
Speed
Speed
Volts
Volts
Amps
Amps
4 cu. ft.
N.W.
N.W.
G.W.
G.W.
C.F.
C.F.
0.23
0.26
0.31
17.55
23.86
37.71
696
877
1233
607
747
1052
8.34 kg
(18.39 lbs.)
10.9 kg
(24.03 lbs.)
The manufacturer warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the
factory for a period of lifetime after the date of purchase by the original purchaser. The manufacturer warrants the light kit (excluding any
glass), to be free from defects in workmanship and material present at time of shipment from the factory for a period of ve years after
the date of purchase by the original purchaser. The manufacturer also warrants that all other fan parts, excluding any glass or acrylic
blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the
date of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or
superior model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All
costs of removing and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper
installation or by afxing any accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not
cover any changes in brass nish, including rusting, pitting, corroding, tarnishing or peeling. Brass nishes of this type give the longest
useful life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a
defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. We hereby
disclaim any and all warranties, including but not limited to those of merchantability and tness for a particular purpose to the extent
permitted by law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as specied in the
express warranty. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to
you. The retailer shall not be liable for incidental, consequential, or special damages arising out of or in connection with product use or
performance except as may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential
damages, so the above exclusion or limitation may not apply to you. This warranty gives specic legal rights, and you may also have other
rights which vary from state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a
claim on the warranty must be paid by the customer.
Contact the Customer Service Team at 1-800-986-3460 or visit www.HOMEDEPOT.COM/HOMEDECORATORS
Phillips
screwdriver
Flat blade
screwdriver
Step
ladder
Wire
stripper
Electrical
tape
Adjustable
wrench

Pre-Installation (continued)
HARDWARE INCLUDED
HARDWARE INCLUDED
5 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
DD
BB
CC
AA
AA
BB
CC
DD
Part
Part
Description
Description
3
6
2
1
Quantity
Quantity
NOTE: Hardware not shown to actual size.
Plastic wire nut
Plastic wire nut
1.5V AAA battery
Hex wrench

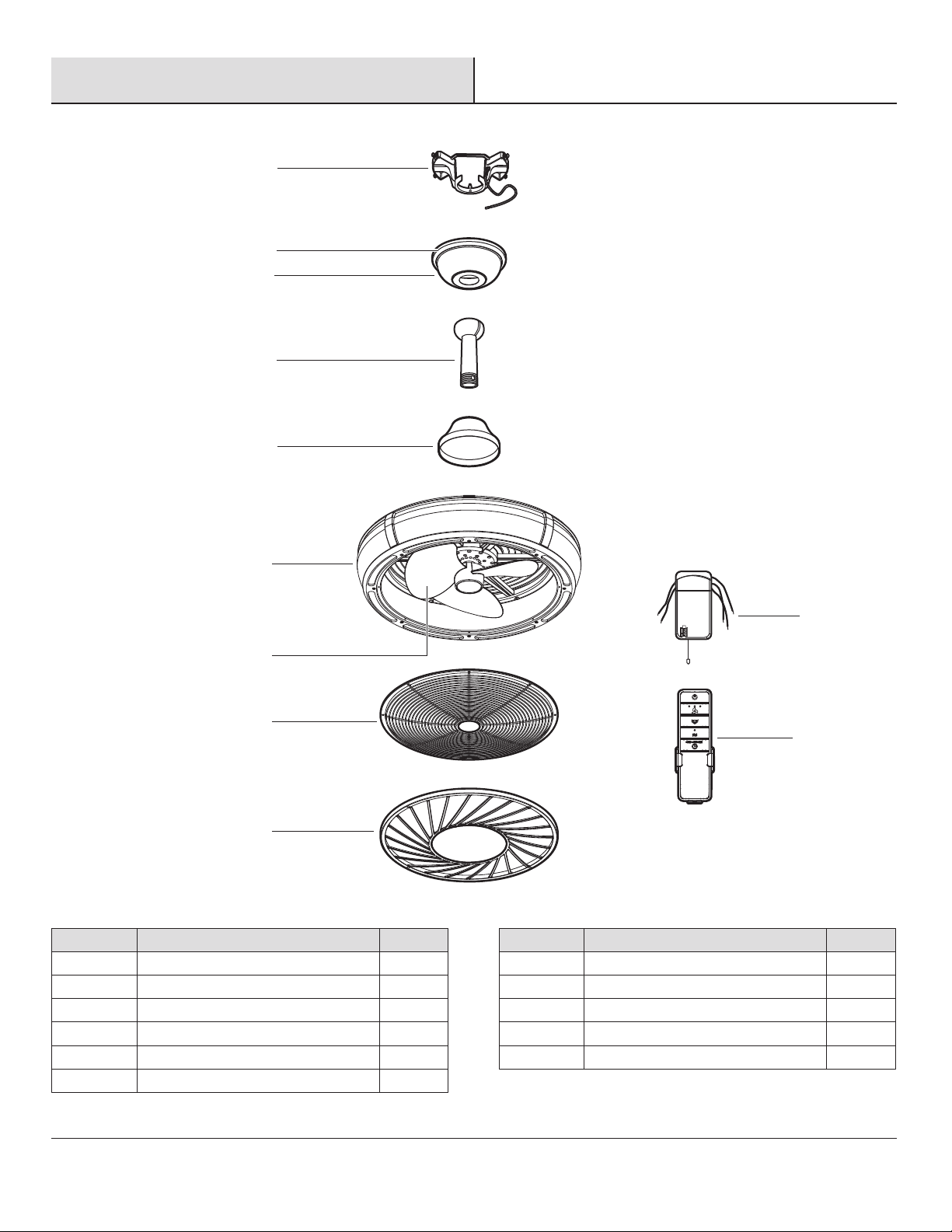

PACKAGE CONTENTS
PACKAGE CONTENTS
Pre-Installation (continued)
6
Part
Part
G
H
I
J
K
Description
Description
Blade (preassembled)
Guard (preassembled)
Decorative frame (preassembled)
Receiver
Remote control
Quantity
Quantity
1
1
1
1
1
Part
Part
A
B
C
D
E
F
Quantity
Quantity
1
1
1
1
1
1
Description
Description
Mounting bracket (preassembled)
Canopy ring (preassembled)
Canopy
Hanger ball / downrod assembly
Coupling cover
Fan motor assembly
K
J
F
G
H
I
E
A
D
B
C

To hang your fan where there is an existing xture but no ceiling
joist, you may need an installation hanger bar (not included) as
shown above.
If your ceiling fan does not have an existing UL-listed mounting
box, then install one using the following instructions:
□Disconnect the power by removing the fuses or turning off
the circuit breakers.
□Secure the outlet box (not included) directly to the
building structure. Use appropriate fasteners and materials
(not included). The outlet box and its bracing must be able
to fully support the weight of the moving fan (at least 35
lbs.). Do not use a plastic outlet box.
The illustrations below show three different ways to mount the
outlet box (not included).
Installation
MOUNTING OPTIONS
MOUNTING OPTIONS
WARNING: To reduce the risk of re, electric shock, or
personal injury, mount the fan to an outlet box marked
acceptable for fan support using the screws provided with the
outlet box. An outlet box commonly used for the support of
lighting xtures may not be acceptable for fan support and
may need to be replaced. If in doubt, consult a qualied
electrician.
NOTE: You may need a longer downrod to maintain proper
blade clearance when installing on a steep, sloped ceiling.
The maximum angle allowable is 18° away from horizontal. If
the canopy (C) touches the hanger ball / downrod assembly
(D), turn the canopy (C) 180° before attaching the canopy (C)
to the mounting bracket (A).
7 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Outlet Box
Outlet Box
Outlet Box
Hanger Bar
Ceiling
Mounting
Bracket
Recessed
Outlet
Box

1Preparing the canopy 2Preparing the motor
□Remove the canopy ring (B) from the canopy (C).
□Remove the two non-slotted canopy mounting screws
with lock washers (EE) from the canopy (C), and
loosen the slotted canopy mounting screws with lock
washers (EE) on the canopy (C).
□Remove the canopy (C) from the mounting bracket (A)
by turning the canopy (C) counterclockwise.
3Assembling the fan
□Remove the cotter pin (FF) and clevis pin (GG), and
loosen the two collar setscrews (HH) from the motor
collar.
□Take out the setscrew (II) located in the hanger ball
(JJ), lower the hanger ball (JJ) and remove the cross
pin (KK). Remove the hanger ball (JJ) from the hanger
ball / downrod assembly (D).
□Remove the ground lead (LL) from the downrod
assembly (D).
□Carefully feed the motor wires up through the
downrod (MM). Thread the downrod (MM) into the
collar.
□Align the holes and replace the clevis pin (GG) and
cotter pin (FF). Tighten the two collar setscrews (HH).
□Slip the coupling cover (E), canopy ring (B), and
canopy (C) onto the downrod (MM).
□Carefully reinstall the hanger ball (JJ) onto the
downrod (MM) and reinstall the ground lead (LL) onto
the downrod (MM), being sure that the cross pin (KK)
is in the correct position, the setscrew (II) is tightened
and wires are not twisted.
WARNING: Failure to properly install the cotter pin (FF)
could result in the fan loosening and possibly falling.
8
Assembly
B
F
E
LL
JJ
MM
HH
HH
GG
FF
KK
II
C
NOTE: If a longer downrod (not included) is needed, take out
the screw located in the hanger ball (JJ), lower the hanger
ball (JJ) and remove the pin (KK). Remove all three pieces
from the downrod and assemble them onto the new longer
downrod before proceeding to the downrod installation.
A
EE
EE
C
B
GG
FF HH HH
D
II
KK
JJ
LL

4Installing the mounting bracket
to the electrical box
Hanging the fan to the mounting
bracket
□Carefully lift the fan motor assembly (F) up to the
mounting bracket (A) and seat the hanger ball / downrod
assembly (D) in the mounting bracket (A) socket. Make
sure the tab on the mounting bracket (A) socket is
properly seated in the groove in the hanger ball / downrod
assembly (D). This will help to balance the ceiling fan.
5
Assembly — Hanging the Fan
WARNING: The tab in the ring must rest in the groove of
the hanger ball / downrod assembly (D). Failure to properly
seat the tab in the groove could cause damage to the wiring.
WARNING: To reduce the risk of re, electric shock or
other personal injury, mount the fan only to an outlet box or
supporting system marked acceptable for fan support and
use the mounting screws provided with the outlet box.
9
□Pass the 120-volt supply wires through the center
hole in the mounting bracket (A).
□Attach the mounting bracket (A) on the outlet box by
sliding the mounting bracket (A) over the screws
provided with the outlet box. Note that the at side of
the mounting bracket (A) is toward the outlet box.
□Securely tighten the two mounting screws.
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
D
F
A
A
Outlet box

NOTE: The frequencies on your receiver and remote control
have been preset at the factory. Before installing the receiver,
make sure the dip switches on the receiver and remote
control are set to the same frequency. The dip switches on
the remote control are located inside the battery
compartment.
NOTE: The battery will weaken with age and should be
replaced before leaking takes place as this will damage the
remote control. Dispose of the used battery properly and keep
the battery out of the reach of children.
Assembly — Hanging the Fan (continued)
10

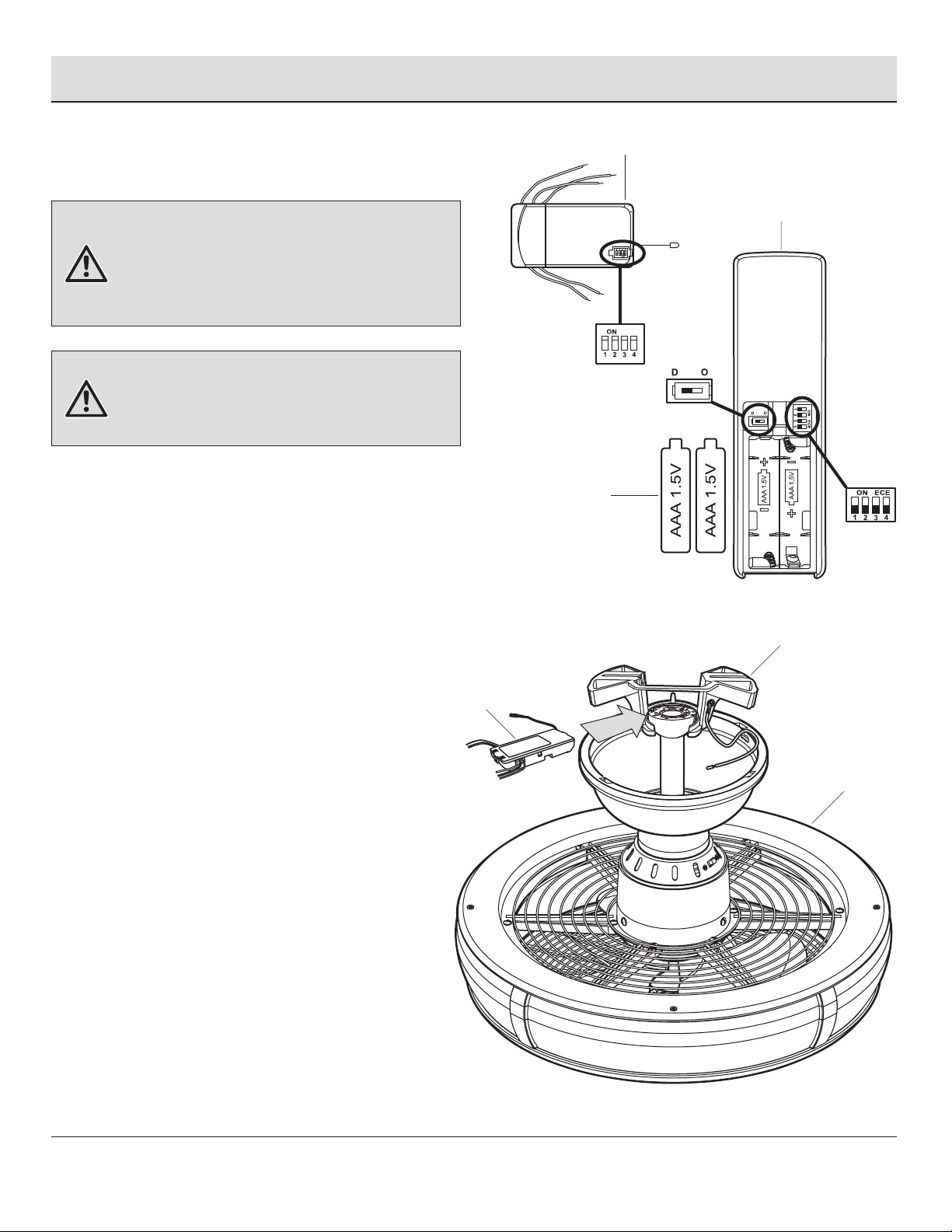

6Preparing the receiver and
remote control
K
CC
Setting the Code on the Remote:
□Remove the battery cover on the back of the remote
control (K) by pressing rmly on the arrow and sliding
the cover off.
□Slide the code switches to your choice of either up or
down. The factory setting is up.
□The switch marked O / D controls the dimming
function of the lights. If using non-dimmable bulbs,
use a ballpoint pen or small screwdriver to set the
switch to O to disable the dimming function. If using
dimmable bulbs, set the switch to D to enable the
dimming function.
□Install two AAA batteries (CC) (included).
□Replace the battery cover on the remote control (K).
Setting the Code on the Receiver:
□Slide the code switches on the receiver (J) to the
same positions as set on the remote control (K).
F
J
A
J

Assembly — Hanging the Fan (continued)
11 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
7Making the electrical connections
WARNING: Check to see that all connections are tight,
including ground, and that no bare wire is visible at the wire
nuts, except for the ground wire.
NOTE: The fan must be installed at a maximum distance of
20 ft. from the remote control for proper signal transmission
between the remote control and the fan's receiving unit.
CAUTION: Do not use with a wall light dimmer switch.
If you feel you do not have enough electrical wiring knowledge
or experience, have your fan installed by a licensed electrician.
Follow the steps below to connect the fan to your household
wiring. Use the plastic wire nuts (AA or BB) with your fan.
Secure the plastic wire nuts (AA or BB) with electrical tape.
Make sure there are no loose strands or connections.
□Make wire connections from the fan to the receiver (J)
and outlet box as follows, using the wire nuts (BB).
From Fan To Receiver
Blue Wire --------------------- Blue Wire "For Light"
Black Wire -------------------- Black Wire "To Motor L"
White Wire -------------------- White Wire "To Motor N"
□Make wire connections from the receiver (J) and fan to
the outlet box as follows, using the wire nuts (AA).
From Receiver To Outlet Box
Black Wire "AC in L" ---------- Black Wire (Hot)
White Wire "AC in N" --------- White Wire (Neutral)
From Fan To Outlet Box
Green Wires* ----------------- Green or Bare Wire (Ground)
* There are two green grounding leads: one from the mounting
bracket (A) and one from the hanger ball/downrod assembly (D).
□Turn the wire nut connections upward, spreading them
apart so the green (ground) and white wires will be on
one side of the outlet box and the black and blue wires
will be on the other side. Carefully tuck the connections
up into the outlet box.
AA
Blue
White
White
Black
BB
Green
Black
Ground
conductor
Blue
White
Black
MM
AA
J
Blue
White
White
Black
Green
Black
Black
Ground
White conductor
Blue
White
Black
A
D
A
D
GreenGreen
Outlet box

Assembly — Hanging the Fan (continued)
8Installing the canopy
WARNING: The locking slots of the canopy (C) are provided
only as an aid to mounting. Do not leave the fan assembly
unattended until all four canopy mounting screws with lock
washers (EE) are engaged and rmly tightened.
□Slide the canopy (C) up to the ceiling. Make sure you
have placed the wires safely into the outlet box.
□ Secure the canopy (C) to the mounting bracket (A)
with the four canopy mounting screws with lock
washers (EE) included with your fan.
□ Raise up canopy ring (B) and line up the four tabs
with the four grooves on the canopy (C). Once lined
up, slide the canopy ring (B) and secure it to the
canopy (C) until snug.
12
WARNING: Make sure the tab on the mounting bracket (A)
properly sits in the groove in the hanger ball / downrod
assembly (D) before attaching the canopy (C) to the mounting
bracket (A) by turning the canopy (C) until it drops into place.
EE
Outlet box
A
EE
D
B
C

Disassembling Your Fan
This fan comes with a pre-assembled guard (H), decorative frame
(I) and blade (G) for your easy installation. Check that all screws
are tight and securely in place.
If you need to disassemble the fan for any reason such as
cleaning, follow these steps below:
□Remove four screw covers (NN) and remove four hex screws
(OO) from the Decorative frame (I) by using the hex wrench
(DD) and remove the guard screws (OO) to disassemble the
guard (H).
□Remove the blade (G) from the motor shaft (QQ) by using the
hex wrench (DD).
13 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
F
PP
QQ
H
I
DD
OO
NN
DD
G

14
Operation
REMOTE CONTROL OPERATING INSTRUCTIONS
REMOTE CONTROL OPERATING INSTRUCTIONS
K
- Press and release the button to turn the fan on or off.
- Press and release 1 time - turns the fan on high speed.
- Press and release 2 times - turns the fan on medium speed.
- Press and release 3 times - turns the fan on low speed.
- Press and release 4 times - turns the fan off.
- Press and release the button to turn the light on or off.
If you are using dimmable bulbs and you have previously set O / D dip
switch in your remote to the “D” position, press and hold the
button to activate the dimmer function.
- Press and hold this button for 3 seconds to enable Comfort
BreezeTM; this will change your fan speed randomly, simulating a
relaxing breeze. To cancel this feature press or .
- While the fan is on press 1 time - turns on a 2 hour run timer.
- While the fan is on press 2 times - turns on a 4 hour run timer.
- While the fan is on press 3 times - turns on an 8 hour run timer.
INSTALLING THE REMOTE CONTROL HOLDER
INSTALLING THE REMOTE CONTROL HOLDER
□Attach the remote control holder (RR) with the two remote
control holder mounting screws (SS).
□Replace the remote control holder cover (TT) into remote
control holder (RR). SS
TT
RR

Reverse switch
Operation (continued)
Care and Cleaning
□Check the support connections, brackets, and blade
attachments twice a year. Make sure they are secure.
Because of the fan’s natural movement, some
connections may become loose over time. It is not
necessary to remove the fan from the ceiling.
□Clean your fan periodically. Use only a soft brush or
lint-free cloth to avoid scratching the nish. The plating is
sealed with a lacquer to minimize discoloration or
tarnishing.
□(Optional) Cover small scratches with a light application of
shoe polish.
Do
Do
□Use water when cleaning. Water could damage the motor,
or the wood, or possibly cause an electrical shock.
□Apply oil to your fan or motor. The motor has
permanently-lubricated sealed ball bearings.
Do not
Do not
15 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
NOTE: Wait for the fan to stop before reversing the direction
of the blade rotation.
REVERSE SWITCH OPERATING INSTRUCTIONS
REVERSE SWITCH OPERATING INSTRUCTIONS
The reverse switch is located on the top of the motor housing.
Slide the switch to the right for warm weather operation. Slide the
switch to the left for cool weather operation.
Warm weather - (Clockwise Direction) A downward air ow
creates a cooling effect. This allows you to set your air conditioner
on a warmer setting without affecting your comfort.
Cool weather - (Counterclockwise Direction) An upward air ow
moves warm air off the ceiling. This allows you to set your heating
unit on a cooler setting without affecting your comfort.

Troubleshooting
□Do not connect the fan with wall mounted variable speed control(s).
□Make sure the frequency switches are set correctly.
The remote control is
not working.
Problem
Problem
Solution
Solution
□Check the main and branch circuit fuses or breakers.
□Check the line wire connections to the fan and switch wire connections in the switch housing.
□Check to make sure the frequency switches from the remote control and receiver are set to the same
frequency.
□Make sure all motor housing screws are snug.
□Make sure the screws that attach the fan blade to the motor hub are tight.
□Make sure the wire nut connections are not rattling against each other or the interior wall of the switch
housing.
□Allow a 24-hour "breaking-in" period. Most noises associated with a new fan disappear during this
time.
□Make sure there is a short distance from the ceiling to the canopy. It should not touch the ceiling.
□Make sure your ceiling box is secure and that rubber isolator pads are used between the mounting
bracket and outlet box.
The fan will not start.
The fan sounds noisy.
WARNING: Make sure the power is off at the electrical
panel box before you attempt any repairs. Refer to step 7
“Making the electrical connections” on page 11.
16

Service Parts
17 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
A
C
B
D
E
F
G
H
I
J
AA
BB
CC
DD
K
Part
Part
A
B
C
D
E
F
G
H
I
J
K
Description
Description
Mounting bracket (preassembled)
Canopy ring (preassembled)
Canopy
Hanger ball / downrod assembly
Coupling cover
Fan motor assembly
Blade (preassembled)
Guard (preassembled)
Decorative frame (preassembled)
Receiver
Remote control
Part
Part
AA
BB
CC
DD
Description
Description
Plastic wire nut
Plastic wire nut
1.5V AAA battery
Hex wrench

Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
Retain this manual for future use.
