USE AND CARE GUIDE
GAZELLE 52-INCH CEILING FAN
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 6 p.m., EST, Monday-Friday.
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
We appreciate the trust and condence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive
to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Home Decorators Collection!
Item #682-875, 682-878
Model #51550, 51552
UL Model #EF200S(M)-52

2
Table of Contents ................................................................2
Safety Information...............................................................2
Warranty ............................................................................... 3
Pre-Installation ....................................................................3
Installation............................................................................6
Assembly..............................................................................7
Operation ...........................................................................13
Care and Cleaning.............................................................14
Troubleshooting.................................................................14
1. All wiring must be in accordance with the National Electrical
Code ANSI/NFPA 70 and local electrical codes. Electrical
installation should be performed by a qualied licensed
electrician.
2. The outlet box and support structure must be securely mounted
and capable of reliably supporting 35 pounds (15.9 kg). Use
only UL Listed outlet boxes marked “Acceptable for Fan
Support of 35 pounds (15.9 kg) or less.”
3. The fan must be mounted with a minimum of 7 ft (2.1 m)
clearance from the trailing edge of the blades to the oor.
4. Do not operate the reversing switch while the fan blades are
in motion. You must turn the fan off and stop the blades before
you reverse the blade direction.
5. Do not place objects in the path of the blades.
6. Electrical diagrams are for reference only. Light kits that are
not packed with the fan must be UL listed and marked suitable
for use with the model fan you are installing. Switches must be
UL General Use Switches. Refer to the instructions packaged
with the light kits and switches for proper assembly. Use 9.5W
LED bulbs max (included).
7. After making electrical connections, spliced conductors should
be turned upward and pushed carefully up into the outlet box.
The wires should be spread apart with the grounded conductor
and the equipment-grounding conductor on one side of the
outlet box.
8. All setscrews must be checked and retightened where
necessary before installation.
9. Suitable for use in wet locations when installed in a GFCI
protected branch circuit. Use only with light kits marked
“Suitable for use in wet locations”.
WARNING: To reduce the risk of personal injury,
do not bend the blade brackets (also referred to as
anges) during assembly or after installation. Do not
insert objects in the path of the blades.
WARNING: To reduce the risk of re or electric
shock, do not use this fan with any solid-state speed
control device.
WARNING: Remove the rubber motor stops on
the bottom of the fan before installing the blades or
testing the motor.
WARNING: To avoid possible electrical shock,
turn the electricity off at the main fuse box before
wiring. If you feel you do not have enough electrical
wiring knowledge or experience, contact a licensed
electrician.
Safety Information
Table of Contents
CAUTION: To reduce the risk of personal injury,
use only the screws provided with the outlet box.
CAUTION: To avoid personal injury or damage to the fan
and other items, use caution when working around or
cleaning the fan.
WARNING: To reduce the risk of re, electric shock
or personal injury, mount to outlet box marked
“acceptable for fan support of 35 lbs. (15.9 kg) or
less” and use screws provided with the outlet box.

3HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Pre-Installation
Warranty
The supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a
lifetime after the date of purchase by the original purchaser. The supplier also warrants that all other fan parts, excluding any glass or acrylic
blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the date
of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or superior
model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All costs of removing
and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper installation, or by afxing any
accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not cover any changes in brass nish,
including rusting, pitting, corroding, tarnishing, or peeling. Brass nishes of this type give their longest useful life when protected from varying
weather conditions. A certain amount of “wobble” is normal and should not be considered a defect. Servicing performed by unauthorized persons
shall render the warranty invalid. There is no other express warranty. Home Decorators Collection hereby disclaims any and all warranties,
including but not limited to those of merchantability and tness for a particular purpose to the extent permitted by law. The duration of any
implied warranty which cannot be disclaimed is limited to the time period as specied in the express warranty. Some states do not allow a
limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall not be liable for incidental,
consequential, or special damages arising out of or in connection with product use or performance except as may otherwise be accorded by
law. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion or limitation may not apply to you.
This warranty gives specic legal rights, and you may also have other rights which vary from state to state. This warranty supersedes all prior
warranties. Shipping costs for any return of product as part of a claim on the warranty must be paid by the customer.
Contact the Customer Service Team at 1-800-986-3460 or visit www.HomeDepot.com/homedecorators.

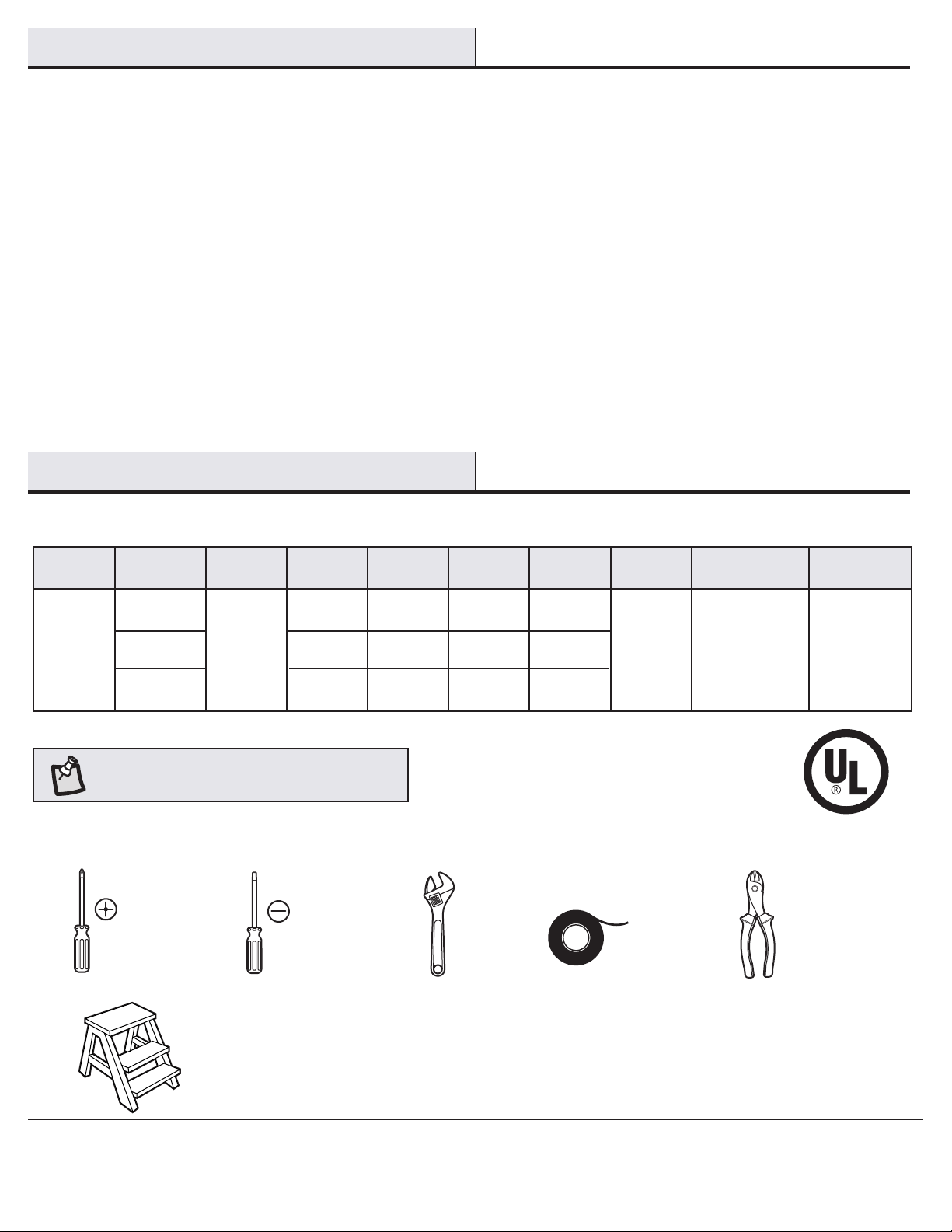

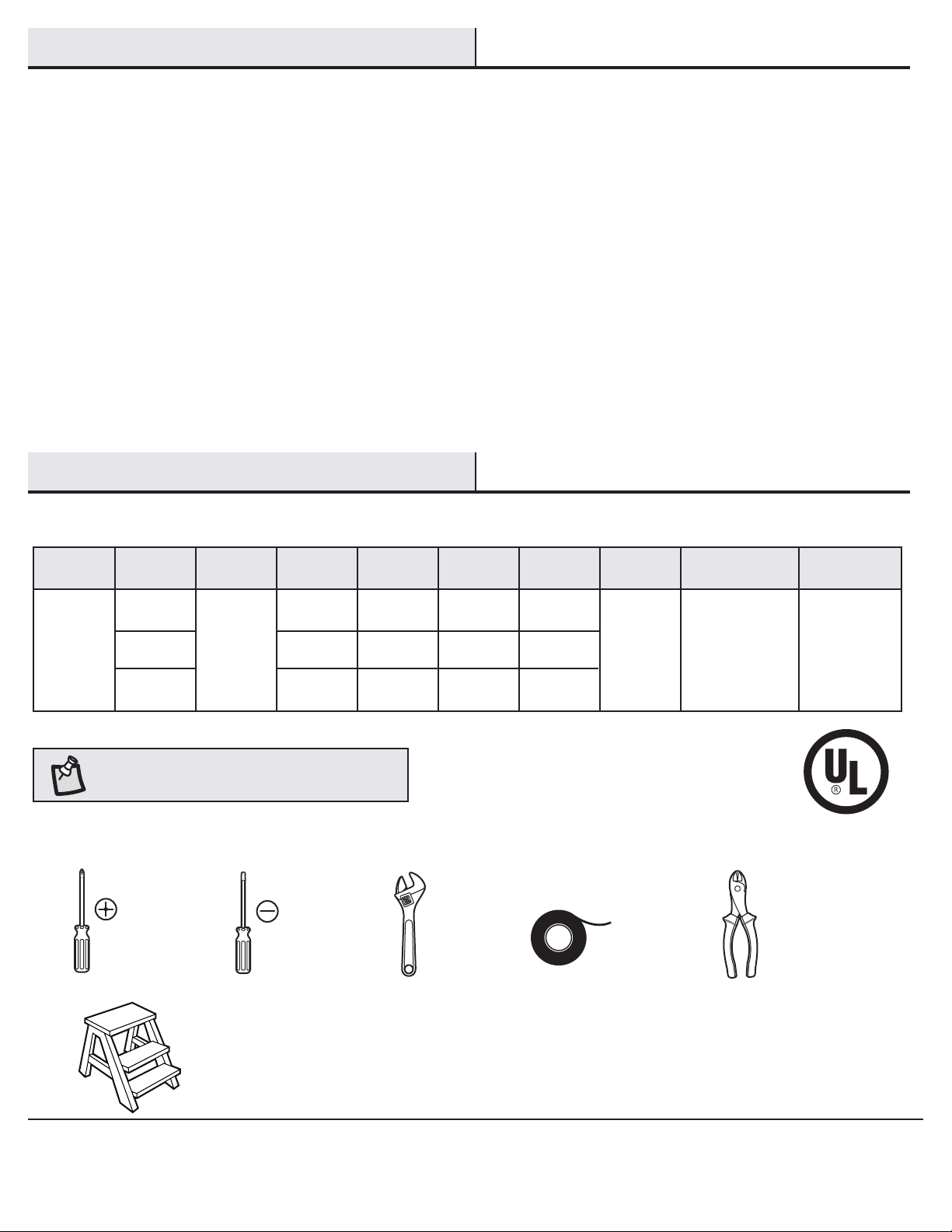

SPECIFICATIONS
TOOLS REQUIRED
NOTE: These are approximate measures. They do not
include the Amps and Wattage used by the light kit.
Phillips
screwdriver
Flat blade
screwdriver
Adjustable
wrench
Electrical
tape
Wire
cutter /
stripper
Step ladder
Size Speed Volts Amps Watts RPM CFM Net
Weight
Gross
Weight Cube Feet
52 in.
Low
Medium
High
120
0.24
0.34
0.51
12
25
61
67
102
159
1965
3012
4621
18.96 lbs.
(8.6 kg)
22.05 lbs.
(10 kg) 1.86 cu. ft.

4
Part Description Quantity
AA Rubber Gasket 1
BB Pull Chain 2
CC Plastic Wire Connector 3
DD Rubber Plug 1
Part Description Quantity
EE Hanger Pin 1
FF Locking Pin 1
Pre-Installation (continued)

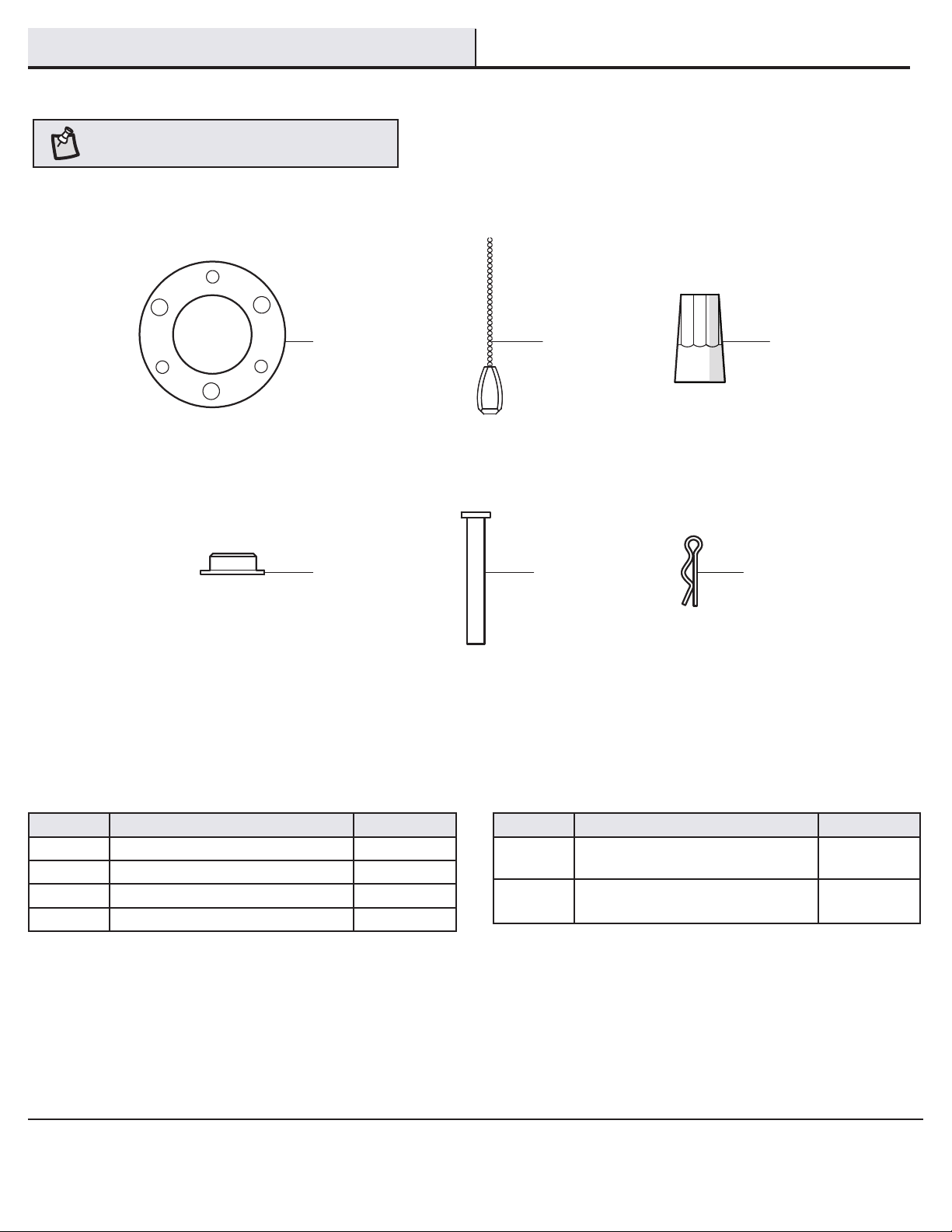

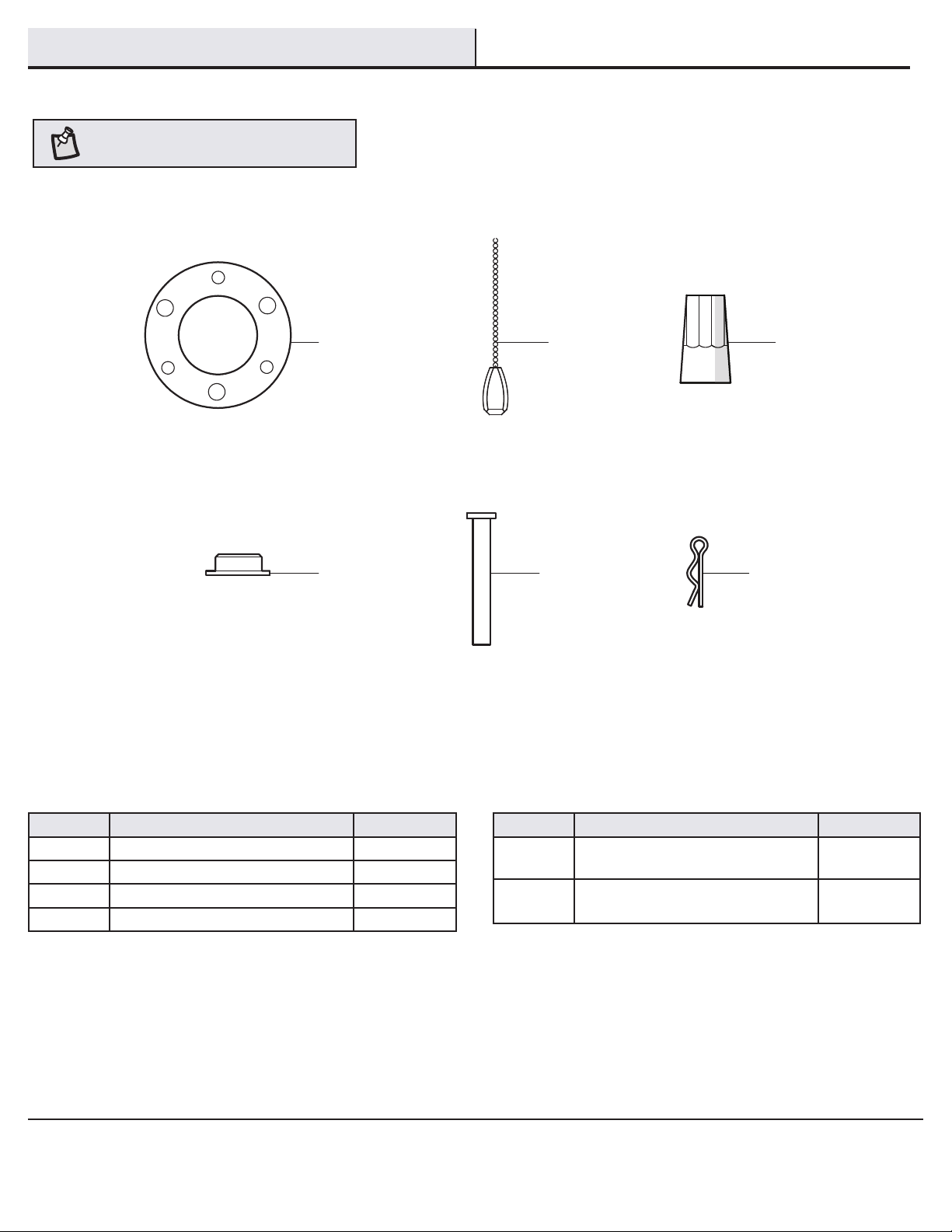

HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
DD
CCBBAA
EE FF

5HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Part Description Quantity
ASlide-on mounting bracket
(inside canopy) 1
B Ball/downrod assembly 1
C Canopy 1
D Coupler Cover 1
Part Description Quantity
E Fan-motor assembly 1
F Light kit tter assembly 1
G PP shades 3
H Blade 5
I Blade bracket 5
J LED bulb, 9.5-watts maximum 3
IMPORTANT: This product and/or components are
governed by one or more of the following U.S. Patents:
5,947,436; 5,988,580; 6,010,110; 6,046,416, 6,210,117
and other patents pending.
Pre-Installation (continued)

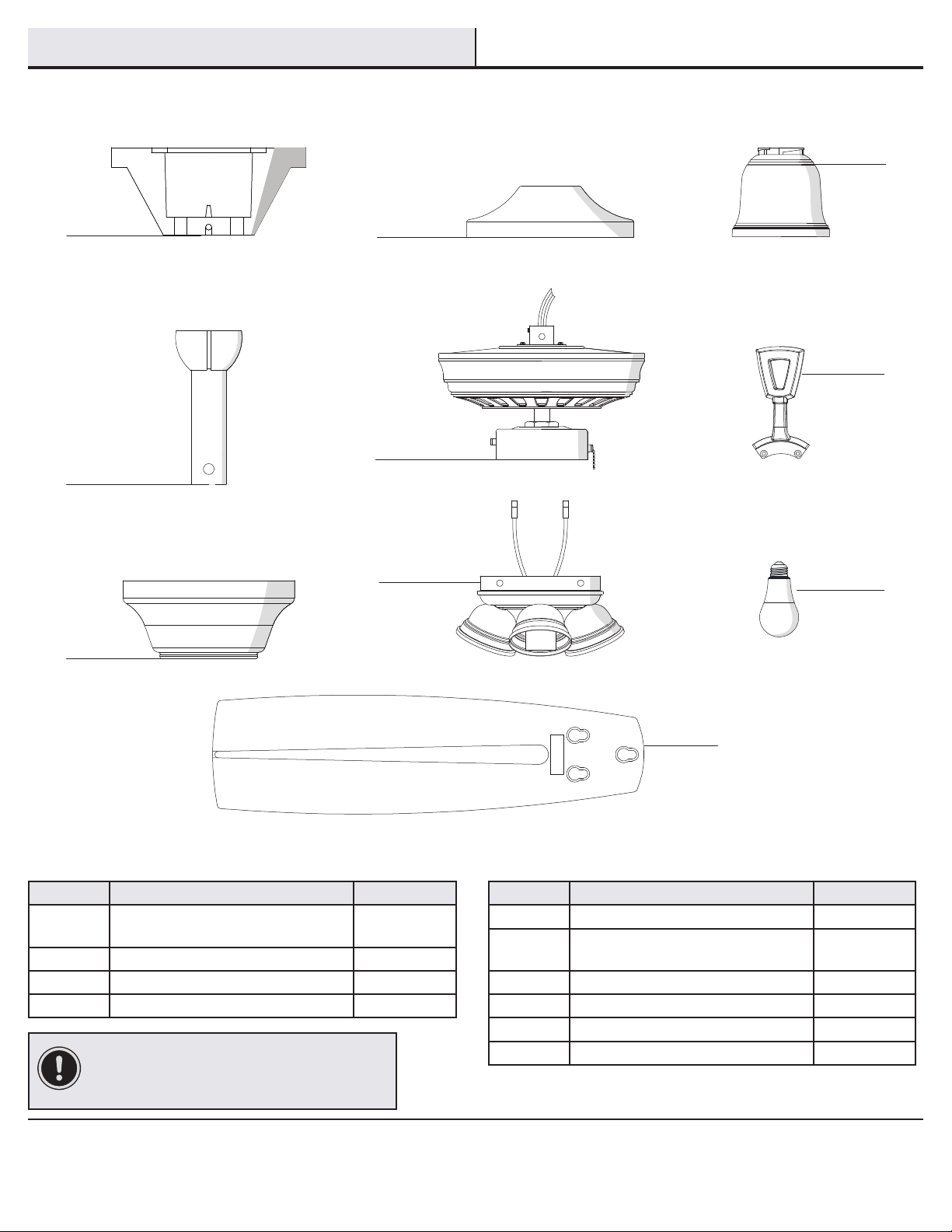

PACKAGE CONTENTS
H
B
C
J
I
G
D
E
F
A

6
Installation
MOUNTING OPTIONS
WARNING: To reduce the risk of re, electric shock
or personal injury, mount to outlet box marked
“Acceptable for fan support of 35 lbs. (15.9 Kg) or
less”, and use screws provided with the outlet box. An
outlet box commonly used for the support of lighting
xtures may not be acceptable for fan support and may
need to be replaced. If in doubt, consult a qualied
electrician.
If your ceiling fan does not have an existing UL-listed mounting
box, then install one using the following instructions:
□Disconnect the power by removing the fuses or turning off
the circuit breakers.
□Secure the outlet box directly to the building structure. Use
the appropriate fasteners and materials. The outlet box and
its bracing must be able to fully support the weight of the
moving fan (at least 35 lbs.). Do not use a plastic outlet box.
The illustrations below show three different ways to mount the
outlet box.
If the canopy touches the downrod, then remove the canopy bottom
cover, and turn the canopy 180° before attaching the canopy to the
mounting plate.
To hang your fan where there is an existing xture but no ceiling joist,
you may need an installation hanger bar as shown above
(available at any Home Depot store).
NOTE: You may need a longer downrod to maintain
proper blade clearance when installing on a steep, sloped
ceiling. The maximum angle allowable is 30° away from
horizontal.
Outlet Box
Outlet Box
Recessed
Outlet
Box
Provide Strong
Support
Ceiling
Mounting
Plate
Outlet Box
Hanger Bar

7HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

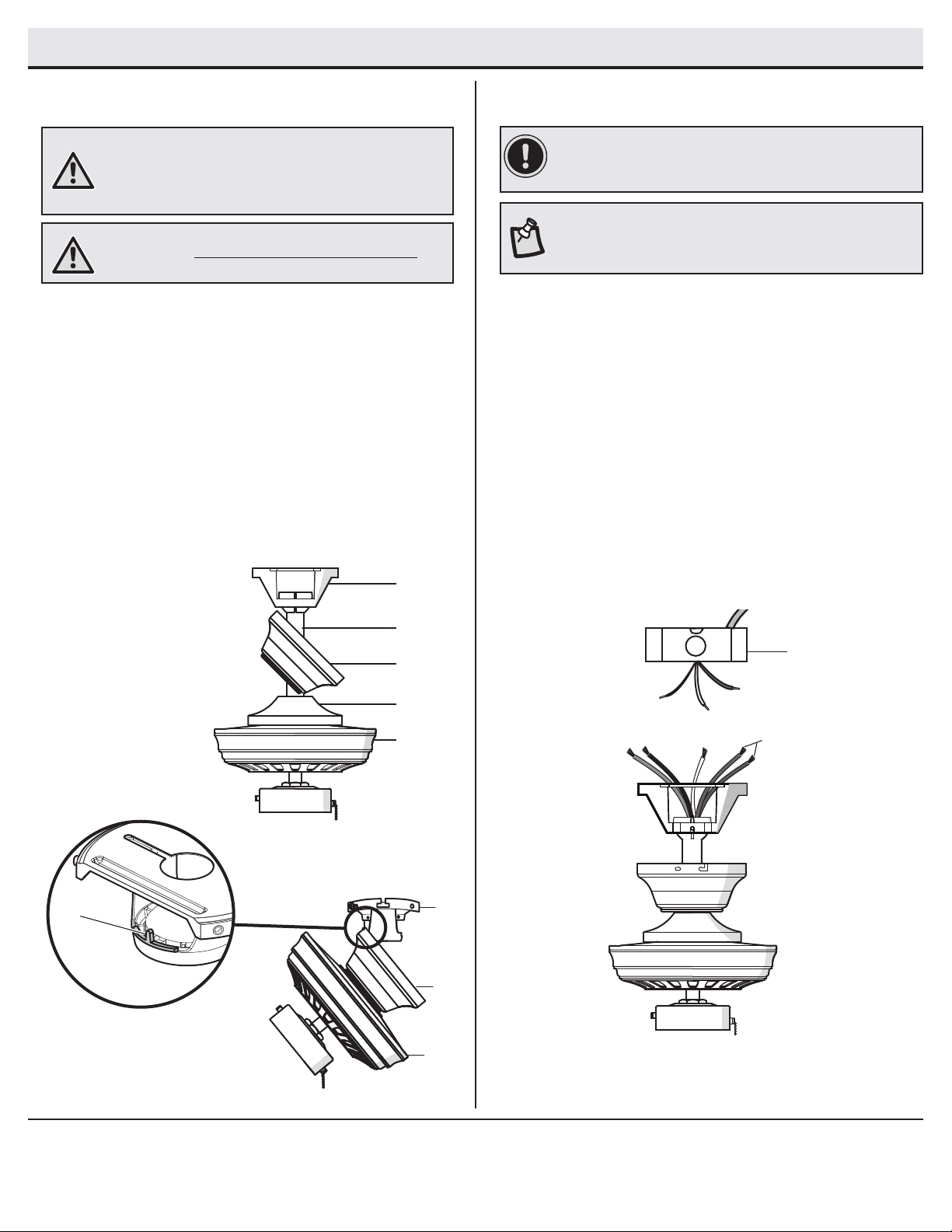

Assembly - Standard Ceiling Mount
Routing the wires
Assembling the fan
Preparing for mounting
□Loosen, but do not remove, the two setscrews (II) on the
collar (JJ) on top of the motor housing.
□Align the holes at the bottom of the downrod (B) with the
holes in the collar (JJ) on top of the motor housing.
□Carefully insert the hanger pin (EE) through the holes in
the collar (JJ) and downrod (B). Be careful not to jam the
hanger pin (EE) against the wiring inside the downrod (B).
□Insert the locking pin (FF) through the hole near the end of
the hanger pin (EE) until it snaps into its locked position.
□Re-tighten the two setscrews (II) on the collar (JJ) on top
of the motor housing.
□Remove the mounting plate (A) from the canopy (C) by
loosening the four screws on the top of the canopy (C).
□Remove the mounting bracket (A) from the canopy (C) by
loosening the two canopy screws (GG) located in the “L
shaped” slots.
□Remove and save the two canopy screws (GG) and lock
washers (HH) in the round holes. This will enable you to
remove the mounting bracket (A).
□Make sure the slot openings are on top, route the
wires through the coupler cover (D), canopy (C), and
then through the ball/downrod assembly (B).
2
3
1
GG
C
HH
AGG
B
C
D
E
FF
EE
JJ
B
II
WARNING: Failure to properly install the locking pin could
result in the fan becoming loose and possibly falling.

8
Assembly - Close-To-Ceiling Mount
Assembly - Hanging the Fan
Attaching the fan to the electrical
box
□Pass the 120-Volt supply wires through the center hole in the
mounting bracket (A).
□Install the ceiling mounting bracket on the outlet box by sliding
the mounting bracket (A) over the two screws (MM) provided with
the outlet box. If necessary, use leveling washers (not included)
between the mounting bracket (A) and the outlet box. Note that
the at side of the mounting bracket (A) is toward the outlet box.
When using close-to-ceiling mounting, it is important that the
mounting bracket be level.
□Securely tighten the two mounting screws (MM).
1
WARNING: To reduce the risk of re, electric shock or personal
injury, mount to outlet box marked “Acceptable for fan support
of 35 lbs. (15.9 Kg) or less”, and use screws provided with the
outlet box.
MM MM
A
Prepairing for mounting Routing the wires
1 2
□Remove the mounting bracket (A) from the canopy (C) by
loosening the two canopy screws (GG) located in the “L
shaped” slots.
□Remove and save the two canopy screws (GG) and lock
washers (HH) in the round holes. This will enable you to
remove the mounting bracket (A).
□Remove the decorative canopy bottom cover (K) from the
canopy (C) by pressing the three studs located inside the
bottom of the canopy.
□Remove three of the six screws (KK) and lock washers (LL)
(every other one) securing the motor collar to the top of the
fan motor housing (E).
□Place the rubber gasket (AA) over the remaining three screws.
Make sure the slot opening is on top, then proceed to place
the ceiling canopy (C) over the collar at the top of the motor
(E).
□Align the mounting holes with the holes in the motor (E) and
fasten, using the three screws (KK) and lock-washers (LL)
removed previously.
□Tighten the mounting screws securely.
LL
KK
C
AA
E
HH
C
GG
A
K
GG

9HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly - Hanging the Fan (continued)
Hanging the fan
□Carefully lift the fan-motor assembly (E) up to the slide-on
mounting bracket (A).
□Insert the ball portion of the ball/downrod assembly into the
socket of the slide-on mounting bracket.
□Turn the ball/downrod assembly clockwise until it is seated
with the tab of the slide-on mounting bracket aligned with the
slot in the ball.
□If using close-to-ceiling mounting, hang the fan on the hook
provided by utilizing one of the holes at the outer rim of the
ceiling canopy (C).
2
E
C
B
A
D
Standard mount.
A
C
E
OO
Close to ceiling mount.
Green or Bare
Green
Black
White
Black & Blue
Outlet box
in the ceiling
NN
Making the electrical connection
3
□The fan comes with 54 in. lead wires for use with an extended
ball/downrod assembly. If using the 4.5 in. ball/downrod
assembly (B) provided, you can cut the lead wires to your
desired length (no shorter than 12 in.) This will make extra
room in the canopy (C), if you do not wish to cut the wires,
you will need to neatly wrap them.
□Connect the fan motor green wire(s) to the household green
or bare wire using a wire connecting nut (CC).
□Connect the fan motor white wire to the household white wire
using a wire connecting nut (CC).
□Connect the fan motor black and blue wires to the household
black wire using a wire connecting nut (CC).
□Secure each wire connecting nut using electrical tape.
□Turn the wire connecting nut (CC) upward and push the wiring
into the outlet box (NN).
IMPORTANT: Use the wire connecting nuts (CC) supplied with your
fan. Secure the connectors with electrical tape and ensure there
are no loose strands or connections.
NOTE: The fan comes with 54 in. lead wires for use with an
extended ball/downrod assembly. If using the 4.5 in. ball/downrod
assembly (B) provided, you can cut the lead wires to your desired
length (no shorter than 12 in.).
WARNING: The hook (OO) is only to balance the fan while
making the electrical connections. Failure to hang as shown
may result in the hook (OO) breaking, causing the fan to fall.
The hook must pass from the inside to the outside of the
canopy.
WARNING: When hanging the fan on the hook (OO) it is
critical that you use one of the non-slotted (round) holes in
the canopy (C).

10
Mounting the fan
□Align the locking slots of the ceiling canopy (C) with the two
screws in the mounting bracket (A). Push up to engage the
slots, and turn clockwise to lock the canopy (C) in place.
□Firmly tighten the two mounting screws (GG).
□Install the remaining two mounting screws (GG) and washers
(HH) into the holes in the canopy (C) and tighten rmly.
5
WARNING: When using the standard ball/downrod mounting, the
tab in the ring at the bottom of the mounting bracket must rest in
the groove of the hanger ball. Failure to properly seat the tab in
the groove could cause damage to the wiring.
GG
HH
C
A
D
E
GG
Wrapping the extra wire
□Gently wrap the excess wire around the mounting bracket.
□Secure with electrical tape.
4
NOTE: Follow this step ONLY if you did not cut the extra length off
from the wires coming from the ceiling fan.
Assembly - Hanging the Fan (continued)

11 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly - Attaching the Fan Blades
Attaching the blade brackets
1
□Fasten the blade bracket (I) to the motor (E) by inserting the
alignment post into the slot on the bottom of the fan-motor
assembly (E) and tightening the motor screws that are pre-
assembled to the blade bracket (I).
□Repeat for the remaining four blade brackets (I).
□Insert the rubber plug (DD) into the hole in the switch cup
(UU).
UU
DD
I
E
Close-to-Ceiling mounting
WARNING: The locking slots of the ceiling canopy are provided only
as an aid to mounting. Do not leave the fan assembly unattended
until all four canopy screws are engaged and rmly tightened.
C
GG
E
HH
A
GG
□Carefully unhook the fan from the mounting bracket (A) and
align the locking slots of the ceiling canopy (C) with the two
screws in the mounting bracket (A). Push up to engage the
slots and turn clockwise to lock the canopy (C) in place. Im-
mediately tighten the two mounting screws (GG) rmly.
□Install the remaining two mounting screws (GG) and washers
(HH) into the holes in the canopy (C) and tighten rmly.
Assembly - Hanging the Fan (continued)
NOTE: The hole for the rubber plug (DD) is the access point to
the blade bracket (I) screws. After tightening all of the blade
bracket screws, insert the rubber plug (DD) to prevent water
from entering the switch housing and to reduce the risk of re,
electric shock, or other personal injury.
6
WARNING: Remove the rubber motor stops on the bottom of the fan
before installing the blades ortesting the motor.

12
Assembly - Attaching the Fan Blades (continued)
Attaching the fan blades
2
□Mount the fan blades (H) to the blade bracket (I) by aligning
the three key-slot holes in the blade (H) with the three posts
on the top of the blade brackets (I).
□Hold the blade (H) close to the blade bracket (I) and press
the blade (H) down rmly. Ensure the key-slot holes are
properly seated on the blade arm posts.
□While still holding the blade (H) down, rmly slide the
blade (H) away from the bracket (I) side until the blade (H)
engages in the locking mechanism (V V).
□Make sure the locking mechanism (V V) at the rear of the
blade bracket (I) springs upward and butts against the edge
of the blade (H) indicating a secure connection.
□Visually inspect the top of the blade bracket (I) to ensure the
locking mechanism (V V) is securely in place.
□Repeat for the remaining blades (H).
E
I
H
V V
NOTE: Your fan features revolutionary advancements
for quick and easy blade installation.
Assembly - Attaching the Light Kit
Attaching the light kit
1
□Remove the three screws (WW) from the light kit tter
assembly (F).
□Connect the wires exiting the bottom of the motor assembly
(E) by connecting the molded adaptor plugs together (blue to
blue, and white to white).
□Slide the light kit (F) and secure it to the switch housing
using the three screws (WW) that were removed in the rst
step.
CAUTION: To reduce the risk of electric shock, disconnect
the electrical supply circuit to the fan before installing the
light kit.
E
W W
F

13 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly - Attaching the Light Kit
Attaching the shades and installing
the bulbs
2
□Twist the plastic shade (G) into light kit tter (F) clockwise.
□Install the bulbs (J) into the sockets on the light kit tter (F).
□Attach the pull chain extensions (BB).
CAUTION: Make sure the power is off before attaching or
removing the shades.
WARNING: Allow the bulbs to cool completely before
replacing.
CAUTION: Over lamping the fan will result in the fan lights
shutting down until the proper wattage bulbs are installed. Reset
the lights by turning off the power, replacing the bulbs with the
correct wattage bulbs, and turn the power on.
Operation
Turn on the power and check the operation of the fan. The pull
chain controls the fan speeds as follows:
1 pull - High, 2 pulls - Medium, 3 pulls - Low, 4 pulls - off
The appropriate speed settings for warm or cool weather depends
on factors such as the room size, ceiling height, and number of
fans.
The slide switch (XX) controls the direction of the blades: forward
(switch left) or reverse (switch right).
Warm weather - (Forward) A downward airow creates a cooling
effect. This allows you to set your air conditioner on a warmer
setting without affecting your comfort.
Cool weather - (Reverse) An upward airow moves warm air off
of the ceiling. This allows you to set your heating unit on a cooler
setting without affecting your comfort.
NOTE: Wait for the fan to stop before reversing the direction of
blade rotation.
XX
XX
E
J
G
F
BB

14
Troubleshooting
Problem Solution
The fan will not start. □Check the main and branch circuit fuses or breakers.
□Check the line wire connections to the fan and switch wire connections in the switch housing.
The fan is noisy. □Ensure all motor housing screws are snug.
□Ensure the screws that attach the fan blade bracket to the motor hub are tight.
□Ensure the wire nut connections are not rattling against each other or the interior wall of the switch housing.
□Allow a 24-hour “breaking in” period. Most noises associated with a new fan disappear during this time.
□If you are using the Ceiling Fan light kit, ensure the screws securing the glassware are tight. Check that the light
bulbs are also secure.
□Ensure the canopy is a short distance from the ceiling. It should not touch the ceiling.
□Ensure your outlet box is secure and rubber isolator pads were used between the mounting plate and outlet box.
The fan wobbles. □Check that all blade and blade arm screws are secure.
□Most fan wobble problems are caused when blade levels are unequal. Check this level by selecting a point on the
ceiling above the tip of one of the blades. Measure from a point on the center of each blade to the point on the
ceiling. Measure this distance. Rotate the fan until the next blade is positioned for measurement. Repeat for each
blade. Any measurement deviation should be within 1/8 in. Run the fan for ten minutes. If the fan continues to
wobble please contact Customer Service and a balancing kit will be sent to you at no charge.
□Because of the fan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade
attachments twice a year. Make sure they are secure. It is not necessary to remove the fan from the ceiling.
□Clean your fan periodically to help maintain its new appearance over the years. Do not use water when cleaning, as this could damage
the motor, or the wood, or possibly cause an electrical shock. Use only a soft brush or lint-free cloth to avoid scratching the nish. The
plating is sealed with a lacquer to minimize discoloration or tarnishing.
□You can apply a light coat of furniture polish to the wood for additional protection and enhanced beauty. Cover small scratches with a
light application of shoe polish.
□You do not need to oil your fan. The motor has permanently-lubricated sealed ball bearings.
WARNING: Make sure the power is off before cleaning
your fan.
Care and Cleaning

Questions, problems, missing parts? Before returning to the store,
call Home Depot Customer Service
8 a.m. - 6 p.m., EST, Monday-Friday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
Retain this manual for future use.

GUÍA DE USO Y MANTENIMIENTO
VENTILADOR DE TECHO GAZELLE DE 1.32 M
¿Preguntas, problemas o piezas faltantes? Antes de regresar a la tienda,
llama al servicio al cliente de Home Decorators Collection de lunes a viernes entre
8 a.m. y 6 p.m. (hora estándar del Este).
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
GRACIAS POR TU COMPRA
Apreciamos la conanza que has depositado en Home Decorators Collection al comprar este ventilador de techo. Nos esforzamos para continuamente
crear productos de calidad diseñados para mejorar tu hogar. Visítanos por Internet para ver nuestra línea completa de productos disponibles para las
necesidades de mejoras de tu hogar. ¡Gracias por elegir Home Decorators Collection!
Artículo núm. 682-875, 682-878
Modelo núm. 51550, 51552
Modelo aprobado por UL núm. EF200S(M)-52

2
Tabla de contenido .............................................................. 2
Información de seguridad...................................................2
Garantía................................................................................3
Preinstalación ......................................................................3
Instalación............................................................................6
Ensamblaje........................................................................... 7
Funcionamiento.................................................................13
Mantenimiento y limpieza.................................................14
Solución de problemas ..................................................... 14
1. Todo el cableado debe cumplir con el Código Nacional de
Electricidad ANSI/NFPA 70 y con los códigos locales de
electricidad. La instalación eléctrica debe ser hecha por un
electricista certicado y calicado.
2. La caja eléctrica y estructura de soporte deben montarse de
forma segura y tener capacidad para sostener de manera
conable 15.9 kg. Usa solamente cajas eléctricas aprobadas
por UL marcadas como “apropiada para sostener ventiladores
de 15.9 kg o menos”.
3. El ventilador debe ir montado con un mínimo de 2.13 m de
separación entre el borde trasero de las aspas y el piso.
4. No muevas el interruptor de reversa mientras las aspas del
ventilador estén en movimiento. Debes apagar y detener las
aspas antes de dar reversa a la dirección de estas.
5. No coloques objetos en la trayectoria de las aspas.
6. Los diagramas eléctricos son solo para referencia. Los juegos
de luces no incluidos con el ventilador deben estar aprobados
por UL y marcados como apropiados para ser usados con el
modelo de ventilador a instalar. Los interruptores deberán
estar clasicados por UL como de uso general. Consulta las
instrucciones adjuntas a los kits de luces e interruptores
para obtener información sobre el ensamblaje adecuado. Usa
bombillas LED de un máximo de 9.5 watts (incluidas).
7. Después de concluir las conexiones eléctricas, debes voltear
los conductores empalmados hacia arriba y meterlos con
cuidado en la caja eléctrica. Los cables deben estar separados
con el cable a tierra y el conductor a tierra del equipo hacia
uno de los lados de la caja eléctrica.
8. Todos los tornillos de jación deben ser vericados y ajustados
donde sea necesario, antes de la instalación.
9. Adecuado para uso en lugares húmedos si se instala en un
circuito derivado protegido por un interruptor diferencial (GFCI).
Usar solamente con kits de luces marcados como "Adecuados
para uso en lugares húmedos".
ADVERTENCIA: Para reducir el riesgo de lesiones
personales, no dobles los soportes de las aspas (también
llamados “bridas”) durante el ensamblaje ni después
de la instalación. No coloques objetos en la trayectoria
de las aspas.
ADVERTENCIA: Para disminuir el riesgo de incendio o
descarga eléctrica, no utilices este ventilador con ningún
dispositivo de control de velocidad de estado sólido.
ADVERTENCIA: Quita los tapones de goma del motor
que están en la parte inferior del ventilador antes de
instalar las aspas o probar el motor.
ADVERTENCIA: Para evitar una posible descarga
eléctrica, corta la energía eléctrica en la caja principal
de fusibles antes de instalar el cableado. Si crees que
no tienes suciente experiencia o conocimientos sobre
cableado eléctrico, contrata a un electricista certicado.
Información de seguridad
Tabla de contenido
PRECAUCIÓN: Para reducir el riesgo de lesiones
personales, usa solamente los tornillos incluidos con
la caja eléctrica.
PRECAUCIÓN: Para evitar lesiones, o daños al ventilador y
otros objetos, ten cuidado al trabajar cerca del ventilador
o al limpiarlo.
ADVERTENCIA: Para reducir el riesgo de incendio,
descarga eléctrica o lesiones personales, instala solo
en una caja eléctrica clasicada como “apropiada para
sostener ventiladores de 15.9 kg o menos” y usa los
tornillos que vienen con esta.

3HOMEDEPOT.COM/HOMEDECORATORS
Para obtener asistencia, llama al 1-800-986-3460.
Preinstalación
Garantía
El proveedor garantiza de por vida, a partir de la fecha en que el comprador original lo adquiere, que el motor del ventilador no presenta defectos de
fabricación ni de materiales al momento en que es enviado desde la fábrica. El proveedor también garantiza por un período de dos años a partir de la fecha
de compra por el comprador original, que todas las demás piezas del ventilador, sin incluir ninguna aspa de vidrio o acrílico, no presentarán ningún defecto
de fabricación o de material desde el momento de su salida de la fábrica. Acordamos reparar todos los defectos del tipo antes mencionado, sin cargo alguno
o, a nuestra discreción, reemplazar el producto por un modelo de igual calidad o superior si el producto es devuelto. Para obtener servicio de garantía, debe
presentar una copia del recibo como comprobante de compra. Todos los costos de retiro y reinstalación del producto son su responsabilidad. Los daños
a cualquiera de las piezas como resultado de accidentes, uso inadecuado, instalación inadecuada, o debidos a la instalación de cualquier accesorio, no
están cubiertos bajo esta garantía. Debido a que las condiciones climáticas pueden variar, esta garantía no cubre ningún cambio en el acabado en bronce,
incluyendo óxido, perforación, corrosión, manchas o descascaramiento. Los acabados en bronce de este tipo tienen una vida útil más prolongada cuando se
los protege de las condiciones climáticas cambiantes. Es normal cierta “oscilación” y no se considerará un defecto. Cualquier servicio realizado por personal
no autorizado invalidará la garantía. No existe ninguna otra garantía expresa. Mediante la presente, Home Depot Decorators Collection se exime de cualquier
garantía, incluyendo pero sin limitarnos a aquellas de comercialización e idoneidad para un n particular, de acuerdo a lo contemplado por la ley. La duración
de cualquier garantía implícita que no se pueda eximir está limitada al período de tiempo especicado en la garantía explícita. Algunos estados no permiten
una limitación en la duración de la garantía; por consiguiente, la limitación anterior puede no aplicarse a su caso. El minorista no será responsable por daños
directos, indirectos o especiales que resulten o deriven del uso o rendimiento del producto, excepto en casos en que lo estipule la ley. Algunos estados no
permiten la exclusión o limitación de daños directos o indirectos, por lo que la limitación o exclusión anterior podría no aplicarse a su caso. Esta garantía
le otorga derechos legales especícos y es posible que también tenga otros derechos que varían de un estado a otro. Esta garantía sustituye todas las
garantías anteriores. Los costos de envío de cualquier devolución de productos hecha como parte de una reclamación de garantía están a cargo del cliente.
Comuníquese con el equipo de servicio al cliente al 1-800-986-3460 o visite www.HomeDepot.com/homedecorators.
ESPECIFICACIONES
HERRAMIENTAS NECESARIAS
NOTA: Estas medidas son aproximadas. No incluyen ni
el amperaje ni el vataje consumido por el kit de luces.
Destornillador
Phillips
Destornillador
plano
Llave
ajustable
Cinta de
electricista
Pelacables/
cortacables
Escalera de tijera
Tamaño Velocidad Voltios Amperes Watts RPM CFM Peso
neto
Peso
bruto
Pies
cúbicos
1.32 m
Baja
Media
Alta
120
0.24
0.34
0.51
12
25
61
67
102
159
1965
3012
4621
18.96 lbs.
(8.6 kg)
22.05 lbs.
(10 kg) 1.86 pies3

4
Pieza Descripción Cantidad
AA Junta de goma 1
BB Cadena del interruptor 2
CC Conector plástico para cables 3
DD Tapón de goma 1
Pieza Descripción Cantidad
EE Pasador de soporte 1
FF Pasador de cierre 1
Preinstalación (continuación)
HERRAJES INCLUIDOS
NOTA: No se muestra el tamaño real de los herrajes.
DD
CCBBAA
EE FF

5HOMEDEPOT.COM/HOMEDECORATORS
Para obtener asistencia, llama al 1-800-986-3460.
Pieza Descripción Cantidad
ASoporte de montaje deslizante
(dentro de la cubierta) 1
B Ensamblaje de tubo bajante/bola 1
C Cubierta 1
D Cubierta del acoplador 1
Pieza Descripción Cantidad
E Ensamblaje del motor del ventilador 1
F Ensamblaje del soporte del kit de
luces
1
G Pantallas de polipropileno (PP) 3
H Aspa 5
I Soporte de aspa 5
J Bombilla LED, máximo de 9.5 W 3
IMPORTANTE: Este producto o sus componentes están
protegidos por una o más de las siguientes patentes de
los EE. UU.: 5,947,436; 5,988,580; 6,010,110; 6,046,416,
6,210,117 y otras patentes pendientes.
Preinstalación (continuación)
CONTENIDO DEL PAQUETE
H
B
C
J
I
G
D
E
F
A
