USE AND CARE GUIDE
FC132-BMRL/FC140-BMRL 52/56-INCH CEILING FAN
Questions, problems, missing parts? Before returning to the store call
Home Decorators Collection Customer Service
8 a.m. - 6 p.m., EST, Monday-Friday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
Item #1000******/
1000******
Model #FC132-BMRL/
FC140-BMRL
THANK YOU
create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Home Decorators Collection !
We appreciate the trust and condence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive to continually

2
Table of Contents ................................................................ 2
Safety Information............................................................... 2
Warranty ............................................................................... 3
Pre-Installation .................................................................... 4
Installation............................................................................ 6
Assembly.............................................................................. 7
Operation ........................................................................... 13
Care and Cleaning............................................................. 15
Troubleshooting................................................................. 16
Safety Information
Table of Contents
This device complies with part 15 of the FCC rules, operation is subject to the following two conditions. (1) this device may not cause harmful
interference and (2) this device must accept any interference received, including interference that may cause undesired operation.
To reduce the risk of electric shock, ensure the electricity has
been turned off at the circuit breaker or fuse box before you begin.
All wiring must be in accordance with the National Electrical
Code ANSI/NFPA 70-1999 and local electrical codes. Electri-
cal installation should be performed by a qualied licensed
electrician.
The outlet box and support structure must be securely mounted
and capable of reliably supporting a minimum of 35 lbs. (15.9
kg). Use only UL-listed outlet boxes marked “Acceptable for
Fan Support of 35 lbs. (15.9 kg) or less.”
Do not place objects in the path of the blades.
To avoid personal injury or damage to the fan and other items,
use caution when working around or cleaning the fan.
After making electrical connections, spliced conductors should
be turned upward and pushed carefully up into outlet box. The
wires should be spread apart with the grounded conductor and
the equipment-grounding conductor on one side of the outlet box.
All setscrews must be checked and retightened where
necessary before installation.
READ AND SAVE THESE INSTRUCTIONS.
The fan must be mounted with a minimum of7 ft (2.1 m) clearance
from the trailing edge of the blades to the oor.
WARNING:To Reduce The Risk Of Personal Injury, Do Not
Bend The Blade Brackets When Installing The Brackets,
Balancing The Blades, Or Cleaning The Fan. Do Not Insert
Foreign Objects In Between Rotating Fan Blades.
WARNING: To Reduce The Risk Of Fire Or Electric Shock,Or
Personal Injury, Mount To Outlet Box Marked"Acceptable
for Fan Support of 15.9 kg (35 lbs) or less" And Use
Mounting Screws Provided With The Outlet Box.
WARNING: To Avoid Possible Electrical Shock,
Turn The Electricity Off At The Main Fuse Box Before Wiring.
If You Feel You Do Not Have Enough ElectricalWiring
Knowledge Or Experience, Contact A Licensed Electrician.
WARNING: To Reduce The Risk Of Fire Or Electric Shock, This
FC132-BMRL Fan Should Only Be Used With Fan Speed Control
Model No. FYDC759 - A1,the FC140-BMRL Should Only Be Used
With Fan Speed Control Model No. FYDC759 - A2 Manufactured
By ZHONGSHAN KEZHUOER ELECTRONIC CO.,LTD.
WARNING: Remove The Rubber Motor Stops On The Bottom
Of The Fan Before Installing The Blades Or Testing The Motor.
CAUTION: To Reduce The Risk Of Personal Injury,Use Only The
Screws Provided With The Outlet Box.
WARNING: To Reduce The Risk Of Fire Or Electric Shock, Do
Not Use This Fan With Any Solid-State Speed Control Device.
“Please note that changes or modications of this product is not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.”
Warning: Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user’s authority
to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.

3
Warranty
Pre-Installation
SPECIFICATIONS
Size Speed Volts Net
Weight
Gross
Weight Cube Feet
52”
1
2
3120
0.06
0.07
0.10
3.26
4.45
6.51 18.06 Ibs.
(8.2 kg)
22.03 Ibs.
(10.0 kg)
4
5
6
Size Speed Volts Amps Watts RPM CFM
Amps Watts RPM CFM
Net
Weight
Gross
Weight Cube Feet
56”
1
2
3120
0.07
0.09
0.14
0.25
0.45
0.59
3.84
5.68
8.98
17.4
32.5
43.5
.
4
5
6
0.45
0.29
0.18
31.9
21.0
11.9
61
80
101
180
160
130
61
81
102
171
160
130
1957
2665
3175
2.74 cu.ft.
18.06 Ibs.
(8.2 kg)
22.03 Ibs
(10.0 kg) 2.74 cu.ft.
5962
5310
4382
2481
3300
4049
7286
6437
5153
NOTE: These are approximate measures. They do not
include the Amps and Wattage used by the light kit.
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
The supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period
of lifetime after the date of purchase by the original purchaser. The supplier also warrants that all other fan parts, excluding any glass or acrylic
blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of one year after the date of
purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or superior model
if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All costs of removing and
reinstalling the product are your responsibility. Damage to any part such as by accident or misuse or improper installation or by afxing any
accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not cover any changes in brass nish,
including rusting, pitting, corroding, tarnishing, or peeling. Brass nishes of this type give their longest useful life when protected from varying
weather conditions. A certain amount of “wobble” is normal and should not be considered a defect. Servicing performed by unauthorized persons
shall render the warranty invalid. There is no other express warranty. Home Decorators Collection hereby disclaims any and all warranties,
including but not limited to those of merchantability and tness for a particular purpose to the extent permitted by law. The duration of any implied
warranty which cannot be disclaimed is limited to the time period as specied in the express warranty. Some states do not allow a limitation on
how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall not be liable for incidental, consequential, or
special damages arising out of or in connection with product use or performance except as may otherwise be accorded by law. Some states do not
allow the exclusion of incidental or consequential damages, so the above exclusion or limitation may not apply to you. This warranty gives specic
legal rights, and you may also have other rights which vary from state to state. This warranty supersedes all prior warranties. Shipping costs for
any return of product as part of a claim on the warranty must be paid by the customer.
Contact the Customer Service Team at 1-800-986-3460 or visit HOMEDEPOT.COM/HOMEDECORATORS

Pre-Installation (continued)

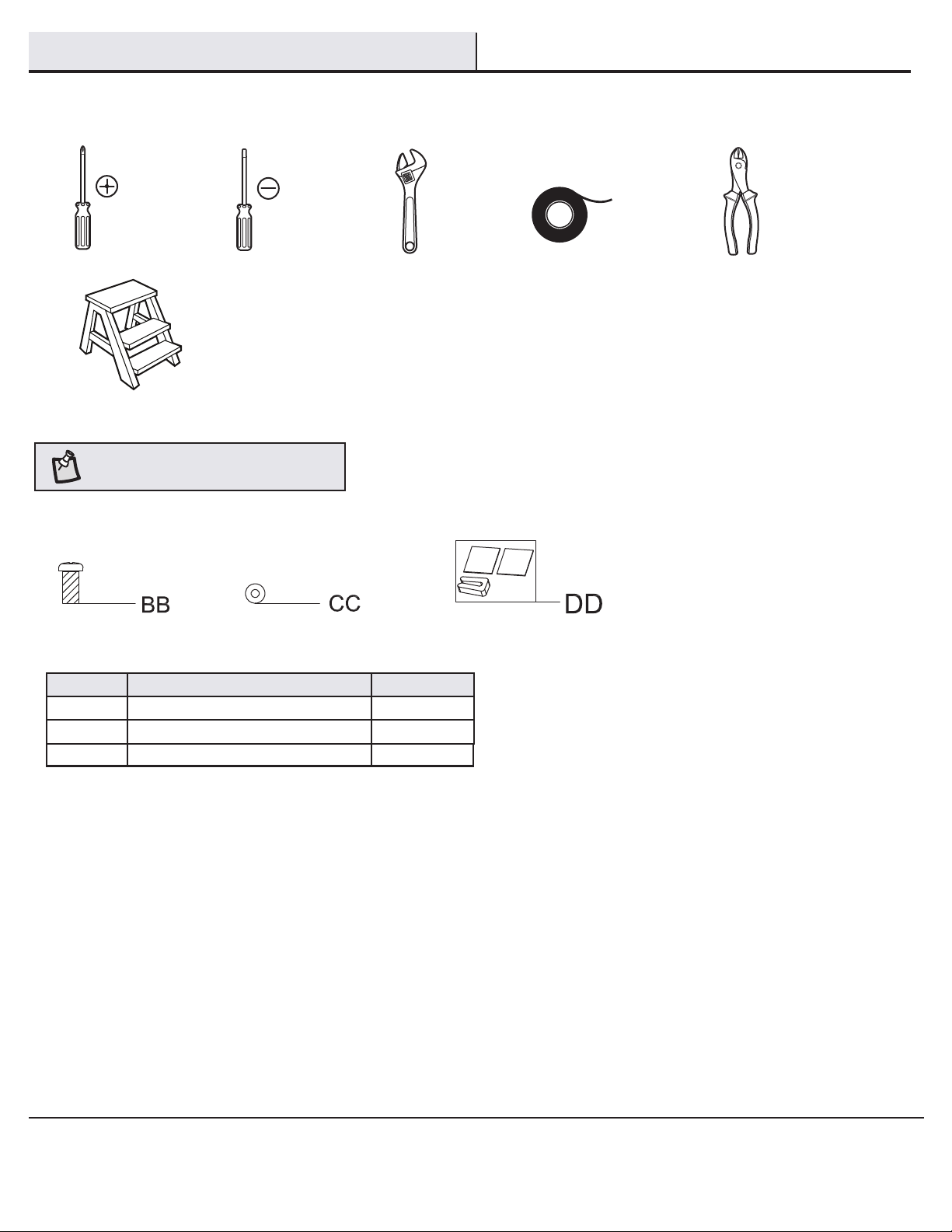

HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
TOOLS REQUIRED
Phillips
screwdriver
Flat blade
screwdriver
Adjustable
wrench
Electrical
tape
Wire cutter
/ Stripper
Step ladder
Part Description Quantity
BB
CC
Blade Attachment Screw M5
Paper Washer
16
DD
16
Balance Kit 1
4

5
Part Decription Quantity
A Mounting bracket 1
B Ball/downrod assembly 1
D Canopy ring 1
E 1
Pre-Installation (continued)

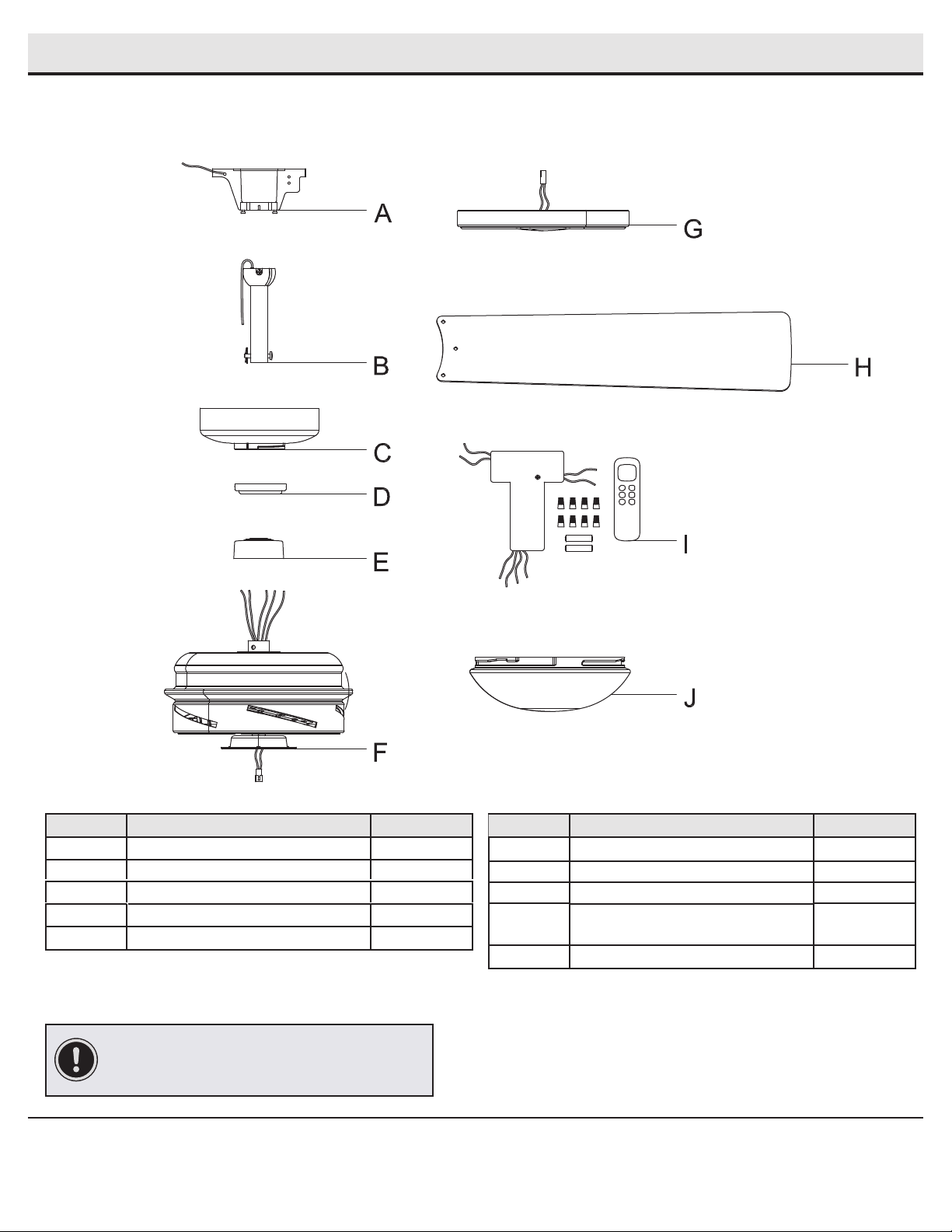

PACKAGE CONTENTS
C Canopy 1
Decorative motor collar cover
Part Decription Quantity
F
Blade 5
G 1
I 1
J
Remote control &Receiver assembly
&include 8 plastic wire nuts and 2 batteries
H
Light kit tter assembly
Fan-motor assembly 1
1Glass Shade
IMPORTANT: This product and/or components are
governed by one or more of the following U.S. Patents:
5,947,436; 5,988,580; 6,010,110; 6,046,416, 6,210,117
and other patents pending.
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

6
Installation
MOUNTING OPTIONS
Outlet Box
Outlet box
Recessed
Outlet
Box
Ceiling
Mounting
Plate
Provide Strong
Support
Outlet Box
Hanger bar
□Disconnect the power by removing the fuses or turning off
the circuit breakers.
□Secure the outlet box (not included) directly to the building
structure.
Use the appropriate fasteners and materials (not included).
The outlet box and its bracing must be able to fully support
the weight of the moving fan (at least 35 lbs.). Do not use
a plastic outlet box.
The illustrations below show three different ways to mount the
outlet box.
If your ceiling fan does not have an existing UL-listed mounting box, then
install one using the following instructions:
WARNING:To reduce the risk of re,electric shock,
or personal injury, mount the fan to an outlet box marked”-
acceptablefor fan support of 35 lbs.
(15.9kg) or less”, and use the screws provided
with the outlet box. An outlet box commonly used
for the support of lighting xtures may not be acceptable for
fan support and may need to be replaced. Ifin doubt, consult
a qualied electrician.
NOTE: You may need a longer downrod to maintain proper
blade clearance when installing on a steep, sloped ceiling.
The maximum angle allowable is 30° away from horizontal.
If the canopy touches the downrod, then remove the decora-
tive canopy bottom cover and turn the canopy 180° before
attaching the canopy to the mounting plate.
To hang your fan where there is an exisiting xture
but no ceiling joistyou may need an installation hanger bar
as shown above (available at any Home Depot store).

Assembly - Standard Ceiling Mount
7

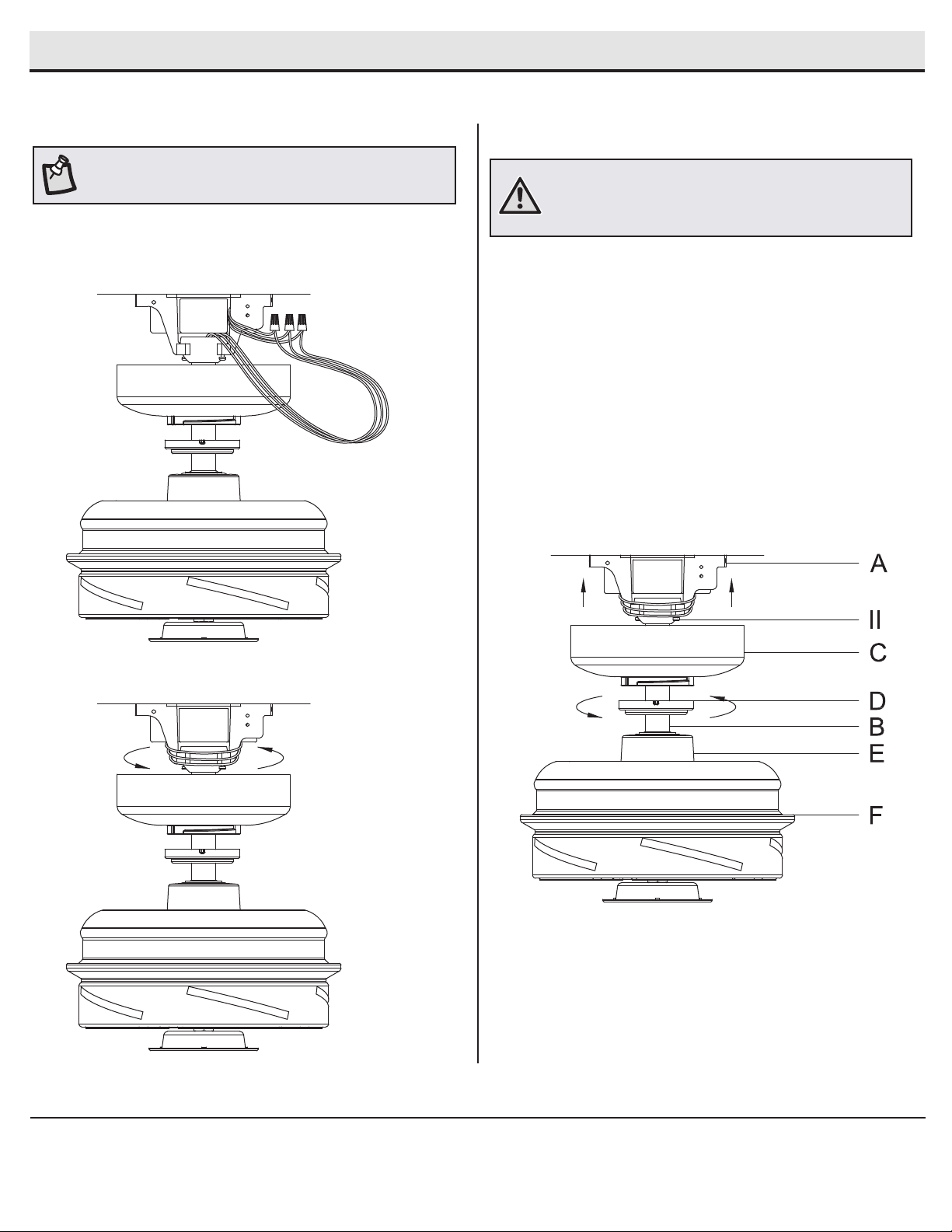

Preparing for routing the wires
Routing the wires and assembling
the fan
□
□
Insert the ball/downrod (B) through the canopy (C) and---
and canopy ring (D) and slide the decorative motor collar
cover (E) onto the end of the ball/downrod (B). Make sure
the slots on the canopy (C) are on top.
Route the wires exiting the top of the fan motor
assembly (F) through the downrod as shown.
Carefully insert the hanger pin (EE) through the holes in the
collar (K) and downrod (B). Be careful not to jam the hanger
pin (FF) against the wiring inside the downrod (B).
Insert the locking pin (FF) through the hole near the end of
the hanger pin (EE) until it snaps into its locked position.
Reinstall the setscrew (GG) turning clockwise until tight.
□
□
Remove the hitch pin (EE) and lock pin (FF) from the
downrod (B).
Loosen the two set screws (GG) from the fan motor assembly
(F) coupling.
2
1
□
□
□
CAUTION:To ensure wobble-free operation and to avoid
damage to the fan, the downrod (B) and the setscrew
(II) must be completely tightened
WARNING: Failure to properly install the locking pin could result in
thefan becoming loose and possibly falling.
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

Assembly - Hanging the Fan
Attaching the fan to the electrical box
Hanging the fan

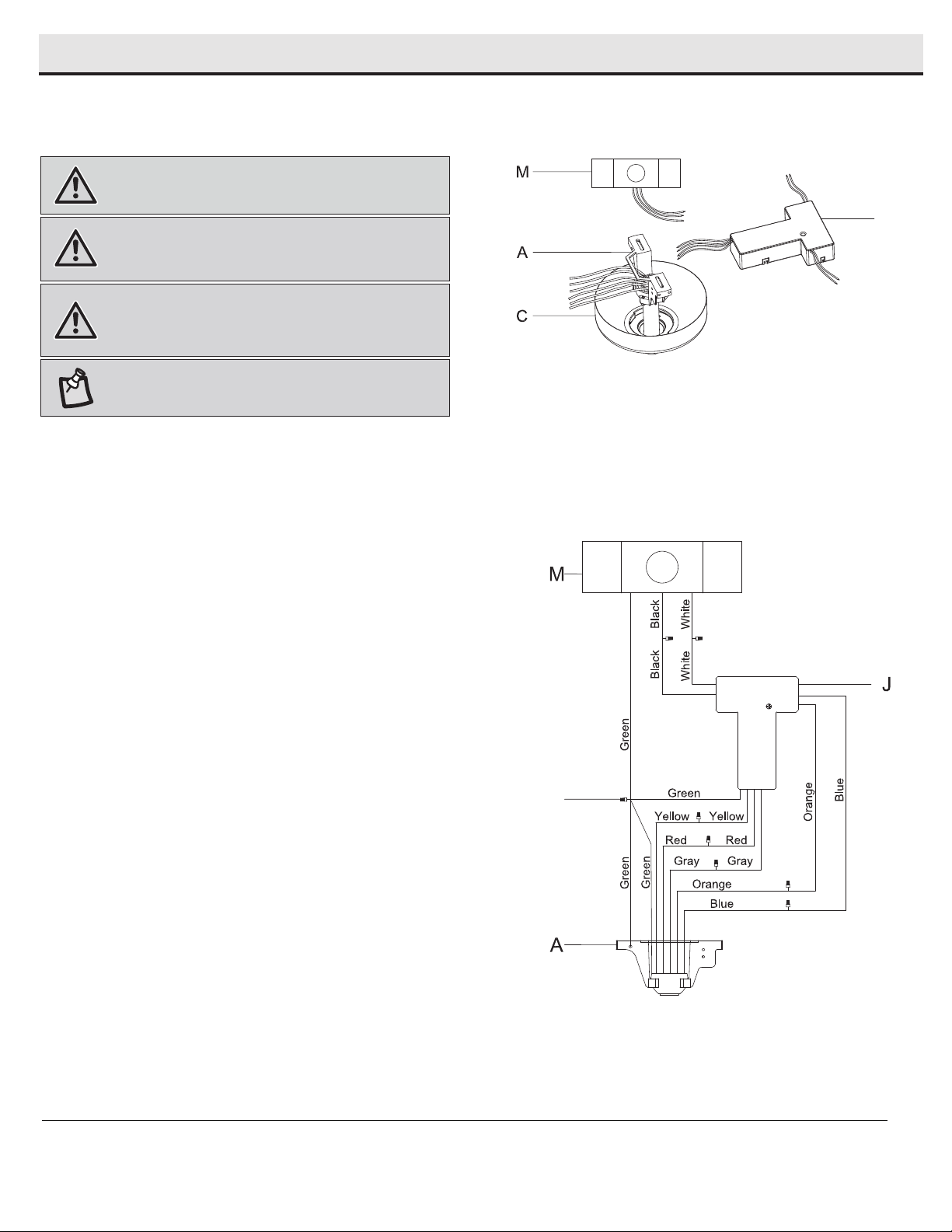

□Pass the 120-Volt supply wires through thecenter hole in the
mounting bracket (A).
□Install the ceiling mounting plate on the outlet box by the
mounting bracket (A) over the two screws (AA) provided with the
outlet box (M) . If necessary, use leveling washers (not included) be-
tween the mounting bracket (A) and the outlet box. Note that the
at side of the mounting bracket(A)is toward the outlet box.
□Securely tighten the two mounting screws (AA) (not included).
3
4
□Carefully lift the fan-motor assembly(F) up to theslide-on
mounting bracket (A).
□Insert theball portion of the ball/downrod assembly into
the socket of the slide-on mounting bracket (A).
□Turn the ball/downrod assembly clockwise until it is seated
with the tab of the slide-on mounting bracket (A) aligned
with the slot in the ball.
8
WARNING: To reduce the risk of re, electric shock, or other personal
injury, mount the fan to an outlet box or supporting system marked
acceptable for fan supportand use the mounting screws provided with
the outlet box.
WARNING:The hook (XX) isonlytobalancethe fan while may
resultin the hook (XX) breaking, causing the fan to fall. The hook
mustpass from the insideto the outsideofthe canopy.
WARNING:When hanging the fan on thehook (XX) itis critical that
you useoneof the non-slotted (round) holes in the canopy (C).

Assembly -Hanging the Fan (continued)
Making the electrical connections
5
□
□
9
□After all splices are made, check to make sure there are no loose strands.
□Secure wire connection with the plastic P2 wire nuts(HH) provided.
If your outlet box has a GROUND wire (Green or Bare Copper),connect this
wire to the Hanger Ball and Hanger Bracket and receiver Ground wires.If
your outlet box does not have a Ground Wire, then connect the Hanger
Ball and Hanger Bracket and Receiver Ground Wire together.
Receiver to House Supply Wires Electrical connections:Connect the WHITE
wire(Neutral) from the outlet box to the WHITE wire marked ” POWER N”
from the Receiver.Connect the BLACK wire(Hot) from the outlet box to the
BLACK wire marker ” POWER L” from the Receiver.
□Motor to Receiver Electrical Connections:
Connect the ORANGE wire from the fan to the ORANGE wire marked
”Light +” from the Receiver.
Connect the BLUE wire from the fan to the BLUE wire marked ”Light -”
from the Receiver.
Connect the YELLOW wire from the fan to the YELLOW wire marked” V”
from the Receiver.
Connect the RED wire from the fan to the RED wire marked” U” from the
Receiver.
Connect the GREY wire from the fan to the GREY wire marked” W” from
the Receiver.
Follow the steps below to connect the fan to your house supply wires.
Secure the wire nuts supplied with your fan by wrapping the connec-
tions with electrical tape.
Insert the receiver (I) into the mounting bracket (A)with the at side of
the receiver (I) facing the ceiling.
WARNING: Check to see that all connections are tight,including the
ground, and that no bare wire is visible at the wire nuts, except for the
ground wire.
WARNING: To avoid possible electrical shock, ensure the electricity is
turned off at the circuit breaker or main fuse box before wiring.
WARNING: To avoid possible electrical shock, ensure the electricity is
turned off at the main fuse box before wiring.
NOTE: Cut the extra wire, if you feel the excess wire too long, then follow
the step connet wire.
I
HH

Assembly -Hanging the Fan (continued)
10
Mounting the fan-motor assembly
(standard mount)
7
□Gently wrap the excess wire around the mounting bracket.
□Secure with electrical tape.
Wrapping the extra wire
6
WARNING: When using the standard ball/downrod mounting, the tab in the
ring at the bottom of the mounting bracket must rest in the groove of the
hanger ball. Failure to properly seat the tab in the groove could cause damage
to the wiring.
NOTE: Follow this step ONLY if you did not cut the extra length off from the
wires coming from the ceiling fan.
□
□Firmly tighten the two screws (II).
□
Align the locking slots of the canopy with two screws (II) in the
mounting bracket (A). Push up to engage the slots and turn
clockwise to lock in place.
Install the decorative bottom cover (D) by aligning the cover’s slots
with the screws in the bottom of the canopy (C). Rotate the bottom
cover clockwise to lock in place.

Assembly - Attaching the Fan Blades
Fastening the blade assemblies to
the motor
8
□
□Repeat this step for the remaining blade assemblies.
Fasten the blade assembly to themotor (F) by inserting the
alignment post into the slot on the bottom ofthe motor and
tightening the blade bracket (BB) screws and lockwasher
(CC).
11
9
□Remove one the three screws (JJ) and left two screws on the
switch cup cover of the light kit tter assembly and loosen, but
do not remove, the other two screws.
□Connect the wires from the light kit tter assembly (G) to the
wires from the switch cup of the fan motor assembly by
connecting the molded adaptor plugs together (blue to blue,
orange to orange). Carefully tuck all wires and splices in the
switch cup.
Place the key holes from the light kit plate (G) over the two
screws(JJ) previously loosened from the light kit tter assembly.
Turn the light kit plate until it locks in place at the narrow section
of the key hole. Secure by tightening the two screws(JJ)
previously loosened and the one screws (JJ) previously removed.
CAUTION: To reducetherisk ofelectric shock, disconnect
the electrical supply circuittothefan before installing the
□
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

Assembly - Installing the Light Kit

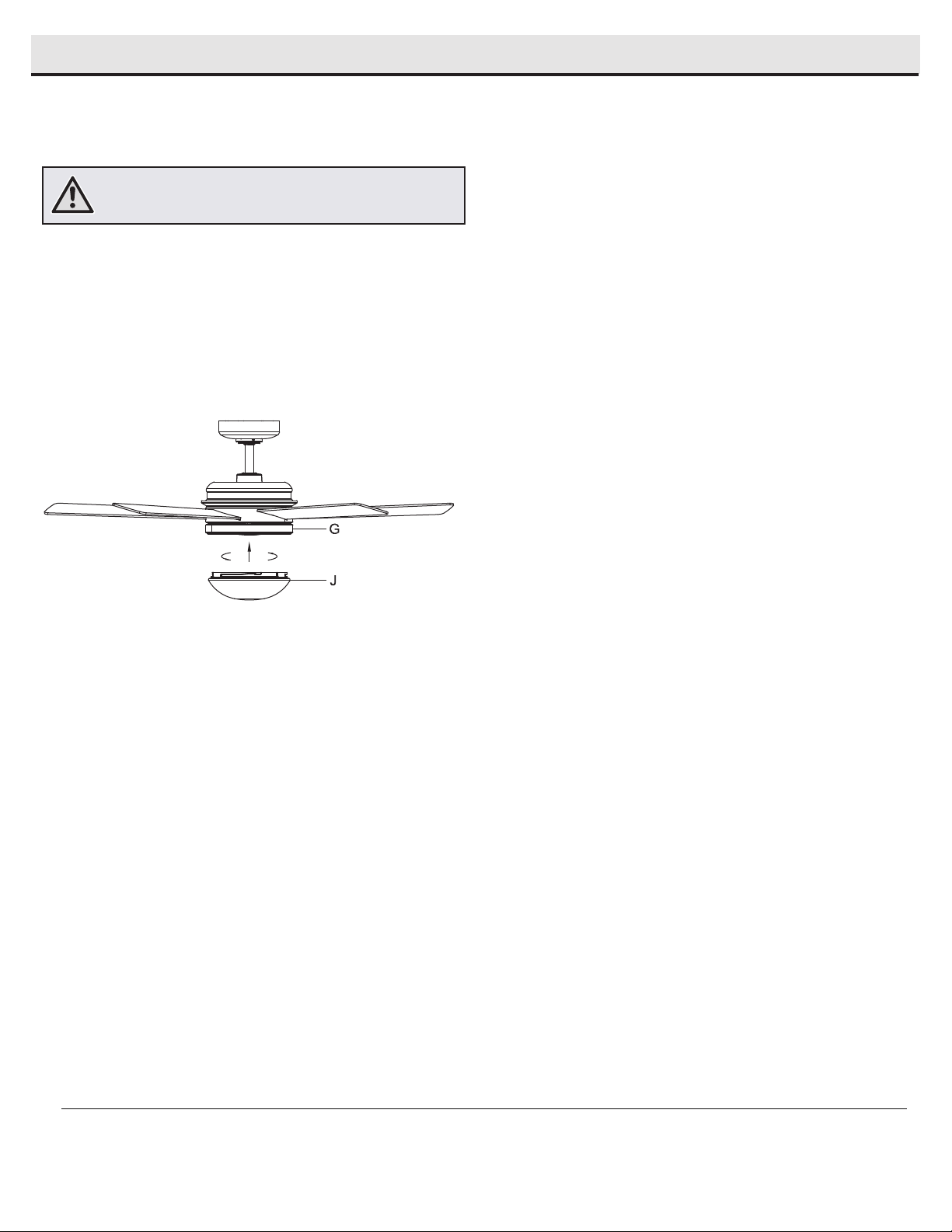

Attaching the glass bowl
10
□Place the glass bowl (J) into the light kit assembly (G) ,
aligning the three at areas on the top ange of the glass
bowl (J) with the three raised dimples in the light kit
assembly (G). Turn the glass bowl (J) clockwise until it
stops.
12
WARNING: Do not overtighten when installing the shade into the
light kit. Allow the shade to cool completely before removing.

Installing the batteries
□
□
□
Learning process
Should you desire to use another remote control unit with your
new fan, install one using the steps below:
□
Return the power to the unit.
Within 60 seconds of turning the fan's AC power ON, once the
receiver has detected the set frequency, the down light of your
fan, if applicable, will blink twice. There is no indication if your
fan is not equipped with a light.
□
NOTE: After the AC power is on, do not press any other button on
the remote control before pressing the “FAN OFF” button. Doing
so will cause the procedure to fail.
NOTE: The remote control can learn multiple receivers. Make sure
no other receivers are operating during the learning process.
Separate the fan power switches by approximately 7 meters.
□Press and hold the button for 5 seconds to enter the learning
function.
□
NOTE: The battery will weaken with age and should be replaced
before leaking takes place as this will damage the remote
control. Dispose of used battery properly and keep the battery
out of the reach of children.
Remove the battery cover by pressing on the arrow andslid-
ing the cover off.
Install two 1.5V AAA batteries (S).
Replace the battery cover on the remote control.
CAUTION: Do not use with a wall light dimmer switch.
Turn the main power source off to begin the learning process.
13

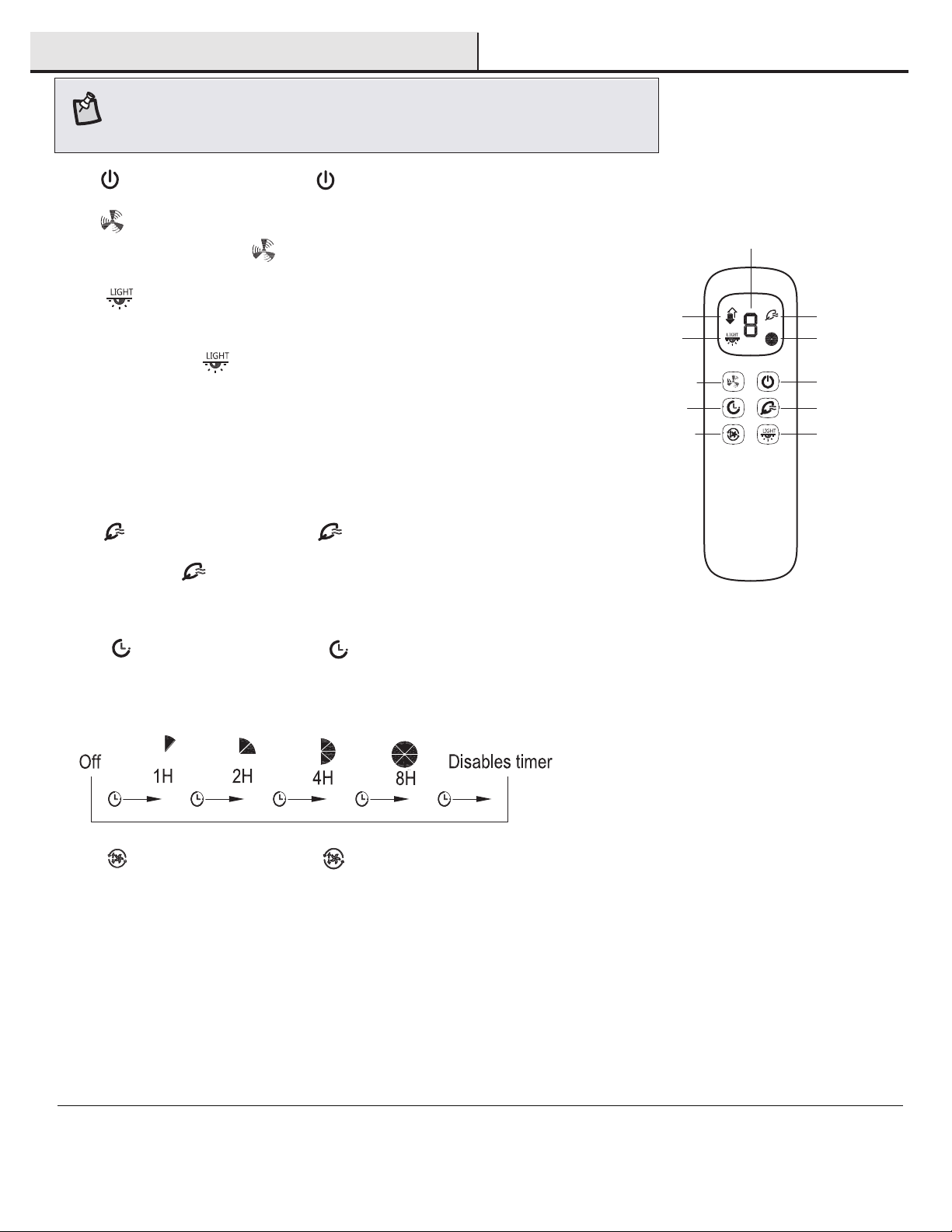

Operation
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
A receiver can remember up to three remote controls, when
the fourth is used, the rst would be deleted.
□

2. Fan
1. Fan button. - Press and release the button to turn the fan on
or off.
button, -Change the fan speed
Pressing and releasing the button one time will circularly
change speed of the fan, from speed 1 to speed 6 then speed1.
Press and release the light button to turn the light on or off.
Press and hold the button more than 2 seconds will increases
the light level (Dimmer), light level sequence has been set from
Low( “L” show on the LED display ) to Middle (”П” show on the
LED display ) to High(”H”show on the LED display ) then Low(“L”
show on the LED display) .
When the light level set “L” will be approximately 33% illuminated.
When the light level set “П” will be approximately 80% illuminated.
When the light level set “H” will be approximately 100% illuminated.
□
□
3. LED button, - To turn the light on or off and dim LED illuminated.
□
□
□
4. Fan button. - Press and release the button will activate the
Comfort Breeze mode or off the Comfort Breeze mode.
When pressing button will increase the speed the fan, from
speed 1 to speed 6 then decrease the speed of the fan to speed1,in
24 seconds.
□
5. Fan button. - Press and release the button will
automatically turn fan and light (if light is on) off after 1,2, 4, or 8
hours. When you activate the timer mode, the LED display will show
the time icon.
6. Fan button. - Press and release the button wil change airow
direction (Must be pushed when the fan is in operation)
□
□Warm weather - (Forward) A downward airow creates a cooling effect.
This allows you to set your air conditioner on a higher setting without
affecting your comfort.
Cool weather - (Reverse) An upward airow moves warm air off of the
ceiling. This allows you to set your heating unit on a lower setting
without affecting your comfort.
Fan ON/ OFF
Reverse switch
Timer
Fan speed switch
Light ON/ OFF
Comfort Breeze
Light Icon Timer Icon
Comfort Breeze
Icon
Reverse Switch
Speed/ Light display
NOTE: The fan has memory function , it will resume the speed setting on the fan prior to the power
being turned off. And The LED display will show the founction for 4 seconds after the button is
released.
14
Operation(continued)

Care and Cleaning
□
□
□
□
□
□
Do not
Do
15
Do not apply oil to your fan or motor. The motor has permanently-lubricated sealed ball bearings.
(Optional) Apply a light coat of furniture polish to the wood blades.
(Optional) Cover small scratches with a light application of shoe polish.
Check the support connections, brackets, and blade attachments twice a year. Ensure they are secure. Because of the fan’s natural
movement, some connections may become loose over time. It is not necessary to remove the fan from the ceiling.
Clean your fan periodically. Use only a soft brush or lint-free cloth to avoid scratching the nish. The plating is sealed with a
lacquer to minimize discoloration or tarnishing.
Do not use water when cleaning. Water could damage the motor, or the wood, or possibly cause an electrical shock.
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

Troubleshooting
Problem Solution
The fan will not start. Check the main and branch circuit fuses or breakers.
Check the line wire connections to the fan and switch wire connections in the switch
housing.
□
□
Check the battery in the remote control.
Ensure you are in the normal range of 10-20 feet.
Remember to turn off the power supply before checking the dip switch settings.
□
□
□
The fan is noisy. Ensure all motor housing screws are snug.
Ensure the screws that attach the fan blade bracket to the motor hub are tight.
Ensure the wire nut connections are not rattling against each other or the interior wall
of the switch housing.
□
□
□
Allow a 24-hour “breaking in” period. Most noises associated with a new fan
disappear during this time.
□
If you are using the Ceiling Fan light kit, ensure the screws securing the glassware are
tight. Check that the light bulbs are also secure.
Ensure the canopy is a short distance from the ceiling. It should not touch the ceiling.
Ensure your outlet box is secure and rubber isolator pads were used between the
mounting plate and outlet box.
□
□
□
The fan wobbles. □
□
Check that all blade and blade arm screws are secure.
Most fan wobble problems are caused when blade levels are unequal. Check this level by selecting a
point on the ceiling above the tip of one of the blades. Measure from a point on the center of the blade
to the point on the ceiling. Rotate the fan until the next blade is positioned for measurement, and
measure from the same point on each blade to the ceiling. Repeat for each blade. Any measurement
deviation should be within 1/8 in. Run the fan for ten minutes. If the fan continues to wobble please
contact Customer Service and a balancing kit will be sent to you at no charge.
16 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
