Home Decorators Collection BENTLEY III User manual

USE AND CARE GUIDE
BENTLEY III 22 INCH CEILING FAN
Item #1001 320 847
Item #1001 320 844
Model #AL14-22-BN
Model #AL14-22-NI
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
THANK YOU
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday

Table of Contents ..........................................................
Safety Information .........................................................
Warranty .........................................................................
Pre-Installation ..............................................................
Specifications ..........................................................................
Tools Required .........................................................................
Hardware Included ..................................................................
Package Contents ....................................................................
Installation .....................................................................
Assembly ........................................................................
Hanging the Fan .......................................................................
2
3
4
4
4
4
5
6
7
8
9
Disassembling Your Fan .............................................
Operation .....................................................................
Remote Control Operating Instructions ..................................
Installing the Remote Control Holder .....................................
Care and Cleaning .......................................................
Troubleshooting ..........................................................
Service Parts ...............................................................
13
14
14
14
15
15
17
Table of Contents
2

Safety Information
3 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
WARNING: To reduce the risk of electrical shock or fire, do
not use this fan with any solid-state fan speed control device.
It will permanently damage the electronic circuitry.
WARNING: Do not insert foreign objects between rotating
fan blades.
WARNING: To reduce the risk of fire, electric shock or
personal injury, mount the fan to the outlet box marked
acceptable for fan support with the screws provided with the
outlet box.
CAUTION: To reduce the risk of personal injury, use only
the screws provided with the outlet box.
1. To reduce the risk of electric shock, ensure electricity has
been turned off at the circuit breaker or fuse box before
beginning.
2. All wiring must be in accordance with the National Electrical
Code “ANSI/NFPA 70-1999” and local electrical codes.
Electrical installation should be performed by a qualified
licensed electrician.
3. The outlet box and support structure must be securely
mounted and capable of reliably supporting a minimum of 35
lbs (15.9 kg). Use only UL-listed outlet boxes marked “FOR
FAN SUPPORT.”
4. The fan must be mounted with a minimum of 10 ft. (3.05m)
clearance from the trailing edge of the blades to the floor.
5. Avoid placing objects in the path of the blades.
6. To avoid personal injury or damage to the fan and other
items, be cautious when working around or cleaning the fan.
7. Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be
suitable for most cleaning.
8. After making electrical connections, spliced conductors
should be turned upward and pushed carefully up into the
outlet box. The wires should be spread apart with the
grounded conductor and the equipment-grounding conductor
on one side of the outlet box and ungrounded conductor on
the other side of the outlet box.
9. All setscrews must be checked and retightened where
necessary before installation.
10. This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must
accept any interference received, including interference that
may cause undesired operation.
Warning: Changes or modifications to this unit not expressly
approved by the party responsible for compliance could void
the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for
help.
NOTE: Suitable for use in damp locations.

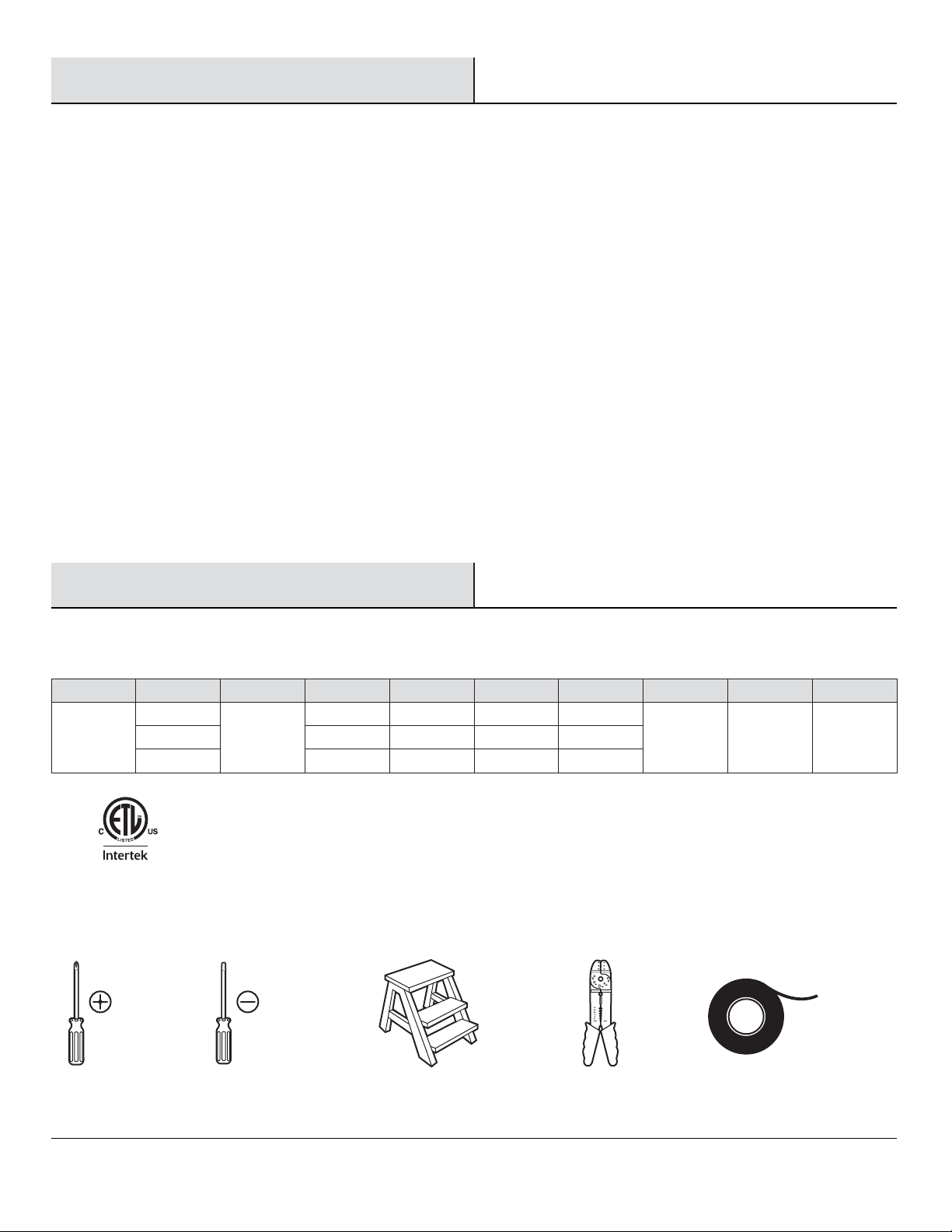

SPECIFICATIONS
SPECIFICATIONS
TOOLS REQUIRED
TOOLS REQUIRED
Phillips
screwdriver
Electrical
tape
Wire
stripper
Flat blade
screwdriver
Step
ladder
Warranty
4
Pre-InstallationPre-Installation
We warrant the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period
of lifetime after the date of purchase by the original purchaser. We also warrant that all other fan parts, excluding any glass or acrylic
blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the
date of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or
superior model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All
costs of removing and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper installa-
tion or by affixing any accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not cover
any changes in brass finish, including rusting, pitting, corroding, tarnishing or peeling. Brass finishes of this type give their longest useful
life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a defect.
Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. We hereby disclaim
any and all warranties, including but not limited to those of merchantability and fitness for a particular purpose to the extent permitted by
law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as specified in the express warranty.
Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall
not be liable for incidental, consequential, or special damages arising out of or in connection with product use or performance except as
may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential damages, so the above
exclusion or limitation may not apply to you. This warranty gives specific legal rights, and you may also have other rights which vary from
state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a claim on the warranty
must be paid by the customer.
Contact the Customer Service Team at 1-800-986-3460 or visit www.HOMEDEPOT.COM/HOMEDECORATORS
22 in.
Low
Medium
High
120
Fan size
Fan size
Watts
Watts
RPM
RPM
CFM
CFM
Speed
Speed
Volts
Volts
Amps
Amps
5.35 ft.
N.W.
N.W.
G.W.
G.W.
C.F.
C.F.
0.36
0.39
0.44
28.52
36.26
51.96
789
977
1294
1402
1705
2175
7.08 kgs
(15.58 lbs)
9.82 kgs
(21.60 lbs)

AA
BB
CC
DD
EE
FF
GG
HH
II
JJ
KK
LL
Collar setscrew (preassembled)
Plastic wire nut (not to scale)
Canopy mounting screw (preassembled)
Remote control holder mounting screw (not to scale)
Clevis pin (preassembled)
Cotter pin (preassembled)
Hex wrench (not to scale)
Rear guard screw (preassembled)
Front guard screw (preassembled)
Blade cover (preassembled)
12V battery (not to scale)
Plastic wire nut (not to scale)
Part
Part
Description
Description
2
3
2
2
1
1
1
4
8
1
1
6
Quantity
Quantity
AA
EE II
JJ
KK
LL
FF
GG
HH
BB
CC
DD
Pre-Installation (continued)

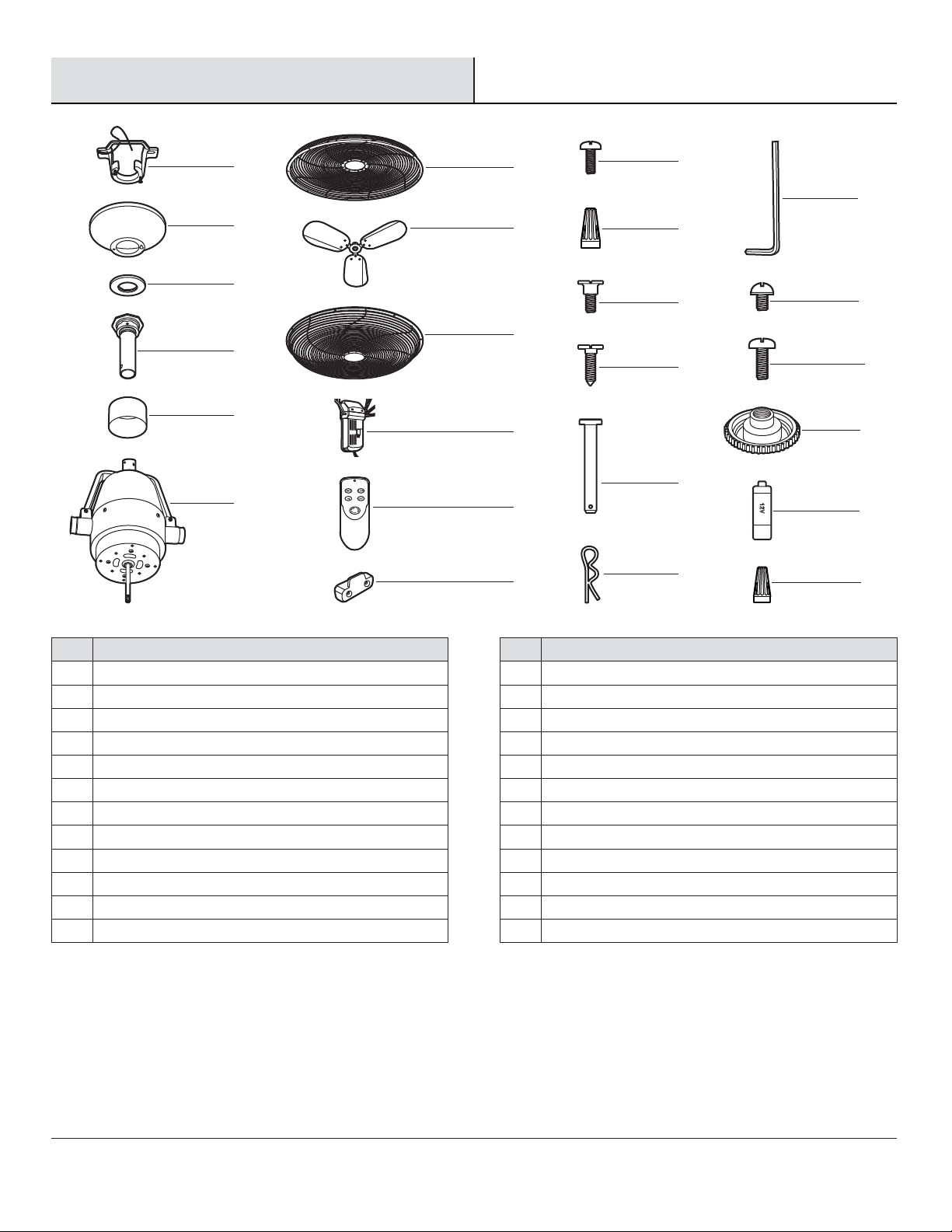

HARDWARE INCLUDED
HARDWARE INCLUDED
NOTE: Hardware shown to actual size unless noted
otherwise in the table below.
5 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

Part
Part
G
H
I
J
K
L
Description
Description
Rear guard (preassembled)
Blade (preassembled)
Front guard (preassembled)
Receiver
Remote control
Remote control holder
Part
Part
A
B
C
D
E
F
Quantity
Quantity
1
1
1
1
1
1
Quantity
Quantity
1
1
1
1
1
1
Description
Description
Mounting bracket (preassembled)
Canopy
Canopy bottom cover (preassembled)
Hanger ball/downrod assembly
Coupling cover
Motor head (preassembled)

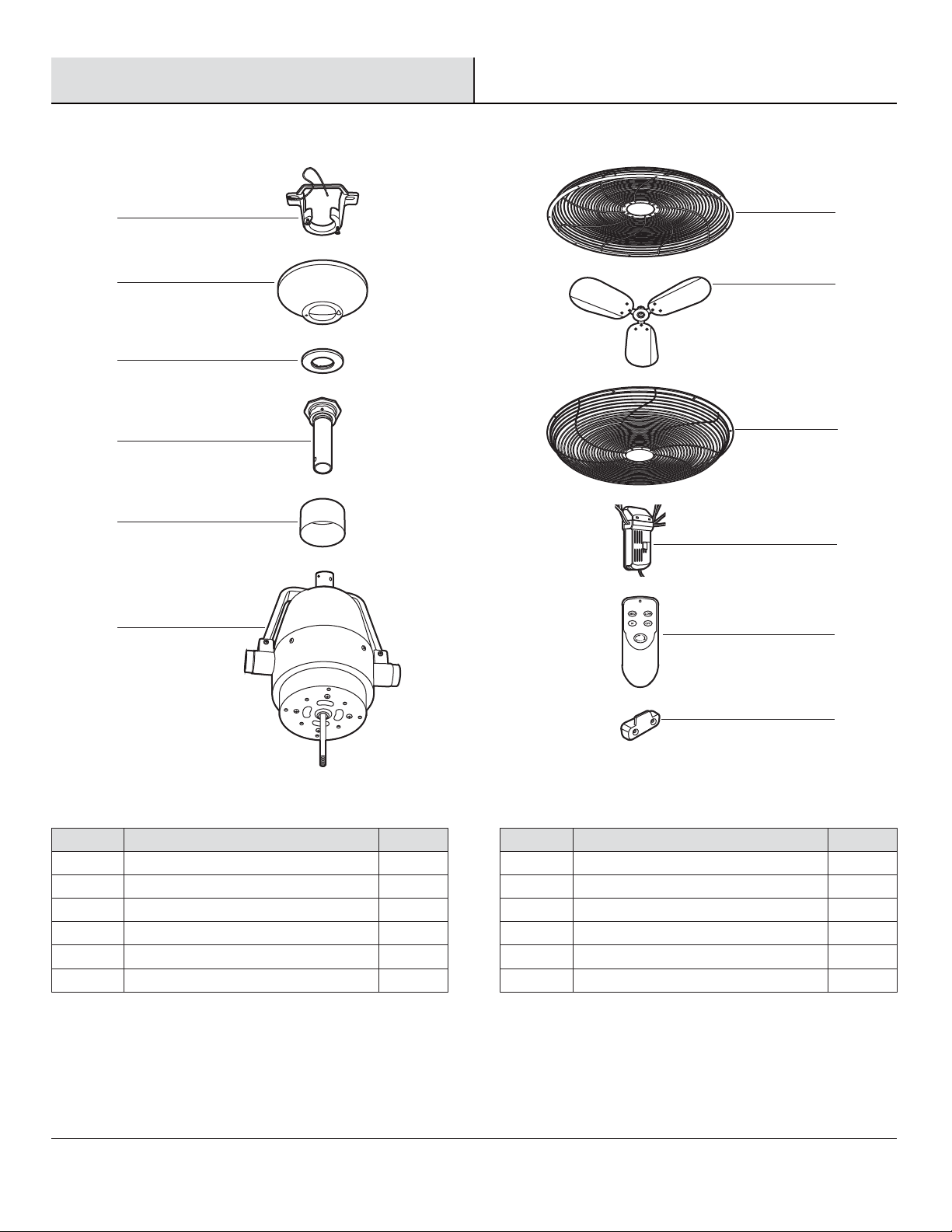

PACKAGE CONTENTS
PACKAGE CONTENTS
Pre-Installation (continued)
6
A
B
C
D
E
G
H
I
J
K
L
F

To hang your fan where there is an existing fixture but no ceiling
joist, you may need an installation hanger bar (NN) (not included)
as shown above.
If your ceiling fan does not have an existing UL-listed mounting
box, then install one using the following instructions:
□Disconnect the power by removing the fuses or turning off
the circuit breakers.
□Secure the outlet box (MM) (not included) directly to the
building structure. Use appropriate fasteners and materials
(not included). The outlet box and its bracing must be able
to fully support the weight of the moving fan (at least 35
lbs.). Do not use a plastic outlet box.
The illustrations below show two different ways to mount the
outlet box (MM) (not included).
MM
MM
NN
MM
Installation
MOUNTING OPTIONS
MOUNTING OPTIONS
WARNING: To reduce the risk of fire, electric shock, or
other personal injury, mount the fan only on an outlet box or
supporting system marked acceptable for fan support of 35
lbs (15.9 kg) or less and use mounting screws provided with
the outlet box. Most outlet boxes commonly used for the
support of lighting fixtures are not acceptable for fan support
and may need to be replaced. Consult a qualified electrician if
in doubt.
WARNING: This fan is not suitable for sloped ceilings.
7 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

1Preparing the canopy 2Preparing the motor
□Remove the canopy bottom cover (C) from the canopy
(B) by turning the canopy bottom cover (C) counter-
clockwise.
□Remove the mounting bracket (A) from the canopy (B)
by removing the non-slotted canopy mounting screw
(CC) from the bottom of the canopy (B) and loosening
the slotted canopy mounting screw (CC) a half turn
from the screw head. Next, turn the canopy (B)
counterclockwise to remove the mounting bracket (A)
from the canopy (B).
3Assembling the fan
Assembly
B
C
E
F
FF
EE
AA
AA
D
CC
A
B
C
CC
8
FF
EE
AA
AA
F
LL
□Remove the clevis pin (EE), cotter pin (FF), and loosen
the two collar setscrews (AA) at the top of the motor
head (F) collar.
□The fan motor assembly (A) is shipped with a stopper
(LL) to prevent movement during transportation. Do
not remove this stopper (LL) until instructed to do so
in this manual.
□Route the wires and safety cable (OO) exiting from
the top of the motor head (F) through the coupling
cover (E) and the canopy bottom cover (C). Ensure the
slot openings are on top.
□Route the wires and safety cable (OO) through the
canopy (B) and then through the hanger ball/downrod
assembly (D).
□Align the holes at the bottom of the hanger
ball/downrod assembly (D) with the holes in the collar
on top of the motor head (F).
□Carefully insert the clevis pin (EE) through the holes
in the collar and the hanger ball/downrod assembly
(D). Be careful not to jam the clevis pin (EE) against
the wiring inside the hanger ball/downrod assembly (D).
WARNING: Failure to properly install the cotter pin (FF)
could result in the fan loosening and possibly falling.
NOTE: If a longer downrod (not included) is needed, take
out the screw located in the hanger ball (you need to use the
hex wrench (GG) to loosen your set screw), lower the hanger
ball and remove the pin. Remove all three pieces from the
downrod and assemble them onto the new longer downrod
before proceeding to the downrod installation.
OO
□Insert the cotter pin (FF) through the hole near the
end of the clevis pin (EE) until it snaps into the locked
position.
□Tighten the two collar setscrews (AA) at the top of the
motor head collar.

4Installing the mounting bracket
to the electrical box
Hanging the fan from the mounting
bracket
□Pass the 120-volt supply wires through the center
hole in the mounting bracket (A).
□Install the mounting bracket (A) to the outlet box
(MM) with the screws and washers provided with the
outlet box (MM).
□Securely tighten the two mounting screws.
□Carefully lift the fan motor head (F) up to the mount-
ing bracket (A) and seat the hanger ball/downrod
assembly (D) in the mounting bracket (A) socket.
A
MM
A
D
F
5
Assembly — Hanging the Fan
WARNING: To reduce the risk of fire, electric shock, or
other personal injury, mount the fan only on an outlet box or
supporting system marked acceptable for fan support of 35
lbs (15.9 kg) or less and use mounting screws provided with
the outlet box.
OO
6Installing the safety cable
□Secure the safety cable (OO) to the building structure
using a wood screw (not included).
9 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

Assembly — Hanging the Fan (continued)
10

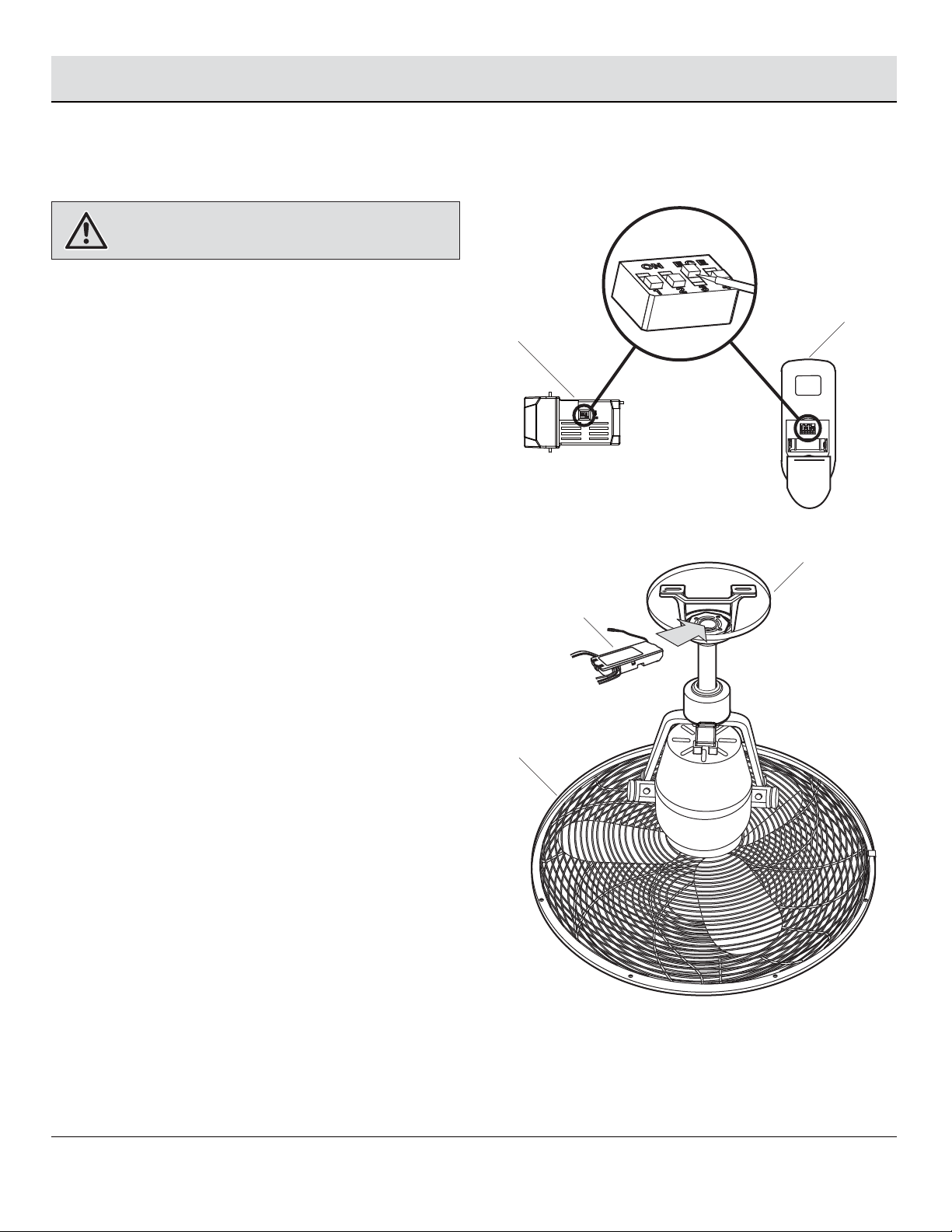

7Preparing the receiver and
remote control
WARNING: To avoid possible electrical shock, be sure
electricity is turned off at the main fuse box before wiring.
If you feel you do not have enough electrical wiring
knowledge or experience, have your fan installed by a
licensed electrician.
This remote control unit is equipped with 16 code
combinations to prevent possible interference from or to
other remote units. The frequency switches on your
receiver (J) and remote control (K) have been preset at the
factory. Please recheck to make sure the switches on the
remote control (K) and the receiver (J) are set to the same
position. Any combination of settings will operate the fan
as long as the switches in the remote control (K) and
receiver (J) are set to the same position.
□After checking the switches, insert the receiver (J)
into the mounting bracket (A) with the flat side of the
receiver (J) facing the ceiling.
F
A
J
K
J

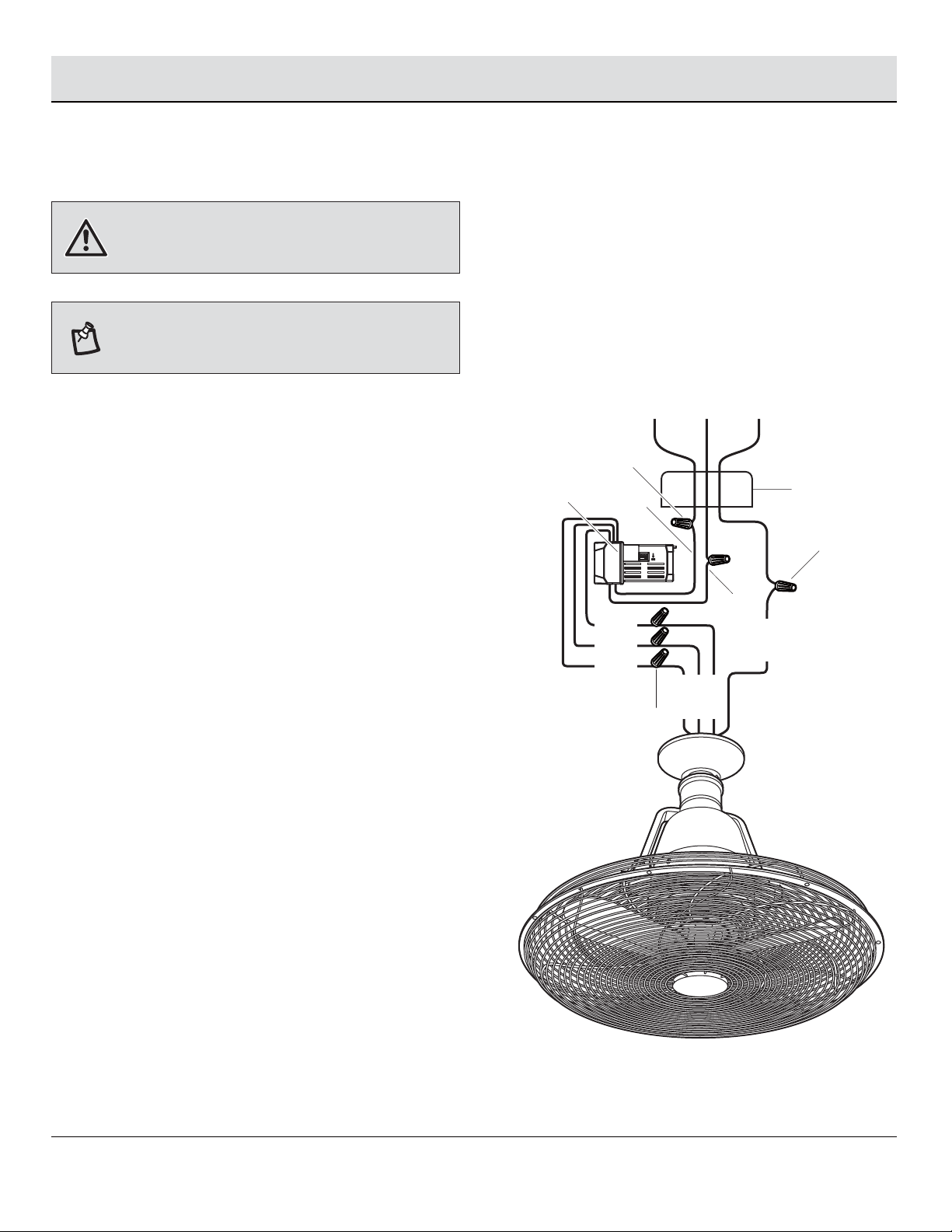

Making the electrical connections
Assembly — Hanging the Fan (continued)
11 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Follow the steps below to connect the fan to your
household wiring. Use the plastic wire nuts (AA) with your
fan. Secure the plastic wire nuts (AA) with electrical tape.
Make sure there are no loose strands or connections.
Motor to receiver electrical connections:
□Connect the black wire from the fan to the black wire
marked "TO MOTOR L" from the receiver (J).
□Connect the white wire from the fan to the white wire
marked "TO MOTOR N" from the receiver (J).
□Connect the blue wire from the fan to the blue
wire marked "Oscillation" from the receiver (J).
Receiver to house supply wires electrical connections:
□Connect the black (hot) wire from the ceiling to
the black wire marked "AC in L" from the receiver (J).
□Connect the white (neutral) wire from the
ceiling to the white wire marked "AC in N" from the
receiver (J).
□If your outlet box (MM) has a ground wire (green
or bare copper) connect it to the fan ground wires;
otherwise connect the hanger ball/downrod assembly
(D) ground wire to the mounting bracket (A).
□Secure each wire connection with a plastic wire nut
(AA) provided with the electrical hardware.
□After connecting the wires, spread them apart so that
the green and white wires are on one side of the
outlet box (MM) and the black and blue wires are on
the other side. Carefully tuck the wire connections up
into the outlet box (MM).
WARNING: Check to see that all connections are tight,
including ground, and that no bare wire is visible at the wire
nuts, except for the ground wire.
NOTE: The fan must be installed at a maximum distance of
20 ft. from the remote control for proper signal transmission
between the remote control and the fan's receiving unit.
Black
Black White
J
Ground
conductor
White
MM
LL
AA
Black
Blue
White
White
Blue
Black
Green
8
LL

9Installing the canopy
Assembly — Hanging the Fan (continued)
B
CC
PP
C
B
CC
A
MM
C
12
10 Attaching the canopy bottom
cover to the canopy
CC
□Tuck the connections neatly into the ceiling outlet box
(MM).
□Slide the canopy (B) up to the mounting bracket (A)
and place the key hole on the canopy (B) over the
loose canopy mounting bracket screw (CC) on the
mounting bracket (A). Turn the canopy (B) clockwise
until the canopy (B) locks in place at the narrow
section of the key holes.
□Align the circular hole on the canopy (B) with the
remaining hole on the mounting bracket (A). Secure
the canopy mounting screw (CC) previously removed
in the hole and tighten the two canopy mounting
screws (CC).
WARNING: Make sure the tab on the mounting bracket (A)
properly sits in the groove in the hanger ball/downrod
assembly (D) before attaching the canopy (B) to the mounting
bracket (A) by turning the canopy until it drops into place.
NOTE: Adjust the canopy mounting screws (CC) as
necessary until the canopy (B) and canopy bottom cover (C)
are snug.
NOTE: The stopper (PP) must be removed before operating
your fan.
□Attach the canopy bottom cover (C) to the canopy
mounting screw heads (CC) on the bottom of the
canopy (B) by inserting the canopy mounting screw
heads (CC) into the key slots in the canopy bottom
cover (C) and rotating the canopy bottom cover (C)
clockwise.
□Remove the stopper (PP) by pressing the clip on the
stopper (PP) and sliding it forward off of the tube and
fan assembly.
WARNING: Do not manually move the fan head. Doing so
will destroy the gears in the oscillating mechanism.

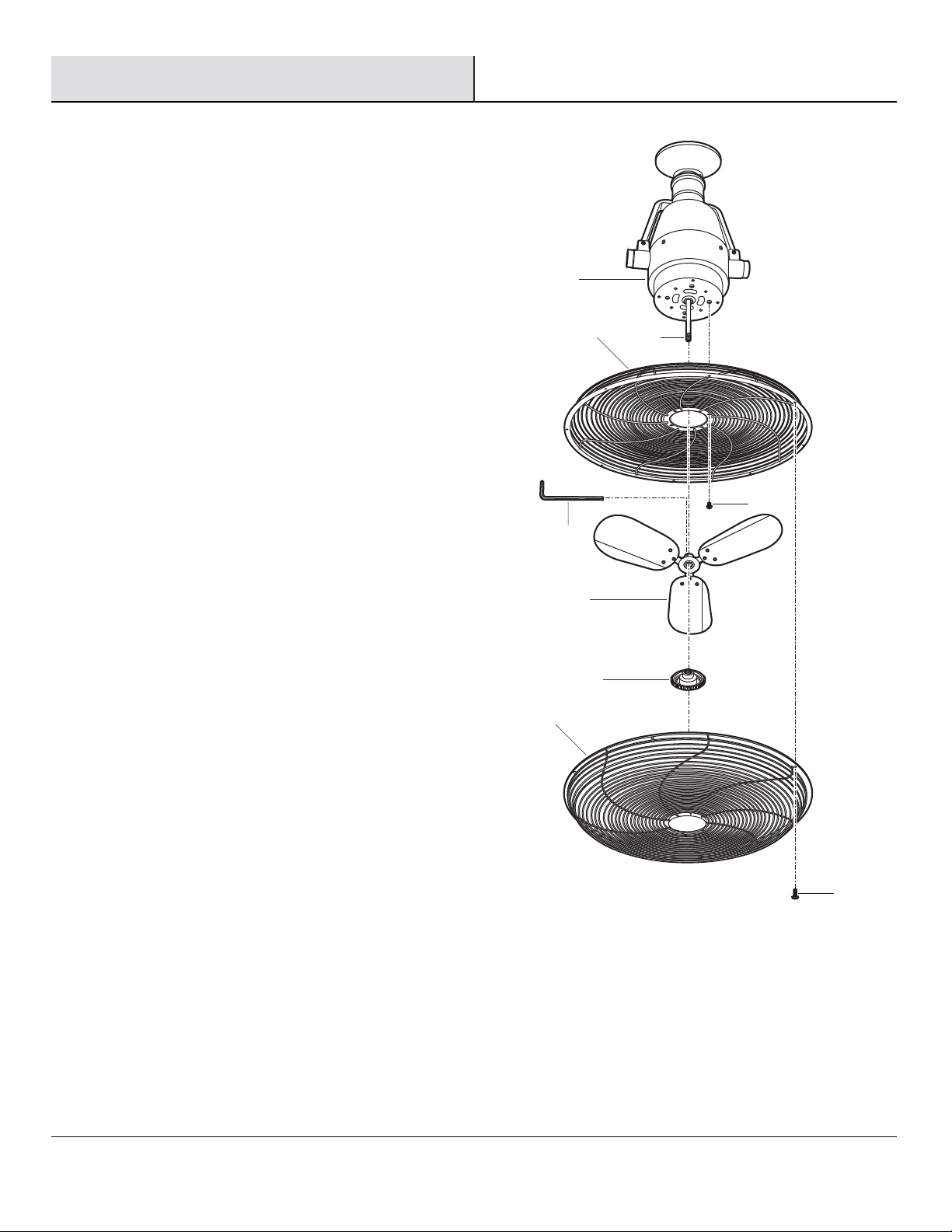

Disassembling Your Fan
This fan comes with a pre-assembled rear guard (G), blade (H), and
front guard (I) for your easy installation. Check that all screws are
tight and securely in place.
If you need to disassemble the fan for any reason such as
cleaning, follow these steps below:
□Loosen the front guard screws (II) to disassemble the front
guard (I) from the rear guard (G).
□Remove the blade cover (JJ) from the blade (H) by turning the
blade cover (JJ) clockwise.
□Loosen the setscrew at the top of the blade head by using the
hex wrench (GG).
□Remove the blade (H) from the motor shaft (QQ).
□Remove the rear guard (G) from the motor head (F) by
loosening the rear guard screws (HH) from the motor head (F).
F
QQ
G
H
GG
JJ
I
HH
13 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
II

Operation
REMOTE CONTROL OPERATING INSTRUCTIONS
REMOTE CONTROL OPERATING INSTRUCTIONS
INSTALLING THE REMOTE CONTROL HOLDER
INSTALLING THE REMOTE CONTROL HOLDER
L
DD
K
KK
□Attach the remote control holder (L) with the two remote
control holder mounting screws (DD).
□Install the 12V battery (KK) (included) into the remote control
(K). To prevent damage to the remote control (K), remove the
battery if not used for long periods.
□Restore power to the ceiling fan and test for proper operation.
HI , MED, LOW buttons: Sets the fan speed.
OFF button: Turns the fan off.
button: This button is used for oscillating operation; press
the button to set the fan to oscillation; press again to turn off the
oscillation, and the fan will stay at the same direction where the
oscillation is turned off.
14
WARNING: Do not manually move the fan head. Doing so
will destroy the gears in the oscillating mechanism.
Oscillation

Care and Cleaning
Troubleshooting
Do
Do
Problem
Problem
Solution
Solution
□Use water when cleaning. Water could damage the motor,
or the wood, or possibly cause an electrical shock.
□Apply oil to your fan or motor. The motor has
permanently-lubricated sealed ball bearings.
Do not
Do not
□Check the support connections, brackets, and blade
attachments twice a year. Make sure they are secure.
Because of the fan’s natural movement, some
connections may become loose over time. It is not
necessary to remove the fan from the ceiling.
□Clean your fan periodically. Use only a soft brush or
lint-free cloth to avoid scratching the finish. The plating is
sealed with a lacquer to minimize discoloration or
tarnishing.
□(Optional) Cover small scratches with a light application of
shoe polish.
WARNING: Make sure the power is off at the electrical
panel box before you attempt any repairs. Refer to step 8
“Making the electrical connections” on page 11.
□Check the main and branch circuit fuses or breakers.
□Check the line wire connections to the fan.
□Make sure all screws on fan motor assembly and fan guards are snug.
□Make sure the blade and the blade cover are securely in place.
□Allow a 24-hour “breaking-in” period. Most noises associated with a new fan disappear during this
time.
□Make sure there is a short distance from the ceiling to the canopy. It should not touch the ceiling.
□Make sure your ceiling box is secure and rubber isolator pads are used between mounting bracket and
outlet box.
The fan will not start.
The fan sounds noisy.
15 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
□Do not connect the fan with wall mounted variable speed control(s).
□Make sure the frequency switches are set correctly.
The remote control is
not working.

Service Parts
Part
Part
A
B
C
D
E
F
G
H
I
J
K
L
Description
Description
Mounting bracket (preassembled)
Canopy
Canopy bottom cover (preassembled)
Hanger ball/downrod assembly
Coupling cover
Motor head (preassembled)
Rear guard(preassembled)
Blade (preassembled)
Front guard (preassembled)
Receiver
Remote control
Remote control holder
Part
Part
AA
BB
CC
DD
EE
FF
GG
HH
II
JJ
KK
LL
Description
Description
Collar setscrew (preassembled)
Plastic wire nut
Canopy mounting screw (preassembled)
Remote control holder mounting screw
Clevis pin (preassembled)
Cotter pin (preassembled)
Hex wrench
Rear guard screw (preassembled)
Front guard screw (preassembled)
Blade cover (preassembled)
12V battery
Plastic wire nut
AAA
GG
HH
II
JJ
KK
LL
BB
CC
DD
EE
FF
B
C
D
E
F
G
H
I
J
K
L
16

AL14-22-002-A
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
Retain this manual for future use.
