Easton
52 in Ceiling Fan
Owner’s Manual
Easton
Ventilador de Techo de 1,32 m
Manual del Propietario
N381-52-CB
120 V~ 60 Hz 33 W
Read and follow all the instructions
before using this product.

Easton by Home Decorators Collection
®
ongratulations on your
purchase of a Home
Decorators Collection
ceiling fan, Your new fan will be a
beautiful addition to your home,
and will keep you comfortable
throughout the year.
The Home Decorators Collection
Fan Company offers a wide variety
of ceiling fans. We offer combinations
of wood and brass finishes, solid
designer colors, and our unique
glass and crystal designs.
A large selection of light fixtures
and light kits is also available. Ask
your dealer about other accessories
that will allow you to further customize
your fan.
We’re certain that your Home
Decorators Collection fan will
provide you with many years of
comfort, energy savings and
satisfaction. To ensure your
personal safety and to maximize
the performance of your fan, please
read this manual thoroughly.

VENTILADOR DE TECHO / CEILING FAN
Marca / Brand: Home Decorators Collection
Modelo / Model: 170 843 (N381-52-CB)
120 V ~ 60 Hz 33 W
Consumo de energía por unidad de tiempo en operación
(Energy Consumption): 24.4Wh
Importador / Importer: SERVICIOS HOME DEPOT, S. DE R.L. DE C.V.
Ricardo Margain 605, Santa Engracia, San Pedro Garza García, Nuevo León, C.P.
66267 Tel. / Phone: [phone]
Lea y siga todas las instrucciones de seguridad y operación antes de usar este
aparato / Read and follow all the instructions of security and operation before using
this product
Cont. 1 Ventilador / Fan Hecho en / Made in: China
Requiere ensamblaje / Assembly required

52” EASTON
Ceiling Fan by HDC
Date Purchased
Store Purchased
Model No.
Serial No.
Vendor No.
UPC
Table of Contents
Safety Rules . . . . . . . . . . . . . . . . . . . . 1
Unpacking Your Fan . . . . . . . . . . . . . . 2
Installing Your Fan . . . . . . . . . . . . . . . 3
Operation . . . . . . . . . . . . . . . . . . . . 9
Care of Your Fan . . . . . . . . . . . . . . . . 14
Troubleshooting . . . . . . . . . . . . . . . . . 14
Specifications . . . . . . . . . . . . . . . . . . 16
170 843 (N381-52-CB)
548810
840059610085
Thank you for purchasing our ceiling fan. This product has been
manufactured with the highest standards of safety and quality.

1
Safety Rules - Read and Save These Instructions
To reduce the risk of electric shock, insure electricity has been turned
off at the circuit breaker or fuse box before beginning.
All wiring must be in accordance with the National Electrical Code
“ANSI/NFPA 70” and local electrical codes. Electrical installation should
be performed by a qualified licensed electrician.
The outlet box and support structure must be securely mounted and
capable of reliably supporting a minimum of 35 lbs (15.9 kg) or less.
Use only UL-listed outlet boxes marked “FOR FAN SUPPORT”.
The fan must be mounted with a minimum of 7.55 ft (2.3m) clearance
from the trailing edge of the blades to the floor.
Avoid placing objects in the path of the blades.
To avoid personal injury or damage to the fan and other items, be cautious
when working around or cleaning the fan.
Do not use water or detergents when cleaning the fan or fan blades. A dry
dust cloth or lightly dampened cloth will be suitable for most cleaning.
After making electrical connections, spliced conductors should be turned
upward and pushed carefully up into outlet box. The wires should be spread
apart with the grounded conductor and the equipment-grounding conductor
on one side of the outlet box and ungrounded conductor on the other side of
the outlet box.
All set screws must be checked and retightened where necessary before
installation.
The appliance is not to be used by persons (including children) with reduced
physical, sensory or metal capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction. Children should be
supervised to ensure that they do not play with the appliance.
Instructions for the use of the apparatus according with NOM-024-SCFI, are
provided with the apparatus.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
TO REDUCE THE RISK OF PERSONALL INJURY, DO NOT BEND THE BLADE
ARMS (ALSO REFERRED TO AS FLANGES), WHEN INSTALLING THE
BRACKETS, BALANCING THE BLADES OR CLEANING THE FAN. DO NOT
INSERT FOREIGN OBJECTS IN – BETWEEN ROTATING FAN BLADES.
WARNING
TO REDUCE THE RISK OF ELECTRIC SHOCK, THIS FAN MUST BE INSTALLED
WITH AN ISOLATING WALL CONTROL / SWITCH.
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY, USE ONLY THE SCREWS
PROVIDED WITH THE OUTLET BOX.
CAUTION
CHANGE OR MAINTAIN LED LIGHT KIT SHALL BE PERFORMED BY THE
MANUFACTURER, ITS SERVICE AGENT OR DULY QUALIFIED PERSONS.
NOTE
SUITABLE FOR USE IN DAMP LOCATIONS.
NOTE

2

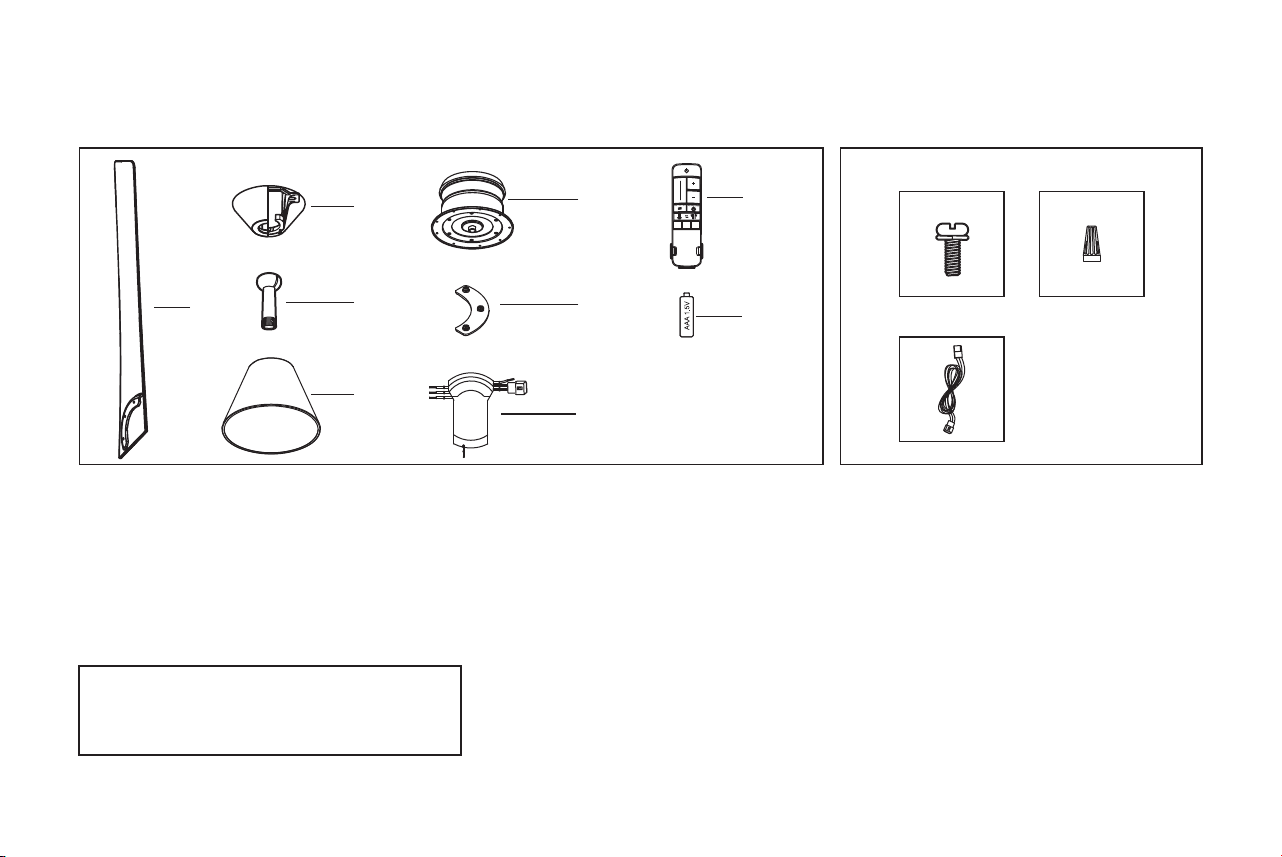

Unpacking Your Fan Unpack your fan and check the contents. You should have the following items:
Set of blades (3)
Canopy assembly
Ball/downrod assembly
Coupling cover
Fan motor assembly
1.
2.
3
4.
5.
Blade support plates with screws and
lock washers (3)
Receiver
Remote control
1.5V AAA batteries (2)
6.
7.
8.
9.
A.
B.
C.
1
5
7
8
9
6
WARNING
DO NOT INSTALL OR USE FAN IF ANY
PART IS DAMAGED OR MISSING.
CALL TOLL FREE 800-004-6633.
Blade Attachment Hardware
(7 Screws, 7 Lock Washers)
Electrical Hardware
(3 Plastic Wire Nuts)
Blade Attachment Hardware (additional)
(1 screw with lock washer)
Electrical Hardware
(3 plastic wire nuts)
Extension cord
2
3
4
A
C
B

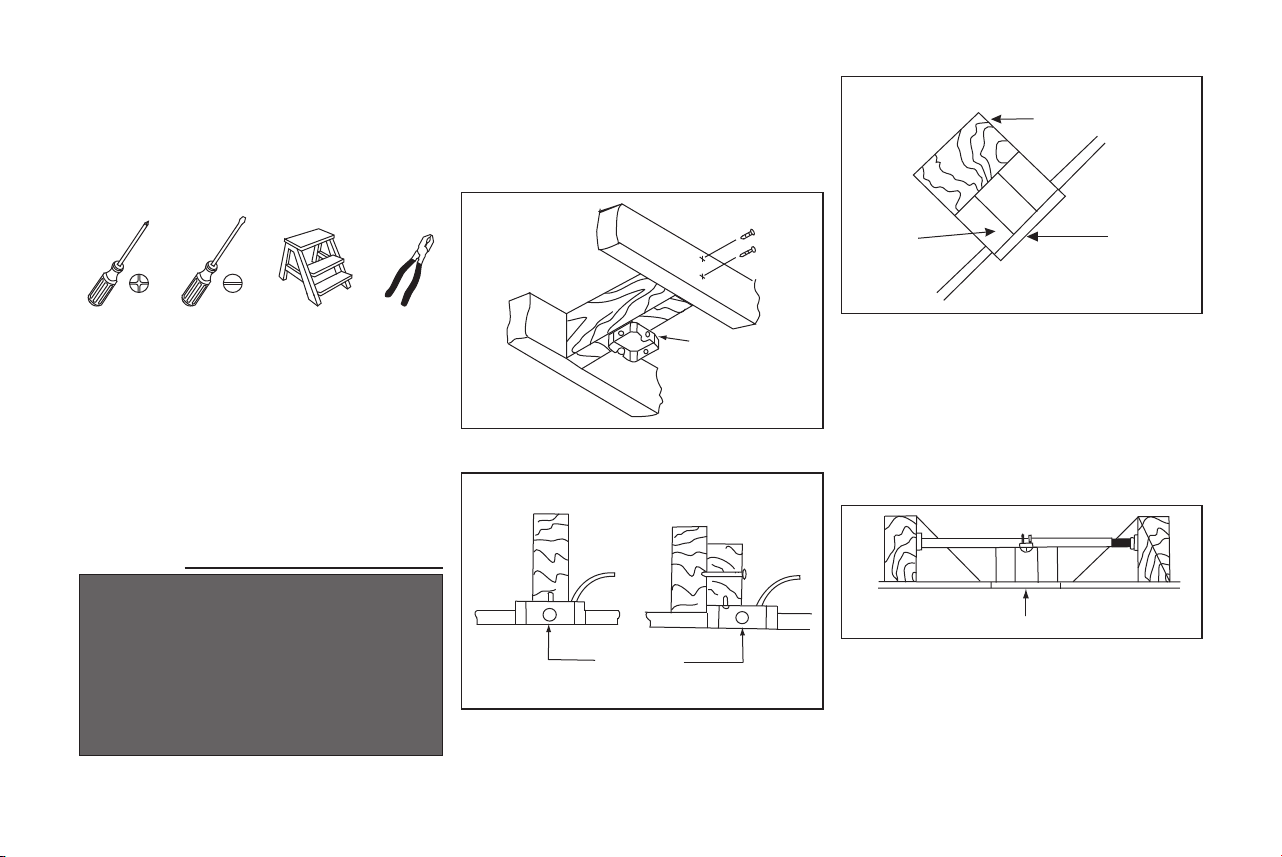

Figures 1~3 are examples of different ways to
mount the outlet box.
Outlet box
Outlet box
Outlet box
Figure 2
Figure 1
NOTE: You may need a longer downrod to
maintain proper blade clearance when installing on
a steep, sloped ceiling. The maximum angle
allowable is 18 °.If the canopy touches downrod,
remove the decorative canopy bottom cover and
turn the canopy 180 °before attaching the canopy
to the mounting plate.
To hang your fan where there is an existing fixture
but no ceiling joist, you may need an installation
hanger bar as shown in Figure 4 (available at any
Home Depot store).
Ceiling
mounting
plate
Provide strong support
Recessed
outlet box
Figure 3
Figure 4
3
Installing Your Fan
If there isn't an existing NOM listed mounting
box, then read the following instructions.
Disconnect the power by removing fuses or
turning off circuit breakers.
Secure the outlet box directly to the building
structure. Use appropriate fasteners and building
materials. The outlet box and its support must be
able to fully support the moving weight of the fan
(at least 35 lbs). Do not use plastic outlet boxes.
Tools Required
Mounting Options
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PERSONAL INJURY, MOUNT FAN
ONLY TO AN OULET BOX MARKED ACCEPTABLE
FOR FAN SUPPORT AND USE THE MOUNTING
SCREWS PROVIDED WITH THE OULET BOX.
OUTLET BOX COMMONLY USED FOR THE
SUPPORT OF LIGHTING FIXTURE MAY NOT BE
ACCEPTABLE FOR FAN SUPPORT AND MAY NEED
TO BE REPLACED. CONSULT A QUALIFIED
ELECTRICIAN IF IN DOUBT.
Phillips screwdriver, straight slot screwdriver, step
ladder and wire cutters.

4
Attaching the Fan Blades
1.
2.
Figure 5
REMEMBER to turn off the power. Follow the
steps below to hang your fan properly.
Hanging the Fan
Remove the canopy bottom cover from the
canopy by turning the cover counterclockwise.
(Figure 6)
Remove the mounting bracket from the canopy
by loosening the slotted canopy mounting screws
a half turn from the screw head. Next, turn the
canopy counterclockwise to remove the
mounting bracket from the canopy. (Figure 6)
Remove the cotter pin and clevis pin, and loosen
the two collar set screws from the fan motor
assembly collar. (Figure 7)
Take out the setscrew located in the hanger ball,
lower the hanger ball and remove the cross pin.
Remove the hanger ball from the hanger
ball/downrod assembly. (Figure 7)
Remove the ground lead from the downrod
assembly. (Figure 7)
NOTE:If a longer downrod is needed, take
out the screw located in the hanger ball, lower
the hanger ball and remove the pin, remove all
3 pieces from the downrod and assemble them
onto the new longer downrod before proceeding
step 3. (The longer downrod is available at
any Home Depot store)
1.
2.
3.
4.
5.
Carefully feed the motor wires up through the
downrod. Thread the downrod into the collar.
Align the holes and replace the clevis pin and
cotter pin. Tighten the two collar setscrews.
(Figure 8)
Slip the coupling cover, the canopy bottom
cover, and the canopy onto the downrod.
Carefully reinstall the hanger ball the ground
lead onto the downrod, being sure that the
cross pin is in the correct position, the
setscrew is tightened and wires are not twisted.
(Figure 8)
6.
7.
Figure 6
WARNING
FAILURE TO PROPERLY INSTALL COTTER
PIN AS NOTED IN STEP 6 COULD RESULT IN
FAN LOOSENING AND POSSIBLY FALLING.
Mounting
Bracket
Ceiling Canopy
Canopy Bottom
Cover
Attach the blade to the motor. Align the holes in
the blade support plate, the blade, and the fan
motor assenbly and secure with the blade
attachment screws and lock washers. (Figure 5)
Repeat this procedure with the remaining
blades.
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY,
DO NOT BEND THE BLADES WHILE INSTALL-
ING, BALANCING THE BLADES, OR CLEANING
THE FAN. DO NO INSERT FOREIGN OBJECTS
BETWEEN ROTATING FAN BLADES.
Blade
Motor
Blade
Support
Plate
Screw

5
Figure 8
Figure 7
Installing Fan to the
Electrical Box
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR OTHER PERSONAL INJURY. MOUNT
FAN ONLY TO AN OUTLET BOX OR SUPPORTING
SYSTEM MARKED ACCEPTABLE FOR FAN
SUPPORT AND USE THE MOUNTING SCREWS
PROVIDED WITH THE OUTLET BOX.
Pass the 120-volt supply wires through the
center hole in the ceiling mounting bracket as
shown in Figure 9.
Attach the mounting bracket on the outlet box
by sliding the mounting bracket over the screws
provided with the outlet box. (Figure 9)
Securely tighten the two mounting screws.
(Figure 9)

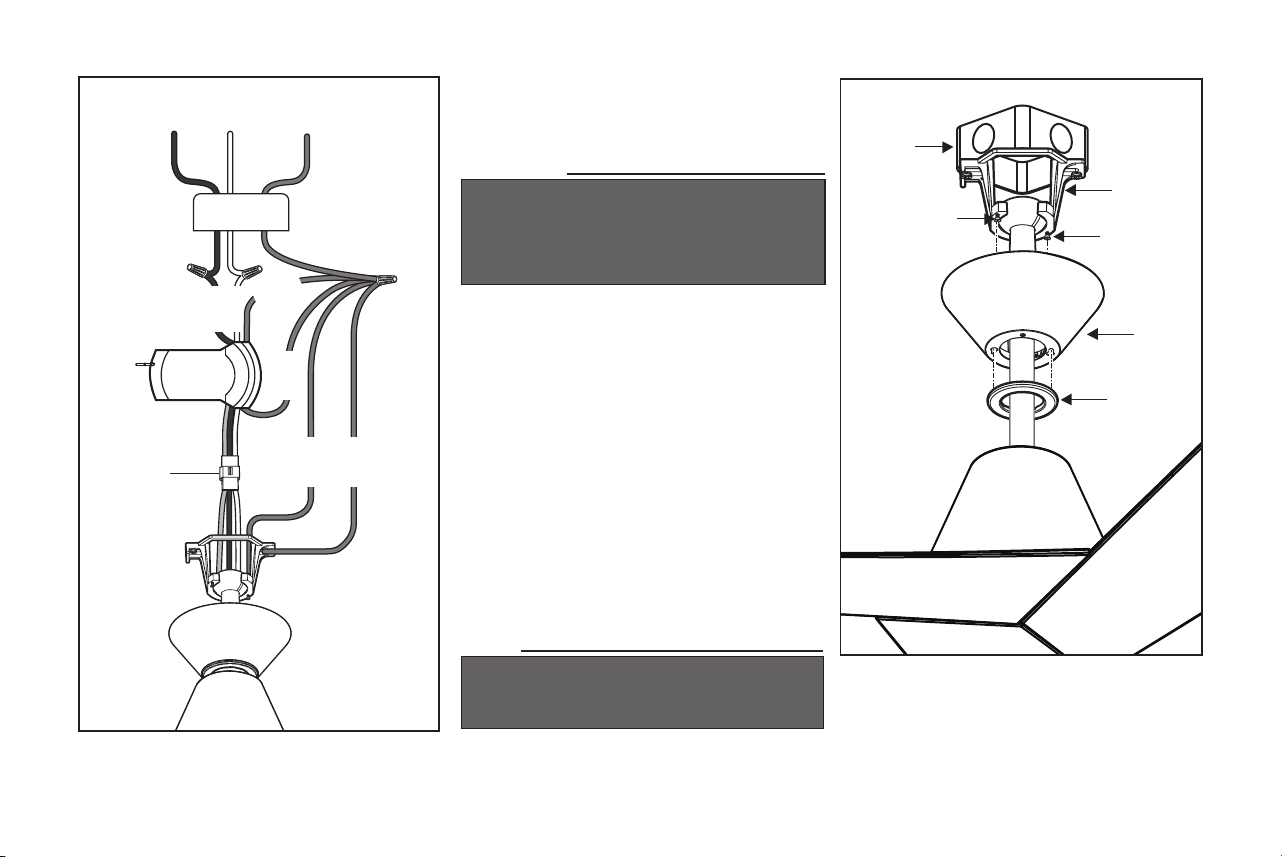

Carefully lift the fan assembly up to the ceiling
mounting bracket and seat the hanger ball in
the mounting bracket socket. Make sure the tab
on the mounting bracket socket is properly
seated in the groove in the hanger ball (Figure
10). This will help to balance the ceiling fan.
1.
2.
3.
4.
Clevis pin
Cotter pin
Hanger ball DownrodDownrod
Cross pin
Set screw
Ground leadGround lead
Motor collar
Set screws
Set screws
Clevis pin
Tighten
screws
firmly
Ceiling canopy
Pin in locked
position
Hanger ball
Set screw
Cross pin
Downrod
Ground lead
Coupling cover
Clevis pin
Canopy Bottom
Cover
Motor wires
Motor
collar Cotter pin
Cotter pin
Extension cord

6
WARNING
THE TAB IN THE RING MUST REST IN THE
GROOVE OF THE HANGER BALL AS FIGURE 10.
FAILURE TO PROPERLY SEAT THE TAB IN THE
GROOVE COULD CAUSE DAMAGE TO WIRING.
Figure 10
Figure 9
120V
Wires
Ceiling mounting
bracket
NOM listed
outlet box
Mounting
screws (Supplied
with outlet box)
Making the Electrical
Connections
WARNING
CHECK TO SEE THAT ALL CONNECTIONS ARE
TIGHT, INCLUDING GROUND, AND THAT NO
BARE WIRE IS VISIBLE AT THE WIRE NUTS,
EXCEPT FOR THE GROUND WIRE.
NOTE
THE FAN MUST BE INSTALLED AT A MAXIMUM
DISTANCE OF 20 FT. FROM THE REMOTE
CONTROL FOR PROPER SIGNAL TRANSMISSION
BETWEEN THE REMOTE CONTROL AND THE
FAN'S RECEIVING UNIT.
NOTE
IF A LONGER DOWNROD (NOT INCLUDED) IS
NEEDED, USE THE EXTENSION CORD TO
CONNECT WITH THE MOTOR WIRES AND
RECEIVER.
CAUTION
DO NOT USE WITH A WALL LIGHT DIMMER
SWITCH.
If you feel you do not have enough electrical wiring
knowledge or experience, have your fan installed by
a licensed electrician.
Follow the steps below to connect the fan to your
household wiring. Use the plastic wire nuts with
your fan. Secure the plastic wire nuts with electrical
tape. Make sure there are no loose strands or
connections.
1. Insert the receiver into the mounting bracket
with the flat side of the receiver facing the ceiling.
2. Make wire connections from the fan to the
receiver.
From Fan To Receiver
3-Pin Connector--------------- 3-Pin Connector
3. Make wire connections from the receiver and
fan to the outlet box as follows, using the wire nuts .
From Receiver To Outlet Box
Black Wire "AC in L" -------- Black Wire (Hot)
White Wire "AC in N" ------- White Wire (Neutral)
Green Wires* ------------------ Green or Bare Wire
(Ground)
From Fan To Outlet Box
Green Wires* ----------------- Green or Bare Wire
(Ground)
* There are four green grounding leads: one from
the mounting bracket and one from the hanger
ball/downrod assembly and two from the receiver if
installed.
4. Turn the wire nut connections upward,
spreading them apart so the green (ground) and
white wires will be on one side of the outlet box and
the black and blue wires will be on the other side.
Carefully tuck the connections up into the outlet
box.
Groove
Tab

7
Figure 11
WARNING
MAKE SURE THE TAB ON THE MOUNTING
BRACKET PROPERLY SITS IN THE GROOVE IN
THE HANGER BALL BEFORE ATTACHING THE
CANOPY TO THE BRACKET BY TURNING THE
HOUSING UNTIL IT DROPS INTO PLACE.
Finishing the Fan
Installation
Figure 12
1.
2.
3.
NOTE
ADJUST THE CANOPY MOUNTING SCREWS AS
NECESSARY UNTIL THE CANOPY AND CANOPY
BOTTOM COVER ARE SNUG.
Make sure connections are neatly tucked into the
ceiling outlet box. (Figure 12)
Slide the canopy up to the mounting bracket and
place the key holes on the canopy over the loose
canopy mounting screws on the mounting
bracket. Turn the canopy clockwise until it locks
in place at the narrow section of the key holes,,
and tighten the two canopy mounting screws.
(Figure 12)
Attach the canopy bottom cover to the canopy by
inserting the screw heads into the key slots in the
canopy bottom cover and rotating it clockwise.
(Figure 12)
3-Pin
connectors
White
Green
Green
Black
Black
Ground
White conductor
Green
Green
Outlet Box
Outlet
box
Canopy
bottom
cover
Ceiling
mounting
bracket
Mounting
screw
Mounting
screw
Canopy

8
Blade Balancing
Verify that all blades and blade bracket screws
are secure (most fan wobble problems are
caused by loose parts). Once the fan is properly
installed, run the ceiling fan for 10 minutes to
let the fan self-adjust.
If wobble occurs after running the fan for 10
minutes, verify blade level using the following
process:
Select a point on the ceiling above the tip of one
of the blades, then select any fan blade and
measure from the center of the selected blade to
the point on the ceiling (as shown in Figure 13).
Rotate the fan until the next blade is positioned
and repeat the measurement using the same
point from the ceiling for every blade.
Measurement deviations should be within
1/8” .
If all deviations are less than 1/8” and the fan
continues to wobble, please call Customer
Service (800-004-6633) to order a complimentary
Blade Balancing Kit.
1.
2.
-
-
-
Figure 13
Touching ceiling
If deviation is greater than 1/8” , please call
Customer Service (800-004-6633) to order
complimentary replacements of your brackets.
All blades are grouped by weight during assembly.
The following procedure should correct most fan
wobble. Check after each step.

9
Operation Learning Process
Figure 14
NOTE
BATTERIES WILL WEAKEN WITH AGE AND SHOULD
BE REPLACED BEFORE LEAKING TAKES PLACE AS
THIS WILL DAMAGE THE REMOTE CONTROL.
DISPOSE OF USED BATTERIES PROPERLY AND KEEP
THEM OUT OF THE REACH OF CHILDREN.
Remove the battery cover by pressing firmly on
the arrow and sliding the cover off. (Fig. 14)
Install two 1.5V AAA batteries (included).
Replace the battery cover on the remote control.
1.
2.
3.
Within 60 seconds of turning AC power on,
press and release the " Pairing" button located
in the remote's battery compartment to enter
the learning function. Once the fan has
detected the remote controls's frequency, the
down light of your fan, if applicable, will
blink, and the fan blades will start to spin.
The fan will now accept commands from the
added remote.
4.
NOTE
THE DIP SWITCH IN THE BATTERY COMPARTMENT
HAS BEEN SET ON “0” POSITION AS AN UNIVERSAL
CODE FOR YOUR CONVENIENCE. IF YOU HAVE
TWO OR MORE FANS, PLEASE FOLLOW STEPS
BELOW TO CONTROL EACH FAN INDEPENDENTLY.
NOTE
IF INSTALLING MULTIPLE FANS ON SEPARATE
REMOTES, ONLY THE FAN BEING PROGRAMMED
SHOULD HAVE AC POWER TURNED ON. ALL OTHER
FANS, EVEN IF THEY HAVE ALREADY BEEN
PROGRAMMED, SHOULD HAVE AC POWER OFF SO
THEY DO NOT MEMORIZE OTHER REMOTES
DURING THE LEARNING PROCESS. SEPARATE THE
FAN POWER SWITCHES BY APPROXIMATELY 2
METERS.
Ensure AC power to the fan is OFF to begin
the learning process.
Slide the dip switch in the battery compartment
to the "1" position.
Turn the fan’ s AC power ON.
1.
2.
3.
The learning process causes any installed fan
within range to memorize a remote control. Fans
can learn five remotes.
To add a remote to your fan’s memory, use the
steps below: (Fig. 15)
Preparing the Transmitter
Figure 15
5.

10
Figure 17
To clear all other remotes from your fan’s memory,
use the steps below:
Ensure AC power to the fan is OFF to begin
the learning process.
Slide the dip switch in the battery compartment
to the "0" position. (Fig. 16)
Turn the fan’s AC power ON.
Within 60 seconds of turning AC power ON,
press and release the “Pairing” button located
in the remote’s battery compartment (Fig. 16),
and your fan will restore to the original setting
and dismiss the other remotes.
1.
2.
3.
4.
Operation (continued)
Figure 16
Warm weather
(Forward)
Comfort Breeze
TM
LED bar
Scale indicating
fan speed
Timer
Fan on/off
Cool weather
(Reverse)
Decreases fan speed
Increases fan speed

11
NOTE
YOU MUST TURN THE FAN ON PRIOR TO USING
THE SPEED OR TIME FUNCTIONS.
NOTE
ON EACH START UP OF YOUR CEILING FAN,
THE FAN BLADES WILL OSCILLATE BACK
AND FORTH. THIS IS A NORMAL OPERATION
FOR DC MOTOR CEILING FANS AS THEY GO
THROUGH A CALIBRATION CYCLE. THE FAN
IS NOT DEFECTIVE.
Speed functions
+ button, increases the fan speed
– button, decreases fan speed
1.
2.
Operating Your Fan and
Remote Control
NOTE
THE FAN WILL STORE THE LAST USED SPEED
SETTING FOR THE NEXT TIME IT IS TURNED
ON.
When turned on, the fan will begin spinning using
its last speed settings. The remote control’s LED
bar will display the speed setting for 5 seconds.
When turned off, the fan will stop spinning and
the light from the remote control’s LED bar will
quickly darken from top to bottom.
1.
2.
3.
Pressing and releasing the + button one time will
increase the speed of the fan. Each setting
increase will cause the LED bar to illuminate
slightly more, until the fan has reached the
maximum speed setting, at that time the LED
bar will be fully illuminated.
Pressing and holding the + button will increase
the fan speed automatically through the speed
settings and the increments will be denoted on the
LED bar. When the LED bar is fully illumnated,
the fan has reached maximum speed setting.
Pressing the + button while in Comfort BreezeTM
mode will automatically cancel the Comfort
BreezeTM mode and resume normal fan
operation.
1.
3.
Pressing and releasing the - button one time
decrease will cause the LED bar to dim slightly
more, until the fan has reached the minimum
speed setting. At that time the LED bar will be
approximately 25% illuminated.
2. Pressing and holding the - button will decrease
the fan speed automatically through the speed
settings and the reductions will be denoted on the
LED bar. When the LED bar is 25% illumnated,
the fan has reached the minimum speed setting.
Pressing the - button while in Comfort BreezeTM
mode will automatically cancel the Comfort
BreezeTM mode and resume normal fan
operation.
Fan button. - Press and release the button
to turn the fan on or off.
Operation (continued)

12
There are three Comfort BreezeTM settings.
Pressing the button will activate the Comfort
BreezeTM mode and the LED bar will illuminate
slowly from bottom to top to display the current
setting. (Fig. 18)
Comfort BreezeTM
Setting 1: Alternates through speeds 1 – 3, the
LED bar should fill approximately 33%.
Setting 2: Alternates through speeds 4 – 6, the
LED bar should fill approximately 66%.
Setting 3: Alternates through speeds 7 – 9, the
LED bar should be fully illuminated.
1.
2.
3.
Pressing the timer button will automatically
turn fan and light (if light is on) off after 2, 4,
or 8 hours. When you activate the timer mode,
the LED to the left of the time above the clock
will illuminate. (Fig. 19)
1.
Timer

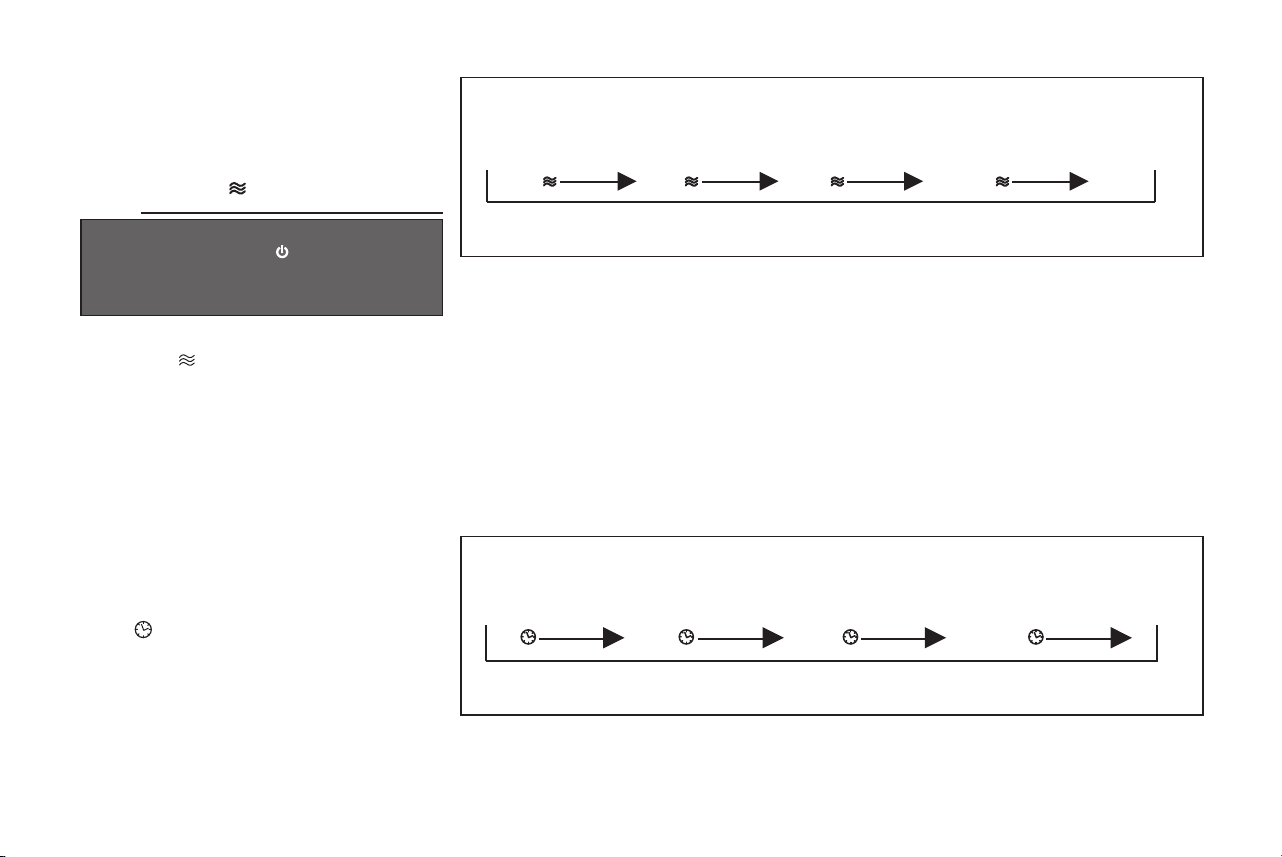

Off Setting 1 Setting 2 Setting 3 Disable Comfort BreezeTM
Figure 18
Figure 19
Off 2H 4H 8H Disables timer
NOTE
IF YOU ARE USING COMFORT BREEZETM
MODE, PRESSING THE BUTTON OR THE
FAN SPEED BUTTONS WILL CANCEL
COMFORT BREEZETM MODE AND RESUME
NORMAL FAN OPERATION.
Operating Your Fan and
Remote Control
Operation (continued)

13
Warm weather - LED bar will illuminate and
the lights will flow from high to low.
Cool weather - LED bar will illuminate and
the lights will flow from low to high.
Fan reverse button (Must be pushed when the
fan is in operation)
1.
2.
1.
Speed settings for warm or cool weather depend
on factors such as the room size, ceiling height,
numbers of fans, etc.
Attach the remote control holder with the two
remote control holder mounting screws. (Fig.
22)

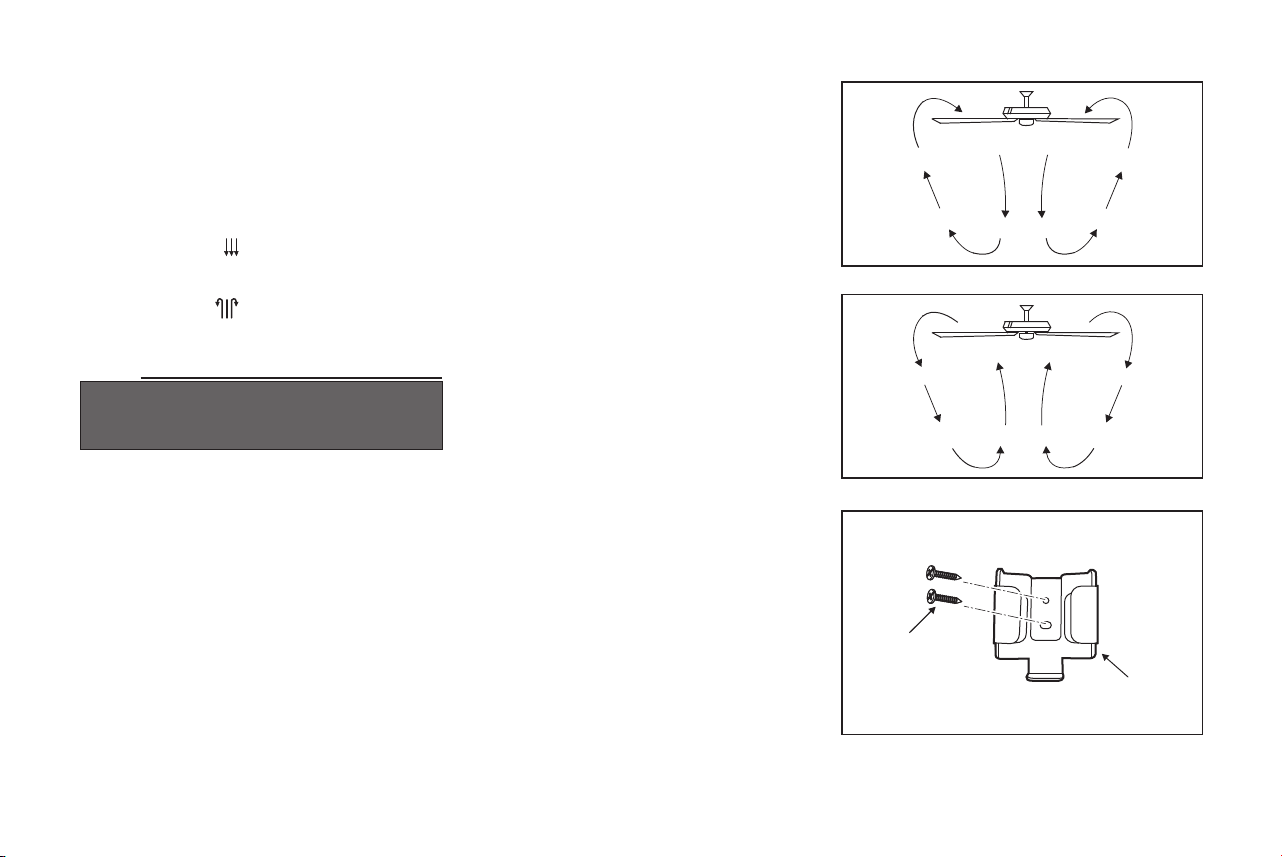

Warm weather - (Counter-Clockwise direction)
A downward air flow creates a cooling effect. (Fig.20)
This allows you to set your air conditioner on a higher
setting without affecting your comfort.
Cool weather - (Clockwise direction) An upward
airflow moves warm air off the ceiling area. (Fig.
21) This allows you to set your heating unit on a
lower setting without affecting your comfort.
NOTE
TO OPERATE THE REVERSE FUNCTION ON THIS
FAN, PRESS THE "REV" BUTTON WHILE THE FAN
IS RUNNING.
Figure 20
Figure 21
Figure 22
Operating Your Fan and
Remote Control
Installing The Remote Control
Holder
Operation (continued)
Remote
control
holder
Remote control holder
mounting screws

14
Because of the fan's natural movement, some
connections may become loose. Check the
support connections, brackets, and blade
attachments twice a year. Make sure they are
secure. (It is not necessary to remove fan from
ceiling.)
Clean your fan periodically to help maintain
its new appearance over the years. Use only a
soft brush or lint-free cloth to avoid scratching
the finish. The plating is sealed with a lacquer
to minimize discoloration or tarnishing. Do
not use water when cleaning. This could damage
the motor, or the wood, or possibly cause an
electrical shock.
You can apply a light coat of furniture polish to
the wood blades for additional protection and
enhanced beauty. Cover small scratches with a
light application of shoe polish.
There is no need to oil your fan. The motor has
permanently lubricated sealed ball bearings.
1.
2.
3.
4.
Here are some suggestions to help you maintain
your fan.
Check the main and branch circuit fuses or breakers.
Check the line wire connections to the fan and switch wire connections in
the switch housing.
Check to make sure the switches from the transmitter and receiver are set to
the same frequency.
Turn the AC power off, and turn the AC power on after 10 seconds.
Reset the transmitter by going through the transmitter “LEARNING
PROCESS” .
Make sure all motor housing screws are snug.
Make sure the screws that attach the fan blade bracket to the motor hub are
tight.
Make sure wire nut connections are not rattling against each other or the
interior wall of the switch housing.
Allow a 24-hour "breaking-in" period. Most noises associated with a new
fan disappear during this time.
Make sure there is a short distance from the ceiling to the canopy. It should
not touch the ceiling.
Make sure your ceiling box is secure and rubber isolator pads are used
between the mounting bracket and outlet box.
Do not connect the fan with a wall mounted variable speed control(s).
Make sure the dip switches are set correctly.
Reset the transmitter by going through the transmitter “LEARNING
PROCESS” .
1.
2.
3.
4.
5.
1.
2.
3.
4.
5.
6.
1.
2.
3.
The fan will not start.
The fan sounds noisy.
Remote control fails.
Care of Your Fan Troubleshooting
PROBLEM SOLUTION
WARNING
MAKE SURE THE POWER IS OFF AT THE ELECTRICAL PANEL
BOX BEFORE YOU ATTEMPY ANY REPAIRS. REFER TO THE
SECTION, “MAKING ELECTRICAL CONNECTIONS”.

Verify that all blades and blade bracket screws are secure (most fan
wobble problems are caused by loose parts). Once the fan is properly
installed, run the ceiling fan for 10 minutes to let the fan self-adjust. If
wobble occurs after running the fan for 10 minutes, verify blade level
using the following process:
- Select a point on the ceiling above the tip of one of the blades, then
select any fan blade and measure from the center of the selected blade to
the point on the ceiling. Rotate the fan until the next blade is positioned
and repeat the measurement using the same point from the ceiling for
every blade.Measurement deviations should be within 1/8 in.
- If all deviations are less than 1/8 in. and the fan continues to wobble,
please call Customer Service (800-986-3460) to order a complimentary
Blade Balancing Kit.
- If deviation is greater than 1/8 in., please call Customer Service
(800-986-3460) to order complimentary replacements of your brackets.
1.
This is normal start-up procedure for DC motor fans. The partial
movement during start-up is the result of the DC motor aligning the
internal magnetic poles for proper motor operation. This design saves
electricity and allows the fan to operate much quieter than standard AC
motor fans.
1.
The fan wobbles.
Fan moves backwards
and forwards when
turned on.
Troubleshooting (continued)
PROBLEM SOLUTION
15

16
These are approximate measures. They do not include Amps and Wattage used by the light kit.
Importer: SERVICIOS HOME DEPOT, S. DE R.L. DE C.V.
Ricardo Margain 605, Santa Engracia, San Pedro Garza García,
Nuevo León, C.P. 66267. Tel. [phone]
Warranty printed on manual is not valid for Mexico
Questions, problems, missing parts?
Before returning to the store call our customer service
800-004-6633
The appliance is not to be used by persons (including children)
with reduced physical, sensory or metal capabilities, or lack of
experience and knowledge, unless they have been given
supervision or instruction.
Children should be supervised to ensure that they do not play
with the appliance.
FAN SIZE SPEED VOLTS AMPS WATTS RPM CMM N.W. G.W. C.M.
52” 120 5.24 kg
(11.53 lbs)
8.05 kg
(17.70 lbs) 0.06
LOW (1)
MED. (5)
HIGH (9)
0.05
0.18
0.5
2.73
11
32.55
45
104
161
50
117
182
Specifications
