Home Decorators Collection Belaris User manual

Belaris
52 in Ceiling Fan
Owner’s Manual
Belaris
Ventilador de Techo de 1,32 m
Manual del Propietario
111 939
Model: 111939
120 V~ 60 Hz 81 W
Read and follow all the instructions
before using this product.

Belaris by Home Decorators Collection
ongratulations on your
purchase of a Home
Decorators Collection
ceiling fan, Your new fan will be a
beautiful addition to your home,
and will keep you comfortable
throughout the year.
The Home Decorators Collection
Fan Company offers a wide variety
of ceiling fans. We offer
combinations of wood and brass
finishes, solid designer colors, and
our unique glass and crystal
designs.
A large selection of light fixtures
and light kits is also available. Ask
your dealer about other
accessories that will allow you to
further customize your fan.
We’re certain that your Home
Decorators Collection fan will
provide you with many years of
comfort, energy savings and
satisfaction. To ensure your
personal safety and to maximize
the performance of your fan,
please read this manual
thoroughly.

VENTILADOR DE TECHO/CEILING FAN
Marca/Brand: HDC
Modelo/Model: 111939
120 V~ 60 Hz 81 W
Consumo de energía por unidad de tiempo en operación (Energy
Consumption): 76.847 Wh
Consumo de energía por unidad de tiempo en modo de espera
(Energy Consumption in stand by mode): 0.2439 Wh
Importador/Importer: SERVICIOS HOME DEPOT, S. DE R.L. DE C.V.
Ricardo Margain 605, Santa Engracia, San Pedro Garza García, Nuevo León, C.P.
66267 Tel./Phone: [phone]
Lea y siga todas las instrucciones de seguridad y operación antes de usar este
aparato/ Read and follow all the instructions of security and operation before using
this product
Cont. 1 Ventilador / Fan Hecho en/Made in: China
Requiere ensamblaje /Assembly required

52” Saleen
Ceiling Fan by HDC
Date Purchased
Store Purchased
Model No.
Serial No.
Vendor No.
UPC
Thank you for purchasing our ceiling fan. This product has been
manufactured with the highest standards of safety and quality.
Table of Contents
Safety Rules . . . . . . . . . . . . . . . . . . . . 1
Unpacking Your Fan . . . . . . . . . . . . . . 2
Installing Your Fan . . . . . . . . . . . . . . . 3
Installing the Light Kit. . . . . . . . . . . . .10
Operating Your Transmitter . . . . . . . . . 11
Care of Your Fan . . . . . . . . . . . . . . . . 13
Troubleshooting . . . . . . . . . . . . . . . . . 13
Specifications . . . . . . . . . . . . . . . . . . 14
111-939
548810
792145365136

1
Safety Rules - Read and Save These Instructions
To reduce the risk of electric shock, insure electricity has been turned off
at the circuit breaker or fuse box before beginning.
All wiring must be in accordance with the National Electrical Code
“ANSI/NFPA 70-1999” and local electrical codes. Electrical installation
should be performed by a qualified licensed electrician.
WARNING: To reduce the risk of electrical shock or fire, do not use this
fan with any solid-state fan speed control device. It will permanently
damage the electronic circuitry.
CAUTION: To reduce the risk of personal injury, use only the screws
provided with the outlet box.
The outlet box and support structure must be securely mounted and
capable of reliably supporting a minimum of 35 pounds, Use only NOM
Listed outlet boxes marked “FOR FAN SUPPORT”.
The fan must be mounted with a minimum of 7 feet clearance from the
trailing edge of the blades to the floor.
Avoid placing objects in the path of the blades.
To avoid personal injury or damage to the fan and other items, be
cautious when working around or cleaning the fan.
Do not use water or detergents when cleaning the fan or fan blades. A dry
dust cloth or lightly dampened cloth will be suitable for most cleaning.
After making electrical connections, spliced conductors should be turned
upward and pushed carefully up into outlet box. The wires should be
spread apart with the grounded conductor and the equipment-grounding
conductor on one side of the outlet box and ungrounded conductor on the
other side of the outlet box.
All set screws must be checked and retightened where necessary before
installation.
The appliance is not to be used by persons (including children) with reduced
physical, sensory or metal capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction.
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
TO REDUCE THE RISK OF PERSONALL INJURY, DO NOT BEND THE BLADE
ARMS (ALSO REFERRED TO AS FLANGES), WHEN INSTALLING THE
BRACKETS, BALANCING THE BLADES OR CLEANING THE FAN. DO NOT
INSERT FOREIGN OBJECTS IN – BETWEEN ROTATING FAN BLADES.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL INJURY,
MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE FOR FAN SUPPORT
WITH THE SCREWS PROVIDED WITH THE OUTLET BOX.
WARNING

2
Unpack your fan and check the contents. You should have the following items:
Blade Attachment Hardware
(13 Screws and rubber washer)
Blade Arm Attachment Hardware
(9 Screw with lock washer)
Electrical Hardware
(3 Plastic Wire Nuts)
A.
B.
C.
Set of blades (4)
Canopy assembly
Ball/downrod assembly
Coupling cover
Fan motor assembly
Blade arms (4)
1.
2.
3.
4.
5.
6.
Mounting plate
LED light kit
Glass shade
Receiver with 6 wire nuts
Transmitter+holder+2 mounting screws
12V MN21/A23 battery
7.
8.
9.
10.
11.
12.
WARNING
DO NOT INSTALL OR USE FAN IF ANY
PART IS DAMAGED OR MISSING.
CALL TOLL FREE 01-800-004-6633.
Unpacking Your Fan
AB
1
26
3
4
5
7
8
9
10
11
12
C

3
Installing Your Fan

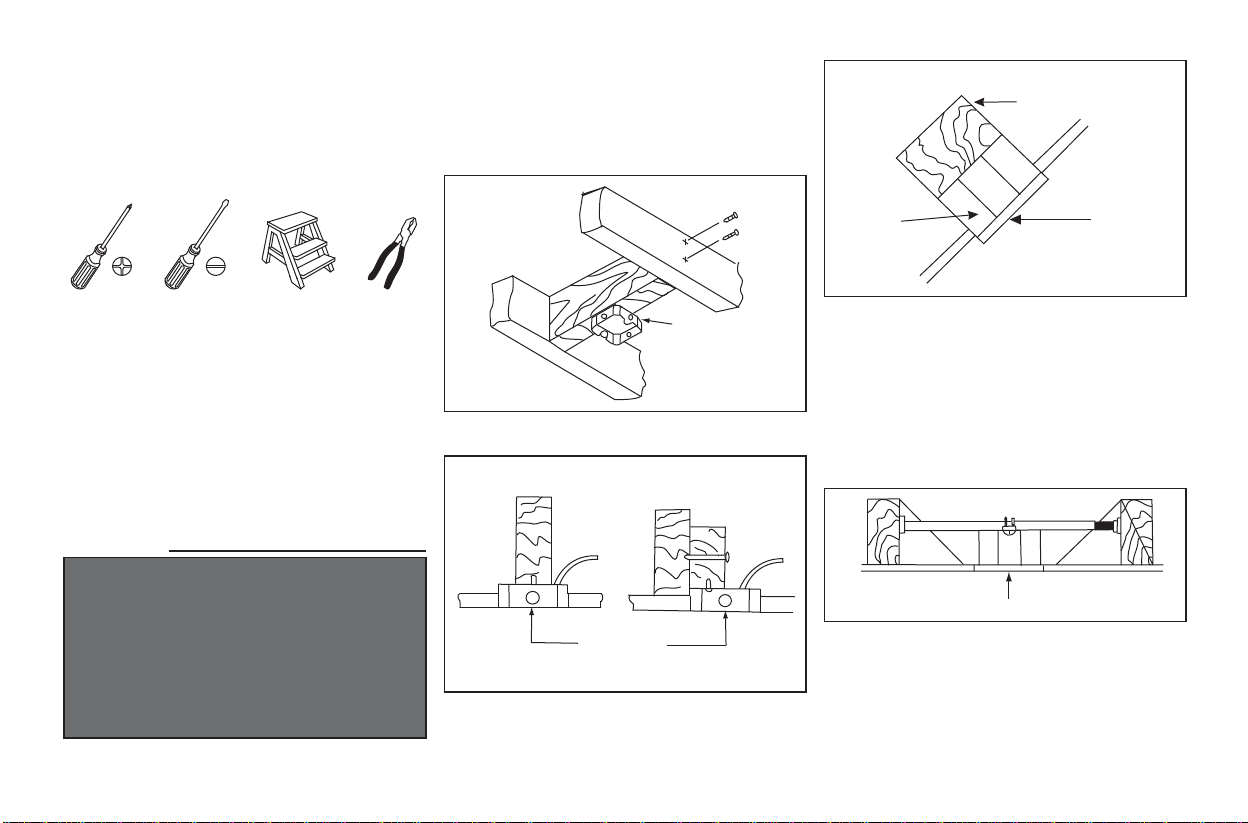

Figures 1~3 are examples of different ways to
mount the outlet box.
If there isn't an existing NOM listed mounting box,
then read the following instructions. Disconnect
the power by removing fuses or turning off circuit
breakers.
Secure the outlet box directly to the building
structure. Use appropriate fasteners and building
materials. The outlet box and its support must be
able to fully support the moving weight of the fan
(at least 35 lbs). Do not use plastic outlet boxes.
Tools Required
Mounting Options
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PERSONAL INJURY, MOUNT FAN
ONLY TO AN OULET BOX MARKED ACCEPT-
ABLE FOR FAN SUPPORT AND USE THE
MOUNTING SCREWS PROVIDED WITH THE
OULET BOX. OUTLET BOX COMMONLY USED
FOR THE SUPPORT OF LIGHTING FIXTURE
MAY NOT BE ACCEPTABLE FOR FAN SUPPORT
AND MAY NEED TO BE REPLACED. CONSULT A
QUALIFIED ELECTRICIAN IF IN DOUBT.
Outlet Box
Outlet Box
Outlet Box
Figure 2
Figure 1
Note: You may need a longer downrod to
maintain proper blade clearance when installing
on a steep, sloped ceiling. The maximum angle
allowable is 18°. If the canopy touches downrod,
remove the decorative canopy bottom cover and
turn the canopy 180°before attaching the canopy
to the mounting plate.
To hang your fan where there is an existing fixture
but no ceiling joist, you may need an installation
hanger bar as shown in Figure 4 (available at any
Home Depot store).
Ceiling
Mounting
Plate
Provide Strong
Support
Recessed
Outlet Box
Figure 3
Figure 4
Phillips screwdriver, straight slot screwdriver, step
ladder and wire cutters.

4
REMEMBER to turn off the power. Follow the
steps below to hang your fan properly.
Hanging the Fan
WARNING
FAILURE TO PROPERLY INSTALL COTTER
PIN AS NOTED IN STEP 5 COULD RESULT IN
FAN LOOSENING AND POSSIBLY FALLING.
Remove the canopy ring from the canopy.
(Figure 5)
Remove the mounting bracket from the canopy
by loosening the four screws on the top of the
canopy. Remove the two non-slotted screws
and loosen the slotted screws. (Figure 6)
Remove the clevis pin, cotter pin and set
screws from the top of the motor assembly.
(Figure 7)
Take out the setscrew located in the hanger
ball, lower the hanger ball and remove the
cross pin. Remove the hanger ball from the
hanger ball/downrod assembly. (Figure 7)
Remove the ground lead from the downrod
assembly. (Figure 7)
NOTE: If a longer downrod is needed, take out
the screw located in the hanger ball, lower the
hanger ball and remove the pin, remove all 3
pieces from the downrod and assemble them
onto the new longer downrod before
proceeding step 4. (The longer downrod is
available at any Home Depot store)
1.
2.
3.
4.
5.
Carefully feed the motor wires up through the
downrod. Thread the downrod into the collar.
Align the holes and replace the clevis pin and
cotter pin. Tighten the two collar setscrews.
(Figure 8)
Slip coupling cover, canopy ring, and canopy
onto the downrod. Carefully reinstall the
hanger ball onto the downrod and reinstall the
ground lead onto the downrod, being sure that
the cross pin is in the correct position, the
setscrew is tightened and wires are not twisted.
(Figure 8)
6.
7.
Figure 7
Loosen but
do not Remove Remove
Figure 6
Figure 5
Motor Collar
Cotter
Pin
Clevis
Pin
Downrod
Set screws
Cross pin
Hanger
Ball Set Screw Ground
Lead
Remove the
Canopy Ring

5
Installing Fan to
the Electrical Box
WARNING
THE TAB IN THE RING MUST REST IN THE
GROOVE OF THE HANGER BALL AS FIGURE 8.
FAILURE TO PROPERLY SEAT THE TAB IN THE
GROOVE COULD CAUSE DAMAGE TO WIRING.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR OTHER PERSONAL INJURY.
MOUNT FAN ONLY TO AN OUTLET BOX OR
SUPPORTING SYSTEM MARKED ACCEPTABLE
FOR FAN SUPPORT AND USE THE MOUNTING
SCREWS PROVIDED WITH THE OUTLET BOX.
Pass the 120-volt supply wires through the
center hole in the ceiling mounting bracket as
shown in Figure 9.
Attach the mounting bracket on the outlet box
by sliding the mounting bracket over the screws
provided with the outlet box. (Figure 9)
Security tighten the two mounting screws.
Carefully lift the fan assembly up to the ceiling
mounting bracket and seat the hanger ball in the
mounting bracket socket. Make sure the tab on
the mounting bracket socket is properly seated
in the groove in the hanger ball (Figure 10).
This will help to balance the ceiling fan.
1.
2.
3.
4.
Figure 10
Groove
Tab
Figure 9
NOM Listed
Outlet Box
Ceiling Mounting
Bracket
Mounting
Screws (Supplied
with Outlet Box) 120V
Wires
Figure 8
Motor Wires
Ceiling Canopy
Pin in Locked
Positioon
Motor Collar
Coupling Cover
Tighten Screw
Firmly
Cotter Pin
Clevis Pin
Downrod
Cross pin
Hanger
Ball
Set Screw
Ground Lead

6
Making the Electrical
Connections
WARNING
TO AVOID POSSIBLE ELECTRICAL SHOCK, BE
SURE ELECTRICITY IS TURNED OFF AT THE
MAIN FUSE BOX BEFORE WIRING.
(Figure 13) Motor to receiver electrical
connections: Connect the black wire from the
fan to black wire marked "TO MOTOR L".
Connect the white wire from the fan to the
white wire marked "TO MOTOR N" from the
receiver. Connect the blue wire from the fan to
the blue wire marked "For Light" from the
receiver. Secure the wire connections with the
plastic wire connecting nuts provided.
2.
(Figure 13) Receiver to house supply wires
electrical connections: Connect the black (hot)
wire from the ceiling to the black wire marked
"AC in L" from he receiver. Connect the white
(neutral) wire from the ceiling to the white wire
marked "AC in N" from the receiver. Secure
the wire connections with the plastic wire
connecting nuts provided.
(Figure 13) If your outlet box has a ground
wire (green or bare copper) connect it to the fan
ground wires; otherwise connect the hanging
bracket ground wire to the mounting bracket.
Secure the wire connection with a plastic nut
provided. After connecting the wires spread
them apart so that the green and white wires are
on one side of the outlet box and black and blue
wires are on the other side. Carefully tuck the
wire connections up into the outlet box.
3.
4.
Insert the receiver into the mounting bracket
with the flat side of the receiver facing the
ceiling as Figure 12.
1.
If you feel you do not have enough electrical
wiring knowledge or experience, have your fan
installed by a licensed electrician.
Follow the steps below to connect the fan to your
household wiring. Use the wire nuts supplied with
your fan. Secure the wire nuts with electrical tape.
Make sure there are no loose strands or
connections.

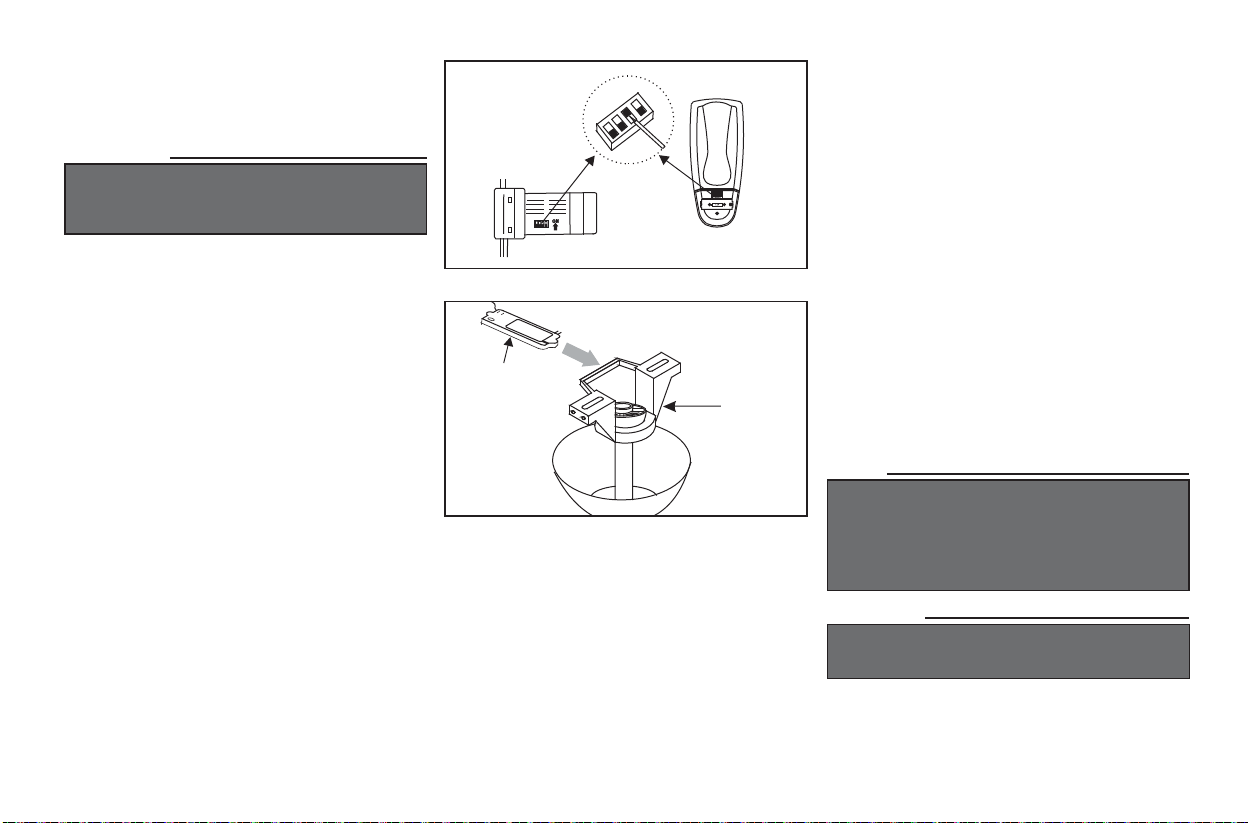

This remote control unit is equipped with 16 code
combinations to prevent possible interference
from or to other remote units. The frequency
switches on your receiver and transmitter have
been preset at the factory. Please recheck to make
sure the switches on the transmitter and the
receiver are set to the same position, any
combination of settings willoperate the fan as long
as the transmitterand receiver are set to the same
position. (Figure 11)
Figure 11
Figure 12
Receiver
Ceiling
Mounting
Bracket
Frequency Switch
CAUTION
DO NOT USE WITH WALL LIGHT DIMMER
SWITCH.
NOTE
FAN MUST BE INSTALLED AT A MAXIMUM
DISTANCE OF 20 FEET FROM THE
TRANSMITTING UNIT FOR PROPER SIGNAL
TRANSMISSION BETWEEN THE TRANSMITTING
UNIT AND THE FAN'S RECEIVING UNIT.

7
WARNING
MAKE SURE THE TAB ON THE HANGING
BRACKET PROPERLY SITS IN THE GROOVE IN
THE HANGER BALL BEFORE ATTACHING THE
CANOPY TO THE BRACKET BY TURNING THE
HOUSING UNTIL IT DROPS INTO PLACE.
Slide canopy up to the ceiling as shown in Figure
14. Make sure you place the wires safely into the
outlet box. Secure the canopy to the mounting
bracket with the four screws with your fan. Slide
the canopy ring over the canopy and turn the
canopy ring clockwise until the canopy ring are
locks in place.
Finishing the Fan
Installation
WARNING
CHECK TO SEE THAT ALL CONNECTIONS ARE
TIGHT, INCLUDING GROUND, AND THAT NO
BARE WIRE IS VISIBLE AT THE WIRE NUTS.
EXCEPT FOR THE GROUND WIRE.
SUPPLY CIRCUIT
Figure 13
WHITE
WHITE
BLACK
BLACK
BLUE
Ground
Conductor
Outlet Box
Green
Ground
Lead
GREEN
Ground to
Downrod
BLACK BLACK BLUE WHITE
WHITE
Figure 14
Outlet Box
Ceiling
Mounting
Bracket
Canopy
Canopy
Ring
Screws

8
Attaching the Fan Blades
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY,
DO NOT BEND THE BLADES WHILE INSTALL-
ING, BALANCING THE BLADES, OR CLEANING
THE FAN. DO NO INSERT FOREIGN OBJECTS
BETWEEN ROTATING FAN BLADES.
Attach the blade arm to the blade using the
screws with rubber washers provided. Start a
screw into the blade arm and do not tighten.
Repeat for the two remaining screws and
rubber washers. (Fig. 15)
Tighten each screw securely starting with the
center screw. Repeat the steps for the remaining
blades.
Insert the blade assemblies through the slots in
the bottom band. (Fig. 16)
Align the holes from the blade arm to the holes
from the motor, and secure the blade arm in
place with screws and lock washer provided.
Repeat this process to attach the other blade
assemblies.
1.
2.
3.
4.
5.
Figure 16
Figure 15
Blade
Screws
Motor
Blade
Blade Arm
Screws and
Rubber Washers

9
Figure 17
Touching Ceiling
Blade Balancing If deviation is greater than 1/8”, please call
Customer Service (01-800-004-6633) to order
complimentary replacements of your brackets.
All blades are grouped by weight during
assembly. The following procedure should correct
most fan wobble. Check after each step.
Verify that all blades and blade bracket screws
are secure (most fan wobble problems are
caused by loose parts). Once the fan is properly
installed, run the ceiling fan for 10 minutes to
let the fan self-adjust.
If wobble occurs after running the fan for 10
minutes, verify blade level using the following
process:
Select a point on the ceiling above the tip of one
of the blades, then select any fan blade and
measure from the center of the selected blade to
the point on the ceiling (as shown in Figure 17).
Rotate the fan until the next blade is positioned
and repeat the measurement using the same
point from the ceiling for every blade.
Measurement deviations should be within 1/8”.
If all deviations are less than 1/8” and the fan
continues to wobble, please call Customer
Service (01-800-004-6633) to order a
complimentary Blade Balancing Kit.
1.
2.
-
-
Installing the Mounting
Plate
Remove 1 of the 3 screws from the mounting
ring and loosen the other 2 screws. (Do not
remove)
Place the key holes on the mounting plate over
the 2 screws previously loosened from the
mounting ring, turn mounting plate until it
locks in place at the narrow section of the key
holes. Secure by tightening the 2 screws
previously loosened and the one previously
removed. (Figure 18)
1.
2.
Figure 18
Moounting Plate
Mounting Ring
Screws

10
Installing the Light Kit
Remove the 1 of 3 screws from the posts of the
mounting plate and keep it for future use.
Loosen the other 2 screws. (Do not remove)
(Fig. 19)
While holding the LED light kit under your
fan, make the 2-pin plug connections:
- Red to white
- Black to black
Place the key holes in the LED light kit over
the two screws previously loosened from the
mounting plate. Turn the LED light kit until the
LED light kit locks in place at the narrow
section of the key holes. (Fig. 19)
1.
2.
3.
Securely tighten the two light kit mounting
screws previously loosened and the one
previously removed. (Fig. 19)
Raise glass shade up against the LED light kit,
and secure it to fan by turning glass clockwise
until snug. DO NOT OVERTIGHTEN. (Fig.
19)
4.
5.
CAUTION
BEFORE STARTING INSTALLATION, DISCON-
NECT THE POWER BY TURNING OFF THE
CIRCUIT BREAKER OR REMOVING THE FUSE
AT FUSE BOX. TURNING POWER OFF USING
THE FAN SWITCH IS NOT SUFFICIENT TO
PREVENT ELECTRIC SHOCK.
Figure 19
Glass Shade
Screws
Mounting Plate
Wire
Connectors
LED Light
Kit

1111
"HI, MED, LOW" buttons:
These three buttons are used to set the fan
speed as follows:
LOW=Low speed,
MED= Medium speed
HI=High speed
"OFF" button: This button turns the fan off.
The " " button turns the light ON or OFF
and also controls the brightness setting. Press
and release the button to turn the light ON or
OFF. Press and hold the button to set the
desired brightness. The light button has an
auto-resume, it will stay at the same brightness
as the last time it was turned off.
1.
2.
3.
Restore power to the ceiling fan and test for
proper operation.
Operating Your Transmitter
Figure 21
Installing the Battery:
Figure 20
Install 12V MN21/A23 battery (included), to
prevent damage to transmitter, remove the battery
if not used for long periods.
( WARNING: May explode or leak if
recharged, disposed of in fire or dissected. Do not
ingest.)

12
Speed settings for warm or cool weather depend
on factors such as the room size, ceiling height,
number of fans, etc.
The reverse switch is located on the top of motor
housing. Slide the switch to the left for warm
weather operation. Slide the switch to the right for
cool weather operation.
Warm weather - (Counter-Clockwise direction)
A downward air flow creates a cooling effect.(Fig.
23) This allows you to set your air conditioner on
a higher setting without affecting your comfort.
Cool weather - (Clockwise direction) An upward
airflow moves warm air off the ceiling area. (Fig.
24) This allows you to set your heating unit on a
lower setting without affecting your comfort.
NOTE
WAIT FOR FAN TO STOP BEFORE CHANGING
THE SETTING OF THE SLIDE SWITCH.
Figure 23
Figure 24
Figure 22
Holder Screws
Plugs

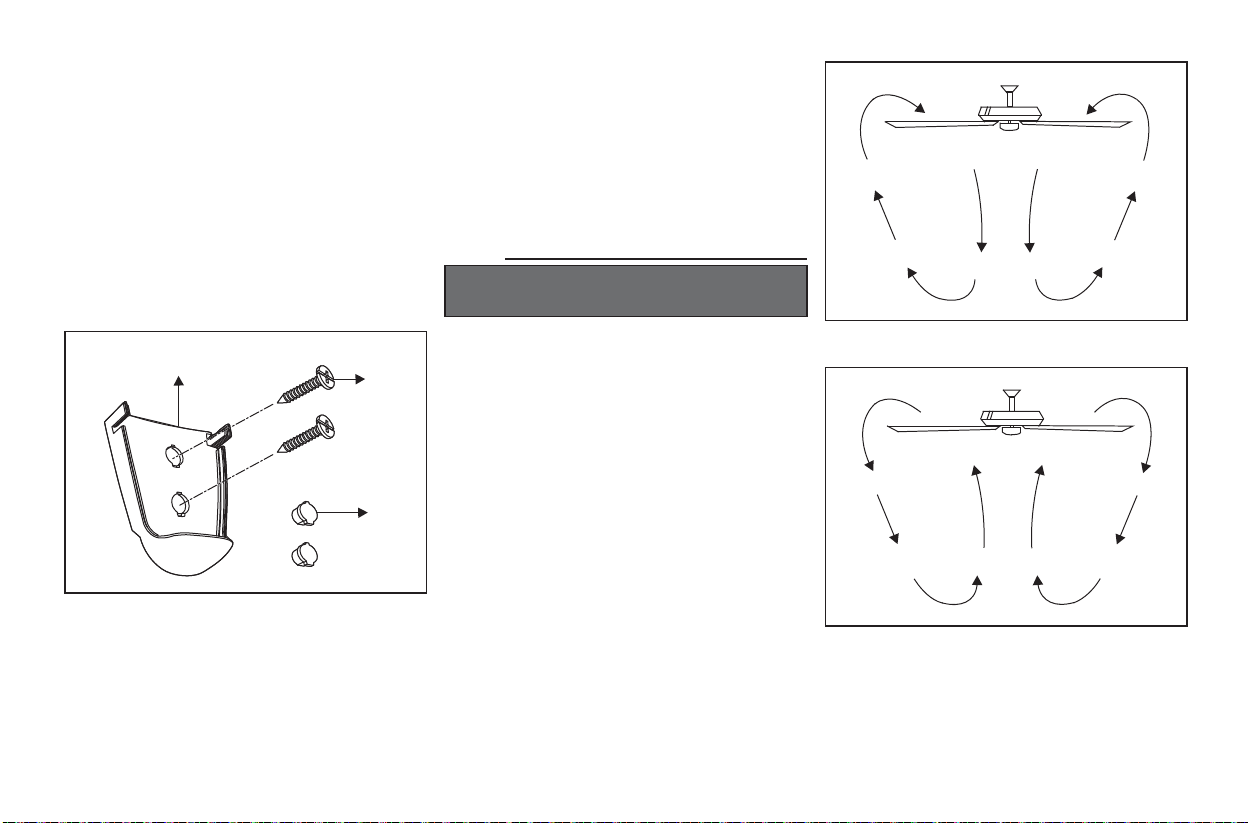

Remove the two plugs from the holder. Note
that the plugs have unique tabs that allows
them to fit only in one hole. (Fig. 22)
Attach the holder with the two screws
provided.
Replace the two plugs each into its own hole.
1.
2.
3.
Installing the Transmitter
Holder

13
Because of the fan's natural movement, some
connections may become loose. Check the
support connections, brackets, and blade
attachments twice a year. Make sure they are
secure. (It is not necessary to remove fan from
ceiling.)
Clean your fan periodically to help maintain its
new appearance over the years. Use only a soft
brush or lint-free cloth to avoid scratching the
finish. The plating is sealed with a lacquer to
minimize discoloration or tarnishing. Do not
use water when cleaning. This could damage
the motor, or the wood, or possibly cause an
electrical shock.
You can apply a light coat of furniture polish to
the wood blades for additional protection and
enhanced beauty. Cover small scratches with a
light application of shoe polish.
There is no need to oil your fan. The motor has
permanently lubricated sealed ball bearings.
1.
2.
3.
4.
Here are some suggestions to help you maintain
your fan.
Check main and branch circuit fuses or breakers.
Check line wire connections to the fan and switch wire connections in
the switch housing.
Check to make sure the dip switches from the transmitter and receiver
are set to the same frequency.
Make sure all motor housing screws are snug.
Make sure the screws that attach the fan blade bracket to the motor hub
are tight.
Make sure wire nut connections are not rattling against each other or
the interior wall of the switch housing.
Allow a 24-hour "breaking-in" period. Most noises associated with a
new fan disappear during this time.
If using ceiling fan light kit, check that the light bulb is secure.
Make sure there is a short distance from the ceiling to the canopy. It
should not touch the ceiling.
Make sure your ceiling box is secure and rubber isolator pads are used
between the mounting bracket and outlet box.
Do not connect the fan with a wall mounted variable speed control(s).
Make sure the dip switches are set correctly.
1.
2.
3.
1.
2.
3.
4.
5.
6.
7.
1.
2.
The fan will not start.
The fan sounds noisy.
Remote control.
Care of Your Fan Troubleshooting
PROBLEM SOLUTION
WARNING
MAKE SURE THE POWER IS OFF AT THE ELECTRICAL PANEL
BOX BEFORE YOU ATTEMPY ANY REPAIRS. REFER TO THE
SECTION, “MAKING ELECTRICAL CONNECTIONS”.

14
Specifications
FAN SIZE SPEED VOLTS AMPS WATTS RPM CMM N.W. G.W. C.F.
52” 120 10.31 kg
(22.69 lbs)
11.90 kg
(26.17 lbs) 2.11'
LOW
MED.
HIGH
0.23
0.38
0.51
12.26
33.60
60.99
62
116
160
These are approximate measures. They do not include Amps and Wattage used by the light kit.
52.40
107.57
153.94
Importer: SERVICIOS HOME DEPOT, S. DE R.L. DE C.V.
Ricardo Margain 605, Santa Engracia, San Pedro Garza García,
Nuevo León, C.P. 66267. Tel. [phone]
Warranty printed on manual is not valid for Mexico
Questions, problems, missing parts?
Before returning to the store call our customer service
01 800 004 6633
The appliance is not to be used by persons (including
children) with reduced physical, sensory or metal capabili-
ties, or lack of experience and knowledge, unless they have
been given supervision or instruction.
Children should be supervised to ensure that they do not
play with the appliance.
