USE AND CARE GUIDE
PORTWOOD 60 IN. CEILING FAN
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
THANK YOU
Visual instruction of how to install this fan:
Visit www.homedepot.com and enter either the Item or Model number to nd
this fan and click the link of visual instruction in the product overview section.
Item #1001 628 059
#1001 628 060
#1001 628 062
Model #
YG528-BN
# YG528-EB
# YG528-WH

Light Color Switch Operating Instructions ..............................
2
Table of Contents
Table of Contents ..........................................................
Safety Information .........................................................
Warranty .........................................................................
Pre-Installation ..............................................................
Tools Required .........................................................................
Hardware Included ..................................................................
Package Contents ....................................................................
Dual Mounting Instructions ......................................................
Installation .....................................................................
Assembly ........................................................................
Standard Ceiling Mounting .......................................................
Close-to-Ceiling Mounting .....................................................
Hanging the Fan ....................................................................
Attaching the Fan Blades .......................................................
Installing the Light Kit ............................................................
2
3
4
4
4
4
5
6
7
8
9
9
10
11
15
16
Operation .....................................................................
Pull Chain Operating Instructions ..........................................
Reverse Switch Operating Instructions ..................................
Care and Cleaning .......................................................
Troubleshooting ..........................................................
Service Parts ...............................................................
17
17
17
17
18
18
20
READ AND SAVE THESE INSTRUCTIONS

Safety Information
WARNING: To reduce the risk of electrical shock or re, do
not use this fan with any solid-state fan speed control device.
It will permanently damage the electronic circuitry.
WARNING: To reduce the risk of personal injury, do not
bend the blade arms (also referred to as anges), when
installing the brackets, balancing the blades or cleaning the
fan.
WARNING: Do not insert foreign objects between rotating
fan blades.
WARNING: To reduce the risk of re, electric shock or
personal injury, mount the fan to the outlet box marked
acceptable for fan support with the screws provided with the
outlet box.
CAUTION: To reduce the risk of personal injury, use only
the screws provided with the outlet box.
3HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for
help.
1. To reduce the risk of electric shock, ensure electricity has
been turned off at the circuit breaker or fuse box before
beginning.
2. All wiring must be in accordance with the National Electrical
Code “ANSI/NFPA 70-1999” and local electrical codes.
Electrical installation should be performed by a qualied
licensed electrician.
3. The outlet box and support structure must be securely
mounted and capable of reliably supporting a minimum of 50
lbs (22.7 kg) or less. Use only UL-listed outlet boxes marked
“FOR FAN SUPPORT.”
4. The fan must be mounted with a minimum of 7 ft. (2.1m)
clearance from the trailing edge of the blades to the oor.
5. Avoid placing objects in the path of the blades.
6. To avoid personal injury or damage to the fan and other
items, be cautious when working around or cleaning the fan.
7. Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be
suitable for most cleaning.
8. After making electrical connections, spliced conductors
should be turned upward and pushed carefully up into the
outlet box. The wires should be spread apart with the
grounded conductor and the equipment-grounding conductor
on one side of the outlet box and ungrounded conductor on
the other side of the outlet box.
9. All setscrews must be checked and retightened where
necessary before installation.
10. This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must
accept any interference received, including interference that
may cause undesired operation.
WARNING: Changes or modications to this unit not
expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications.

SPECIFICATIONS
SPECIFICATIONS
TOOLS REQUIRED
TOOLS REQUIRED
Warranty
4
Pre-InstallationPre-Installation
60 in.
Low (Speed 4)
High (Speed 2)
Extra High (Speed 1)
120
Fan size
Fan size
Watts
Watts
RPM
RPM
CFM
CFM
Speed
Speed
Volts
Volts
Amps
Amps
N.W.
N.W.
G.W.
G.W.
C.F.
C.F.
0.33
0.71
0.90
13.21
62.07
101.35
50
137
180
2278
6883
9333
15.6 kg
(34.32 lbs.)
17.12 kg
(37.67 lbs.) 2.55 cu. ft.
The manufacturer warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the
factory for a period of lifetime after the date of purchase by the original purchaser. The manufacturer warrants the light kit (excluding any
glass), to be free from defects in workmanship and material present at time of shipment from the factory for a period of ve years after
the date of purchase by the original purchaser. The manufacturer also warrants that all other fan parts, excluding any glass or acrylic
blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the
date of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or
superior model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All
costs of removing and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper
installation or by afxing any accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not
cover any changes in brass nish, including rusting, pitting, corroding, tarnishing or peeling. Brass nishes of this type give the longest
useful life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a
defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. We hereby
disclaim any and all warranties, including but not limited to those of merchantability and tness for a particular purpose to the extent
permitted by law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as specied in the
express warranty. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to
you. The retailer shall not be liable for incidental, consequential, or special damages arising out of or in connection with product use or
performance except as may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential
damages, so the above exclusion or limitation may not apply to you. This warranty gives specic legal rights, and you may also have other
rights which vary from state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a
claim on the warranty must be paid by the customer.
Contact the Customer Service Team at 1-800-986-3460 or visit www.HOMEDEPOT.COM/HOMEDECORATORS
Phillips
screwdriver
Flat blade
screwdriver
Step
ladder
Wire
stripper
Electrical
tape
Adjustable
wrench
NOTE: These are approximate measures. They do not
include amps and wattage used by the light kit.

Pre-Installation (continued)
HARDWARE INCLUDED
HARDWARE INCLUDED
AA
BB
CC
DD
EE
FF
GG
HH
II
JJ
KK
LL
Plastic wire nut
Canopy mounting screw with lock washer (preassembled)
Blade attachment screw and rubber washer
Clevis pin (preassembled)
Cotter pin (preassembled)
Cross pin (preassembled)
Setscrew (preassembled)
Collar setscrew (preassembled)
Collar mounting screw with lock washer (preassembled)
Switch housing mounting screw (preassembled)
Light kit mounting screw (preassembled)
Pull chain and fob
Part
Part
Description
Description
3
4
16
1
1
1
1
2
6
3
3
2
Quantity
Quantity
5HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
KK
JJ
LL
EE
FF
GG
HH
II
AA
BB
CC
DD
NOTE: Hardware not shown to actual size.

Part
Part
G
H
I
J
K
Description
Description
Fan motor assembly
Blade
Switch housing
28 watt LED Light kit
Glass shade
Quantity
Quantity
1
5
1
1
1
Part
Part
A
B
C
D
E
F
Quantity
Quantity
1
1
1
1
1
1
Description
Description
Mounting bracket (preassembled)
Canopy ring (preassembled)
Canopy
Canopy bottom cover (preassembled)
Hanger ball/downrod assembly
Coupling cover
PACKAGE CONTENTS
PACKAGE CONTENTS
Pre-Installation (continued)
6
H
G
A
B
C
D
E
F
I
J
K

Pre-Installation (continued)
DUAL MOUNTING INSTRUCTIONS
DUAL MOUNTING INSTRUCTIONS
This ceiling fan is supplied with two types of hanging assemblies: the
standard ceiling installation using the downrod with ball and socket
mounting, and the "close-to-ceiling" mounting. The "close-to-ceiling"
mounting is recommended in rooms with less than 8 ft. ceilings or in
areas where additional space is desired from the oor to the fan blades.
When using the standard downrod installation, the distance from the
ceiling to the bottom of the fan blades will be approximately 12 in. The
"close-to-ceiling" installation reduces the distance from the ceiling to the
bottom of the fan blades to approximately 9 in.
Once you have decided which ceiling installation you will use, refer to the
corresponding sections and procedures during the assembly period.
Where necessary, each section of the instructions will note the different
procedures to follow for the two types of installation.
Standard Ceiling Mounting
Close-to-Ceiling Mounting
7 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

To hang your fan where there is an existing xture but no ceiling
joist, you may need an installation hanger bar (NN) (not included)
as shown above.
If your ceiling fan does not have an existing UL-listed mounting
box, then install one using the following instructions:
□Disconnect the power by removing the fuses or turning off
the circuit breakers.
□Secure the outlet box (MM) (not included) directly to the
building structure. Use appropriate fasteners and materials
(not included). The outlet box and its bracing must be able
to fully support the weight of the moving fan (at least 50
lbs.). Do not use a plastic outlet box.
The illustrations below show three different ways to mount the
outlet box (MM) (not included).
MM
MM
NN
MM
MM
A
Installation
MOUNTING OPTIONS
MOUNTING OPTIONS
WARNING: To reduce the risk of re, electric shock, or
personal injury, mount the fan to an outlet box marked
acceptable for fan support using the screws provided with the
outlet box. An outlet box commonly used for the support of
lighting xtures may not be acceptable for fan support and
may need to be replaced. If in doubt, consult a qualied
electrician.
NOTE: You may need a longer downrod to maintain proper
blade clearance when installing on a steep, sloped ceiling.
The maximum angle allowable is 18° away from horizontal. If
the canopy (C) touches the hanger ball/downrod assembly (E),
then remove the decorative canopy bottom cover (D) and turn
the canopy (C) 180° before attaching the canopy (C) to the
mounting bracket (A).
8

1Preparing the canopy 2Preparing the motor
□Remove the canopy ring (B) from the canopy (C).
□Remove the two non-slotted canopy mounting screws
with lock washers (BB) from the canopy (C), and
loosen the slotted canopy mounting screws with lock
washers (BB) on the canopy (C).
□Remove the canopy (C) from the mounting bracket (A)
by turning the canopy (C) counterclockwise.
3Assembling the fan
□Remove the cotter pin (EE) and clevis pin (DD), and
loosen the two collar setscrews (HH) from the motor
collar.
□Take out the setscrew (GG) located in the hanger ball
(OO), lower the hanger ball (OO) and remove the
cross pin (FF). Remove the hanger ball (OO) from the
hanger ball/downrod assembly (E).
□Remove the ground lead (PP) from the downrod
assembly (E).
Assembly — Standard Ceiling Mounting
EE
DD
HH HH
WARNING: Failure to properly install the cotter pin (EE)
could result in the fan loosening and possibly falling.
□Carefully feed the motor wires up through the
downrod (QQ). Thread the downrod (QQ) into the
collar.
□Align the holes and replace the clevis pin (DD) and
cotter pin (EE). Tighten the two collar setscrews (HH).
□Slip the coupling cover (F), canopy ring (B), and
canopy (C) onto the downrod (QQ).
□Carefully reinstall the hanger ball (OO) onto the
downrod (QQ) and reinstall the ground lead (PP) onto
the downrod (QQ), being sure that the cross pin (FF)
is in the correct position, the setscrew (GG) is
tightened and wires are not twisted.
NOTE: If a longer downrod (not included) is needed, take out
the screw located in the hanger ball (OO), lower the hanger
ball (OO) and remove the pin (FF). Remove all three pieces
from the downrod and assemble them onto the new longer
downrod before proceeding to the downrod installation.
9HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
A
BB
BB
C
B
B
G
F
C
HH
HH
DD
EE
FF
PP
QQ
OO
GG
GG
E
FF
OO
PP

10

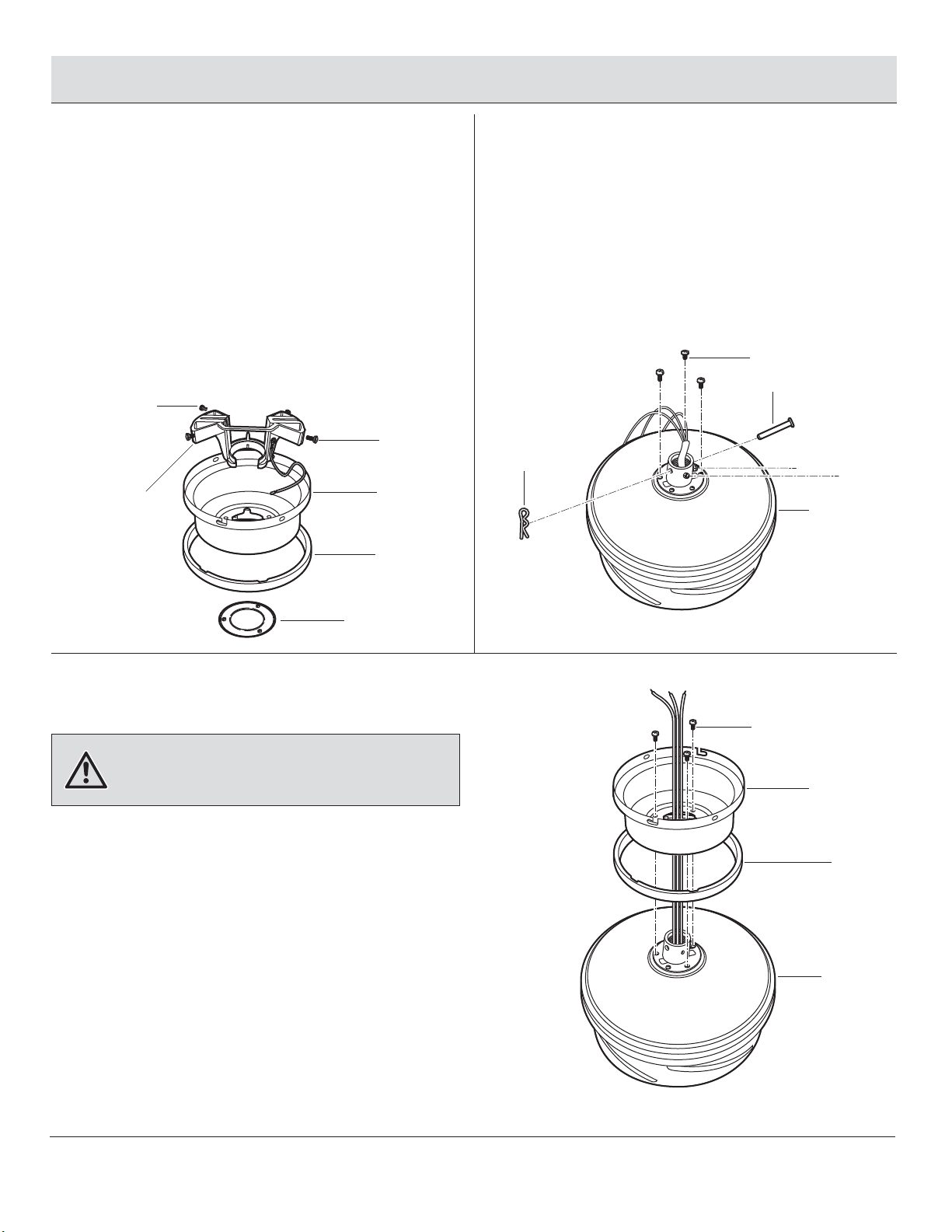

Assembly —Close-to-Ceiling Mounting
12
3Assembling the fan
Preparing the motorPreparing the canopy
□Remove the cotter pin (EE), clevis pin (DD) and the
two collar setscrews (HH) from the motor collar.
□Remove three of the six collar mounting screws with
lock washers (II) (every other one) from the collar on
top of the fan motor assembly (G).
WARNING: Failure to completely tighten the three collar
mounting screws with lock washers (II) could result in the fan
becoming loose and possibly falling.
D
□Remove the canopy ring (B) from the canopy (C).
□Remove the mounting bracket (A) from the canopy (C)
by loosening the four canopy mounting screws with
lock washers (BB) on the top of the canopy (C).
Remove the two non-slotted canopy mounting
screws with lock washers (BB) and loosen the slotted
canopy mounting screws with lock washers (BB).
□Remove the canopy bottom cover (D) from the
canopy (C).
□Make sure the slot openings of the canopy ring (B)
are on top, and then proceed to place the canopy ring
(B) and canopy (C) over the collar at the top of the fan
motor assembly (G).
□Align the mounting holes in the bottom of the canopy
(C) with the holes in the top of the fan motor
assembly (G). Fasten using the three collar mounting
screws with lock washers (II) previously removed.
□Tighten the collar mounting screws (II) securely.
A
BB
BB
C
B
C
B
G
II
II
G
DD
EE HH HH

Assembly — Hanging the Fan
4Attaching the fan to the
electrical box
5b5a Hanging instructions for
standard mounting
Hanging instructions for
close-to-ceiling mounting
□Pass the 120-volt supply wires through the center
hole in the mounting bracket (A).
□Attach the mounting bracket (A) on the outlet box
(MM) by sliding the mounting bracket (A) over the
screws provided with the outlet box. When using
“close-to-ceiling” mounting, it is important that the
mounting bracket (A) be level. If necessary, use
leveling washers (not included) between the
mounting bracket (A) and the outlet box (MM). Note
that the at side of the mounting bracket (A) is
toward the outlet box (MM).
□Securely tighten the two mounting screws.
WARNING: To reduce the risk of re, electric shock or
other personal injury, mount the fan only to an outlet box or
supporting system marked acceptable for fan support and
use the mounting screws provided with the outlet box.
WARNING: The tab in the ring must rest in the groove of
the hanger ball (E). Failure to properly seat the tab in the
groove could cause damage to the wiring.
WARNING: The hook is only to hold the fan while attaching
wiring. Failure to hang as instructed may result in the tab
breaking causing the fan to fall. The hook must pass from the
inside to the outside of the canopy.
□Carefully lift the fan motor assembly (G) up to the
mounting bracket (A) and seat the hanger ball (E) in
the mounting bracket (A) socket. Make sure the tab
on the mounting bracket (A) socket is properly seated
in the groove in the hanger ball (E). This will help to
balance the ceiling fan.
□Carefully lift the fan motor assembly (G) up to the
mounting bracket (A) and hang the fan on the hook
provided using one of the holes at the outer rim of the
canopy (C).
11 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
E
G
A
A
G
C
C
A
MM

12

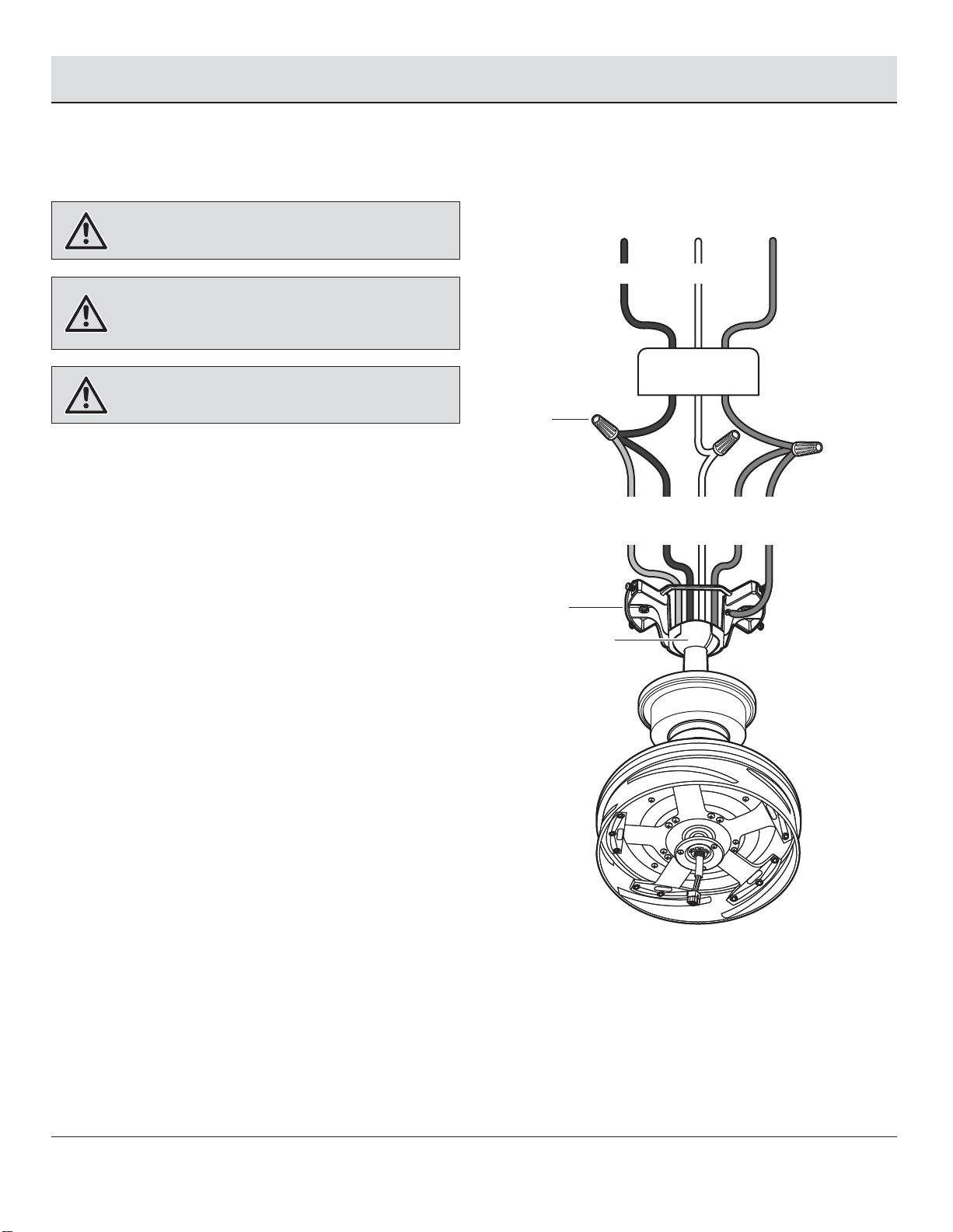

6a Making the electrical connections
WARNING: Check to see that all connections are tight,
including ground, and that no bare wire is visible at the wire
nuts (except for the ground wire).
WARNING: To reduce the risk of re or electric shock, do
not use this fan with any solid-state speed control device.
WARNING: To avoid possible electrical shock, be sure
electricity is turned off at the main fuse box before wiring.
Assembly —Hanging the Fan (continued)
If you feel you do not have enough electrical wiring knowledge
or experience, have your fan installed by a licensed
electrician.
Follow the steps below to connect the fan to your household
wiring. Use the plastic wire nuts (AA) with your fan. Secure the
plastic wire nuts (AA) with electrical tape. Make sure there are
no loose strands or connections.
□Make wire connections as follows, using the wire nuts
(AA).
From Fan To Outlet Box
Black + Blue Wires ---------- Black Wire (Hot)
White Wire ------------------- White Wire (Neutral)
Green Wires* ---------------- Green or Bare Wire (Ground)
* There are two green grounding leads: one from the mounting
bracket (A) and one from the hanger ball/ downrod assembly (E)
if installed.
□Turn the wire nut connections upward, spreading them
apart so the green (ground) and white wires will be on
one side of the outlet box (MM) and the black and blue
wires will be on the other side. Carefully tuck the
connections up into the outlet box (MM).
AA
NeutralHot
Black
Ground
conductor
White
Blue
Black
Green
White
Green
MM
A
E

Assembly — Hanging the Fan (optional)

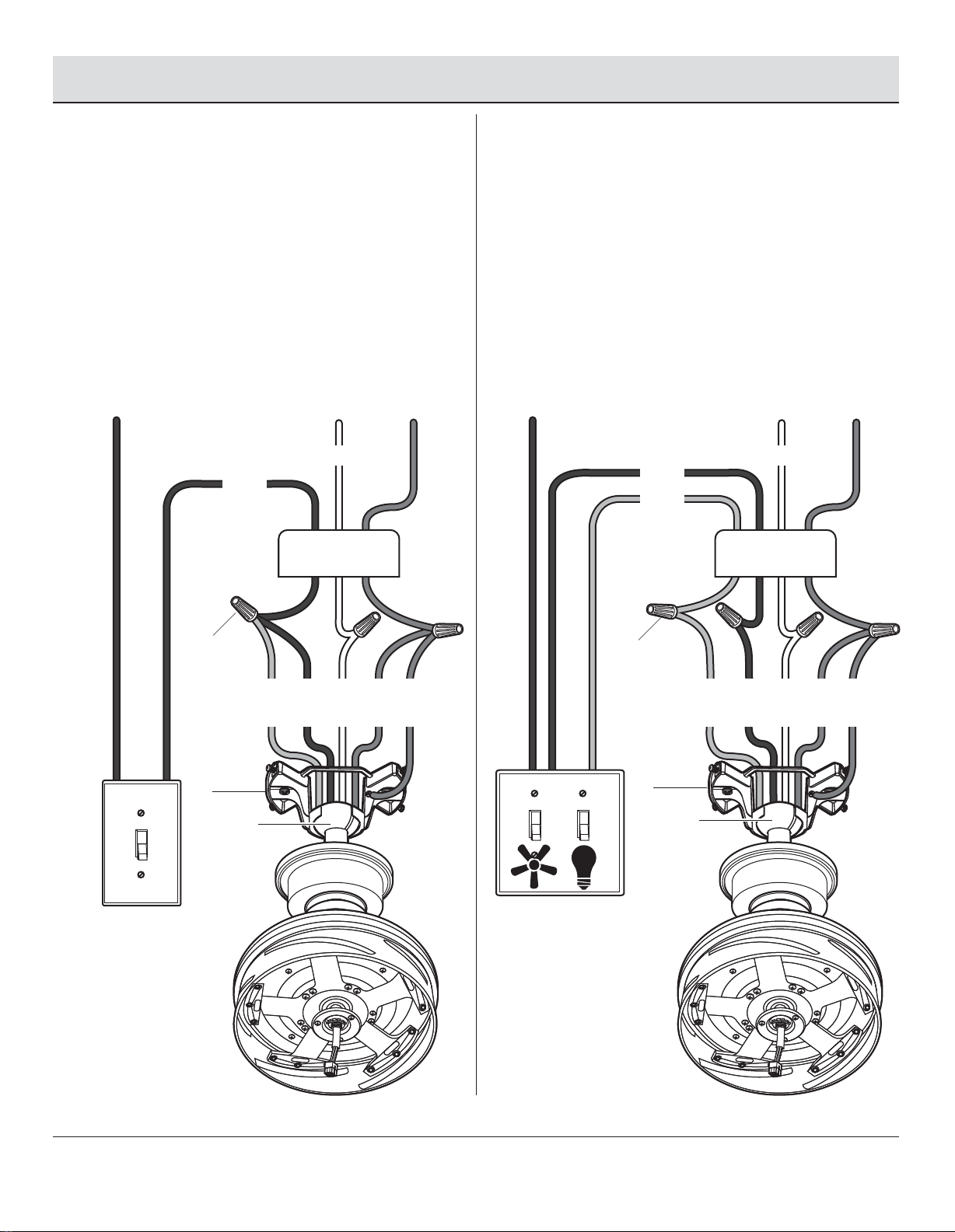

6b Single Switch Connections 6c Dual Switch Connections
□On a single switch the fan and light can be turned on or
off together. Make wire connections as follows, using the
wire nuts (AA). Wall switch not included.
From Fan To Outlet Box
Black + Blue Wires ---------- Black Wire (Hot)
White Wire ------------------- White Wire (Neutral)
Green Wires* ---------------- Green or Bare Wire (Ground)
□On a dual switch the fan and light can be turned on or off
separately. Make wire connections as follows, using the
wire nuts (AA). Wall switch not included.
From Fan To Outlet Box
Black Wire (for Fan) --------- Black Wire (Hot #1)
Blue Wire (for Light) --------- Red Wire (Hot #2)
White Wire ------------------- White Wire (Neutral)
Green Wires* ---------------- Green or Bare Wire (Ground)
13
AA
Neutral
Ground
conductor
White
Blue
Black
Green
White
Green
AC IN
Black
Red
DUAL SWITCH
MM
A
E
AA
SINGLE SWITCH
NeutralAC IN
Black
Ground
conductor
White
Blue
Black
Green
White
Green
MM
A
E
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

Assembly —Hanging the Fan (continued)
7a Standard ceiling mounting 7b Close-to-ceiling mounting
WARNING: The locking slots of the canopy (C) are provided
only as an aid to mounting. Do not leave the fan assembly
unattended until all four canopy mounting screws with lock
washers (BB) are engaged and rmly tightened.
WARNING: Make sure the tab on the mounting bracket (A)
properly sits in the groove in the hanger ball (E) before
attaching the canopy (C) to the mounting bracket (A) by
turning the canopy (C) until it drops into place.
WARNING: Locking slots of the canopy (C) are provided
only as an aid to mounting. Do not leave the fan assembly
unattended until all four canopy mounting screws with lock
washers (BB) are engaged and rmly tightened.
□Slide the canopy (C) up to the ceiling. Make sure you
have placed the wires safely into the outlet box
(MM).
□Secure the canopy (C) to the mounting bracket (A)
with the four canopy mounting screws with lock
washers (BB) included with your fan.
□Slide the canopy ring (B) over the canopy (C) and
tighten by turning the ring (B).
□Remove the fan from the hook on the mounting
bracket (A).
□Secure the canopy (C) to the mounting bracket (A)
with the four canopy mounting screws with lock
washers (BB) provided.
□Slide the canopy ring (B) over the canopy (C) and
tighten by turning the ring (B).
BB
MM
A
BB
B
C
E
BB
A
BB
B
C
14

Assembly —Attaching the Fan Blades
WARNING: To reduce the risk of personal injury, do not
bend the blades (H) while installing, balancing the blades (H),
or cleaning the fan.
WARNING: Do not insert foreign objects between rotating
fan blades (H).
8Attaching the fan blades
CC
GH
□Insert the blade (H) through the slot in the housing.
Align the holes in the blade (H) and the fan motor
assembly (G) and secure with a blade attachment
screw and rubber washer (CC).
□Repeat this procedure with the remaining blades (H).
15 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

I
G
KK
UU
J
K
TT
910
Attaching the LED light kit
and glass shade
Assembly — Installing the Light Kit
CAUTION: Before starting installation, disconnect the
power by turning off the circuit breaker or removing the fuse
at the fuse box. Turning power off using the fan switch is not
sufcient to prevent electric shock.
□Remove one of the three light kit mounting screws
(KK) from the switch housing (I) and loosen the other
two screws (KK). (Do not remove.)
□While holding the 28W LED light kit (J) under the fan
motor assembly (G), make the 2-pin (TT) and 6-pin
(UU) wire connections.
□Place the key holes in the 28W LED light kit (J) over
the two mounting screws (KK) previously loosened
from the switch housing (J). Turn the 28W LED light
kit (J) until the 28W LED light kit (J) locks in place at
the narrow section of the key holes. Secure by
tightening the two light kit mounting screws (KK)
previously loosened and the one (KK) previously
removed.
□Raise the glass shade (K) up against the 28W LED
light kit (J) and secure it to the fan by turning the
glass shade (K) clockwise until snug. DO NOT
OVERTIGHTEN.
Attaching the switch housing
to the mounting ring
CAUTION: Before starting installation, disconnect the
power by turning off the circuit breaker or removing the fuse
at the fuse box. Turning power off using the fan switch is not
sufcient to prevent electric shock.
RR
JJ
SS
G
I
□Remove one of the three switch housing mounting
screws (JJ) from the mounting ring (RR) and loosen
the other two screws (JJ). (Do not remove.)
□While holding the switch housing (I) under the fan
motor assembly (G), snap together the wire
connection plug with the 9-pin (SS) plug from the
switch housing (I).
□Place the key holes in the switch housing (I) over the
two screws (JJ) previously loosened from the
mounting ring (RR). Turn the switch housing (I) until
the switch housing (I) locks in place at the narrow
section of the key holes. Secure by tightening the two
mounting screws (JJ) previously loosened and the
one (JJ) previously removed.
16

Operation
PULL CHAIN OPERATING INSTRUCTIONS
PULL CHAIN OPERATING INSTRUCTIONS
Install two pull chains and fobs (LL) onto the pull chains located in
the switch housing (I). Turn on the power and check
the operation of the fan.
The pull chain controls the fan speed as follows:
1 pull - Extra High, 2 pulls - High, 3 pulls - Medium, 4 pulls - Low,
and 5 pulls - Off.
Speed settings for warm or cool weather depend on factors such
as the room size, ceiling height, and numbers of fans.
The pull chain of the light kit controls the light lumens as follows: 1
pull – High, 2 pulls – Medium, 3 pulls– Low, and 4 pulls – Off.
NOTE: Wait for the fan to stop before reversing the direction
of the blade rotation.
REVERSE SWITCH OPERATING INSTRUCTIONS
REVERSE SWITCH OPERATING INSTRUCTIONS
The reverse switch is located on the surface of the switch housing.
Slide the switch to the left for warm weather operation. Slide the
switch to the right for cool weather operation.
I
LL
LIGHT COLOR SWITCH OPERATING INSTRUCTIONS
LIGHT COLOR SWITCH OPERATING INSTRUCTIONS
The light color switch is located on the surface of the switch
housing.
3000K (Soft White) 4000K (Bright White)
17
Warm weather - (Counterclockwise Direction) A downward air flow
creates a cooling effect. This allows you to set your air conditioner
on a warmer setting without affecting your comfort.
Cool weather - (Clockwise Direction) An upward air flow moves
warm air off the ceiling. This allows you to set your heating unit on
a cooler setting without affecting your comfort.
Reverse
switch
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

Care and Cleaning
Troubleshooting
□Check the support connections, brackets, and blade
attachments twice a year. Make sure they are secure.
Because of the fan’s natural movement, some
connections may become loose over time. It is not
necessary to remove the fan from the ceiling.
□Clean your fan periodically. Use only a soft brush or
lint-free cloth to avoid scratching the nish. The plating is
sealed with a lacquer to minimize discoloration or
tarnishing.
□(Optional) Apply a light coat of furniture polish to the wood
blades.
□(Optional) Cover small scratches with a light application of
shoe polish.
Do
Do
□Use water when cleaning. Water could damage the motor,
or the wood, or possibly cause an electrical shock.
□Apply oil to your fan or motor. The motor has
permanently-lubricated sealed ball bearings.
Do not
Do not
WARNING: Make sure the power is off at the electrical
panel box before you attempt any repairs. Refer to step 6
“Making the Electrical Connections” on page 12.
Problem
Problem
Solution
Solution
□Check the main and branch circuit fuses or breakers.
□Check the line wire connections to the fan and switch wire connections in the switch housing.
□Make sure all motor housing screws are snug.
□Make sure the screws that attach the fan blade arm to the motor hub are tight.
□Make sure wire nut connections are not rattling against each other or the interior wall of the switch
housing.
□Allow a 24-hour "breaking-in" period. Most noises associated with a new fan disappear during this
time.
□If using the ceiling light kit, make sure the glassware are secured tight. Check that the light bulb is also
secure.
□Make sure there is a short distance from the ceiling to the canopy. It should not touch the ceiling.
□Make sure your ceiling box is secure and rubber isolator pads are used between the mounting bracket
and outlet box.
The fan will not start.
The fan sounds noisy.
18

Troubleshooting (continued)
Problem
Problem
Solution
Solution
The fan wobbles.
□Verify that all blades and blade bracket screws are secure (most fan wobble problems are caused by
loose parts). Once the fan is properly installed, run the ceiling fan for 10 minutes to let the fan
self-adjust.
If wobble occurs after running the fan for 10 minutes, verify blade level using the following process:
- Select a point on the ceiling above the tip of one of the blades, then select any fan blade and
measure from the center of the selected blade to the point on the ceiling. Rotate the fan until the next
blade is positioned and repeat the measurement using the same point from the ceiling for every blade.
Measurement deviations should be within 1/8 in..
- If all deviations are less than 1/8 in. and the fan continues to wobble, please call Customer Service
(1-800-986-3460) to order a complimentary Blade Balancing Kit.
- If deviation is greater than 1/8 in. , please call Customer Service (1-800-986-3460) to order
complimentary replacements of your brackets.
19 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

Service Parts
Part
Part
AA
BB
CC
DD
EE
FF
GG
HH
II
JJ
KK
LL
Description
Description
Plastic wire nut
Canopy mounting screw with lock washer
(preassembled)
Blade attachment screw and rubber washer
Clevis pin (preassembled)
Cotter pin (preassembled)
Cross pin (preassembled)
Setscrew (preassembled)
Collar setscrew (preassembled)
Collar mounting screw with lock washer (preassembled)
Switch housing mounting screw (preassembled)
Light kit mounting screw (preassembled)
Pull chain and fob
AA
BB
CC
DD
EE
FF
GG
HH
II
JJ
KK
LL
Part
Part
A
B
C
D
E
F
G
H
I
J
K
Description
Description
Mounting bracket (preassembled)
Canopy ring (preassembled)
Canopy
Canopy bottom cover (preassembled)
Hanger ball/downrod assembly
Coupling cover
Fan motor assembly
Blade
Switch housing
28 watt LED Light kit
Glass shade
J
I
K
A
E
F
G
H
B
C
D
20
