Chartwell
52 in Ceiling Fan
Owner’s Manual
Chartwell
Ventilador de Techo de 1,32 m
Manual del Propietario
AK410-CB
120 V~ 60 Hz 78 W
Read and follow all the instructions
before using this product.

Chartwell by Home Decorators Collection
®
ongratulations on your
purchase of a Home
Decorators Collection
ceiling fan, Your new fan will be a
beautiful addition to your home,
and will keep you comfortable
throughout the year.
The Home Decorators Collection
Fan Company offers a wide variety
of ceiling fans. We offer combinations
of wood and brass finishes, solid
designer colors, and our unique
glass and crystal designs.
A large selection of light fixtures
and light kits is also available. Ask
your dealer about other accessories
that will allow you to further customize
your fan.
We’re certain that your Home
Decorators Collection fan will
provide you with many years of
comfort, energy savings and
satisfaction. To ensure your
personal safety and to maximize
the performance of your fan, please
read this manual thoroughly.

VENTILADOR DE TECHO / CEILING FAN
Marca / Brand: Home Decorators Collection
Modelo / Model: 170 842 (AK410-CB)
120 V ~ 60 Hz 78 W
Consumo de energía por unidad de tiempo en operación
(Energy Consumption): 87.3Wh
Importador / Importer: SERVICIOS HOME DEPOT, S. DE R.L. DE C.V.
Ricardo Margain 605, Santa Engracia, San Pedro Garza García, Nuevo León, C.P.
66267 Tel. / Phone: [phone]
Lea y siga todas las instrucciones de seguridad y operación antes de usar este
aparato / Read and follow all the instructions of security and operation before using
this product
Cont. 1 Ventilador / Fan Hecho en / Made in: China
Requiere ensamblaje / Assembly required

52” CHARTWELL
Ceiling Fan by HDC
Date Purchased
Store Purchased
Model No.
Serial No.
Vendor No.
UPC
Table of Contents
Safety Rules . . . . . . . . . . . . . . . . . . . . 1
Unpacking Your Fan . . . . . . . . . . . . . . 2
Installing Your Fan . . . . . . . . . . . . . . . 3
Operation . . . . . . . . . . . . . . . . . . . . 11
Care of Your Fan . . . . . . . . . . . . . . . . 13
Troubleshooting . . . . . . . . . . . . . . . . . 13
Specifications . . . . . . . . . . . . . . . . . . 15
170 842 (AK410-CB)
548810
840059610078
Thank you for purchasing our ceiling fan. This product has been
manufactured with the highest standards of safety and quality.

1
Safety Rules - Read and Save These Instructions
To reduce the risk of electric shock, insure electricity has been turned
off at the circuit breaker or fuse box before beginning.
All wiring must be in accordance with the National Electrical Code
“ANSI/NFPA 70” and local electrical codes. Electrical installation should
be performed by a qualified licensed electrician.
The outlet box and support structure must be securely mounted and
capable of reliably supporting a minimum of 35 lbs (15.9 kg) or less.
Use only UL-listed outlet boxes marked “FOR FAN SUPPORT”.
The fan must be mounted with a minimum of 7.55 ft (2.3m) clearance
from the trailing edge of the blades to the floor.
Avoid placing objects in the path of the blades.
To avoid personal injury or damage to the fan and other items, be cautious
when working around or cleaning the fan.
Do not use water or detergents when cleaning the fan or fan blades. A dry
dust cloth or lightly dampened cloth will be suitable for most cleaning.
After making electrical connections, spliced conductors should be turned
upward and pushed carefully up into outlet box. The wires should be spread
apart with the grounded conductor and the equipment-grounding conductor
on one side of the outlet box and ungrounded conductor on the other side of
the outlet box.
All set screws must be checked and retightened where necessary before
installation.
The appliance is not to be used by persons (including children) with reduced
physical, sensory or metal capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction. Children should be
supervised to ensure that they do not play with the appliance.
Instructions for the use of the apparatus according with NOM-024-SCFI, are
provided with the apparatus.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
TO REDUCE THE RISK OF PERSONALL INJURY, DO NOT BEND THE BLADE
ARMS (ALSO REFERRED TO AS FLANGES), WHEN INSTALLING THE
BRACKETS, BALANCING THE BLADES OR CLEANING THE FAN. DO NOT
INSERT FOREIGN OBJECTS IN – BETWEEN ROTATING FAN BLADES.
WARNING
TO REDUCE THE RISK OF ELECTRIC SHOCK, THIS FAN MUST BE INSTALLED
WITH AN ISOLATING WALL CONTROL / SWITCH.
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY, USE ONLY THE SCREWS
PROVIDED WITH THE OUTLET BOX.
CAUTION
CHANGE OR MAINTAIN LED LIGHT KIT SHALL BE PERFORMED BY THE
MANUFACTURER, ITS SERVICE AGENT OR DULY QUALIFIED PERSONS.
NOTE

2
Unpacking Your Fan Unpack your fan and check the contents. You should have the following items:
A B
Set of blades (5)
Canopy assembly
Ball/downrod assembly
Coupling cover
Fan motor assembly
Blade arms (5)
1.
2.
3
4.
5.
6.
20 watt LED Light kit
Glass shade
Receiver
Remote control
23A 12V battery
7.
8.
9.
10.
11.
1
25
7
6
3
4
WARNING
DO NOT INSTALL OR USE FAN IF ANY
PART IS DAMAGED OR MISSING.
CALL TOLL FREE 800-004-6633.
This fan includes a 20W LED light. The purchaser should return the fan to the original
store of purchase during the warranty period in case of the light not working.
Blade Attachment Hardware
(7 Screws, 7 Lock Washers)
Electrical Hardware
(3 Plastic Wire Nuts)
Blade Attachment Hardware
(16 Screws, 16 Fiber Washers)
Blade Attachment Hardware
(11 Screws with Lock Washers)
Electrical Hardware
(3 Plastic Wire Nuts)
Extension cord
9
8
10 11
23A 12V
C D
A.
B.
C.
D.
3 41 2 DIP

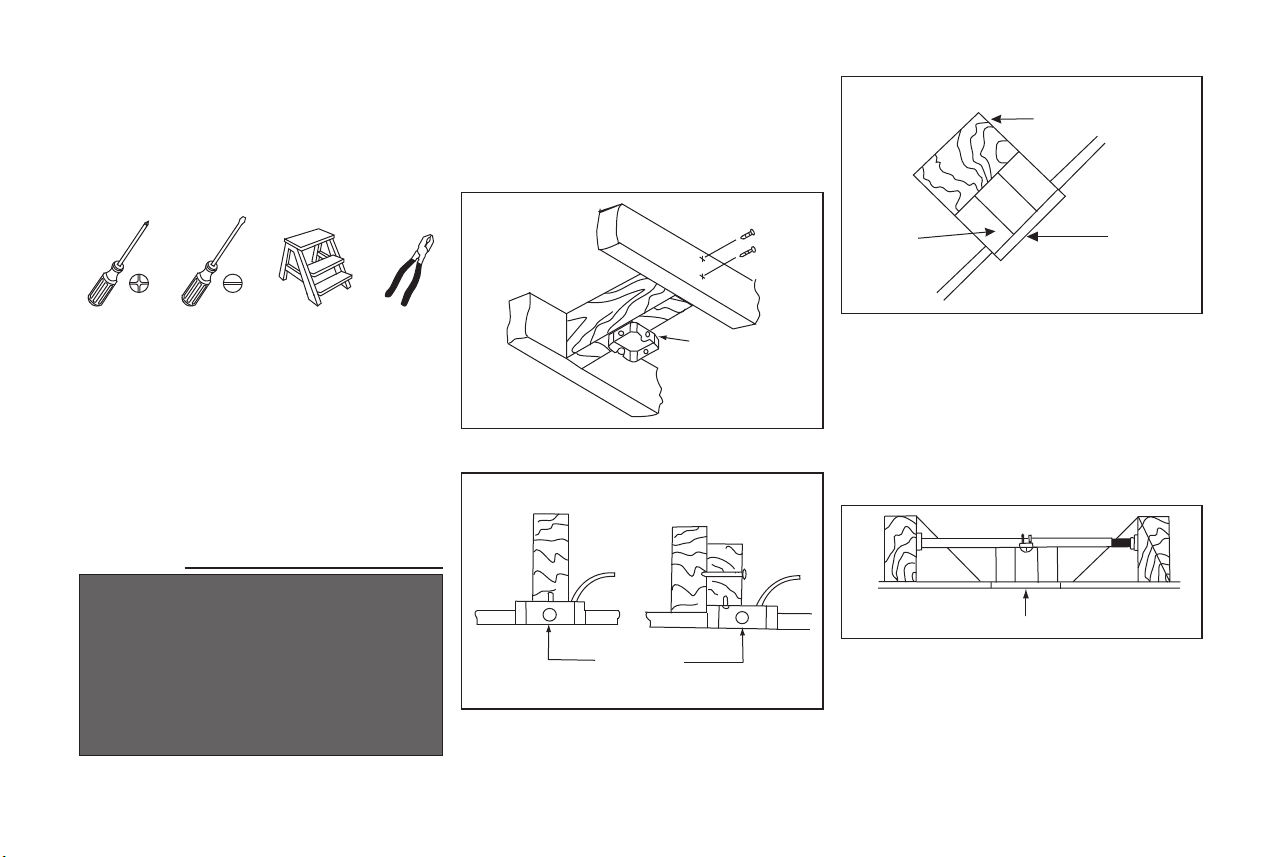

Figures 1~3 are examples of different ways to
mount the outlet box.
Outlet box
Outlet box
Outlet box
Figure 2
Figure 1
NOTE: You may need a longer downrod to
maintain proper blade clearance when installing on
a steep, sloped ceiling. The maximum angle
allowable is 18 °.If the canopy touches downrod,
remove the decorative canopy bottom cover and
turn the canopy 180 °before attaching the canopy
to the mounting plate.
To hang your fan where there is an existing fixture
but no ceiling joist, you may need an installation
hanger bar as shown in Figure 4 (available at any
Home Depot store).
Ceiling
mounting
plate
Provide strong support
Recessed
outlet box
Figure 3
Figure 4
3
Installing Your Fan
If there isn't an existing NOM listed mounting
box, then read the following instructions.
Disconnect the power by removing fuses or
turning off circuit breakers.
Secure the outlet box directly to the building
structure. Use appropriate fasteners and building
materials. The outlet box and its support must be
able to fully support the moving weight of the fan
(at least 35 lbs). Do not use plastic outlet boxes.
Tools Required
Mounting Options
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PERSONAL INJURY, MOUNT FAN
ONLY TO AN OULET BOX MARKED ACCEPTABLE
FOR FAN SUPPORT AND USE THE MOUNTING
SCREWS PROVIDED WITH THE OULET BOX.
OUTLET BOX COMMONLY USED FOR THE
SUPPORT OF LIGHTING FIXTURE MAY NOT BE
ACCEPTABLE FOR FAN SUPPORT AND MAY NEED
TO BE REPLACED. CONSULT A QUALIFIED
ELECTRICIAN IF IN DOUBT.
Phillips screwdriver, straight slot screwdriver, step
ladder and wire cutters.

Figure 6
4
REMEMBER to turn off the power. Follow the
steps below to hang your fan properly.
Hanging the Fan
Remove the canopy bottom cover from the
canopy by turning the cover counterclockwise.
(Figure 5)
Remove the mounting bracket from the canopy
by loosening canopy mounting screws a half
turn from the screw head. Next, turn the canopy
counterclockwise to remove the mounting
bracket from the canopy. (Figure 5)
Remove the cotter pin and clevis pin, and loosen
the two collar set screws from the fan motor
assembly collar. (Figure 6)
Take out the setscrew located in the hanger ball,
lower the hanger ball and remove the cross pin.
Remove the hanger ball from the hanger
ball/downrod assembly. (Figure 6)
Remove the ground lead from the downrod
assembly. (Figure 6)
NOTE:If a longer downrod is needed, take
out the screw located in the hanger ball, lower
the hanger ball and remove the pin, remove all
3 pieces from the downrod and assemble them
onto the new longer downrod before proceeding
step 3. (The longer downrod is available at
any Home Depot store)
1.
2.
3.
4.
5.

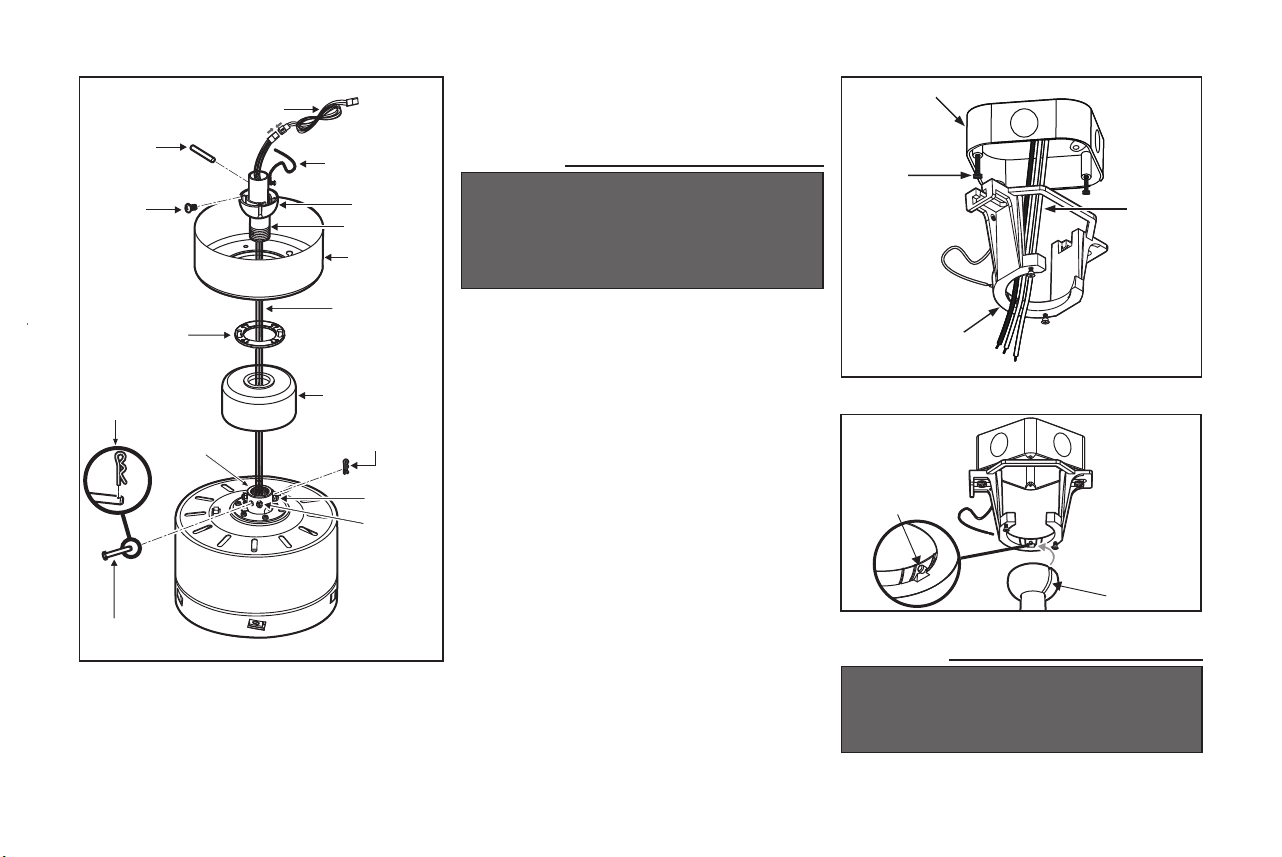

Carefully feed the motor wires up through the
downrod. Thread the downrod into the collar.
Align the holes and replace the clevis pin and
cotter pin. Tighten the two collar setscrews.
(Figure 8)
Slip coupling cover, canopy bottom cover, and
canopy onto the downrod. Carefully reinstall
the hanger ball onto the downrod and reinstall
the ground lead onto the downrod, being sure
that the cross pin is in the correct position, the
setscrew is tightened and wires are not twisted.
(Figure 8)
6.
7.
Figure 5
WARNING
FAILURE TO PROPERLY INSTALL COTTER
PIN AS NOTED IN STEP 6 COULD RESULT IN
FAN LOOSENING AND POSSIBLY FALLING.
Clevis pin
Downrod
Ground lead
Set screws
Set screws
Hanger ball
Cotter pin
Cross pin
Set screw
Motor collar
Mounting
Bracket
Ceiling Canopy
Canopy Bottom
Cover

Installing Fan to the
Electrical Box
WARNING
THE TAB IN THE RING MUST REST IN THE
GROOVE OF THE HANGER BALL AS FIGURE 10.
FAILURE TO PROPERLY SEAT THE TAB IN THE
GROOVE COULD CAUSE DAMAGE TO WIRING.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR OTHER PERSONAL INJURY. MOUNT
FAN ONLY TO AN OUTLET BOX OR SUPPORTING
SYSTEM MARKED ACCEPTABLE FOR FAN
SUPPORT AND USE THE MOUNTING SCREWS
PROVIDED WITH THE OUTLET BOX.
Pass the 120-volt supply wires through the
center hole in the ceiling mounting bracket as
shown in Figure 9.
Attach the mounting bracket on the outlet box
by sliding the mounting bracket over the screws
provided with the outlet box. (Figure 9)
Securely tighten the two mounting screws.
(Figure 9)
Carefully lift the fan assembly up to the
ceiling mounting bracket and seat the hanger
ball in the mounting bracket socket. Make
sure the tab on the mounting bracket socket is
properly seated in the groove in the hanger
ball (Figure 10). This will help to balance the
ceiling fan.
1.
2.
3.
4.
Figure 10
Figure 9
Figure 8
Pin in locked
position
Clevis pin
5
Ceiling canopy
Hanger ball
Set screw
Cross pin
Downrod
Ground lead
Coupling cover
Canopy Bottom
Cover
Motor wires
Motor
collar
Tighten
screws
firmly
Cotter pin
Cotter pin
Extension cord
120V
Wires
Ceiling mounting
bracket
NOM listed
outlet box
Mounting
screws (Supplied
with outlet box)
Groove
Tab

3 41 2
DIP
6
Figure 12

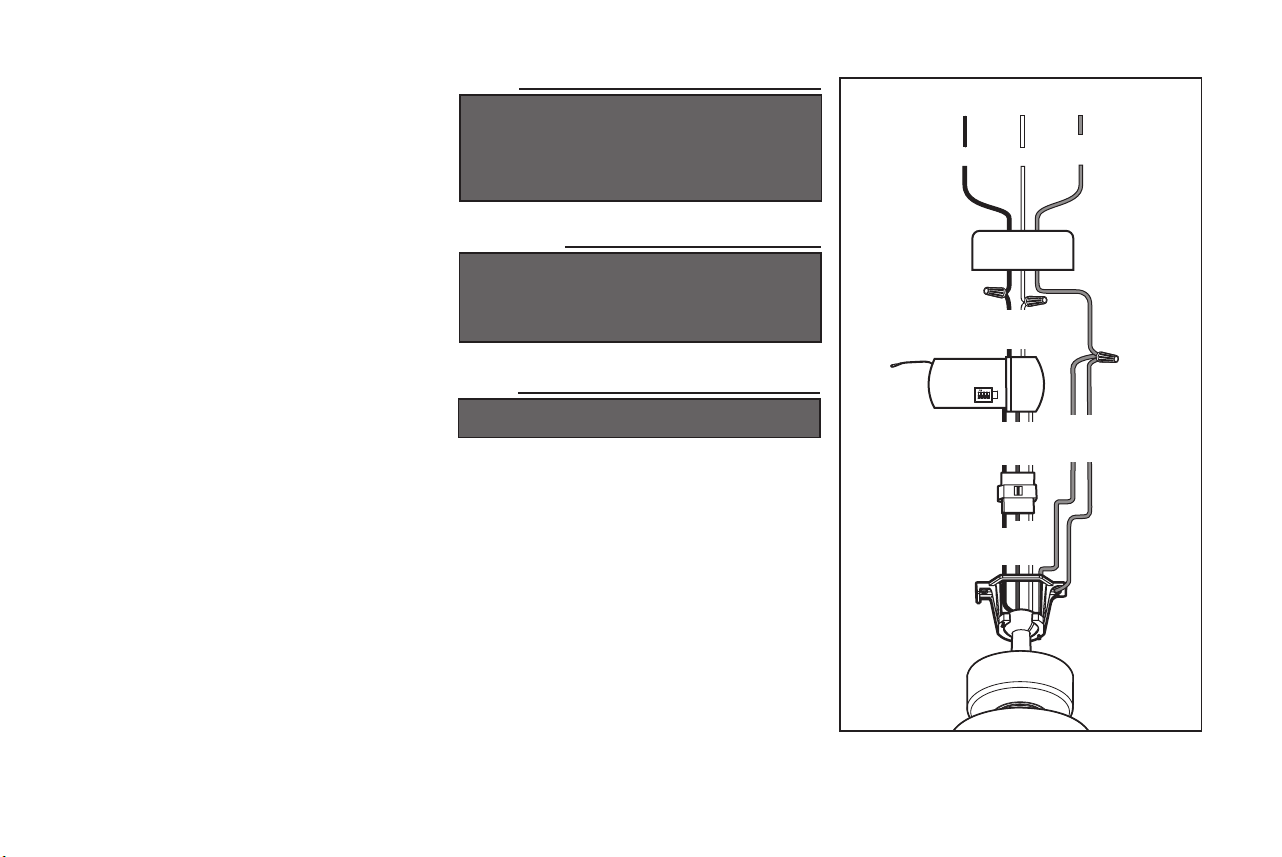

Making the Electrical
Connections

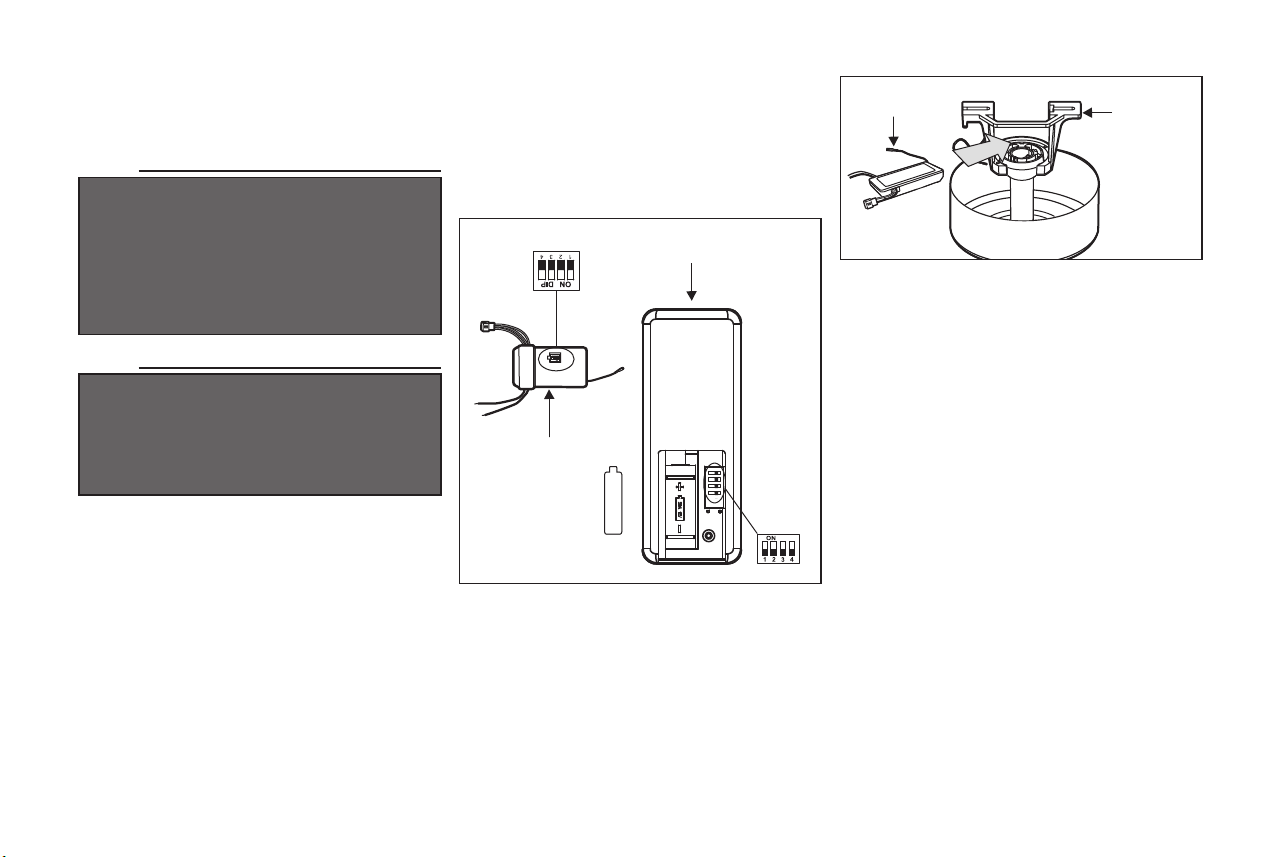

Remove the battery cover on the back of the
remote control by pressing firmly on the arrow
and sliding the cover off.
Slide the code switches to your choice of either
up or down. The factory setting is up.
Install one 23A 12V batteries (included).
Setting the Code on the Remote: (Figure 11)
Setting the Code on the Receiver: (Figure 11)
1.
2.
3.
After checking the switches, insert the receiver
into the mounting bracket with the flat side of
the receiver facing the ceiling. (Figure 12)
Slide the code switches on the receiver to the
same positions as set on the remote control.
5.
6.
4.
Figure 11
NOTE
THE FREQUENCIES ON YOUR RECEIVER AND
REMOTE CONTROL HAVE BEEN PRESET AT THE
FACTORY. BEFORE INSTALLING THE RECEIVER,
MAKE SURE THE DIP SWITCHES ON THE
RECEIVER AND REMOTE CONTROL ARE SET TO
THE SAME FREQUENCY. THE DIP SWITCHES ON
THE REMOTE CONTROL ARE LOCATED INSIDE
THE BATTERY COMPARTMENT.
NOTE
THE BATTERY WILL WEAKEN WITH AGE AND
SHOULD BE REPLACED BEFORE LEAKING TAKES
PLACE AS THIS WILL DAMAGE THE REMOTE
CONTROL. DISPOSE OF THE USED BATTERY
PROPERLY AND KEEP THE BATTERY OUT OF
THE REACH OF CHILDREN.
Replace the battery cover on the remote
control.
Remote control
Receiver
23A 12V
Receiver Ceiling
Mounting
Bracket

7
Make wire connections from the fan to the
receiver. (Figure 13)
From Fan To Receiver
3-Pin Connector ............. 3-Pin Connector
Make wire connections from the receiver and
fan to the outlet box as follows, using the wire
nuts. (Figure 13)
From Receiver To Outlet Box
Black Wire "AC in L" ..... Black Wire (Hot)
White Wire "AC in N" .....White Wire (Neutral)
From Fan and Receiver To Outlet Box
Green Wires*................. Green or Bare Wire
(Ground)
* There are two green grounding leads: one from
the mounting bracket and one from the hanger
ball/downrod assembly.
Turn the wire nut connections upward, spreading
them apart so the green (ground) and white
wires will be on one side of the outlet box and
the black and blue wires will be on the other
side. Carefully tuck the connections up into the
outlet box.
7.
8.
9.
NOTE
FAN MUST BE INSTALLED AT A MAXIMUM
DISTANCE OF 20 FEET FROM THE TRANSMITTING
UNIT FOR PROPER SIGNAL TRANSMISSION
BETWEEN THE TRANSMITTING UNIT AND THE
FAN'S RECEIVING UNIT.
Figure 13
WARNING
CHECK TO SEE THAT ALL CONNECTIONS ARE
TIGHT, INCLUDING GROUND, AND THAT NO BARE
WIRE IS VISIBLE AT THE WIRE NUTS. EXCEPT FOR
THE GROUND WIRE.
Black White Ground Conductor
White
Blue
Black
White
Blue
Black Black
White
SUPPLY CIRCUIT
NOTE
DO NOT CUT THE YELLOW ANTENNA WIRE.
3 41 2
DIP
Antenna
Green Green
Outlet Box

Ceiling
mounting
bracket
8
WARNING
MAKE SURE THE TAB ON THE MOUNTING
BRACKET PROPERLY SITS IN THE GROOVE IN
THE HANGER BALL BEFORE ATTACHING THE
CANOPY TO THE BRACKET BY TURNING THE
HOUSING UNTIL IT DROPS INTO PLACE.
Finishing the Fan
Installation
Figure 14
1.
2.
NOTE
ADJUST THE CANOPY MOUNTING SCREWS AS
NECESSARY UNTIL THE CANOPY AND CANOPY
BOTTOM COVER ARE SNUG.
Make sure connections are neatly tucked into the
ceiling outlet box. (Figure 14)
Slide the canopy up to the mounting bracket and
place the key holes on the canopy over the loose
canopy mounting screws on the mounting
bracket. Turn the canopy clockwise until it locks
in place at the narrow section of the key holes,
and tighten the two canopy mounting screws.
Attach the canopy bottom cover to the canopy by
inserting the screw heads into the key slots in the
canopy bottom cover and rotating it clockwise.
Figure 15
Canopy
Bottom
Cover
Canopy
Mounting
screw
Mounting
screw
Outlet
box
Mounting
screw
Canopy
Bottom
Cover
Canopy
Mounting
screw

Figure 17
Motor
assembly
Screws
Slot
Blade
Blade arm
9
Blade Balancing
Verify that all blades and blade bracket screws
are secure (most fan wobble problems are
caused by loose parts). Once the fan is
properly installed, run the ceiling fan for 10
minutes to let the fan self-adjust.
If wobble occurs after running the fan for 10
minutes, verify blade level using the following
process:
Select a point on the ceiling above the tip of
one of the blades, then select any fan blade
and measure from the center of the selected
blade to the point on the ceiling (as shown in
Figure 18). Rotate the fan until the next blade
is positioned and repeat the measurement
using the same point from the ceiling for every
blade. Measurement deviations should be
within 1/8” .
If all deviations are less than 1/8” and the fan
continues to wobble, please call Customer
Service (800-004-6633) to order a complimentary
Blade Balancing Kit.
1.
2.
-
-
If deviation is greater than 1/8” , please call
Customer Service (800-004-6633) to order
complimentary replacements of your brackets.
All blades are grouped by weight during assembly.
The following procedure should correct most fan
wobble. Check after each step.
Attaching the Fan Blades
Figure 16
1.
2.
3.
4.

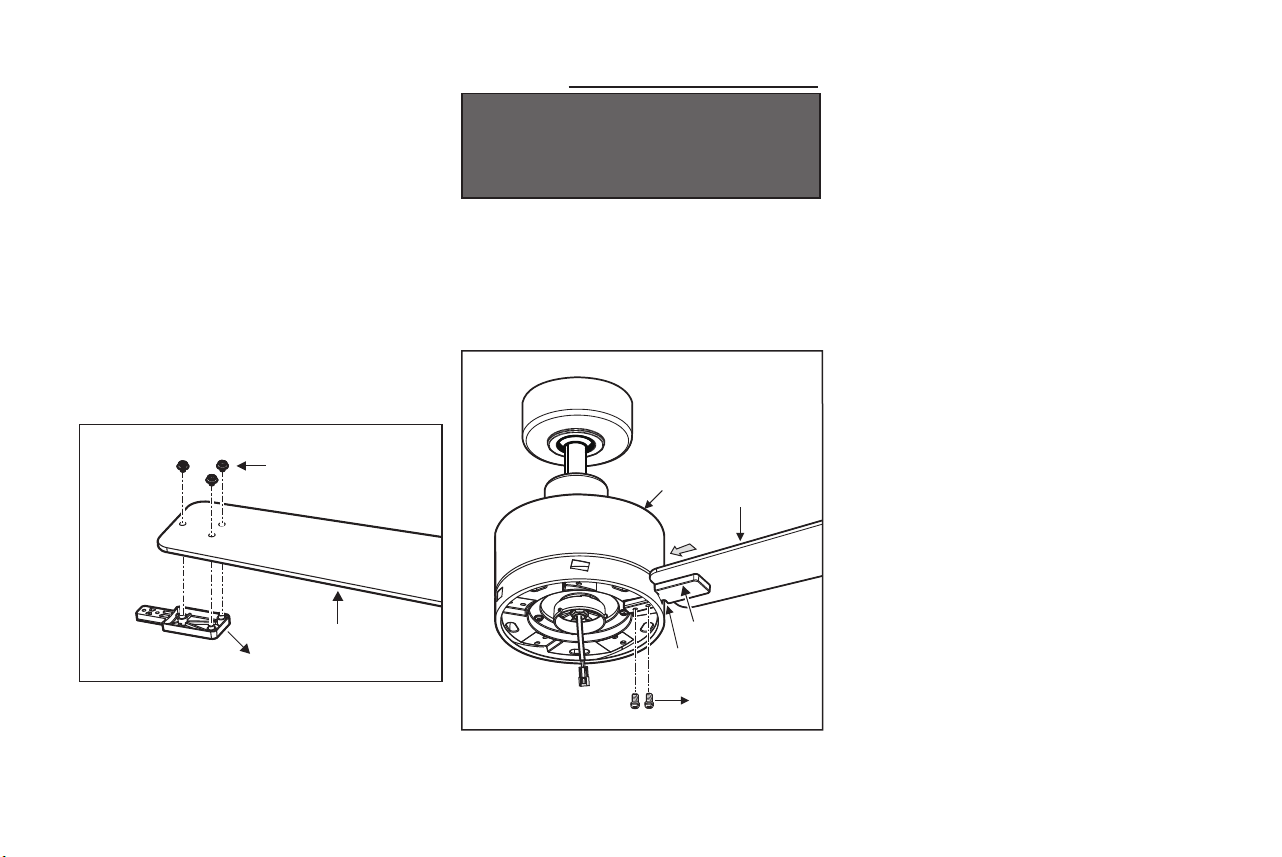

Attach the blades to the blade arms using the three
blade attachment screws and fiber washers. Start a
screw and fiber washer into the blade arm, but do
not tighten. (Fig. 16)
Repeat for the two remaining blade attachment
screws and fiber washers. (Fig. 16)
Tighten each screw securely starting with the
center screw. Make sure the blade is straight.
(Fig. 16)
Repeat these steps for the remaining blades.
(Fig. 16)
Blade
Screws with fiber
washers
Blade arm
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY,
DO NOT BEND THE BLADE ARMS WHILE
INSTALLING, BALANCING THE BLADES, OR
CLEANING THE FAN. DO NO INSERT FOREIGN
OBJECTS BETWEEN ROTATING FAN BLADES.
Insert the blade through the slot in the housing.
Align the holes in the blade arm and the fan
motor assenbly and secure with a blade arm
attachment screws wit lock washers. (Figure 17)
Repeat this procedure with the remaining blades.
5.
6.

10
Verify that all blades and blade bracket screws
are secure (most fan wobble problems are
caused by loose parts). Once the fan is
properly installed, run the ceiling fan for 10
minutes to let the fan self-adjust.
If wobble occurs after running the fan for 10
minutes, verify blade level using the following
process:
Select a point on the ceiling above the tip of
one of the blades, then select any fan blade
and measure from the center of the selected
blade to the point on the ceiling (as shown in
Figure 18). Rotate the fan until the next blade
is positioned and repeat the measurement
using the same point from the ceiling for every
blade. Measurement deviations should be
within 1/8” .
If all deviations are less than 1/8” and the fan
continues to wobble, please call Customer
Service (800-004-6633) to order a complimentary
Blade Balancing Kit.
Figure 18
Touching ceiling
If deviation is greater than 1/8” , please call
Customer Service (800-004-6633) to order
complimentary replacements of your brackets.
-Installing the LED Light
Kit
NOTE
BEFORE STARTING INSTALLATION, DISCONNECT
THE POWER BY TURNING OFF THE CIRCUIT
BREAKER OR REMOVING THE FUSE AT FUSE
BOX. TURNING POWER OFF USING THE FAN
SWITCH IS NOT SUFFICIENT TO PREVENT
ELECTRIC SHOCK.
Figure 19
While holding the 20W LED light kit under
the fan motor assembly, snap together the
wire connection plugs :
- White to white - Black to blue
Position the notches on the inner edge of the
20W LED light kit so they match the tabs on
the outside of the rim. Carefully lift the 20W
LED light kit inside and secure it to the fan by
turning the 20W LED light kit clockwise until
comfortable. DO NOT OVERTIGHTEN.
(Figure 19)
Raise glass shade up against the LED light kit,
and secure it to fan by turning glass clockwise
until snug. DO NOT OVERTIGHTEN. (Fig.
19)
2.
1.
3.
Notches
Glass Shade
20W LED
light kit
Wire Connector
Tabs

11
1.
2.
3.
4.
1.
2.
Operation
Figure 20 Figure 21
- Press and release the button to turn the
fan on or off.
- Press and release 1 time - turns the fan on
high speed.
- Press and release 2 times - turns the fan on
medium speed.
- Press and release 3 times - turns the fan on
low speed.
- Press and release 4 times - turns the fan
off.
- Press and release the button to turn the
light on or off. Press and hold the button to
activate the dimmer function.
Option 1: 3000K (Soft White).
Option 2: 4000K (Bright White).
Option 3: 5000K (Daylight).
Attach the remote control holder with the two
remote control holder mounting screws.(Figure
21)
Replace the remote control holder cover into
remote control holder.
Push and release the button to cycle through the
three color temperature options.
- Correlated Color Temperature (CCT)
changing.
NOTE
THE DEFAULT TEMPERATURE OF THE CEILING
FAN LIGHT IS 3000K (WARM WHITE).
Installing the Remote
Control Holder
Control holder cover
Remote
control
holder
Remote
control
Screws

12
Speed settings for warm or cool weather depend
on factors such as the room size, ceiling height,
number of fans, etc.
The reverse switch is located on the top of motor
housing. Slide the switch to the left for warm
weather operation. Slide the switch to the right
for cool weather operation.

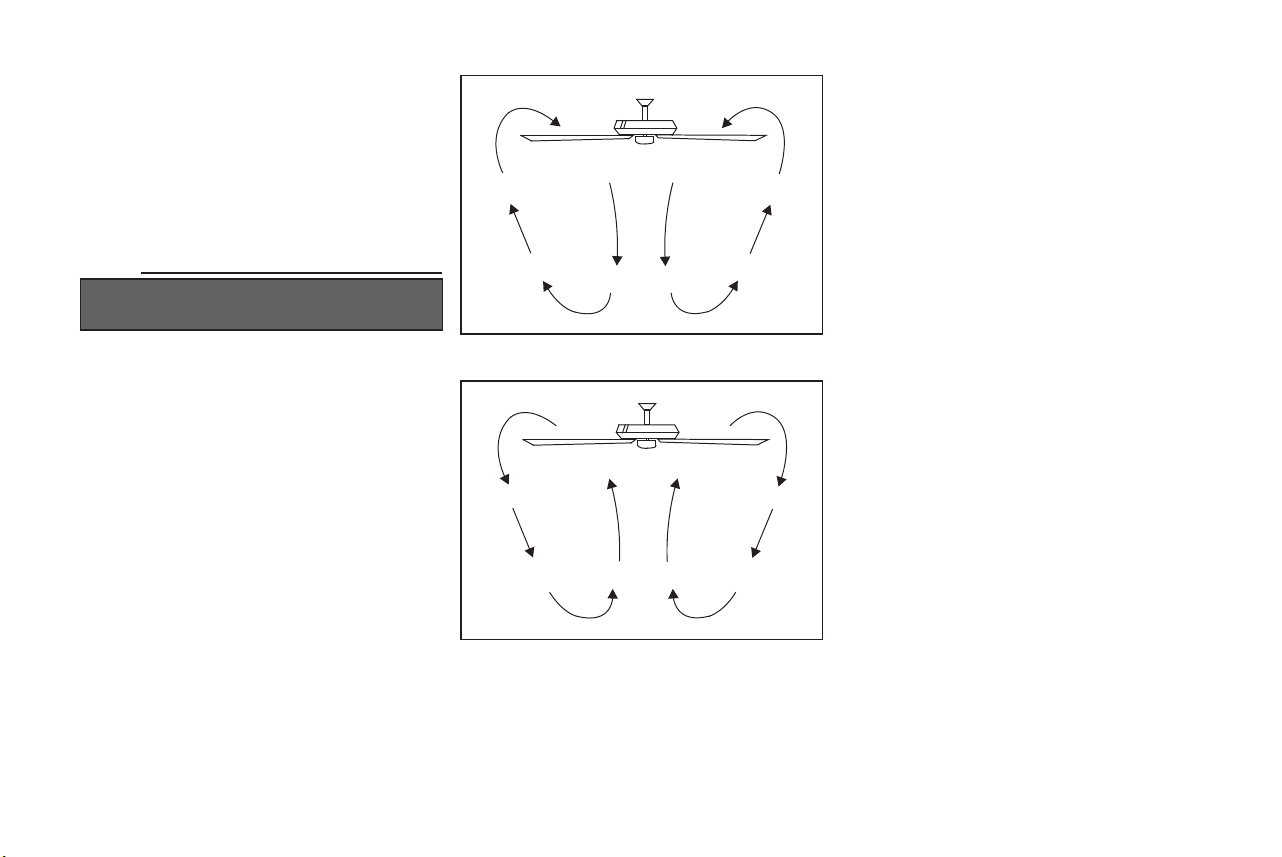

Warm weather - (Counter-Clockwise direction) A
downward air flow creates a cooling effect.(Fig. 22)
This allows you to set your air conditioner on a
higher setting without affecting your comfort.
Cool weather - (Clockwise direction) An upward
airflow moves warm air off the ceiling area. (Fig.
23) This allows you to set your heating unit on a
lower setting without affecting your comfort.
NOTE
WAIT FOR FAN TO STOP BEFORE CHANGING
THE SETTING OF THE SLIDE SWITCH.
Figure 22
Figure 23

13
WARNING
MAKE SURE THE POWER IS OFF AT THE ELECTRICAL PANEL BOX
BEFORE YOU ATTEMPT ANY REPAIRS. REFER TO THE SECTION,
“MAKING ELECTRICAL CONNECTIONS”.
Because of the fan's natural movement, some
connections may become loose. Check the
support connections, brackets, and blade
attachments twice a year. Make sure they are
secure. (It is not necessary to remove fan from
ceiling.)
Clean your fan periodically to help maintain its
new appearance over the years. Do not use
water when cleaning. Use only a soft brush or
lint-free cloth to avoid scratching the finish.
The plating is sealed with a lacquer to
minimize discoloration or tarnishing. Do not
use water when cleaning. This could damage
the motor, or the wood, or possibly cause an
electrical shock.
You can apply a light coat of furniture polish
to the wood blades for additional protection
and enhanced beauty. Cover small scratches
with a light application of shoe polish.
There is no need to oil your fan. The motor has
permanently lubricated sealed ball bearings.
1.
2.
3.
4.
Here are some suggestions to help you maintain
your fan.
Care of Your Fan Troubleshooting
PROBLEM SOLUTION
Check the main and branch circuit fuses or breakers.
Check the line wire connections to the fan and switch wire connections
in the switch housing.
Check to make sure the switches from the transmitter and receiver are
set to the same frequency.
Make sure all motor housing screws are snug.
Make sure the screws that attach the fan blade bracket to the motor hub
are tight.
Make sure wire nut connections are not rattling against each other or the
interior wall of the switch housing.
Allow a 24-hour "breaking-in" period. Most noises associated with a
new fan disappear during this time.
If using the ceiling fan light kit, make sure the screws securing the
glassware are tight.
Make sure there is a short distance from the ceiling to the canopy. It
should not touch the ceiling.
Make sure your ceiling box is secure and rubber isolator pads are used
between the mounting bracket and outlet box.
Do not connect the fan with a wall mounted variable speed control(s).
Make sure the dip switches are set correctly.
1.
2.
3.
1.
2.
3.
4.
5.
6.
7.
1.
2.
The fan will not start.
The fan sounds noisy.
Remote control fails.

14
Verify that all blades and blade bracket screws are secure (most fan
wobble problems are caused by loose parts). Once the fan is properly
installed, run the ceiling fan for 10 minutes to let the fan self-adjust. If
wobble occurs after running the fan for 10 minutes, verify blade level
using the following process:
- Select a point on the ceiling above the tip of one of the blades, then
select any fan blade and measure from the center of the selected blade to
the point on the ceiling. Rotate the fan until the next blade is positioned
and repeat the measurement using the same point from the ceiling for
every blade.Measurement deviations should be within 1/8 in.
- If all deviations are less than 1/8 in. and the fan continues to wobble,
please call Customer Service (800-986-3460) to order a complimentary
Blade Balancing Kit.
- If deviation is greater than 1/8 in., please call Customer Service
(800-986-3460) to order complimentary replacements of your brackets.
1.The fan wobbles.
Troubleshooting (continued)
PROBLEM SOLUTION

15
Specifications
FAN SIZE SPEED VOLTS AMPS WATTS RPM N.W. G.W. C.M.
52” 120
LOW
MED.
HIGH
These are approximate measures. They do not include Amps and Wattage used by the light kit.
Importer: SERVICIOS HOME DEPOT, S. DE R.L. DE C.V.
Ricardo Margain 605, Santa Engracia, San Pedro Garza García,
Nuevo León, C.P. 66267. Tel. [phone]
Warranty printed on manual is not valid for Mexico
Questions, problems, missing parts?
Before returning to the store call our customer service
800 004 6633
The appliance is not to be used by persons (including
children) with reduced physical, sensory or metal
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction.
Children should be supervised to ensure that they do not
play with the appliance.
CMM
0.05
8.40 kg
(18.48 lbs)
10.84 kg
(23.85 lbs)
0.22
0.40
0.56
11.42
27.90
57.89
53
100
154
47
88
137
