USE AND CARE GUIDE
COSTNER 52-INCH CEILING FAN
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 6 p.m., EST, Monday-Friday.
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
We appreciate the trust and condence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive
to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Home Decorators Collection!
Item #1000 XX XXX
Model #51576
UL Model #52-RTY

2
Table of Contents ................................................................2
Safety Information...............................................................2
Warranty ............................................................................... 3
Pre-Installation ....................................................................3
Installation............................................................................6
Assembly..............................................................................7
Operation ...........................................................................11
Care and Cleaning.............................................................12
Troubleshooting.................................................................12
1. To reduce the risk of electric shock, ensure the electricity has
been turned off at the circuit breaker or fuse box before you
begin.
2. All wiring must be in accordance with the National Electrical
Code ANSI/NFPA 70-1999 and local electrical codes. Electrical
installation should be performed by a qualied licensed
electrician.
3. The outlet box and support structure must be securely mounted
and capable of reliably supporting 35 lbs. (15.9 kg). Use only UL
Listed outlet boxes marked “Acceptable for Fan Support of 35
lbs. (15.9 kg) or less.”
4. The fan must be mounted with a minimum of 7 ft (2 m) clearance
from the trailing edge of the blades to the oor.
5. Do not operate the reversing switch while the fan blades are in
motion. You must turn the fan off and stop the blades before
you reverse the blade direction.
6. Do not place objects in the path of the blades.
7. To avoid personal injury or damage to the fan and other items,
use caution when working around or cleaning the fan.
8. Electrical diagrams are for reference only. Light kits that are not
packed with the fan must be UL listed and marked suitable for
use with the model fan you are installing. Switches must be UL
General Use Switches. Refer to the instructions packaged with
the light kits and switches for proper assembly.
9. After making electrical connections, spliced conductors should
be turned upward and pushed carefully up into the outlet box.
The wires should be spread apart with the grounded conductor
and the equipment-grounding conductor on one side of the
outlet box.
10. All setscrews must be checked and retightened where
necessary before installation.
WARNING: To reduce the risk of personal injury,
do not bend the blade brackets (also referred to as
anges) during assembly or after installation. Do not
insert objects in the path of the blades.
WARNING: To reduce the risk of re or electric
shock, do not use this fan with any solid-state speed
control device.
WARNING: To avoid possible electrical shock,
turn the electricity off at the main fuse box before
wiring. If you feel you do not have enough electrical
wiring knowledge or experience, contact a licensed
electrician.
WARNING: Electrical diagrams are for reference
only. Optional use of any light kit shall be UL-listed
and marked suitable for use with this fan.
Safety Information
Table of Contents
CAUTION: To reduce the risk of personal injury,
use only the screws provided with the outlet box.
CAUTION: To avoid personal injury or damage to the fan
and other items, use caution when working around or
cleaning the fan.
WARNING: To reduce the risk of re, electric shock
or personal injury, mount to outlet box marked
“Acceptable for fan support of 35 lbs. (15.9 kg) or
less”, and use screws provided with the outlet box.

3HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

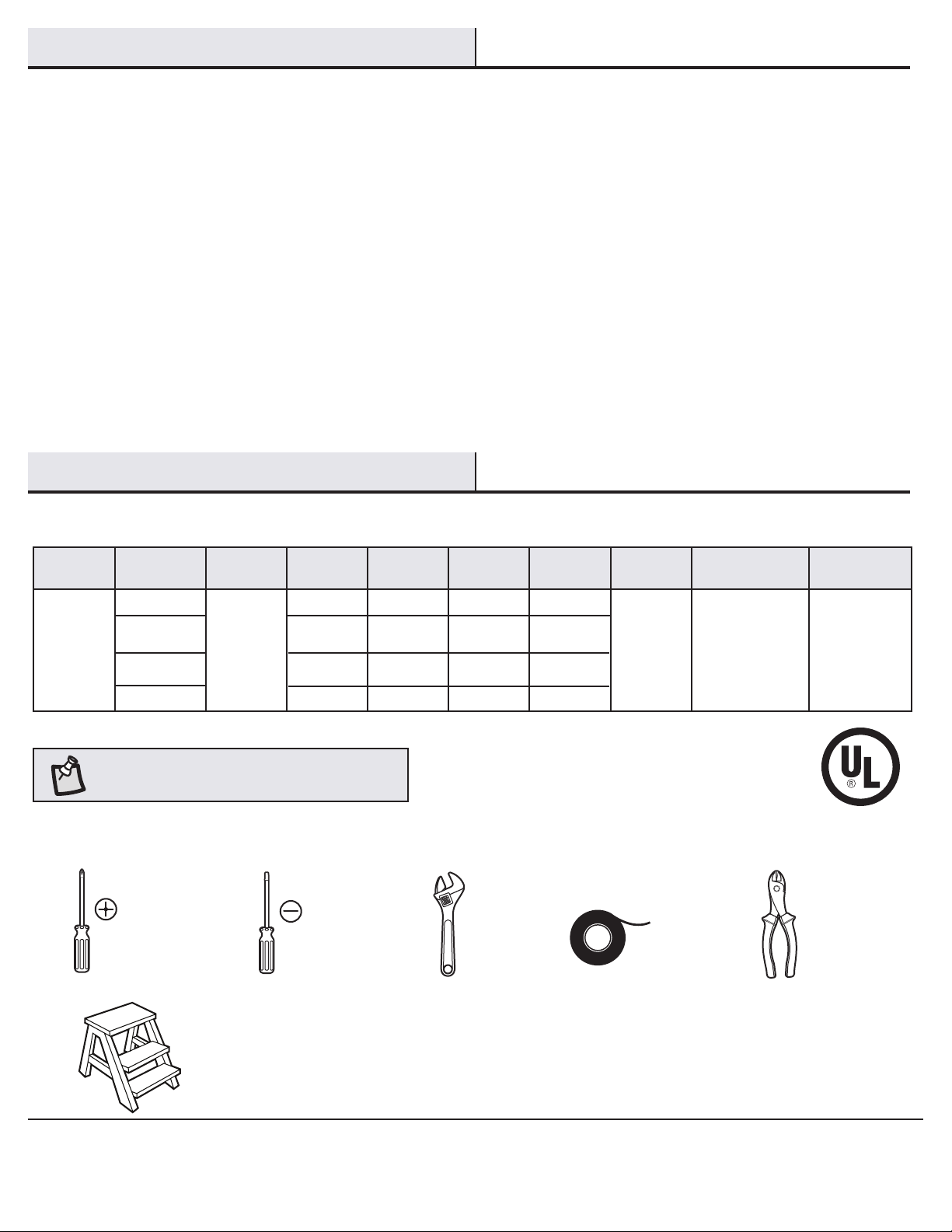

Pre-Installation
Warranty
SPECIFICATIONS
TOOLS REQUIRED
NOTE: These are approximate measures. They do not
include the amps and wattage used by the light kit.
Phillips
screwdriver
Flat blade
screwdriver
Adjustable
wrench
Electrical
tape
Wire
cutter
Step ladder
Size Speed Volts Amps Watts RPM CFM Net
Weight
Gross
Weight Cube Feet
52 in.
Low
Medium-Low
Medium-High
High
120
0.2
0.31
0.39
0.48
10
22
35
57
60
95
130
165
2028
3003
3993
5035
19.84 lbs.
(9 kg)
22.71
(10.3 kg) 1.92 cu.ft.
The supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a
lifetime after the date of purchase by the original purchaser. The supplier also warrants that all other fan parts, excluding any glass or acrylic
blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the date
of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or superior
model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All costs of removing
and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper installation, or by afxing any
accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not cover any changes in brass nish,
including rusting, pitting, corroding, tarnishing, or peeling. Brass nishes of this type give their longest useful life when protected from varying
weather conditions. A certain amount of “wobble” is normal and should not be considered a defect. Servicing performed by unauthorized persons
shall render the warranty invalid. There is no other express warranty. Home Decorators Collection hereby disclaims any and all warranties,
including but not limited to those of merchantability and tness for a particular purpose to the extent permitted by law. The duration of any
implied warranty which cannot be disclaimed is limited to the time period as specied in the express warranty. Some states do not allow a
limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall not be liable for incidental,
consequential, or special damages arising out of or in connection with product use or performance except as may otherwise be accorded by
law. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion or limitation may not apply to you.
This warranty gives specic legal rights, and you may also have other rights which vary from state to state. This warranty supersedes all prior
warranties. Shipping costs for any return of product as part of a claim on the warranty must be paid by the customer.
Contact the Customer Service Team at 1-800-986-3460 or visit www.HomeDepot.com/homedecorators.

4
Part Description Quantity
AA Plastic wire connector 3
BB Extra blade bracket hardware
(screw and lockwasher)
1
Part Description Quantity
CC Plastic plug 1
DD Pull chain 2
HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
AA BB DD
CC
Pre-Installation (continued)

5HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

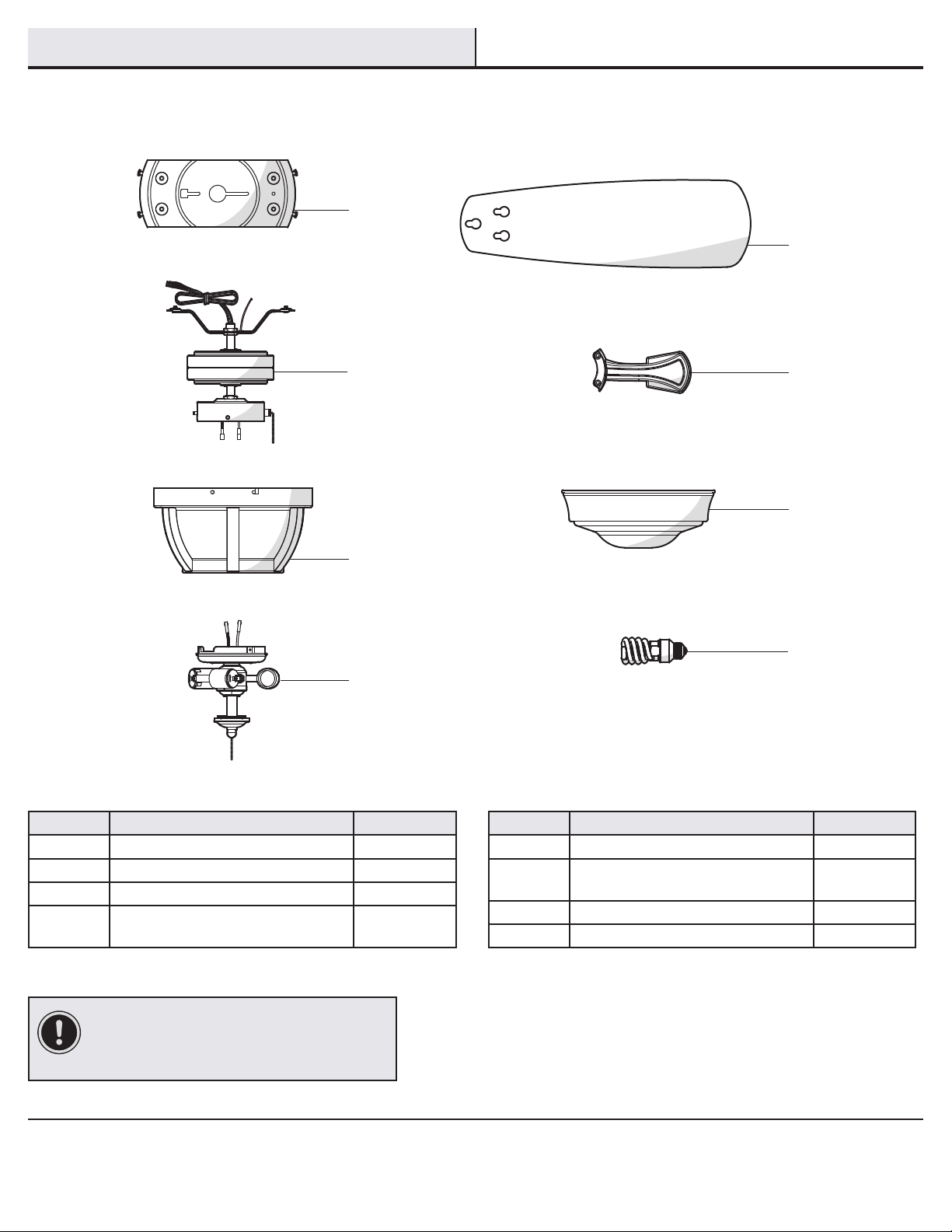

Part Description Quantity
A Mounting plate 1
B Fan-motor assembly 1
C Motor housing 1
D Light kit tter assembly 1
Part Description Quantity
E Blade 5
F Blade bracket with pre-installed
screws
5
G Glass bowl with trim ring 1
H CFL bulbs, 14-Watt maximum 3
IMPORTANT: This product and/or components are
governed by one or more of the following U.S. Patents:
5,947,436; 5,988,580; 6,010,110; 6,046,416, 6,210,117
and other patents pending.
PACKAGE CONTENTS
A
C
B
D
G
F
E
H
Pre-Installation (continued)

6

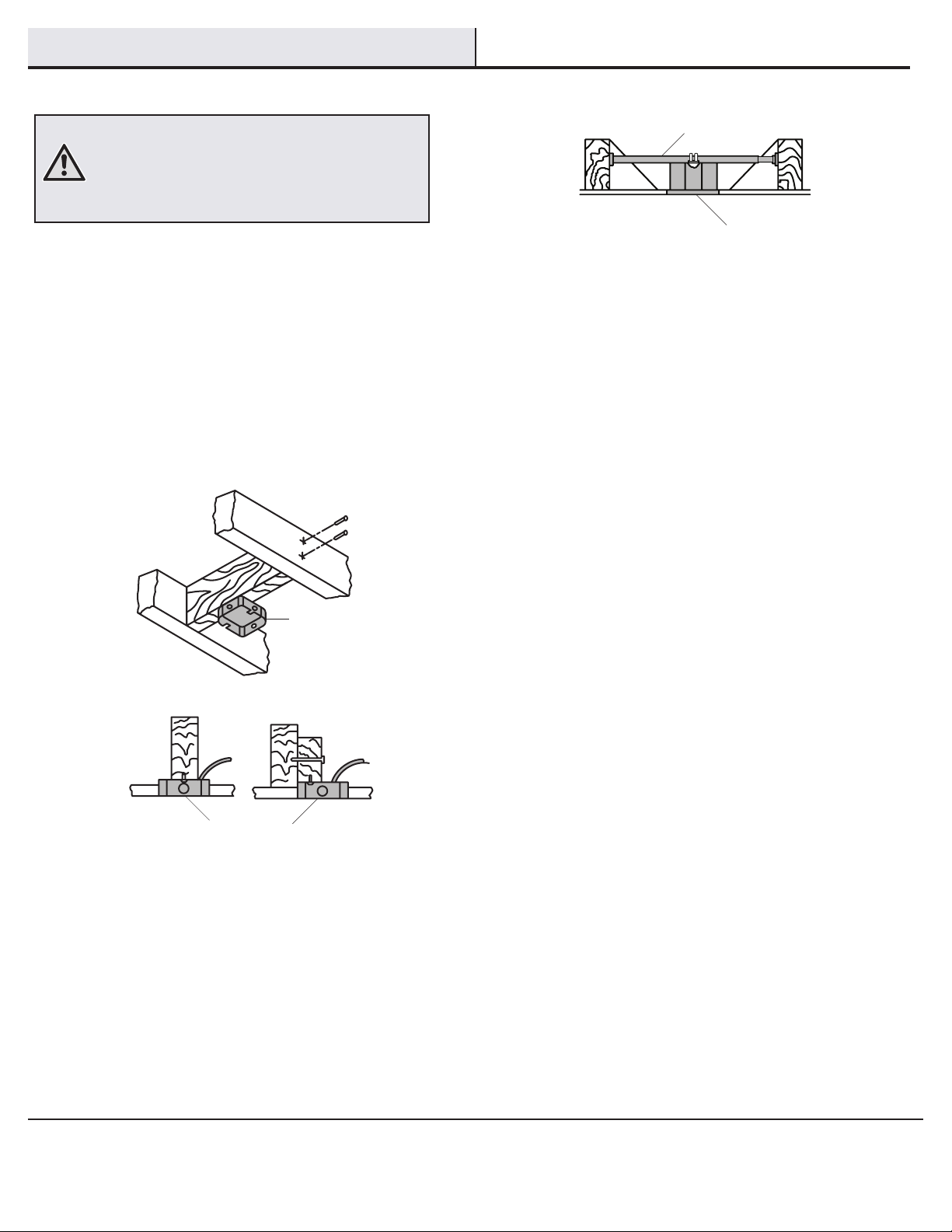

Installation
MOUNTING OPTIONS
WARNING: To reduce the risk of re, electric shock or
personal injury, mount to outlet box marked “Acceptable
for fan support of 35 lbs. (15.9 kg) or less”, and use
screws provided with the outlet box. An outlet box
commonly used for the support of lighting xtures may
not be acceptable for fan support and may need to be
replaced. If in doubt, consult a qualied electrician.
If your ceiling fan does not have an existing UL-listed mounting
box, then install one using the following instructions:
□Disconnect the power by removing the fuses or turning off
the circuit breakers.
□Secure the outlet box directly to the building structure. Use
the appropriate fasteners and materials. The outlet box and
support structure must be securely mounted and capable of
reliably supporting 35 lbs. (15.9 kg). Use only UL Listed outlet
boxes marked “Acceptable for Fan Support of 35 lbs. (15.9 kg)
or less.” Do not use a plastic outlet box.
The illustrations below show two different ways to mount the
outlet box.
To hang your fan where there is an existing xture but no ceiling joist,
you may need an installation hanger bar as shown above
(available at any Home Depot store).
Outlet Box
Outlet Box
Outlet Box
Hanger Bar

7HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

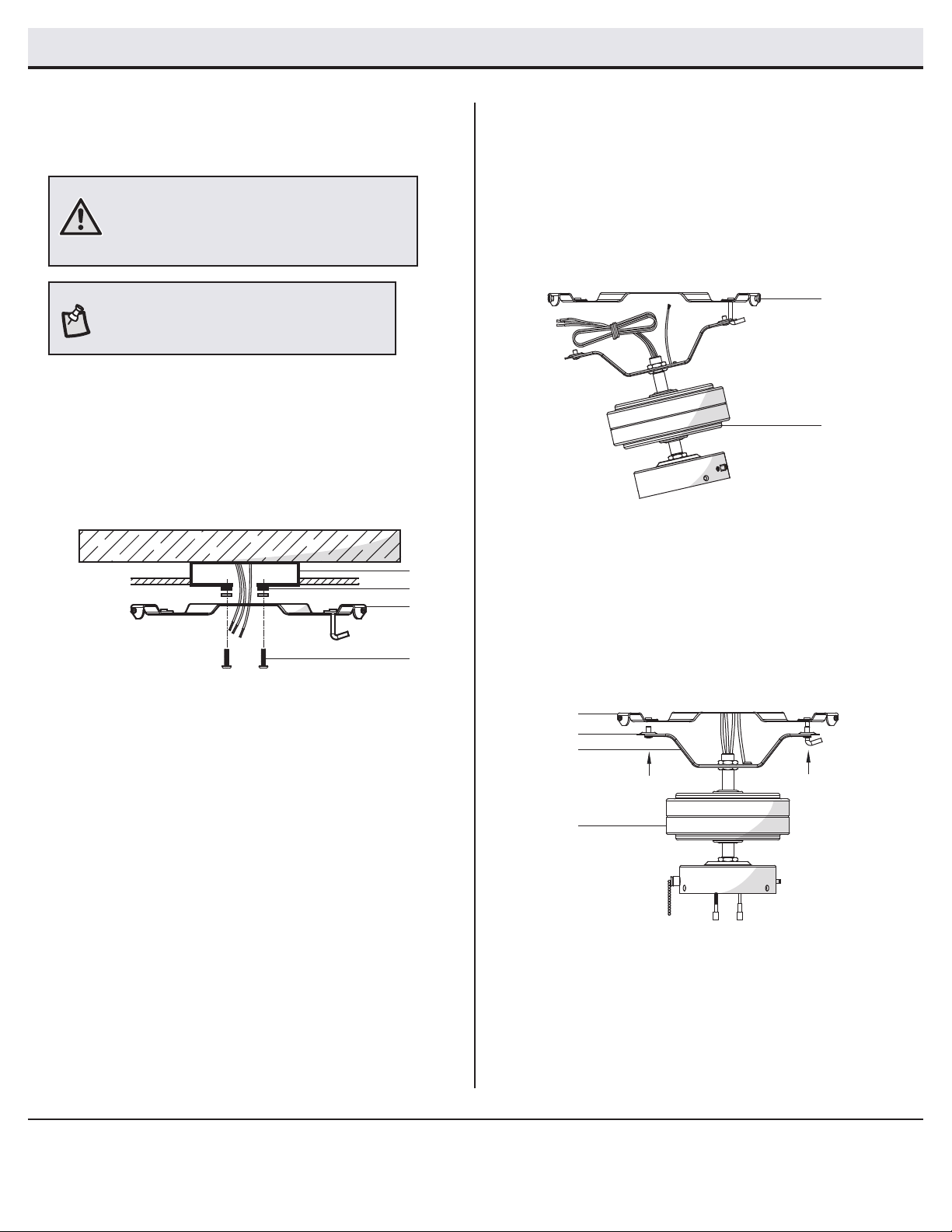

Assembly - Hanging the Fan
Hanging the fan-motor assemblyAttaching the fan to the electrical
box
□Turn the power off.
□Securely attach the mounting plate (A) to the outlet box (EE)
using the two screws (FF) supplied with the outlet box (EE).
Pull the 120-volt supply wires (the black, white and ground
wires) out of the outlet box (EE) and through the hole in the
mounting plate (A) and lay them to the side.
□Carefully lift the fan-motor assembly (B) and engage the
slot in the motor bracket on the top of the fan- motor
assembly (B) with the hook on the mounting plate (A) so
that it is securely suspended. Then connect the wiring
to your fan according to step 3 “Making the Electrical
Connections”.
□Once the wiring is completed, lift the fan-motor assembly
(B).
□Align the holes in the mounting plate (A) with the pre-
attached screws (HH) on the motor bracket (II).
□Securely tighten the screws (HH).
21
A
EE
FF
GG
B
A
A
B
HH
II
NOTE: For better fan performance, make sure the
mounting plate is level. Additional washers (FF)
(not included) may be needed to insert between
the outlet box and mounting plate.
WARNING: To avoid possible electrical shock,
turn the electricity off at the main fuse box before
wiring. If you feel you do not have enough electrical
wiring knowledge or experience, contact a licensed
electrician.

8

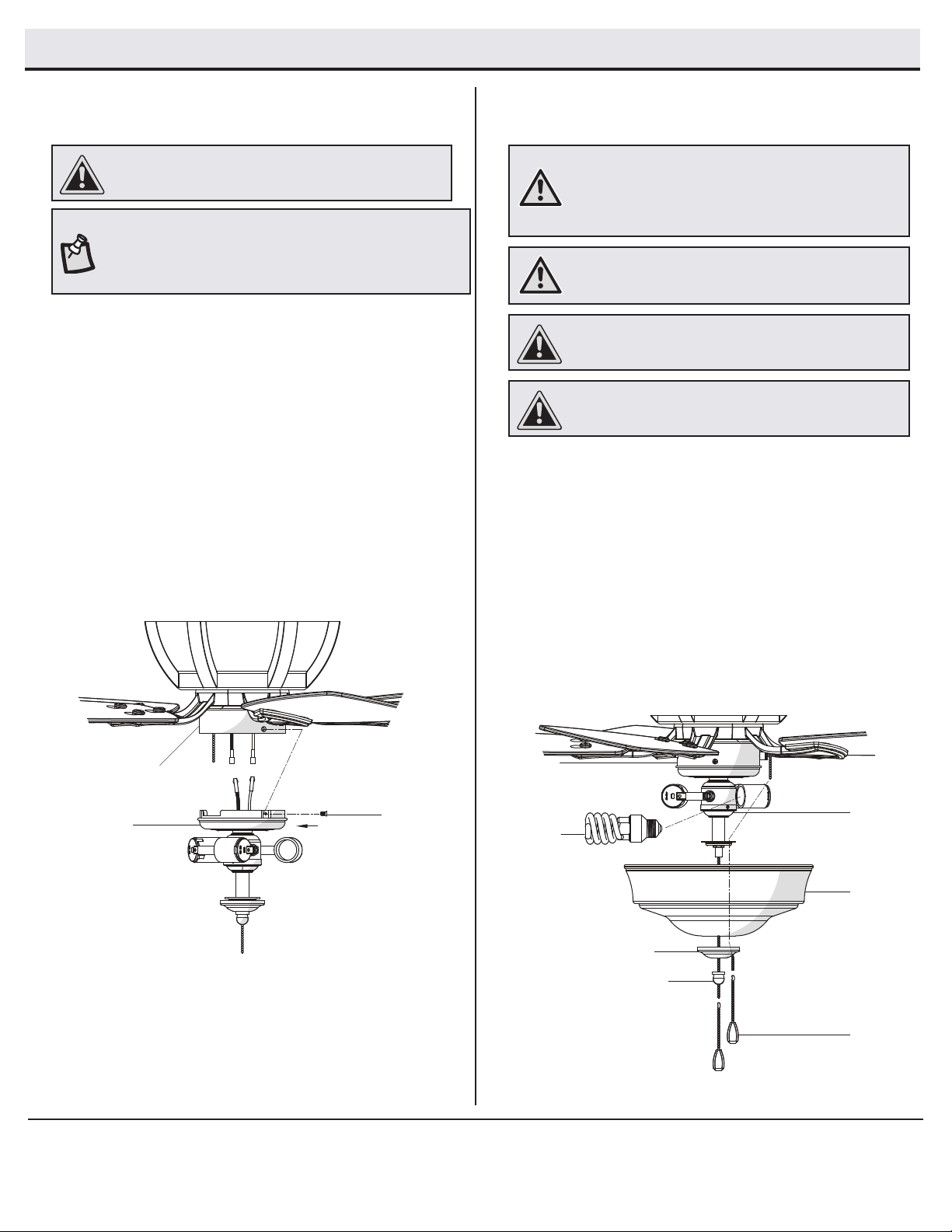

Assembly - Hanging the Fan (continued)
Completing the fan assemblyMaking the electrical connection
□Remove two of the four screws (located diagonally
from each other) (PP) from the top of the mounting
plate (A) and loosen the other two screws (PP).
□Align the two key slots in the top of the motor
housing (C) with the two loose screws (PP) on the
mounting plate (A). Push the motor housing (C) up
and turn it clockwise to lock in the mounting plate
(A). Tighten the two screws.
□Install the two screws that were removed at the
beginning of this step into the remaining two holes
and tighten the four screws rmly.
43
Outlet box
in the ceiling
EE
Green or bare wire
Green
White
Black
WhiteBlack & Blue
B
C
APP
IMPORTANT: Use the plastic wire connectors (AA) supplied with
your fan. Secure the connectors with electrical tape and ensure
there are no loose strands or connections.
WARNING: Each wire not supplied with this fan is designed to
accept up to one 12-gauge house wire and two wires from the
fan. If you have larger than 12-gauge house wiring or more
than one house wire to connect to the fan wiring, consult an
electrician for the proper size wire nuts to use.
□Connect the fan motor green wires to the household green
or bare wire using a wire connecting nut (AA).
□Connect the fan motor white wire to the household white
wire using a wire connecting nut (AA).
□Connect the fan motor black and blue wires to the
household black wire using a wire connecting nut (AA).
□Secure each wire connecting nut using electrical tape.
□Turn the wire connecting nut (AA) upward and push the
wiring into the outlet box (EE).
WARNING: Remove the rubber motor stops on the bottom of the
fan before installing the blades or testing the motor.

9HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly - Attaching the Fan Blades and Brackets
Fastening the blade brackets to
the motor
□Mount the fan blade (E) to the blade bracket (F) by aligning
the three key-slot holes in the blade (E) with the three posts
(RR) on the top of the blade bracket (F).
□Hold the blade (E) with both hands close to the blade
bracket (F) down rmly. Ensure the key-slot holes are
properly seated on the blade bracket posts (RR).
□While still holding the blade (E) down with both hands, rmly
slide the blade (E) until it engages in the locking mechanism
(SS). Make sure the locking mechanism (SS) at the rear of
the blade bracket (F) springs upward and butts against the
edge of the blade (E), indicating a secure connection.
□Visually inspect the top of the blade bracket (F) to ensure
the locking mechanism (SS) is securely in place.
□Repeat this procedure for the remaining blades (E).
5
B
F
QQ
Attaching the blades to the blade
brackets
□Fasten the blade brackets (F) to the fan-motor assembly (B)
by inserting the alignment post into the slot on the bottom
of the motor and tightening the pre-installed blade bracket
screws (QQ).
□Repeat this step for the remaining blade assemblies.
6
B
F
E
RR
SS
NOTE: Your fan blades are reversible. Select the blade side nish
which best accentuates your decor.

10
Assembly - Attaching the Light Kit Fitter Assembly
Attaching the light kit tter assembly Installing the glass bowl and bulbs
□Remove the three screws (TT) on the switch cup over of the
light kit tter assembly (D).
□Connect the wires from the light kit tter assembly (D) by
connecting the molded adaptor plugs together (blue to black,
white to white). Carefully tuck all wires and splices into the
switch cup.
□Align the three holes in the switch cup cover of the light kit
tter assembly (D) with the three holes in the switch cup
of the fan-motor assembly (B). Make sure the notch in the
switch cup cover of the light kit tter assembly (D) clears
the slide switch in the switch cup of the fan-motor assembly
(D). Position the light kit tter assembly (D) and re-install
the three screws (TT) that were removed in the rst step to
secure the light kit tter assembly (D).
□Remove the nial (UU) and the bottom cover (V V) from the
threaded nipple of the light tter assembly (D).
□With the power off, install the three CFL bulbs (H) by screwing
them into the light bulb sockets.
□Position the glass bowl (G), and direct the fan pull chain through
the side hole of the bottom cover.
□Direct the light pull chain through the hole in the bottom cover
(V V) and nial (UU) guide them over the threaded nipple, and
tighten the nial (UU) securely.
□Attach the pull chain extensions (DD) provided to the light pull
chain and fan pull chain.
7 8
CAUTION: To reduce the risk of electric shock, disconnect
the electrical supply circuit to the fan before installing the
light kit.
DTT
B
CAUTION: Do not over tighten the hex nut, overtightening
the hex nut may cause the glass to break.
WARNING: Allow the glass shades to cool completely before
removing.
G
B
D
DD
H
UU
V V
NOTE: Notice the location of the fan’s slide switch. This is the
switch used to change the fan’s directional rotation. For more
information on the operation of this switch, see Operatiing your
fan on page 11.
WARNING: Over lamping the light kit will result in the
lights shutting down until the proper wattage of bulbs are
installed. Reset the lights by turning off the light kit, replace
the bulbs with the correct wattage bulbs, and turn the light
kit back on.
CAUTION: Make sure the power is off before attaching or
removing the glass shades.

11 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly - Assembling the Fan Without the Light Kit
Attaching the light kit tter assembly
□In order to use the fan without light kit, remove the switch
cup cover (WW) from the top of the light kit tter assembly
(D) by removing the center hex nut inside the switch cup
cover (WW) off of the threaded nipple on the top of the light
kit tter assembly (D).
□Press the plastic plug (CC) into the center hole of the switch
cup cover (WW).
□Remove the three screws (TT) on the switch cup cover (WW).
□Align the three holes in the switch cup cover (WW) with the
three holes in the switch cup of the fan-motor assembly (B).
Make sure the notch in the switch cup cover (WW) clears the
slide switch in the switch cup of the fan-motor assembly (B).
□Re-install the three screws (TT) that were removed in rst
step to secure the switch cup cover (WW).
7
CAUTION: To reduce the risk of electric shock, disconnect
the electrical supply circuit to the fan before installing the
light kit.
WW TT
B
CC
DD
Operation
Turn on the power and check the operation of the fan. The pull
chain controls the fan speeds as follows:
1 pull - High, 2 pulls - Medium-High, 3 pulls Medium-Low, 4 pulls
Low, 5 pulls - off
The appropriate speed settings for warm or cool weather depends
on factors such as the room size, ceiling height, and number of
fans.
The slide switch (XX) controls the direction of the blades: forward
(switch left) or reverse (switch right)
Warm weather - (Forward) A downward airow creates a cooling ef-
fect. This allows you to set your air conditioner on a warmer setting
without affecting your comfort.
Cool weather - (Reverse) An upward airow moves warm air off of
the ceiling. This allows you to set your heating unit on a cooler set-
ting without affecting your comfort.
NOTE: Wait for the fan to stop before reversing the direction of the
blade rotation.
XX
XX

12
Troubleshooting
Problem Solution
The fan will not start. □Check the main and branch circuit fuses or breakers.
□Check the line wire connections to the fan and switch wire connections in the switch housing.
The fan is noisy. □Ensure all motor housing screws are snug.
□Ensure the screws that attach the fan blade bracket to the motor hub are tight.
□Ensure the wire nut connections are not rattling against each other or the interior wall of the switch housing.
□Allow a 24-hour “breaking in” period. Most noises associated with a new fan disappear during this time.
□Ensure your outlet box is secure and rubber isolator pads were used between the mounting plate and outlet box.
The fan wobbles. □Check that all blade and blade arm screws are secure.
□Most fan wobble problems are caused when blade levels are unequal. Check this level by selecting a point on
the ceiling above the tip of one of the blades. Measure from a point on the center of the blade to the point on the
ceiling. Rotate the fan until the next blade is positioned for measurement, and measure from the same point on
each blade to the ceiling. Repeat for each blade. Any measurement deviation should be within 1/8 in. Run the fan
for ten minutes.
□Because of the fan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade
attachments twice a year. Make sure they are secure. It is not necessary to remove the fan from the ceiling.
□Clean your fan periodically to help maintain its new appearance over the years. Do not use water when cleaning, as this could damage
the motor, or the wood, or possibly cause an electrical shock. Use only a soft brush or lint-free cloth to avoid scratching the nish. The
plating is sealed with a lacquer to minimize discoloration or tarnishing.
□You can apply a light coat of furniture polish to the wood for additional protection and enhanced beauty. Cover small scratches with a
light application of shoe polish.
□You do not need to oil your fan. The motor has permanently-lubricated sealed ball bearings.
WARNING: Make sure the power is off before cleaning
your fan.
Care and Cleaning

Questions, problems, missing parts? Before returning to the store,
call Home Depot Customer Service
8 a.m. - 6 p.m., EST, Monday-Friday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
Retain this manual for future use.

GUÍA DE USO Y MANTENIMIENTO
VENTILADOR DE TECHO COSTNER DE 1.32 M
¿Preguntas, problemas o piezas faltantes? Antes de regresar a la tienda,
llama al servicio al cliente de Home Decorators Collection de lunes a viernes entre
8 a.m. y 6 p.m. (hora estándar del Este).
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
GRACIAS POR TU COMPRA
Apreciamos la conanza que has depositado en Home Decorators Collection al comprar este ventilador de techo. Nos esforzamos para continuamente
crear productos de calidad diseñados para mejorar tu hogar. Visítanos por Internet para ver nuestra línea completa de productos disponibles para las
necesidades de mejoras de tu hogar. ¡Gracias por elegir Home Decorators Collection!
Artículo núm. 1000 XX XXX
Modelo núm. 51576
Modelo aprobado por UL
núm. 52-RTY

2
Tabla de contenido .............................................................. 2
Información de seguridad...................................................2
Garantía................................................................................3
Preinstalación ......................................................................3
Instalación............................................................................6
Ensamblaje........................................................................... 7
Funcionamiento.................................................................11
Mantenimiento y limpieza.................................................12
Solución de problemas ..................................................... 12
1. Para disminuir el riesgo de descarga eléctrica, asegúrate de
cortar la electricidad del cortacircuitos o la caja de fusibles
antes de comenzar.
2. Todo el cableado debe cumplir con el Código Nacional de
Electricidad ANSI/NFPA 70-1999 y con los códigos locales de
electricidad. La instalación eléctrica debe ser hecha por un
electricista certicado y calicado.
3. La caja eléctrica y la estructura de soporte deben montarse
de forma segura y tener capacidad para sostener de manera
conable 15.9 kg. Usa solamente cajas eléctricas aprobadas
por UL marcadas como “apropiada para sostener ventiladores
de 15.9 kg o menos”.
4. El ventilador debe ir montado con un mínimo de 2 m de
separación entre el borde trasero de las aspas y el piso.
5. No muevas el interruptor de reversa mientras las aspas del
ventilador estén en movimiento. Debes apagar y detener las
aspas antes de dar reversa a la dirección de estas.
6. No coloques objetos en la trayectoria de las aspas.
7. Para evitar lesiones físicas o daños al ventilador y otros
artículos, ten cuidado al limpiar el ventilador o al trabajar
cerca de él.
8. Los diagramas eléctricos son solo para referencia. Los juegos
de luces no incluidos con el ventilador deben estar aprobados
por UL y marcados como apropiados para ser usados con el
modelo de ventilador a instalar. Los interruptores deberán
estar clasicados por UL como de uso general. Consulta las
instrucciones adjuntas a los kits de luces e interruptores para
obtener información sobre el ensamblaje adecuado.
9. Después de concluir las conexiones eléctricas, debes voltear
los conductores empalmados hacia arriba y meterlos con
cuidado en la caja eléctrica. Los cables deben estar separados
con el cable a tierra y el conductor a tierra del equipo hacia
uno de los lados de la caja eléctrica.
10. Todos los tornillos de jación deben ser vericados y ajustados
donde sea necesario antes de la instalación.
ADVERTENCIA: Para reducir el riesgo de lesiones
personales, no dobles los soportes de las aspas (también
llamados “bridas”) durante el ensamblaje ni después
de la instalación. No coloques objetos en la trayectoria
de las aspas.
ADVERTENCIA: Para disminuir el riesgo de incendio o
descarga eléctrica, no utilices este ventilador con ningún
dispositivo de control de velocidad de estado sólido.
ADVERTENCIA: Para evitar una posible descarga
eléctrica, corta la energía eléctrica en la caja principal
de fusibles antes de instalar el cableado. Si crees que
no tienes suciente experiencia o conocimientos sobre
cableado eléctrico, contrata a un electricista certicado.
ADVERTENCIA: Los diagramas eléctricos son solamente
para referencia. Cualquier juego de luces opcional debe
estar aprobado por UL y marcado como adecuado para
ser usado con este ventilador.
Información de seguridad
Tabla de contenido
PRECAUCIÓN: Para reducir el riesgo de lesiones
personales, usa solamente los tornillos incluidos con
la caja eléctrica.
PRECAUCIÓN: Para evitar lesiones, o daños al ventilador
y otros objetos, ten cuidado al trabajar cerca del
ventilador o al limpiarlo.
ADVERTENCIA: Para reducir el riesgo de incendio,
descarga eléctrica o lesiones personales, instala solo
en una caja eléctrica clasicada como “apropiada para
sostener ventiladores de 15.9 kg o menos” y usa los
tornillos que vienen con esta.

3HOMEDEPOT.COM/HOMEDECORATORS
Para obtener asistencia, llama al 1-800-986-3460.
Preinstalación
Garantía
ESPECIFICACIONES
HERRAMIENTAS NECESARIAS
NOTA: Estas medidas son aproximadas. No incluyen ni
el amperaje ni el vataje consumido por el kit de luces.
Destornillador
Phillips
Destornillador
plano
Llave
ajustable
Cinta de
electricista
Pelacables/
cortacables
Escalera de tijera
Tamaño Velocidad Voltios Amperes Watts RPM CFM Peso
neto
Peso
bruto
Pies
cúbicos
1.32 m
Baja
Media-Baja
Media-Alta
Alta
120
0.2
0.31
0.39
0.48
10
22
35
57
60
95
130
165
2028
3003
3993
5035
19.84 lbs.
(9 kg)
22.71
(10.3 kg) 1.92 pies³
El proveedor garantiza de por vida, a partir de la fecha en que el comprador original lo adquiere, que el motor del ventilador no presenta defectos de
fabricación ni de materiales al momento en que es enviado desde la fábrica. El proveedor también garantiza por un período de dos años a partir de la fecha
de compra por el comprador original, que todas las demás piezas del ventilador, sin incluir ninguna aspa de vidrio o acrílico, no presentarán ningún defecto
de fabricación o de material desde el momento de su salida de la fábrica. Acordamos reparar todos los defectos del tipo antes mencionado, sin cargo alguno
o, a nuestra discreción, reemplazar el producto por un modelo de igual calidad o superior si el producto es devuelto. Para obtener servicio de garantía, debe
presentar una copia del recibo como comprobante de compra. Todos los costos de retiro y reinstalación del producto son su responsabilidad. Los daños
a cualquiera de las piezas como resultado de accidentes, uso inadecuado, instalación inadecuada, o debidos a la instalación de cualquier accesorio, no
están cubiertos bajo esta garantía. Debido a que las condiciones climáticas pueden variar, esta garantía no cubre ningún cambio en el acabado en bronce,
incluyendo óxido, perforación, corrosión, manchas o descascaramiento. Los acabados en bronce de este tipo tienen una vida útil más prolongada cuando se
los protege de las condiciones climáticas cambiantes. Es normal cierta “oscilación” y no se considerará un defecto. Cualquier servicio realizado por personal
no autorizado invalidará la garantía. No existe ninguna otra garantía expresa. Mediante la presente, Home Depot Decorators Collection se exime de cualquier
garantía, incluyendo pero sin limitarnos a aquellas de comercialización e idoneidad para un n particular, de acuerdo a lo contemplado por la ley. La duración
de cualquier garantía implícita que no se pueda eximir está limitada al período de tiempo especicado en la garantía explícita. Algunos estados no permiten
una limitación en la duración de la garantía; por consiguiente, la limitación anterior puede no aplicarse a su caso. El minorista no será responsable por daños
directos, indirectos o especiales que resulten o deriven del uso o rendimiento del producto, excepto en casos en que lo estipule la ley. Algunos estados no
permiten la exclusión o limitación de daños directos o indirectos, por lo que la limitación o exclusión anterior podría no aplicarse a su caso. Esta garantía
le otorga derechos legales especícos y es posible que también tenga otros derechos que varían de un estado a otro. Esta garantía sustituye todas las
garantías anteriores. Los costos de envío de cualquier devolución de productos hecha como parte de una reclamación de garantía están a cargo del cliente.
Comuníquese con el equipo de servicio al cliente al 1-800-986-3460 o visite www.HomeDepot.com/homedecorators.

4
Pieza Descripción Cantidad
AA Conector plástico para cables 3
BB Herrajes adicionales para montaje
de aspas (tornillo y arandela de
seguridad)
1
Pieza Descripción Cantidad
CC Tapón plástico 1
DD Interruptor de cadena 2
HERRAJES INCLUIDOS
NOTA: No se muestra el tamaño real de los herrajes.
AA BB DD
CC
Preinstalación (continuación)

5HOMEDEPOT.COM/HOMEDECORATORS
Para obtener asistencia, llama al 1-800-986-3460.
Pieza Descripción Cantidad
A Placa de montaje 1
B Ensamblaje del motor del ventilador 1
C Carcasa del motor 1
DEnsamblaje del soporte del kit de
luces 1
Pieza Descripción Cantidad
E Aspa 5
F Soporte de aspa con tornillos
preinstalados
5
G Tazón de vidrio con aro de moldura 1
H Bombillas CFL, máximo de 14 W 3
IMPORTANTE: Este producto o sus componentes están
protegidos por una o más de las siguientes patentes de
los EE. UU.: 5,947,436; 5,988,580; 6,010,110; 6,046,416,
6,210,117 y otras patentes pendientes.
CONTENIDO DEL PAQUETE
A
C
B
D
G
F
E
H
Preinstalación (continuación)

6
Instalación
OPCIONES DE MONTAJE
ADVERTENCIA: Para reducir el riesgo de incendio,
descarga eléctrica o lesiones personales, instala solo
en una caja eléctrica clasicada como “apropiada
para sostener ventiladores de 15.9 kg o menos” y usa
los tornillos que vienen con esta. Las cajas eléctricas
utilizadas comúnmente para el soporte de lámparas
pueden no servir como soporte de ventilador y tal vez
deban reemplazarse. En caso de duda, consulta a un
electricista calicado.
Si tu ventilador de techo no tiene una caja de montaje aprobada
por UL, instala una siguiendo las instrucciones a continuación:
□Desconecta la energía retirando los fusibles o apagando los
cortacircuitos.
□Asegura la caja eléctrica directamente a la estructura de
la edicación. Usa sujetadores y materiales apropiados. La
caja eléctrica y la estructura de soporte deben montarse
de forma segura y tener capacidad para sostener de
manera conable 15.9 kg. Usa solamente cajas eléctricas
aprobadas por UL marcadas como “apropiada para sostener
ventiladores de 15.9 kg o menos”. No uses una caja
eléctrica de plástico.
Las ilustraciones a continuación muestran dos maneras
diferentes de montar la caja eléctrica.
Para colgar el ventilador donde ya haya una lámpara pero ninguna
viga de techo, tal vez necesites una barra colgante como se muestra
anteriormente (disponible en cualquier tienda de The Home Depot).
Caja
eléctrica
Caja eléctrica
Caja eléctrica
Barra para colgar

7HOMEDEPOT.COM/HOMEDECORATORS
Para obtener asistencia, llama al 1-800-986-3460.
Ensamblaje - Cómo colgar el ventilador
Cómo colgar el ensamblaje del
motor del ventilador
Cómo jar el ventilador a la caja
eléctrica
□Corta la electricidad.
□Fija la placa de montaje (AA) rmemente a la caja eléctrica
(EE) usando los dos tornillos (FF) incluidos con la caja
eléctrica (EE). Saca los cables de alimentación de 120
voltios (negro, blanco y de conexión a tierra) fuera de la caja
eléctrica (EE) y a través del oricio en la placa de montaje
(A), y colócalos a un costado.
□Levanta con cuidado el ensamblaje del motor del ventilador
(B) y engancha la ranura del soporte del motor en la parte
superior del ensamblaje del motor del ventilador (B), con
el gancho de la placa de montaje (A) para que quede
suspendido de forma segura. Luego, conecta el cableado
a tu ventilador según lo indica el paso 3 "Cómo hacer las
conexiones eléctricas".
□Levanta el ensamblaje del motor del ventilador (B).
□Alinea los oricios de la placa de montaje (A) con los
tornillos preinstalados (HH) en el soporte del motor (II).
□Aprieta bien los tornillos (HH).
21
A
EE
FF
GG
B
A
A
B
HH
II
NOTA: Para un mejor desempeño, asegúrate de
que la placa de montaje esté nivelada. Pueden
necesitarse arandelas adicionales (FF) (no incluidas)
para insertar entre la caja eléctrica y la placa de
montaje.
ADVERTENCIA: Para evitar una posible descarga
eléctrica, corta la energía eléctrica en la caja principal
de fusibles antes de instalar el cableado. Si crees que
no tienes suciente experiencia o conocimientos sobre
cableado eléctrico, contrata a un electricista certicado.
