USE AND CARE GUIDE
SEDERIO 52-INCH CEILING FAN
Item #1007 532 497
Model #56046
UL Model #EF200T(D)-52
To view an instructional video on how to install this product:
1. Go to www.homedepot.com and enter either the Item or Model number, found in the top
right corner of the cover of this instruction manual, in the search eld.
2. Click on your product from the list of search results and click on the video link in the
“Product Overview” section.

2
Table of Contents ................................................................ 2
Safety Information............................................................... 2
Warranty ............................................................................... 3
Pre-Installation .................................................................... 3
Installation............................................................................ 6
Assembly.............................................................................. 7
Operation ........................................................................... 12
Care and Cleaning............................................................. 13
Troubleshooting................................................................. 13
Safety Information
Table of Contents
1. To reduce the risk of electric shock, ensure the electricity has been
turned off at the circuit breaker or fuse box before you begin.
2. All wiring must be in accordance with the National Electrical Code
ANSI/NFPA 70 and local electrical codes. Electrical installation
should be performed by a qualified licensed electrician.
3. The outlet box and support structure must be securely mounted
and capable of reliably supporting 35 lb (15.9 kg). Use only UL
Listed outlet boxes marked “Acceptable for Fan Support of 35 lb
(15.9 kg) or less”.
4. Do not operate the reversing switch while the fan blades are in
motion. You must turn the fan off and stop the blades before you
reverse the blade direction.
5. Do not place objects in the path of the blades.
6. To avoid personal injury or damage to the fan and other items, use
caution when working around or cleaning the fan.
7. Electrical diagrams are for reference only. Light kits that are not
packed with the fan must be UL Listed and marked suitable for use
with the model fan you are installing. Switches must be UL General
Use Switches. Refer to the instructions packaged with the light kits
and switches for proper assembly.
8. After making electrical connections, spliced conductors should be
turned upward and pushed carefully up into the outlet box. The
wires should be spread apart with the grounded conductor and the
equipment-grounding conductor on one side of the outlet box and
the ungrounded conductor on the other side of the outlet box.
9. All setscrews must be checked and retightened where
necessary before installation.
WARNING: To reduce the risk of personal injury, do
not bend the blade brackets (also referred to as
anges) during assembly or after installation. Do
not insert objects in the path of the blades.
WARNING: To avoid possible electrical shock, turn
the electricity off at the main fuse box before
wiring. If you feel you do not have enough electrical
wiring knowledge or experience, contact a licensed
electrician.
WARNING: Electrical diagrams are for reference
only. Optional use of any light kit shall be UL-listed
and marked suitable for use with this fan.
CAUTION: To reduce the risk of personal injury, use
only the screws provided with the outlet box.
READ AND SAVE THESE INSTRUCTIONS.
CAUTION: Changes or modications not expressly
approved by the party responsible for compliance
could void the user’s authority to operate the
equipment.
CAUTION: Do NOT use this fan with a dimmer
switch or wall control. Using a dimmer switch or
wall control will damage the fan.
WARNING: To reduce the risk of re or electric
shock, do not use this fan with any other solid-
state speed control device.
CAUTION: The fan must be mounted with a
minimum of 7 ft (2.1 m) clearance from the trailing
edge of the blades to the oor.

3HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Pre-Installation
Warranty
SPECIFICATIONS
TOOLS REQUIRED
NOTE: These are approximate measures. They do not
include the Amps and Wattage used by the light kit.
Phillips
screwdriver
Flat blade
screwdriver
Adjustable
wrench
Electrical
tape
Wire
cutter
Step ladder
Size Speed Volts Amps Watts RPM CFM Net
Weight
Gross
Weight Cube Feet
52”
Low
Medium
High
120
0.22
0.38
0.54
9
29
65
57
103
148
1669.42
2923.11
4217.43
18.30 lb
(8.3 kg)
24.91 lb
(11.3 kg) 2.27 cu. ft.
The supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a lifetime
after the date of purchase by the original purchaser. The supplier also warrants that all other fan parts, excluding any glass or acrylic blades, to be
free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the date of purchase by the
original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or superior model if the product is
returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All costs of removing and reinstalling the product
are your responsibility. Damage to any part, such as by accident, misuse, improper installation, or by afxing any accessories, is not covered by
this warranty. Because of varying climatic conditions this warranty does not cover any changes in brass nish, including rusting, pitting, corroding,
tarnishing, or peeling. Brass nishes of this type give their longest useful life when protected from varying weather conditions. A certain amount of
“wobble” is normal and should not be considered a defect. Servicing performed by unauthorized persons shall render the warranty invalid. There
is no other express warranty. Interline hereby disclaims any and all warranties, including but not limited to those of merchantability and tness for
a particular purpose to the extent permitted by law. The duration of any implied warranty which cannot be disclaimed is limited to the time period
as specied in the express warranty. Some states do not allow a limitation on how long an implied warranty lasts, so the above limitation may not
apply to you. The retailer shall not be liable for incidental, consequential, or special damages arising out of or in connection with product use or
performance except as may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential damages, so the
above exclusion or limitation may not apply to you. This warranty gives specic legal rights, and you may also have other rights which vary from
state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a claim on the warranty must be
paid by the customer.
Contact the Customer Service Team at 1-800-986-3460 or visit www.HomeDepot.com/homedecorators.

4
Part Description Quantity
AA Plastic wire extension 3
BB Pull chain extensions 2
Pre-Installation (continued)

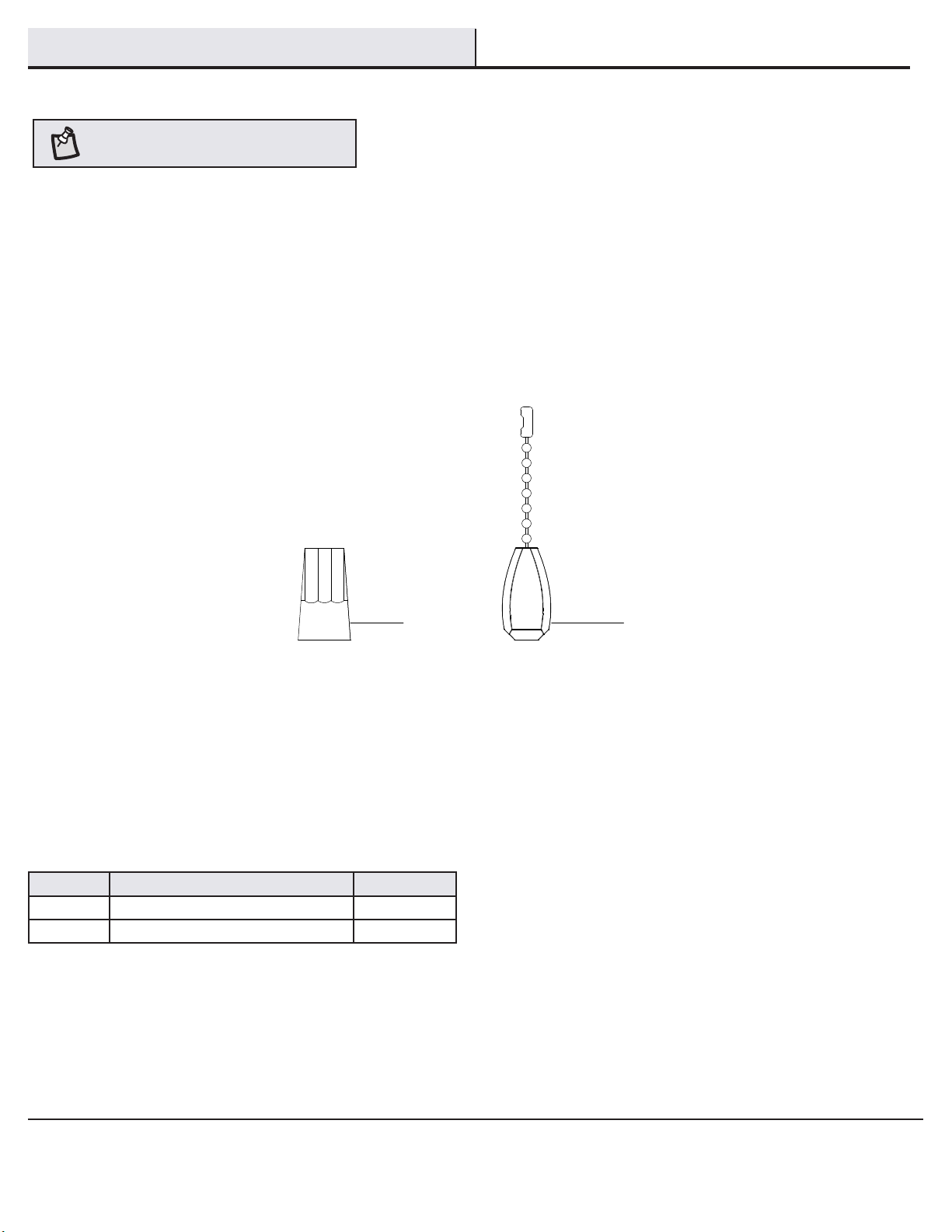

HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
AA BB

5HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Part Description Quantity
ASlide-on mounting bracket
(inside canopy) 1
B Canopy 1
C Canopy bottom cover 1
D Ball/downrod assembly 1
E Coupler cover 1
Part Description Quantity
F Fan-motor assembly 1
G Light kit tter assembly 1
H LED bulb 3
I Glass shade 3
J Blade bracket 5
K Blade 5
IMPORTANT: This product and/or components are
governed by one or more of the following U.S. Patents:
5,947,436; 5,988,580; 6,010,110; 6,046,416, 6,210,117
and other patents pending.
Pre-Installation (continued)

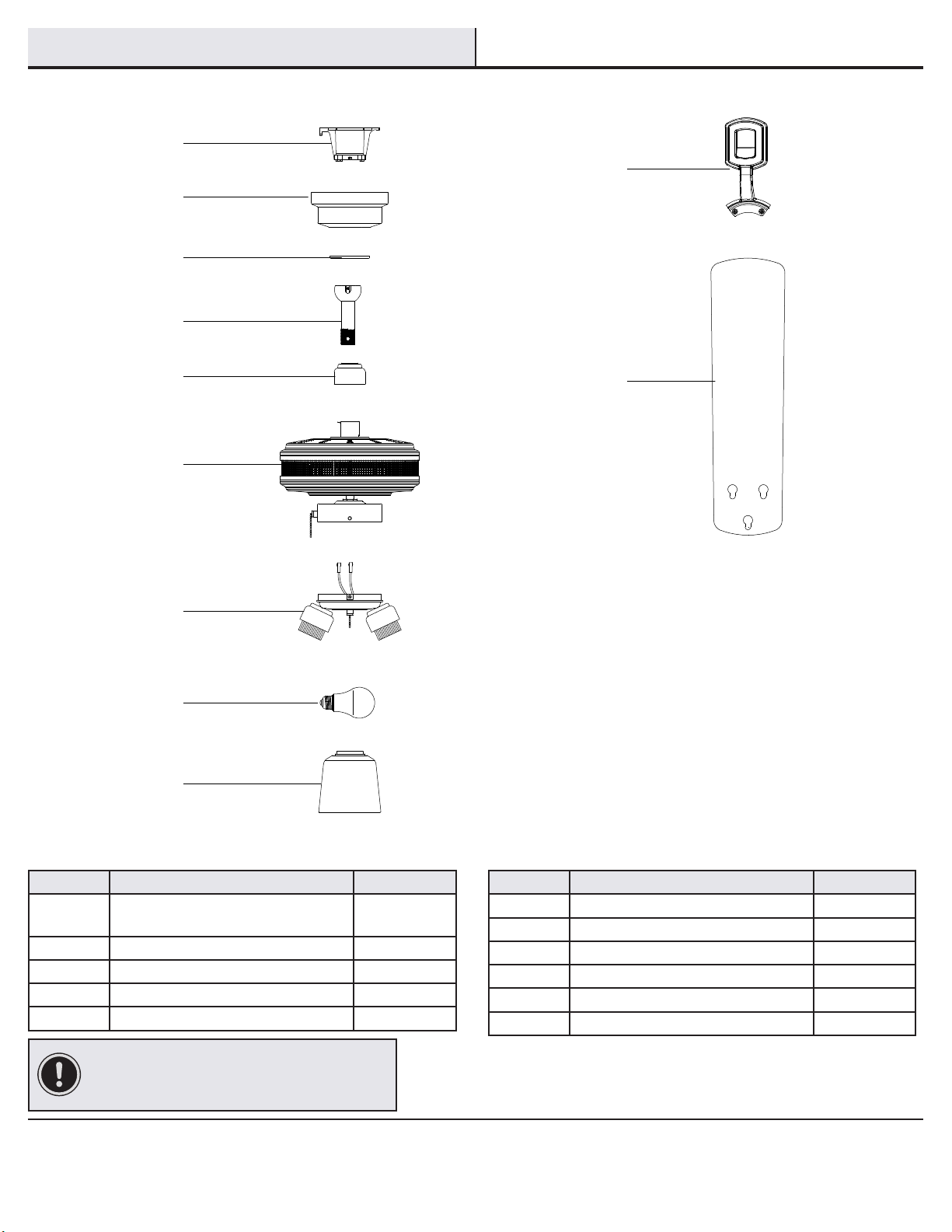

PACKAGE CONTENTS
A
B
D
E
F
G
H
I
J
K
C

6
Installation
MOUNTING OPTIONS
WARNING: To reduce the risk of re, electric shock
or personal injury, mount to outlet box marked
“Acceptable for fan support of 35 lbs. (15.9 Kg) or
less”, and use screws provided with the outlet box. An
outlet box commonly used for the support of lighting
xtures may not be acceptable for fan support and may
need to be replaced. If in doubt, consult a qualied
electrician.
If your ceiling fan does not have an existing UL-listed mounting
box, then install one using the following instructions:
□Disconnect the power by removing the fuses or turning off
the circuit breakers.
□Secure the outlet box directly to the building structure. Use
the appropriate fasteners and materials. The outlet box and
its bracing must be able to fully support the weight of the
moving fan (at least 35 lbs.). Do not use a plastic outlet box.

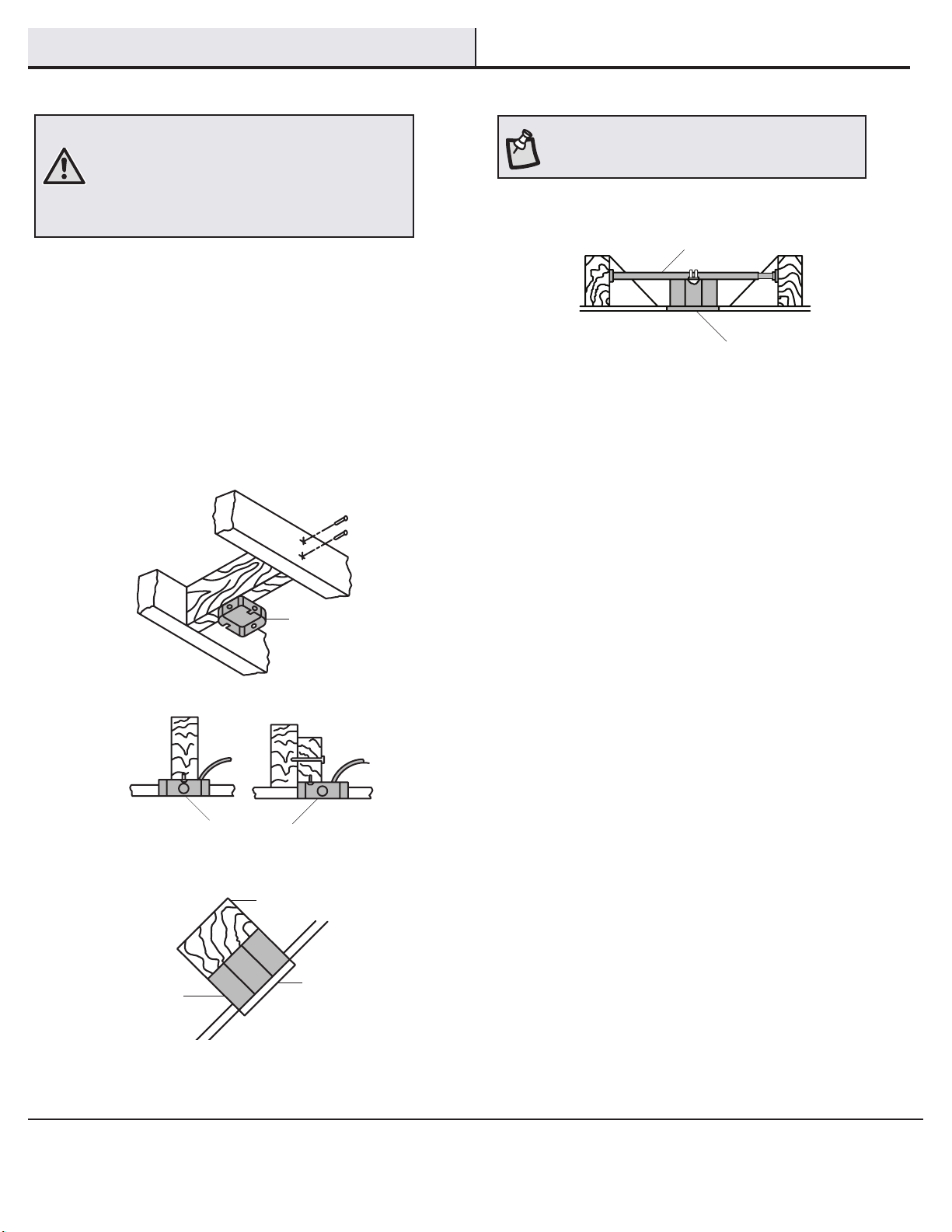

The illustrations below show three different ways to mount the
outlet box.
If the canopy touches the ball/downrod, then remove the canopy
bottom cover, and turn the canopy 180° before attaching the canopy to
the mounting plate.
To hang your fan where there is an existing xture but no ceiling joist,
you may need an installation hanger bar as shown above
(available at any Home Depot store).
NOTE: You may need a longer ball/downrod to maintain
proper blade clearance when installing on a steep, sloped
ceiling. The maximum angle allowable is 20° away from
horizontal.
Outlet Box
Outlet Box
Recessed
Outlet
Box
Provide Strong
Support
Ceiling
Mounting
Plate
Outlet Box
Hanger Bar

7HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly - Standard Ceiling Mount
Assembling the fan
3
□Remove the setscrew (RR) by turning it counterclockwise.
□Install the ball/downrod (D) by inserting it into the motor collar
(TT), and turning it clockwise until it is tight.
□Reinstall the setscrew (RR) turning clockwise until tight.
NOTE: This fan is equipped with a safety tab (SS).
Should the setscrew (RR) ever become loose while the
fan is running in reverse, the safety tab (SS) will engage
and stop the fan from falling.
CAUTION: To ensure wobble-free operation and to
avoid damage to the fan, the ball/downrod (D) and the
setscrew (RR) must be completely tightened.

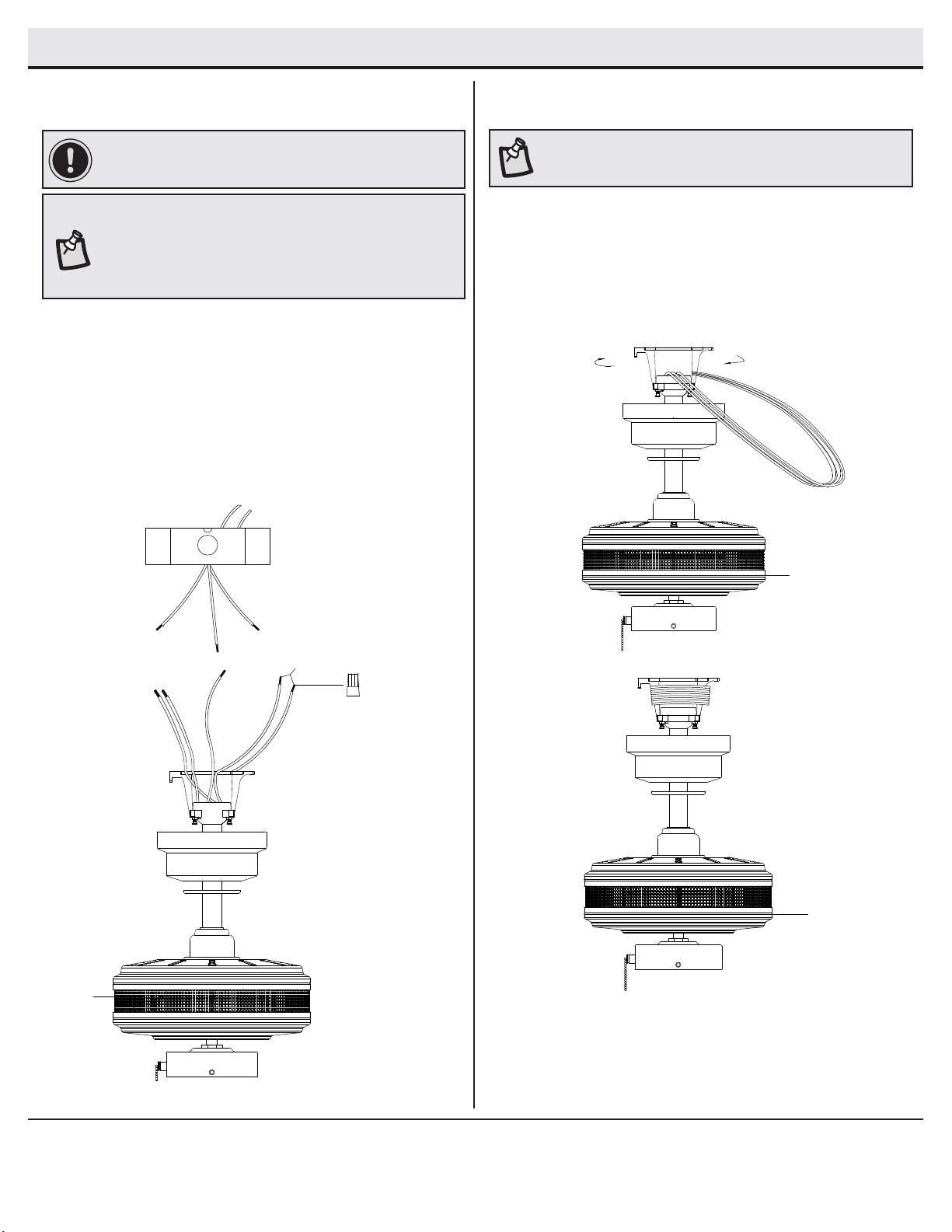

Routing the wiresPreparing for mounting
□Route the wires exiting the top of the fan motor assembly (F)
through the coupler cover (E) and the center of the canopy
bottom cover (C).
□Make sure the opening of the canopy (B) is on top and insert
the ball/downrod (D) through the canopy (B).
□Route the wires exiting the top of the fan motor assembly (F)
through the ball/downrod (D) as shown.
21
□Remove the canopy bottom cover (C) from the canopy (B) by
turning the bottom cover counterclockwise until it unlocks.
□Loosen the two canopy screws (FF) located in the bottom of the
mounting bracket (A), and turn the canopy counterclockwise to
remove the mounting bracket (A) from the canopy (B).
A
FF
B
C
D
B
C
E
F
D
B
C
E
F
RR
TT
SS

8
Assembly - Hanging the Fan
Attaching the fan to the
electrical box
Hanging the fan
□Pass the 120-Volt supply wires through the center hole in the
mounting bracket (A).
□Install the ceiling mounting bracket on the outlet box by sliding
the mounting bracket (A) over the two screws (JJ) provided with
the outlet box. If necessary, use leveling washers (not included)
between the mounting bracket (A) and the outlet box. Note that
the at side of the mounting bracket (A) is toward the outlet box.
□Securely tighten the two mounting screws (JJ).
12
WARNING: To reduce the risk of re, electric shock or personal
injury, mount to outlet box marked “Acceptable for fan support
of 35 lbs. (15.9 Kg) or less”, and use screws provided with the
outlet box.
□Carefully lift the fan motor assembly (F) up to the slide-on
mounting bracket (A).
□Seat the hanger ball portion of the ball/downrod (D) in the
mounting bracket socket. Ensure that the tab on the slide-on
mounting bracket (A) socket is properly seated in the groove
in the hanger ball.
WARNING: When using the standard ball/downrod mounting,
the tab in the ring at the bottom of the mounting bracket
must rest in the groove of the hanger ball. Failure to properly
seat the tab in the groove may result in fan wobble issues
and potentially damage the wiring.
JJ
JJ
A
A
D
B
C
E
F

9HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly - Hanging the Fan (continued)
34Wrapping the extra wire
□Gently wrap the excess wire around the mounting bracket.
□Secure with electrical tape.
NOTE: Follow this step ONLY if you did not cut the extra length off
from the wires coming from the ceiling fan.
Making the electrical connection
IMPORTANT: Use the plastic wire connectors (AA) supplied with
your fan. Secure the connectors with electrical tape and ensure
there are no loose strands or connections.
□Connect the fan motor white wires to the household white wire
using a wire connecting nut (AA).
□Connect the fan motor black and blue wires to the household
black wire using a wire connecting nut (AA).
□Connect the fan motor green wires to the household green or bare
wire using a wire connecting nut (AA).
□Secure each wire connecting nut (AA) using electrical tape.
□Turn the wire connecting nut (AA) upward and push the wiring into
the outlet box (MM).
NOTE: The fan comes with 54 in. lead wires for use with an
extended ball/downrod assembly. If using the 4.5 in. ball/
downrod assembly (D) provided, you can cut the lead wires to
your desired length (no shorter than 12 in.). This will make extra
room in the canopy (B). If you do not wish to cut the wires, you
will need to neatly wrap them.
Outlet box
in the ceiling
(MM)
F
AA (x3)
Black
Black Blue
Green or Bare
Green
White
F
F

10
Assembly - Attaching the Fan Blades
5
Assembly - Hanging the Fan (continued)
Attaching the canopy

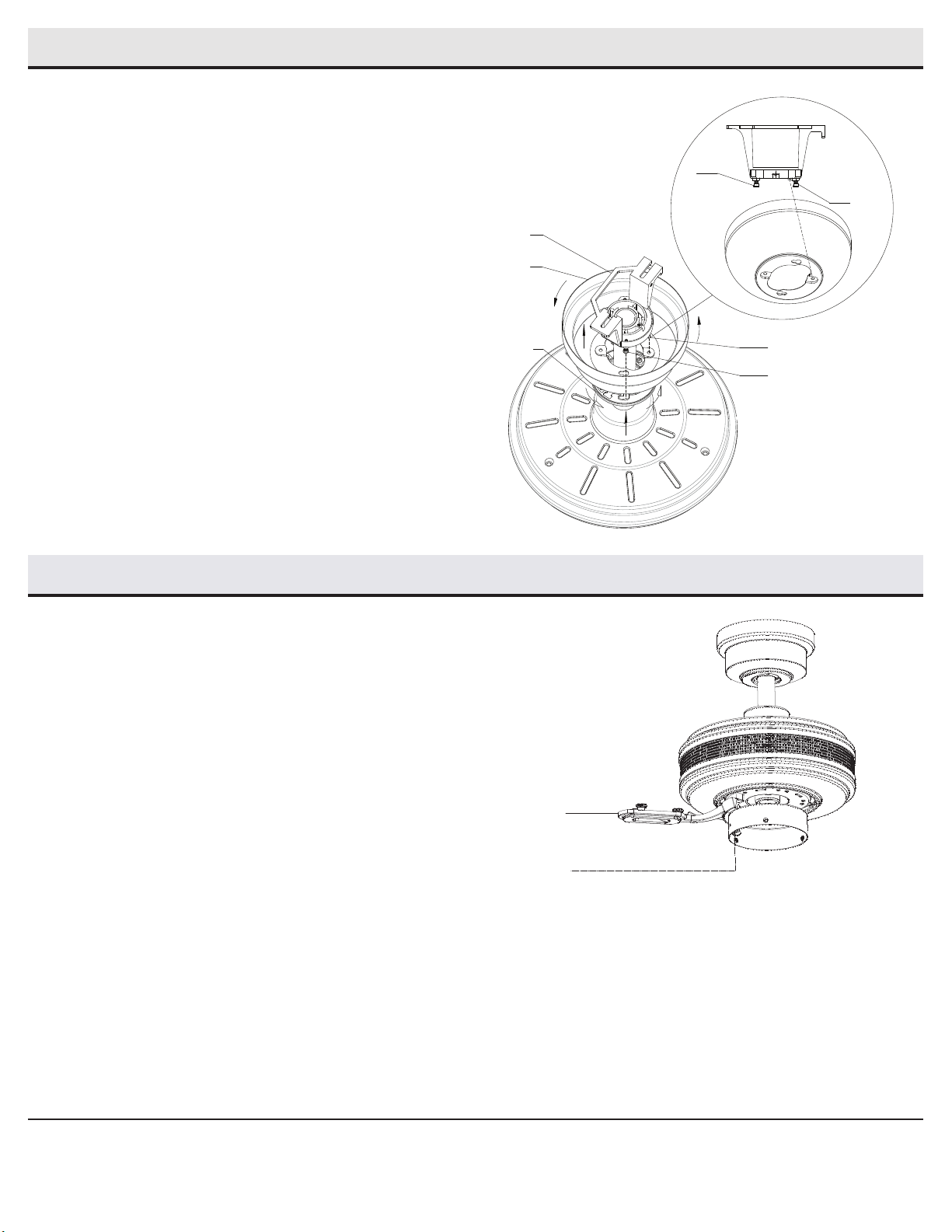

□Align the locking slots of the canopy (B) with the two screws
(FF) and alignment post (EE) in the mounting bracket (A).
□Push up the canopy (B) and turn clockwise until the alignment
post (EE) engages to the round hole and the screws (FF)
engage to the key slots.
□Firmly tighten the two mounting screws (FF).
□Install the decorative bottom cover (C) by aligning the cover
slots with screws in the bottom of the canopy (B). Rotate the
bottom cover (C) clockwise to lock in place.
EE
EE
B
C
A
FF
FF
1Attaching the blade brackets
□Fasten the blade bracket (J) to the motor (F) by inserting the
alignment post into the slot on the bottom of the fan motor
assembly (F) and tightening the motor screws (GG) that are
pre-assembled to the blade bracket (J).
□Repeat for the remaining four blade bracket (J).
GG
J

11 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly - Attaching the Fan Blades
Assembly - Attaching the Light Kit
Attaching the light kit
1
□Remove the three screws (CC) from the light kit tter
assembly (G).
□Connect the wires exiting the bottom of the motor
assembly (F) by connecting the molded adaptor plugs
together (blue to blue, white to white).
□Slide the light kit (G) and secure it to the switch housing
using the three screws (CC) that were removed in the rst
step.
CAUTION: To reduce the risk of electric shock, disconnect
the electrical supply circuit to the fan before installing the
light kit.
2Attaching the fan blades
□Mount the fan blade (K) to the blade bracket (J) by aligning
the three key-slot holes in the blade (K) with the three posts
on the top of the blade brackets (J).
□Hold the blade (K) close to the blade bracket (J) and press
the blade (K) down rmly. Ensure the key-slot holes are
properly seated on the blade bracket posts.
□While still holding the blade (K) down, rmly slide the blade
(K) away from the blade bracket (J) side until the blade (K)
engages in the locking mechanism.
□Make sure the locking mechanism at the rear of the blade
bracket (J) springs upward and butts against the edge of the
blade (K) indicating a secure connection.
□Visually inspect the top of the blade bracket (J) to ensure
the locking mechanism is securely in place.
□Repeat for the remaining blades (K).
K
J
CC
G
F

12
Assembly - Attaching the Light Kit
Installing the glass shades and bulbs
2

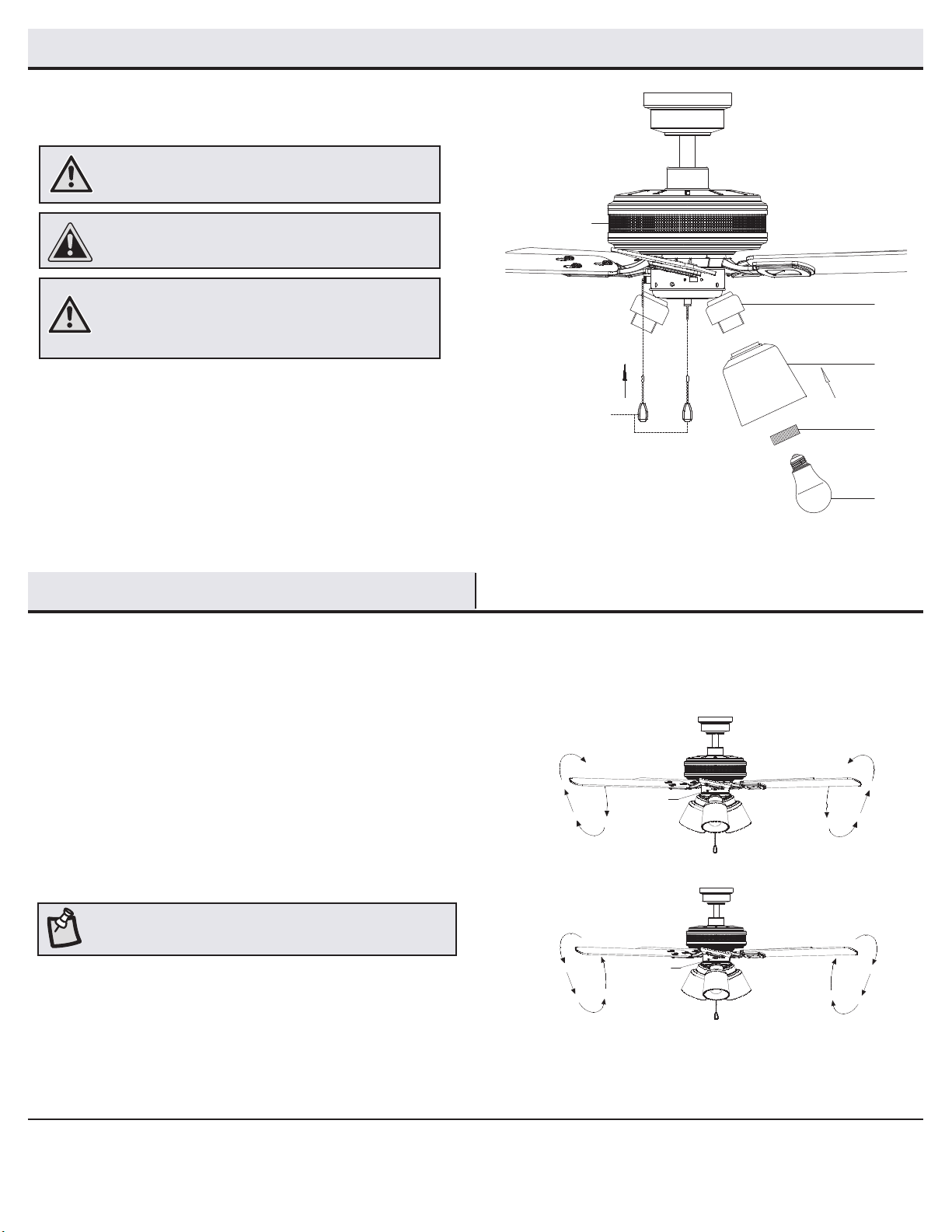

□Remove the compressing ring (DD) from the threaded
socket of light kit (G) by turning the compress ring (DD)
counterclockwise until it unlocks.
□Insert the glass shade (I) into the light kit cowling and turn
the compressing ring (DD) clockwise to tighten and secure
the glass shade (I). Repeat for the remaining shades.
□With power off, screw the LED bulbs (H) into the sockets.
□Attach the pull chain extensions (BB) to the light pull chain
and fan pull chain.
CAUTION: Make sure the power is off before attaching or
removing the glass shades.
WARNING: Allow the glass shades to cool completely before
removing.
CAUTION: Over lamping the fan will result in the fan lights
shutting down until the proper wattage bulbs are installed.
Reset the lights by turning off the power, replacing the bulbs
with the correct wattage bulbs, and turn the power on.
Operation
Turn on the power and check the operation of the fan. The pull
chain controls the fan speeds as follows:
1 pull - High, 2 pulls - Medium, 3 pulls - Low, 4 pulls - off
The appropriate speed settings for warm or cool weather depends
on factors such as the room size, ceiling height, and number of
fans.
The fan is shipped from the factory with the reversing switch
positioned to circulate air downward. If airow is desired in the
opposite direction, turn your fan off and wait for the blades to stop
turning, then slide the reversing switch (XX) (located in switch cup)
to the opposite position, and turn the fan on again. The fan blades
will turn in the opposite direction and reverse airow.
A. Warm weather - (Forward) A downward airow creates a cooling
effect. This allows you to set your air conditioner on a warmer
setting without affecting your comfort.
B. Cool weather - (Reverse) An upward airow moves warm air off
of the ceiling. This allows you to set your heating unit on a cooler
setting without affecting your comfort.
NOTE: Wait for the fan to stop before reversing the direction of
blade rotation.
A. Warm weather
B. Cool weather
BB
G
I
DD
H
F
XX
XX

13 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Troubleshooting
Problem Solution
The fan will not start. □Check the main and branch circuit fuses or breakers.
□Check the line wire connections to the fan and switch wire connections in the switch housing.
The fan is noisy. □Ensure all motor housing screws are snug.
□Ensure the screws that attach the fan blade bracket to the motor hub are tight.
□Ensure the wire nut connections are not rattling against each other or the interior wall of the switch housing.
□Allow a 24-hour “breaking in” period. Most noises associated with a new fan disappear during this time.
□Ensure the canopy is a short distance from the ceiling. It should not touch the ceiling.
□Ensure your outlet box is secure and rubber isolator pads were used between the mounting plate and outlet box.
The fan wobbles. □Check that all blade and blade arm screws are secure.
□Most fan wobble problems are caused when blade levels are unequal. Check this level by selecting a point on
the ceiling above the tip of one of the blades. Measure from a point on the center of the blade to the point on the
ceiling. Rotate the fan until the next blade is positioned for measurement, and measure from the same point on
each blade to the ceiling. Repeat for each blade. Any measurement deviation should be within 1/8 in. Run the fan
for ten minutes. If the fan continues to wobble please contact Customer Service and a balancing kit will be sent
to you at no charge.
□Because of the fan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade
attachments twice a year. Make sure they are secure. It is not necessary to remove the fan from the ceiling.
□Clean your fan periodically to help maintain its new appearance over the years. Do not use water when cleaning, as this could damage
the motor, or the wood, or possibly cause an electrical shock. Use only a soft brush or lint-free cloth to avoid scratching the nish. The
plating is sealed with a lacquer to minimize discoloration or tarnishing.
□You can apply a light coat of furniture polish to the wood for additional protection and enhanced beauty. Cover small scratches with a
light application of shoe polish.
□You do not need to oil your fan. The motor has permanently-lubricated sealed ball bearings.
WARNING: Make sure the power is off before cleaning
your fan.
Care and Cleaning

Questions, problems, missing parts? Before returning to the store,
call Home Depot Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday.
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
Retain this manual for future use.
