USE AND CARE GUIDE
ROYALTY II 120 IN. CEILING FAN
Item #1006 971 678
1006 971 679
Model #AM590B-BN
AM590B-MBK
We appreciate the trust and condence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We
strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for
your home improvement needs. Thank you for choosing Home Decorators Collection!
THANK YOU
Visual instruction of how to install this fan:
Visit www.homedepot.com and enter either the Item or Model number to nd
this fan and click the link of visual instruction in the product overview section.
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m.- 6 p.m., EST, Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS

NOTE: Suitable for Industrial Use Only.
Table of Contents ..................................
Safety Information .................................
Warranty .........................................
Pre-installation ....................................
Installation .......................................
Assembly ........................................
Operation ........................................
Care and Cleaning .................................
Troubleshooting ...................................
2
Table of Contents
2
2
3
3
6
7
13
18
18
READ AND SAVE THESE INSTRUCTIONS
To reduce the risk of electric shock, ensure electricity has been
turned off at the circuit breaker or fuse box before beginning.
All wiring must be in accordance with the National Electrical
Code “ANSI/NFPA 70” and local electrical codes. Electrical
installation should be performed by a qualied licensed
electrician.
The outlet box and support structure must be securely mounted
and capable of reliably supporting a minimum of 50 lbs (22.7 kg)
or less. Use only UL-listed outlet boxes marked “FOR FAN
SUPPORT.”
The fan must be mounted with a minimum of 7 ft. (2.1m)
clearance from the trailing edge of the blades to the oor.
Avoid placing objects in the path of the blades.
To avoid personal injury or damage to the fan and other items,
be cautious when working around or cleaning the fan.
Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be
suitable for most cleaning.
After making electrical connections, spliced conductors should
be turned upward and pushed carefully up into the outlet box.
The wires should be spread apart with the grounded conductor
and the equipment-grounding conductor on one side of the
outlet box and ungrounded conductor on the other side of the
outlet box.
All setscrews must be checked and retightened where
necessary before installation.
Suitable for use with solid-state speed control (JY1153H only).
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
WARNING: To reduce the risk of electric shock, this fan
must be installed with an isolating wall control/switch.
WARNING: To reduce the risk of personal injury, do not bend
the blade arms (also referred to as anges), when installing
the brackets, balancing the blades or cleaning the fan.
WARNING: Do not insert foreign objects between rotating
fan blades.
WARNING: To reduce the risk of re, electric shock or
personal injury, mount the fan to the outlet box marked
acceptable for fan support with the screws provided with the
outlet box.
CAUTION: To reduce the risk of personal injury, use only
the screws provided with the outlet box.
The following responsible party designated in FCC §2.909 is
responsible for this declaration:
Model Number: AM590B-BN, AM590B-MBK
Company Name: TAL INTERNATIONAL CORPORATION
Company Address: 2919 E. Philadelphia St., Ontario, CA 91761, U.S.A.
Full Name: James Lai Title: Manager
Telephone Number: [phone] Fax: [phone]
Safety Information

Pre-Installation
The manufacturer warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the
factory for a period of lifetime after the date of purchase by the original purchaser. The manufacturer warrants the light kit (excluding any
glass), to be free from defects in workmanship and material present at time of shipment from the factory for a period of ve years after
the date of purchase by the original purchaser. The manufacturer also warrants that all other fan parts, excluding any glass or acrylic
blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the
date of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or
superior model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All
costs of removing and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper
installation or by afxing any accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not
cover any changes in brass nish, including rusting, pitting, corroding, tarnishing or peeling. Brass nishes of this type give the longest
useful life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a
defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. We hereby
disclaim any and all warranties, including but not limited to those of merchantability and tness for a particular purpose to the extent
permitted by law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as specied in the
express warranty. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to
you. The retailer shall not be liable for incidental, consequential, or special damages arising out of or in connection with product use or
performance except as may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential
damages, so the above exclusion or limitation may not apply to you. This warranty gives specic legal rights, and you may also have other
rights which vary from state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a
claim on the warranty must be paid by the customer.
Contact the Customer Service Team at 1-800-986-3460 or visit www.HOMEDEPOT.COM/HOMEDECORATORS
Warranty
Please contact 1-800-986-3460 for further assistance.
HOMEDEPOT.COM/HOMEDECORATORS3

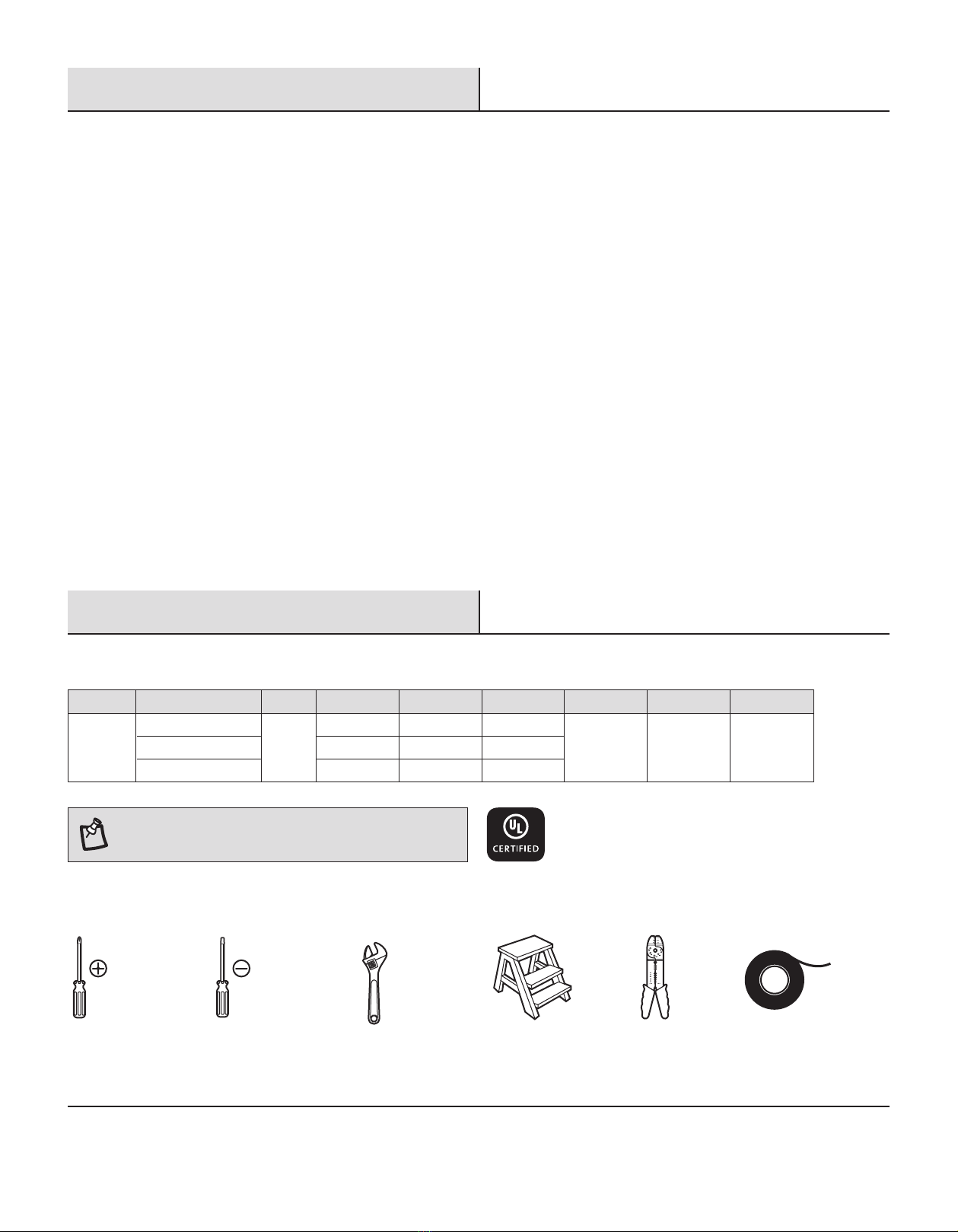

SPECIFICATIONS
TOOLS REQUIRED
NOTE: These are approximate measures. They do not
include amps and wattage used by the light kit.
Phillips
screwdriver
Flat blade
screwdriver
Step
ladder
Wire
stripper
Electrical
tape
Adjustable
wrench
19 kg
(41.8 lbs.)
26.38 kg
(58.16 lbs.) 7.31 cu. ft.
120 in.
Low (Speed 1)
Medium (Speed 5)
High (Speed 9)
120
Fan size Watts RPMSpeed Volts Amps N.W. G.W. C.F.
0.06
0.323
1.25
2.97
21.42
94.36
19
47
75

4
NOTE: Hardware not shown to actual size.

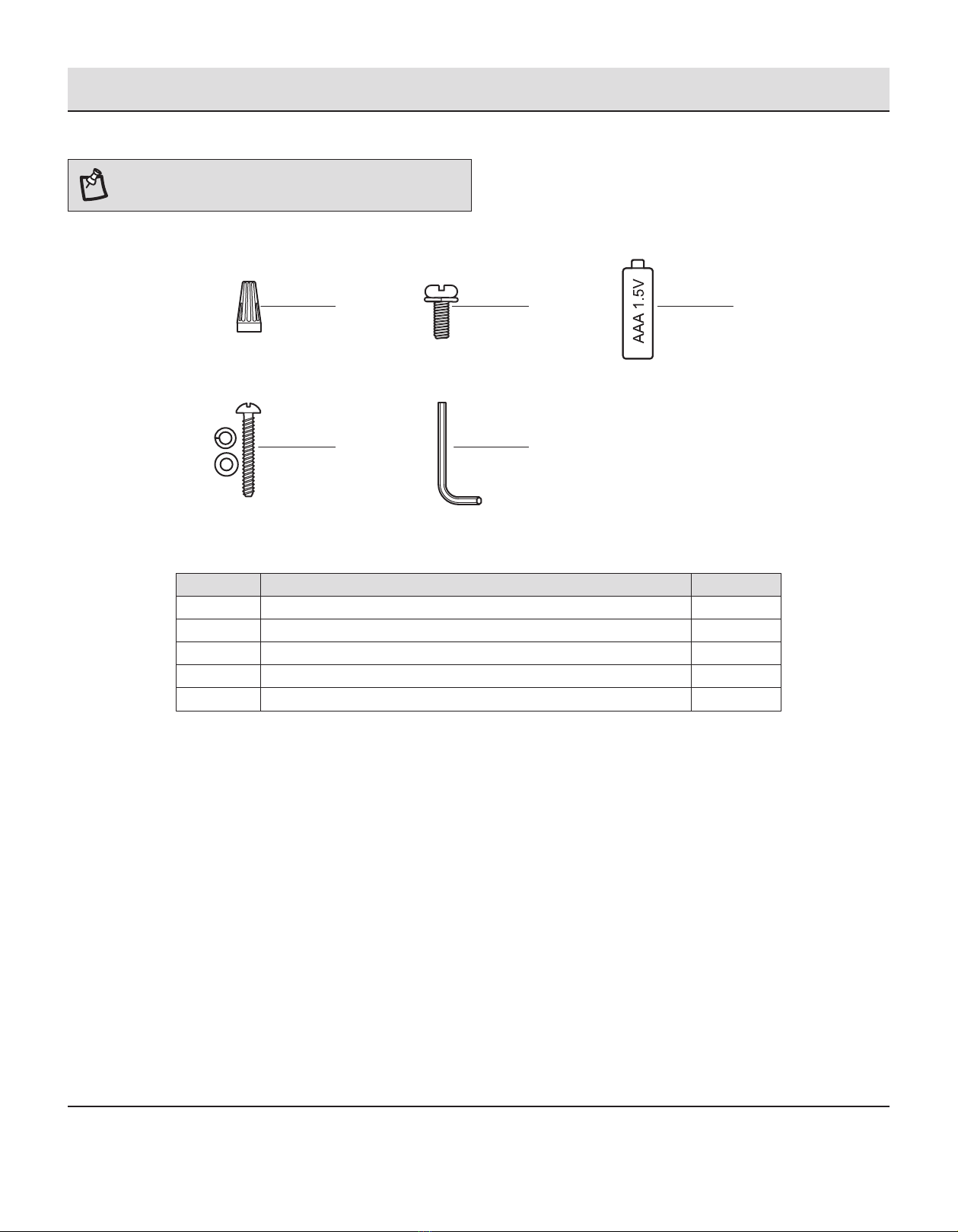

HARDWARE INCLUDED
Pre-Installation (continued)
AA
BB
CC
DD
EE
Plastic wire nut
Blade attachment screw with lock washer
1.5V AAA battery
Safety cable screw, lock washer and at washer
Hex wrench
Part Description
3
19
2
1
1
Quantity
AA
DD EE
BB CC

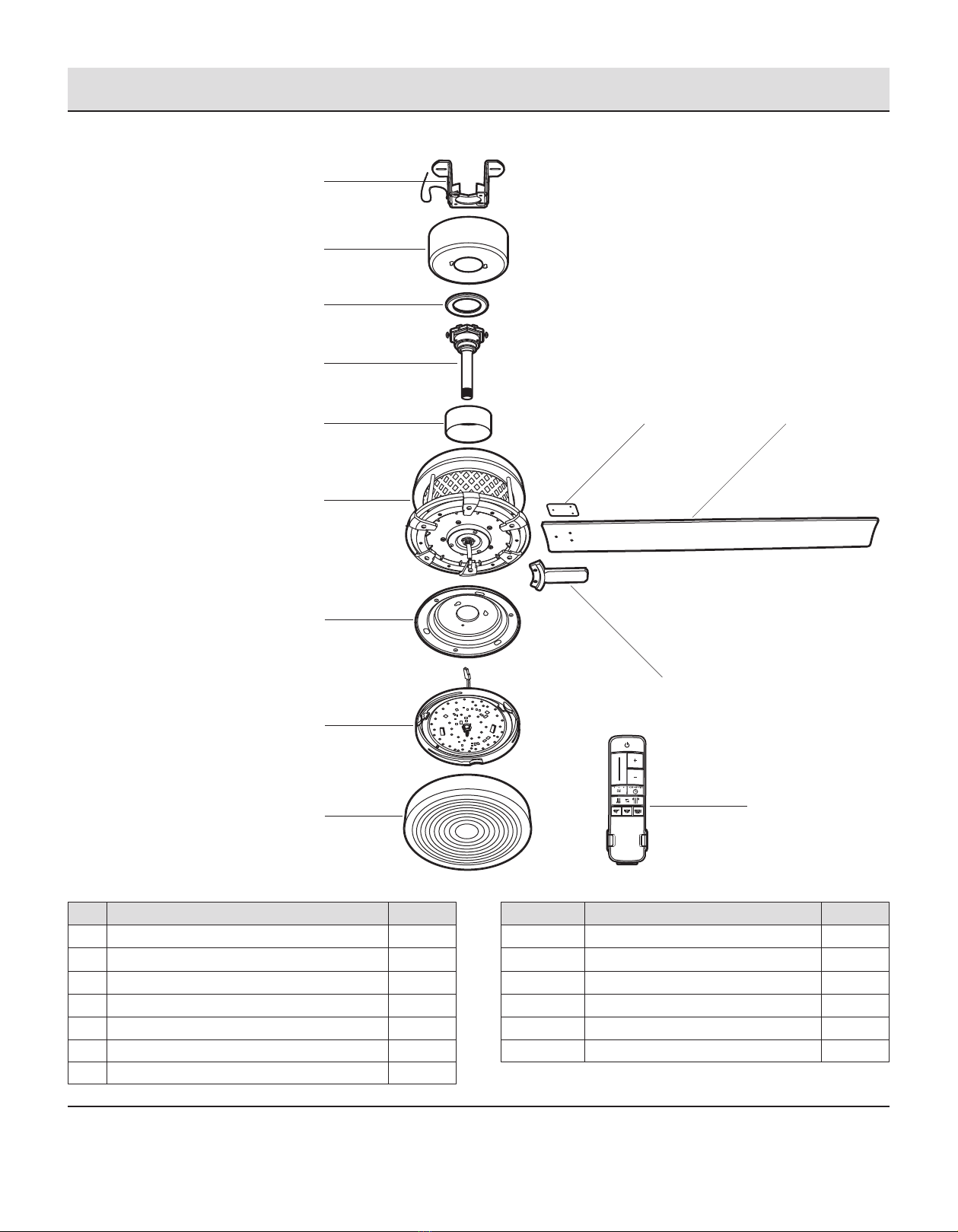

PACKAGE CONTENTS
Pre-Installation (continued)
Part
H
I
J
K
L
M
Description
Blade
Blade support plate
Light kit mounting plate
24 watt LED Light kit
Light cover
Remote control
Quantity
6
6
1
1
1
1
Part
A
B
C
D
E
F
G
Quantity
1
1
1
1
1
1
6
Description
Mounting bracket (preassembled)
Canopy
Canopy bottom cover (preassembled)
Hanger ball/downrod assembly
Coupling cover
Fan motor assembly
Blade arm
HI
J
K
L
F
M
G
C
D
E
B
A
Please contact 1-800-986-3460 for further assistance.
HOMEDEPOT.COM/HOMEDECORATORS5

6
If your ceiling fan does not have an existing UL-listed mounting
box, then install one using the following instructions:
Disconnect the power by removing the fuses or turning off
the circuit breakers.
Secure the outlet box (not included) directly to the building
structure. Use appropriate fasteners and materials (not
included). The outlet box and its bracing must be able to fully
support the weight of the moving fan (at least 50 lbs.). Do not
use a plastic outlet box.

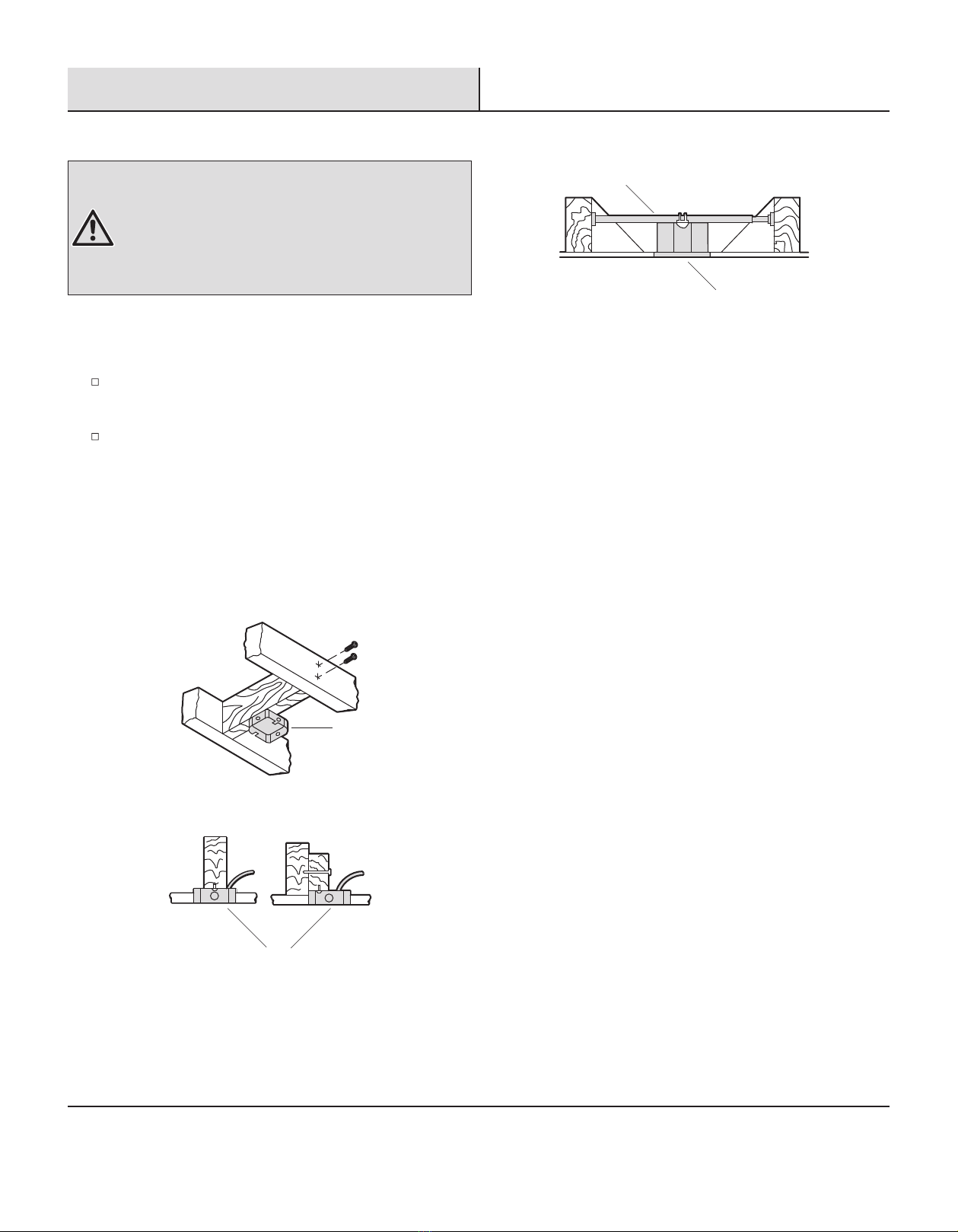

The illustrations below show two different ways to mount the
outlet box (not included).
To hang your fan where there is an existing xture but no ceiling
joist, you may need an installation hanger bar (not included) as
shown above.
Outlet Box
Outlet Box
Hanger Bar
Outlet Box
WARNING: To reduce the risk of re, electric shock, or
personal injury, mount the fan to an outlet box marked
acceptable for fan support using the screws provided with the
outlet box. An outlet box commonly used for the support of
lighting xtures may not be acceptable for fan support and
may need to be replaced. If in doubt, consult a qualied
electrician.
MOUNTING OPTIONS
Installation

Assembly
1Preparing the canopy
3Assembling the fan
WARNING: Failure to properly install the cotter pin (GG) could
result in the fan loosening and possibly falling.
NOTE: If a longer downrod (not included) is needed, take out
the screw located in the hanger ball (KK), lower the hanger ball
(KK) and remove the cross pin (LL). Remove all three pieces
from the downrod and assemble them onto the new longer
downrod before proceeding to the downrod installation.
Carefully feed the motor wires and safety cable (MM) up
through the downrod (NN). Thread the downrod (NN) into the
collar.
Align the holes and replace the clevis pin (HH) and cotter
pin (GG). Tighten the two collar setscrews (II).
Slip coupling cover (E), canopy bottom cover (C), and
canopy (B) onto the downrod (NN).
Carefully reinstall the hanger ball (KK) onto the downrod
(NN). Tighten the setscrews (JJ) by using the hex wrench
(EE) provided. Make sure the cross pin (LL) is in the correct
position, the setscrews (JJ) are tightened and wires are not
twisted.
Preparing the motor
2
Remove the cotter pin (GG) and clevis pin (HH), and loosen
the two collar setscrews (II) from the motor collar.
Loosen two setscrews (JJ) located in the hanger ball (KK) by
using the hex wrench (EE) provided. Lower the hanger ball
(KK) and remove the cross pin (LL). Remove the hanger ball
(KK) from the hanger ball/downrod assembly (D).
JJ
D
KK
GG
HH
II
II
Remove the canopy bottom cover (C) from the canopy (B) by
turning the canopy bottom cover (C) counterclockwise.
Remove the mounting bracket (A) from the canopy (B) by
removing the non-slotted canopy mounting screw (FF) from
the bottom of the canopy (B) and loosening the slotted
canopy mounting screw (FF) a half turn from the screw
head. Next, turn the canopy (B) counterclockwise to remove
the mounting bracket (A) from the canopy (B).
FF
A
B
C
FF
LL
EE
C
F
E
B
II
II
HH
GG
JJ JJ
LL
EE
NN
KK
MM
Please contact 1-800-986-3460 for further assistance.
HOMEDEPOT.COM/HOMEDECORATORS7
JJ

DD
MM
OO
OO
D
KK
A
F
8
Assembly — Hanging the Fan

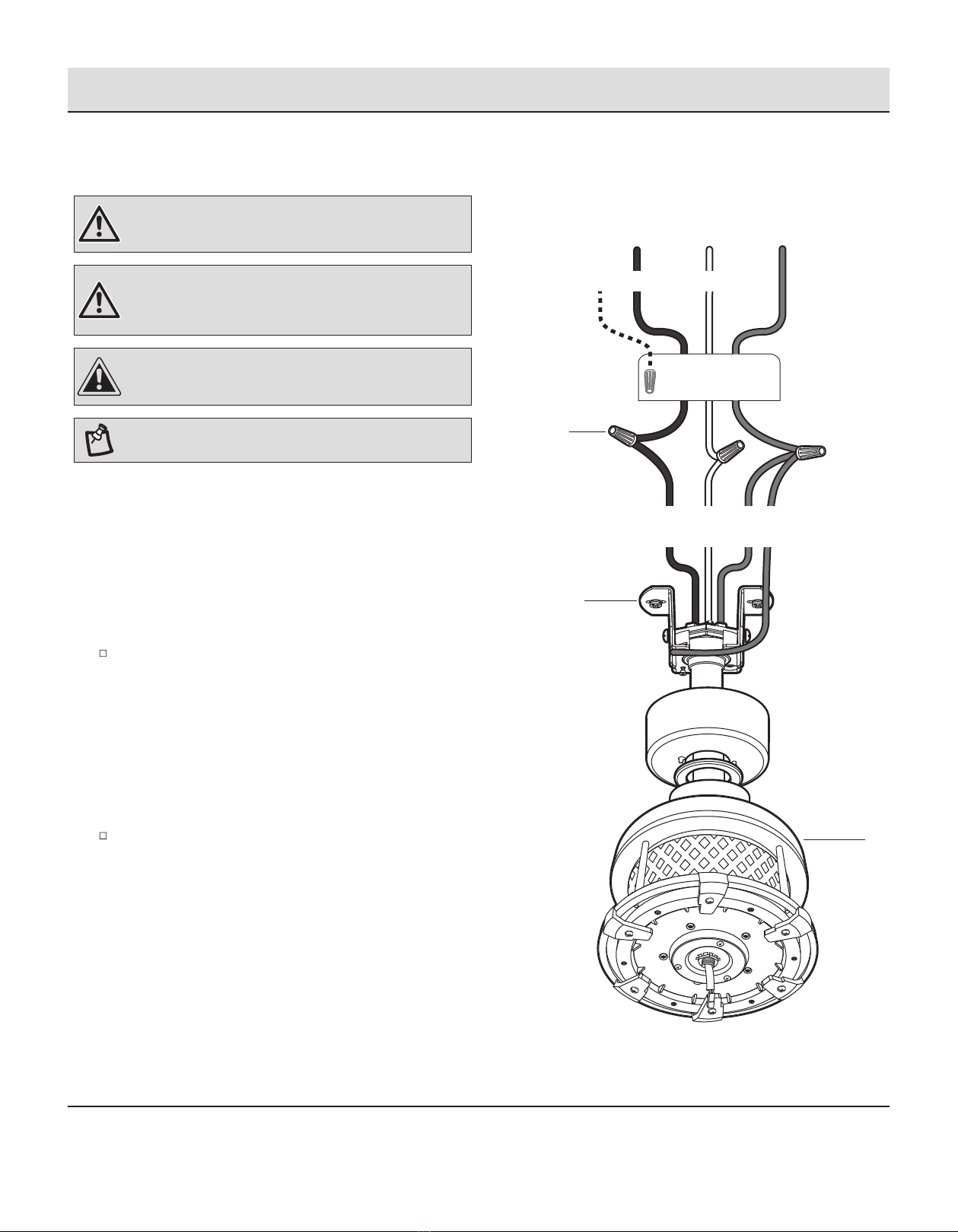

4 Installing the mounting bracket to the
electrical box
WARNING: To reduce the risk of re, electric shock or other
personal injury, mount the fan only to an outlet box or supporting
system marked acceptable for fan support and use the mounting
screws provided with the outlet box.
Pass the 120 volt supply wires through the center hole in
the mounting bracket (A).
Install the mounting bracket (A) to the outlet box with the
screws and washers provided with your outlet box.
Securely tighten the two mounting screws.
WARNING: The tab in the ring must rest in the groove of
the hanger ball/downrod assembly (D). Failure to properly seat
the tab in the groove could cause damage to the wiring.

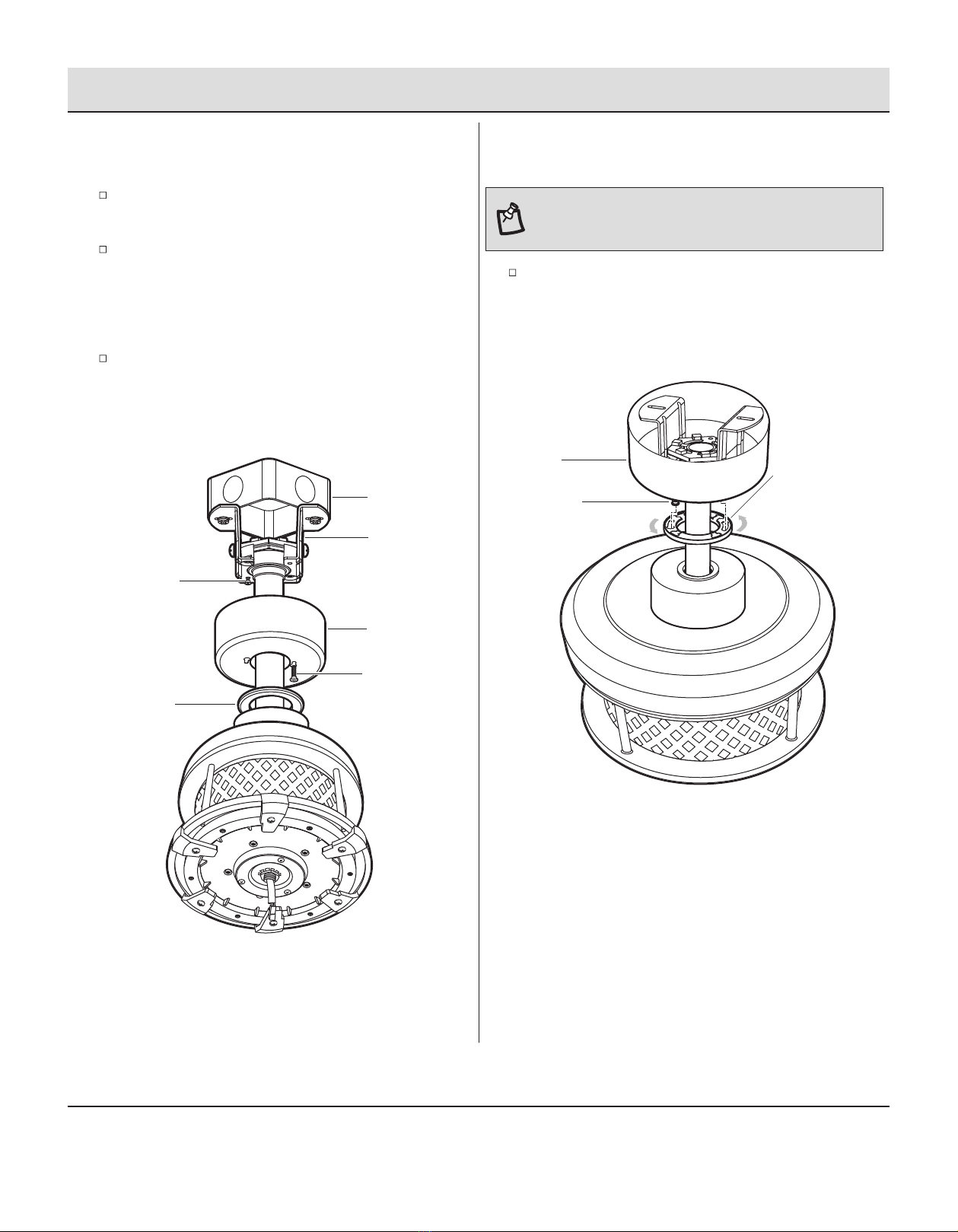

Hanging the fan to the mounting
bracket
5
Remove two screws (OO) from two upper sides of hanger
ball (KK).
Carefully lift the fan motor assembly (F) up to the mounting
bracket (A) and seat the hanger ball/downrod assembly (D)
in the mounting bracket (A) socket.
Securely tighten two screws (OO).
Secure the safety cable (MM) to the building structure that
independent to the outlet box using safety cable screw, lock
washer and at washer (DD) (included). The safety cable
should be in a stress-free state after installation.
A
Outlet Box

Assembly — Hanging the Fan (continued)
6Making the electrical connections
AA
NeutralHot
Black
Ground
conductor
White
A
WARNING: Check to see that all connections are tight,
including ground, and that no bare wire is visible at the wire
nuts (except for the ground wire).
WARNING: To avoid possible electrical shock, be sure
electricity is turned off at the main fuse box before wiring.
If you feel you do not have enough electrical wiring knowledge
or experience, have your fan installed by a licensed electrician.
Follow the steps below to connect the fan to your household
wiring. Use the plastic wire nuts (AA) with your fan. Secure
the plastic wire nuts (AA) with electrical tape. Make sure
there are no loose strands or connections.
Make wire connections as follows, using the wire nuts (AA).
From Fan To Outlet Box
Black Wire ------------------- Black Wire (Hot)
White Wire ------------------- White Wire (Neutral)
Green Wires* ---------------- Green or Bare Wire (Ground)
* There are two green grounding leads: one from the mounting
bracket (A) and one from the hanger ball/downrod assembly (D).
Turn the wire nut connections upward, spreading them
apart so the green (ground) and white wires will be on one
side of the outlet box and the black wire will be on the other
side. Carefully tuck the connections up into the outlet box.
NOTE: If there is a red wire coming out of the outlet box, be
sure to cap this wire with a wire nut.
CAUTION: To reduce the risk of electric shock, this fan
must be installed with an isolating wall control/switch.
Red
F
Outlet Box
Please contact 1-800-986-3460 for further assistance.
HOMEDEPOT.COM/HOMEDECORATORS9
Black
Green
White
Green

10
Assembly — Hanging the Fan (continued)
7 Installing the canopy
Make sure connections are neatly tucked into the ceiling
outlet box.
Slide the canopy (B) up to the mounting bracket (A) and
place the key hole on the canopy (B) over the loosened
canopy mounting screw (FF) on the mounting bracket (A).
Turn the canopy (B) clockwise until it locks in place at the
narrow section of the key holes.
Align the circular hole on the canopy (B) with the remaining
hole on the mounting bracket (A), secure the canopy
mounting screw (FF) previously removed in the hole, and
tighten the two canopy mounting screws (FF).
NOTE: Adjust the canopy mounting screws (FF) as
necessary until the canopy (B) and canopy bottom cover (C)
are snug.
Attaching the canopy bottom cover
8
Attach the canopy bottom cover (C) to the canopy mounting
screws (FF) heads on the bottom of the canopy (B) by
inserting the screw heads into the key slots in the canopy
bottom cover (C) and rotating it clockwise.
B
FF
C
Outlet Box
A
B
C
FF
FF

Assembly — Attaching the Fan Blades
H
G
IBB
Removing the rubber packing mounts
9 10 Attaching the blades to the blade
arms

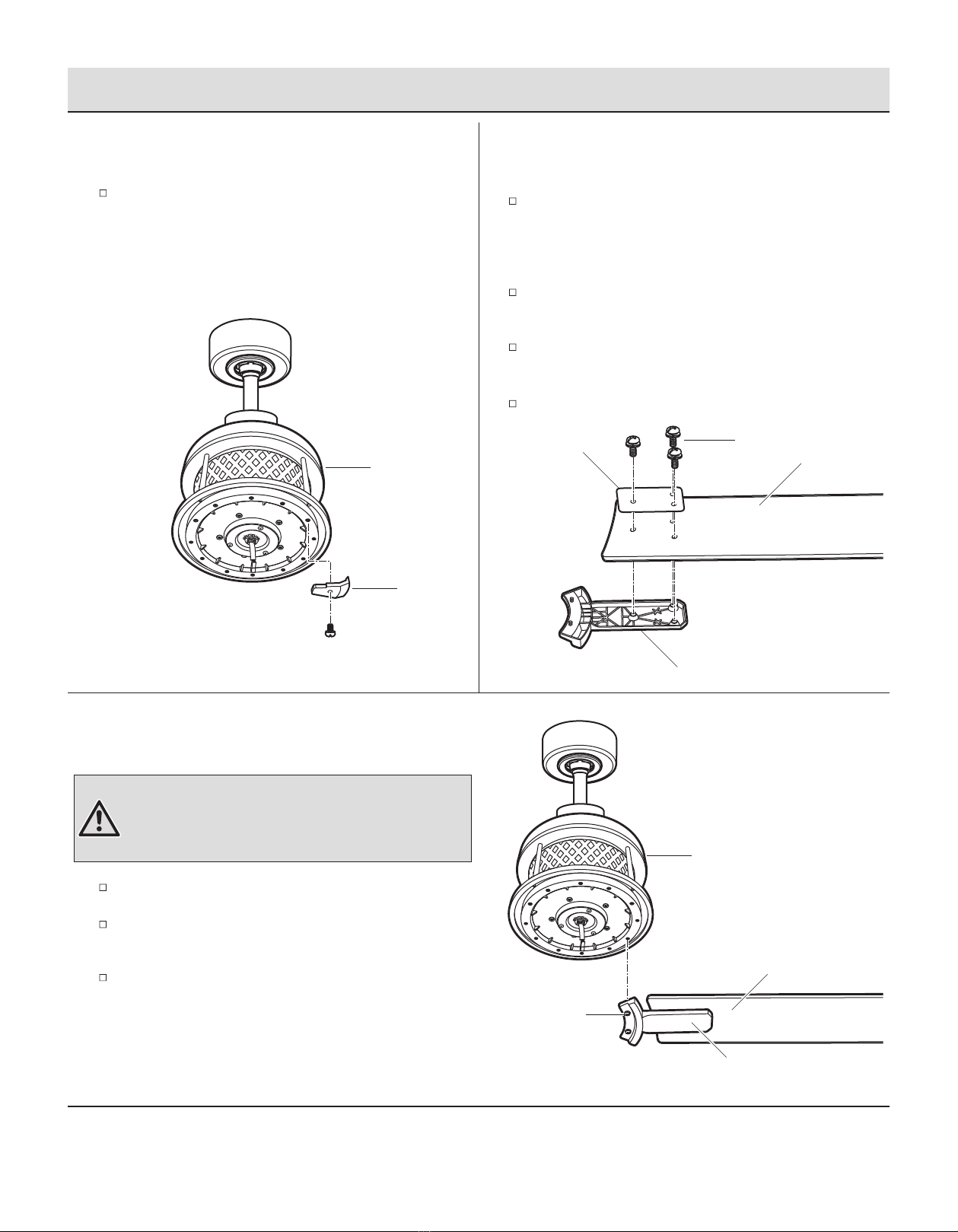

Attach the blades (H) to the blade arms (G) using the three
blade attachment screws with lock washers (BB) and blade
support plate (I). Start a screw with lock washer (BB) into the
blade arm (G), but do not tighten.
Repeat for the two remaining blade attachment screws with
lock washers (BB).
Tighten each screw securely starting with the center screw.
Make sure the blade (H) is straight.
Repeat these steps for the remaining blades (H).
The fan motor assembly (F) is shipped with rubber packing
mounts (PP) to prevent movement during transportation.
Remove the six rubber packing mounts (PP) from the fan
motor assembly (F) and discard prior to attaching the blade
arms (G).
Please contact 1-800-986-3460 for further assistance.
HOMEDEPOT.COM/HOMEDECORATORS11
G
H
F
F
PP
QQ
WARNING: To reduce the risk of personal injury, do not
bend the blade arms (G) while installing, balancing the blades
(H), or cleaning the fan. Do not insert foreign objects between
rotating fan blades (H).
Fasten the blade assemblies to the fan motor assembly (F).
Tighten the two blade arm screws with lock washers (QQ)
already installed in the blade arms (G).
Repeat this procedure for the remaining blade arms (G).
11 Fastening the blade assemblies to
the motor

12
K
TT
L
F
JUU
VV
12 Attaching the light kit mounting
plate to the mounting ring
Remove one of the three light kit mounting plate screws
(RR) from the mounting ring (SS) and loosen the other two
screws. (Do not remove.)
Place the key holes in the light kit mounting plate (J) over
the two screws (RR) previously loosened from the mounting
ring (SS). Turn the light kit mounting plate (J) until the light
kit mounting plate (J) locks in place at the narrow section of
the key holes.
Securely tighten the two light kit mounting plate screws (RR)
previously loosened and the one (RR) previously removed.
13 Attaching the LED light kit
and light cover
CAUTION: Before starting installation, disconnect the
power by turning off the circuit breaker or removing the fuse
at the fuse box. Turning power off using the fan switch is not
sufcient to prevent electric shock.
Remove one of the three light kit mounting screws (TT) from
the light kit mounting plate (J) and loosen the other two
screws (TT). (Do not remove.)
While holding the 24W LED light kit (K) under the fan motor
assembly (F), make the 2-pin wire connections:
- White to white - Blue to black
Place the key holes in the 24W LED light kit (K) over the two
mounting screws (TT) previously loosened from the light kit
mounting plate (J). Turn the 24W LED light kit (K) until the
24W LED light kit (K) locks in place at the narrow section of
the key holes. Secure by tightening the two light kit mounting
screws (TT) previously loosened and the one previously
removed.
Position the notches (UU) in the outer rim of the 24W LED
light kit (K) so they line up with the tabs (VV) on the inside of
the rim on the light cover (L). Carefully lift the light cover (L)
up inside the 24W LED light kit (K) and secure it to the fan
by turning the light cover (L) clockwise until snug. DO NOT
OVERTIGHTEN.
F
J
RR
SS
Assembly — Installing the Light Kit

Please contact 1-800-986-3460 for further assistance.
HOMEDEPOT.COM/HOMEDECORATORS13

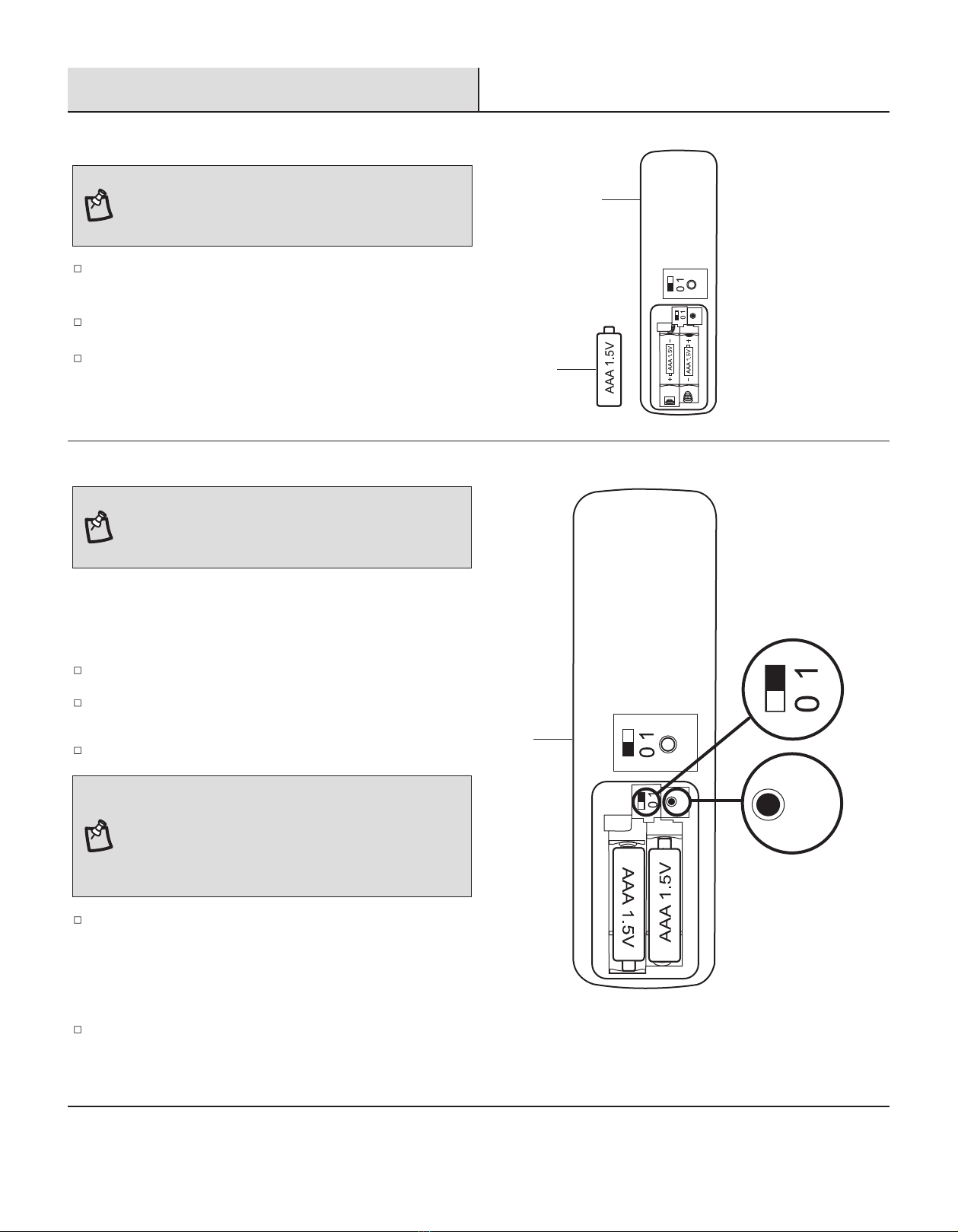

Remove the battery cover by pressing rmly on the arrow and
sliding the cover off.
Install two 1.5V AAA batteries (CC) (included).
Replace the battery cover on the remote control (M).
PREPARING THE TRANSMITTER
NOTE: Batteries will weaken with age and should be
replaced before leaking takes place as this will damage the
remote control. Dispose of used batteries properly and keep
them out of the reach of children.
CC
M
APRENDER
LEARN
The learning process causes any installed fan within range to
memorize a remote control. Fans can learn ve remotes.
To add a remote to your fan’s memory, use the steps below:
Ensure AC power to the fan is OFF to begin the learning process.
Slide the dip switch in the battery compartment to the "1"
position.
Turn the fan’s AC power ON.
Within 60 seconds of turning AC power on, press and release the
"LEARN" button located in the remote's battery compartment to
enter the learning function. Once the fan has detected the remote
controls's frequency, the down light of your fan, if applicable, will
blink, and the fan blades will start to spin.
The fan will now accept commands from the added remote.
LEARNING PROCESS
NOTE: If installing multiple fans on separate remotes, only
the fan being programmed should have AC power turned ON.
All other fans, even if they have already been programmed,
should have AC power OFF so they do not memorize other
remotes during the learning process. Separate the fan power
switches by approximately 2 meters.
NOTE: The dip switch in the battery compartment has been
set on “0” position and paired for your convenience. If you
have two or more fans, please follow steps below to control
each fan independently.
M
APRENDER
LEARN
LEARN
Operation

14
To clear all other remotes from your fan’s memory, use the steps
below:
Ensure AC power to the fan is OFF to begin the learning process.
Slide the dip switch in the battery compartment to the "0" position.
Turn the fan’s AC power ON.
Within 60 seconds of turning AC power ON, press and release the
“LEARN” button located in the remote’s battery compartment,
and your fan will restore to the original setting and dismiss the
other remotes. M
APRENDER
LEARN
LEARN
Warm weather
(Forward)
Dimmer
Comfort BreezeTM
LED bar
Scale indicating
fan speed
Timer
Power on/off
Light on/off
Cool weather
(Reverse)
Fan on and decreases fan speed*
Fan on and increases fan speed*
Correlated Color Temperature
(CCT) changing
* The “+” and “-“ buttons could activate the fan
and light when the fan and light are both off.
Operation (continued)

Please contact 1-800-986-3460 for further assistance.
HOMEDEPOT.COM/HOMEDECORATORS15

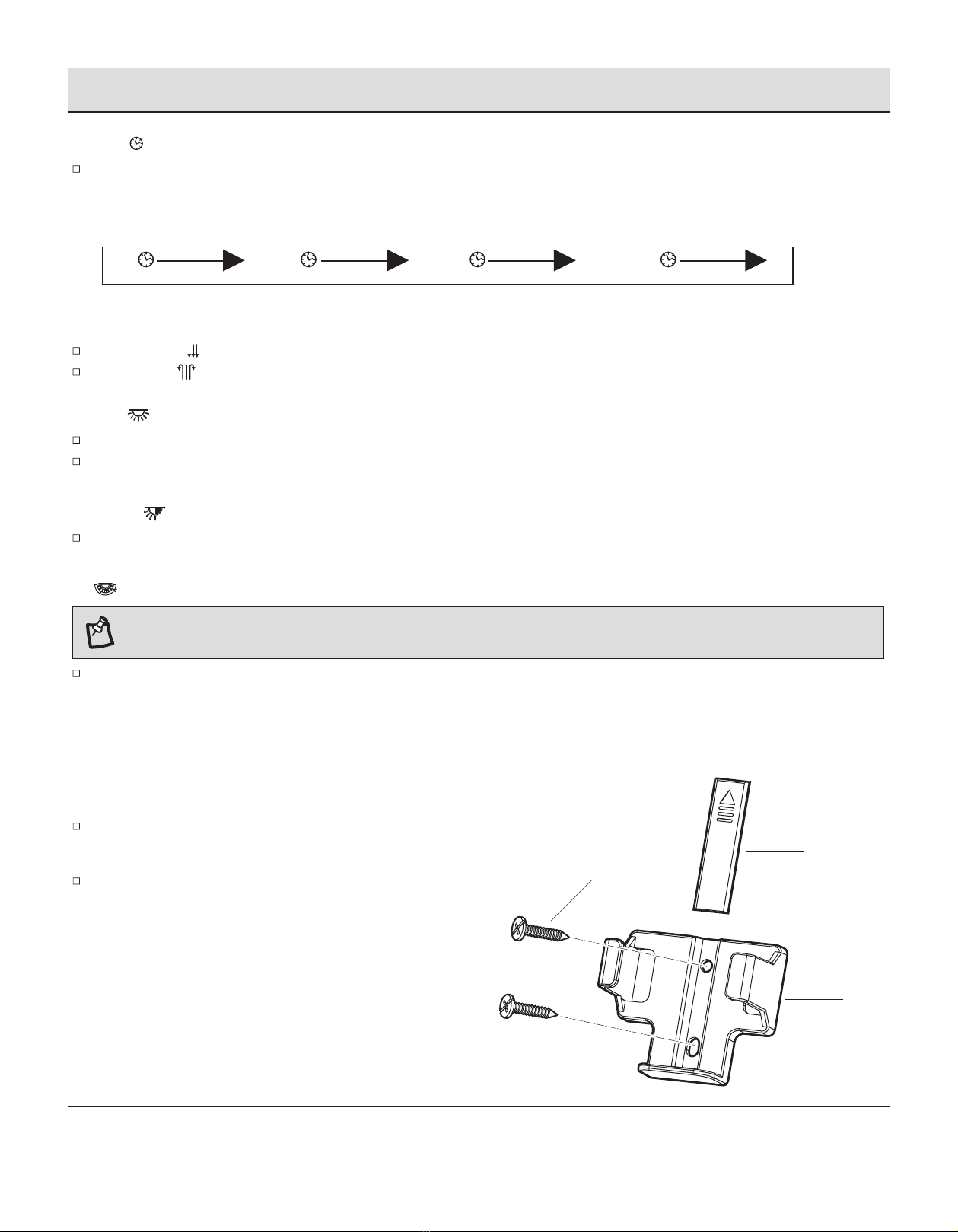

1. Fan button. - Press and release the button to turn the fan on or off.
When turned on, the fan will begin spinning using its last speed settings. The remote control’s LED bar will display the speed setting
for 5 seconds.
When turned off, the fan will stop spinning and the light from the remote control’s LED bar will quickly darken from top to bottom.
Off Setting 1 Setting 2 Setting 3 Disable ComfortBreezeTM
OPERATING YOUR FAN AND REMOTE CONTROL
2. Speed functions
+button, increases the fan speed
Pressing and releasing the + button one time will increase the speed of the fan. Each setting increase will cause the LED bar to
illuminate slightly more, until the fan has reached the maximum speed setting, at that time the LED bar will be fully illuminated.
Pressing and holding the + button will increase the fan speed automatically through the speed settings and the increments will be
denoted on the LED bar. When the LED bar is fully illuminated, the fan has reached maximum speed setting.
Pressing the + button while in Comfort BreezeTM mode will automatically cancel the Comfort BreezeTM mode and resume normal fan
operation.
–button, decreases fan speed
Pressing and releasing the - button one time will decrease the speed of the fan. Each setting decrease will cause the LED bar to dim
slightly more, until the fan has reached the minimum speed setting. At that time the LED bar will be approximately 25% illuminated.
Pressing and holding the - button will decrease the fan speed automatically through the speed settings and the reductions will be
denoted on the LED bar. When the LED bar is 25% illuminated, the fan has reached the minimum speed setting.
Pressing the - button while in Comfort BreezeTM mode will automatically cancel the Comfort BreezeTM mode and resume normal fan
operation.
3. Comfort BreezeTM
There are three Comfort BreezeTM settings. Pressing the button will activate the Comfort BreezeTM mode and the LED bar will illuminate
slowly from bottom to top to display the current setting.
Setting 1: Alternates through speeds 1 – 3, the LED bar should ll approximately 33%.
Setting 2: Alternates through speeds 4 – 6, the LED bar should ll approximately 66%.
Setting 3: Alternates through speeds 7 – 9, the LED bar should be fully illuminated.
NOTE: The fan will store the last used speed setting for the next time it is turned on.
NOTE: You must turn the fan on prior to using the speed or time functions.
NOTE: On each start up of your ceiling fan, the fan blades will oscillate back and forth. This is a NORMAL OPERATION for DC motor ceiling
fans as they go through a calibration cycle. The fan is NOT DEFECTIVE.
NOTE: If you are using Comfort BreezeTM mode, pressing the button or the fan speed buttons will cancel Comfort BreezeTM mode and
resume normal fan operation.
Operation (continued)

16
4. Timer
Pressing the timer buttons will automatically turn fan and light (if light is on) off after 2, 4, or 8 hours. When you activate the timer
mode, the LED to the left of the time above the clock will illuminate.
Off 2H4H 8H Disables timer
6. Light
Press and release the light button to turn the light on or off.
Light on: The fan memory function will resume the light setting (on or off and dim) on the fan prior to the power being turned off.
7. Dimmer
Press and hold to adjust the brightness of the light to the desired light level.
Push and release the button to cycle through the three color temperature options.
Option 1: 3000K (Soft White).
Option 2: 4000K (Bright White).
Option 3: 5000K (Daylight).
8. Correlated Color Temperature (CCT) changing
5. Fan reverse button (Must be pushed when the fan is in operation)
Warm weather: LED bar will illuminate and the lights will ow from high to low.
Cool weather: LED bar will illuminate and the lights will ow from low to high.
INSTALLING THE REMOTE CONTROL HOLDER
Attach the remote control holder (WW) with the two remote
control holder mounting screws (XX).
Replace the remote control holder cover (YY) into the remote
control holder (WW).
XX
YY
WW
NOTE: The default temperature of the ceiling fan light is 3000K (Soft White).
Operation (continued)

Please contact 1-800-986-3460 for further assistance.
HOMEDEPOT.COM/HOMEDECORATORS17
WARM/COOL WEATHER OPERATING
INSTRUCTIONS
Speed settings for warm or cool weather depend on factors such as
the room size, ceiling height, and numbers of fans.
Warm weather - (Counterclockwise Direction) A downward air ow
creates a cooling effect. This allows you to set your air conditioner
on a warmer setting without affecting your comfort.
Cool weather - (Clockwise Direction) An upward air ow moves
warm air off the ceiling. This allows you to set your heating unit on
a cooler setting without affecting your comfort.
NOTE: The fan reverse buttons must be pressed while the
fan is running.
Operation (continued)

18
Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. Because of the fan’s natural
movement, some connections may become loose over time. It is not necessary to remove the fan from the ceiling.
Clean your fan periodically. Use only a soft brush or lint-free cloth to avoid scratching the nish. The plating is sealed with a lacquer to
minimize discoloration or tarnishing.
(Optional) Apply a light coat of furniture polish to the wood blades.
(Optional) Cover small scratches with a light application of shoe polish.
Do
Use water when cleaning. Water could damage the motor, or the wood, or possibly cause an electrical shock.
Apply oil to your fan or motor. The motor has permanently-lubricated sealed ball bearings.
Do not
Care and Cleaning
Troubleshooting
Do not connect the fan with wall mounted variable speed control(s).
Make sure the frequency switches are set correctly.
Reset the transmitter by going through the transmitter “LEARNING PROCESS”.
This is normal start-up procedure for DC motor fans. The partial movement during start-up is the result
of the DC motor aligning the internal magnetic poles for proper motor operation. This design saves
electricity and allows the fan to operate much quieter than standard AC motor fans.
The fan wobbles.
Fan moves backwards and
forwards when turned on.
The remote control is
not working.
Problem Solution
Check the main and branch circuit fuses or breakers.
Check the line wire connections to the fan and switch wire connections in the switch housing.
Check to make sure the frequency switches from the remote control and receiver are set to the same
frequency.
Reset the transmitter by going through the transmitter “LEARNING PROCESS”.
Make sure all motor housing screws are snug.
Make sure the screws that attach the fan blade to the motor hub are tight.
Make sure the wire nut connections are not rattling against each other or the interior wall of the switch
housing.
Allow a 24-hour "breaking-in" period. Most noises associated with a new fan disappear during this time.
If using the ceiling light kit, make sure the glassware is secured tightly.
Make sure there is a short distance from the ceiling to the canopy. It should not touch the ceiling.
Make sure your ceiling box is secure and that rubber isolator pads are used between the mounting
bracket and outlet box.
The fan will not start.
The fan sounds noisy.
Verify that all blades and blade bracket screws are secure (most fan wobble problems are caused by
loose parts). Once the fan is properly installed, run the ceiling fan for 10 minutes to let the fan self-adjust.
If wobble occurs after running the fan for 10 minutes, verify blade level using the following process:
- Select a point on the ceiling above the tip of one of the blades, then select any fan blade and measure
from the center of the selected blade to the point on the ceiling. Rotate the fan until the next blade is
positioned and repeat the measurement using the same point from the ceiling for every blade.
Measurement deviations should be within 1/8 in.
- If all deviations are less than 1/8 in. and the fan continues to wobble, please call Customer Service
(1-800-986-3460) to order a complimentary Blade Balancing Kit.
- If deviation is greater than 1/8 in. , please call Customer Service (1-800-986-3460) to order complimentary
replacements of your brackets.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
WARNING: Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m.- 6 p.m., EST, Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
Retain this manual for future use.
