Home Decorators Collection ST. CHARLES FZA71015R-STS User manual

USE AND CARE GUIDE
ST. CHARLES 5PC ALUM FIRE CHAT SET - FIRE TABLE
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service.
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this We strive to continually
Thank you for choosing Home Decorators Collection!
create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Item # 1006 527 196
Model #FZA71015R-STS
Factory fire table ID # FHTM80223

WARNING
FOR YOUR SAFETY:
For Outdoor Use Only (outside, non-enclosed
area). Do Not Use For Cooking.
Installation and service must be performed by
a qualified installer, service agency, or the gas
supplier.
WARNING
FOR YOUR SAFETY:
1. Do NOT store or use gasoline or other
flammable vapors or liquids in the vicinity of
this or any other appliance.
2. An LP-cylinder not connected for use shall
not be stored in the vicinity of this or any
other appliance.
DANGER
Do NOT leave this appliance unattended while
it is in operation.
WARNING
FOR YOUR SAFETY:
Improper installation, adjustment,
alteration, service or maintenance can
cause injury or property damage.
Read the installation, operation and
maintenance instructions thoroughly before
installing or servicing this equipment.
CARBON MONOXIDE HAZARD
er,
tent, car or home.
DANGER
DANGER
If you smell gas:
1. Shut off gas to appliance.
2.
ny open flame.
3. If odor continues, leave the area
immediately.
4. After leaving the area, call your gas
supplier or fire department.
Failure to follow these instructions could result
in fire or e , which could cause property
damage, personal injury, or death.
WARNING
FOR YOUR SAFETY:
If the information in this manual is not
followed e y, a fire or e
result causing property damage, personal
injury or loss of life.
WHAT TO DO IF YOU SMELL GAS:
NOT try lighting any appliance.
Do NOT touch any electrical switch; do
NOT use any phone in your building.
Immediately call your gas supplier from a
neighbor’s phone.
’s instructions.
If you cannot reach your gas supplier, call
the fire department.
Installation and service must be performed
by a qualified installer, service agency or
gas supplier.
INSTALLER: Leave this manual with the
appliance. CONSUMER: Retain this manual
for future reference.
If you are assembling this unit for someone
else, give this manual to him or her to read
and save for future reference .
ATTACH YOUR RECEIPT HERE
Serial Number Purchase Date
WARNING: FUELS USED IN LIQUEFIED PROPANE GAS APPLIANCES, AND THE PRODUCTS OF
COMBUSTION OF SUCHFUELS, CAN EXPOSE YOU TO CHEMICALS INCLUDING BENZENE, WHICH IS
KNOWN TO THE STATE OF CALIFORNIA TO CAUSECANCER AND CAUSE BIRTH DEFECTS OR OTHER
REPRODCTIVE HARM.
For more information go to: www.p65warnings.ca.gov.
ADVERTENCIA: COMBUSTIBLES UTILIZADOS EN ELECTRODOMÉSTICOS DE GAS PROPANO LICUADOS,
Y LOS PRODUCTOS DE COMBUSTIÓN DE TALESLOS COMBUSTIBLES, PUEDEN EXPONER A LOS
PRODUCTOS QUÍMICOS, INCLUYENDO EL BENCENO, QUE SE CONOCEN AL ESTADO DE CALIFORNIA
PARA CAUSARCÁNCER Y CAUSAR DEFECTOS DE NACIMIENTO U OTRA DAÑA REPRODCTIVA.
Para obtener más información, visite: www.p65warnings.ca.gov.
California Proposition 65: This product can expose you to carbon monoxide, which is a combustion by product known to the
State of California to cause cancer birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov.
California Proposition 65: Handling the brass material on this product can expose you to Lead, which is known to the State of
California to cause cancer and birth defects or other reproductive harm.
Wash hands after handling. For more information go to www.P65Warnings.ca.gov.
This appliance complies with “ANSI Z21.97-2017-/CSA 2.41-2017, Outdoor Decorative Gas Appliances.”
Table of Contents
Important Safety Information. . . . . . . . . . . . . . . . . . . . .2
Table of Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Propane (LP) Dangers and Warnings. . . . . . . . . . . . . .5
Hose & Regulator Assembly and Replacement. . . . . .6
Glass Beads Warning . . . . . . . . . . . . . . . . . . . . . . . .6
Planning Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . .7
Hardware Included. . . . . . . . . . . . . . . . . . . . . . . . . . .8
Package Contents. . . . . . . . . . . . . . . . . . . . .. . . . . . . 9
Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . 10
Pre-Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Care and Maintenance. . . . . . . . . . . . . . . . . . . . . . .20
Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Table of Contents
2
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
FIRE OR EXPLOSION HAZARD
c

3
WARNING: Fire table is for outdoor use only.
Important Safety Information
IMPORTANT NOTICE
Read and understand all warnings and precautions prior to assembly and use of your gas fire table. Improper installation, adjustment,
alteration, service or maintenance can cause injury or property damage.
The installation of this unit must adhere to local codes or either the National Fuel Gas Code, ANSI Z223. 1/NFPA54 or CAN/CGA-B149.1
Natural Gas and Propane Installation Code.
Minimum Clearance from Unit to Combustible Materials:
61 ft. (155.4 cm) from the top; 48 ft. (121.9 cm) from all sides and back. Do not locate this fire table under any overhead enclosure.
IF YOU SMELL GAS
Shut off gas supply to the fire table.
Extinguish any open flame.
Do not try lighting any appliance.
Do not touch any electrical switch; do not use any phone in your building.
Immediately call your gas supplier from a neighbor's phone.
Follow the gas supplier’s instructions.
If you cannot reach your gas supplier, call the fire department.
Keep these instructions for future reference. If you are assembling this unit for someone else, give this manual to him or her to read
and keep for future reference.
This gas fire table must be used ONLY outdoors in a well-ventilated space and shall NOT be used inside a building, garage, or
any other enclosed area.
DO NOT use this outdoor gas fire table for indoor heating. TOXIC carbon monoxide fumes can accumulate and cause asphyxiation.
NEVER LEAVE this gas fire table unattended when in use.
This unit is to be used with propane gas only! (sold separately)
Do not attach a remote gas supply to this unit.
Only use propane gas for this unit.
Converting this unit to natural gas is dangerous. This conversion kit shall be installed by a qualified service agency in accordance with
the manufacturer's instructions and all applicable codes and requirements of the Authority having jurisdiction. The maximum inlet natural
gas pressure for this outdoor fire table is 10 1/2 in. wc; the minimum inlet natural gas for this outdoor fire table is 3 1/2 in. wc
Do not use a flame to check for gas leaks.
Do not store or use gasoline or other flammable vapors and liquids within 25 ft. (7.62 m) of this or any other appliance.
Do not store any combustible materials in the base enclosure.
Children and adults should be alerted to the hazards of high surface temperatures and should stay away to avoid burns or clothing
ignition. Young children should be carefully supervised when they are in the area of the appliance. Clothing or other flammable
materialsshould not be hung from the appliance or placed on or near the appliance. Any guard, barrier, or other protective device
removed for servicing the appliance shall be replaced prior to operating the appliance.
Installation and repair should be done by a qualified service person. The appliance should be inspected before use and at least annually
by a qualified service person. More frequent cleaning may be required as necessary. It is imperative that the control compartment,
burners and circulating air passageways of the appliance are kept clean.
WARNING: Failure to follow the dangers, warning and cautions in this manual may result in serious bodily injury or death,
or in a fire or an explosion causing damage to property.
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance

The use of alcohol, prescription or non-prescription drugs may impair an individual’s ability to properly assemble or
safely operate this outdoor fire table.
DO NOT use this outdoor fire table under any overhead structure or near any unprotected combustible constructions.
DO NOT use in an explosive atmosphere. Keep gas fire table area clear and free from combustible materials, such as gasoline.
This outdoor fire table is not to be installed or used in or on recreational vehicles and/or boats.
Always use in accordance with all applicable local, provincial and national codes. Contact your local fire department for
details on outdoor burning.
Use the same precautions you would with any open fire when using this outdoor fire table.
DO NOT burn solid fuels such as: wood, charcoal briquettes, lump charcoal, manufactured logs, driftwood, trash, leaves, paper,
cardboard, plywood, or painted, stained or pressure-treated wood in this outdoor fire table.
DO NOT paint or color any part of this heating unit.
DO NOT use this outdoor fire table until it is COMPLETELY assembled and all parts are securely fastened and tightened.
DO NOT store another LP gas tank within 10 ft. (3.05 m) of this outdoor fire table while it is in operation.
DO NOT use this outdoor fire table near automobiles, trucks, vans or recreational vehicles.
Avoid using near or under overhanging trees and shrubs.
Always use this outdoor fire table on a hard, level, non-combustible surface such as concrete, rock or stone. An asphalt or
blacktop surface may not be acceptable for this purpose.
DO NOT use this appliance if any part has been under water. Immediately call a qualified service technician to inspect the
appliance and to replace any part of the control system and any gas control that has been under water.
DO NOT set the protective cover over the unit until it is turned off and completely cooled down.
DO NOT use in windy conditions.
Keep all electrical cords away from a hot outdoor fire table.
Certain areas of this outdoor fire table when in use will become too hot to touch. Do not touch hot surfaces until the unit has
cooled unless you are wearing protective gear such as insulated pot holders or heat-resistant gloves or mittens to avoid burns.
DO NOT attempt to move or store this outdoor fire table until all parts are cool.
DO NOT lean over this outdoor fire table when lighting or when in use.
Use only the regulator and hose assembly provided. The replacement regulator and hose assembly shall be that specified
by the manufacturer.
DO NOT attempt to disconnect the gas regulator from the tank or any gas fitting while the outdoor fire table is in use.
Always shut off the supply at the tank valve and disconnect regulator from the tank when the fire table is not in use.
DO NOT sit on the fire table when the unit is in operation.
DO NOT throw anything onto the fire when the unit is in operation.
Glass beads are very hot; please keep children and pets at a safe distance.
It is essential to keep the outdoor fire table valve compartment, burners, and circulating air passages clean. Inspect outdoor
fire table before each use.
Check for leaks after not using the unit for long periods of time.
Prior to each fire table operation, check the hose for evidence of excessive abrasion or wear by looking through the visual check
hole. If the hose is damaged, cracked or cut, it must be replaced before using the gas fire table. The hose assembly can only be
replaced with a hose assembly specified by the manufacturer. Please call the service center at 1-800-986-3460.
Before each use, remove the glass beads. Examine the burner and its components. If dirty, clean with a soft brush and soapy water
solution. Also examine the area around the burner. Any dirt or foreign material, such as spider webs or nests in this area, should be
removed. If it is evident that the burner is damaged, the fire table must not be used. The burner assembly cannot be replaced. Please
contact the service center at 1-800-986-3460 for technical support.
Place the hose out of the pathways where people may trip over it (if using external tank). Do not place the hose in areas where it
may be subjected to accidental damage.
Important Safety Information (continued)
4

Important Safety Information (continued)
PROPANE (LP) DANGERS AND WARNINGS
ATTENTION: Any alteration of the outdoor fire table that is not specifically directed in the operations manual will void manufacturer warranty.
LP GAS
LP gas is flammable and hazardous if handled improperly. Familiarize yourself with its hazards before using any LP gas product.
PROPANE HAZARDS
Flammable, explosive under pressure, heavier than air and settles in pools in low areas.
In its natural state, propane has no odor. For your safety, an odorant has been added.
Contact with propane could burn your skin.
Propane is extremely flammable and hazardous if handled improperly.
LP GAS WARNINGS
Cylinders must be stored outdoors in a well-ventilated area out of reach of children.
Disconnected cylinders must have threaded valve plugs tightly installed and must not be stored in a building, garage or
any other enclosed area.
Never use a propane cylinder with a damaged body, valve, collar or footing.
Dented or rusted propane cylinders may be hazardous and should be checked by your propane gas supplier.
Be sure to use only one 20 lb (9.1 kg) LP gas cylinder with a Type 1 valve with this appliance as required by the American
National Standards Institute (ANSI) and the Canadian Standards Steering Committee.
Only tanks marked “propane” may be used.
The installation of this unit must adhere to local codes or either the National Fuel Gas Code, ANSI Z223. 1/NFPA54, or
CAN/CGA-B149.1, Natural Gas and Propane Installation Code.
LP gas tank must be arranged for vapor withdrawal.
The LP gas tank must have a listed overfilling prevention device (OPD) and a QCCI Type I (CGA810) LP gas tank connection.
The LP gas tank must have a tank collar to protect the tank valve.
Never use an LP gas tank with a damaged body, valve, collar, or footing. Dented or rusted LP gas tanks may be hazardous.
The LP gas tank should not be dropped or handled roughly.
Tanks must be stored outdoors out of the reach of children. Do NOT store in a building, garage, or any other enclosed area.
Never store your LP gas tank where temperatures can reach over 125°F (52°C).
Do not store the LP gas cylinder in direct sunlight or near a source of heat or combustion.
Never keep a filled LP gas tank in a hot car or car trunk. Heat will cause the gas pressure to increase, which may open the
relief valve and allow gas to escape.
Place dust cap on valve outlet whenever the LP gas tank is not in use. Only install the recommended type of dust cap on the
LP gas tank and the LP gas tank valve. Other types of caps or plugs may result in leakage of propane.
a. Do not store a spare LP gas cylinder under or near this appliance.
b. Never fill the LP gas cylinder beyond 80% full.
c. If the information in (a) and (b) is not followed exactly, a fire causing death or serious injury may occur.
LP gas cylinders should be filled only by a certified LP gas dealer.
The pressure regulator is set for 11 in. wc (2.74 kPa).
The maximum inlet propane gas pressure for this outdoor fire table is 250 PSI; the minimun inlet propane gas pressure for this
outdoor fire table is 25 PSI.
Never attempt to attach this appliance to the self-contained LP gas system of a camper trailer, motor home or house.
Always use the pressure regulator and hose assembly provided with the appliance to connect to a LP gas cylinder. Never connect
to an unregulated LP gas supply. For technical support contact the service center at 1-800-986-3460.
Hand turn the manual gas control valve. Never use tools. If the valve will not turn by hand, do not try to repair it. Call a certified
gas technician. The use of force or any self-attempted repair may result in a fire or explosion.
When Connecting Your Gas Cylinder

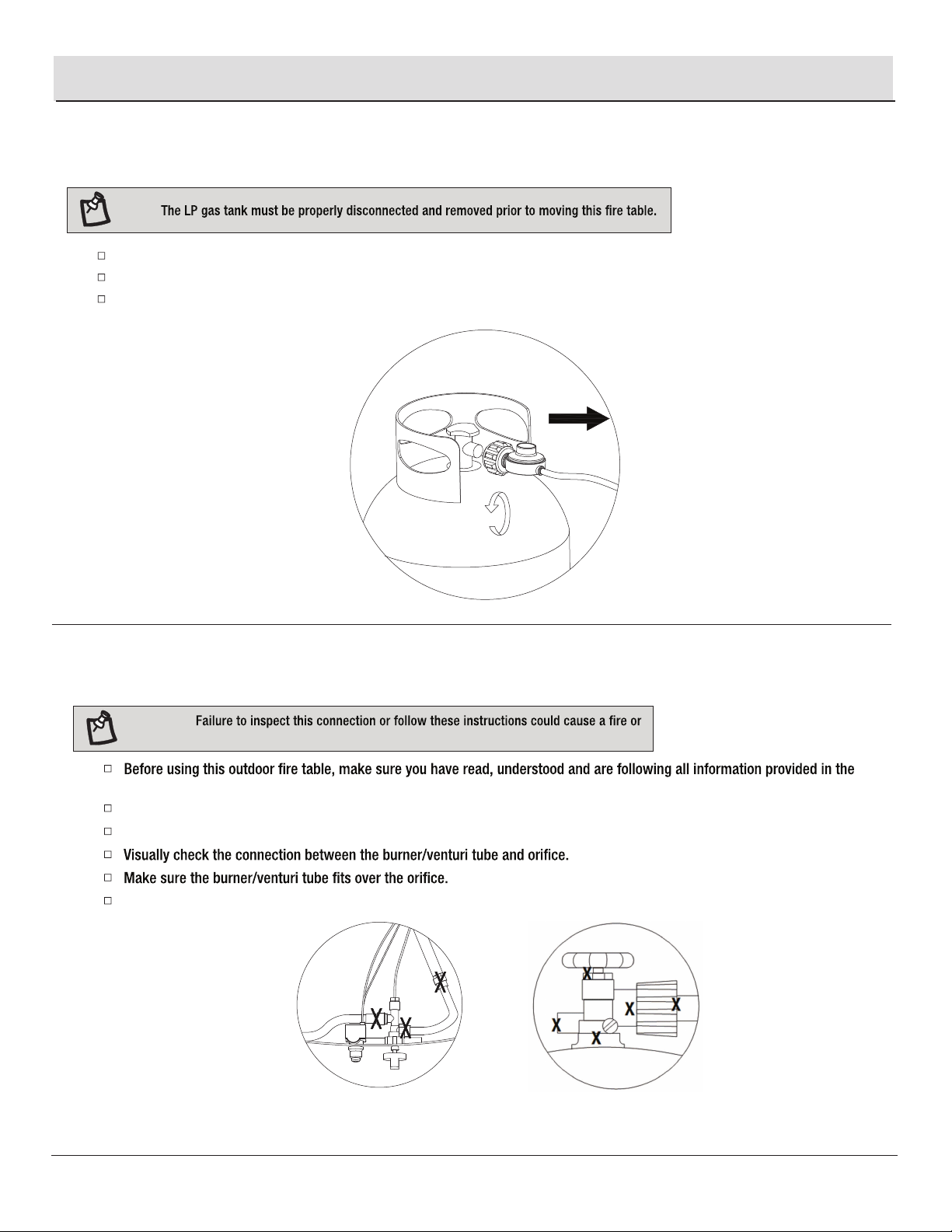

Before connecting, be sure that there is no debris caught in the head of the gas cylinder, head of the regulator valve or in the ports.
Connect regulator valve and hand-tighten firmly. Disconnect the propane cylinder from the regulator valve when the fire table is
not in use. DO NOT obstruct the flow of combustion air and ventilation air to the burner.
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance
5
Constructed and marked in accordance with the U.S. Department of Transportation (D.O.T.)Specifications for LP-Gas Cylinders, or
the Standard for Cylinders, Spheres and Tubes for Transportation of Dangerous Goods and Commission, CAN/CSA-B339, as applicable.

DO NOT PLACE ANY
MEDIA ON SCREEN
HOSE AND REGULATOR ASSEMBLY AND REPLACEMENT
1. This fire table comes equipped with a standard LP gas hose and regulator including the appliance side connection for a CGA
No. 791 Cylinder Connection Device. The LP gas hose and regulator supplied with this fire table must be used. Only a hose and
regulator specified by manufacturer can be used for replacement.
a. The CGA No. 791 connection incorporates a magnetic flow limiting device that acts to limit the flow of gas if a leak is
detected between the regulator and the burner valve.
b. If the burner valve is open prior to the LP gas cylinder service valve being opened, the connection will interpret this
free flow of gas to be a leak.
c. The connection safety feature will reduce gas flow from the regulator to the appliance to a minimal level.
d. Be sure that the burner control valve is closed prior to opening the LP gas cylinder service valve to ensure that the
connection flow limiting device is not triggered mistakenly.
e. If the connection flow limiting device is triggered mistakenly, close the LP gas cylinder service valve and the burner
valve, wait 10 seconds to allow the device to reset, open the cylinder service valve, then open the burner valve and light
the fire table as per lighting instructions.
2. Be sure to protect the hose from any hot surfaces. Serious danger may result if the hose contacts any hot surface.
3. Regular maintenance of the hose and regulator:
a. Inspect the hose before each use of the fire table. If the hose shows signs of cracks, abrasions, cuts or damage of any
kind, do not operate the appliance. Fix or replace the hose as required before using the appliance. For assistance with
repair or replacement of the hose, call the service center at 1-800-986-3460. Use only replacement parts from the
manufacturer.
b. Inspect the seal inside the CGA No. 791 service valve on the LP gas cylinder when replacing the cylinder or at least once
per year. If there is any indication of damage, have the seal replaced by a certified gas dealer before operating
the appliance.
4. Do not use tools to tighten the CGA No. 791 connection nut onto the LP gas cylinder service valve. Hand tighten only.
5. Be careful to not cross the threads on the connection when tightening the CGA No. 791 connection onto the LP gas cylinder
service valve.
6. “Leak Test” should always be performed after attaching the connection to the LP gas cylinder service valve. See “Checking
for Leaks” section of this manual in Step 5, page 16.
7. Connection instructions are on pages 14 (Steps 1–2 in the “Operation” section).
GLASS BEADS WARNING
1. Glass beads may have sharp edges. Wear safety glasses and gloves when handling.
2. If changing or substituting the glass beads with other media, use lava rocks/pumice stones/glass shards/glass beads available
from your local authorized dealer/distributor.
3. Pour the glass beads evenly into the burner area (with the exception of the screen, if applicable). The glass beads should be 1/2 to
1 in. (1.2 to 2.5 cm) above the burner.
4. IMPORTANT: Do not exceed a height of 1 in. (2.5 cm) above the burner when placing glass beads or other media. Ensure no media
covers the igniter screen. Store any excess glass beads in a safe location.
5. Keep away from the unit for the first 20 minutes after igniting your unit for the first time, as lava rocks/pumice stones/glass
beads could pop out and cause injury. Should any rocks pop out, discard them.
6. Always ensure that lava rocks/pumice stones/glass shards/glass beads are completely dry before use. Failure to do so will
cause them to crack or pop.
Important Safety Information (continued)
6

Warranty
Pre-assembly
PLANNING ASSEMBLY
Read all instructions before assembly.
To avoid damaging this product, assemble it on a soft, non-abrasive surface such as carpet or cardboard.
NOTE: More than one person may be required to assemble this product.
1 YEAR FRAME LIMITED WARRANTY
WHAT IS COVERED
We warrant the frames to be free of manufacturing defects to the original purchaser for one year.
WHAT IS NOT COVERED
It remains the customer’s responsibility for freight and packaging charges to and from our service center. This warranty does not cover
s warranty.
We reserve the right to make substitutions with similar merchandise, if the model in question is no longer in production.
Contact the Customer Service Team at 1-800-986-3460 or visit HOMEDEPOT.COM/HOMEDECORATORS.
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance
7

Pre-assembly (continued)
HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
AA BB CC DD EE
M6x15 Combination Bolt
M6x12 Countersunk Bolt
26+1
1+1
AA
BB
Plastic Washer 1 1+1
CC
Plastic Washer 2 1+1
DD
Hex Wrench 1 EE
Part Description Quantity
8

Knob
Table Top
Right Front Leg
1
1
A
B
1 C
Left Front Leg
Left Rear Leg
Right Rear Leg
1
1
D
E
1 F
Side Panel
Door
Limit Tube
3
1
G
H
1 I
Tank Support
Glass Beads
AAA Battery
1
1
J
K
1 L
Square Burner Bowl
Burner Ring
Pilot Housing
1
1
M
N
1 O
Manual Electric Igniter
Control Knob
Regulator/Hose
1
1
P
Q
1 R
Part Description Quantity
1 S
Burner Lid
WARNING: Failure to position the parts in
accordance with these diagrams or failure to
use only parts specically approved with this
appliance may result in property damage or
personal injury.
Pre-assembly (continued)
PACKAGE CONTENTS
9
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance
H
J
DC
I
G
GG
F
E
BN
M
K
O
Q
R
P
A
L
S

Assembly
1Connecting the Legs to the Table Top
2Connecting the Side Panels to the Legs
Place the table top (B) upside down on a soft surface.
Do not tighten the bolts at this step.
Attach the right front leg (C), left front leg (D), left rear leg (E) and right rear leg (F) to the table top (B) using
M6X15 combination bolts (AA), as shown below.
Attach the side panel (G) to the right front leg (C) and right rear leg (F) using M6X15 combination bolts (AA).
Attach the side panel (G) to the left rear leg (E) and right rear leg (F) using M6X15 combination bolts (AA).
Attach the side panel (G) to the left front leg (D) and left rear leg (E) using M6X15 combination bolts (AA).
Do not tighten the bolts at this step.
NOTE: Pay attention to the direction of control knob and the legs. They must be placed as the step shows.
10
NOTE: Loosely tighten all the bolts using hex wrench (EE).
NOTE: Loosely tighten all the bolts using hex wrench (EE). AA
AA
E
G
AA
D
F
C
AA
E
D
AA
C
B
F
