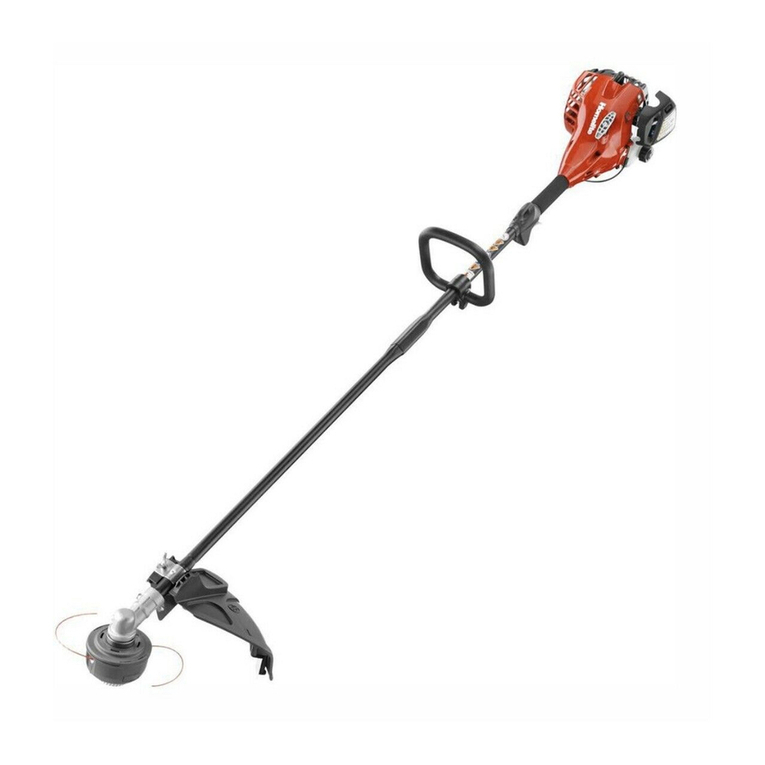

HOMELITE
26cc STRING TRIMMERS
MODEL NOS. UT32600 AND UT32650
ALL vERSIONS
REPAIR SHEET

2
HOMELITE 26cc STRING TRIMMERS – MODEL NUMBERS UT32600 AND UT32650
Figure A
20
3
4
21
22
26
30
27
6
29
9
8
17
14
25
5
27
28
26
2
14
13
15 16
7
1
18
31
32 19
24
23
10
12
11
33

3
HOMELITE 26cc STRING TRIMMERS – MODEL NUMBERS UT32600 AND UT32650
* STANDARD HARDWARE ITEM – MAY BE PURCHASED LOCALLY
PARTS LIST (FIGURE A)
1 870174001 * Spark Plug (Champion RCJ6Y) ............................1
2 310827001 Boom Assembly ...................................................1
3 309562001 String Head Assembly..........................................1
4 308042002 Spool Retainer......................................................1
5 308744001 Grass Deflector Assembly....................................1
6 308741001 Front Handle Assembly........................................1
7 940964009 Icon Warning Label ..............................................1
8 660647001 Screw (10-32 x 3/8 in.) .........................................1
9 638001001 Clamp...................................................................1
10 521805001 Air Box Cover .......................................................1
11 940991038 Model Label (26CS)..............................................1
12 310817001 Fuel Cap ...............................................................1
13 660526003 Screw (M4 x 20 mm) ............................................4
14 308888002 Handle Assembly .................................................1
15 521811001 Throttle Trigger .....................................................1
16 570087005 Foam Grip ............................................................1
17 308842008 Throttle Cable.......................................................1
18 760700002 Switch...................................................................1
19 660634001 Screw (8-16 x 5/16 in.) .........................................1
The model number will be found on a label attached to the engine housing. Always mention the model number in all correspondence regarding your
STRING TRIMMER or when ordering repair parts.
KEY PART
NO. NUMBER DESCRIPTION QTY
KEY PART
NO. NUMBER DESCRIPTION QTY
20 310412001 Spool ....................................................................1
21 310643001 String Head Housing ............................................1
22 678022001 Spring...................................................................1
23 940654088 Combustion Warning Label..................................1
24 940686065 Starting Label .......................................................1
25 308052001 Grass Deflector ....................................................1
26 660643009 Bolt (1/4-20 x 2 in.)...............................................2
27 678008001 Washer .................................................................2
28 678034001 Wing Nut (1/4-20) .................................................1
29 518949001 Wing Nut (1/4-20) .................................................1
30 518674001 Front Handle.........................................................1
31 678029002 Hex Nut (M6) ........................................................1
32 660697002 Screw (M6 x 20 mm) ............................................1
33 940216003 Throttle Label .......................................................1
Not Shown:
988000056 Operator’s Manual (960486002)
4-06-10
(Rev:01)

4
HOMELITE 26cc STRING TRIMMERS – MODEL NUMBERS UT32600 AND UT32650
Figure B
29
21
7
18
20
19
14
15
22
17 26
27
28
34
2
16
13
10
11
12
8
9
5
32
30
35
30
31
43
24
36
23
6
1
33
25
37

5
HOMELITE 26cc STRING TRIMMERS – MODEL NUMBERS UT32600 AND UT32650
PARTS LIST (FIGURE B)
* STANDARD HARDWARE ITEM – MAY BE PURCHASED LOCALLY
1 870174001 * Spark Plug (Champion RCJ6Y) ............................1
2 310828001 Boom Assembly ...................................................1
3 660634001 Screw (8-16 x 5/16 in.) .........................................1
4 660697002 Screw (M6 x 20 mm) ............................................1
5 570087005 Foam Grip ............................................................1
6 521805001 Air Box Cover .......................................................1
7 309562001 String Head Assembly..........................................1
8 308741001 Front Handle Assembly........................................1
9 518949001 Wing Nut (1/4-20) .................................................1
10 678008001 Washer .................................................................1
11 518674001 Front Handle.........................................................1
12 660643009 Bolt (1/4-20 x 2 in.)...............................................1
13 308210002 Gear Head ............................................................1
14 660641001 Screw (10-25 x 5/16 in.) .......................................1
15 660642001 Screw (1/4-20 x 1.25 in.) ......................................1
16 678011002 Flange Washer......................................................1
17 678019003 Adaptor.................................................................1
18 308042003 Spool Retainer......................................................1
19 310643001 String Head Housing ............................................1
KEY PART
NO. NUMBER DESCRIPTION QTY
KEY PART
NO. NUMBER DESCRIPTION QTY
20 678022001 Spring...................................................................1
21 310412001 Spool ....................................................................1
22 308781001 Grass Deflector Assembly....................................1
23 940686065 Starting Label .......................................................1
24 940991039 Model Label (26SS) ..............................................1
25 940654088 Combustion Warning Label..................................1
26 678034001 Wing Nut (1/4-20) .................................................1
27 678436001 Bracket .................................................................1
28 660857001 Bolt (Square Head) ...............................................1
29 940964009 Icon Warning Label ..............................................1
30 308888002 Handle Assembly .................................................1
31 678029002 Hex Nut (M6) ........................................................1
32 521811001 Throttle Trigger .....................................................1
33 760700002 Switch...................................................................1
34 308842008 Throttle Cable.......................................................1
35 660526003 Screw (M4 x 20 mm) ............................................4
36 310817001 Fuel Cap ...............................................................1
37 940216003 Throttle Label .......................................................1
The model number will be found on a label attached to the engine housing. Always mention the model number in all correspondence regarding your
STRING TRIMMER or when ordering repair parts.

6
HOMELITE 26cc STRING TRIMMERS – MODEL NUMBERS UT32600 AND UT32650
Figure C
37
12
3
32
31 29
28 27
26 1
30 24
21
22
12
1
4
33
5
6
78
9
10
13
15 14 16
17
38
25
39
18
19 20
41
40 42
11
36
35
34

7
HOMELITE 26cc STRING TRIMMERS – MODEL NUMBERS UT32600 AND UT32650
KEY PART
NO. NUMBER DESCRIPTION QTY
The model number will be found on a label attached to the engine housing. Always mention the model number in all correspondence regarding your
STRING TRIMMER or when ordering repair parts.
1 660466001 Screw (M4 x 18 mm)........................................11
2 660970001 Screw (M4 x 16 mm)..........................................4
3 310829001 Front Housing Assembly ...................................1
4 511731001 Pulley Handle.....................................................1
5 660968001 Screw (M4 x 19 mm)..........................................2
6 850108009 Ignition Module..................................................1
7 660638003 Screw (10-24 x 2-3/16 in.) .................................2
8 638442001 Heat Shield ........................................................1
9 308990016 Muffler Assembly...............................................1
10 901452011 Muffler Gasket ...................................................1
11 308892006 Short Block Assembly .......................................1
12 519824001 Rear Housing.....................................................1
13 901551001 Intake Gasket.....................................................1
14 518497001 Heat Dam...........................................................1
15 521808001 Heat Dam Deflector ...........................................1
16 901552001 Carburetor Gasket .............................................1
17 308054001 Carburetor .........................................................1
18 521806001 Air Box Base......................................................1
19 660454010 Screw (M5 x 79 mm)..........................................2
20 521608001 Choke Plate .......................................................1
21 660970002 Screw (M4 x 10 mm Shoulder) ..........................3
22 308675001 Fuel Tank Assembly w/Cap ...............................1
23 308811006 Flywheel Assembly ............................................1
24 650017001 Washer...............................................................1
25 901552002 Carburetor Gasket ............................................1
26 638389001 Pulley Retainer...................................................3
27 310022004 Starter Pulley Assembly.....................................1
28 638033001 Spring & Container Assembly............................1
29 518692001 Starter Housing .................................................1
30 638284006 Spacer Tube ......................................................1
31 638090001 Clutch Washer ...................................................1
32 300960002 Clutch Assembly................................................1
33 308863001 Lead Assembly ..................................................1
34 901550001 Gasket ...............................................................1
35 638337001 Crankcase Cover ...............................................1
36 660925003 Screw (M4 x 12 mm)..........................................6
37 900849002 Starter Rope (42 in.) ..........................................1
38 521807001 Choke Lever ......................................................1
39 561635001 Primer Bulb........................................................1
40 690969001 Washer...............................................................1
41 679018001 Curved Washer ..................................................1
42 660345001 Screw (M4 x 12 mm)..........................................1
KEY PART
NO. NUMBER DESCRIPTION QTY
PARTS LIST (FIGURE C)
