Homewerks WORLDWIDE 40-BV2-CNCH-B User manual

08-01-2018
ROMAN TUB FAUCET
MODELS
40-BV2-CNCH-B – Chrome
40-BV2-CNBN-B – Brushed nickel
40-BV2-CNBB-B – Brushed bronze
PACKAGE AND HARDWARE CONTENTS ADA
PART DESCRIPTION QUANTITY A
B
C
D
A Spout assembly 1
B Hot handle assembly 1
C Cold handle assembly 1
D Hose 2
SAFETY INFORMATION
Please read and understand this entire manual before attempting to
assemble, operate or install the product.
WARNING
• Protect your eyes with safety glasses when cutting or soldering water
supply lines.
CAUTION
• If you solder the joints during installation, the seats, cartridges, and
washers must be removed before using a ame or the warranty will
be voided on these parts.
• Cover the drain to avoid losing parts.
PREPARATION
Before beginning assembly of product, make sure all parts are present.
Compare parts with package contents list and hardware contents. If any
part is missing or damaged, do not attempt to assemble the product.
Contact customer service for replacement parts.
Estimated Assembly Time: 60 minutes
Tools Required for Assembly (not included): Adjustable Wrench, thread
sealant tape, Silicone
Installations may vary depending on how the previous faucet was
installed. Supplies necessary for the installation of the faucet are not
all included; however, they are available wherever plumbing supplies
are sold.
Prior to beginning installation, turn off the hot and cold water lines, then
turn on the old faucet to release built-up pressure. When installing the
new faucet, hand tighten the connector nuts. DO NOT OVERTIGHTEN.
Connections that are too tight will reduce the integrity of the system.
Need Help? Please call our toll-free line at [phone] (8 am to 5 pm CST) for additional assistance or service.
Homewerks Worldwide, LLC • Lake Bluff, IL 60044 • www.homewerksww.com

2www.homewerksww.com
PRODUCT SPECIFICATIONS
SPECIFICATIONS SPECIFICATIONS
Min. Flow Rate: 2.4 GPM (9.0 LPM) at 20 PSI Polished chrome, brushed nickel or brushed bronze nish
ASME A112.18.1/CSA B125 Ceramic cartridges
ASSEMBLY INSTRUCTIONS
1. Turn off water at the supply valve
under the sink or at the main water
supply, disconnect the supply line,
and remove old faucet.
Clean and dry surface area where
new faucet will be mounted.
15. Remove the index (1 & 2),
loosen the screws (3) and
remove the handles (4). Loosen
the anges (5) from the valve
bodys (6 & 7). Adjust the rubber
washers (8), metal washers (9)
and mounting nuts (10) to the
bottom of valve bodys (6 & 7).
2
1
3
3
4
4
5
5
6
7
8
9
10
8
9
10
5
2. Drill holes in the nished deck as
shown in the diagram below.
NOTE: This kit allows up to
1-7/8 in. deck thickness.
5in.min.
8~16in.
3in.min.
1-7/8 in. MAX. DECKTHICKNESS
1-3/8 in.
Diamter
1-3/8 in.
Diamter
1-1/8 in.
Diamter
26. From underneath the deck,
insert the cold end valve (1) with
the rubber washer (2), metal
washer (3) and mounting nut (4)
through the hole on the right
(cold) side. From above, thread
the ange (5) onto the valve
body (1). Tighten the mounting
nut (4) using a basin wrench, so
that the ange (5) sits ush
against the nished deck
surface. Repeat this procedure
for the hot end valve (6) on the
left (hot) side.
NOTE: The hot end valve is
identied with a label.
5
1
2
3
4
6
6
3. Remove the clip (6) and T-tube
(5) from the spout assembly (1).
Loosen the mounting nut (4) and
remove the washers (2 & 3) from
the spout assembly (1).
1
2
3
4
5
6
37. Place the handle (3) onto the
cartridge stem (4). Place the
screw (2) into handle (3) and
tighten screw (2). Place the
other handle onto the left (hot)
valve and install the same way. 3
2
1
4
7
4. Installing the Spout Assembly:
Insert the spout assembly through
the hole in the deck. Secure the
spout assembly with the rubber
washer (1), metal washer (2) and
mounting nut (3).
1
2
3
48. Installing the T-tube:
From below the deck, push the
T-tube (1) onto the spout shank
(A) until it is completely seated.
Place the clip (2) through the
slots (B).
A
B
1
2
8

3
www.homewerksww.com
ASSEMBLY INSTRUCTIONS

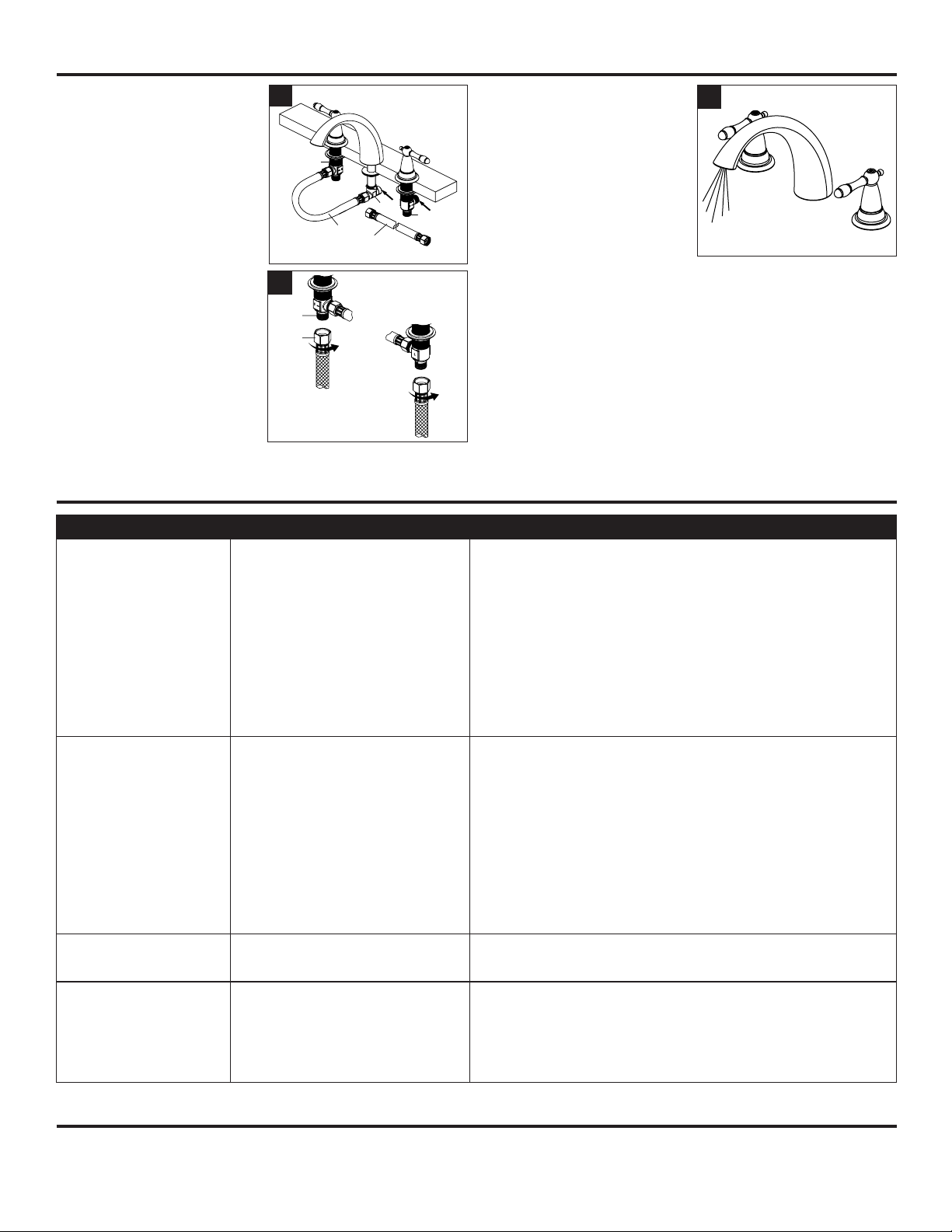

9. Connect the hoses (1) to the
bottom of the hot and cold end
valves (2 & 3), as shown. Align the
middle body (4) in a position that
will allow maximum clearance to
connect the hoses (1). Carefully
bend the hoses (1) to t in the
available space, and carefully
thread the hose (1) couplings onto
the sides of the middle body (4).
Tighten all connections with a
wrench. 11
2
43
911. IMPORTANT: After installation is
complete, turn on the water
supply and allow both hot and
cold water to run for at least one
minute each. This ushes away
any debris that could cause
damage to internal parts. While
the water is running, check for
leaks. Turn off the water.
11
10. Making the Water Supply
Connections:
Connect the water supply lines (1)
to the faucet inlets (2). (Supply
lines are not included.) 1
2
10
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Leaks underneath handle. Bonnet has come loose or O-ring on cartridge is
dirty or twisted. 1. Move the handle to the OFF position. Unscrew the handle screw and remove the handle.
2. Tighten the bonnet by turning it clockwise. Move the cartridge stem to the on
position. The leak should stop draining out from around the cartridge stem.
3. Shut off the water supply. Remove the bonnet by turning it counterclockwise. Lift
out the cartridge valve. Inspect the larger O-ring on the cartridge bonnet and the
smaller O-ring on the cartridge stem. Remove any debris from the O-rings. If either
O-ring is twisted, straighten it out. If either O-ring is damaged, replace the cartridge by
calling customer service.
4. Position the cartridge back into the faucet body. Make sure the ridges on the two
sides of the cartridge bonnet t into the grooves on the two sides of the faucet body.
Tightly screw the bonnet onto the faucet body.
5. Re-install the handle.
Water does not completely shut
off. Rubber valve seat is dirty, stuck, or broken. 1. Shut off the water supply to the faucet that leaks.
2. Remove the handle on the problem side. Loosen the bonnet by turning it
counterclockwise. Lift out the cartridge assembly.
3. Inspect the rubber valve seat in the faucet body. If there is debris or brass scrap
on the surface of the seat, remove it. If the rubber seat is stuck tightly in the water
inlet hole, push it gently with a ngertip so that it moves up and down smoothly.
The spring (smaller end up) must be replaced underneath the valve seat. If the
rubber valve seat is worn out or broken, replace the cartridge by calling customer
service.
4. Replace the cartridge in the faucet body. Make sure that the ridges on the two
sides of the cartridge bonnet t into the grooves on the two sides of the faucet
body. Tightly screw the bonnet onto the faucet body.
5. Re-install the handle.
Faucet leaks around aerator. Aerator incorrectly tted. 1. Unscrew the aerator by turning it clockwise. Inspect the black rubber packing inside
the aerator. The rubber packing should be at.
2. Screw the aerator onto the spout end and tighten.
Improper water pattern. Aerator dirty or small parts inside aerator
improperly installed. 1. Remove the aerator from the spout end by turning it clockwise.
2. Gently ush the small parts inside the aerator to clear away any debris.
3. Re-install the small parts as shown in the exploded diagram. Metal screens must
be at and plastic supporter must be straight.
4. Screw the aerator onto the spout end and tighten.
CARE AND MAINTENANCE
Clean periodically with a soft cloth. Avoid abrasive cleaners, steel wool, and harsh chemicals as these will dull the nish and void your warranty.

4www.homewerksww.com
ROUGH-IN
2"
14-1/8"
6-7/8"
3-1/2"
15-3/4"
4-3/4"
7 5/8"
9-1/2"
2-3/8"
2-3/8"
2-3/8"
1/2"-14NPSM-2A
PRODUCT SPECIFICATIONS
For replacement parts, call our customer service department at [phone], 8 a.m. - 5 p.m., CST, Monday - Friday.
PART DESCRIPTION PART # PART # PART #
8
9
10
11
12
22
7
6
3
4
2
1
19
21
18
17
16
15
13
14
5
20
40-BV2-CNCH-B 40-BV2-CNBN-B 40-BV2-CNBB-B
1Index button - hot RP10001CH RP10001BN RP10001BB
2Index button - cold RP10002CH RP10002BN RP10002BB
3Screw RP50001 RP50001 RP50001
4Bolt and handle RP13001CH RP13001BN RP13001BB
5Handle seat, ball and cap RP80188CH RP80188BN RP80188BB
6Flange and washer RP80021CH RP80021BN RP80021BB
7Bonnet RP70001 RP70001 RP70001
8Cartridge - hot RP20067 RP20067 RP20067
9Cartridge - cold RP20068 RP20068 RP20068
10 Washer RP64023 RP64023 RP64023
11 Washer RP64024 RP64024 RP64024
12 Mounting nut RP56014 RP56014 RP56014
13 Set screw RP50058 RP50058 RP50058
14 O-ring RP60056 RP60056 RP60056
15 Fixer and washer RP80152 RP80152 RP80152
16 Washer RP64032 RP64032 RP64032
17 Washer RP64086 RP64086 RP64086
18 Mounting nut RP56015 RP56015 RP56015
19 C-ring RP70123 RP70123 RP70123
20 O-ring RP60047 RP60047 RP60047
21 T-tube RP70124 RP70124 RP70124
22 Hose RP70125 RP70125 RP70125
5-YEAR LIMITED WARRANTY
The distributor warrants to the original consumer purchaser this product to be free from
defects in material and workmanship under normal use in residential applications. At its
option, the Company will provide repair parts or replace defective product when the
product is used in accordance with the manufacturer’s specications.
Use of mild abrasive, abrasive or chemical cleaners may damage the nish of the
faucet. We recommend cleaning your faucet with a soft cloth, moistened with water.
Damage resulting from the use of abrasive or chemical cleaners SHALL VOID THIS
WARRANTY.
This warranty is not applicable to any products or parts of products where damage
is caused by use of non-genuine parts; is due to installation error, product misuse,
negligence or faulty maintenance; or where the product is not installed according to
local building codes.
sreplacement, and any indirect, incidental or consequential damages, losses, injury
or costs of any nature. This warranty is in lieu of and excludes all other warranties,
conditions and guarantees, whether expressed or implied, including without
restriction those of merchantability or tness of use.
Liability under this warranty will not exceed the purchase price for the product claimed
to be defective by the original consumer purchaser. Some states or provinces do not
allow the exclusion or limitation of consequential damages so the above limitations or
exclusions may not apply. This warranty gives you specic legal rights and you may
also have other rights which vary from state to state, or province to province.
Inquiries regarding warranty claims can be directed to [phone], 8 a.m. - 5 p.m.,
CST, Monday - Friday.

5
GRIFO TUBO ROMANO
MODELOS
40-BV2-CNCH-B – Acabado cromado
40-BV2-CNBN-B – Acabado de níquel cepillado
40-BV2-CNBB-B – Acabado de bronce cepillado
PAQUETE DE HARDWARE Y CONTENIDO ADA
PARTE DESCRIPCIÓN CANTIDAD A
B
C
D
A Ensamble del tubo 1
B Conjunto de manija caliente 1
C Conjunto del manija frío 1
D Manguera 2
INFORMACIÓN SOBRE LA SEGURIDAD
Por favor, lea y comprenda la totalidad de este manual antes de intentar
armado, manejo o instalación del producto.
ADVERTENCIA
• Proteja sus ojos con gafas de seguridad al cortar o suministro de agua
de soldadura líneas.
PRECAUCIÓN
• Si soldar las articulaciones durante la instalación de la grifería, los
asientos, cartuchos y arandelas deben ser removidos antes de utilizar una
llama o la garantía será anulada en estas partes.
• Cubra el desagüe del fregadero para evitar perder partes.
PREPARACIÓN
Antes de empezar el montaje del producto, asegúrese de tener todas las
piezas. Compare las piezas con la lista del contenido del paquete y el
contenido de hardware. Si alguna parte falta o está dañada, no intente
ensamblar el producto.
Póngase en contacto con el servicio al cliente para las piezas de repuesto.
Tiempo estimado de ensamblaje: 60 minutos
Herramientas necesarias para el ensamblaje (no incluidas): Llave mecánica,
Groove Alicates de junta, llave de tubo, destornillador Phillips, y las tuberías
de suministro, Silicona
Instalaciones pueden variar en función de cómo se instaló la bañera previa
y grifo de la ducha. Suministros necesarios para la instalación de la llave de
agua no están incluidos; Sin embargo, están disponibles siempre que sea
de fontanería suministros se venden.
Antes de comenzar la instalación, desactive las líneas de agua caliente y
fría, a continuación, encender la vieja bañera y ducha grifo para liberar la
presión acumulada. Al instalar el nuevo grifo, apriete a mano las tuercas de
conexión. NO APRIETE. Las conexiones que son demasiado apretados
reducirán la integridad del sistema.
¿Necesitas Ayuda? Llame a nuestra línea gratuita al [phone] (8 am a 5 pm CST) para obtener asistencia o servicio adicional.
www.homewerksww.com
