SPECIFICATIONDATA

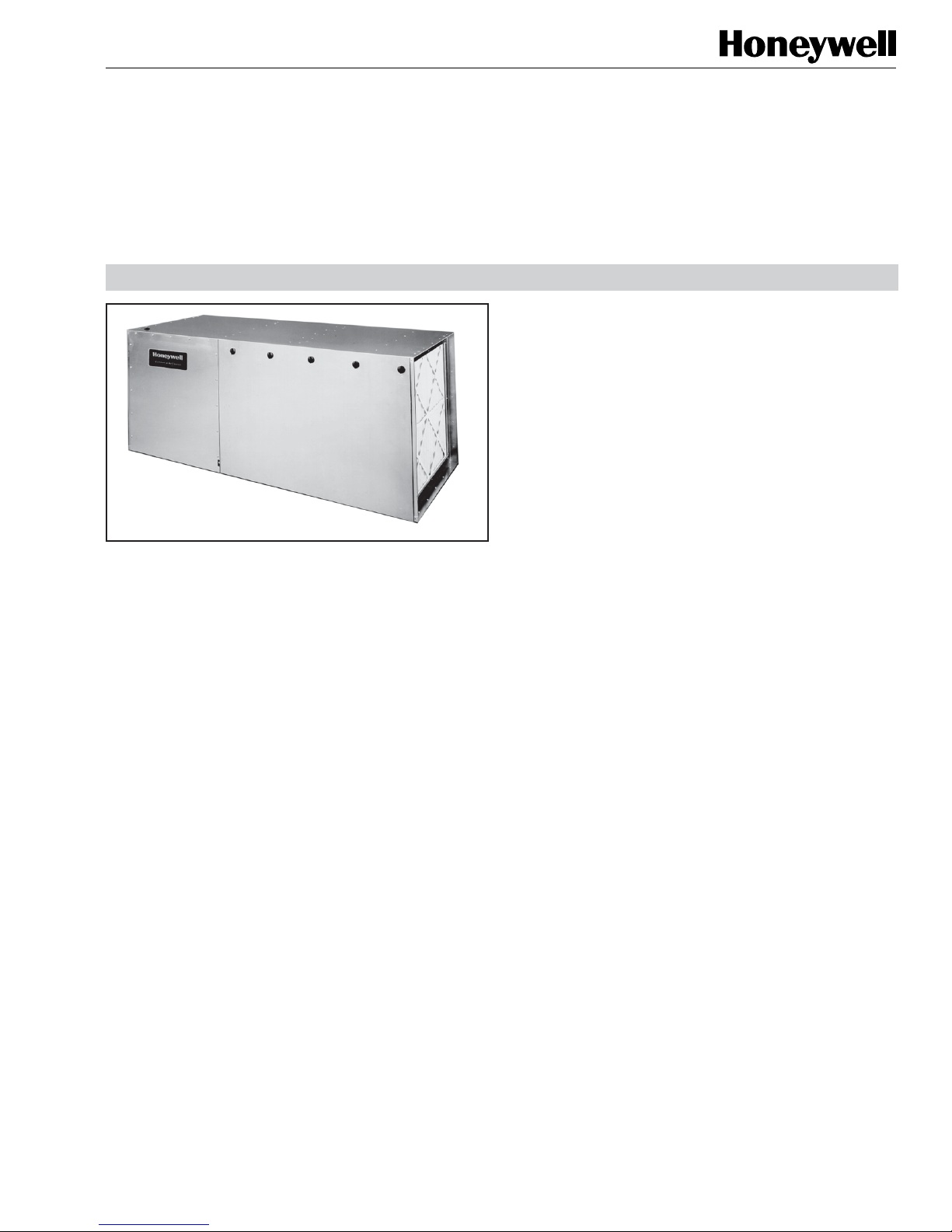

F116A Self-Contained Ductable
Commercial Air Cleaner
APPLICATION
The F116 Self-Contained Ductable Commercial Air Cleaner is
designed for use in any application that requires the removal of
airborne contaminants from an enclosed area. The air going to the
unit and the discharged air can be transported in a network of
ducting and plenums, or the unit can be used independently.
FEATURES
•Variety of filter configurations available to customize the air
cleaner for any application.
•CPZ™(Charcoal Potassium Permanganate and Zeolite) disposable
modules can be used for odor control.
•Three-speed, direct-drive, forward curve blower/motor circulates
up to 2500 cfm (72 cu m/min) for large areas.
•Negative and positive pressure rooms can be created with the
F116.
SPECIFICATIONS
Models:
F116A Self-Contained Ductable Commercial Air Cleaners are
available in two cabinet sizes:
Shorter cabinet: Uses a prefilter with one primary filter
Longer cabinet: Uses a prefilter with two primary filters.
Material:
0.0508 in. 16 GA unpainted aluminum.
Electrical Ratings:
Voltage: 120 Vac, 60 Hz; 1 PHS, 14A.
220 Vac, 50/60 Hz; 1PHS, 7A.
Connections: Hard-wired.
Running Load (All Three Fan Speeds): Must not exceed 14A at
120V or 220V at 7A.
Maximum Starting Loads:
High Speed: 23A at 120V.
11.5A at 220V.
Medium and Low Speeds: 15A at 120V.
7.5A at 220V.
Air Volume, Internal Static Pressure and Installation Weight:
All vary with air cleaner filter configuration.
Static Pressure:
Minimum:1.2in.W.G.
Maximum:1.85 in. W.G.
Dimensions:
See Fig. 1.
Blower/Motor:
Three-speed, direct-drive, forward curve.
1070 rpm nominal speed.
Thermal circuit breaker.
Lubrication:
Oilannually.
Filter Options:
High Efficiency Particulate Arrestance (HEPA) Filter (99.97%
Efficiency).
DOP (Di-Octyl Phthalate) Filter (95% Efficiency).
ASHRAE Dust Spot Filter (95% Efficiency).
ASHRAE Dust Spot Filter (65% Efficiency).
CPZ™ Sorbent Modules (for odor control).
Approvals:
Underwriters Laboratories Inc. Listing Pending.
Canadian Underwriters Laboratories Inc.Certification Pending.
68-3028-2 Revised 11-07

2
F116A SELF-CONTAINED DUCTABLE COMMERCIAL AIR CLEANER
68-3028-1
Air-Pure Systems
16873 Fish Point Rd. SE
Prior Lake, MN 55372-1714
Phone: [phone]
Fax: [phone]
68-3028-2 Revised 11-07 www.cleanairfacility.com
26
(660)
26
(660)
A
B
C
D
16 TYP
(406)
5 TYP
(127)
3/8 THREADED INSERT
HOLE FOR A HANGING INSTALLATION
CAN BE POSITIONED IN EITHER SPACE
OR IN BOTH SPACES FOR DOUBLE PASS
ON THREE-STAGE FILTERING MODELS.
(D.O.P. OR ASHRAE FILTER CAN BE POSITIONED 
IN EITHER SPACE OR IN BOTH SPACES FOR DOUBLE 
PASS ON THREE-STAGE FILTERING MODELS.)
HEPA, D.O.P. 
OR ASHRAE FILTER
PREFILTER
SORBENT MODULES
M11992
TOP 7/8 (22) FLANGE
12-1/8 (308)
13-1/2 (343)
10
(254)
7
(178)
FRONT VIEW
ELECTROSTATIC 
PRECIPITATOR
COLLECTING CELLS
MODEL DIM. A
24 1/4
24 1/4
64
48
1626
1219
616
616
DIM. B
17
DIM. C
432
DIM. D
21 1/4
22 1/4
540
565
IN. MM IN. MM IN. MM IN. MM
THREE-STAGE FILTERING
TWO-STAGE FILTERING NOT APPLICABLE
Fig. 1. Approximate dimensions in inches (mm).
