INSTRUCTIONS
READ AND SAVE THESE SAFETY
INSTRUCTIONS BEFORE USING
THIS AiR PURIFIER
When using electrical appliances, basic
precautions should always be followed to
reduce the risk of fire, electric shock, and
injury to persons, including the following:
1.
2.
10.
Read all instructions before operating the air
purifier.
Place air purifier where it ts not easily knocked
over by persons in the household.
Always turn the air purifier to the OFF position and
unplug from the wall outlet when not in use.
To disconnect the air purifier, press the Power
{c} button or turn the knob to the off position
{0) to turn the air purifier off, grip the plug and
pull it from the wall outlet. Never pull by the cord.
Do not use any product with a damaged cord or
plug or if product malfunctions, is dropped or
damaged in any manner. Keep the cord away
from heated surfaces.
Do not use air purifier outdoors.
Never use air purifier unless it is fully
assembled.
Do not run power cord under carpets, and do
not cover with throw rugs. Arrange cord such
that it will not be tripped over.
Do not use air purifier where combustible
gases, vapors or an oxygen rich environment
are present.
Do not expose the air purifier to rain, or use
near water, in a bathroom, laundry area or other
damp location.
Honeywell
QUIETCLEAN® AIR PURIFIERS
Models HHT-215, HHT-217, HHT-219 Series
Models HFD-010, HFD-015, HFD-110,
HFD-112, HFD-116 Series
11. The air purifier must be used in its upright
12,
13.
14.
15.
16.
17.
18.
19.
20.
N
—
position.
Do not allow foreign objects to enter ventilation
or exhaust opening as this may cause electric
shock or damage to the air purifier. Do not
block air outlets or intakes.
Locate air purifier near the outlet and avoid
using an extension cord.
This appliance has a polarized plug (one blade
is wider than the other). To reduce the risk of
shock, this plug is intended to fit only one way
in a polarized outtet. If the plug does not fit fully
in the outlet, reverse the plug. If it still does not
fit, contact a qualified electrician,
DO NOT attempt to defeat this safety feature.
A loose fit between the AC outlet (receptacle)
and plug may cause overheating and a
distortion of the plug. Contact a qualified
electrician to replace loose or worn ouilet.
Do not sit, stand or place heavy objects on the
air purifier.
Disconnect power supply before servicing.
WARNING: To Reduce the risk of fire or electric
shock, do not use this air purifier with any
solid-state speed control device.
The sealed UV bulbs contain a small amount of
mercury. Dispose of these items at household
hazardous waste collection sites only. If the UY
bulb breaks, do not vacuum or handle with your
bare hands, (HHT-215, HHT-217 or HHT-219 only.)
This product contains a built-in ionizer. While
the output of ozone of this product is extremely
low, if you have asthma symptoms or breathing
disorders that can be triggered by the presence
of an ionizer, we recommend that you do not
use any type of ionizing or ionic air purifiers.
Only HEPA filtration (non-ionizing} products
are recommended.
‘SAVE THESE
INSTRUCTIONS
The Honeywell trademark is used by Kaz, tac. under license from Honeywell International Inc.
+

QuietClean_OM.qxd 3/5/09 10:00 AM Pa 2

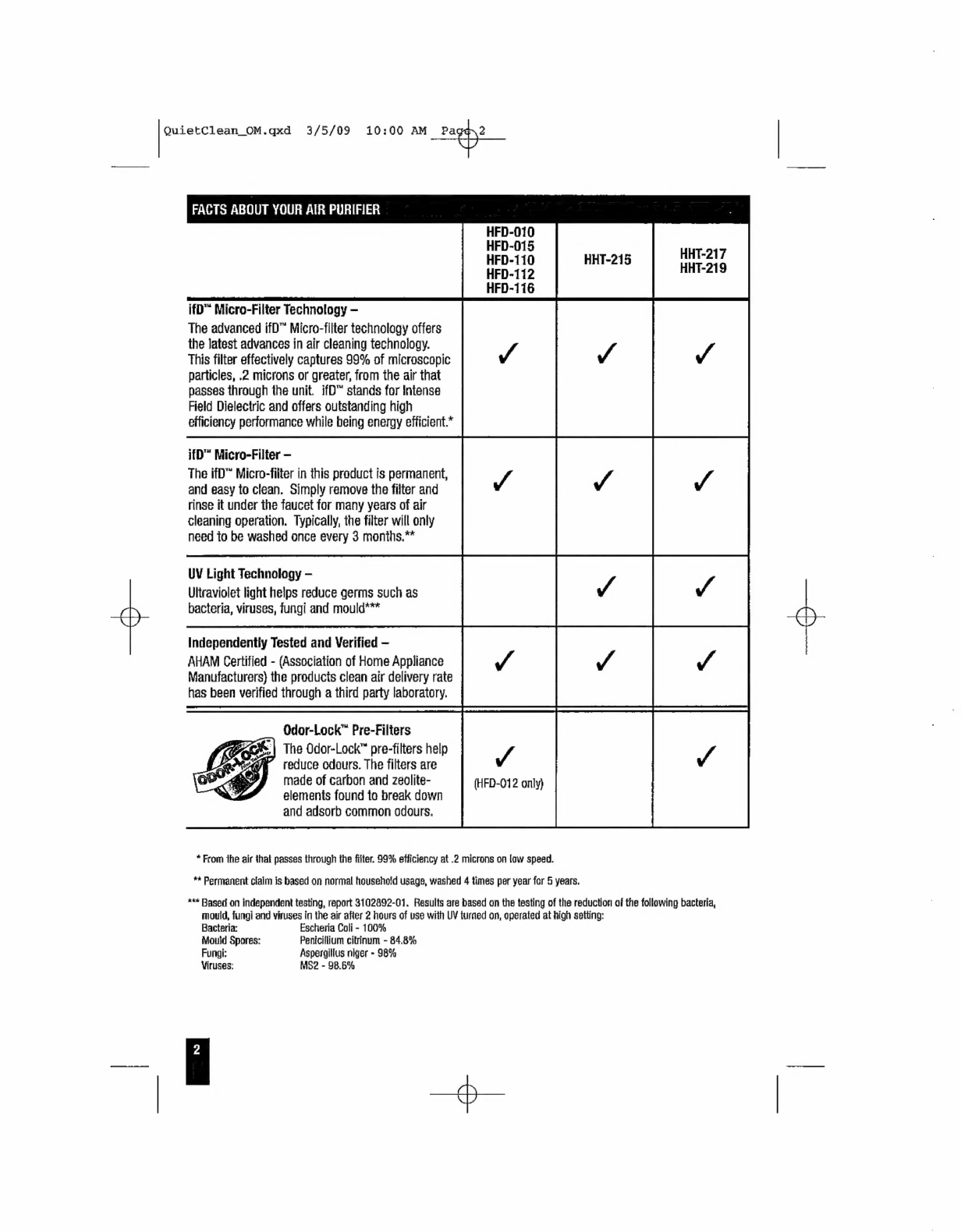

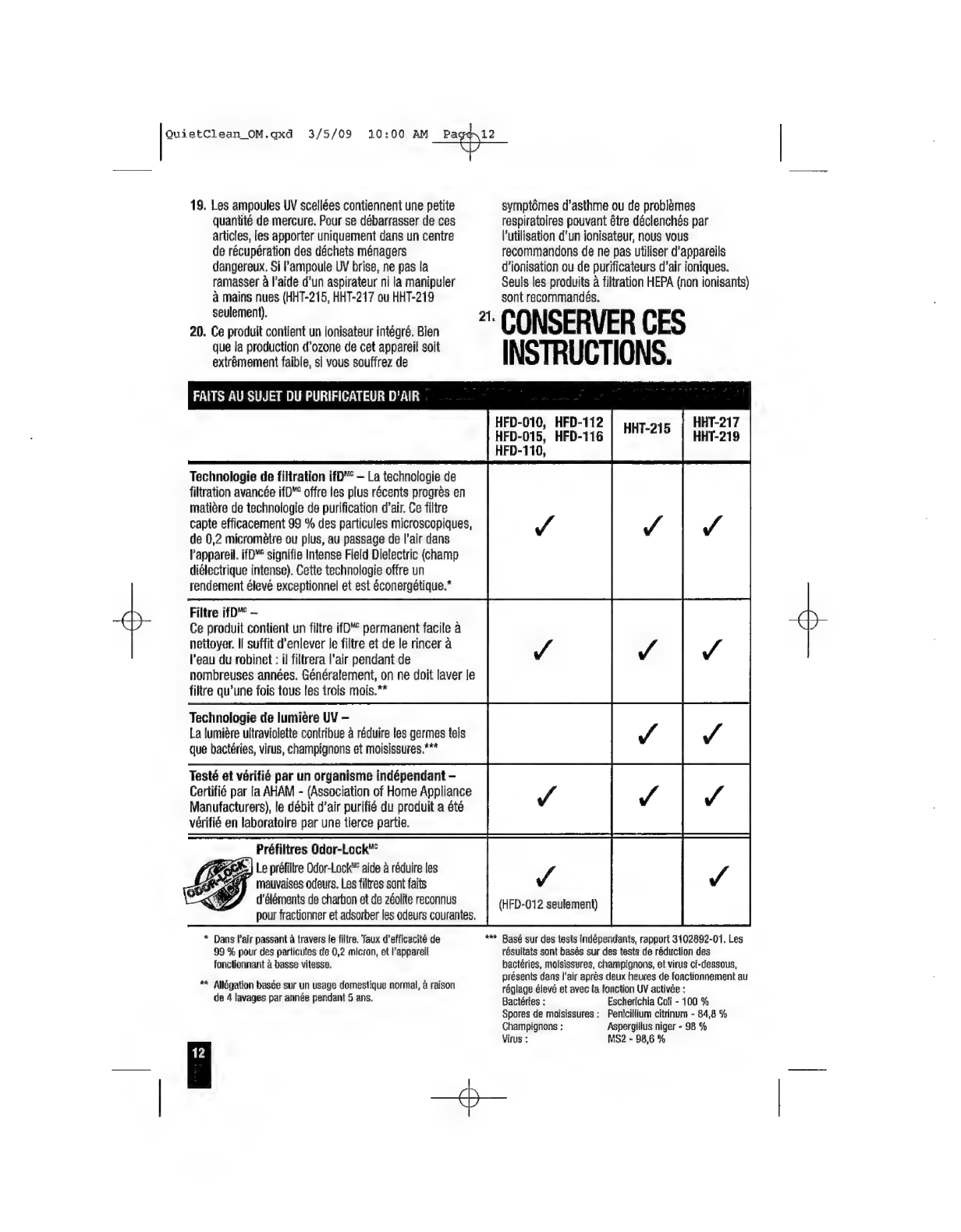

FAGTS ABOUT YOUR AIR PURIFIER
2 HHT-217
HHT-215 algai
ifD™ Micro-Filter Technology —
The advanced ifD™ Micro-filter technology offers
the latest advances in air cleaning technology.
This filter effectively captures 99% of microscopic "4 V4 V4
particles, .2 microns or greater, from the air that
passes through the unit. ifD™ stands for Intense
Field Dielectric and offers outstanding high
efficiency performance while being energy efficient.*
ifD™ Micro-Filter —
The ifD™ Micro-filter in this product is permanent,
and easy to clean. Simply remove the filter and 4 J J
rinse it under the faucet for many years of air
Cleaning operation. Typically, the filter will only
need to be washed once every 3 months.**
UV Light Technology -
Ultraviolet light helps reduce germs such as / /
bacteria, viruses, fungi and mould***
Independently Tested and Verified —
AHAM Certified - (Association of Home Appliance / S /
Manufacturers} the products clean air delivery rate
has been verified through a third party laboratory.
Odor-Lock™ Pre-Filters
Ao The Odor-Lock™ pre-filters help
reduce odours. The filters are
made of carbon and zeolite-
elements found to break down
and adsorb common odours.
* From the air that passes through the filter. 99% efficiency at .2 microns on low speed.
** Permanent claim is based on normal household usage, washed 4 times per year for 5 years.
** Based on independent testing, report 3102892-01. Results are based on the testing of the reduction of the following bacteria,
mould, fungi and viruses in the air after 2 hours of use with UV turned on, operated at high setting:
Bacteria: Escheria Coli - 100%
Mould Spores: Peniciflium citrinum - 84.8%
Fungi: Aspergillus niger - 98%
Viruses: MS2 - 98.6%

QuietClean_OM.qxd 3/5/09 10:00 AM Pa 3
INTRODUCTION
Thank you for purchasing the Honeywell QuietClean® High Performance Air Purifier with a breakthrough
technology in air purification. Please read below on how to operate and care for your new air purifier.

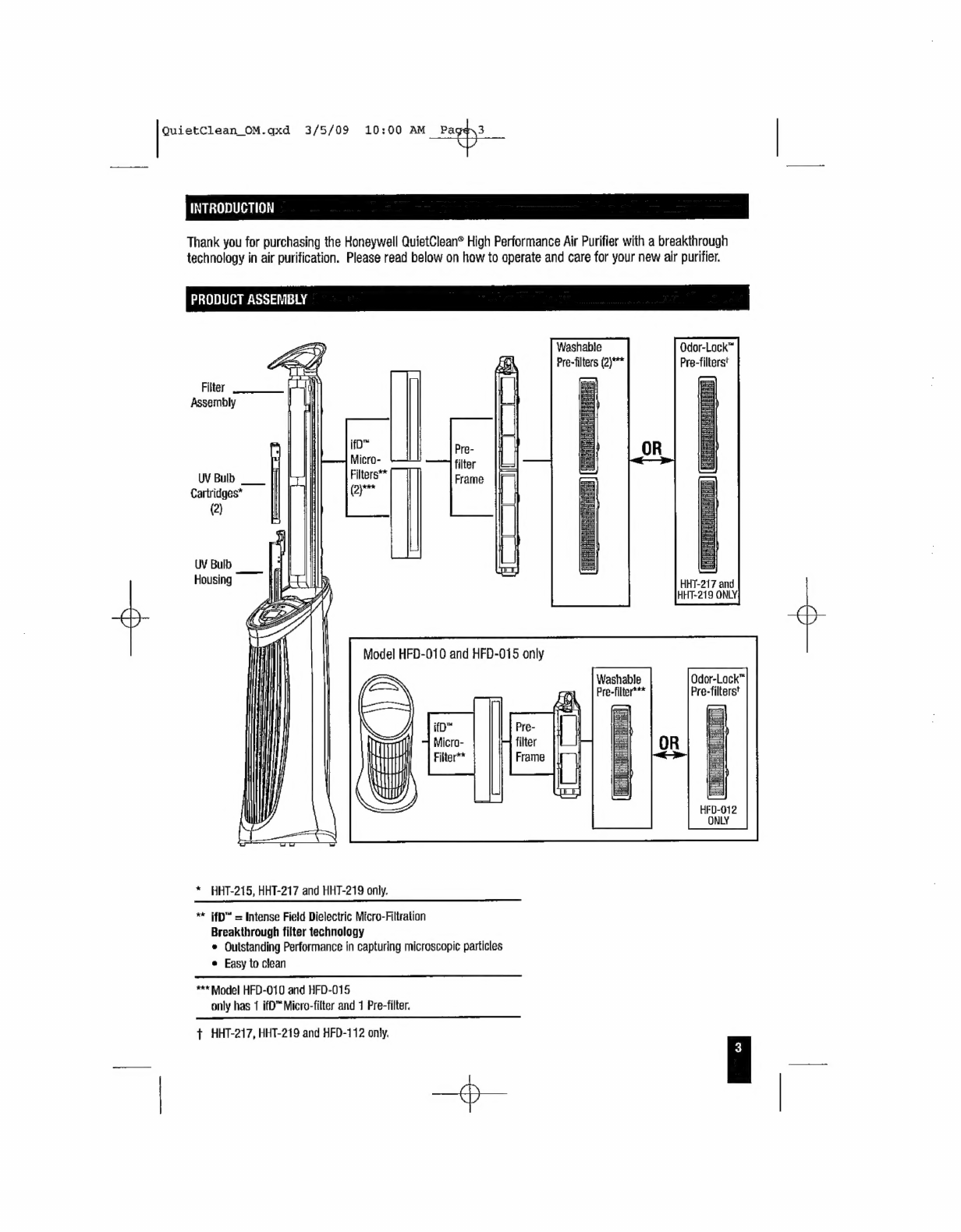

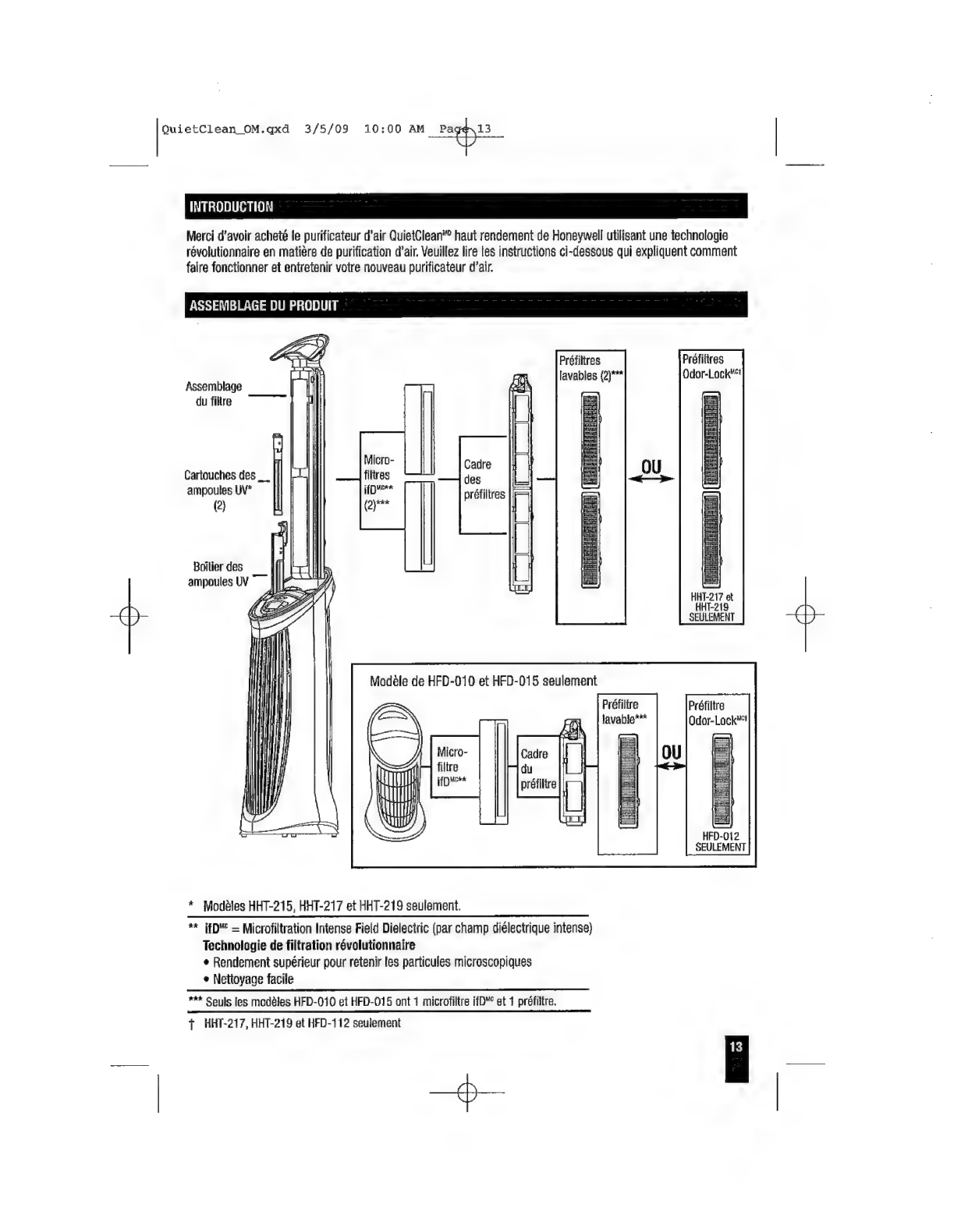

PRODUCT ASSEMBLY
Washable
Odor-Lock™
EB Pre-filters (2)"* Pre-filters*
Filter [|
Assembly I
UV Bulb __ M
Cartridges*
|
|
(2)
UV Bulb |
Housing —
HHT-217 and
HHT-219 ONLY:
Model HFD-010 and HFD-015 only
Washable Odor-Lock™
Pre-filter*** Pre-filterst
"aa ir
ifD™
Micro-
Filter**
HFD-012
ONLY
* HHT-215, HHT-217 and HHT-219 only.
* ifD™ = Intense Field Dielectric Micro-Filtration
Breakthrough filter technology
* Outstanding Performance in capturing microscopic particles
e Easy to clean
*** Model HFD-010 and HFD-015
only has 1 ifD" Micro-filter and 1 Pre-filter.
t HHT-217, HHT-219 and HFD-112 only.
+

QuietClean_OM.qxd 3/5/09 10:00 AM Pa 4

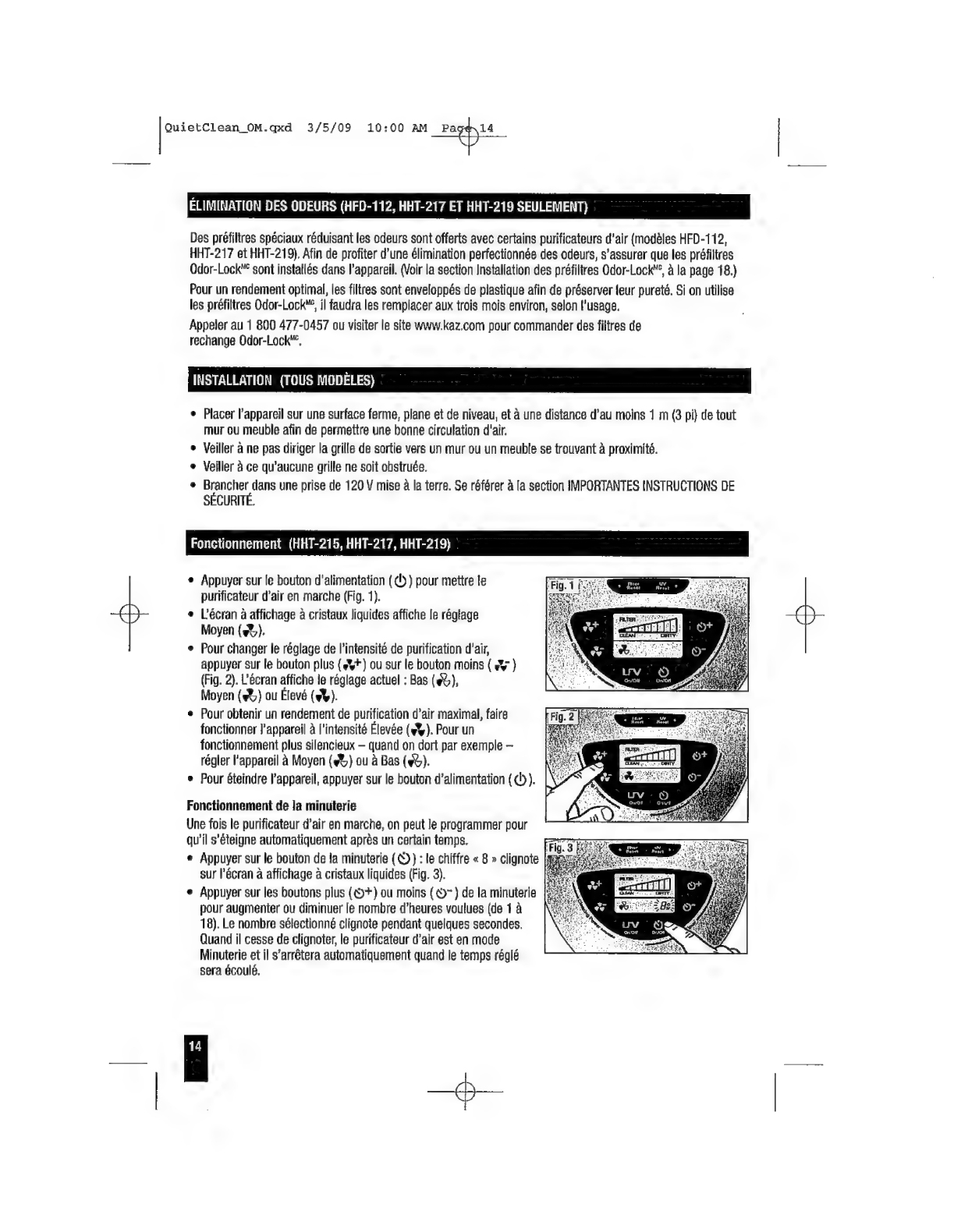

ODOR CONTROL (HFD-112, HHT-217 AND HHT-219 ONLY)
Some air purifiers (model HFD-112, HHT-217 and HHT-219) include special odor reducing pre-filters.
In order to enjoy the benefits of enhanced odor control, ensure that the Odor-Lock™ pre-filters
are installed in the unit. (See “Installing The Odor-Lock™ Pre-filters” on page 7)
For optimal performance, the filters are wrapped in plastic to keep them fresh. If you choose to use the
Odor-Lock™ pre-filters, replacement timing will be approximately every 3 months, depending on use.
Cail 1-800-477-0457 or visit www.kaz.com to order your replacement Odor-Lock” filters.
SET-UP (ALL MODELS)
e Select a firm, level and flat location, For proper air flow, locate the unit at least 3 feet (1 M) from the
wail or furniture.
e Ensure the exit grill faces away from the closest wall or furniture.
e Ensure no grilles are blocked.
ə Plug into a grounded 120V outlet. See IMPORTANT SAFETY INSTRUCTIONS.
OPERATION (HHT-215, HHT-217, HHT-219)
Press the power (€) button to turn the air purifier on (Fig. 1).
The LCD screen will display Medium (¢%,).
To change air cleaning power setting, press the up (+%+) or
down ( ¢¥ ) buttons (Fig. 2). The display will indicate the
current setting: Low (#2), Medium (#%), High (9%).
For maximum cleaning power, set the unit to operate at the
High (e%) setting. For quieter settings, or during sleep,
set the unit to Medium (8%) or Low (#0).
To turn the unit off, touch the Power {<9 ) button.
Timer Operation
Once the air purifier is turned on, you can program it to turn off
automatically after a set amount of time.
e Press the Timer button (©) — the LCD screen flashes the
number “8” (Fig. 3).
Press the timer plus (O+) or timer minus (©) buttons to
increase or decrease the desired number of hours (1 to 18).
The selected number will flash for a few seconds — once it stops
flashing, the air purifier is in Timer made and will automatically
shut off after the specified amount of time.
(Example: If you want the unit to turn off in 6 hours, touch the
Timer button, then press the timer minus (=) button until the
number "6" is displayed.)
To turn the Timer mode off, press the Timer button twice.
NOTE: Removing the ifD™ Micro-filter assembly or turning the unit off will cancel the Timer function.
i à

QuietClean_OM.qxd 3/5/09 10:00 AM Pa 5

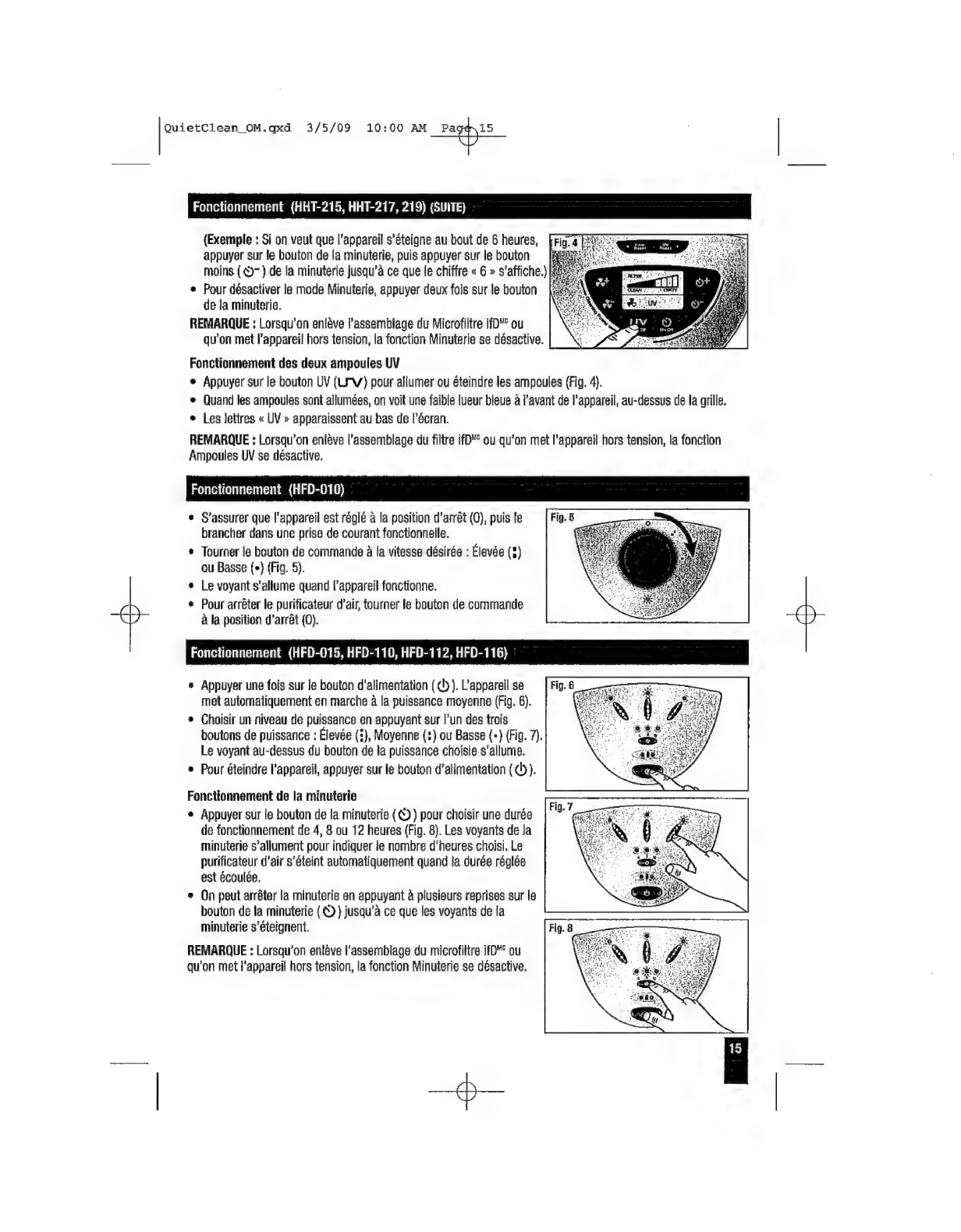

OPERATION (HHT-215, HHT-217, HHT-219)} (continued)

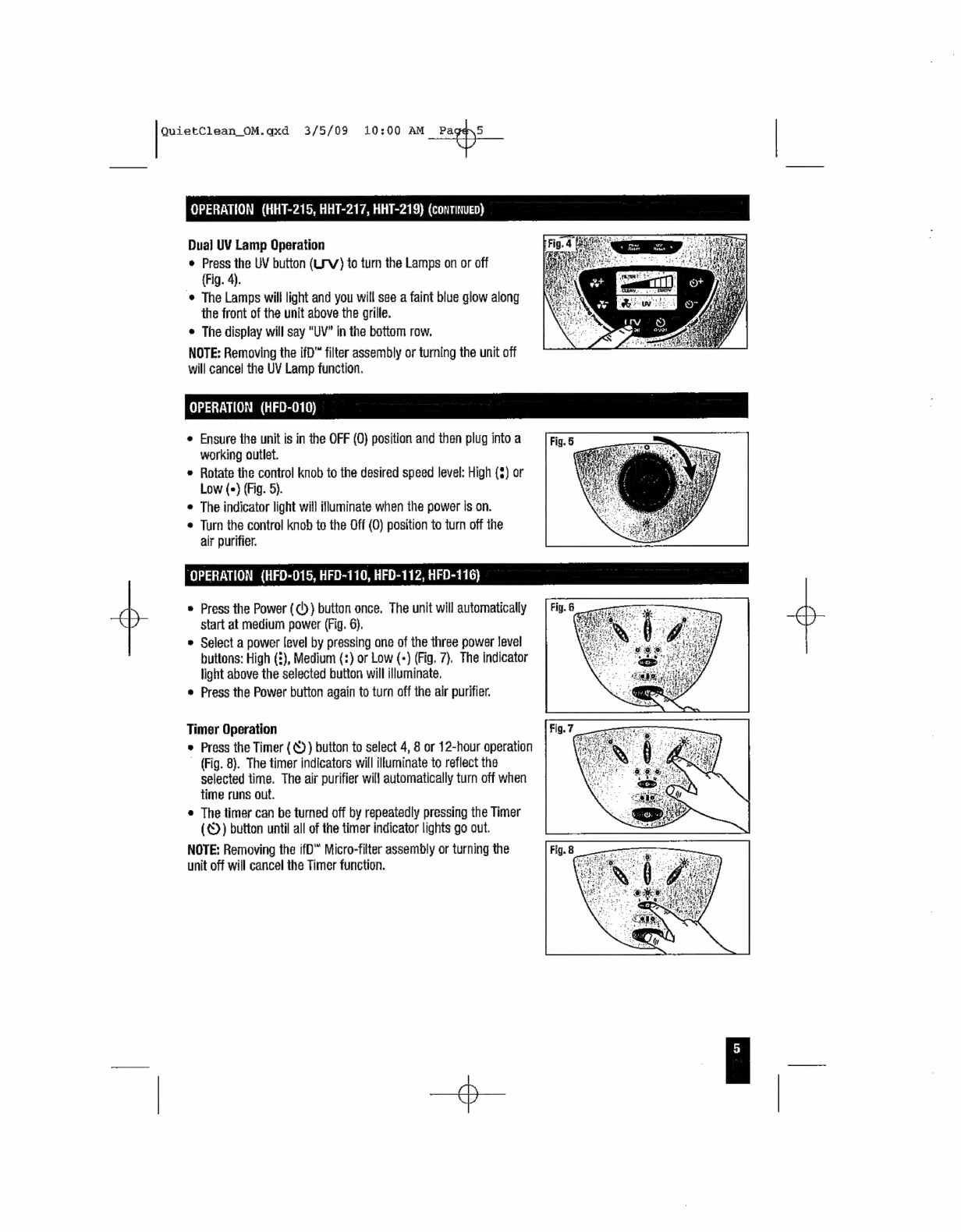

Dual UV Lamp Operation
e Press the UV button (UV) to turn the Lamps on or off
(Fig. 4).
+ The Lamps will light and you will see a faint blue glow along
the front of the unit above the grille.
© The display will say "UV" in the bottom row.
NOTE: Removing the ifD™ filter assembly or turning the unit off
will cancel the UV Lamp function.
OPERATION (HFD-010) |
¢ Ensure the unit is in the OFF (0) position and then plug into a
working outlet.
+ Rotate the control knob to the desired speed level: High (3) or
Low (+) (Fig. 5).
e The indicator light will illuminate when the power is on.
e Turn the control knob to the Off (0) position to turn off the
air purifier.
‘OPERATION (HFD-015, HFD-110, HFD-112, HFD-116)
» Press the Power (>) button once. The unit will automatically
start at medium power (Fig. 6).
® Select a power level by pressing one of the three power level
buttons: High ($), Medium (:) or Low (+) (Fig. 7}. The indicator
light above the selected button will illuminate.
+ Press the Power button again to turn off the air purifier.
Timer Operation
* Press the Timer (© ) button to select 4, 8 or 12-hour operation
(Fig. 8). The timer indicators will illuminate to reflect the
selected time. The air purifier will automatically turn off when
time runs out.
è The timer can be turned off by repeatedly pressing the Timer
(©) button until all of the timer indicator lights go out.
NOTE: Removing the ifD™ Micro-filter assembly or turning the
unit off will cancel the Timer function.

QuietClean_OM.qxd 3/5/09 10:00 AM Pa 6

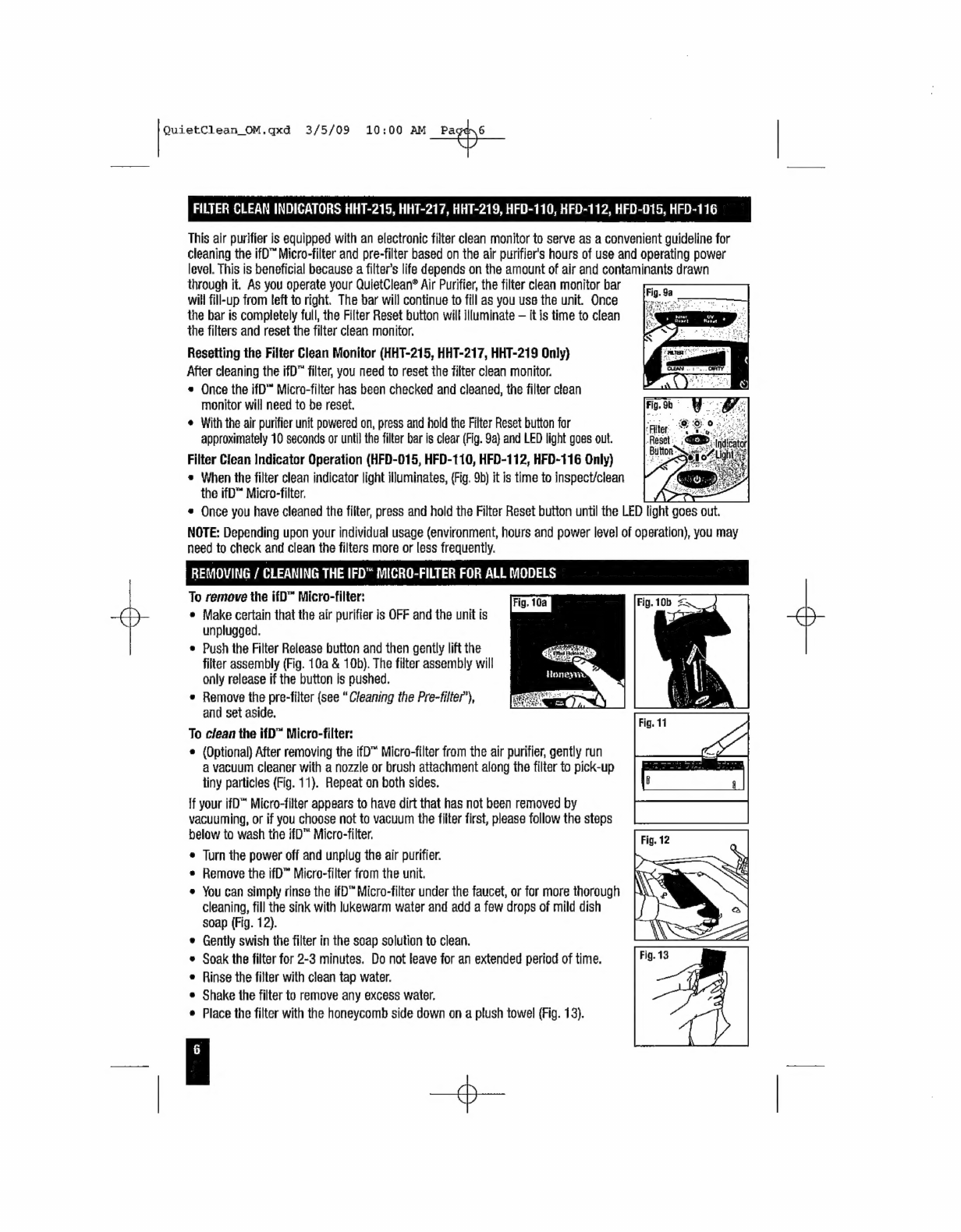

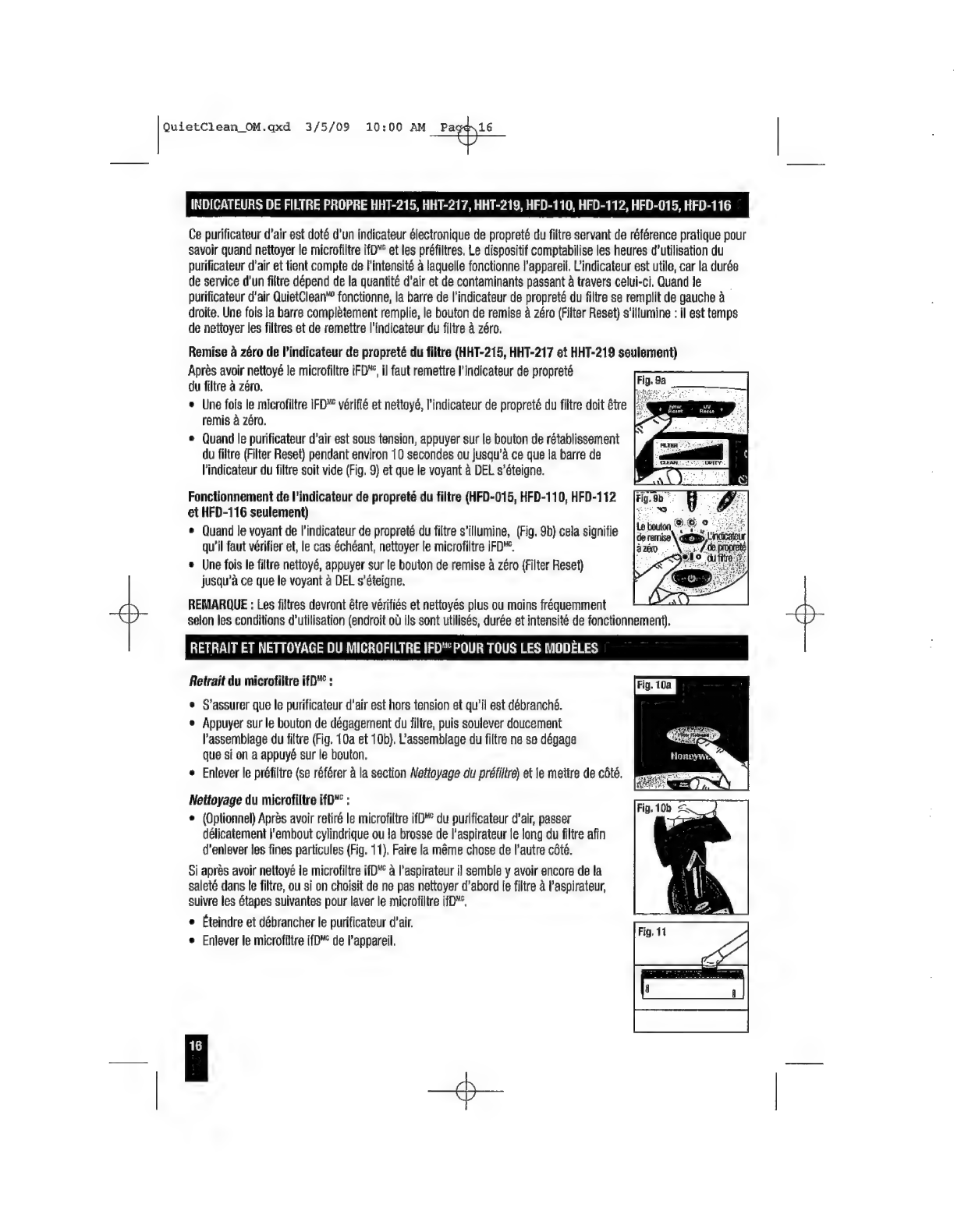

FILTER CLEAN INDICATORS HHT-215, HHT-217, HHT-219, HFD-110, HFD-112, HFD-015, HFD-116
This air purifier is equipped with an electronic filter clean monitor to serve as a convenient guideline for
cleaning the ifD™ Micro-filter and pre-filter based on the air purifier's hours of use and operating power
level. This is beneficial because a filter's life depends on the amount of air and contaminants drawn
through it. As you operate your QuietClean® Air Purifier, the filter clean monitor bar
will fill-up from left to right. The bar will continue to fill as you use the unit. Once
the bar is completely full, the Filter Reset button will illuminate — it is time to clean
the filters and reset the filter clean monitor.
Resetting the Filter Clean Monitor (HHT-215, HHT-217, HHT-219 Only)
After cleaning the ifD™ filter, you need to reset the filter clean monitor.
ə Once the ifD™ Micro-filter has been checked and cleaned, the filter clean
monitor will need to be reset.
¢ With the air purifier unit powered on, press and hold the Filter Reset button for
approximately 10 seconds or until the filter bar is clear (Fig. 9a} and LED light goes out.
Filter Clean Indicator Operation (HFD-015, HFD-110, HFD-112, HFD-116 Only)
+ When the filter clean indicator light illuminates, (Fig. 9b) it is time to inspect/clean 4 Die
the
ifD™
Micro-filter.
Ara
ə Once you have cleaned the filter, press and hold the Filter Reset button until the LED light goes out.
NOTE: Depending upon your individual usage (environment, hours and power level of operation), you may
need to check and clean the filters more or less frequently.
REMOVING / CLEANING THE IFD" MICRO-FILTER FOR ALL MODELS
To remove the ifD” Micro-filter:
ə Make certain that the air purifier is OFF and the unit is
unplugged.
* Push the Filter Release button and then gently lift the
filter assembly (Fig. 10a & 10b). The filter assembly will
only release if the button is pushed.
+ Remove the pre-filter (see “Cleaning the Pre-filter’),
and set aside.
To clean the ifD™ Micro-filter:
© (Optional) After removing the ifD™ Micro-filter from the air purifier, gently run
a vacuum cleaner with a nozzle or brush attachment along the filter to pick-up
tiny particles (Fig. 11}. Repeat on both sides.
if your ifD™ Micro-filter appears to have dirt that has not been removed by
vacuuming, or if you choose not to vacuum the filter first, please follow the steps
below to wash the ifD™ Micro-filter.
ə Turn the power off and unplug the air purifier.
* Remove the ifD” Micro-filter from the unit.
e You can simply rinse the ifD™ Micro-filter under the faucet, or for more thorough
cleaning, fill the sink with lukewarm water and add a few drops of mild dish
soap (Fig. 12).
e Gently swish the filter in the soap solution to clean.
ə Soak the filter for 2-3 minutes. Do not leave for an extended period of time.
e Rinse the filter with clean tap water.
e Shake the filter to remove any excess water,
* Place the filter with the honeycomb side down on a plush towel (Fig. 13).
i "a

QuietClean_OM.qxd 3/5/09 10:00 AM Pa 7

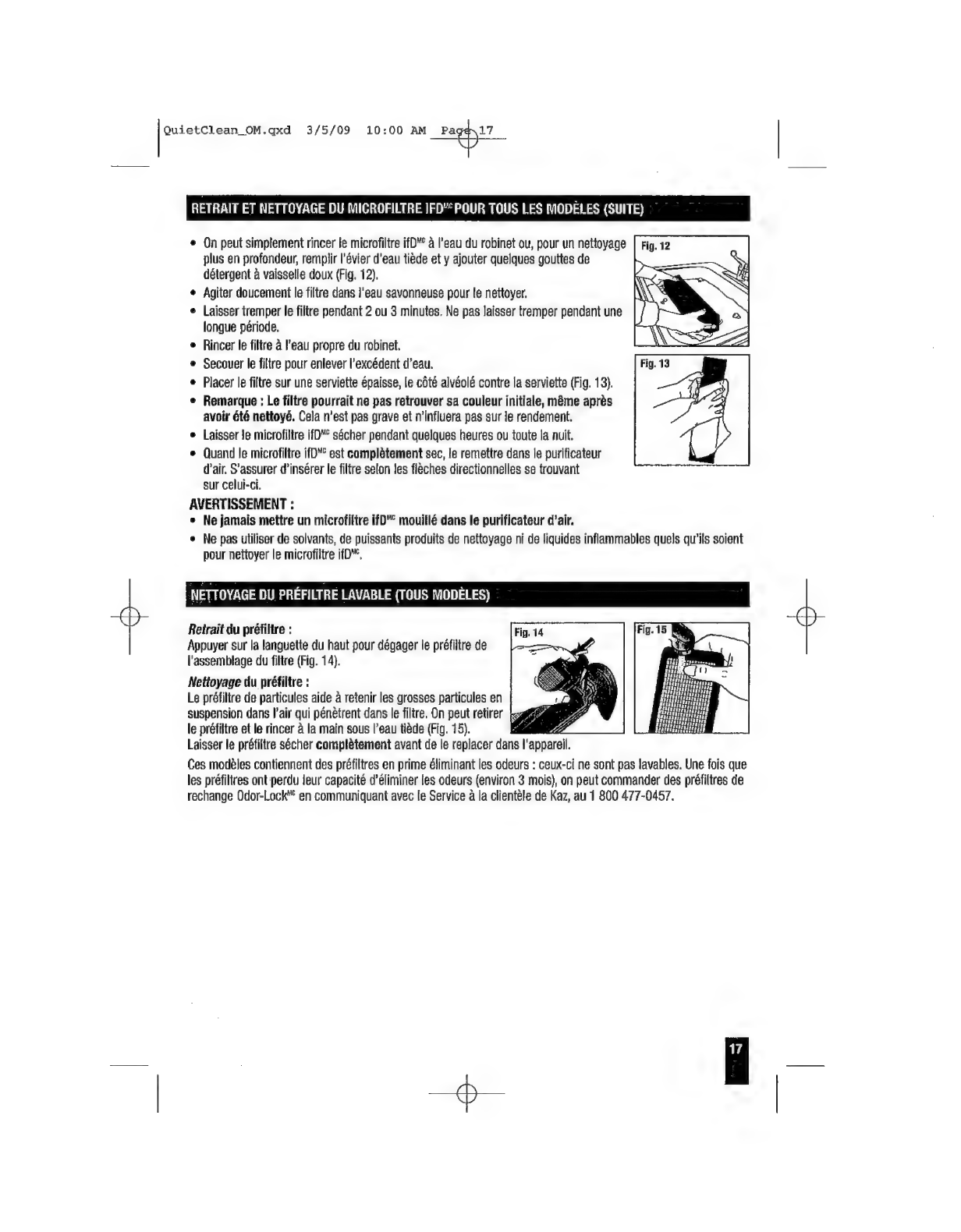

REMOVING / CLEANING THE IFD" MICRO-FILTER FOR ALL MODELS FILTER (continuen)
¢ Note that the filter may still be discolored even after washing.
This is acceptable and will not affect performance.
e Allow the ifD™ Micro-filter to dry for a few hours or overnight.
+ When the ifD™ Micro-filter is completely dry, place back into the air purifier.
Make sure you insert the filter according to the directional arrows on the filter.
CAUTION:
+ Never place a wet ifD™ Micro-filter in your air purifier.
» Do not use any solvents, strong cleaning agents or flammable liquids to clean the ifD™ Micro-filter.
CLEANING THE WASHABLE PRE-FILTER (ALL MODELS)
To remove the pre-filter:
Press the top tab to release the pre-filter from the filter
assembly (Fig. 14).
To clean the pre-filter:
The particle pre-filter helps pick-up large airborne particles
that enter the filter. The pre-filter can be removed and rinsed E
by hand under warm water (Fig. 15). Let the pre-filter dry
completely before inserting it back into the unit.
Some models are shipped with bonus odor control pre-filters that are not washable. After the pre-filters
have lost their odor reducing capability over time {approximately 3 months), you can order replacement
Odor-Lock™ pre-filters by calling the Kaz Consumer Relations Department at 1-800-477-0457.

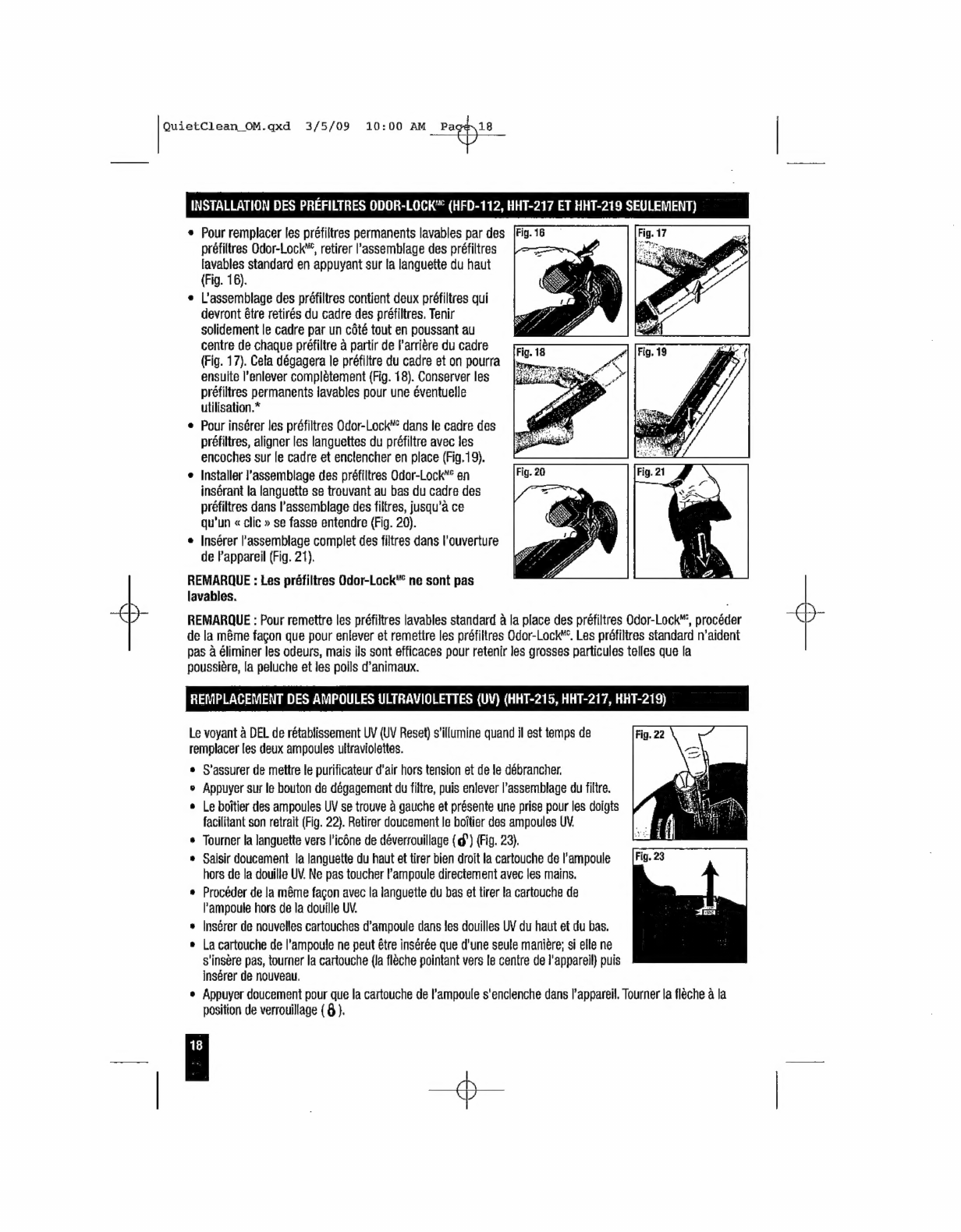

INSTALLING THE ODOR-LOCK™ PRE-FILTER(S) (HFD-112, HHT-217 AND HHT-219 ONLY)
To replace the permanent, washable pre-filters with the
Odor-Lock™ pre-filters, remove the standard washable
pre-filter assembly by pushing on the top tab (Fig.16).
The pre-filter assembly has two pre-filters that will need
to be popped out of the pre-filter frame. Hold the frame
steady from the side while pushing in the center of each
pre-filter from the back side of the frame (Fig.17). This
will separate the pre-filter from the frame and you can
then pull it completely away from the frame (it will snap
out) (Fig.18}. Save the permanent washable pre-filters
as you may choose to use them in the future.*
To insert the Odor-Lock™ pre-filters into the pre-filter
frame, line the tabs on the pre-filter up with the frame
notches and snap into place (Fig.19).
Install the Odor-Lock™ filter assembly by inserting the
lower tab of the pre-filter frame into the filter assembly
untit you hear a “click” (Fig. 20).
Align the complete filter assembly with the opening in
the unit and insert back into the unit (Fig. 21).
NOTE: The Odor-Lock™ filters are not washable.
+

QuietClean_OM.gxd 3/5/09 10:00 AM Pa 8
INSTALLING THE ODOR-LOCK™ PRE-FILTER(S) (HFD-112, HHT-217 AND HHT-219 ONLY) {continuen}
NOTE: If you choose to re-insert the standard washable pre-filter in lieu of the Odor-Lock™ pre-filter, they
are removed and inserted in the same way that the Odor-Lock™ filters are installed. They will not help
reduce odours but will be effective at capturing larger particles like dust, lint and pet fur.
REPLACING THE ULTRAVIOLET (UV) LAMPS (HHT-215, HHT-217, HHT-219)
The UV Reset LED light will illuminate when it is time to
replace the dual UV bulbs.
Be sure to turn off and unplug your air purifier.
Press the Filter Release button and remove the filter
assembly.
The UV bulb housing is on the left and has a finger
grip for ease of removal (Fig. 22). Gently remove the
UV bulb housing.
Turn the tab towards the unlock symbol (¢') (Fig 23).
Gently grasp the top of the tab and pull the bulb cartridge straight out of the UV
socket. Do not touch the bulb directly with your hands.
Do the same for the bottom tab and pull the bulb cartridge out of the UV socket.
Replace the top and lower UV bulb sockets.
The bulb cartridge will only fit one way; if it does not fit, turn the bulb cartridge
the other way (with the arrow pointing to the center of the unit} and insert.
Push down gently so that the bulb cartridge engages with the unit. Turn arrow to the lock position (6).
Place UV bulb housing back in air purifier housing and then insert ifD™ filter assembly.
With the air purifier powered on, press and hold the UV reset button (Fig. 24) until the
LED light goes out.
NOTE: Discard the old UV bulb cartridge at a household hazardous waste collection site.
Bulb and bulb housing are not intended for use with any other product or purpose.
Hg Lamp contains mercury. Manage in accordance with disposal laws.
See www.lamprecycle.org or cali 1-800-895-8842.
INSTALLING THE FILTERS (ALL MODELS)
Please make certain that the unit
is OFF and unplugged.
To install the ifD™ Filter and pre-filter:
+ insert the lower tab of the pre-tilter
frame into the filter assembly de
(Fig. 25) and press the top tab into er
the filter assembly until you hear $
a “click” (Fig. 26).
* Align the filter assembly with the opening in the unit and insert back into the unit (Fig. 27).
Press until it is flush and you hear a “click,”
ao

QuietClean_OM.qxd 3/5/09 10:00 AM Pa 9

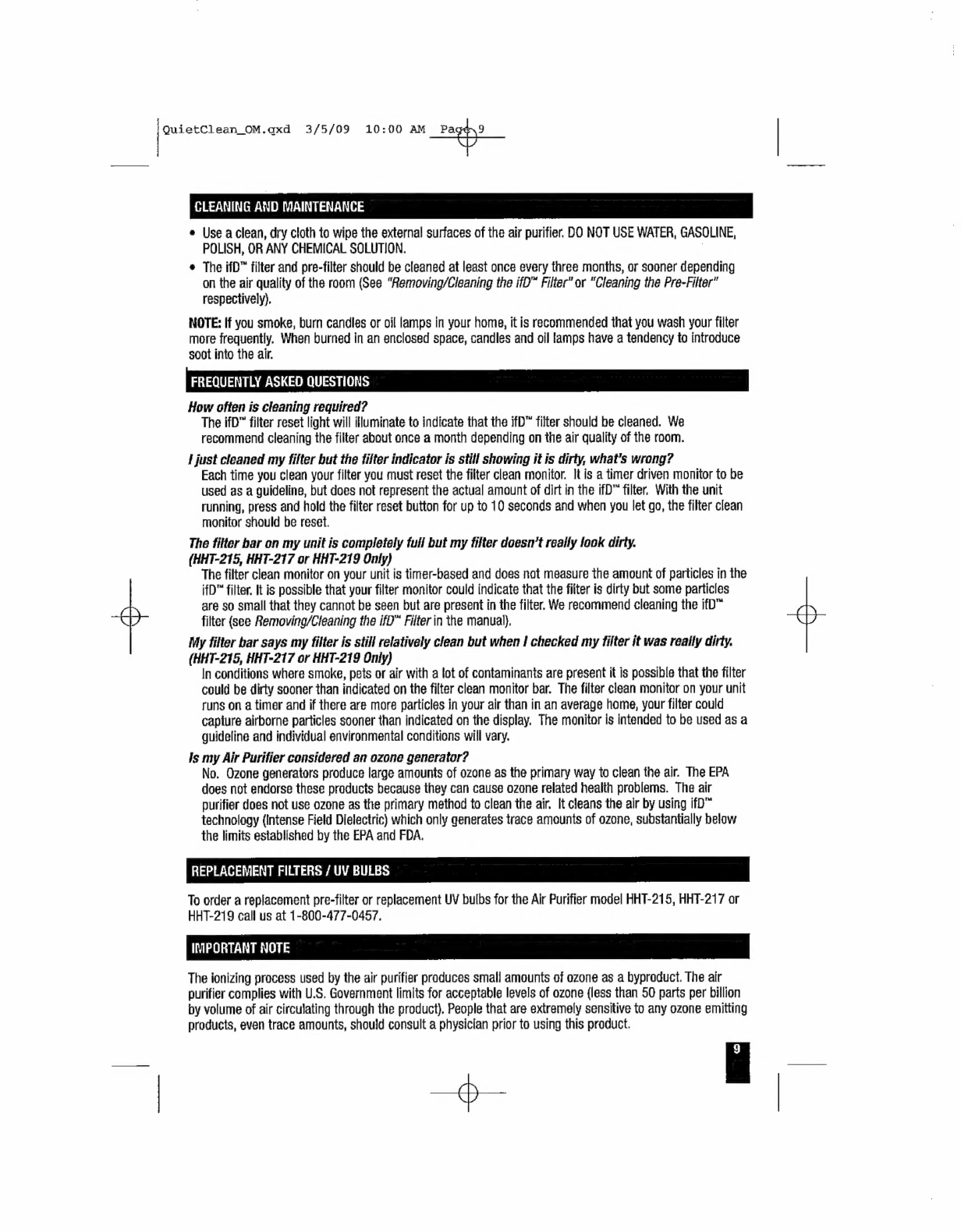

CLEANING AND MAINTENANCE
e Use a clean, dry cloth to wipe the external surfaces of the air purifier. DO NOT USE WATER, GASOLINE,
POLISH, OR ANY CHEMICAL SOLUTION.
e The ifD™ filter and pre-filter should be cleaned at least once every three months, or sooner depending
on the air quality of the room (See “Removing/Cleaning the ifD™ Filter” or “Cleaning the Pre-Filter"
respectively).
NOTE: If you smoke, burn candles or oil lamps in your home, it is recommended that you wash your filter
more frequently, When burned in an enclosed space, candles and oil lamps have a tendency to introduce
soot into the air.
FREQUENTLY ASKED QUESTIONS
How often is cleaning required?
The ifD™ filter reset light will illuminate to indicate that the ifD™ filter should be cleaned. We
recommend cleaning the filter about once a month depending on the air quality of the room.
1 just cleaned my filter but the filter indicator is still showing it is dirty, what's wrong?
Each time you clean your filter you must reset the filter clean monitor. It is a timer driven monitor to be
used as a guideline, but does not represent the actual amount of dirt in the ifD™ filter. With the unit
running, press and hold the filter reset button for up to 10 seconds and when you let go, the filter clean
monitor should be reset.
The filter bar on my unit is completely full but my filter doesn’t really look dirty.
(HHT-215, HHT-217 or HHT-219 Only)
The filter clean monitor on your unit is timer-based and does not measure the amount of particles in the
ifD™ filter. It is possible that your filter monitor could indicate that the filter is dirty but some particles
are so small that they cannot be seen but are present in the filter. We recommend cleaning the ifD™
filter {see Removing/Cleaning the ifD™ Filter in the manual).
My filter bar says my filter is still relatively clean but when 1 checked my filter it was really dirty.
(HHT-215, HHT-217 or HHT-219 Only)
In conditions where smoke, pets or air with a lot of contaminants are present it is possible that the filter
could be dirty sooner than indicated on the filter clean monitor bar. The filter clean monitor on your unit
runs on a timer and if there are more particles in your air than in an average home, your filter could
capture airborne particles sooner than indicated on the display. The monitor is intended to be used as a
guideline and individual environmental conditions will vary.
Is my Air Purifier considered an ozone generator?
No. Ozone generators produce large amounts of ozone as the primary way to clean the air. The EPA
does not endorse these products because they can cause ozone related health problems. The air
purifier does not use ozone as the primary method to clean the air. It cleans the air by using ifD™
technology (Intense Field Dielectric) which only generates trace amounts of ozone, substantially below
the limits established by the EPA and FDA.
REPLACEMENT FILTERS / UV BULBS
To order a replacement pre-filter or replacement UV bulbs for the Air Purifier model HHT-215, HHT-217 or
HHT-219 call us at 1-800-477-0457.
IMPORTANT NOTE
The ionizing process used by the air purifier produces small amounts of ozone as a byproduct. The air
purifier complies with U.S. Government limits for acceptable levels of ozone {less than 50 parts per billion
by volume of air circulating through the product). People that are extremely sensitive to any ozone emitting
products, even trace amounts, should consult a physician prior to using this product.
+

QuietClean_OM.qxd 3/5/09
10:00 AM Pa
10
CONSUMER RELATIONS
Mail questions or comments to:
Kaz, Incorporated
Consumer Relations Dept.
250 Turnpike Road
Southborough, MA 01772
Call us toll-free at: 1-800-477-0457
E-mail: [email protected]
Or visit our website at: www.kaz.com
Please be sure to specify a model number.
NOTE: IF YOU EXPERIENCE A PROBLEM, PLEASE CONTACT CONSUMER RELATIONS FIRST OR SEE
YOUR WARRANTY. DO NOT RETURN TO THE ORIGINAL PLACE OF PURCHASE. DO NOT ATTEMPT TO
OPEN THE MOTOR HOUSING YOURSELF, DOING SO MAY VOID YOUR WARRANTY AND CAUSE DAMAGE
TO THE AIR PURIFIER OR PERSONAL INJURY.
5 YEAR LIMITED WARRANTY
YOU SHOULD FIRST READ ALL INSTRUCTIONS
BEFORE ATTEMPTING TO USE THIS PRODUCT.
A. This 5 year limited warranty applies to repair or
replacement of product found to be defective in
material or workmanship. This warranty does
not apply to damage resulting from
commercial, abusive, unreasonable use or
supplemental damage. Defects that are the
result of normal wear and tear will not be
considered manufacturing defects under this
warranty.
KAZ IS NOT LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES OF ANY NATURE.
ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE ON THIS PRODUCT IS
LIMITED IN DURATION TO THE DURATION OF
THIS WARRANTY.
Some jurisdictions do not allow the exclusion or
limitation of incidental or consequential
damages or limitations on how long an implied
warranty lasts, so the above limitations or
exclusions may not apply to you. This warranty
gives you specific legal rights, and you also
may have other rights which vary from
jurisdiction to jurisdiction. This warranty applies
only to the original purchaser of this product
from the original date of purchase.
. At its option, Kaz will repair or replace this
product if it is found to be defective in material
or workmanship.
co
. This warranty does not cover the ifD™ filter or
pre-filter except for material or workmanship
defects.
D. This warranty does not cover damage resulting
from any unauthorized attempts to repair or
from any use not in accordance with the
instruction manual.
E. Return defective product to Kaz, Incorporated
with a brief description of the problem. Include
proof of purchase and a $10 US/$15.50 CAN
check or money order for handling, return
packing and shipping charges. Please include
your name, address and a daytime phone
number.
You must prepay shipping charges.
We strongly recommend tracking or delivery
confirmation. Send to:
In U.S.A.:
Kaz, Incorporated
Attn: Returns Department
4755 Southpoint Drive
Memphis, TN 38118
USA
In Ganada:
Kaz Canada Inc.
Attn: Returns Department
510 Bronte Street South
Milton, ON LOT 2X6
Canada
Please go to www.kaz.com and register your product
under the Customer Care Center and receive product
information updates and new promotional offers.
© 2009 Kaz, Incorporated. All Rights Reserved.
P/N: 31IMT215196
+
