OWNER’S MANUAL
Read and save these instructions before use
Model: CHL30XC
Power rating: 252W (Cooling) / 2000W (Heating)
Voltage rating: 220-240V ~ 50 Hz
For product inquiries or support, visit
www.honeywellaircoolers.com
Portable Evaporative Air Cooler with Heater
for indoor use
Customer Service Center:
[phone] / www.scott-air-cooling.co.uk
Made in China

QUICK START GUIDE
Fill with water and plug into standard
power outlet.
Place near open door or window.
Note : Please make sure that the power outlet is
set to correct settings as per product specifications.
Note : Evaporative Air Coolers work on evaporative
cooling mechanism which requires cross ventillation.
Turn ON and enjoy the cooling breeze.
Note: Start with LOW speed and gradually increase
to higher speed for optimum cooling performance.
1
2
3

SECTION PAGE
1. THANK YOU ...........................................................................................................
2. USER TIPS .............................................................................................................
3. SAFETY RULES .....................................................................................................
4. PARTS DESCRIPTION ..........................................................................................
5. USE & OPERATION ...............................................................................................
6. CLEANING & MAINTENANCE ...............................................................................
7. TROUBLESHOOTING GUIDE ...............................................................................
8. TECHNICAL SPECIFICATIONS ............................................................................
9. ELECTRICAL WIRING DIAGRAM .........................................................................
2
3
5
8
9
Remote Control....................................................................................................
Function Buttons..................................................................................................
Room Cooling and Humidifying .............................................................................
13
Filling with Water.................................................................................................. 14
Control Panel ...................................................................................................... 9
10
12
15
17
19
19
INDEX
1
Read all instructions carefully before setting up and operating the unit, and please keep
this instruction manual for future reference. This manual is designed to provide you with
important information needed to setup, operate, maintain, and troubleshoot your cooler.
Failure to follow these instructions may damage and/or impair its operation and void the
warranty.

2
THANK YOU
Congratulations on your purchase of this versatile Honeywell Evaporative Air
Cooler and Heater. For optimum cooling & heating performance from your unit, fill
the water tank with water & ice (if available) to increase its cooling power and turn
off the Cool mode at least 15 minutes before you turn on the heater. The unit should
be positioned in a location that will create a Flow Through Air effect.The greatest
cooling effect will be felt if the unit is operated in a partly opened doorway or window.
Cooler Location - Indoors (Important - Please Read!)
Place the cooler in front of an open door or window. Ensure that there is adequate
cross - ventilation in the room by leaving a door or window open opposite the cooler.
Following these guidelines will ensure your cooler will work as effectively as possible.
Not an Air Conditioner (Important - Please Read!)
The evaporative air cooler is not an air conditioner as it does not use a compressor
or refrigerant gas. It should not be expected to cool as efficiently as a refrigerated air
conditioner.

3
USER TIPS
Energy Efficient, No Compressor
EVAPORATIVE AIR COOLER
Evaporative air cooling is the natural way of cooling, similar to a breeze blowing across a lake.
This breeze drops the temperature and has a relaxing cooling effect. The evaporative air cooler
cools the air by means of the evaporation of water. When water evaporates into the air, the result
is a mixture of air and water molecules. This chemical change requires heat which is taken from
the water molecules, resulting in cooler air propelled from the unit.
HEATER
A fan heater is a variety of convection heater that includes an electric fan to speed up the
airflow(air circulation). This reduces the thermal resistance between the heating element and the
surroundings and is faster than passive convection, allowing heat to be transferred more quickly.
They operate with considerable noise caused by the fan. They have a moderate risk of ignition
hazard in the event that they make unintended contact with furnishings. This type of heater is a
good choice for quick heating of enclosed space.
Pump
Water
Honeycomb Cooling Media
Evaporative Air Cooling Mechanism
Warm and
dry air
Cool and
humid air

4
USER TIPS
The recommended maximum relative humidity level is 60% or
less, which allows a noticeable temperature decrease. The
temperature decrease will be greater in drier climates because
higher evaporation occurs when the humidity is low.
The evaporative air cooler should not be used in enclosed
spaces. It must be kept level and there must be water in the
water tank. The room should have doors and windows opened
to allow free air flow. The evaporative air cooler works best
when placed near an open window, so that outside air is drawn
into the evaporative air cooler, circulates in the room, then
exits via the door. The maximum cooling effect is felt when a
person is in the flow of air coming out of the evaporative air
cooler.
The evaporative air cooler can also be used to humidify dry
air during cool weather. To be used for humidification the
windows and doors should be closed to allow the humidified
air to accumulate.
When the product is used for the first time the Honeycomb Cooling Media will have an
odor which will dissipate in a few hours or so of initial use.
Room with open windows & door
(RECOMMENDED)
Room with closed windows & door
(NOT-RECOMMENDED)
NOTE

WATER LEVEL INDICATOR
220-240V AC 50Hz
SHOCK HAZARD
5
SAFETY
READ AND SAVE THESE INSTRUCTIONS:
When using electrical appliances, basic safety precautions should always be followed:
Your cooler runs on 220-240 Volt AC, 50 Hz current. Check
the household voltage to ensure it matches the appliance's
rate specification.
Before operating the product remove it from its packaging
and check that it is in good condition.
DO NOT operate any product with a damaged cord or plug.
We recommend not using an extension cord with this
appliance.
DO NOT run power cord under carpeting, or cover it with
rugs or runners. Keep the cord away from areas where it
may be tripped over.
Always unplug the product before refilling the water tank.
Always unplug the appliance from the power source before
cleaning, servicing or relocating the unit.
Remove the power cord from the electrical receptacle by
grasping and pulling on the power cord plug-end only, never
pull the cord.
DO NOT use the product in areas where gasoline, paint or
other flammable goods and objects are stored.
When using the COOL setting, check the water tank to
ensure that it is full. Operation of this cooler on the COOL
setting with an empty tank may result in damage to the
water pump.
WARNING: To reduce the risk of fire or electric shock, do
not use this appliance with any solid state speed control
device.
•
•
•
•
•
•
•
•
•
•

FLOOR LEVEL
6
SAFETY
DO NOT attempt to repair or adjust any electrical or
mechanical functions of the cooler, as this may void the
warranty.
DO NOT cover the air inlet or outlet on the appliance as this
may cause motor damage.
DO NOT insert or allow objects to enter any ventilation or
exhaust opening as this may damage the product and could
cause electrical shock or fire.
DO NOT operate with the Honeycomb Cooling Media
removed as this will overload and damage the motor.
DO NOT leave the operating appliance unattended for any
extended period of time.
DO NOT let children play with this appliance, packaging or
plastic bags.
If the unit is damaged or it malfunctions, do not continue to
operate it. Refer to the troubleshooting section and seek
professional advice.
Place the unit on a level floor.
This product is not intended for use in wet or damp
locations.
DO NOT use in bathrooms. Never locate the product where
it may fall into a bathtub or other water container.
Store in a dry area when not in use.
This appliance is not intended for use by persons (including
children or elderly) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instructions concerning
the use of the appliance by a person responsible for their
safety.
Always grip the side handles to move the cooler.
•
•
•
•
•
•
•
•
•
•
•
•
•

7
SAFETY RULES
•
•
•
•
•
•
WHEN OPERATING AS HEATER
DO NOT put any combustible item over the unit, when operating on the HEAT mode,
as it may catch fire.
DO NOT use this heater close to curtains and other combustible material and keep a
safe distance. Keep the appliance at least 15cm (6 inches) from walls and any other
thing, to permit a good air circulation.
Never immerse the product in water or any other liquid for any reasons. Do not use in
the shower, bath tub, or a swimming pool.
DO NOT use if you have wet hands.
Never use the appliance on or near hot surfaces.
The heater must not be located immediately below the socket outlet.

8
PARTS DESCRIPTION
ACCESSORIES
Remote Control (2 AAA Batteries not included)
6
1
11
12
17
14
15
16
13
2
4
3
5
8
9
19
18
10
7
1 Control Panel
2 Handle
3 Louvers for Manual Adjustment
4 Left Side Panel
5 Water Tank
6 Power Cord
7 Power Plug
8 Casters
9 Ice Compartment Lid
10 Back Grill
11 Front Panel
12 Water Level Indicator
13 Remote Control Holder
14 Latch (To Detach Water Tank)
15 Right Side Panel
16 Water Fill Door
17 Water Drain Plug
18 Water Regulator
19 Power Switch

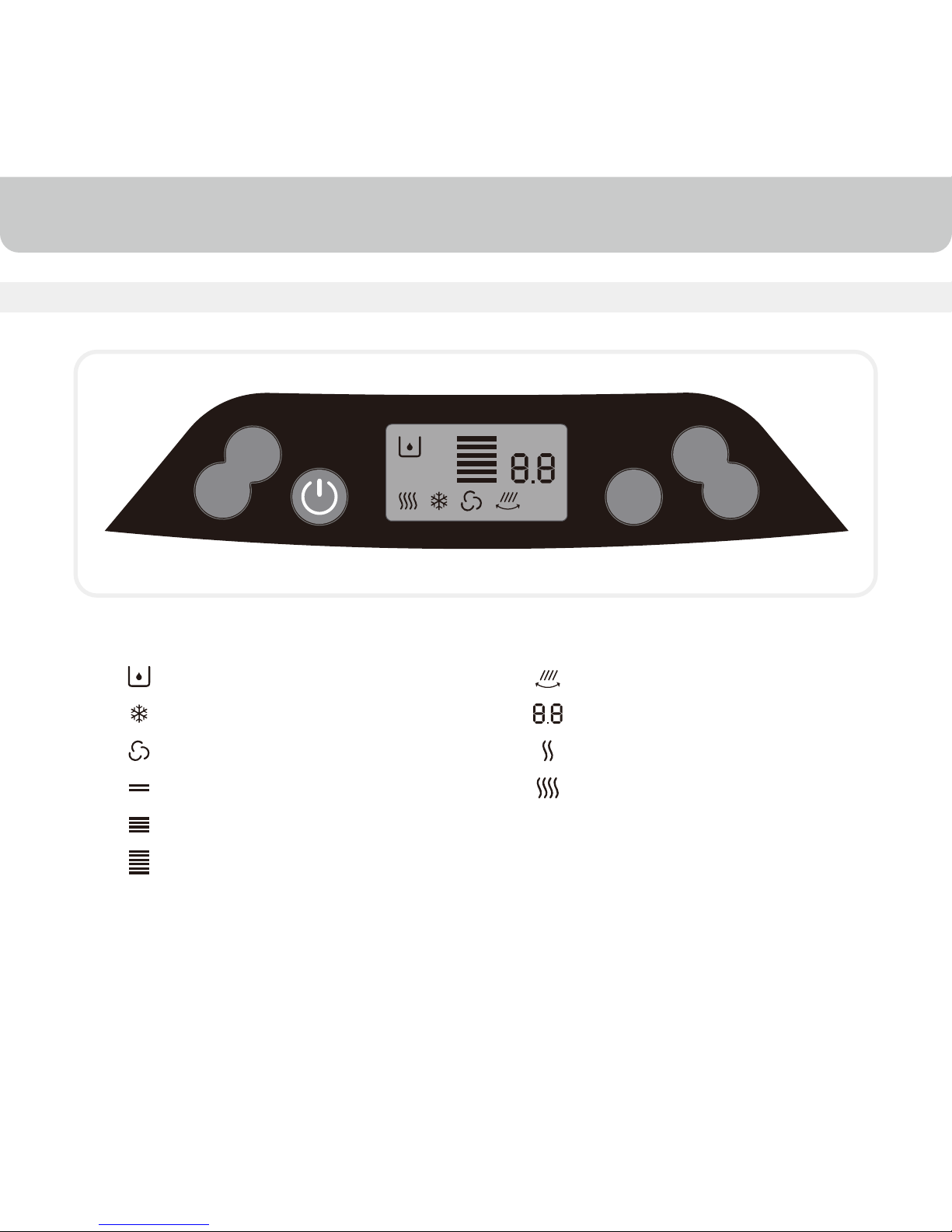

CONTROL PANEL
9
USE & OPERATION
Icons on LCD
Low water level in tank
Cool
Fan operating
Low speed
Medium speed
Heater Low
High speed
Swing
Time delay set
Heater High
COOL
SPEED
HEAT
TIMER
SWING

FUNCTION BUTTONS
POWER SWITCH
USE & OPERATION
10
COOL
SPEED
SPEED
POWER
This unit is equipped with a spearate Main Power Switch,
located on the side near the top (part no.19). Please make
sure that this Power Switch is in the ON position, if your
Power Switch is not in the ON position the unit will not run.
Press the POWER button to turn the unit on. To turn the unit
off, press the button again. The cooler will start automatically
at medium speed. After a few seconds the speed will switch
to low.
COOL
To begin cooling the desired area press the COOL button.
The indicator light will come on and the water pump will
operate. You will feel the cooler air after the Honeycomb
Cooling Media is completely wet.
Press the SPEED button repeatedly and the speed will change.
The indicator light will show the selected speed.
High Medium Low

USE & OPERATION
11

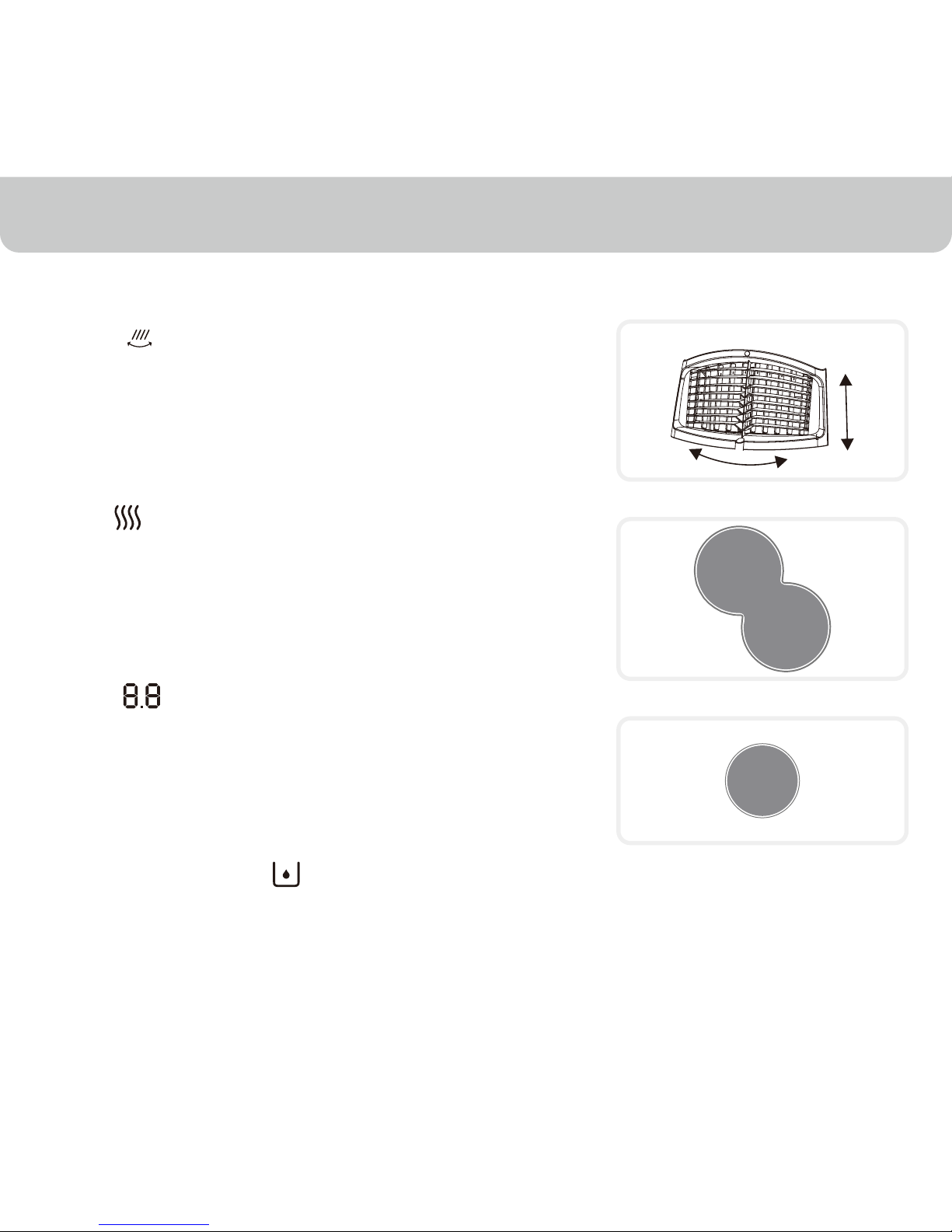

TIMER
LOUVER MOVEMENT
LOW WATER ALARM
TIMER
HEAT
SWING
HEAT
SWING
Press the SWING button. The indicator light will come
on and the louvers will begin to move from right to left
automatically. Manually adjust the horizontal louvers to
change vertical airflow.
Press the HEAT button to turn ON the heater. You can
vary the speed of heater from low to high. LOW / HIGH
speed of heater is indicated on the control panel, and it
changes with the press of HEAT button.
Press the TIMER button until the indicator light comes on to
your desired timer. Once the set time has passed, the unit
will automatically shut off. The Timer function allows you
toprogram the unit for up to 8 hours of use.
Once the water level inside the tank is below the MIN level, the pump will be automatically
switched off, and sound alarming activates. The unit will make 10 beeps and continuously
flash BUCKET symbol on the LCD display. When tank is filled with more water or the water
level is above the MIN, to restart the pump, the COOL button needs to be pressed again.

USE & OPERATION
12

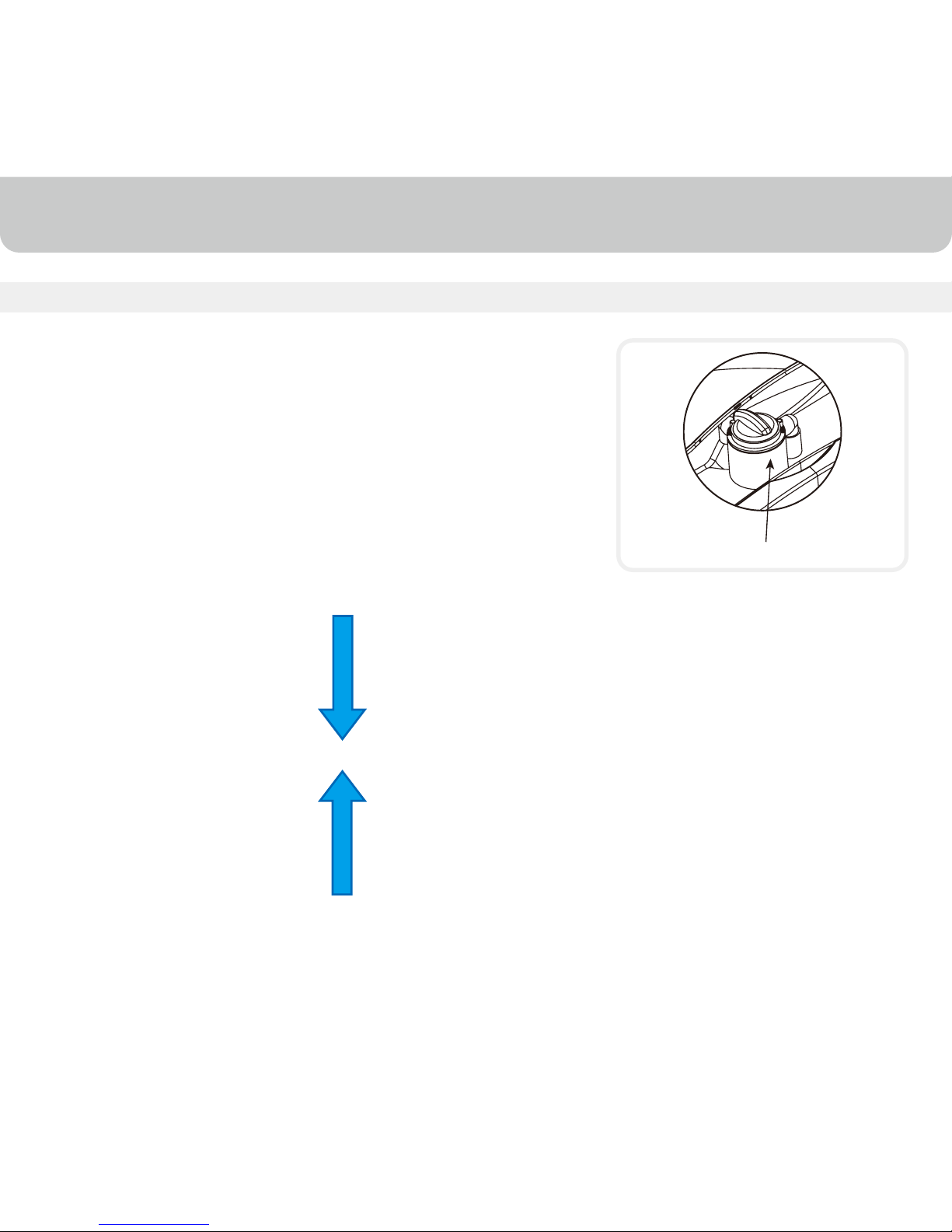

ROOM COOLING AND HUMIDIFYING
Water Regulator
Water Regulator
knob set to MIN
Reduces Humidity
inside the room
Water Regulator
knob set to MAX
Increases Humidity
inside the room
When the Water Regulator is set to MIN, the water pump
distributes a minimal amount of water to the Honeycomb
Cooling Media. This results in less water evaporation and
reduces the cooling effect.
When the Water Regulator is set to MAX, the water pump
distributes the maximum amount of water to the Honeycomb
Cooling Media. This results in maximum water evaporation
and the cooling performance improves.

REMOTE CONTROL
Power: On / Off
Speed: Low / Medium / High
Cool: Controls cooling or fan option
Swing: Controls the motion of the louvers
Timer: Controls timer function for automatic shut off
Heat: Turns on / off the heating function
Remote Control (2 AAA Batteries not included)
NOTE
•
•
•
•
•
13
HEAT
TIMER
SPEED
POWER
COOL
SWING
Please open the battery compartment at the back of the remote control and insert
two new AAA dry cell batteries. Care must be taken to insert the batteries according
to the correct polarity (+ / –) markings shown inside the battery compartment.
Always point the remote control signal transmitter towards the unit when operating.
Make sure that the signal path is not obstructed.
Remove the battery if the unit is not going to be used for an extended period of time.
Do not drop the remote control.
USE & OPERATION

USE & OPERATION
FILLING WITH WATER
CAUTION
Unplug from power when refilling.
Water Fill Door
Top Ice Loading Compartment
14
Open the Water Fill Door located below the Remote Control
Holder on the unit. The water tank of the unit holds up to
30 litres of water.
Water level display window is located on the front of the unit.
Refill the water tank when water level is low. Do not fill water
above the Max water level mark. Check water level in the tank
before running the COOL function. Please be sure water in
the tank is always above minimum water level mark. Running
the unit with inadequate water may cause pump failure. If ice
is available you may add ice in the top compartment to enhance
the cooling performance.

WARNING
CLEANING & MAINTENANCE
15

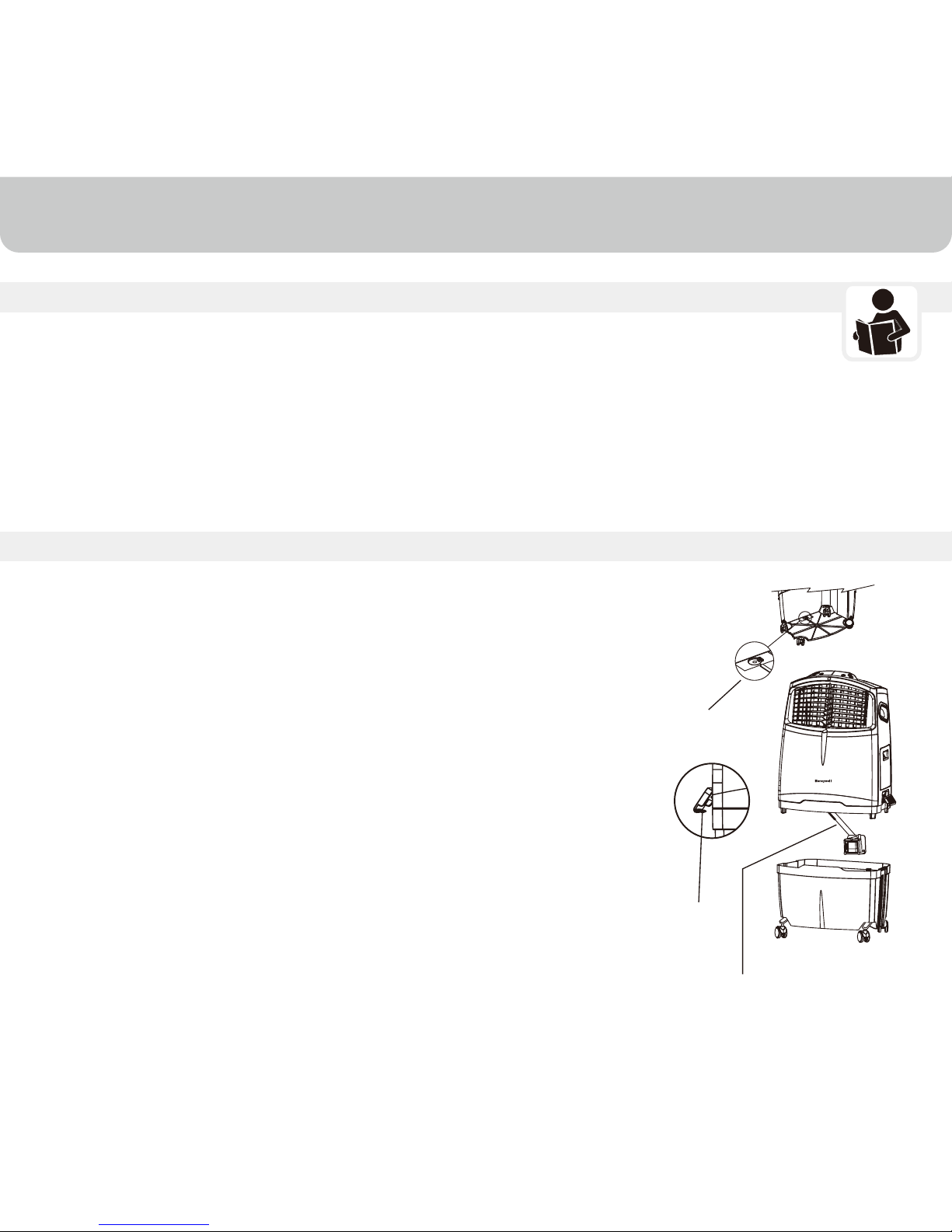

DRAINING AND CLEANING THE WATER TANK
•
•
•
•
•
•
•
•
•
•
•
•
Latch
Water Pick Up Tube
Turn the power OFF and disconnect the air cooler from the
power supply.
Move the unit to a location where it can be drained. Remove
the drain plug (Part 17) and allow the tank to empty
Once the tank is empty, unlock the latches on both sides
and lift off the cooler top section as shown in the figure and
place it vertically on the floor. Be careful not to bend the
water pickup tube that hangs below the unit.
Refill the water tank with clean water and drain it completely.
Clean the water tank with detergent or a damp cloth and
rinse it thoroughly.
Place the unit top carefully on the tank and lock the latches.
Refill the water tank with clean water, up to the maximum level.
The air cooler is now ready to be used. This cleaning
process should be repeated weekly to maintain the integrity
of the unit and to remove particles filtered from the air.
Drain Plug
Before cleaning the unit, switch it to the off position and remove the plug from
the power socket.
To clean the outside, use a damp cloth to remove dirt and dust.
Never use corrosive elements or any chemicals to clean this product.
When the product is not in use, store the unit in a dry place out of direct sunlight.

CLEANING & MAINTENANCE
16
CLEANING THE HONEYCOMB COOLING MEDIA & CARBON FILTER
•
•
•
•
•
•
•
Open Screws
Back Panel
Honeycomb Cooling Media Carbon Filter
The appliance is supplied with Carbon Filter & Honeycomb
Cooling Media.
Always keep the Carbon Filter clean. You can wash the
Carbon filter at least twice a year or whenever you feel
necessary.
The Carbon Filter and Honeycomb Cooling Media are
located inside the back panel. Open the back panel by using
a star screw driver to clean or replace the Carbon Filter or
Honeycomb Cooling Media. It is recommended that the Carbon
Filter and Honeycomb Cooling Media be replaced every year,
depending on use and environment.
Draining the water reservoir and refilling with fresh water at
least once a week will greatly reduce mineral deposits in the
pads and help to extend the life of Honeycomb Cooling Media.
Do not run the unit in COOL mode with stale water in the tank.
You must empty the water tank and refill with fresh water,
especially if the tank has not been cleaned in a long time.
The cleaning frequency for the Honeycomb Cooling Media
depends on local air and water conditions. In areas where
the mineral content of water is high, mineral deposits may build
up on the honeycomb cooling media and restrict air flow.
Draining the water reservoir and refilling with fresh water at
least once a week will help reduce mineral deposits. If
mineral deposits remain on the Honeycomb Cooling
Media, it should be removed and washed under fresh water.
The Honeycomb Cooling Media should be cleaned every two
months or sooner, depending on your needs.
For best results allow the Honeycomb Cooling Media to dry
after each use by turning off the cool function 15 minutes
before turning the unit off.

TROUBLESHOOTING GUIDE
17
No discharge of air Cord is not plugged in. Make sure power cord is
plugged in and the supply
switch is ON.
Power is not ON. Turn the unit ON by pressing
button on the control panel or
remote control.
Not Cooling / Unit is
making noise
Pump is not turned ON. Turn on COOL function from
remote or control panel.
Low or no water in tank, when
COOL is selected.
Refill water tank.
Odors When the Cooler is new. When the unit is used for the
first time, the Honeycomb
Cooling Media will have an
odor, which will dissipate
within a few hours of initial use.
If the Cooler has been used. There may be an algae issue.
Replace the Honeycomb
Cooling Media.
Damaged Pump or Calcium
deposits on blower.
Contact Customer Service
Center.
PROBLEM POSSIBLE CAUSE SOLUTION
Customer Support: [phone]

The unit does not respond Remote control batteries. Check batteries. Replace if
needed. Try to operate using
the control panel.
Damaged Control Panel
on unit.
The unit does not
throw warm air
Heating element not working
PROBLEM POSSIBLE CAUSE SOLUTION
TROUBLESHOOTING GUIDE
18
Check if the HEAT function
is ON. Press the HEAT button
and check the contol panel
indicator.If the contol panel
does not show the LED icon
for heat, possibly the PCB or
heater element may be
damaged.
Contact service center.
Try with remote control. If the
unit responds, PCB board
fasteners may be loose.
Contact service centre. - If
neither remote control nor
control panel works, PCB
board may be damaged.
Contact service centre.
Customer Support: [phone]
