Honeywell TC10PCE User manual

Portable Evaporative Air Cooler
User Manual
Read and save these instructions before use
EN
Przenośny Parowy Klimator
Instrukcja obsługi
Przeczytaj i zachowaj tę instrukcję przed użyciem
PL
Draagbare Verdamping Luchtkoelers
Gebruiksaanwijzing
Lees de gebruiksaanwijzing zorgvuldig en
bewaar deze goed
NL
Raffrescatori Evaporativi Portatili
Manuale Utente
Leggere attentamente le istruzioni prima
dell'utilizzo dell'apparecchio
IT
Portátil por Evaporação Ventilador do Ar
Manual do Utilizador
Leia e guarde estas instruções antes da
utilização
PT
Portabel Evaporativ Luftkylare
Luftkylare Användarmanual
Läs och spara dessa instruktioner innan användning
SE
Transportabel Fordampende Luftkøler
Brugervejledning
Læs og gemme disse instrukser inden brug
DK
Rafraîchisseur d'air par évaporation portatif
Mode d'emploi
Lire ces instructions avant l'utilisation et
les conserver
FR
Taınabilir Buharlı Sogutucu Kullanma
Kılavuzu
Kullanmadan önce bu talimatları okuyun ve
saklayın
TR
Tragbare Verdunstungs Luftkühler
Benutzerhandbuch
Lesen sie die anleitung vor dem gebrauch
und heben sie sie auf
DE
Enfriador de Aire Evaporativo Portátil
Manual de Instrucciones
Lea y guarde estas instrucciones antes
de usar la unidad
ES
Мобильная Климатическая Установка
Руководство пользователя
Прочтите и сохраните эту инструкцию перед
использованием
RU
Siirrettävät Höyrystävät Ilmanjäähdyttimet
Käyttäjän Opas
Lue ohjeet ennen käyttöä ja säästä ne
FI
Model / Modèle / Modelo / Modello /
Mallien / Modeller / Modell / Мoдэль :
TC10PE , TC10PCE Series
www.honeywellaircoolers.com
[e-mail]

1
PARTS DESCRIPTION
EN
15
6
27
8
9
3
4
10
11
1) Control Panel 7) Rear Grill & Mesh Filter
2) Louvers 8) Honeycomb Cooling Media
3) Water Level Indicator 9) Water Fill Door
4) Casters 10) Power Cord & Plug
5) Handle 11) Drain Plug
6) Remote Control
WARNING -- READ AND SAVE THE AIR COOLER SAFETY & MAINTENANCE GUIDE AND USER
MANUAL BEFORE USING THIS PRODUCT. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY
DAMAGE AND/ OR IMPAIR ITS OPERATION AND VOID THE WARRANTY. IN CASE THERE IS
ANY INCONSISTENCY OR CONFLICT BETWEEN THE ENGLISH VERSION AND ANY OTHER
LANGUAGE VERSION OF THE CONTENT OF THIS MATERIAL, THE ENGLISH VERSION SHALL
PREVAIL.

2
USE & OPERATION
EN
CONTROL PANEL
Icons on Display Screen
Swing
Power
Cool
Speed
= Low
= Medium
= High
I II III

3
USE & OPERATION (CONTINUED)
EN
FUNCTION BUTTONS
POWER
Press the button to turn the unit on. The cooler will start automatically at medium speed. After a
few seconds the speed will switch to low. To turn the unit off, press the button again.
SWING
Press the SWING button until is illuminated on the display. The louvers will
begin to move left to right automatically. You can manually adjust the louvers
to change vertical air flow.
SPEED
Press the SPEED button repeatedly to change the speed between | - || - |||.
COOL
You must add water before operating the unit in Cool mode. Press the button until
is illuminated on the display screen. The water pump will operate and you will feel the cooler air after
the Honeycomb Cooling Media is completely wet.
Louver
Movement

4
USE & OPERATION (CONTINUED)
EN

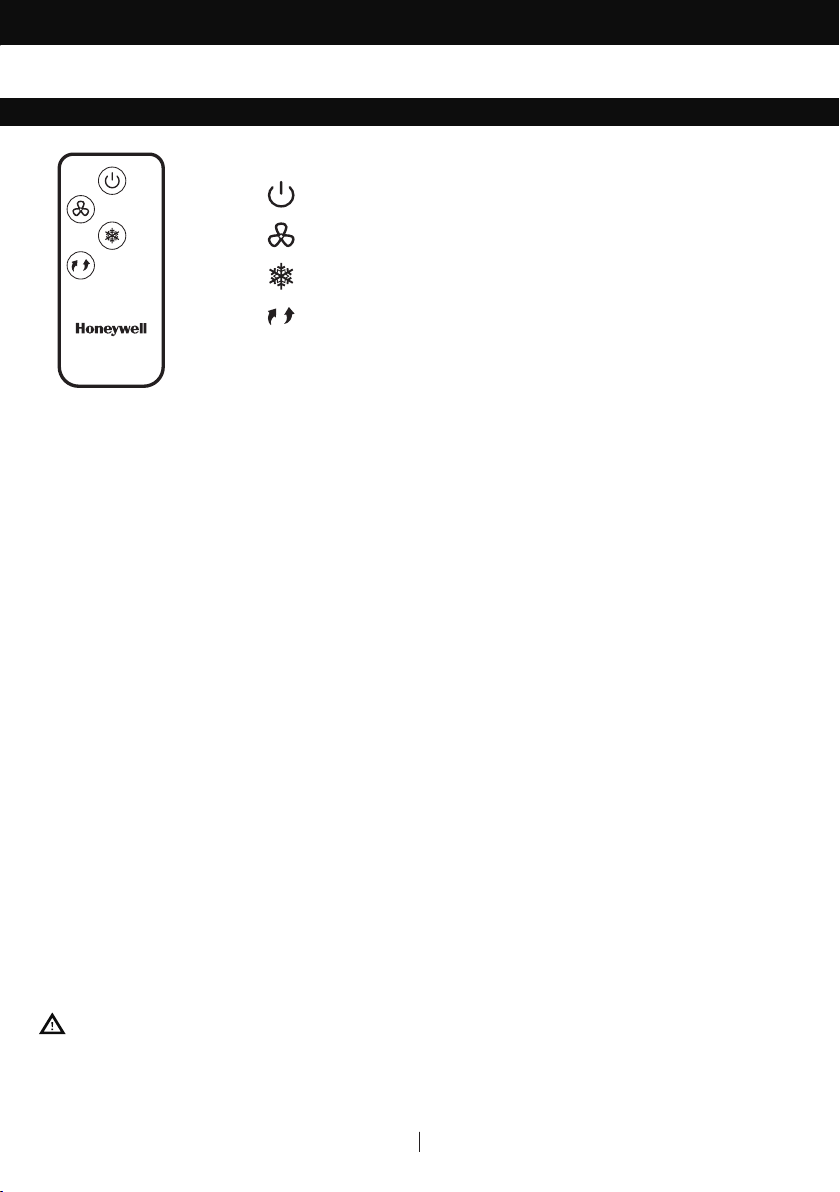

REMOTE CONTROL
POWER :
:
:
:
ON / OFF
Low / Medium / High
Evaporative Cooling ON / OFF
Controls the motion of the louvers
SPEED
COOL
SWING
NOTE:
•
•
•
•
•
•
•
•
•
•
•
•
The remote control requires a CR2025 (1 x 3V) coin type or equivalent battery for replacement.
Open the battery compartment at the back of the remote control and insert the battery inside.
Care must be taken to insert the batteries according to the correct polarity (+ / –) markings
shown inside the battery compartment.
Always point the remote control signal transmitter towards the unit when operating. Make sure
that the signal path is not obstructed.
Remove the batteries if the unit is not going to be used for an extended period of time.
Do not drop the remote control.
Do not mix different types of batteries such as alkaline, carbon-zinc, or rechargeable batteries.
Do not mix old and new batteries.
Do not recharge the battery.
Exhausted batteries are to be removed from the product and safely disposed of as per
local regulations.
Do not dispose of batteries in fire. Batteries may explode or leak.
This product contains a lithium button/coin cell battery. If a new or used lithium button/ coin
cell battery is swallowed or enters the body, it can cause severe internal burns and can lead to
death in as little as 2 hours. Always completely secure the battery compartment. If the battery
compartment does not close securely, stop using the product, remove the batteries, and keep it
away from children. If you think batteries might have been swallowed or placed inside any part of
the body, seek immediate medical attention.
The batteries shall be disposed of properly, including keeping them away from children.
Even used batteries may cause injury.
WARNING: Chemical Burn Hazard. Keep batteries away from children.

5
USE & OPERATION (CONTINUED)
EN
CAUTION: Unplug the unit from the electrical socket before emptying
or refilling the water tank.
Open the Water Fill Door located on the back of the unit.
The Water Level Indicator is located at the front of the unit. Refill the
water tank when water level is low. Do not fill water above the "Max."
water level mark to avoid water droplets collecting on the
louvers. Check the water level in the tank before running the COOL
function. Make sure that the water in the tank is above the minimum
water level mark. Running the unit in COOL mode with inadequate
water may cause pump failure.
Note: The water capacity refers to the total volume of water that can
be contained within the air cooler water tank and water distribution
system. The water capacity in the tank at the “Max.” indicator
level may be lower than the actual water capacity of the air cooler.
WARNING: Do not fill water tank with dirty water or salt water. This
can damage the unit and Honeycomb media.
FILLING WITH WATER
Water Fill Door
Make sure to position the air cooler correctly before you set up and start using the product. Please
refer to the COOLER LOCATION section of the separate Safety & Maintenance Guide.
COOLER LOCATION

6
USE & OPERATION (CONTINUED)
EN
Below are instructions on how to clean and maintain your air cooler. If the cooler will not be used
for a long period of time, please refer to the STORAGE & MAINTENANCE GUIDELINES located in
the separate Safety & Maintenance Guide.
WARNING:
Before cleaning the unit, power OFF the unit and disconnect from the electrical socket.
The unit is equipped with a low water sensor. In Cooling Mode, when water in the tank is below the
minimum level, you will hear a beeping sound and the GREEN LED will flash continuously. The unit
will automatically pause evaporative cooling.
Refill the water tank to deactivate the alarm in cooling mode. First switch OFF the unit and unplug
from the power outlet. Fill the water tank with water above the minimum water level mark. Plug in and
switch ON again.
To deactivate the alarm and continue using the unit as a fan (without evaporative cooling), switch
the unit OFF and then ON again. The Low Water Alarm will not activate in Fan only mode. The Low
Water Alarm will sound again if the COOL function is activated while the water tank is still empty.
LOW WATER ALARM*
* Applicable for models with Low Water Alarm feature only.
CLEANING & DRAINING THE WATER TANK
• Move the unit to a location where the water can be drained. Remove the cap from the drain plug
located at the bottom of the unit. Allow the tank to empty.
• Refill the water tank with clean water, up to the maximum level and drain it completely.
• Use a damp cloth to remove the dirt and dust from the surface of the unit. Never use corrosive
elements or chemicals to clean this product.
• When the product is not in use, store the unit in a dry place out of direct sunlight.

7
USE & OPERATION (CONTINUED)
EN
WARNING:
Before cleaning the unit, switch the unit OFF and disconnect the power adapter from the unit and
electrical socket.
CLEANING THE MESH FILTER AND HONEYCOMB COOLING MEDIA
The appliance is supplied with a Mesh Filter and Honeycomb Cooling Media.
The Mesh Filter and Honeycomb Cooling Media are located inside the Rear Grill. See Figure 1
for instructions on how to remove them from the unit for cleaning and maintenance.
Do not run the unit in COOL mode with stale water in the tank. You must empty the water tank
and refill with fresh water, especially if the tank has not been cleaned in a long time.
The cleaning frequency for the Honeycomb media depends on local air and water conditions.
In areas where the mineral content of water is high, mineral deposits may build up on the
Honeycomb Cooling Media and restrict air flow. Draining the water tank and refilling with fresh
water at least once a week will help reduce mineral deposits. If mineral deposits remain on the
Honeycomb Cooling Media, the media should be removed and washed under fresh water. The
media should be cleaned every two months or sooner, depending on your needs.
For best results allow the Honeycomb Cooling Media to dry after each use by turning off the cool
function 15 minutes before turning the unit off.
•
•
•
•
•
Figure 1:
Carefully pull out the rear grill / mesh filter from the
cooler.
Rinse the rear grill / mesh filter with clean water and let
it dry before re-installing to the unit.
Carefully pull out the Honeycomb Media from the
Honeycomb Frame.
Replace or clean media with water and a damp cloth as
needed.
WARNING: DO NOT operate the Air Cooler when the
Rear Grill is removed from the Air Cooler, or if there is a
loose-fitting Rear Grill. Doing so can cause serious
injury or dangerous electrical shock.
1.
2.
3.
4.
Honeycomb
Cooling Media
Honeycomb
Frame Rear Grill/
Mesh Filter
Removing the Mesh Filter and Honeycomb Cooling Media:

1
DESCRIPTION DES PIECES
FR
1) Panneau de contrôle 7) Grille arrière & filter
2) Grilles d'aération 8) Système de refroidissement
en nid d’abeilles
3) Indicateur de niveau d'eau 9) Porte de remplissage d'eau
4) Roulettes 10) Cordon electrique
& prise
5) Poignée 11) Bouchon de vidange
6) Télécommande
AVERTISSEMENT -- LIRE ET SAUVEGARDER LE GUIDE DE SECURITE ET D'ENTRETIEN ET LE
MANUEL D'UTILISATION DU REFROIDISSEUR D'AIR AVANT D'UTILISER LE PRODUIT. NE PAS
SUIVRE CES INSTRUCTIONS POURRAIT ENDOMMAGER ET/OU PORTER ATTEINTE A SON
FONCTIONNEMENT ET ANNULER LA GARANTIE. EN CAS D'INCOHERENCE OU DE CONFLIT
ENTRE LA VERSION ANGLAISE ET TOUT AUTRE VERSION LINGUISTIQUE DU CONTENU DE CE
MATERIEL, LA VERSION ANGLAISE PRÉVAUDRA.
15
6
27
8
9
3
4
10
11

2
UTILISATION ET FONCTIONNEMENT
FR
PANNEAU DE COMMANDE
Icônes sur l’écran d’affichage
Oscillation
Interrupteur
Refroidissement
Vitesse
= Faible
= Moyenne
= Élevée
I II III
