Honeywell CL15AC User manual

S
OP
Portable Evaporative Air Cooler
OWNER’S MANUAL
Read and save these instructions before use.
Voltage rating: zH05,CAtloV042-022
Made in China
www.honeywellaircoolers.com
ERACREMOTSUC 80170031: 60
For product enquiry or support contact :
15AC
Power rating: 126 Watts
SPEE
COOTIME RSWE EP POWER

This page is intentionally left blank

SECTION PAGE
6. CLEANING & MAINTENANCE .............................................................................................................
7. TROUBLESHOOTING GUIDE ............................................................................................................
8. TECHNICAL SPECIFICATIONS ............................................................................................................

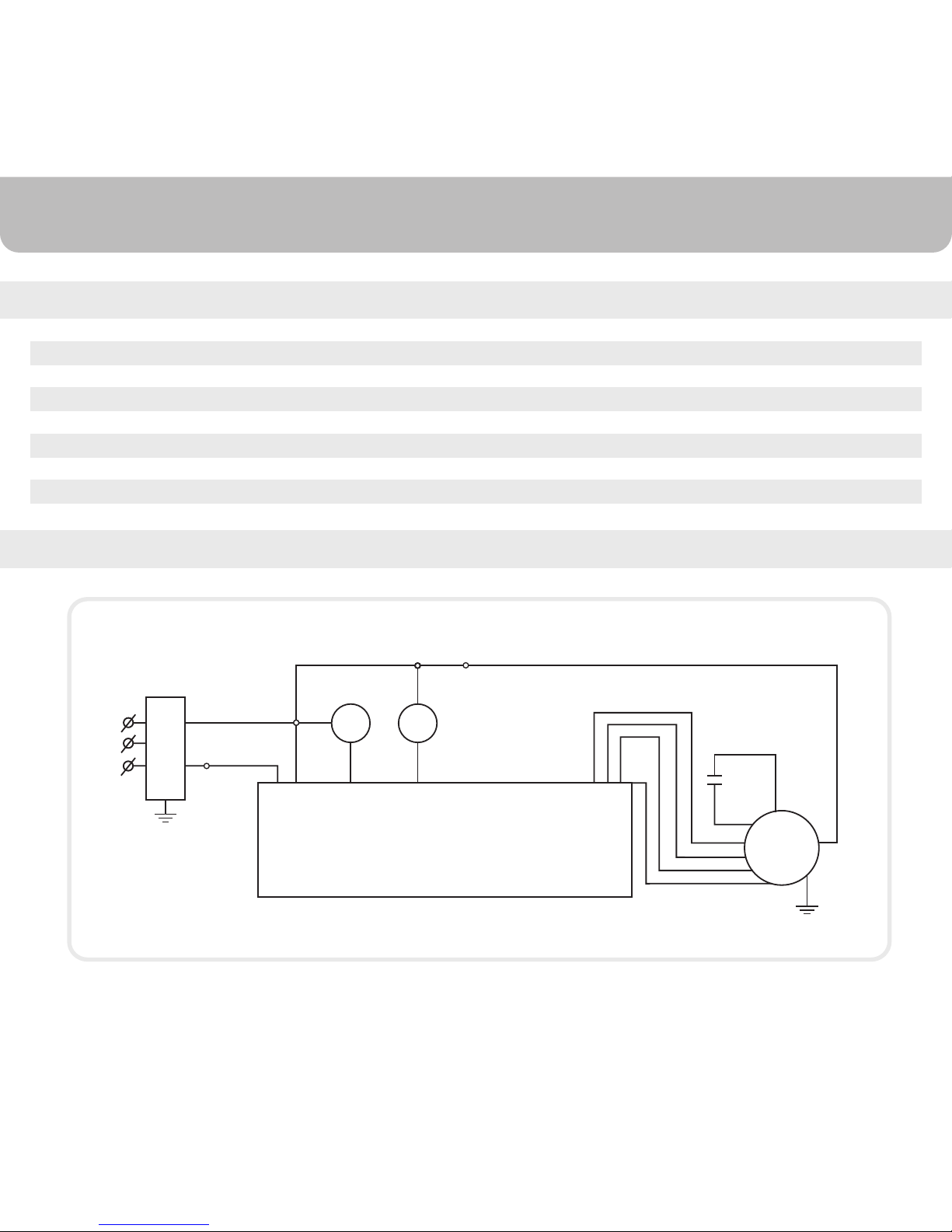

9. ELECTRICAL WIRING DIAGRAM ............................................................................................................
INDEX
1
Read all instructions carefully before setting up and operating the unit, and please keep
this instruction manual for future reference. This manual is designed to provide you with
important information needed to setup, operate, maintain, and troubleshoot your cooler.
Failure to follow these instructions may damage and/or impair its operation and void the
warranty.
1. THANK YOU .............................................................................................................................................
2. USER TIPS ..............................................................................................................................................
3. SAFETY RULES ..........................................................................................................................................
4. PARTS DESCRIPTION ..............................................................................................................................
5. USE & OPERATION ..............................................................................................................................
2
3
5
7
8
Fill Water .............................................................................................................................................
Function Buttons .............................................................................................................
Remote Control .............................................................................................................................................
Control Panel ............................................................................................................................................ 8
9
Low water alarm and cooler location ..................................................................................... 11
12
13
14
16
18
18
19
10. SERVICE AND WARRANTY .....................................................................................................................

THANK YOU
2
Please read these instructions carefully.
cooling effect will be felt if the unit is operated in a partly opened doorway or window.
The unit should be positioned in a location that will create a 'flow through' air effect.The greatest
to increase its cooling performance..
For optimum cooling performance from your unit, fill the water tank with water & ice (if available)
Congratulations on your purchase of this versatile Honeywell Evaporative Air Cooler .
THANK YOU!

USER TIPS
3
Pump
Water
Honeycomb Cooling Media
Evaporative Air Cooling Mechanism
Warm and
dry air
Cold and
humid air
Evaporative air cooling is the natural way of cooling, similar to a breeze blowing across a lake. This
breeze drops the temperature and has a relaxing cooling effect.
The evaporative air cooler cools the air by means of the evaporation of water. When water
evaporates into the air, the result is a mixture of air and water molecules. This chemical change
requires heat which is taken from the water molecules, resulting in cooler air propelled from the
unit.
NATURAL ENERG Y EFFICIENT COOLING ..

NOTE
4
USER TIPS
The recommended maximum relative humidity level is 60% or
less, which allows a noticeable temperature decrease. The
temperature decrease will be greater in drier climates because
higher evaporation occurs when the humidity is low.
The evaporative air cooler should not be used in enclosed
spaces. It must be kept level and there must be water in the
water tank. The room should have doors and windows opened
to allow free air flow. The evaporative air cooler works best
when placed near an open window, so that outside air is drawn
into the evaporative air cooler, the air circulates in the room,
then exits via the door. The maximum cooling effect is felt
when a person is in the flow of air coming out of the evaporative
air cooler.
The evaporative air cooler can also be used to humidify dry air
during cool weather. To be used for humidification the
windows and doors should be closed to allow the humidified
air to accumulate. The evaporative air cooler is not an air
conditioner as it does not use a compressor or refrigerant gas.
It should not be expected to cool as efficiently as a refrigerated
air conditioner.
When the product is used for the first time the Honeycomb
cooling media will have an odour which will dissipate in a week
or so of initial use.
SPEED
COOL TIMER SWEEP POWER
SPEED
COOL TIMER SWEEP POWER
Room with open windows & door
Room with closed windows & door

SPEED
COOLTIMERSWEEP POWER
READ AND SAVE THESE INSTRUCTIONS:
SAFETY RULES

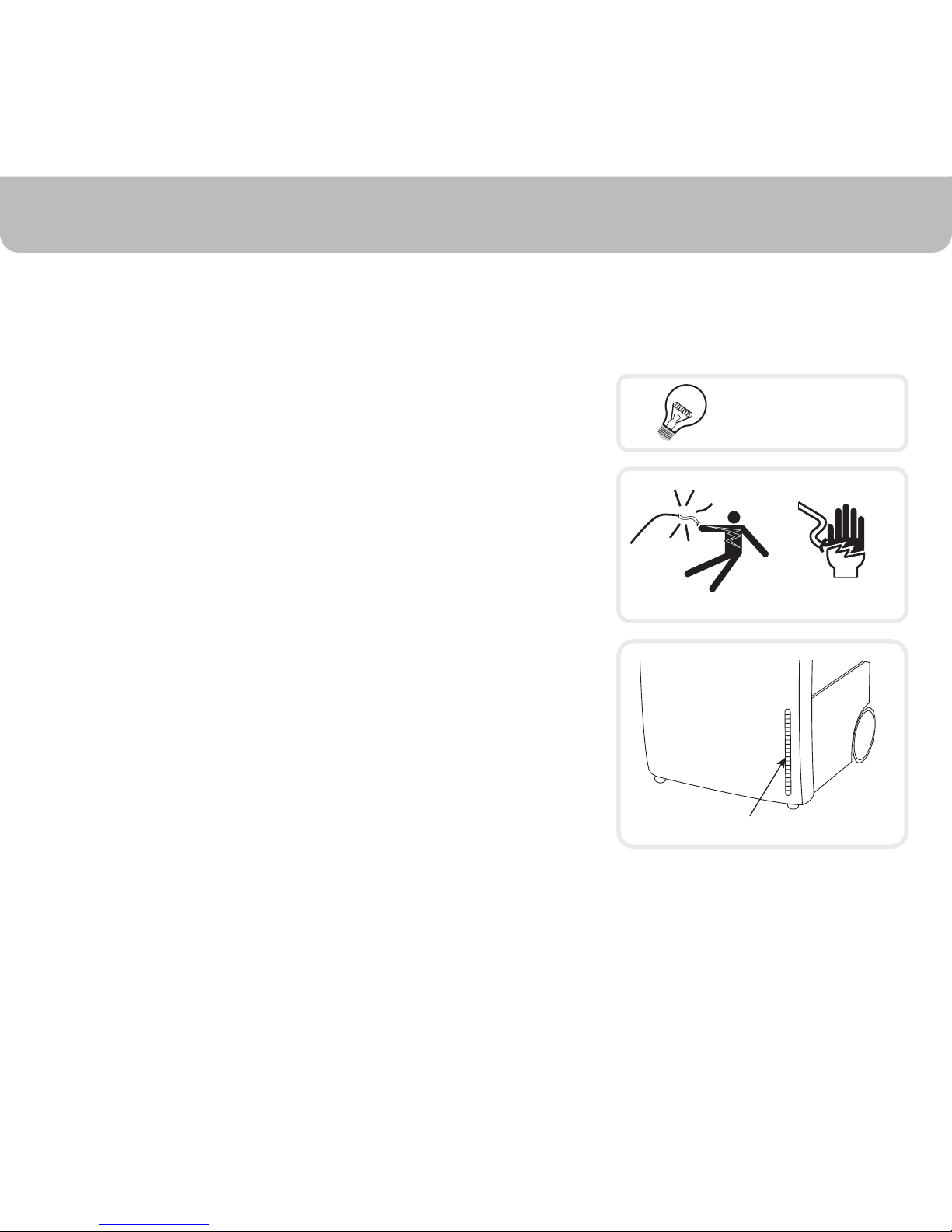

SHOCK HAZARD
WATER LEVEL INDICATOR
5
When using electrical appliances, basic safety precautions should always be followed:
Always unplug the product before refilling the water tank.
Always unplug the appliance from the power source before
cleaning, servicing or relocating the unit.
Remove the power cord from the electrical receptacle by
grasping and pulling on the power cord plug-end only, never
pull the cord.
DO NOT use the product in areas where gasoline, paint or
other flammable goods and objects are stored.
When using the ''COOL'' setting, please check the water tank
to ensure it is full. Operation of this unit on the ''COOL'' setting
with an empty tank may result in damage to the water pump.
•
•
•
•
•
•
•
•
DO NOT run power cord under carpeting, or cover it with
rugs or runners. Keep the cord away from areas where it
may be tripped over.
•
household voltage to ensure it matches the appliance's rate
specification.
Before operating the product remove it from its packaging
and check it is in good condition.
DO NOToperate any product with a damaged cord or plug.
We recommend not using an extension cord with this
appliance.
Your unit runs on 220-24 0 Volt AC, 50 Hz current. Check the
220 - 24 0 Volt AC, 5 0Hz

SPEED
COOL TIMER SWEEP POWER
SPEED
COOL TIMER SWEEP POWER
SAFETY RULES
FLOOR LEVEL
6
may cause motor damage.
This appliance is not intended for use by persons (including
children or elderly) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of
the appliance by a person responsible for their safety.
•
When the unit is not in use always store in a dry area.
•
This product is not intended for use in wet or damp locations.
•
DO NOT let children play with this appliance, packaging or
plastic bags.
•
DO NOT leave the appliance operating unattended for any
extended period of time.
•
DO NOT operate with the Honeycomb media removed as this
will overload and damage the motor.
•
DO NOT insert or allow objects to enter any ventilation or
exhaust opening as this may damage the product and could
cause an electrical shock or fire.
•
DO NOT attempt to repair or adjust any electrical or mechanical
functions of the cooler, as this may void the warranty.
•
DO NOT cover the air inlet or outlet on the appliance as this
•
If the unit is damaged or it malfunctions, do not continue to
operate it. Refer to the troubleshooting section and /or please
seek professional advice.
•
Place the unit on a level floor.
•
Never locate the product where it may fall into a bathtub or
other water container. DO NOT use in bathrooms or outdoors.
•
Always grip the side handles to move the unit.
•
SPEED
COOL TIMER SWEEP POWER

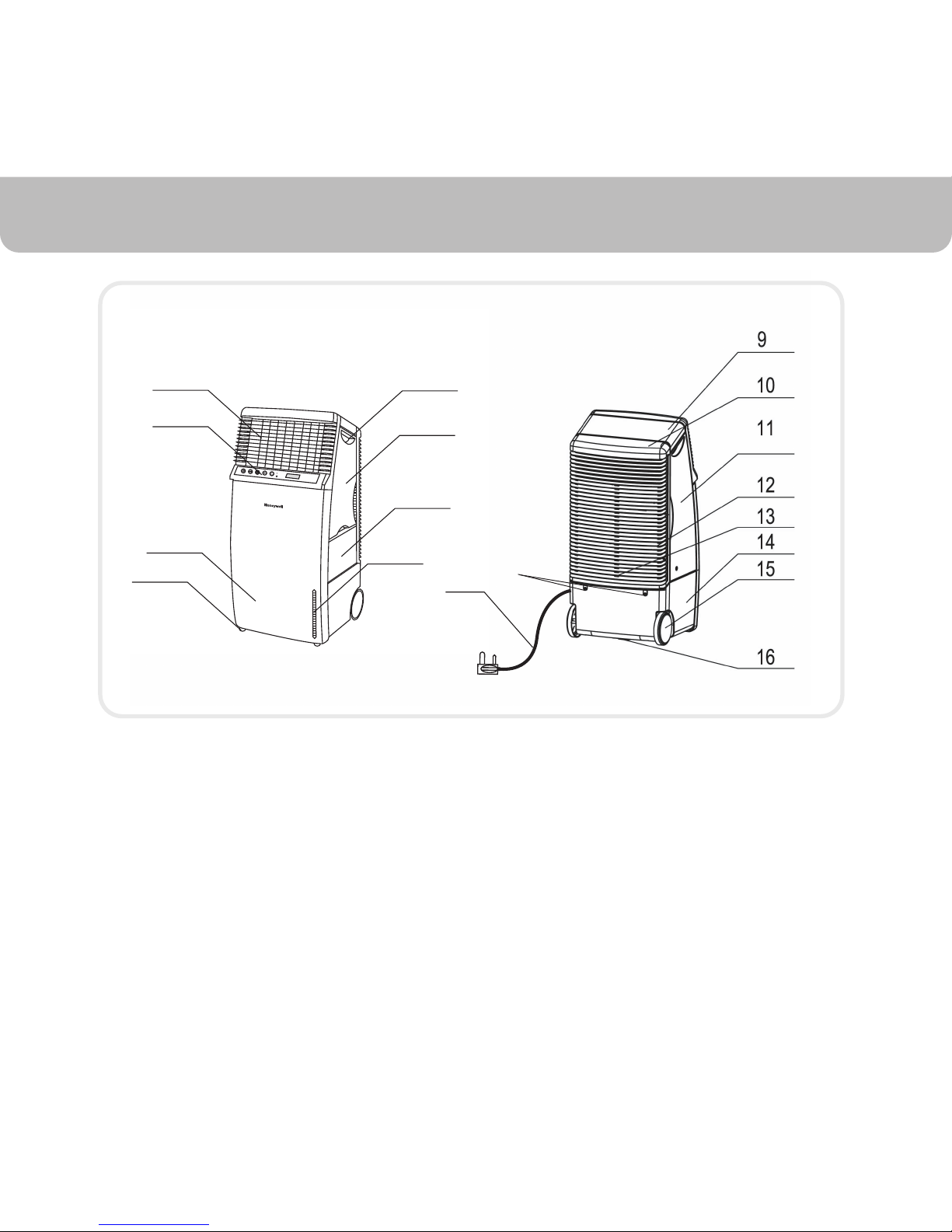

1 Outlet Louvers
(Horizontal-Manual &
Vertical-Automatic Swing)
2 Control Panel
3 Front Panel
4 Front Castors / Wheels
5 Side Handle
6 Left Side Panel
7 Water Fill Door
8 Water Level Indicator
9 Top Panel
10 Rear Panel Grill
11 Right Side Panel
12 Air Inlet Louvers
13 Honeycomb Media
14 Water Tank (Cannot be Removed)
15 Rear Castors / Wheel
16 Water Drain Plug
17 Rear Grill Removal Screws
18 Power cord & plug
PARTS DESCRIPTION
7
17
SPEED
COOL TIMER SWEEP POWER
15
6
7
8
2
3
418

CONTROL PANEL
USE & OPERATION
Cool Button
LCD Display PanelPower ON/OFF Indicator
8
Speed Button Timer Button Swing Button Power Button
COOL SPEED TIMER SWING POWER

FUNCTION BUTTONS
USE & OPERATION
COOL
To begin cooling the desired area press the ''COOL’'
button. The indicator light will come on and the water
pump will operate. You can feel the cooler air after the
Honeycomb media is completely wet. COOL
POWER
Press the 'POWER' button to turn the unit on. To turn the unit
off, press the button again. The cooler will start automatically at
medium speed. After a few seconds the speed will switch to low.
POWER
SPEED
Press the 'SPEED' button repeatedly and the speed will
change. The indicator light will show the selected speed.
3 = High 2 = Medium 1 = Low SPEED
9

SPEED
COOLTIMER SWEEP POWER
USE & OPERATION
TIMER
Press the ''TIMER'' button until the indicator light comes on to
your desired timer. Once the set time has passed, the unit will
automatically shut off. The Timer function allows you to
program the unit for up to 8 hours of use.
and the louvers will begin to move from right to left
automatically. Manually adjust the horizontal louvers to
change vertical airflow.
TIMER
LOUVERS MOVEMENT
10
SWING
Press the ''SWING ''button. The indicator light will come on
SWING

USE & OPERATION
LOW WATER ALARM FUNCTION
The unit is equipped with a low water sensor. When water in the tank is below the
minimum level, you will hear 10 beeps and the COOL LED indicator will flash
continuously. At the same time the power to the pump inside the unit will be cut off
to protect the life of the pump.
To disengage the alarm function, turn off and unplug the unit from the power
outlet, and fill the tank with water above the minimum level.
To turn off the alarm function and continue to use it in FAN mode, turn off the unit
and turn the unit on. If COOL button is pressed again without filling the tank with
water, low water alarm will activate again.
11
COOLER LOCAT I ON
Place the cooler in front of an open door or window. Ensure that
there is adequate cross - ventillation in the room by leaving a
door or window open opposite from the cooler.
Following these rules will ensure your cooler will work as
effectively as possible.

USE & OPERATION
REMOTE CONTROL
On / Off
Low / Medium / High
Controls cooling or fan option
Controls the motion of the louvers
Controls timer function for automatic shut off
NOTE
Please open the battery compartment at the back of the
remote control and insert two new AAA dry cell batteries.
Care must be taken to insert the batteries according to the
correct polarity (+ / –) markings shown inside the battery
compartment.
Always point the remote control signal transmitter towards
the unit when operating.
Make sure that the signal path is not obstructed.
Remove the batteries if the unit is not going to be used for
an extended period of time.
Do not drop the remote control.
•
•
•
•
•
SPEED
COOL
TIMER
SWEEP
POWER
Remote Control ( Batteries not included)
12

USE & OPERATION

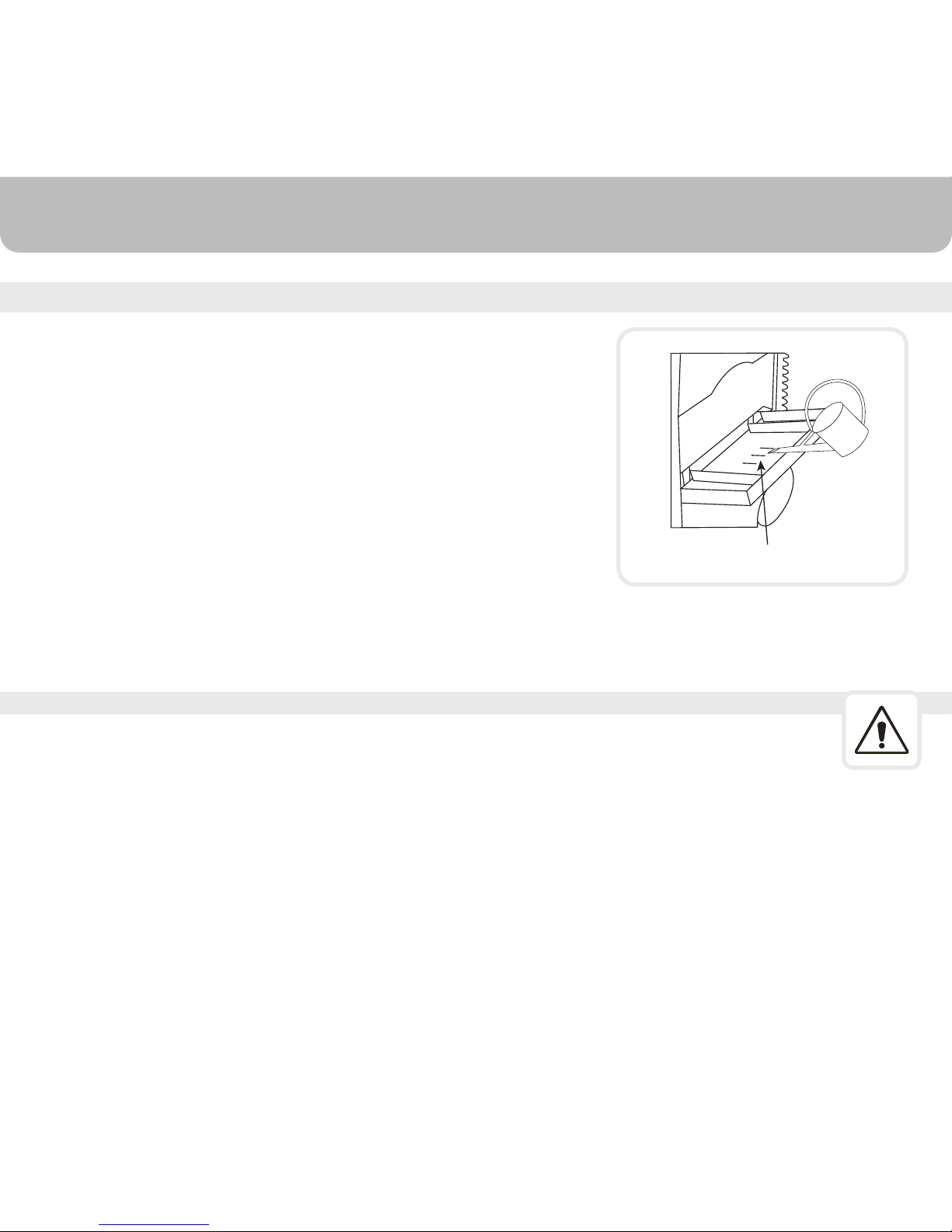

FILL WATER
CAUTION
Unplug from power when refilling.
Pull out the Water Fill Door located below the left side panel
(refer page 7) and fill water till the Max. Level, as indicated on
the Water Level Indicator. The water tank of this unit holds up
to 15 Litres of water.
Water level display window is located on the front of the unit.
Refill the water tank when water level is low. Do not fill water
above the Max water level mark. Check water level in the tank
before running the ''COOL'' function. Please be sure water in
the tank is always above minimum water level mark. Running
the unit with inadequate water may cause pump failure. If ice is
available you may add ice in the top compartment to enhance
the cooling performance.
Water Fill Door
13

WARNING
CLEANING & MAINTENANCE
CLEANING & DRAINING THE WATER TANK:
Turn the power "off" and disconnect the unit from power supply.
Move the unit to a location where it can be drained and remove the drainage
tube/cap (see parts description on page 7).
Once the tank is empty, refill with clean water and drain it again. This should
be repeated weekly to maintain the integrity of the unit and to remove particles
filtered from the air.
Once the tank is clean, refill the water tank. The unit is now ready to be used
again.
Before cleaning the unit, switch it to the ''off'' position and remove the plug from
the power socket.
To clean the outside, use a damp cloth to remove dirt and dust.
Never use detergents, corrosive elements or any chemicals to clean this product.
When the product is not in use, store the unit in a dry place out of direct sunlight.
to clean this product.
•
•
•
•
•
•
•
•
14

CLEANING & MAINTENANCE
CLEANING THE HONEYCOMB FILTER
Turn off the unit, and unplug the power cord from wall outlet.
Rotate the unit facing the back panel, and locate the Rear Grill Removal Screws (refer page
7., No. 17). Remove both the screws with a screw driver.
Pull the rear grill panel upwards, untill it is completely removed.
Now, the Honeycomb filter can be seen. Clean the filter with clean cloth to remove all the dust
& dirt particles.
Once, the cleaning has been performed, assemble the unit back in the same fashion as
described above.
The appliance is supplied with a honeycomb cooling media filter.cooling media.
Always keep the Honeycomb media clean. Wash the filter at least twice a year or as necessary.
Draining the water tank and refilling it with fresh water atleast once a week will greatly reduce
mineral deposits in thepads and help extend the life of the honeycomb coolingmedia.
Do not run the unit in COOL mode with stale water in the tank.It is recommended to empty the
tank and refill it with freshwater, if the water has been standing inside the tank for an extended
period of time.
Cleaning frequency depends on local air and waterconditions. For example, in areas where
mineral content ofthe water is high, deposits may build up in the honeycombcooling media,
restricting air flow. In this case, it is recommended to clean the honeycomb cooling media every
twomonths.
For best results, allow the honeycomb cooling media to dryafter each use by turning off the cool
function 15 minutesbefore turning the unit off.
•
•
•
•
•
•
•
•
•
•
•
15

TROUBLESHOOTING GUIDE
No discharge of air Cord is not plugged in. Make sure power cord is plugged
in and the supply switch in ON.
Power is not on. Try to turn the unit ON by
pressing buttons on control
panel or remote control.
Not Cooling / Unit is
making noise
Pump is not turned ON. Turn on COOL function from
remote or control panel.
Low or no water in tank,
when COOL is selected.
Refill water tank.
Damaged Pump or Calcium
deposits on blower.
Contact service centre.
PROBLEM POSSIBLE CAUSE SOLUTION
16
in and the supply switch in ON.
Make sure power cord is plugged
Cooler not operating Initially. Cord is not plugged in.
Power outlet or supply faulty. Check the power outlet. Check
the power supply.
I ncorrect Voltage. Check that the power supply is
the same as specified on the
rating label.

TROUBLESHOOTING GUIDE
The unit does not respond Remote control batteries. Check batteries, Replace if
needed. Try to operate using
the control panel.
Damaged PCB Try with remote control. If the
unit responds, PCB board
fasteners may be loose.
Contact service centre.
If neither remote control nor
control panel works, PCB
board may be damaged.
Contact service centre.
PROBLEM POSSIBLE CAUSE SOLUTION
17
Replace the honeycomb cooling
Old Unit. There may be an algae issue,
within a week of initial use.
odour, which will dissipate
cooling media will have an
first time, the Honeycomb
When the unit is used for the
Odour omission New Unit.
For product enquiry or support contact :
CUST OMER CARE : 1300 7108 60
media. Contact customer care.

MODEL NO. CL15AC
50Hz
126 Watts
15 Liters
Honeycomb
380(L) x 380(W) x 795(H) mm
9.9 Kg
Voltage
Frequency
Wattage
Water Tank Capacity
Cooling Media
Product Dimension
Net Weight
TECHNICAL SPECIFICATIONS
ELECTRICAL WIRING DIAGRAM
COOL SWEEP
PLUG-IN
PLUG
COOL F/R
L N
PCB
H M L N
MM
M
P700 220-240V 50Hz
220V- 240V
18
