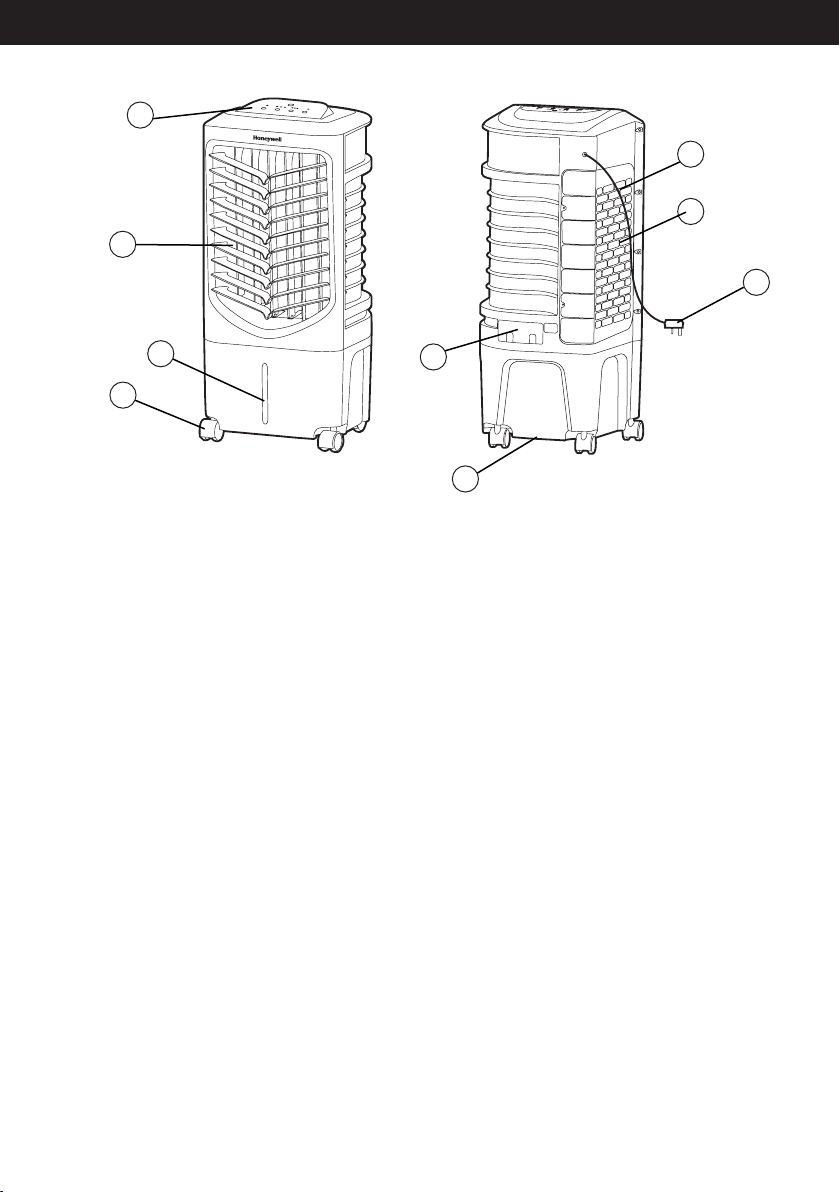

PARTS DESCRIPTION
1) Control Panel 6) Drain Plug
2) Louvers 7) Side Grill
3) Water Level Indicator 8) Honeycomb Cooling Media
4) Casters 9) Power Cord & Plug
5) Water Fill Door
WARNING -- READ AND SAVE THE AIR COOLER SAFETY & MAINTENANCE GUIDE AND USER
MANUAL BEFORE USING THIS PRODUCT. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY
DAMAGE AND/ OR IMPAIR ITS OPERATION AND VOID THE WARRANTY. IN CASE THERE IS
ANY INCONSISTENCY OR CONFLICT BETWEEN THE ENGLISH VERSION AND ANY OTHER
LANGUAGE VERSION OF THE CONTENT OF THIS MATERIAL, THE ENGLISH VERSION SHALL
PREVAIL.
1
7
2
8
9
5
3
4
6
EN

USE & OPERATION

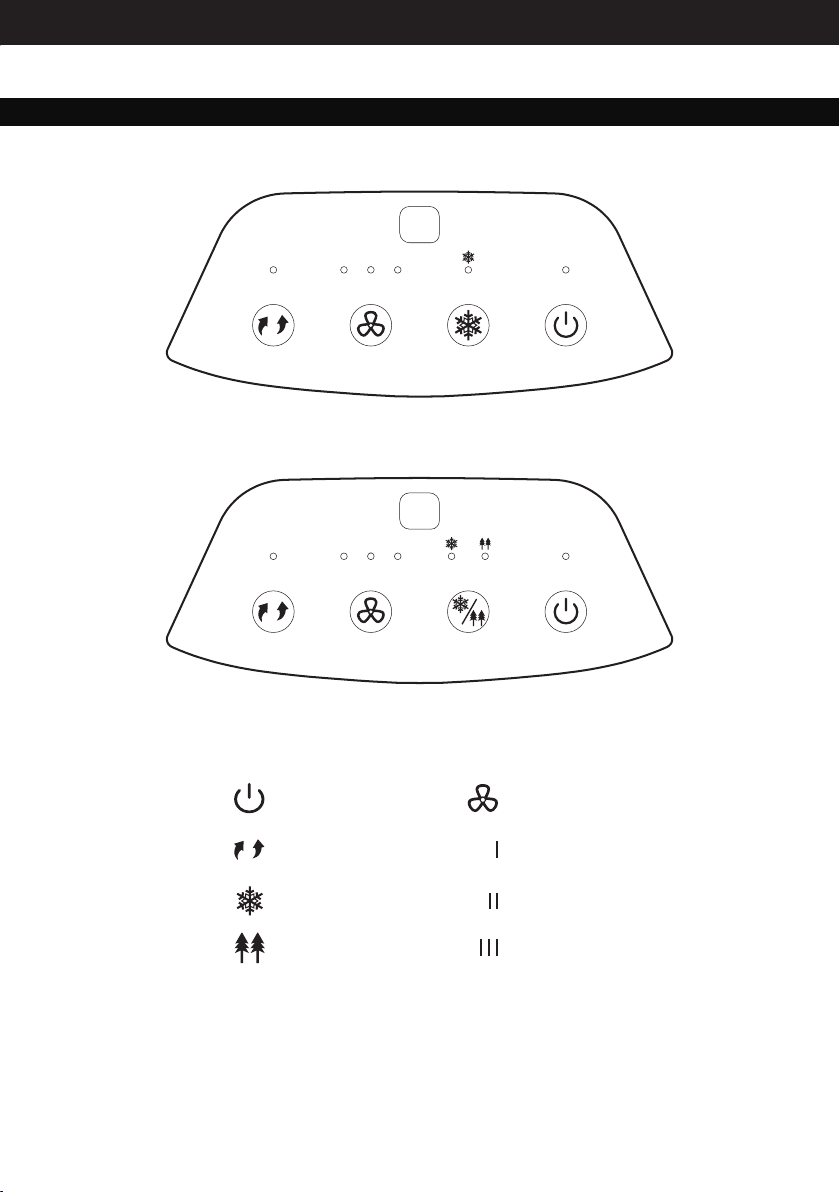

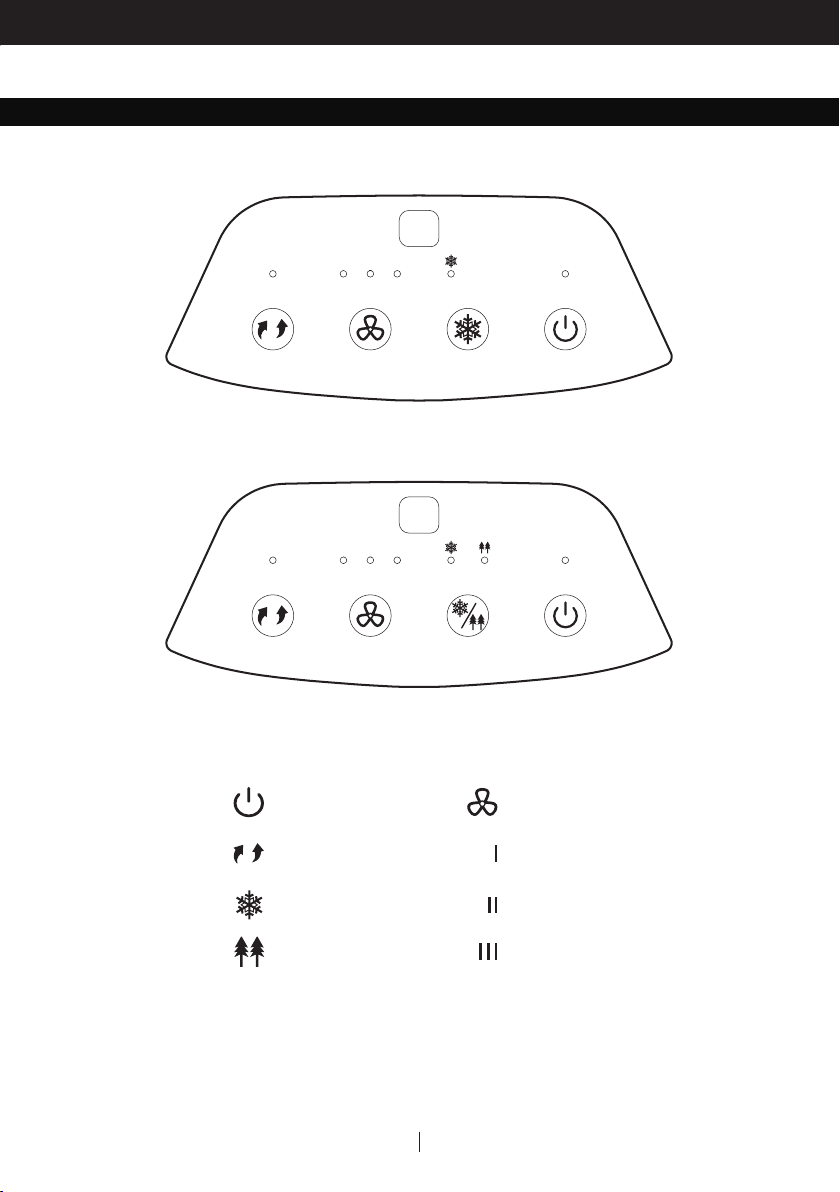

CONTROL PANEL
EN
* Applicable for models with Ionizer feature only.
^ Ionizer reduces particles in the air. This is not an air purifier.
Model without Ionizer
I II III
Model with Ionizer*^
I II III
Icons on Display Screen
Swing
Power
Cool
Ionizer*^
Speed
= Low
= Medium
= High

USE & OPERATION (CONTINUED)
FUNCTION BUTTONS
EN
POWER
Press the button to turn the unit on. The cooler will start automatically at medium speed. After a
few seconds the speed will switch to low. To turn the unit off, press the button again.
MODE (COOL / IONIZER*^)
You must add water before operating the unit. Press the MODE button to select COOL and IONIZER
modes.
Pressing the MODE button until COOL is illuminated on the control panel activates evaporative
cooling. The water pump will operate and you will feel the cooler air after the Honeycomb Cooling
Media is completely wet.
Pressing the MODE button until IONIZER is illuminated activates Ionizer. An Ionizer helps to
reduce particles in the air, thus promoting cleaner air quality.
Pressing the MODE button until both COOL and IONIZER are illuminated activates both
evaporative cooling and Ionizer together.
Pressing the MODE button again will deactivate both COOL and IONIZER lights on the control
panel, switching off both evaporative cooling and Ionizer function altogether.

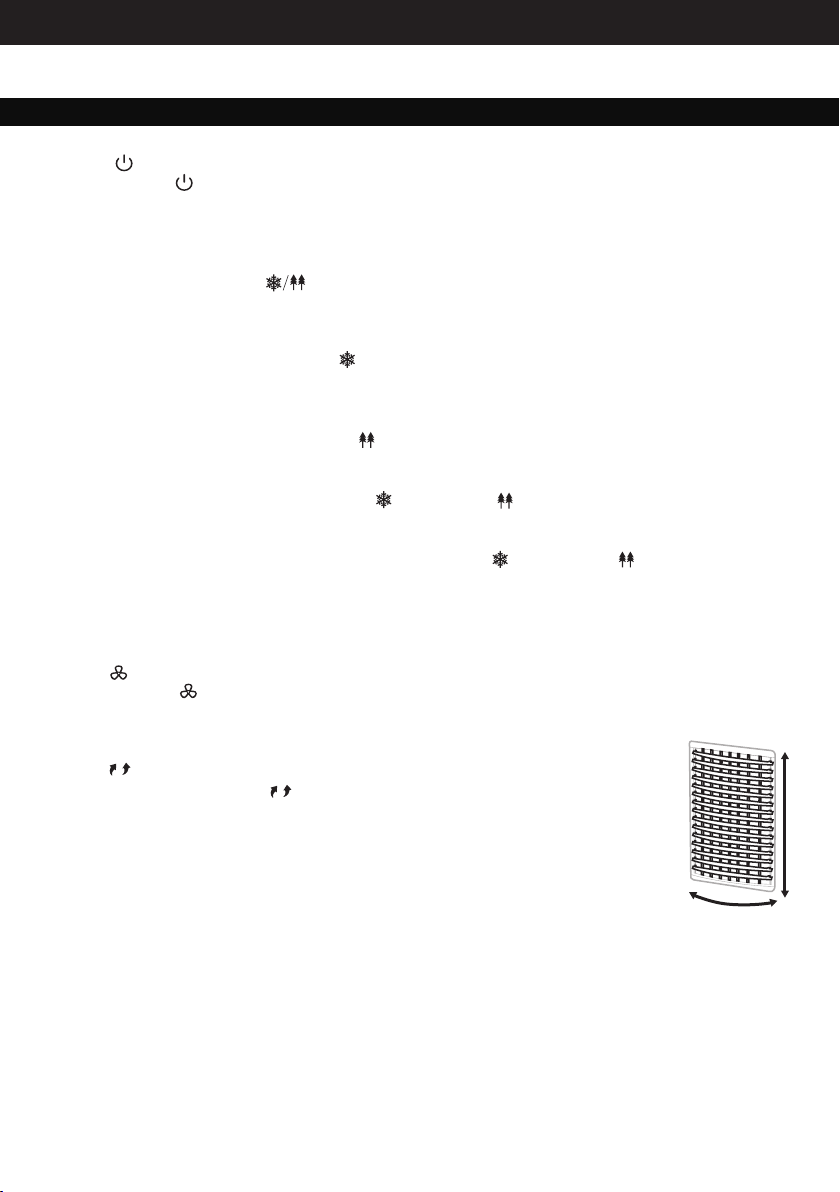

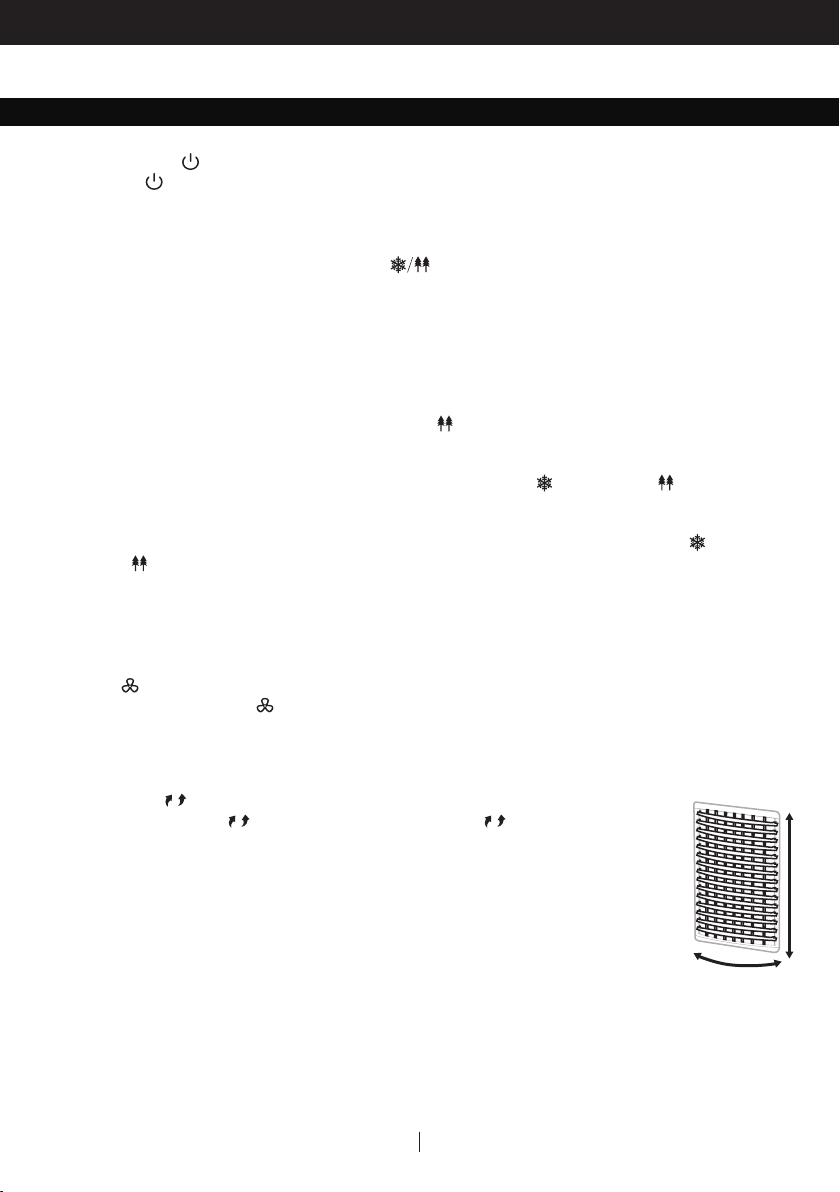

SWING
Press the SWING button until is illuminated on the display. The louvers will
begin to move left to right automatically. You can manually adjust the louvers
to change vertical air flow.
SPEED
Press the SPEED button repeatedly to change the speed between | - || - |||.
* Applicable for models with Ionizer feature only.
^ Ionizer reduces particles in the air. This is not an air purifier.
Louver
Movement

USE & OPERATION (CONTINUED)

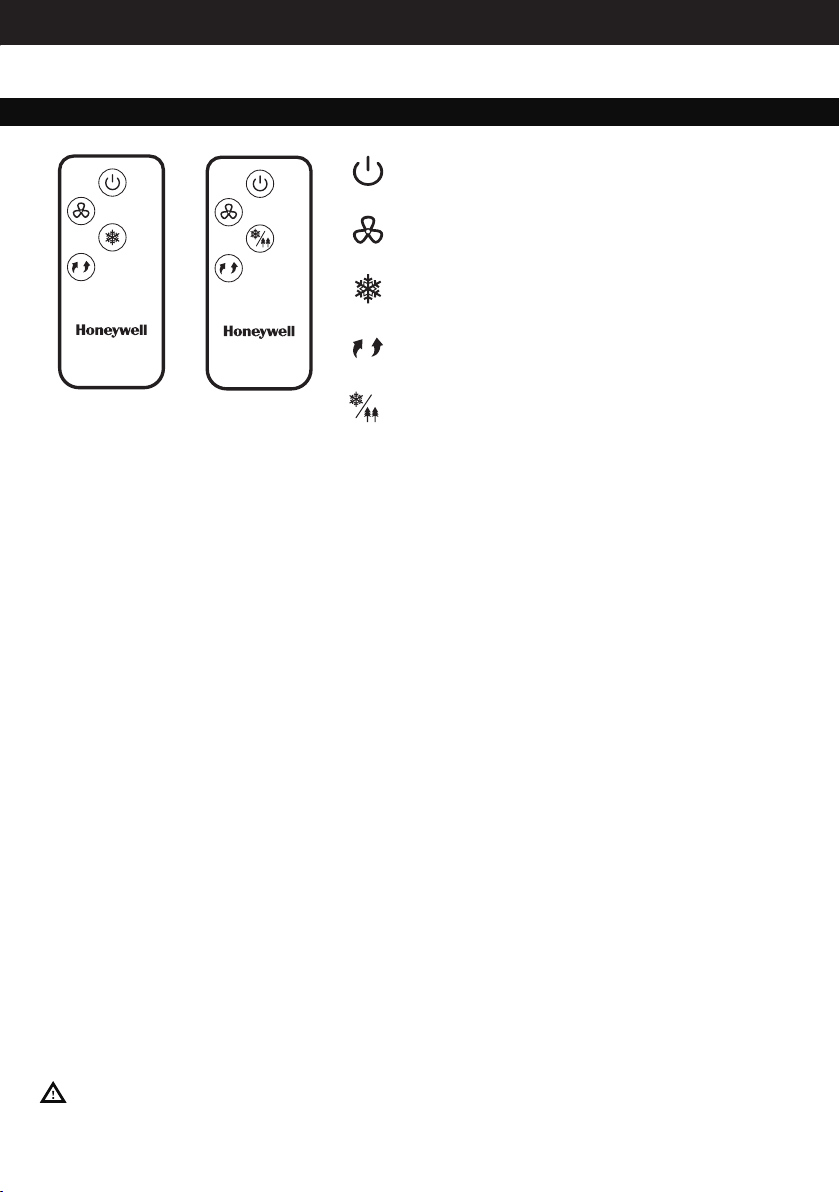

REMOTE CONTROL
EN
Model without
Ionizer Model with
Ionizer*^
POWER :
:
:
:
:
ON / OFF
Low / Medium / High
Evaporative Cooling ON / OFF
Controls the motion of the louvers
Cooling or Ionizer*^ function ON / OFF
SPEED
COOL
MODE
SWING
* Applicable for models with Ionizer feature only.
^ Ionizer reduces particles in the air. This is not an air purifier.
NOTE:
•
•
•
•
•
•
•
•
•
•
•
•
The remote control requires a CR2025 (1 x 3V) coin type or equivalent battery for replacement.
Open the battery compartment at the back of the remote control and insert the battery inside.
Care must be taken to insert the batteries according to the correct polarity (+ / –) markings
shown inside the battery compartment.
Always point the remote control signal transmitter towards the unit when operating. Make sure
that the signal path is not obstructed.
Remove the batteries if the unit is not going to be used for an extended period of time.
Do not drop the remote control.
Do not mix different types of batteries such as alkaline, carbon-zinc, or rechargeable batteries.
Do not mix old and new batteries.
Do not recharge the battery.
Exhausted batteries are to be removed from the product and safely disposed of as per
local regulations.
Do not dispose of batteries in fire. Batteries may explode or leak.
This product contains a lithium button/coin cell battery. If a new or used lithium button/ coin
cell battery is swallowed or enters the body, it can cause severe internal burns and can lead to
death in as little as 2 hours. Always completely secure the battery compartment. If the battery
compartment does not close securely, stop using the product, remove the batteries, and keep it
away from children. If you think batteries might have been swallowed or placed inside any part of
the body, seek immediate medical attention.
The batteries shall be disposed of properly, including keeping them away from children.
Even used batteries may cause injury.
WARNING: Chemical Burn Hazard. Keep batteries away from children.

USE & OPERATION (CONTINUED)
EN
FILLING WITH WATER
Make sure to position the air cooler correctly before you set up and start using the product. Please
refer to the COOLER LOCATION section of the separate Safety & Maintenance Guide.
COOLER LOCATION
CAUTION: Unplug the unit from the electrical socket before emptying
or refilling the water tank.
Open the Water Fill Door located on the back of the unit.
Manual Tank Refilling:
The Water Level Indicator is located at the front of the unit. Refill the
water tank when water level is low. Do not fill water above the "Max."
water level mark to avoid water droplets collecting on the
louvers. Check the water level in the tank before running the COOL
function. Make sure that the water in the tank is above the minimum
water level mark. Running the unit in COOL mode with inadequate
water may cause pump failure.
Note: The water capacity refers to the total volume of water that can
be contained within the air cooler water tank and water distribution
system. The water capacity in the tank at the “Max.” indicator
level may be lower than the actual water capacity of the air cooler.
WARNING: Do not fill water tank with dirty water or salt water. This
can damage the unit and Honeycomb media.
Water Fill Door

Below are instructions on how to clean and maintain your air cooler. If the cooler will not be used for
a long period of time, please refer to the STORAGE & MAINTENANCE GUIDELINES located in the
separate Safety & Maintenance Guide.
WARNING:
Before cleaning the unit, power OFF the unit and disconnect from the electrical socket.
CLEANING & DRAINING THE WATER TANK
• Move the unit to a location where the water can be drained. Remove the cap from the drain plug
located at the bottom of the unit. Allow the tank to empty.
• Refill the water tank with clean water, up to the maximum level and drain it completely.
• Use a damp cloth to remove the dirt and dust from the surface of the unit. Never use corrosive
elements or chemicals to clean this product.
• When the product is not in use, store the unit in a dry place out of direct sunlight.
USE & OPERATION (CONTINUED)
The unit is equipped with a low water sensor. In Cooling Mode, when water in the tank is below the
minimum level, you will hear a beeping sound and the GREEN LED will flash continuously. The unit
will automatically pause evaporative cooling.
Refill the water tank to deactivate the alarm in cooling mode. First switch OFF the unit and unplug
from the power outlet. Fill the water tank with water above the minimum water level mark. Plug in and
switch ON again.
To deactivate the alarm and continue using the unit as a fan (without evaporative cooling), switch
the unit OFF and then ON again. The Low Water Alarm will not activate in Fan only mode. The Low
Water Alarm will sound again if the COOL function is activated while the water tank is still empty.
LOW WATER ALARM*
* Applicable for models with Low Water Alarm feature only.
EN

USE & OPERATION (CONTINUED)
EN
WARNING:
Before cleaning the unit, switch the unit OFF and disconnect the power adapter from the unit and
electrical socket.
CLEANING THE HONEYCOMB COOLING MEDIA
The appliance is supplied with a Honeycomb Cooling Media.
The Honeycomb Cooling Media are located inside the Side Grill. See Figure 1 for instructions on
how to remove them from the unit for cleaning and maintenance.
Do not run the unit in COOL mode with stale water in the tank. You must empty the water tank
and refill with fresh water, especially if the tank has not been cleaned in a long time.
The cleaning frequency for the Honeycomb media depends on local air and water conditions.
In areas where the mineral content of water is high, mineral deposits may build up on the
Honeycomb Cooling Media and restrict air flow. Draining the water tank and refilling with fresh
water at least once a week will help reduce mineral deposits. If mineral deposits remain on the
Honeycomb Cooling Media, the media should be removed and washed under fresh water. The
media should be cleaned every two months or sooner, depending on your needs.
For best results allow the Honeycomb Cooling Media to dry after each use by turning off the cool
function 15 minutes before turning the unit off.
•
•
•
•
•

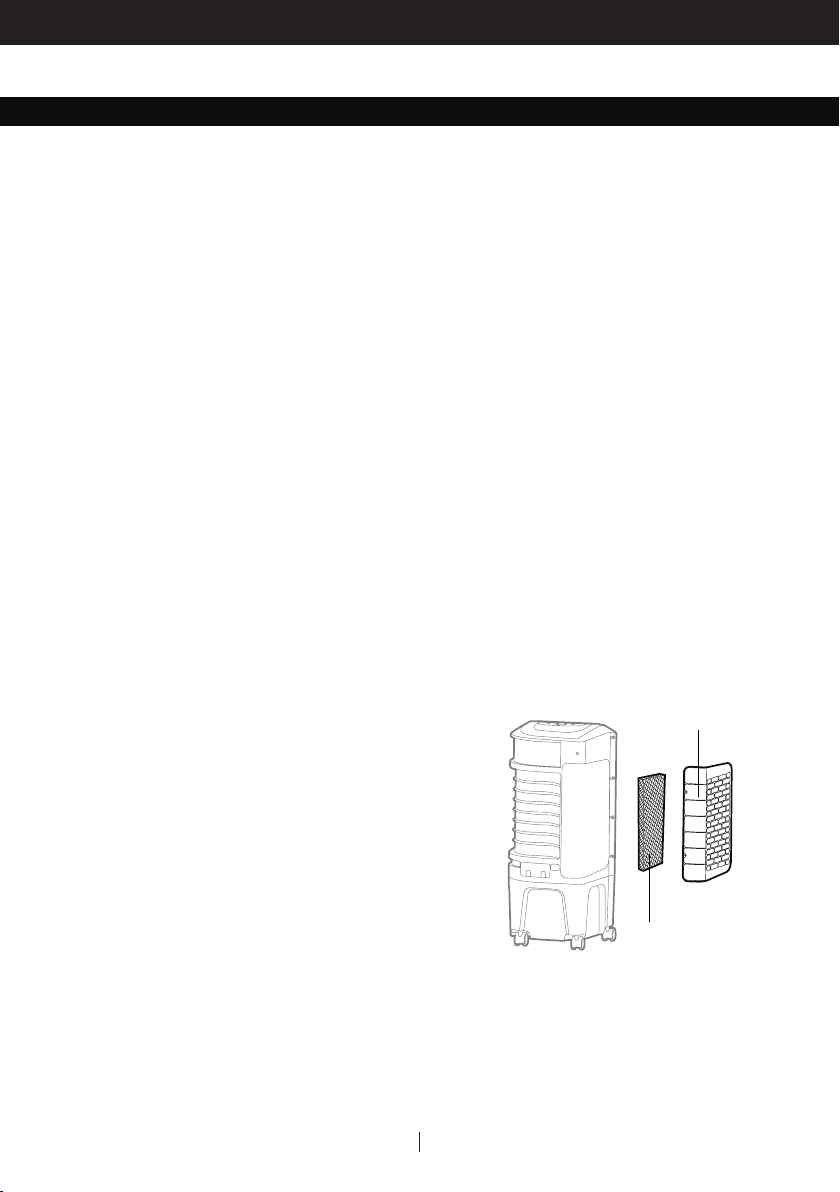

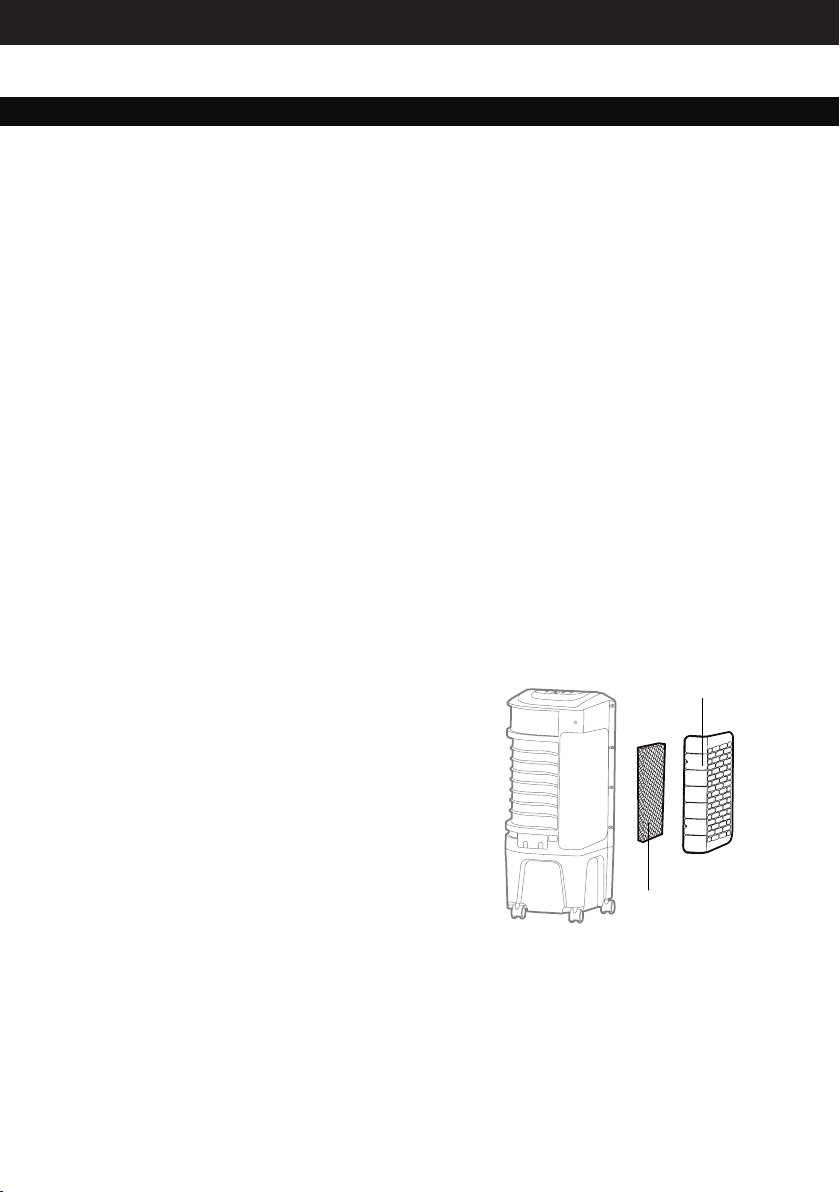

Figure 1:
Remove all the screws from the side grill of the Air
Cooler, carefully pull out the side grill from the cooler.
Rinse the side grill with clean water and let it dry
before re-installing to the unit.
Carefully pull out the Honeycomb Media from the
unit.
Replace or clean media with water and a damp cloth
as needed.
WARNING: DO NOT operate the Air Cooler when the
side Grill is removed from the Air Cooler, or if there is
a loose-fitting side Grill. Doing so can cause serious
injury or dangerous electrical shock.
1.
2.
3.
4.
Honeycomb Cooling Media
Side Grill
Removing the Honeycomb Cooling Media:

1
