Honeywell CL25AE User manual

OWNER’S MANUAL
Read and save these instructions before use
使用者操作手冊
在使用該產品前請詳讀本操作手冊
Model: CL25AE
機型: CL25AE
Power rating: 235 Watts
Voltage rating: 110 Volt AC, 60Hz
消耗功率:235 Watts
使用電壓:110 Volt AC, 60Hz
For product inquiries or support, visit www.honeywellaircoolers.com
有關產品查詢及資訊，請上www.honeywellaircoolers.com網站
Portable Evaporative Air Cooler
for Indoor Use
移動式冷卻器(水冷器)
建議室內使用
Customer Support: 0800-888-753
消費者服務:0800-888-753
Made in P.R.C.
中國製造

QUICK START GUIDE
Fill with water and plug into a standard
power outlet.
Place near an open door or window.
Note : Evaporative air cooler requires cross ventilation.
Turn ON and enjoy the cooling breeze.
Note: Start with LOW speed and gradually increase
to higher speed for optimum cooling performance.
Note: Please make sure the household power voltage
matches the product specifications.
1
2
3

快速入門指引
請於水箱中加入乾淨的水，並插入標準的電源
插座後使用本設備。
使用本設備儘可能在一個寬敞的空間或靠近
門窗邊使用。
注意：本移動式冷卻器(水冷器)需要考慮室內空氣的循環
及交換。
啟動本設備的開關，並享受清涼的微風。
注意：開始請由低速逐步提高到更高的速度，以獲得最佳
的散熱性能。
注意：請詳閱產品規格及確認輸入電壓是正確的。
1
2
3

SECTION PAGE
1. THANK YOU .........................................................................................................
2. USER TIPS ...........................................................................................................
3. SAFETY ................................................................................................................
4. PARTS DESCRIPTION .........................................................................................
5. USE & OPERATION .............................................................................................

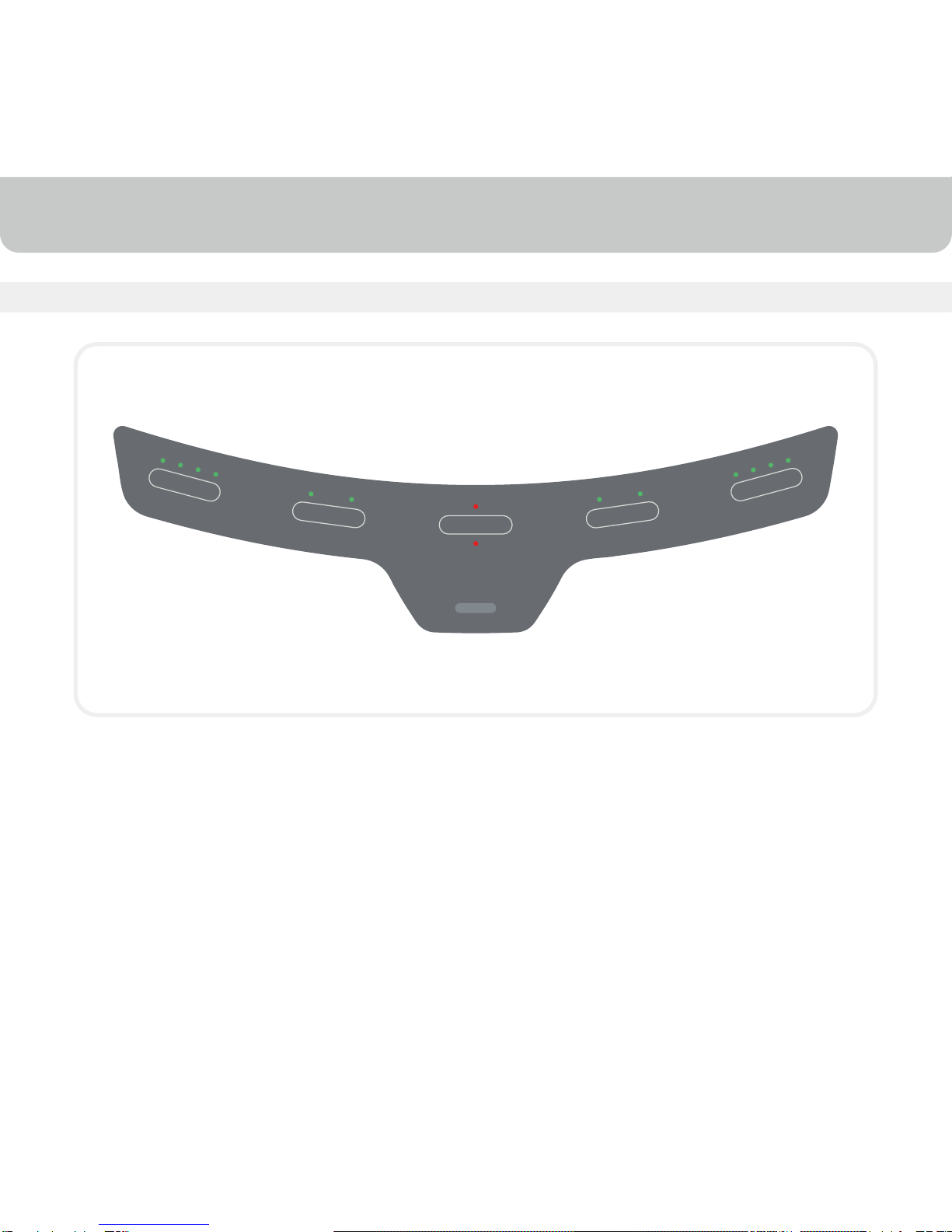

Control Panel ....................................................................................................
Function Buttons ................................................................................................
6. CLEANING & MAINTENANCE .............................................................................
7. TROUBLESHOOTING GUIDE .............................................................................
8. TECHNICAL SPECIFICATIONS ...........................................................................
9. ELECTRICAL WIRING DIAGRAM ........................................................................
2
3
5
7
8
8
9
Remote Control .................................................................................................. 11
Room Cooling And Humidifying ........................................................................... 12
Filling With Water ............................................................................................... 13
14
16
18
19
1
INDEX
Read all instructions carefully before setting up and operating the cooler, and
please keep this instruction manual for future reference. This manual is designed to
provide you with important information needed to setup, operate, maintain, and
troubleshoot your cooler. Failure to follow these instructions may damage and/or
impair its operation and void the warranty.

章節 頁數
1. 感謝您購買本產品 .................................................................................................
2. 使用提示 ...............................................................................................................
3. 安全 ......................................................................................................................
4. 零件及部品 ..............................................................................................................
5. 使用及操作 ............................................................................................................
控制面板 ...........................................................................................................
功能鍵 ..............................................................................................................
6. 清潔及維護 ............................................................................................................
7. 疑難問題排除 .........................................................................................................
8. 技術規格 ................................................................................................................
9. 電路圖 ....................................................................................................................
2
3
5
7
8
8
9
遙控器 ............................................................................................................... 11
室內冷房及濕度 ................................................................................................. 12
注水 ................................................................................................................. 13
14
16
18
19
1
目次
使用本設備之前請詳閱所有說明，並妥善保管此說明書，以備將來參考。本操作手冊
將為您提供所需的重要說明，包括操作、維護及故障排除等…若未參照本說明使用，
可能導致的損壞或損害其操作，將不在保固維修範圍內。

2
THANK YOU
Congratulations on your purchase of this versatile Honeywell Evaporative Air Cooler.
For optimum cooling from your cooler, fill the water tank to maximum level and load
ice inside the ice compartment before you turn on your air cooler.
Cooler Location (Important - Please Read!)
Place the cooler in front of an open door or window. Ensure that there is adequate
cross - ventilation in the room by leaving a door or window open opposite the cooler.
Following these guideline will ensure your cooler will work as effectively as possible.
Not an Air Conditioner (Important - Please Read!)
The evaporative air cooler is not an air conditioner as it does not use a compressor
or refrigerant gas. It should not be expected to cool as efficiently as a refrigerated air
conditioner.

2
感謝您購買本產品
恭喜並謝謝您購買Honeywell移動式冷卻器(水冷器)。為了讓冷卻器達到最佳的冷卻效
果，請注水至水箱內最高水位刻度，將冰塊放入置冰室，然後打開電源開關開始使用。
不是一般的冷凍空調器 (重要 - 請仔細閱讀！)
移動式冷卻器(水冷器)請放置在空氣流通的地方，靠近開放的門窗邊使用。確保有足夠
的空氣流通，或在房間裡留一個開放的門或開放的窗，相對會較涼爽及冷，『冷氣房可
不再此限制』。依循這些規則，將可確保您的冷卻器將達到最好的效能。
不是一般的冷凍空調器 (重要 - 請仔細閱讀！)
移動式冷卻器(水冷器)不是一般的冷凍空調器，它不使用壓縮機或製冷劑氣體(冷媒)。
不應該被預期有冷凍空調器冷卻的效率。

3

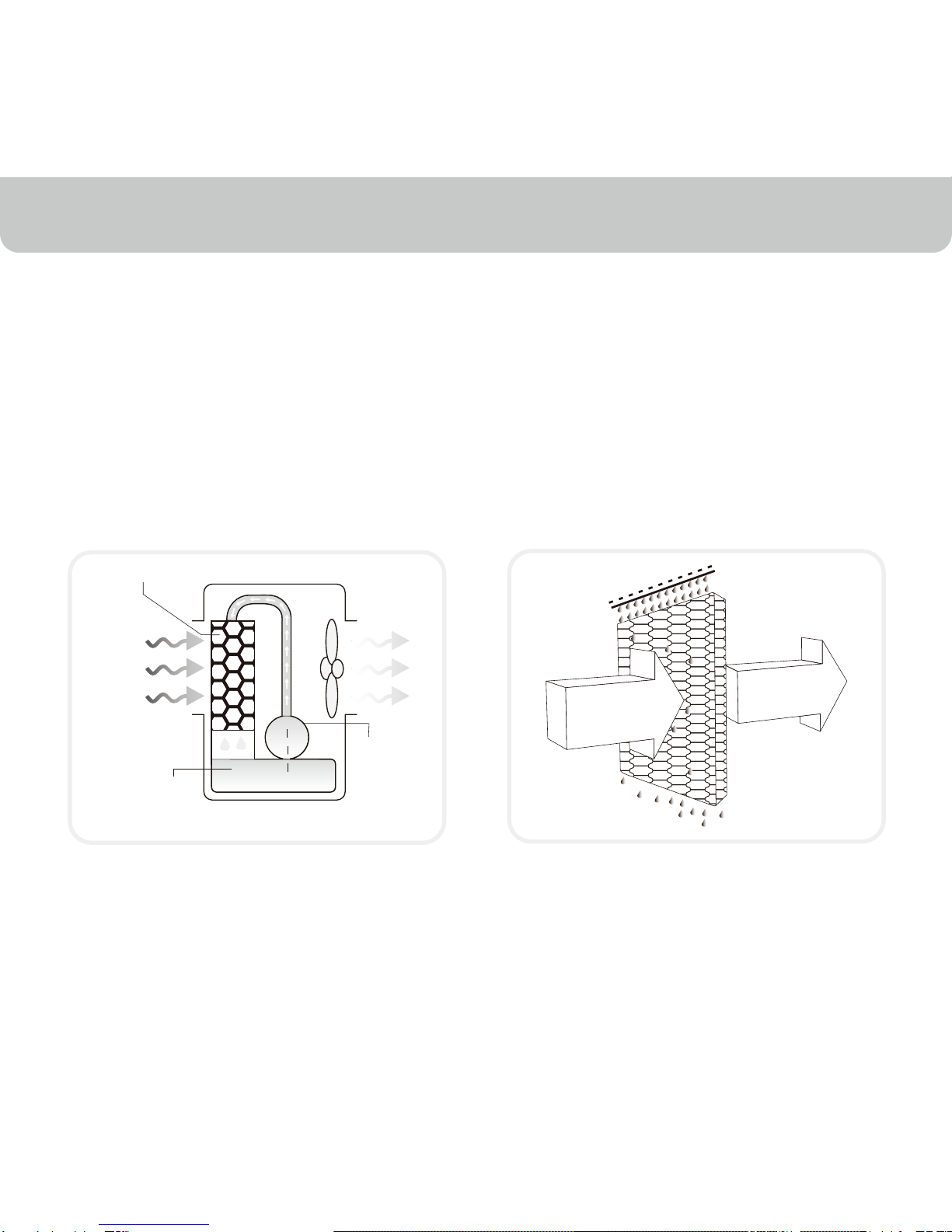

USER TIPS
Energy Efficient, No Compressor
Honeywell Evaporative Air Coolers are built to maximize energy efficiency and keep
costs low. Warm air is drawn into the cooler and enters the Honeycomb Cooling Media.
Water pumped from the tank pours over the honeycomb media. As the warm air passes
through the media, the water absorbs the heat, naturally cooling and humidifying the air.
A fan propels the cooled air out into the room. This no-compressor system cools natu-
rally, efficiently and inexpensively.
Pump
Water
Honeycomb Cooling Media
Evaporative Air Cooling Mechanism
Warm and
dry air
Cool and
humid air

3
使用提示
涼爽~節能~自然
蒸發式的空氣冷卻現象(汽化)，是最自然冷卻方式，類似一陣微風吹過湖面。微風降低了
溫度，讓人感覺有輕鬆的冷卻效果。移動式冷卻器(水冷器)的冷卻空氣，是經過水蒸發過
程(汽化)的現象。當細微的水分子碰到熱空氣，水分子因熱能而蒸發，熱空氣溫度同時也
下降了。這種化學物質的變化需要熱量是從水分子來的。
汲水幫浦
水
蜂巢式冷卻濾材Honeycomb
移動式冷卻器(水冷器)的蒸發冷卻機制
溫暖及乾燥
的空氣
涼爽和潮濕
的空氣

4
USER TIPS
The recommended maximum relative humidity level is 60% or
less, which allows a noticeable temperature decrease. The
temperature decrease will be greater in drier climates
because higher evaporation occurs when the humidity is low.

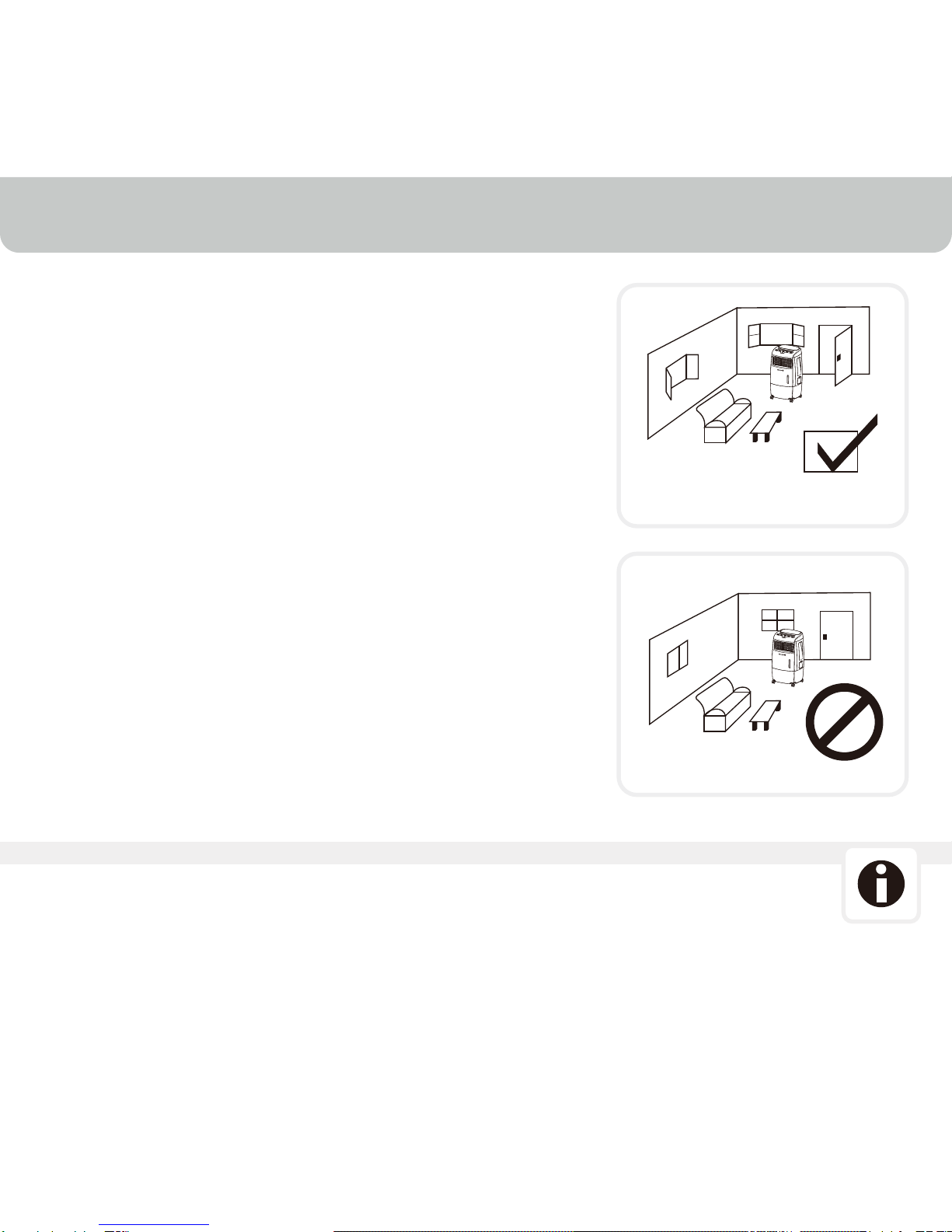

The evaporative air cooler should not be used in enclosed
spaces. It must be kept level and there must be water in the
water tank. The room should have doors and windows
opened to allow free air flow. The evaporative air cooler works
best when placed near an open window, so that outside air is
drawn into the evaporative air cooler, the air circulates in the
room, then exits via the door. The maximum cooling effect is
felt when a person is in the flow of air coming out of the
evaporative air cooler.
The evaporative air cooler can also be used to humidify dry
air during cool weather. To be used for humidification the
windows and doors should be closed to allow the humidified
air to accumulate.
When the product is used for the first time the Honeycomb Cooling Media will have an
odor which will dissipate in a few hours or so of initial use.
NOTE (Important - Please Read!)

4
使用提示
使用時，建議相對濕度在60%以下，它將會有明顯的溫度降低
效果。在乾燥的條件下，溫度降低將會更大。因為當濕度低時
，會出現較高的蒸發效應。
移動式冷卻器(水冷器)不建議在密閉的空間使用。『冷氣房可
不再此限制』。機體需保持水平，水箱需保持充滿水，房間內
的門和窗戶需打開，讓空氣保持流通。冷卻器工作時，最好放
置在寬廣的空間或門窗邊，好讓外部的空氣容易被吸入到冷卻
器中，空氣才足以循環。在如此空氣流通及冷卻循環的環境中
，將容易達到最好的冷卻效率。
移動式冷卻器(水冷器)也適用在乾燥的空氣環境中，有加濕的
功效就好像是一台加濕機。若用於需加濕的環境中，窗戶及門
就必須關閉，讓加濕空氣持續積累。移動式冷卻器(水冷器)不
是冷凍空調設備，因為它不使用壓縮機及製冷劑(冷媒)。所以
無法期待它的冷卻效率與冷凍空調設備相同。
初次使用本產品，特殊冷卻濾材Honeycomb可能有異味。但持續使用它，大約一個星期
左右味道將會減少或消失。
注意

5

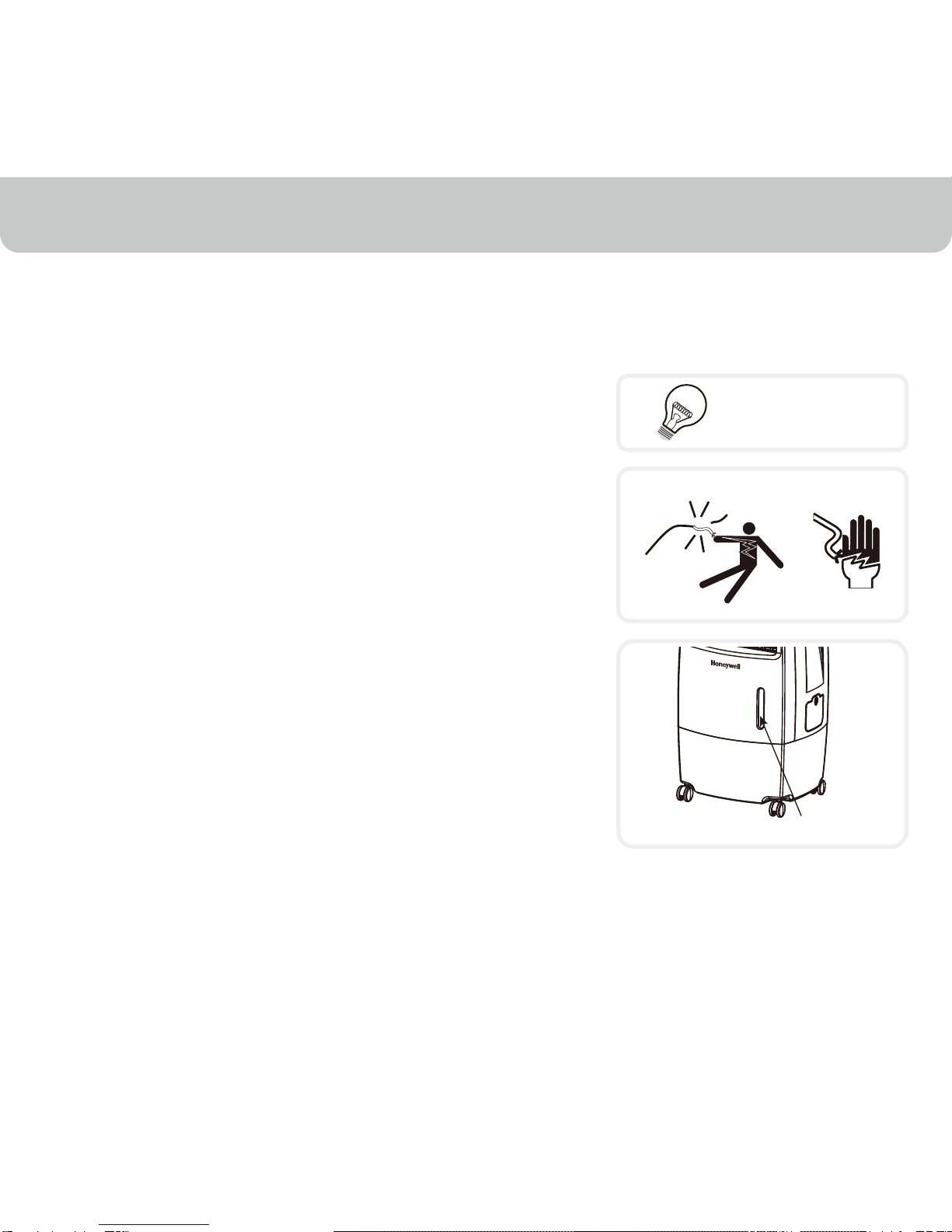

SAFETY
Read And Save These Instructions:
When using electrical appliances, basic safety precautions should always be followed:
110V - 60 Hz
Shock Hazard
Water Level Indicator
Your cooler runs on 110 Volt AC, 60 Hz current. Check the
household voltage to ensure it matches the appliance's rate
specification.
Before operating the product remove it from its packaging
and check that it is in good condition.
DO NOT operate any product with a damaged cord or plug.
We recommend not using an extension cord with this
appliance.
DO NOT run power cord under carpeting, or cover it with
rugs or runners. Keep the cord away from areas where it
may be tripped over.
Always unplug the product before refilling the water tank.
Always unplug the appliance from the power source before
cleaning, servicing or relocating the unit.
Remove the power cord from the electrical receptacle by
grasping and pulling on the power cord plug-end only, never
pull the cord.
DO NOT use the product in areas where gasoline, paint or
other flammable goods and objects are stored.
When using the ''COOL'' setting, check the water tank to
ensure that it is full. Operation of this cooler on the ''COOL''
setting with an empty tank may result in damage to the
water pump.
•
•
•
•
•
•
•
•
•

5
安全守則
詳閱及保存這些說明:
當使用電器時，應遵守基本的安全預防措施:
110V - 60 Hz
觸電的危險
水位指示器
使用電壓:110伏特交流電壓，頻率60赫茲。請確認及檢查使
用場所的電壓，以確保設備符合規範。
尚未使用前，請檢查從包裝取出後的商品，外觀及所有配件
是否正常。
發現任何損壞的電源線或插頭，請不要使用。我們建議不要
使用延長線。
請避免將電源線捲曲或蓋藏在任何物品或地毯下。請避免可
能被電源線絆倒。
補充水箱中的水之前，請務必拔下電源線插頭。
清洗、維修、搬遷之前，請務必拔下電源線插頭。
從插座拔下電源線時，請抓住電源線插頭端，切勿拉扯電源
線。
切勿與汽油、油漆、其他易燃物品共同和儲存收藏。
當啟動 "COOL" 功能時，請檢查水箱中的水是否足夠。啟動
"COOL" 功能時，若水幫浦無法汲取水箱中的水，將可能導
致水幫浦的損壞。
•
•
•
•
•
•
•
•
•

6

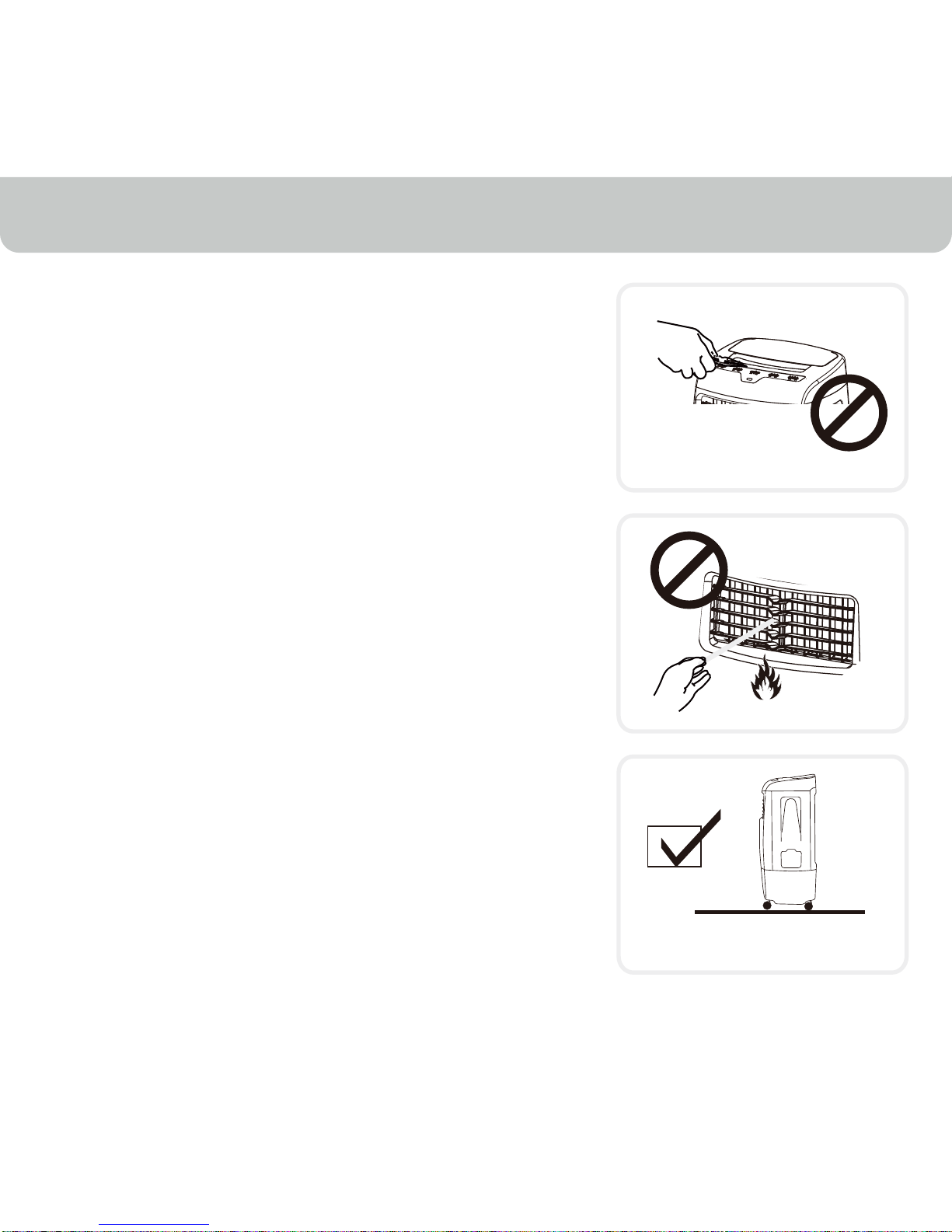

SAFETY
DO NOT attempt to repair or adjust any electrical or
mechanical functions of the cooler, as this may void the
warranty.
DO NOT cover the air inlet or outlet on the appliance as this
may cause motor damage.
DO NOT insert or allow objects to enter any ventilation or
exhaust opening as this may damage the product and could
cause an electrical shock or fire.
DO NOT operate with the Honeycomb media removed as
this will overload and damage the motor.
DO NOT leave the operating appliance unattended for any
extended period of time.
DO NOT let children play with this appliance, packaging or
plastic bags.
If the unit is damaged or if it malfunctions, do not continue to
use it. Refer to the Troubleshooting Guide and seek
professional advice.
Place the unit on a level floor.
This product is not intended for use in wet or damp
locations.
DO NOT use in bathrooms. Never locate the product where
it may fall into a bathtub or other water container.
Store in a dry area when not in use.
This appliance is not intended for use by persons (including
children or elderly) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Always grip the side handles to move the cooler.
•
•
•
•
•
•
•
•
•
•
•
•
•
Floor Level

6
安全注意事項
請勿嘗試自行維修或調整任何功能及零件，因為這可能會導
致保固失效。
請勿阻隔機體的空氣入口及出口，因為這可能導致馬達的損
壞。
請避免異物進入任何通風或排氣口，因為這可能會損壞產品
，且可能導致觸電或火災。
當冷卻濾材Honeycomb卸除時，請勿進行操作，因為這可能
會超過負載和損壞馬達電機。
請避免長時間在無人看顧的狀態，讓設備一直運轉而無人操
作。
請避免讓孩子自行操作設備及包裝外箱、包裝塑料袋。
如發現有損壞或故障，無法繼續使用。請參閱說明書故障排
除部分或請諮詢專業意見。
請保持機體放置在水平地面上使用。
本設備不適合在潮濕的地方使用。
請勿在浴室中使用。
當設備不使用時，應存放在乾燥的地方。
當兒童或年長者使用時，請特別住意他們使用設備的過程。
移動設備時，請牢牢握住機體。
•
•
•
•
•
•
•
•
•
•
•
•
•
放置於平地

7

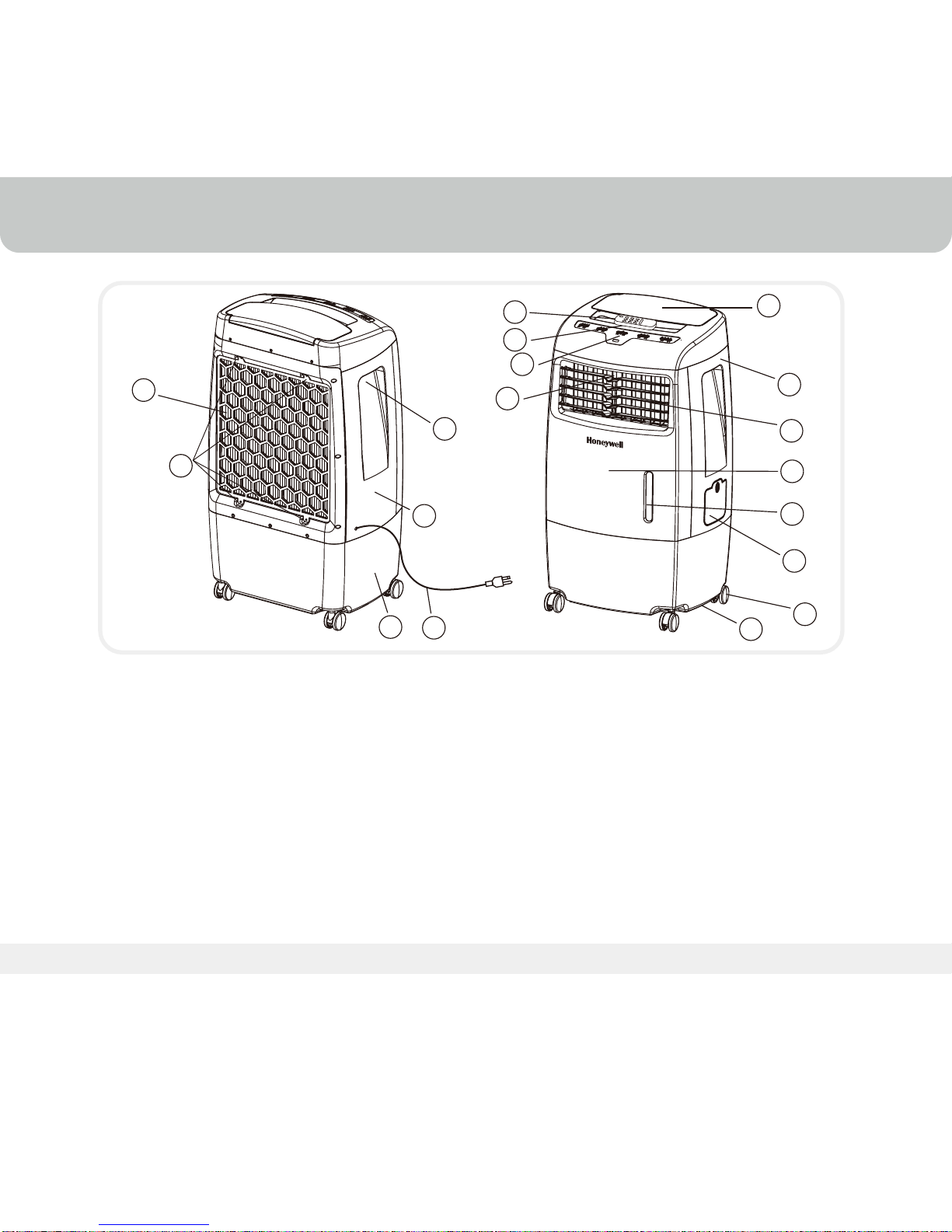

PARTS DESCRIPTION
ACCESSORIES:
Remote Control ( Batteries not included)
1 Control Panel
2 Side Handle
3 Horizontal Louvers
(Manual Adjustment)
4 Left Side Panel
5 Power Cord & Plug
6 Casters
7 Ice Compartment Lid
8 Vertical Louvers
(Automatic Movement with SWING)
9 Front Panel
10 Water Level Indicator
11 Remote Control
12 Water Tank
13 Water Fill Door
14 Drain Plug
15 Right Side Panel
16 Rear Grill Removal Screws
17 Carbon Filter &
Honeycomb cooling media
1
11
12
3
2
4
8
9
10
7
6
14
13
5
12
17
16
15

7
零件及部品
附件:
遙控器 (不附帶電池)
1 控制面板
2 手把處
3 水平百葉柵欄
( 手動調整 )
4 左側面板
5 電源線及插頭
6 腳輪
7 置冰盒蓋
8 垂直百葉柵欄
( 自動擺頭-使用SWING功能 )
9 前面板
10 水位指示器
11 無線遙控器
12 水箱
13 注水門(孔)
14 排水閥/蓋
15 右側面板
16 後格柵拆除螺絲
17 活性碳粉末濾網 &
當蜂巢式冷卻濾材Honeycomb
1
11
12
3
2
4
8
9
10
7
6
14
13
5
12
17
16
15

8
USE & OPERATION
Control Panel
POWER
Tank Empty
MODE
Fan Cool
TIMER
0.5hr 1hr 2hr 4hr
SPEED
Sleep
S
I
Lo Med Hi
SWING /ION

8
使用及操作
控制面板
POWER
Tank Empty
MODE
Fan Cool
TIMER
0.5hr 1hr 2hr 4hr
SPEED
Sleep
S
I
Lo Med Hi
SWING /ION

Power
Press the POWER button to turn the unit on. The cooler will
start automatically at medium speed. After a few seconds the
speed will switch to low. To turn the unit off, press the button
again.
Speed
Press the 'SPEED' button repeatedly and the speed will
change. The indicator light will show the selected speed. High
(Hi), Medium (Med), Low (Lo) & Sleep. Sleep setting is for
comfort during the night; cooler runs on high speed for 1 hr,
medium speed for 1 hr and then remains in low speed.
Mode
Press the ‘MODE’ button to switch the air cooler between FAN
and COOL modes.
Cool Mode: To begin cooling the desired area, press the
MODE button. The indicator light on COOL will come on and
the water pump will operate. You will feel the cooler air after
the honeycomb media is completely wet.
Fan Mode: To switch on the FAN only mode, press the MODE
button again and the indicator light on FAN will come on.
Timer
Press the ''TIMER'' button until the indicator light comes on to
your desired time. Once the set time has passed, the unit will
automatically shut off. The Timer function allows you to
program the unit for up to 7.5 hours of use. 9
USE & OPERATION

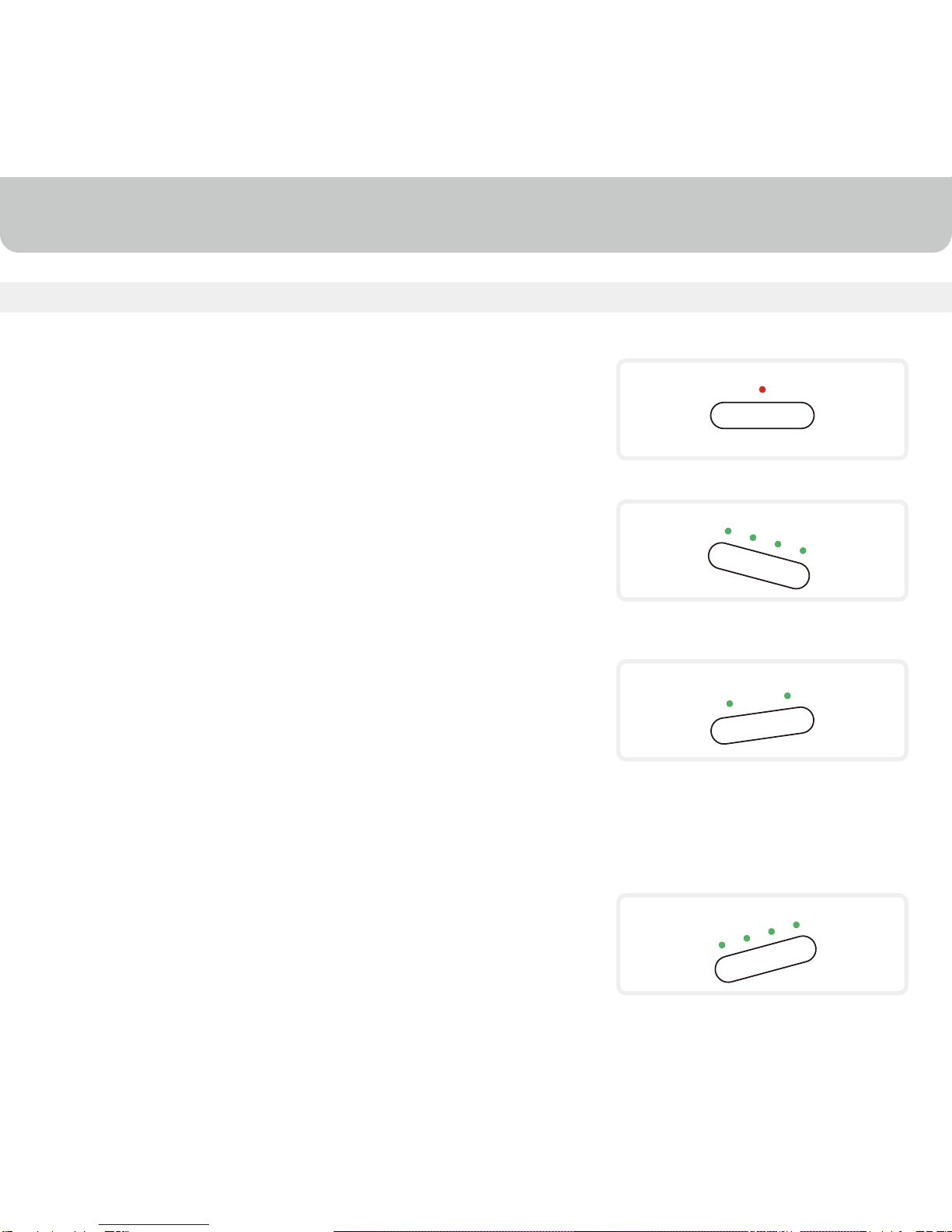

Function Buttons
POWER
SPEED
Sleep Lo Med Hi
MODE
Fan Cool
TIMER
0.5hr 1hr 2hr 4hr
