Honeywell CL25AE User manual

Portable Evaporative Air Cooler
OWNER’S MANUAL
Read and save these instructions before use
Model: CL25AE
Power rating: 235 Watts
Voltage rating: 220-240 Volt AC, 50Hz
For product enquiry or support contact:
E-mail: [email protected]
Customer Service Hotline: [phone]
www.honeywellaircoolers.com

QUICK START GUIDE
Fill with water and plug into a standard
power outlet.
Place near an open door or window.
Note : Evaporative air cooler requires cross ventilation.
Turn ON and enjoy the cooling breeze.
Note: Start with LOW speed and gradually increase
to higher speed for optimum cooling performance.
Note: Please make sure the household power voltage
matches the product specifications.
1
2
3

SECTION PAGE
THANK YOU ..................................................................................................................
USER TIPS ....................................................................................................................
SAFETY .........................................................................................................................
PARTS DESCRIPTION ..................................................................................................
USE & OPERATION ......................................................................................................
Control Panel .........................................................................................................
Function Buttons ....................................................................................................
CLEANING & MAINTENANCE .....................................................................................
TROUBLESHOOTING GUIDE .....................................................................................
TECHNICAL SPECIFICATIONS ...................................................................................
ELECTRICAL WIRING DIAGRAM ................................................................................
2
3
5
7
8
8
Remote Control ......................................................................................................
9
Room cooling and humidifying ...............................................................................11
12
Filling Water ...........................................................................................................13
14
16
18
18
1
Read all instructions carefully before setting up and operating the cooler, and keep this
instruction manual for future reference. This manual is designed to provide you with impor-
tant information needed to setup, operate, maintain, and troubleshoot your cooler. Failure to
follow these instructions may damage and/or impair its operation and void the warranty.
INDEX

THANK YOU!
2
Congratulations on your purchase of this versatile Honeywell Evaporative Air Cooler. For
optimum cooling from your cooler, fill the water tank to maximum level and load ice inside
the ice compartment before you turn on your air cooler.
Cooler Location - Indoors (Important - Please Read!)
Place the cooler in front of an open door or window. Ensure that there is adequate cross -
ventilation in the room by leaving a door or window open opposite the cooler.
Following these guidelines will ensure your cooler will work as effectively as possible.
Not an Air Conditioner (Important - Please Read!)
The evaporative air cooler is not an air conditioner as it does not use a compressor or refrig-
erant gas. It should not be expected to cool as efficiently as a refrigerated air conditioner.

3
Pump
Water
Honeycomb Cooling Media
Evaporative Air Cooling Mechanism
Warm and
dry air
Cold and
humid air
USER TIPS
Energy efficient, No compressor
Honeywell Evaporative Air Coolers are built to maximize energy efficiency and keep costs low. Warm
air is drawn into the cooler through a dust and odor-reducing carbon filter and enters the Honeycomb
Cooling Media. Water pumped from the tank pours over the honeycomb media. As the warm air
passes through the media, the water absorbs the heat, naturally cooling and humidifying the air. A
fan propels the cooled air out into the room. This no-compressor system cools naturally, efficiently
and inexpensively.

NOTE
4
USER TIPS
When the product is used for the first time the Honeycomb Cooling Media will have an odor
which will dissipate in a week or so of initial use.
The recommended maximum relative humidity level is 60% or
less, which allows a noticeable temperature decrease. The
temperature decrease will be greater in drier climates because
higher evaporation occurs when the humidity is low.
The evaporative air cooler should not be used in enclosed
spaces. It must be kept level and there must be water in the
water tank. The room should have doors and windows opened
to allow free air flow. The evaporative air cooler works best
when placed near an open window, so that outside air is drawn
into the evaporative air cooler, circulates in the room, then
exits via the door. The maximum cooling effect is felt when
a person is in the flow of air coming out of the
evaporative air cooler.
The evaporative air cooler can also be used to humidify dry air
during cool weather. To be used for humidification the windows
and doors should be closed to allow the humidified air to
accumulate. The evaporative air cooler is not an air conditioner
as it does not use a compressor or refrigerant gas. It should not
be expected to cool as efficiently as a refrigerated air
conditioner.

READ AND SAVE THESE INSTRUCTIONS:
SAFETY
220~240 Volt AC 50Hz
SHOCK HAZARD
WATER LEVEL INDICATOR
5
When using electrical appliances, basic safety precautions should always be followed:
•
•
•
•
•
•
•
•
•
Before operating the product remove it from its packaging and
check that it is in good condition.
DO NOT operate any product with a damaged cord or plug.
We recommend not using an extension cord with this
appliance.
DO NOT run power cord under carpeting, or cover it with rugs
or runners. Keep the cord away from areas where it may be
tripped over.
Always unplug the product before refilling the water tank.
Always unplug the appliance from the power source before
cleaning, servicing or relocating the unit.
Remove the power cord from the electrical receptacle by
grasping and pulling on the power cord plug-end only, never
pull the cord.
DO NOT use the product in areas where gasoline, paint or
other flammable goods and objects are stored.
When using the ''COOL'' setting, check the water tank to
ensure that it is full. Operation of this cooler on the ''COOL''
setting with an empty tank may result in damage to the water
pump.
Warning:
a. Children should be supervised to ensure that they do not play with the appliance.
b. If the supply cord is damaged, it must be replaced by the manufacture or its service agent or a
similarity qualified person in order to avoid a hazard.
Your cooler runs on 220~240 Volts, 50 Hz current. Check the
household voltage to ensure it matches the appliance's rate speci-
fication.

SAFETY
FLOOR LEVEL
6
•
•
•
•
•
•
•
•
•
•
•
•
•
DO NOT attempt to repair or adjust any electrical or
mechanical functions of the cooler, as this may void the
warranty.
DO NOT cover the air inlet or outlet on the appliance as this
may cause motor damage.
DO NOT insert or allow objects to enter any ventilation or
exhaust opening as this may damage the product and could
cause electrical shock or fire.
DO NOT operate with the Honeycomb Cooling Media removed
as this will overload and damage the motor.
DO NOT leave the operating appliance unattended for any
extended period of time.
DO NOT let children play with this appliance, packaging or
plastic bags.
Place the unit on a level floor.
This product is not intended for use in wet or damp locations.
Never locate the product where it may fall into a bathtub or
other water container. DO NOT use in bathrooms or outdoors.
When the unit is not in use always store in a dry area.
This appliance is not intended for use by persons (including
children or elderly) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they
have been given supervision or instructions concerning the
use of the appliance by a person responsible for their safety.
Always grip the side handles to move the cooler.
If the unit is damaged or it malfunctions, do not continue to
operate it. Refer to the troubleshooting section and seek
professional advice.

7
1 Control Panel
2 Side Handle
3 Horizontal Louvers
(Manual Adjustment)
4 Left Side Panel
5 Power Cord & Plug
6 Castors
7 Ice Compartment Lid
8 Vertical Louvers
(Automatic Movement with SWING)
9 Front Panel
10 Water Level Indicator
11 Remote Control
12 Remote Control Holder
13 Water Tank
14 Water Fill Door
15 Drainage Tube / Cap
16 Right Side Panel
PARTS DESCRIPTION
1
11
12
3
2
4
8
9
10
7
6
16
15
14
5
13

CONTROL PANEL
USE & OPERATION
8
POWER
Tank Empty
MODE
Fan Cool
TIMER
0.5hr 1hr 2hr 4hr
SPEED
Sleep Lo Med Hi
SWING /ION

Function Buttons
POWER
Press the POWER button to turn the unit on. To turn the unit
off, press the button again. The cooler will start automatically
at medium speed. After a few seconds the speed will switch
to low.
SPEED
MODE
To switch the air cooler between FAN only and COOL only
modes. To begin cooling the desired area, press the MODE
button. The indicator light on COOL will come on and the water
pump will operate. You will feel the cooler air after the honey-
comb media is completely wet. To switch in the FAN only
mode, press the MODE button again and the indicator light on
FAN will come on.
9
USE & OPERATION
POWER
Tank Empty
SPEED
Sleep Lo Med Hi
MODE
Fan Cool
TIMER
0.5hr 1hr 2hr 4hr
TIMER
Press the SPEED button repeatedly and the speed will
change. The indicator light will show the selected speed.
High(Hi) ,Medium (Med), Low(Lo) & Sleep. Sleep setting is for
comfort during the night.
Press the TIMER button until the indicator light comes
on to your desired timer. Once the set time has passed,
the unit will automatically shut off. The Timer function
allows you to program the unit for up to 7.5 hours of use.

USE & OPERATION
10
SWING /ION
SWING / ION
To switch between the SWING, ION & SWING+ION modes.
Press the SWING button. The indicator light on 'S' will come
on and the louvers will begin to move from right to left
automatically. Manually adjust the horizontal louvers to
change vertical airflow. To turn on the ionizer function, press
the SWING/ION button again and the ionizer functions starts
when the indicator on 'I' comes on. Both functions can also be
activated by sequential pressing of this button.
Tank Empty
TANK EMPTY
This LED will illuminate only when the water tank is
below the desired minimum level and the COOL function
is ON. Everytime the water tank goes below the mini-
mum level the LOW WATER ALARM function will
activate with the help of a low water sensor. You will hear 10 beeps and the TANK EMPTY
led indicator will flash continuously. At the same time the power to the pump inside the unit
will be cut off to protect the life of the pump.
To disengage the low water alarm function, turn off and unplug the unit from the power
outlet, and fill the tank with water above the minimum level.
To turn off the alarm function and continue to use it in FAN mode, turn off the unit and turn
the unit on. If COOL button is pressed again without filling the tank with water, low water
alarm will activate again.

11
USE & OPERATION
ROOM COOLING AND HUMIDIFYING
When the water regulator is set to MIN, the water pump
distributes a minimal amount of water to the honeycomb
media. This results in less water evaporation and reduces
cooling effect. Thus, reducing the humidity inside the room.
When the water regulator is set to MAX, the water pump
distributes the maximum amount of water to the honeycomb
media. This results in maximum water evaporation and the
cooling performance improves. Thus, increasing the humidity
inside the room.
Water Regulator is located inside the ice loading compartment.
Regulator knob can be rotated using your own hands.
NOTE
Water Regulator
MIN
MAX

12
USE & OPERATION

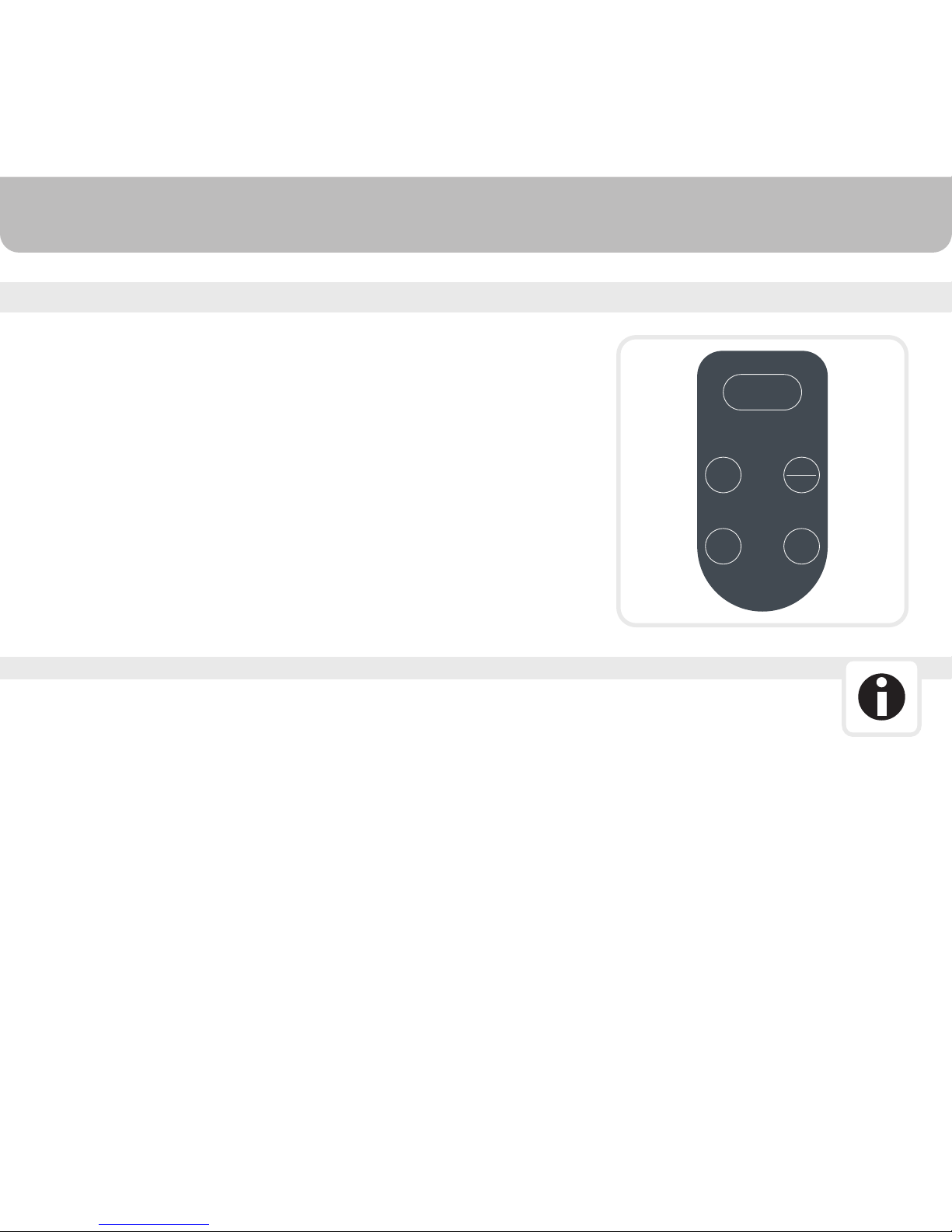

REMOTE CONTROL
Power: On/ Off
Speed: Low / Medium / High / Sleep
Mode : Controls cooling or fan option
Swing / Ion : Controls the motion of the vertical louvers
and Ionizer function
Timer: Set the unit to turn off automatically after
desired number of hours.
NOTE
Remote Control(Batteries 2 x AAA are not included)
• Please open the battery compartment at the back of the
remote control and insert two new AAA dry cell batteries.
Care must be taken to insert the batteries according to the
correct polarity (+ / –) markings shown inside the battery
compartment.
• Always point the remote control signal transmitter toward the
unit when operating.
• Make sure that the signal path is not obstructed.
• Remove the batteries if the unit is not going to be used for an
extended period of time.
• Do not drop the remote control.
POWER
SPEED SWING
ION
TIMERMODE

13
USE & OPERATION
FILLING WATER
CAUTION
Unplug from power when refilling.
The water tank of the unit holds up to 25 litres of water.
Water needs to be filled inside the unit with the help of water fill door located on the left side
panel of the unit. You may use a water filled jug to manually fill water inside the tank or can also
connect a water pipe to fill this tank.
Water level display window is located on the front of the unit. Refill the water tank when water
level is low. Do not fill water above the Max water level mark. Check water level in the tank
before running the ''COOL'' function. Please be sure water inthe tank is always above minimum
water level mark. Running the unit with inadequate water may cause pump failure. If ice is
available you may add ice in the top compartment to enhance the cooling performance.

WARNING
CLEANING & MAINTENANCE
CLEANING & DRAINING THE WATER TANK:
• Before cleaning the unit, switch it to the off position and remove the plug from the
power socket.
• To clean the outside, use a damp cloth to remove dirt and dust.
• Never use detergents, corrosive elements or any chemicals to clean this product.
• When the product is not in use, store the unit in a dry place out of direct sunlight.
•
•
•
•
Turn the power "off" and disconnect the unit from power supply.
Move the unit to a location where it can be drained and remove the drainage
tube/cap (see parts description on page 7).
Once the tank is empty, refill with clean water and drain it again. This should be
repeated weekly to maintain the integrity of the unit and to remove particles filtered
from the air.
Once the tank is clean, refill the water tank. The unit is now ready to be used again.
14

CLEANING & MAINTENANCE
CLEANING THE CARBON / DUST FILTER
Carbon filter behind “air inlet”
• Turn off the unit, and unplug the power cord from wall outlet.
• Rotate the unit facing the back panel, and locate the knobs
to remove back grill.
• Press both the knobs (see fig.) and gently pull out the back
grill, untill it is completely removed.
• Now remove the carbon filter from the back panel.
• You can now clean or replace the carbon filter.
• Insert the dust free filter inside the unit, doing the reverse of
removal procedure.
• The appliance is supplied with carbon filter and honeycomb
cooling media.
• Always keep the carbon filter clean. Wash the carbon filter
at least twice a year or as necessary.
• Draining the water tank and refilling it with fresh water at least
once a week will greatly reduce mineral deposits in the pads
and help extend the life of the honeycomb cooling media.
• Do not run the unit in COOL mode with stale water in the
tank. It is recommended to empty the tank and refill it with
fresh water, if the water has been standing inside the tank for
an extended period of time.
• Cleaning frequency depends on local air and water
conditions. For example, in areas where mineral content of
the water is high, deposits may build up in the honeycomb
cooling media, restricting air flow. In this case, it is recommended
to clean the honeycomb cooling media every two months.
• For best results, allow the honeycomb cooling media to
dry after each use by turning off the cool function 15 minutes
before turning the unit off.
Knobs
15

16
TROUBLESHOOTING GUIDE
No discharge of air Cord is not plugged in. Supply switch in ON.
Power is not ON. Turn the unit ON by pressing
buttons on the control panel
or remote control.
Not Cooling / Unit is
making noise
Pump is not turned ON. On Control Panel, Turn COOL
FUNCTION to “ON”
Low or no water in tank,
when COOL is selected.
Refill water tank.
Odour omission When the Cooler is new. When the unit is used for the
first time, the Honeycomb
Cooling Media will have an
odor, which will dissipate
within a week of initial use.
If the Cooler has been used. There may be an algae issue,
Replace the honeycombCooling
Media. Contact service centre.
Damaged Pump or Calcium
deposits on blower.
Contact Customer Service
Center.
PROBLEM POSSIBLE CAUSE SOLUTION

17
This marking indicates that this product should not be disposed with other household
wastes throughout the EU. To prevent possible harm to the environment or human health
from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse
of material resources. To return your used device, please use the return and collection
systems or contact the retailer where the product was purchased. They can take this prod-
uct for environmental safe recycling.
TROUBLESHOOTING GUIDE
The unit does not respond
SERVICE CENTER: 1300 8000 32
E-mail: [email protected]
to remote control
Remote control batteries. Check batteries, Replace if
needed. Try to operate using
the control panel.
Damaged Control Panel
on unit.
If neither the Remote Control or
the Control Panel is working,
contact the Customer Service
Center.
PROBLEM POSSIBLE CAUSE SOLUTION
Try to activate the unit with the
Remote Control. If the unit
responds, then the Control
Panel on the unit may be
experiencing problems - contact
the Customer Service Center.

MODEL NO. CL25AE
220~240V
220~240VAC
50Hz
50Hz
235 Watts
25 Litre
Honeycomb
480 (W) x 370 (D) x 847 (H) mm
11.5 Kg
Voltage
Frequency
Wattage
Water Tank Capacity
Cooling Media
Product Dimension
Net Weight
TECHNICAL SPECIFICATIONS
ELECTRICAL WIRING DIAGRAM
18
Ionizer
Protector of motor
Sync. motor
Water pump
Capacitor for fan motor
Fan motor
