Honeywell CL603AE User manual

www.honeywellhomecomfort.com
E-mail: [e-mail]
Portable Evaporative Air Cooler
User Manual
Read and save these instructions before use
EN
Enfriador de Aire Evaporativo Portátil
Manual de Instrucciones
Lea y guarde estas instrucciones antes de usar la unidad
ES
Model / Modelo:
CL603AE

1

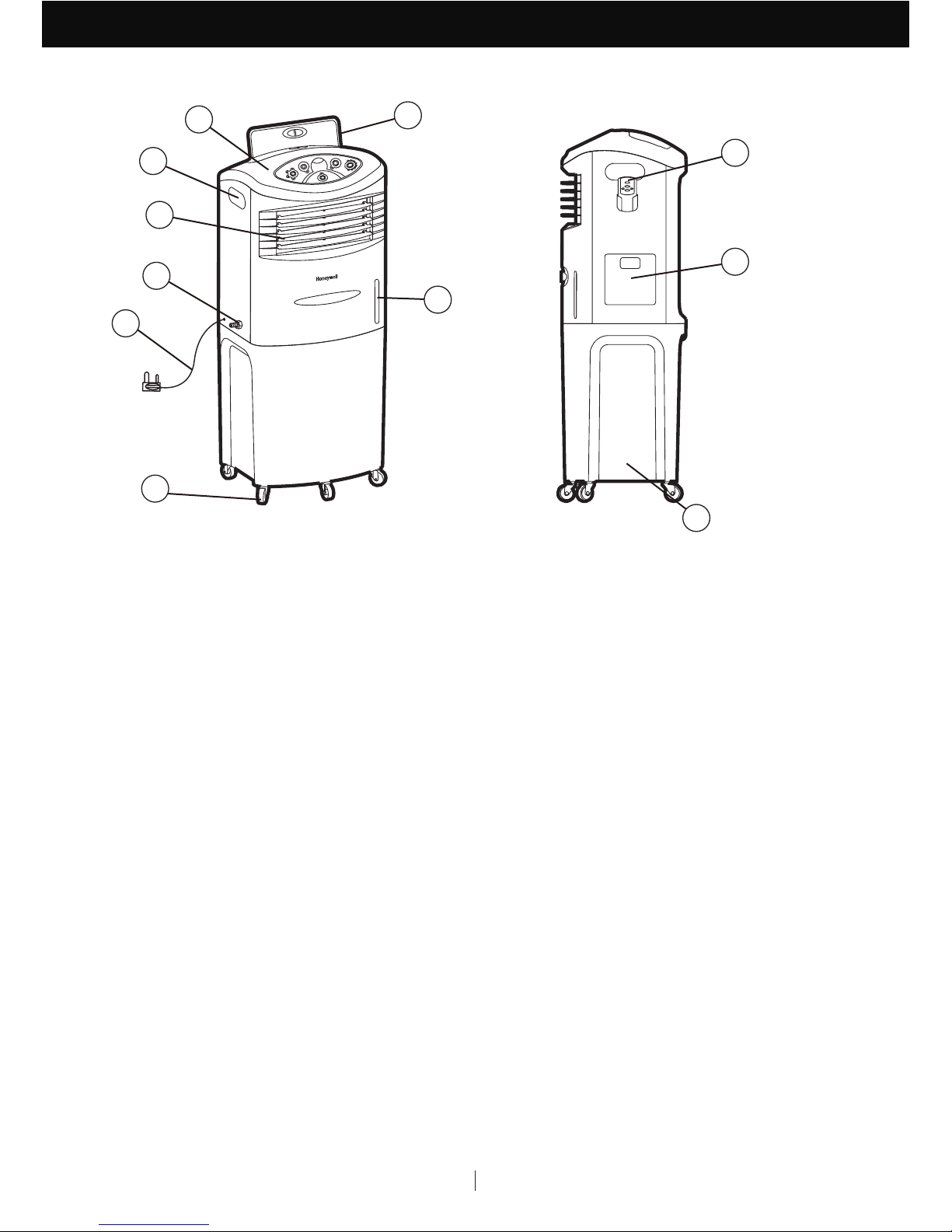

PARTS DESCRIPTION
EN
1) Control Panel 7) Water Level Indicator
2) Handle 8) Remote Control
3) Louvers 9) Water Fill Door
4) Power Cord & Plug 10) Continous Water Supply
5) Casters 11) Drain Plug
6) Ice Compartment Lid
11
9
8
5
4
10
3
2
16
7

2
SPEED TIMER
MODE
SWING
High
Med
Low
Sleep
Cool
8hr 7hr
6hr
5hr
4hr
3hr
2hr
1hr
POWER
USE & OPERATION
EN
CONTROL PANEL
FUNCTION BUTTONS
POWER
Press the POWER button to turn the unit on. The cooler will start automatically at medium speed.
After a few seconds the speed will switch to low. To turn the unit off, press the button again.
SPEED
Press the SPEED button repeatedly to change the speed between High - Mid - Low - Sleep.
The indicator light will show the selected speed:
TIMER
Press the TIMER button until the desired time duration setting is selected. When the set time
has passed, the unit will automatically turn off (unit remains in Standby mode until power cord is
unplugged from electrical socket). The TIMER function allows you to program the unit for up to 8
hours of use.
SWING
Press the SWING button until the SWING indicator light is illuminated on
the control panel. The louvers will begin to move left to right automatically.
Vertical Air Flow - You can manually adjust the louvers to change vertical
air flow.
High (High) Medium (Med) Sleep (Sleep)Low (Low)
When the Sleep mode is selected, the fan will randomly change between High, Medium, Low and off (5
seconds each) to mimic a natural breeze.
LOUVER
MOVEMENT

3
USE & OPERATION (CONTINUED)
EN
FUNCTION BUTTONS (CONTINUED)
MODE (COOL)
Press the MODE button to select COOL mode. Pressing the MODE button until COOL is illuminated
on the control panel activates evaporative cooling. The water pump will operate and you will feel the
cooler air after the Honeycomb Cooling Media is completely wet.
Pressing the MODE button again will deactivate COOL light on the control panel, switching off both
evaporative cooling function altogether.
Note: When the cooling function is switched OFF, the unit can still function in a fan only mode
(without evaporative cooling).
In cooling mode, Honeywell Air Coolers provide cool, moist air through the evaporation of water.
There is a manual Water Regulator knob located in the ice compartment of the unit. This allows you
to adjust the amount of water pumped over the Honeycomb Cooling Media, thus helping to control
cooling and humidification levels.
When the Water Regulator is set to MIN, the water pump distributes a
minimal amount of water to the Honeycomb Cooling Media. This
results in less water evaporation and reduces the cooling effect.
When the Water Regulator is set to MAX, the water pump distributes
the maximum amount of water to the Honeycomb Cooling Media. This
results in maximum water evaporation and the cooling performance
improves.
ROOM COOLING AND HUMIDIFYING
Water Regulator
MAX
MIN

4
USE & OPERATION (CONTINUED)
EN
NOTE:
REMOTE CONTROL
TIMER
SPEED
SWING
ON/OFF
MODE
POWER :
:
:
:
:
ON / OFF
High / Medium / Low / Sleep
Switch the COOL function
Controls the motion of the louvers
Controls the Timer function for automatic off
SPEED
MODE
TIMER
SWING
•
•
•
•
•
•
•
•
•
•
The remote control requires AAA (2 x 1.5V) batteries for replacement.
Open the battery compartment at the back of the remote control and insert the batteries inside.
Care must be taken to insert the batteries according to the correct polarity (+ / –) markings
shown inside the battery compartment.
Always point the remote control signal transmitter towards the unit when operating. Make sure
that the signal path is not obstructed.
Remove the batteries if the unit is not going to be used for an extended period of time.
Do not drop the remote control.
Do not mix different types of batteries such as alkaline, carbon-zinc, or rechargeable batteries.
Do not mix old and new batteries.
Do not recharge the battery.
Exhausted batteries are to be removed from the product and safely disposed of as per local
regulations.
Do not dispose of batteries in fire. Batteries may explode or leak.
WARNING: Caution for ingestion of the small battery. Keep away from children and animals.

5
USE & OPERATION (CONTINUED)
EN
It is ideal to use the Continuous Water Supply Connection to run the unit for long periods of time
without refilling the tank. This also helps prevent pump failure in case the cooler is running with
inadequate water in the tank.
CAUTION: Unplug the unit from the electrical socket before emptying or refilling the water tank.
Open the Water Fill Door located on the side of the unit.
Continuous Water Supply Connection:
For a continuous water supply, you will need a garden hose that is connected to a mains water supply.
FILLING WITH WATER
Make sure to position the air cooler correctly before you set up and start using the product. Please
refer to the COOLER LOCATION section of the separate Safety & Maintenance Guide.
COOLER LOCATION
Locate the male connector at one end of the garden hose. Insert the
garden hose connector into the water inlet valve of the cooler. Screw
and tighten the water inlet valve onto the threaded part of the garden
hose connector, making sure the hose connector is secured to
ensure there will be no leaks. If there is a leakage, the hose and the
water inlet valve may not be connected properly. Try to disconnect,
replace and tighten the water inlet valve again.
When the connection is secured, turn ON the water supply and the
water will flow into the water tank of the cooler.
The cooler is now set so the water refills automatically when the
water tank is empty, or when the water reaches below a minimum
level.
When the water tank is full of water, the water inlet valve will
auto-matically stop the water supply from overflowing the water
tank.
WARNING: The maximum water inlet pressure is 0.5 MPa.
•
•
•
•
Water
Fill Door
Water inlet valve
Garden Hose

6
USE & OPERATION (CONTINUED)
EN
The Water Level Indicator is located at the front of the unit. Refill the
water tank when water level is low. Do not fill water above the "Max."
water level mark to avoid water droplets collecting on the louvers. Check
the water level in the tank before running the COOL function. Make
sure there is water in the tank by using the continuous water supply
connection or by filling the tank up to the maximum indicator level.
Running the unit in COOL mode with inadequate water may cause
pump failure.
Note: The water capacity refers to the total volume of water that can be
contained within the air cooler water tank and water distribution system.
The water capacity in the tank at the “Max.” indicator level may be lower
than the actual water capacity of the air cooler.
Note: This unit does not have a mark indicating the minimum water level required.

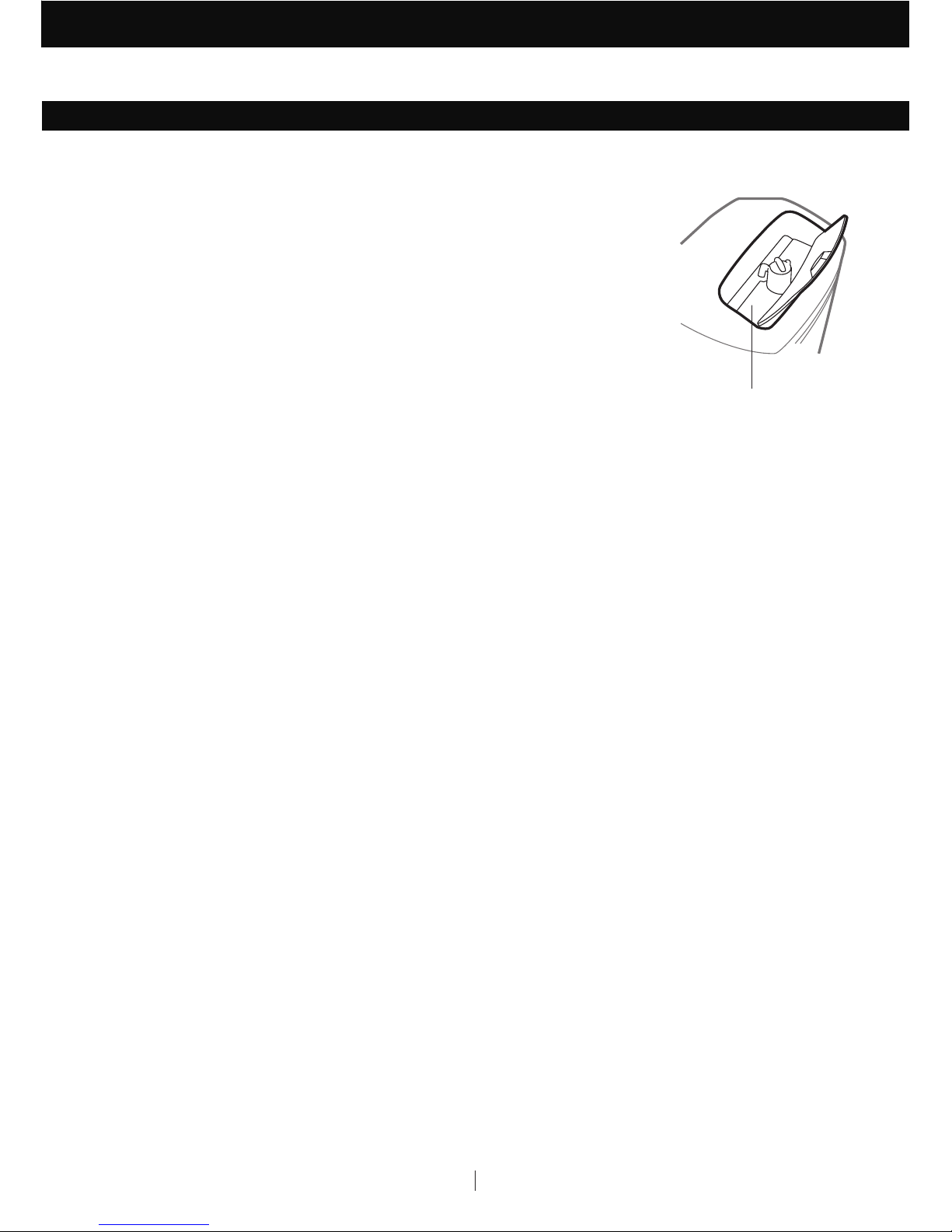

Note: If ice is available, you may add ice in the top ice compartment to enhance the cooling
performance.
WARNING: Do not fill water tank with dirty water or salt water. This can damage the unit and
Honeycomb media.
FILLING WITH WATER (CONTINUED)
Ice Compartment

7
USE & OPERATION (CONTINUED)
EN
Below are instructions on how to clean and maintain your air cooler. If the cooler will not be used for
a long period of time, please refer to the STORAGE & MAINTENANCE GUIDELINES located in the
separate Safety & Maintenance Guide.
WARNING:
Before cleaning the unit, switch the unit OFF and disconnect from the power outlet.
The unit is equipped with a low water sensor. In Cooling Mode, when water in the tank is below the
minimum level, you will hear a beeping sound and the indicator light will flash continuously. The unit
will automatically pause evaporative cooling.
Refill the water tank to deactivate the alarm in cooling mode. First switch OFF the unit and unplug
from the power outlet. Make sure there is water in the tank by using the continuous water supply
connection or by filling the tank up to the maximum indicator level. Plug in and switch ON again.
To deactivate the alarm and continue using the unit as a fan (without evaporative cooling), switch
the unit OFF and then ON again. The Low Water Alarm will not activate in Fan only mode. The Low
Water Alarm will sound again if the COOL function is activated while the water tank is still empty.
*Applicable for models with Low Water Alarm feature only.
LOW WATER ALARM*
Move the unit to a location where the water can be drained. Remove the cap from the Drain plug
located at the bottom of the unit. Allow the tank to empty.
Refill the water tank with clean water and drain it completely.
Refill the water tank with clean water, up to the maximum level.
Use a damp cloth to remove the dirt and dust from the surface of the unit. Never use corrosive
elements or chemicals to clean this product.
When the product is not in use, store the unit in a dry place out of direct sunlight.
•
•
•
•
•
CLEANING & DRAINING THE WATER TANK

8
USE & OPERATION (CONTINUED)
EN
WARNING:
DO NOT operate the Air Cooler when the Rear Grill
or Rear Frame is removed from the Air Cooler, or
if there is a loose-fitting Rear Grill or Rear Frame.
Doing so can cause serious injury or dangerous
electrical shock.
*Applicable for models with Carbon Dust Filter only.
CLEANING THE CARBON DUST FILTER* AND HONEYCOMB COOLING MEDIA
The appliance is supplied with a Carbon Dust Filter* and Honeycomb Cooling Media.
The Carbon Dust Filter* and Honeycomb Cooling Media are located inside the Rear Grill. See
Figure 1 for instructions on how to remove them from the unit for cleaning and maintenance.
Do not run the unit in COOL mode with stale water in the tank. You must empty the water tank
and refill with fresh water, especially if the tank has not been cleaned in a long time.
The cleaning frequency for the Honeycomb media depends on local air and water conditions. In areas
where the mineral content of water is high, mineral deposits may build up on the Honeycomb
Cooling Media and restrict air flow. Draining the water tank and refilling with fresh water at least
once a week will help reduce mineral deposits. If mineral deposits remain on the Honeycomb
Cooling Media, the media should be removed and washed under fresh water. The media should
be cleaned every two months or sooner, depending on your needs.
For best results allow the Honeycomb Cooling Media to dry after each use by turning off the cool
function 15 minutes before turning the unit off.
•
•
•
•
•
Carefully push down and pull out the rear grill
from the cooler.
Pull out the Carbon Dust Filter* and clean with
water as needed.
Remove all the screws from the Rear Frame and
carefully pull it off the air cooler.
To release the Honeycomb Media, remove the
screws securing the Honeycomb on the Rear
Frame and slide the Honeycomb out of the
frame.
Replace or clean media with water and a damp
cloth as needed.
1.
2.
3.
4.
5.
Removing the Carbon Dust Filter*/ Honeycomb Cooling Media:
Figure 1:
Screws Carbon Dust
Filter
Honeycomb
Cooling Media
Rear Frame Rear Grill

JMATEK Limited
Manulife Financial Centre,
Kwun Tong, Hong Kong
Phone: 85225595522
Email: [email protected]
Web: www.jmatek.com
Made in China
© 2018 JMATEK Limited. All rights reserved.
The Honeywell Trademark is used under license
from Honeywell International Inc.
Honeywell International Inc. makes no
representations or warranties with respect to this product.
This product is manufactured by Airtek Int'l Corp. Ltd.
(subsidiary of JMATEK Ltd.).
