Honeywell IS4225 ScanGlove User manual

IS4225 ScanGlove®
Laser Bar Code Scanner
Installation and User’s Guide

Disclaimer
Honeywell International Inc. (“HII”) reserves the right to make changes in
specifications and other information contained in this document without prior
notice, and the reader should in all cases consult HII to determine whether any
such changes have been made. The information in this publication does not
represent a commitment on the part of HII.
HII shall not be liable for technical or editorial errors or omissions contained
herein: nor for incidental or consequential damages resulting from the furnishing,
performance, or use of this manual.
This document contains propriety information that is protected by copyright. All
rights reserved. No part of this document may be photocopied, reproduced, or
translated into another language without the prior written consent of HII.
© 1999 - 2010 Honeywell International Inc. All rights reserved.
Web Address: www.honeywellaidc.com
Trademarks
Metrologic, MetroSelect, and ScanQuest are trademarks or registered
trademarks of Metrologic Instruments, Inc. or Honeywell International Inc.
Other product names mentioned in this manual may be trademarks or registered
trademarks of their respective companies and are the property of their respective
owners.

iii
TABLE OF CONTENTS
Introduction........................................................................................................... 1
Scanner and Accessories..................................................................................... 1
Scanner Installation.............................................................................................. 2
Scanner Configuration to the Host System........................................................... 3
Parts of the Scanner............................................................................................. 4
Visual Indicators ................................................................................................... 5
Audible Indicators................................................................................................. 6
Labels................................................................................................................... 7
Maintenance......................................................................................................... 8
Depth of Field ....................................................................................................... 9
Object Detection Device..................................................................................... 10
Specifications ..................................................................................................... 12
Default Settings .................................................................................................. 13
Troubleshooting Guide ....................................................................................... 19
Regulatory Compliance ...................................................................................... 20
Patents ............................................................................................................... 23
Limited Warranty ................................................................................................ 24
Index................................................................................................................... 25
Customer Support .............................................................................................. 27
Technical Assistance ..................................................................................... 27
Product Service and Repair........................................................................... 28

1
INTRODUCTION
The IS4225 ScanGlove®is a fully automatic single-line laser barcode scanner.
The ScanGlove is designed to be used as a “hands-free” wearable scanner or a
stationary desktop scanner.
Every ScanGlove is equipped with an object detection technology that allows the
scanner to read bar codes automatically as the operator presents the bar code to
the scanner. Additional features include; 52 scan lines a second, short, or long-
range activation and two universal glove sizes with left and right-hand
capabilities.
The IS4225 has built in decoding for applications that use a RS232, Keyboard
Wedge, Stand Alone Keyboard, Light Pen Emulation, or USB interfaces. All
models have Flash upgradeable firmware. For additional information on other
system interfaces, please call a Customer Service Representative.
SCANGLOVE MODEL NO. INTERFACE
IS4225-38 USB Keyboard
IS4225-41D RS232 with Breakaway Cable and DIN Connector
IS4225-47 PC Keyboard Wedge and Stand Alone Keyboard
IS4225-81 Full RS232 and Light Pen Emulation
SCANNER AND ACCESSORIES
PART NUMBER DESCRIPTION
IS4225 IS4225 Laser Scanner
00-02258 Installation and User’s Guide
00-02544 MetroSelect®Single-Line Configuration Guide
45-45455 Black Adjustable Glove
If any item is missing or to order additional items, contact the dealer, distributor or contact a
customer service representative.

SCANNER INSTALLATION
1. Turn off power to the host system.
2. Connect the communication cable to the proper port on the host device.
3. Turn on power to the host system.
When the IS4225 first receives power, the red LED will flash, the
green LED will flash, and then the scanner will beep once.
2
See power source caution statement on page 7 of this manual.
To maintain compliance with federal regulations 21 CFR, Part 1040.10,
section (f)(6) the scanner must be plugged into an electrical outlet with a
switch accessible to the user or be powered by a host system containing a
switch that will disable power to the scanner.

SCANNER CONFIGURATION TO THE HOST SYSTEM
The IS4225 is shipped from the factory pre-configured to a set of default
parameters. It may be necessary to change the default parameters to match the
host system’s requirements or to enable additional scanner functions. For a list
of possible parameter settings, refer to the Default Settings section of this guide.
To modify the scanner’s default parameters follow the steps below using the
bar codes located in the MetroSelect Single-Line Configuration Guide
(PN 00-02544).
1. Scan the
ENTER CONFIGURATION MODE bar code to enter configuration mode.
The scanner will beep three times.
2. Scan the bar code(s) for the desired parameter(s).
The scanner will beep once.
3. Scan the
EXIT CONFIGURATION MODE bar code to exit and save the new
parameter settings. The scanner will beep three times.
If during the configuration process, there is a need to return the
scanner to the original factory settings, scan the recall defaults bar
code in the MetroSelect Configuration Guide. All settings selected
during that session or any previous sessions are discarded when you
scan the recall defaults code.
The IS4225 with RS232 interface can also be configured using MetroSet®2which
is a PC-based utility software and available for download at
www.honeywellaidc.com. In addition, this interface can be configured using serial
configuration mode. For details, refer to the MetroSelect®Single-Line
Configuration Guide (PN 00-02544.)
3

PARTS OF THE SCANNER

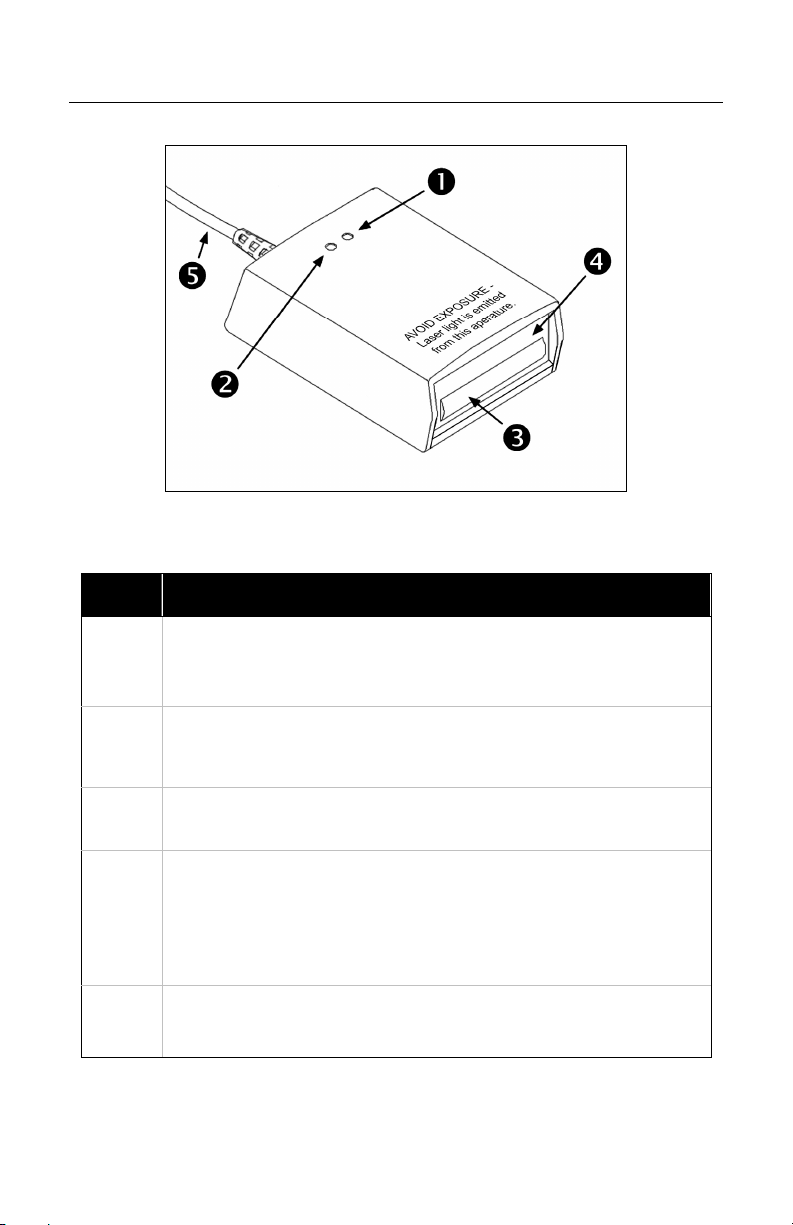

Figure 1. Scanner Parts
Item
No. Description
 Green LED
When a bar code is read successfully, the green LED will flash.
 Red LED
When the red LED is illuminated, the laser is on.
 Red Output Window (Laser Aperture)

Object Detection Device
If a specified time has elapsed without any scanning, the unit will
enter a “standby” mode. To reactivate the unit, place an object in
front of the object detection field. The red LED will turn on when
the scanner is ready to scan.
 Communication/Power Cable
This cable’s termination is application dependent.
4

5
VISUAL INDICATORS
There is a red and a green LED located on the top of the scanner. When the
scanner is on, the flashing or constant, illumination of the LEDs indicates the
status of the current scan and the scanner.
No Red LED Illumination of the LEDs will not occur if the scanner has
remained dormant for a specified time and the scanner is
not receiving power from the host. To reactivate the unit,
direct the output window up then down toward the object.
Red Flash;
Green Flash;
Steady Red
When the scanner first receives power, the red LED will
flash, followed by the green LED, and then the unit will
beep once. The red LED will stay on after it flashes once.
Steady Red When the laser is on, the red LED will be on. This occurs
when an object is detected in the scan field. If the scanner
cannot detect a bar code within approximately 2.5 seconds,
the unit will go into standby mode then the red LED will
shut off indicating that the laser is no longer on.
Steady Red
LED; Green
Flash
When the scanner successfully reads a bar code, the green
LED will flash and the unit will beep once. If the green LED
does not flash or the scanner does not beep, then the bar
code was not successfully read.
Repetitive Red
LED Flashing
The red LED will flash repeatedly when the object detection
device is detecting a stationary object in the scan field. To
eliminate this disturbance, direct the scan window toward a
different location or remove the stationary object from the
object detection field.
Steady Green
LED
After a successful scan, the scanner transmits the data to
the host device. When the host is not ready to receive the
information, the green LED will remain on until data can
transmit.

AUDIBLE INDICATORS
The scanner provides sounds to signal certain conditions. To change the volume
(four settings are available) or turn the beeper off, refer to Scanner Operation:
Beeper Options in the MetroSelect Single-Line Configuration Guide (PN 00-
02544).
One Beep When the scanner first receives power, the red LED will
flash, followed by the green LED, and then the scanner
will beep once. After the scanner performs this start-up
sequence, the scanner is ready to scan.
When the scanner successfully reads a bar code, the
green light will flash and the unit will beep once. If the
green LED does not flash or the scanner does not beep,
then the bar code read is not successful.
Razzberry Tone If, upon power up, the scanner emits a razzberry tone the
scanner has failed diagnostics.
The scanner can be configured to emit a
razzberry tone when the timeout occurs during
communication between the host and scanner.
Refer to Scanner Operation: Communication
Timeout Options in the MetroSelect Single-Line
Guide.
Three Beeps When entering configuration mode, the green LED will
flash three times while the scanner simultaneously beeps
three times. When exiting configuration mode, the same
visual and audible indications will occur. After the
sequence is completed, the red LED will turn off.
The scanner can be programmed to emit three
beeps when the timeout occurs during
communication between the host and scanner.
Refer to Scanner Operation: Communication
Timeout Options in the MetroSelect Single-Line
Guide.
6

LABELS
Each IS4225 has a serial number label and a laser class label on the bottom of
the unit. These labels provide important information like; date and location of
manufacture, model number, serial number, caution statements and laser class.
There is also text molded into the top of the case near the window that says,
“AVOID EXPOSURE - laser light emitted from this aperture”. The following
Figure shows examples of these labels*.
Figure 2. Caution and Serial Number Labels*
* Labels not shown to scale.
Caution:
To maintain compliance with applicable standards, all circuits connected to the scanner must
meet the requirements for SELV (Safety Extra Low Voltage) according to EN/IEC 60950-1.
7
To maintain compliance with standard CSA-C22.2 No. 60950-1/UL 60950-1 and norm EN/IEC
60950-1, the power source should meet applicable performance requirements for a limited
power source.

8
MAINTENANCE
Smudges and dirt on the unit’s window can interfere with the unit’s performance.
If the window requires cleaning, use only a mild glass cleaner containing no
ammonia. When cleaning the window, spray the cleaner onto a lint free, non-
abrasive cleaning cloth then gently wipe the window clean.

DEPTH OF FIELD
Minimum Bar Code Element Width
Standard
A B C D E
m
m .17 .19 .25 .33 .53
mil 6.8 7.5 10.4 13 21

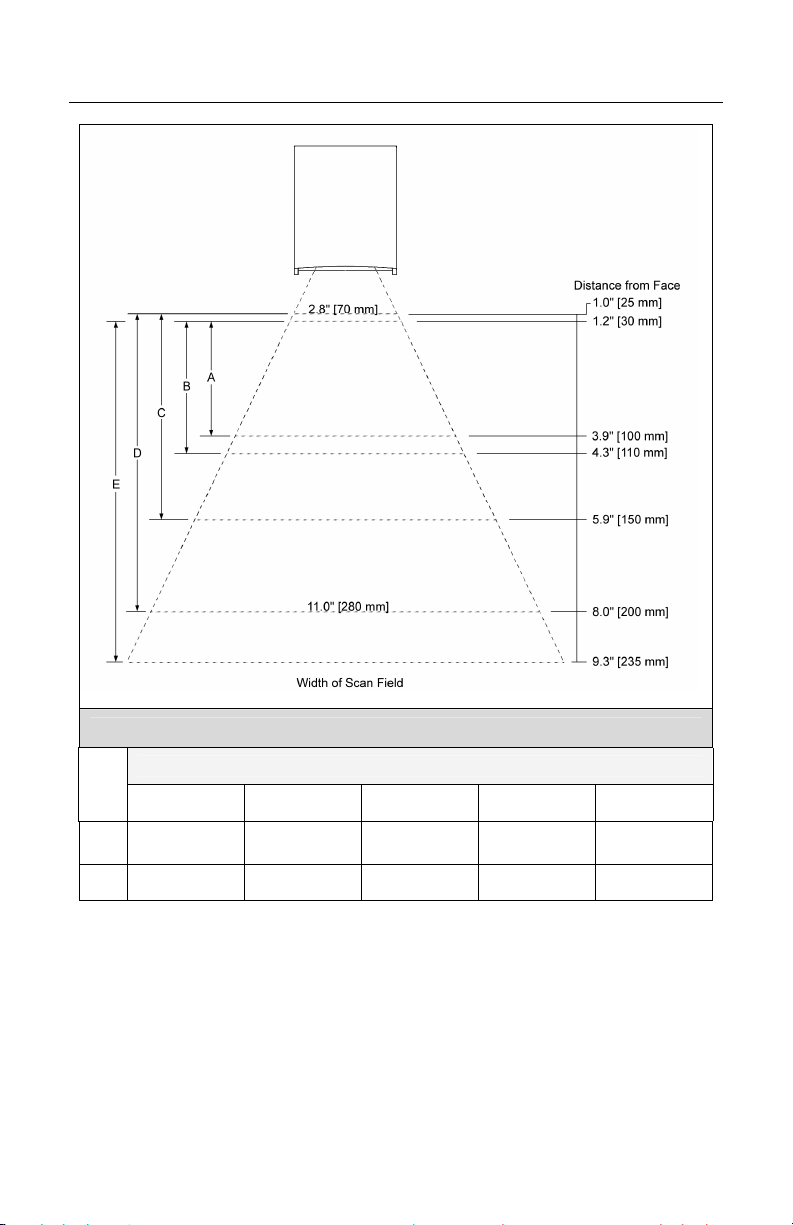

Figure 3. Depth of Field
Specifications are subject to change without notice.
9

10
OBJECT DETECTION DEVICE
An object detection device located behind the window initiates the scanning
process. The device is active as long as power is applied to the unit. When the
device detects an object, the green LED will flash. When the laser decodes a bar
code, the scanner transmits the data to the host system and emits a beep to
show that decoding is complete. The object detection range is configurable for
two ranges.
•Short Range Activation
The object detection device initiates the scan process if it senses an
object anywhere from the face of the window out to
approximately 4" to 7".
•Long Range Activation
The object detection device initiates the scan process if it senses an
object anywhere from the face of the window out to
approximately 9" to 13".
If the object is removed from the field during the scanning process, the laser
turns off and the scanner re-enters "standby" mode. However, if the object stays
in the field, the laser remains on for up to 2.5 seconds trying to detect another bar
code. If the scanner does not detect a bar code, the scanner re-enters "standby"
mode. To reactivate the scanning sequence, remove the object and present
another.
If the same symbol stays in the field after a successful scan, the laser stays on
for approximately 7.5 seconds and then turns off. This prevents unintentional
reads of the same bar code. To read the same symbol more than once, remove
the object from the scan field for approximately 1 second and then present the
symbol again.

OBJECT DETECTION DEVICE
Figure 4. Object Detection Field
Please note certain ambient light conditions may interfere with the object
detection mechanism, resulting in false activation of the scanner. To mitigate the
problem, please try one of the following suggestions:
1. Avoid mounting the scanner directly facing the ambient light source.
2. Avoid mounting the scanner facing a light-colored or reflective surface.
3. Avoid mounting the scanner towards a surface at a distance close to the
long range (9" – 11") of object detection
4. Configure the object detection range to short (4" – 7").
11

12
SPECIFICATIONS
IS4225 SPECIFICATIONS
OPERATIONAL
Light Source: 650 nm ± 10nm VLD
Depth of Field: 25 mm to 203 mm (1" to 8") for .33 mm (13 mil) bar code
Width of Scan Field: 70 mm (2.8”) @ 25mm (1.0”); 280 mm (11”) @ 200 mm (8”)
Scan Speed: 52 scans lines per second
Scan Pattern: Single scan line
Min Bar Width: 0.173 mm (6.8 mil)
Decode Capability: Autodiscriminates all standard bar codes; for other
symbologies call a customer service representative
System Interfaces: RS232, Light Pen Emulation, PC Keyboard Wedge, Stand
Alone Keyboard, USB (low speed)
Print Contrast: 35% minimum reflectance difference
Number of
Characters Read:
Up to 80 data characters (Maximum number will vary based
on symbology and density)
Roll, Pitch, Skew: 30°, 56°, 58° @ 100 mm distance
Sweep Angle: 60°
Beeper Operation: 3 tones or no beep
Indicators (LED): red = laser on, ready to scan green = good read, decoding
MECHANICAL
Length x Width x Height: 70 mm x 49 mm x 24 mm (2.75" x 1.94” x 0.94”)
Weight: 105 grams (3.7 oz.)
Cable Termination: Application Dependent
ELECTRICAL
Input Voltage: 5VDC ± 0.25V
Power: 0.75 W
Operating Current: 135 mA
DC Transformers: Class 2; 5VDC @ 300 mA
For Regulatory Compliance information, see pages 20 – 22.
ENVIRONMENTAL
Operating Temperature: -20°C to 50°C (-4°F to 122°F)
Storage temperature: -40°C to 70°C (-40°F to 158°F)
Humidity: 5% to 95% relative humidity, non-condensing
Light Levels: Up to 60,000 Lux (5,574 footcandles)
Shock: Designed to withstand 1.2 m (4’) drops
Contaminants: Sealed to resist airborne particulate contaminants
Ventilation: None required
Specifications are subject to change without notice.

13
DEFAULT SETTINGS
Many functions of the scanner can be "configured", that is enabled or disabled.
The scanner is shipped from the factory configured to a set of default conditions.
All factory default parameters have an asterisk ( * ) in the default column of the
charts on the following pages . If an asterisk is not in the default column then the
setting is off or disabled by default. Every interface does not support every
parameter. If the interface supports a parameter listed in the charts on the
following pages, a check mark () will appear.
Parameter Default RS232 Light
Pen
Keyboard
Wedge USB
Enter Configuration Mode, After Any Scan * 
Enter Configuration Mode, Only on First
Scan 
Short Range Activation 
Long Range Activation * 
Normal Scan * 
Custom Scan 
DTR Activation 
DC2 Activation 
Address Based Activation 
“NOREAD” message Transmission 
Turn on Green LED during “NOREAD”
Transmit * 
Same Symbol Re-scan * 
Green LED Identical Symbol
Re-Scan Indicator 
1 Vs 2 Scan Buffers 1 
2X Redundancy (MECCA) 
Double Border Requirement
(Large Intercharacter Space Requirement) 
Alternate Beeper Tone 1 
Alternate Beeper Tone 2 * 
Alternate Beeper Tone 3 
No Beeper tone 
Two Second Timeout 

14
DEFAULT SETTINGS
Parameter Default RS232 Light
Pen
Keyboard
Wedge USB
No Two Second Timeout * 
Razzberry Tone on Timeout 
No Tone on Timeout * 
Three Beeps on Timeout 
Beep Before Transmit * 
Beep After Transmit 
Baud Rate 9600
Parity Space 
8 Data Bits 
7 Data Bits * 
RTS/CTS 
Character RTS/CTS * 
Message RTS/CTS 
ACK/NAK 
XON/XOFF * 
No Intercharacter Delay 
1 Millisecond Intercharacter Delay 
5 Millisecond Intercharacter Delay 
10 Millisecond Intercharacter Delay 
25 Millisecond Intercharacter Delay 
100 Millisecond Intercharacter Delay 
DTR Input 
DTR Scan Disable 
“DE” Disable Command 
LRC Calc+ Transmit RS232 
Start LRC on first RS232 Byte 
Start LRC on Second RS232 Byte * 
Carriage Return * 
Line Feed * 
STX Prefix 
ETX Suffix 
Tab Prefix 
Tab Suffix 

15
DEFAULT SETTINGS
Parameter Default RS232 Light
Pen
Keyboard
Wedge USB
Prefix ID for UPC/EAN 
Suffix ID for UPC/EAN 
Bars High * 
Spaces High 
Transmit as Scanned * 
Transmit as code 39 
Poll Light Pen 5 volts 
No Poll Light Pen * 
Reverse Polarity Idle for Light Pen 
UPC * 
EAN * 
Full ASCII code 39 
Code 39 * 
Codabar 
Code 128 * 
Code 93 * 
Code 11 
GS1 DataBar Enable 
GS1 DataBar ID “]e0” * 
GS1 DataBar App ID “01” * 
GS1 DataBar Check Digit * 
GS1 DataBar Expanded Enable 
Expanded ID “]e0” * 
GS1 DataBar Limited Enable 
GS1 DataBar Limited ID “]e0” * 
GS1 DataBar Limited App ID “01” * 
GS1 DataBar Limited Check Digit * 
Interleaved 2 of 5 * 
Hong Kong Matrix 2 of 5 
Airline 2 of 5 
Minimum 1 Character Code Length 
Minimum 3 Character Code Length * 
Minimum 6 character Code Length 

16
DEFAULT SETTINGS
Parameter Default RS232 Light
Pen
Keyboard
Wedge USB
Set Minimum Character Length 
Set Character Lock Length 
Transmit UPC-A Number Sys * 
UPC-A Check Digit Transmit * 
Convert UPC-A to EAN-13 
Expand UPC-E 
UPC-E Check Digit Transmit 
UPC-E Leading 0 Transmit 
EAN-8 Check Digit Transmit * 
EAN-13 Check Digit Transmit 
Convert EAN-8 to EAN-13 
“$” Prefix ID for UPC/EAN 
2 Digit Supplements (Scan) 
5 Digit Supplements (Scan) 
Bookland (Scan) 
Supplement Required 
Bookland to ISNB 
Transmit ISBN CD 
Mod 43 Check digit-Code 39 
Transmit Mod 43 Check Digit Code 39 * 
Transmit Start/Stop-Code 39 
CLSI Editing (Enable) 
ITF Check Digit 
Transmit Mod 10 ITF Check Digit 
2 of 5 Symbol Lengths Variable 
ISBN Reformatting 
Coupon Code 128 
]C1 Transmit Coupon C128 
Coupon 128 Group Separator 
Italian Pharmaceutical 
Codabar Start & Stop Class 
ITF Minimum Symbol Length Test 
Matrix 2 of 5 
