Dolphin™ 75e
with Windows®10 IoT Mobile Enterprise
Quick Start Guide
75E-W10-EN-QS Rev A
5/16

Out of the Box
Make sure that your shipping box contains these items:
• Dolphin 75e handheld computer (terminal)
• 1GB, 2GB, or 4GB industrial grade microSD™ card (optional)
• Rechargeable 3.7V Li-ion battery
• USB charge/communication cable
• Power adapter with regional plug adapters
• Product documentation
If you ordered accessories for your terminal, verify that they are also included
with the order. Be sure to keep the original packaging in case you need to
return the Dolphin terminal for service.
Memory Card Specifications
Honeywell recommends the use of Single Level Cell (SLC) industrial grade
microSD or microSDHC™ memory cards with Dolphin terminals for maxi-
mum performance and durability. Contact a Honeywell sales representative
for additional information on qualified memory card options.

Dolphin 75e Features
Microphone
Scan Button
Battery Status / Notification LED
Right Scan
Button
USB Door /
Micro USB
Port
Start Button
Administrator
or Developer
Definable Button
Back Button
Search,
Cortana® or
Bing®Access
Scan Status LED
Front Speaker
Touch Panel
Bottom Speaker

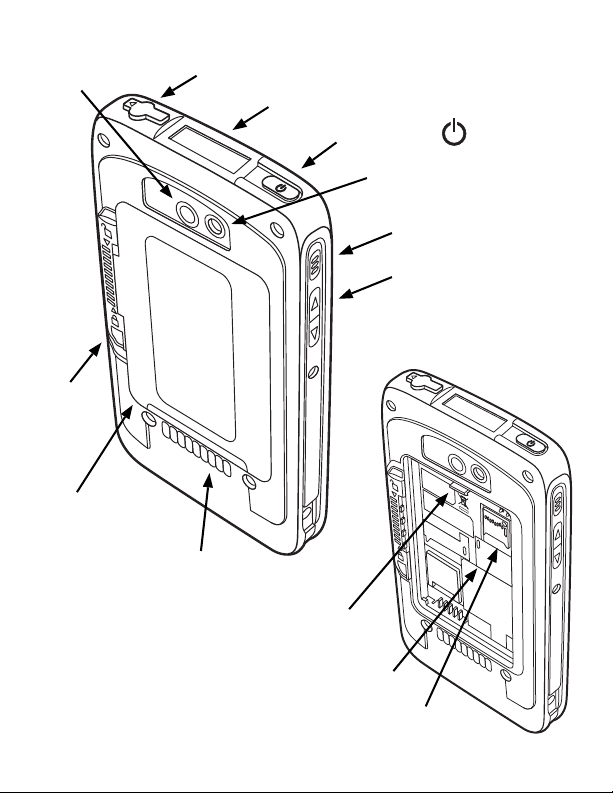

Camera Flash / Flashlight
Camera Lens
I/O Connector
Battery Door
(standard model shown)
Volume Buttons
Left Scan Button
Power Button
Audio Jack
Image Engine Window (LED aperture)
Battery
Door Lock
Memory Card Socket
Memory Card Retention Flap
Battery Latch
(battery and battery door not shown)

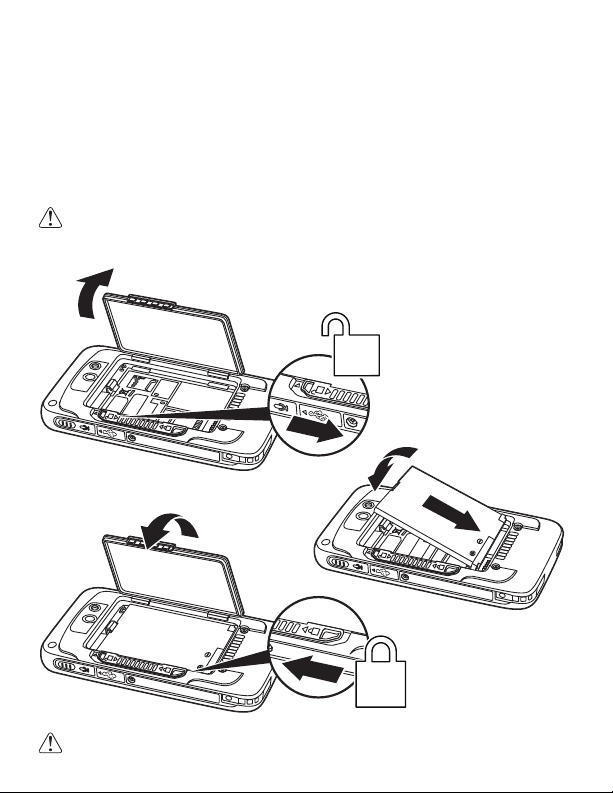

Install the Battery
Dolphin 75e models are designed for use with battery part numbers
BAT-STANDARD-02 (Li-ion 3.7 V, 6.179 watt hour) and BAT-EXTENDED-02
(Li-ion 3.7 V, 12.358 watt hour), manufactured for Honeywell International
Inc.
The Dolphin 75e is shipped with the battery packaged separately from the
terminal. Perform the steps illustrated below to install the battery.
Ensure all components are dry prior to placing the battery in the
terminal. Mating wet components may cause damage not covered by
the warranty.
We recommend use of Honeywell Li-ion battery packs. Use of any non-
Honeywell battery may result in damage not covered by the warranty.
3
4
6
1
5
Note: Standard model battery and
battery door shown.
2
Apply pressure to the
edges of the battery door
before engaging the lock
to ensure the door is
properly closed.

Charge the Dolphin 75e
Dolphin terminals ship with the battery significantly discharged of power.
Charge the battery with a Dolphin charging device for a minimum of 4 hours
for the standard battery and 6 hours for the extended battery.
When using the USB cable supplied to charge the terminal via a 500mA USB
port on a host device, charge the battery for a minimum of 6 hours for the
standard battery and 8 hours for the extended battery.
Factors that Affect Charge Times
• Using the terminal while charging the battery increases the time required
to reach a full charge.
• If the terminal is drawing more current than supplied by the charging
source, charging will not take place. For additional information, see the
user's guide.
We recommend use of Honeywell peripherals, power cables, and power
adapters. Use of any non-Honeywell peripherals, cables, or power
adapters may cause damage not covered by the warranty.
Dolphin 75e model terminals are designed for use with the following charging
devices and cables: 70e-HB, 70e-EHB, 70e-CB, 70e-NB, 70e-MB, 70e-MC,
and the 70e-USB ADAPTERKIT.
Ensure all components are dry prior to mating terminals/batteries with
peripheral devices. Mating wet components may cause damage not
covered by the warranty.
HomeBase (Model 70e-HB)
The 70e-HB charger is designed for use with Dolphin 75e model terminals,
and battery part numbers BAT-STANDARD-02 (Li-ion 3.7V, 6.179 watt hour)
and BAT-EXTENDED-02 (Li-ion 3.7V, 12.358 watt hour) manufactured for
Honeywell International Inc.
Use only a UL Listed power supply that has been qualified by Honeywell with
output rated at 12VDC and 3 amps with the device.

HomeBase Parts
HomeBase LED Indicators
AUX battery LED
Orange The auxiliary battery is charging.
Green The auxiliary battery has completed charging and is ready
for use.
Dock LED
Blue The terminal is properly seated in the base.
COMM LED
Green A USB connection is established with the host workstation.
2
AUX Battery Well
AUX
Battery LED
COMM LED
Dock LED
AC Power Cord
USB Port
DC Power
Jack
Power Adapter
Power Cable

USB Charge/Communication Cable (70e-USB ADAPTERKIT)
The USB Charge/Communication cable provides two options for charging
the terminal. Use the cable in conjunction with the provided power supply
adapter and plug adapter to charge the terminal from a power outlet or
connect the cable to a high-power USB port to charge from a host device.
Option 1: Charging from a power outlet
Use only a UL Listed power supply, which has been qualified by Honeywell
with an output rated at 5VDC and 1A with the device.
Option 2: Charging from a high-power USB port on a host device
For important information about charging, see “Factors that Affect Charge
Times”.
Power
Adapter
Micro
USB Port
USB Door
Plug Adapter
70e-USB Charge/
Communication Cable
Micro USB
Port
USB
Door
Host Device
USB Port
70e-USB Charge/
Communication Cable

First Time Consumer Setup
1. Press the Power button .
2. Select a language, and then touch Next.
3. Select your region, and then touch Next.
4. Touch Cancel to bypass the advanced provisioning options and
access the consumer setup.
5. Follow the on screen prompts for setting up the terminal, your WiFi
connections, and creating a Microsoft®account (optional). To learn
more about what you can do with a Microsoft account, go to
https://account.microsoft.com/about.

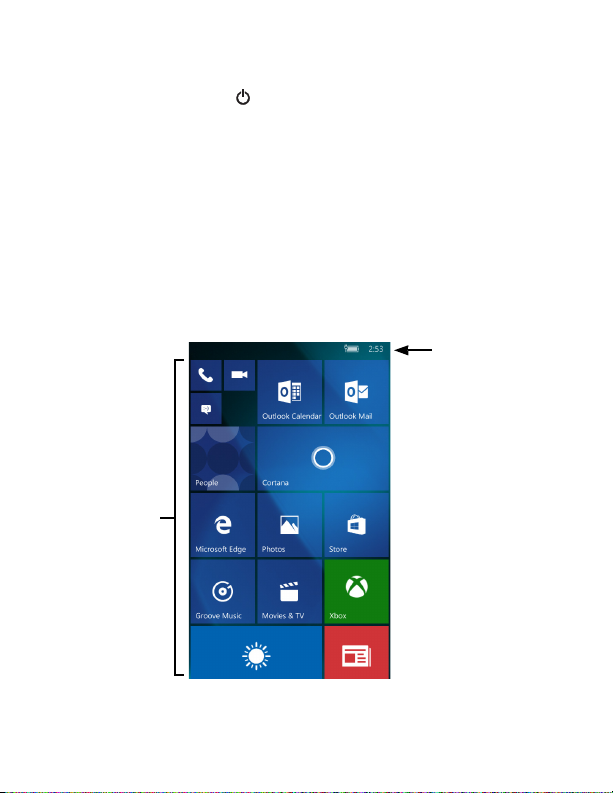

About the Start Screen
On Start, swipe left to access the Apps list or scroll to the bottom of the
screen and touch All apps. To learn how to customize the Start screen, see
the user’s guide.
Notification /
Status Bar
Start

Turn Power On/Off
To turn the terminal On, press and release the Power button .
To turn the terminal Off:
1. Press and hold the Power button .
2. When the message, “slide down to power off” appears, release the
button and swipe down toward the bottom of the screen.
Note: You should always power off the terminal before removing the battery.
Lock Screen and Sleep Mode (Suspend Mode)
To save battery power, the touch panel display dims, and then turns off after
a period of inactivity. If the display stays off longer than the set time limit,
the terminal enters sleep mode.
1. Press and release the Power button to wake the terminal.
2. Swipe up from the bottom of the screen to unlock the terminal.
To adjust the time out limits:
1. T
ouch Settings on the Apps list screen .
2. Select Personalization > lock screen to adjust the display time out limit
or select Extras > sensor settings to adjust the sleep time out limit.
Turn Airplane Mode On/Off
1. Swipe down from the top of the touch screen to open the quick settings.
2. Select Expand.
3. Touch Airplane mode to toggle the mode On or Off.
Note: When Airplane mode is turned On, shows on the status bar.

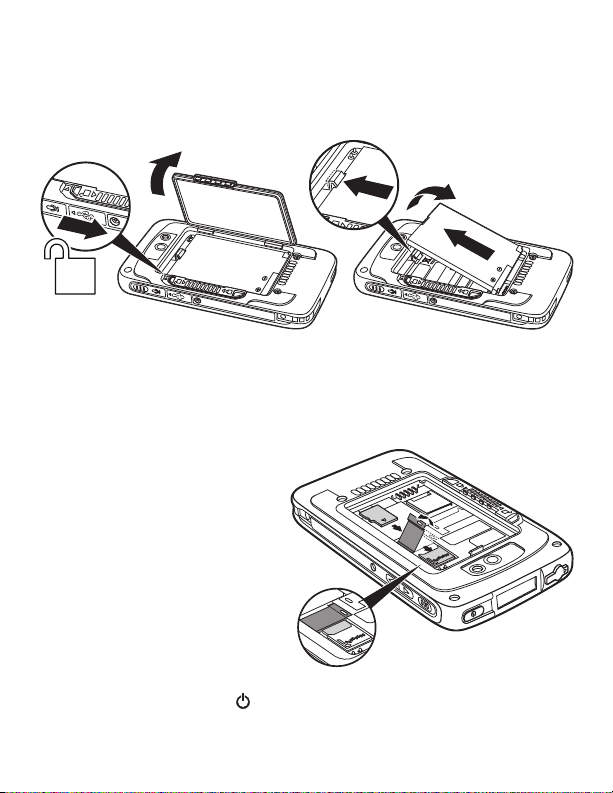

Remove the Battery
1. Power Off the terminal.
2. Perform the steps illustrated below to remove the battery.
Install a Memory Card
Note: Format microSD/SDHC card before initial use.
1. Power Off the terminal.
2. Unlock and remove the
battery door.
3. Pull the battery latch back
and remove the battery.
4. Lift the card retention flap.
5. Slide the card (contacts facing
down) into the socket, and
then close the retention flap.
6. Install the battery and
battery door, and then
engage the lock.
7. Press the Power button .
1
2
5
4
3

Navigation and Function Buttons
Note: Additional functionality varies according to the application in use.
Button Function
Back Return to the previous screen or press and hold
to open the App switcher.
Administrator
or Developer
Defined
By default, no function is assigned to this button.
For information on advanced tools and
resources for IT professionals, go to
https://technet.microsoft.com.
Scan
Wake the terminal from Sleep mode.
Trigger the scanner/imager.
Search
If Cortana is turned Off, press to search the
terminal and Web using Bing or press and hold
to activate Speech for voice commands.
If Cortana is turned On, press to ask a
question or initiate a voice command.
To learn more about Cortana, go to
www.windowsphone.com.
Start Return to the Start screen.
Right & Left
Side Trigger the scanner/imager.
Volume Raise or lower the volume of the active speaker.

Scan a Bar Code with the Scan Demo
1. In the Apps list, touch ScanDemoW10 .
2. Point the terminal at the bar code.
Note: For optimum performance,
avoid reflections by scanning
the bar code at a slight angle.
3. Touch Scan on the touch screen or press and hold one of the Scan
buttons. Center the aiming beam over the bar code.
The decode results appear on the screen.
About the Aiming Beam
The terminal projects an aiming beam that should be centered over the bar
code, but it can be positioned in any direction for a good read.
The aiming beam is smaller when the scanner is closer to the code and
larger when it is farther from the code. Hold the scanner close to smaller bar
codes, and farther away from large bar codes to get a proper read.
If the bar code is highly reflective (e.g., laminated), you may need to tilt the
scanner at an angle so the bar code can be scanned.
Linear Bar Code
2D Matrix Symbol

How to Use the Color Camera
1. In the Apps list, touch Camera .
2. Select either single photo mode or video mode in the
viewfinder.
3. Point the camera lens at the object you want to capture. The camera lens
is located on the back panel of the terminal.
4. To take a photo, touch .
To record video, touch to start recording. When you are finished
recording, touch the video icon again to stop.
5. To view your captured photo or video, touch the preview in the upper
right corner of the screen.
Sync Data with a Computer
To sync files between your terminal and computer:
1. If you have a computer running Windows®10, open the Phone
Companion app from Start > All apps.
If your have a computer running Windows 8 or Windows 8.1, the
Windows Phone®app automatically opens when you connect the
terminal to the computer using the USB charge/communication cable
supplied.
If you have a computer running Windows 7 or Mac, go to
www.windowsphone.com to download and install the Windows Phone
app for desktop or Mac.
2. In the Phone Companion app, select Windows as your terminal platform,
and then set your sync preferences.
In the Windows Phone app, set your phone name and sync preferences.
You can always modify your preferences later by selecting Settings.

To move files between your terminal and computer without using the an app:
1. Connect the terminal to the computer using the USB charge/
communication cable.
2. Depending on the Windows operating system either open File Explorer
or Windows Explorer.
3. Under Computer, click on Windows Embedded Handheld > Phone.
4. You can copy, delete and/or move files or folders between the PC and
the terminal or the microSD card installed in the terminal as you would
with any other storage drive (e.g., cut and paste or drag and drop).
Restart the Terminal
You may need to restart the terminal to correct conditions where an applica-
tion stops responding to the system or the terminal seems to be locked up.
• Press and hold the Power button . When the message, “slide down to
power off” appears, release the button and swipe down toward the bottom
of the screen. Press the Power button to turn the terminal back on.
To perform a restart if the touch panel display is unresponsive:
• Press and hold the Power button down for approximately 13 seconds.
The terminal automatically restarts.
Reset the Terminal
For information on how to perform at Factory Reset (Clean Boot), see the
user’s guide.

Support
To search our knowledge base for a solution or log into the Technical Support
portal and report a problem, go to www.hsmcontactsupport.com.
User Documentation
For localized versions of this document and to download the user guide, go
to www.honeywellaidc.com.
Limited Warranty
For warranty information, go to www.honeywellaidc.com and click
Resources > Warranty.
Patents
For patent information, see www.hsmpats.com.
Trademarks
Microsoft, Windows, Windows Phone, Cortana, Bing and the Windows logo
are either registered trademarks or registered trademarks of Microsoft
Corporation in the United States and/or other countries.
Mac is a trademark of Apple Inc.
Disclaimer
Honeywell International Inc. (“HII”) reserves the right to make changes in
specifications and other information contained in this document without prior
notice, and the reader should in all cases consult HII to determine whether
any such changes have been made. The information in this publication does
not represent a commitment on the part of HII.
HII shall not be liable for technical or editorial errors or omissions contained
herein; nor for incidental or consequential damages resulting from the furnish-
ing, performance, or use of this material. HII disclaims all responsibility for the
selection and use of software and/or hardware to achieve intended results.
This document contains proprietary information that is protected by copyright.
All rights are reserved. No part of this document may be photocopied, repro-
duced, or translated into another language without the prior written consent of
HII.
Copyright © 2016 Honeywell International Inc. All rights reserved.
