Honeywell RCWL300A User manual

Instruction
Manual
RCWL300A
Premium Portable Wireless Chime & Push
69-2109EFS-05

Installation Instructions
69-2109EFS—05 ii
Contents
Checking pack contents............................ 1
Safety..........................................................2
Quick start..................................................2
Open bell push........................................... 3
Fit the push battery ...................................3
Fit the chime battery..................................4
Sliding window...........................................4
Volume control ...........................................5
Use of icons ...............................................6
Programming procedures..........................7
Recall function ...........................................8
Chime sounds ............................................8
Mount bell push ......................................... 8
Chime position ...........................................9
Troubleshooting ....................................... 10
Specifications.......................................... 12
Disposal and recycling ............................12
Declaration ...............................................13
Guarantee................................................. 13

RCWL300A
1 69-2109EFS—05
Premium Portable Wirefree Chime with Push
Thank you for choosing this Honeywell product. Please use the following instructions
to ensure correct installation and use. Keep these notes in a safe place for future ref-
erence.
Checking Pack Contents
Unpack your chime kit and identify the
following parts:
• Chime
• Wall mounting bracket
• Bell push
• CR2032 battery for bell push
• 2 x fixing screws for push
• 2 x fixing screws for chime
• 2 x wall plugs
• Adhesive pad
• Self-adhesive icons
You will need:
• 3 X LR6 ‘AA’ Alkaline batteries
• A Phillips screwdriver
• A small flat bladed screwdriver
• A 1/4-in. (6 mm) masonry drill

Installation Instructions
69-2109EFS—05 2
Safety
Before proceeding with the installation, please note the following safety warnings:
• Always follow the manufacturer’s advice when using power tools and wear
suitable protective equipment (e.g. safety goggles) when drilling holes, etc.
• Before drilling holes in walls, check for hidden electricity cables and water pipes.
The use of a cable/pipe locator is advisable if in doubt.
Quick Start
The bell push supplied with this kit is pre-programmed to operate with the chime. You
need to do the following to get started:
• Open the bell push
• Fit the push battery
• Fit the chime batteries
• Check the volume setting
When you operate the bell push, the
chime will sound and the 1st Icon will
flash. If you have additional pushes or
you want to assign a different icon to
your push, you will need to follow the
programming procedure.

RCWL300A
3 69-2109EFS—05
Open the Bell Push
Insert a flat bladed screwdriver into the
slot A at the base of the push. Carefully
lever the cover and base apart (Fig. 1).
Fit the Push Battery
Insert the CR2032 coin cell. Ensure the
face marked ‘+’ is uppermost (Fig. 2).
M27199
A
M27153
CR2032
+
CR2032
+
Fig. 1
Fig. 2

Installation Instructions
69-2109EFS—05 4

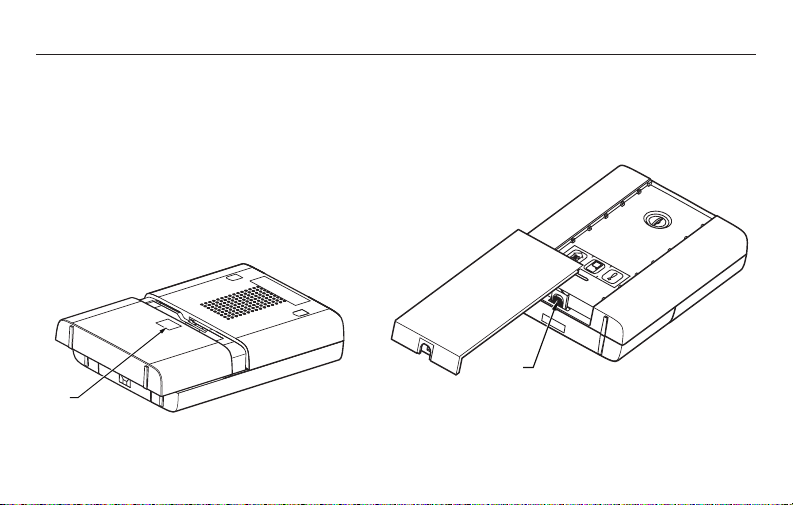

Fit the Chime Batteries
To remove the chime battery cover,
press at point B and slide the cover
back 1/4 in. (5 mm), then lift off. Insert
3 x LR6 ‘AA’ alkaline batteries (not
supplied). Observe polarity as marked
inside the battery compartment.
Sliding Window
Release the catch (B) and slide open
the window.
M27200
B
M27201
B
Fig. 3

RCWL300A
5 69-2109EFS—05

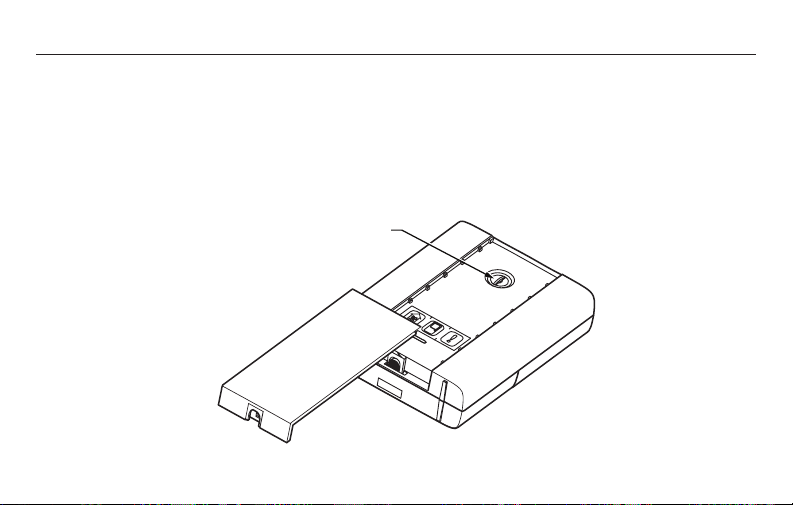

Volume Control
The volume control is behind the slid-
ing window on the front of the chime.
Initially, set the control to mid-point.
After you have tested your system,
adjust to the desired volume.
M27202
VOLUME CONTROL

Installation Instructions
69-2109EFS—05 6
Use of Icons
In addition to the chime sounds, your chime has a visual indication to show which
device has activated it. An icon will illuminate when the chime is activated by a bell
push or another compatible device. The chime supports 3 icons.
The ‘Main door’ and ‘Back door’ icons are usually used for bell
pushes. The other icon is intended for use with other compat-
ible devices, such as PIR movement detectors and Telephone
ring detector. Icons numbered 1 to 3 are also included. The
Icons are self-adhesive, supplied in strips of 3. They can be
changed, if required, by opening the sliding
window of the chime and gently peeling off
the strips. If desired, the strips can be cut into
individual icons and attached to the chime in
a different order.
Use the Programming procedure to change
the icon associated with a push.
MAIN
DOOR
BACK
DOOR
ALERT
SYMBOL

RCWL300A
7 69-2109EFS—05
Programming Procedure
Learn Procedure
To enable your chime to learn the identity
of your bell push:
• Press the lbutton and keep it
pressed. Each Icon will light in
turn. When the Icon you want is lit,
release the button.
• While the Icon you have selected is
lit, operate your push. The chime will
sound. The Icon will flash.
Unlearn Procedure
If you want to remove a push from the
chime’s memory:
• Press the lbutton and keep it
pressed.
• Each Icon will light in turn. When the
Icon associated with the push to be
unlearned is lit, release the button.
• Press and hold down both l&
buttons, until a ‘beep’ sound is
heard.

Installation Instructions
69-2109EFS—05 8
Changing the Tune
Operate the push. While the Icon is flash-
ing, press the button. Press the
button again and the tune will change.
Repeat until the tune you want plays.
Recall Function
A short push of the lbutton will flash
the Icon that was last in use.
Chime Sounds
To hear the chime sounds without oper-
ating the bell push, press the button.
Press the button again and the tune will
change.

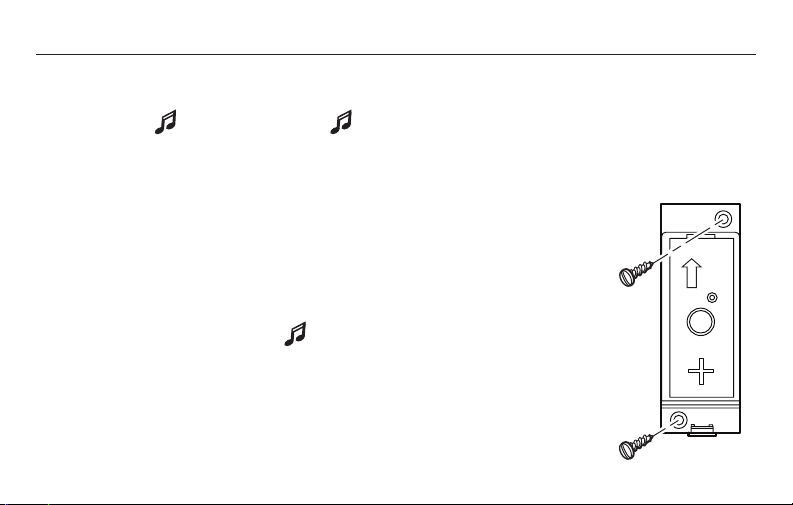

Mount the Push
Mount using either the double-sided
adhesive pad or the screws provided.
(See Fig. 6 )
Test your push before mounting. Avoid
mounting to metal
structures.
M27155
TOP
Fig. 6
