Honeywell BacNet protocol User manual

Honeywell
Installation and
User Manual
BacNet protocol
for Variable Frequency Drives

Honeywell • 0
INDEX
Document: DPD00546B
Version release date: 6.9.11
1. Safety ..................................................................................................................2
1.1 Danger ............................................................................................................................ 2
1.2 Warnings......................................................................................................................... 3
1.3 Grounding and ground fault protection ........................................................................... 3
1.4 Electro-magnetic compatibility (EMC)............................................................................. 4
2. BACnet - general info ........................................................................................6
3. BACnet technical data.......................................................................................8
3.1 BACnet MS/TP protocol.................................................................................................. 8
3.2 BACnet IP protocol ......................................................................................................... 8
4. BACnet installation..........................................................................................10
4.1 Prepare for use through Ethernet ................................................................................. 11
4.2 Prepare for use through MS/TP .................................................................................... 13
5. Programming ...................................................................................................16
5.1 BACnet MS/TP parameters and monitoring values (M5.7.3)........................................ 16
5.2 BACnet IP parameters and monitoring values.............................................................. 18
5.2.1 Ethernet common settings (M5.8.1).............................................................................. 18
5.2.2 BACnet IP settings........................................................................................................ 18
5.3 BACnet MS/TP parameter descriptions ........................................................................ 20
5.3.1 BACnet MS/TP Parameters .......................................................................................... 20
5.3.2 BACnet MS/TP monitoring values ................................................................................ 21
5.4 BACnet IP parameter descriptions................................................................................ 23
5.4.1 Ethernet common settings ............................................................................................ 23
5.4.2 BACnet IP settings........................................................................................................ 24
5.4.3 BACnet IP monitoring values ........................................................................................ 24
6. Communications..............................................................................................26
6.1 Object types and properties supported ......................................................................... 26
6.1.1 Binary Value Object ...................................................................................................... 27
6.1.2 Analog Value Object ..................................................................................................... 29
6.2 Control word bits ........................................................................................................... 31
6.3 Status word bits ............................................................................................................ 31
7. Fault tracing .....................................................................................................32
7.1 Typical fault conditions.................................................................................................. 32
7.2 Other fault conditions .................................................................................................... 33
8. Quick setup ......................................................................................................36
9. Appendix - additional information .................................................................37
9.1 Max master ...................................................................................................................37
10. Annex - Protocol implementation conformance statement.........................38

Honeywell • 1

Safety Honeywell • 2
1. Safety
This manual contains clearly marked cautions and warnings which are intended for your per-
sonal safety and to avoid any unintentional damage to the product or connected appliances.
Please read the information included in cautions and warnings carefully.
The cautions and warnings are marked as follows:
Table 1. Warning signs
1.1 Danger
= DANGEROUS VOLTAGE!
= WARNING or CAUTION
The components of the power unit of the SmartDrive are live when the VFD
is connected to mains potential. Coming into contact with this voltage is
extremely dangerous and may cause death or severe injury.
The motor terminals U, V, W and the brake resistor terminals are live when
the drive is connected to mains, even if the motor is not running.
After disconnecting the VFD from the mains, wait until the indicators on the
keypad go out (if no keypad is attached see the indicators on the cover). Wait 5
more minutes before doing any work on the connections of the drive. Do not open
the cover before this time has expired. After expiration of this time, use a measur-
ing equipment to absolutely ensure that no
voltage is present. Always ensure
absence of voltage before starting any electrical work!
The control I/O-terminals are isolated from the mains potential. However, the
relay outputs and other I/O-terminals may have a dangerous control voltage
present even when the drive is disconnected from mains.
Before connecting the VFD to mains make sure that the front and cable covers
of the drive are closed.
During a ramp stop (see the Application Manual), the motor is still generating
voltage to the drive. Therefore, do not touch the components of the VFD before
the motor has completely stopped. Wait until the indicators on the keypad go out
(if no keypad is attached see the indicators on the cover). Wait additional 5 min-
utes before starting any work on the drive.

Honeywell • 3 Safety
1.2 Warnings
1.3 Grounding and ground fault protection
The Honeywell SmartDrive must always be grounded with a ground conductor to the ground
terminal marked with .
The earth leakage current of the drive exceeds 3.5mA AC. According to EN61800-5-1, one or
more of the following conditions for the associated protective circuit shall be satisfied:A fixed
connection and
a) the protective earthing conductor shall have a cross-sectional area of at least 10
mm2Cu or 16 mm2Al.
The Honeywell SmartDrive is meant for fixed installations only.
Do not perform any measurements when the VFD is connected to the mains.
The ground leakage current of the Honeywell SmartDrive exceeds 3.5mA AC.
According to standard EN61800-5-1, a reinforced protective ground connec-
tion must be ensured. See chapter 1.3.
Corner grounding is allowed for the drive types with the ratings from 72 A to 310
A at 380…480 V supply and from 75 A to 310 A at 208…240 V supply.
If the VFD is used as a part of a machine, the machine manufacturer is respon-
sible for providing the machine with a supply disconnecting device (EN
60204-1).
Only spare parts delivered by Honeywell can be used.
At power-up, power brake or fault reset the motor will start immediately if the
start signal is active, unless the pulse control for
Start/Stop logic has been selected.
Futhermore, the I/O functionalities (including start inputs) may change if parame-
ters, applications or software are changed.Disconnect, therefore, the motor if an
unexpected start can cause danger.
The motor starts automatically after automatic fault reset if the autoreset func-
tion is activated. See the Application Manual for more detailed information.
Prior to measurements on the motor or the motor cable, disconnect the
motor cable from the VFD.
Do not touch the components on the circuit boards. Static voltage discharge
may damage the components.
Check that the EMC level of the VFD corresponds to the requirements of your
supply network.
In a domestic environment, this product may cause radio interference in which
case supplementary mitigation measures may be required.
CAUTION!

Safety Honeywell • 4
or
b) an automatic disconnection of the supply in case of discontinuity of the protective
earthing conductor.
or
c) provision of an additional terminal for a second protective earthing conductor of the
same cross-sectional area as the original protective earthing conductor.
Table 2. Protective earthing conductor cross-section
The cross-sectional area of every protective grounding conductor which does not form part of
the supply cable or cable enclosure shall, in any case, be not less than:
-2.5mm
2if mechanical protection is provided or
-4mm
2if mechanical protection is not provided. For cord-connected equipment, provi-
sions shall be made so that the protective earthing conductor in the cord shall, in the
case of failure of the strain-relief mechanism, be the last conductor to be interrupted.
NOTE! Due to the high capacitive currents present in the VFD, fault current protective switches
may not function properly.
1.4 Electro-magnetic compatibility (EMC)
This equipment complies with IEC 61000-3-12 provided that the short-circuit power SSC is
greater than or equal to 120 at the interface point between the user’s supply and the public sys-
tem. It is the responsibility of the installer or user of the equipment to ensure, by consultation
with the distribution network operator if necessary, that the equipment is connected only to a
supply with a short-circuit power SSC greater than or equal to 120.
Cross-sectional area of phase conductors (S)
[mm2]
Minimum cross-sectional area of the corre-
sponding protective earthing conductor
[mm2]
S16
16 S35
35 < S
S
16
S/2
The values above are valid only if the protective earthing conductor is made of the same metal as
the phase conductors. If this is not so, the cross-sectional area of the protective earthing conductor
shall be determined in a manner which produces a conductance equivalent to that which results
from the application of this table.
Do not perform any voltage withstand tests on any part of the drive. There is a
certain procedure according to which the tests shall be performed. Ignoring this
procedure may result in damaged product.

Honeywell • 5 Safety

BACnet - general info Honeywell • 6
2. BACnet - general info
BACnet stands for ‘Building Automation and Control Networks’. It is the common name for the
communication standard ISO 16484-5 which defines the methods and the protocol for cooper-
ating building automation devices to communicate. Devices can be designed to operate using
BACnet communication protocol as well as utilising BACnet protocol to communicate between
systems. BACnet is an internationally accepted protocol for building automation (e.g. lightning
control, air conditioning and heating automation) and control over a communications network.
BACnet provides a method by which computer-based control equipment, from different manu-
facturers can work together, or 'interoperate'. For this to be achieved, components must be able
to exchange and understand BACnet data messages.
Your Honeywell SmartDrive is equipped with BACnet support as standard.
Figure 1.Principal example diagram of BACnet
BACnet IP - Ethernet
Ethernet to
MS/TP
Router
Switch
BACnet IP
BACnet MS/TP

Honeywell • 7 BACnet - general info

BACnet technical data Honeywell • 8
3. BACnet technical data
3.1 BACnet MS/TP protocol
Table 3.
3.2 BACnet IP protocol
Table 4.
Connections and
communications
Interface RS-485
Data transfer method RS-485 MS/TP, half-duplex
Transfer cable STP (Shielded Twisted Pair), type
Belden 9841 or similar
Connector 2.5 mm2
Electrical isolation Functional
BACnet MS/TP As described in ANSI/ASHRAE Stan-
dards 135-2004
Baud rate 9600, 19200, 38400 and 76800
baud(supports autobaud detection)
Connections and
communications
Interface 100BaseTX, IEEE 802.3 compatible
Data transfer method Ethernet half/full -duplex
Data transfer speed 10/100 MBit/s, autosensing
Protocol BACnet over UDP/IP
Connector Shielded RJ45 connector; NOTE: Max
length of the non-bending part 40 mm.
Cable type CAT5e STP
BACnet IP As described in ANSI/ASHRAE Stan-
dards 135-2004
Default IP Selectable: Fixed or DHCP (AutoIP)

Honeywell • 9 BACnet technical data

BACnet installation Honeywell • 10
4. BACnet installation
Figure 2.
1Open the cover of the VFD.
The relay outputs and other I/O-terminals may have a dangerous control voltage
present even when the drive is disconnected from mains.
2Locate the components that you will need on the VFD to connect and run the
BACnet cables.
Be sure not to plug the Ethernet/BACnet IP cable to the terminal under the key-
pad! This might harm your personal computer.
M4x55

Honeywell • 11 BACnet installation
Figure 3.
You can use the BACnet communication protocol through Ethernet and RS485.
4.1 Prepare for use through Ethernet
Figure 4.
3

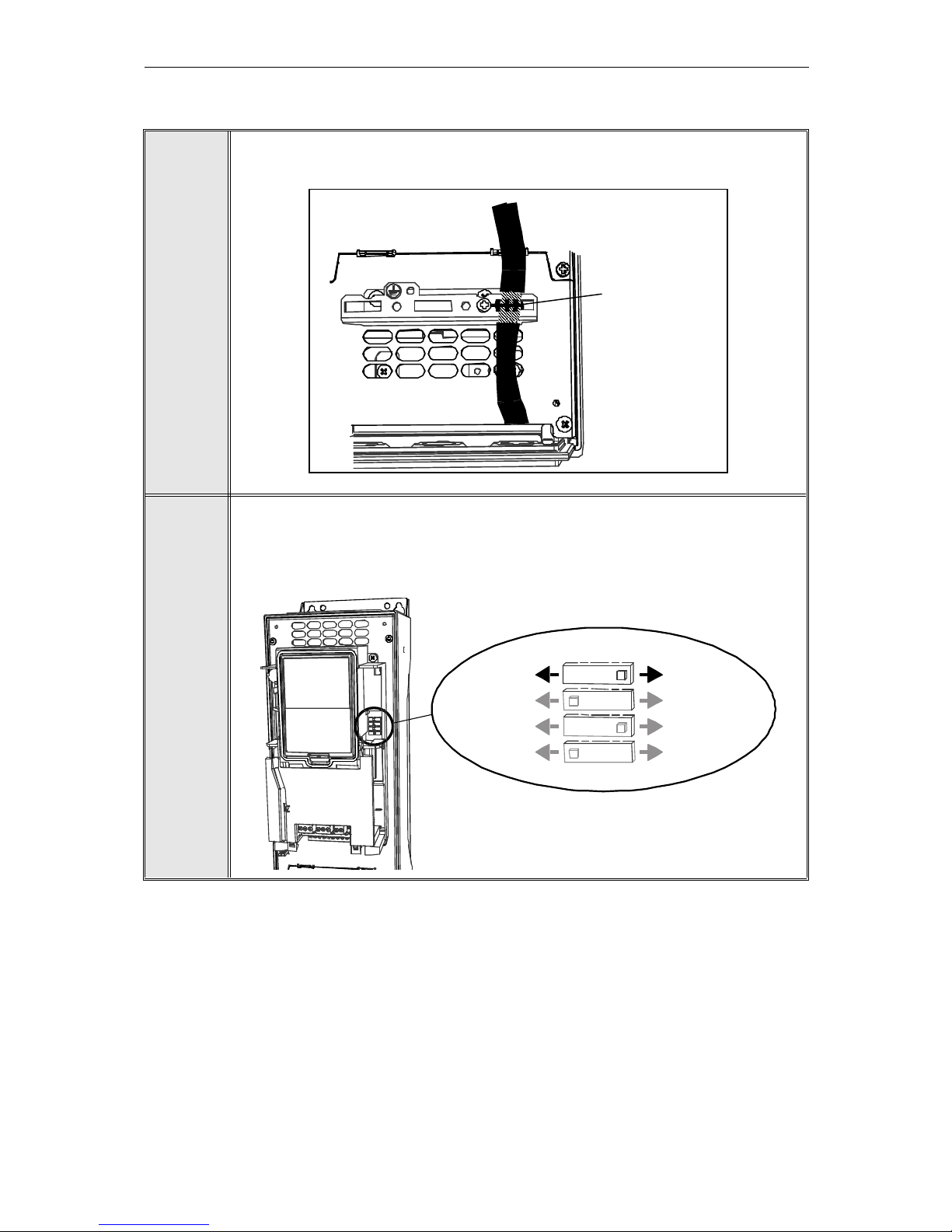

Connect the Ethernet cable (see specification on page 8) to its terminal and run
the cable through the conduit as shown in Figure 4.
NOTE: Pay attention that the non-bending part of the connector does not exceed
40 mm in length.
Ethernet
connector
Ethernet
cable run
conduit
I/O terminal
(see larger
picture)
Grounding
bar
DIP
switches
32 33
12 13 14 15 16 17 18 19 30 BA
RS485
terminals
21 22 23 24 25 26
1234567891011
max. 40 mm
Ethernet
cable

BACnet installation Honeywell • 12
Figure 5.
Figure 6.

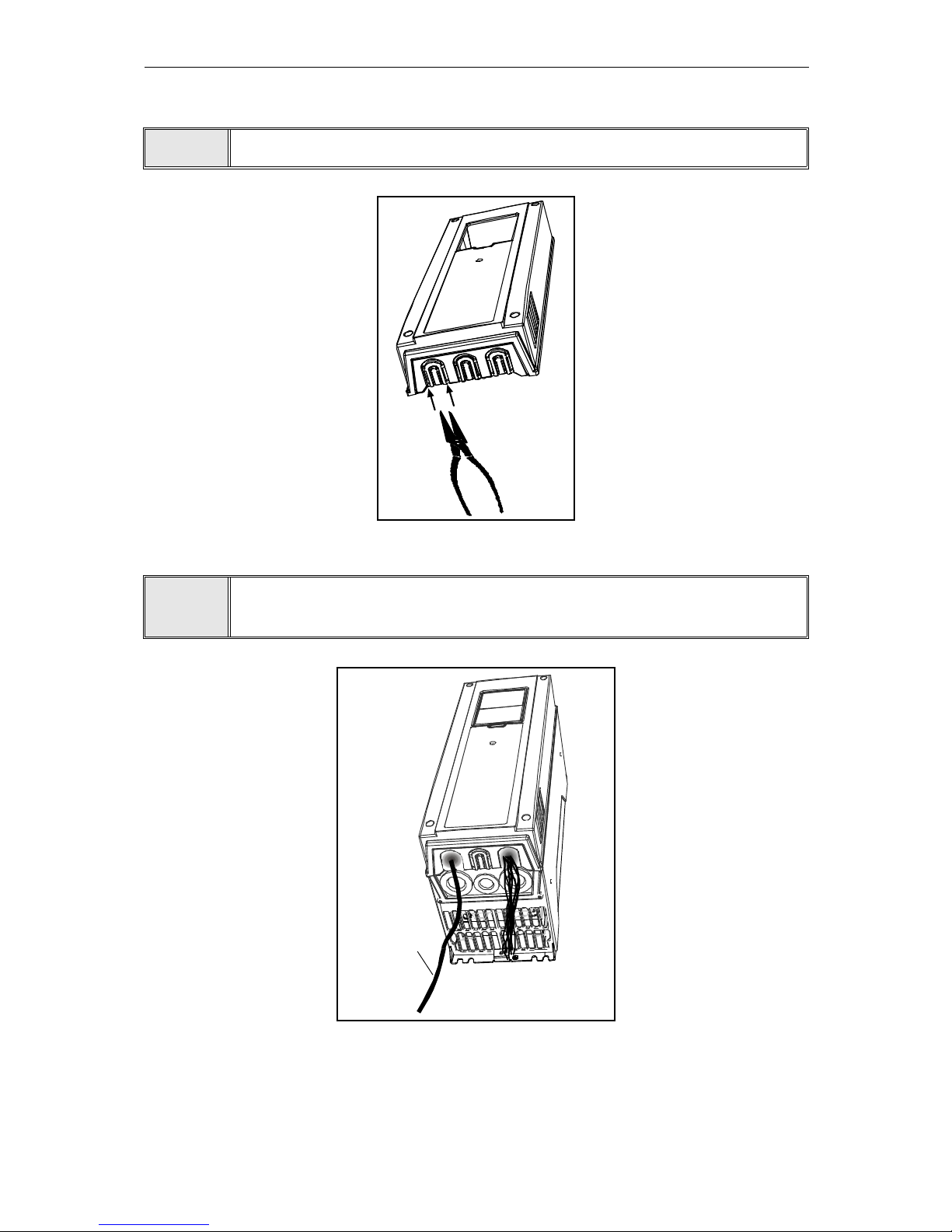

4Cut the VFD cover opening for the Ethernet cable (protection class IP21).
5Remount the VFD cover. NOTE: When planning the cable runs, remember to
keep the distance between the Ethernet cable and the motor cable at a mini-
mum of 30 cm.
IP21
Ethernet
cable
IP21

Honeywell • 13 BACnet installation
4.2 Prepare for use through MS/TP
Figure 7.
3
Strip about 15 mm of the RS485 cable (see specification on page 8) and cut off
the grey cable shield. Remember to do this for both bus cables.
Leave no more than 10 mm of the cable outside the terminal block and strip the
cables at about 5 mm to fit in the terminals. See picture below.
Also strip the cable now at such a distance from the terminal that you can fix it to
the frame with the grounding clamp. Strip the cable at a maximum length of 15
mm. Do not strip the aluminum cable shield!
4Then connect the cable to its appropriate terminals on Honeywell SmartDrive
standard terminal block, terminals A and B (A = negative, B = positive). See
Figure 7.
10
5
B
20 A
11
89
10
12 B
13 14 15 16 17 18 19 20 A
111
2345678910
21 22 23 24 25 26 2829
RS485
terminals
(A and B)

BACnet installation Honeywell • 14
5
Using the cable clamp included in the delivery of the drive, ground the shield of
the RS485 cable to the frame of the VFD.
6
If the drive is the last device on the bus, the bus termination must be set.
Locate the DIP switches to the right of the control keypad of the drive and turn
the switch for the RS485 bus termination resistor to position ON. Biasing is built
in the termination resistor. See also step 9 on page 15.
Cable clamp
RS485*
AO1
AI2
AI1
OFFON
Current Voltage
Current Voltage
Current Voltage
* Bus termination resistor

Honeywell • 15 BACnet installation

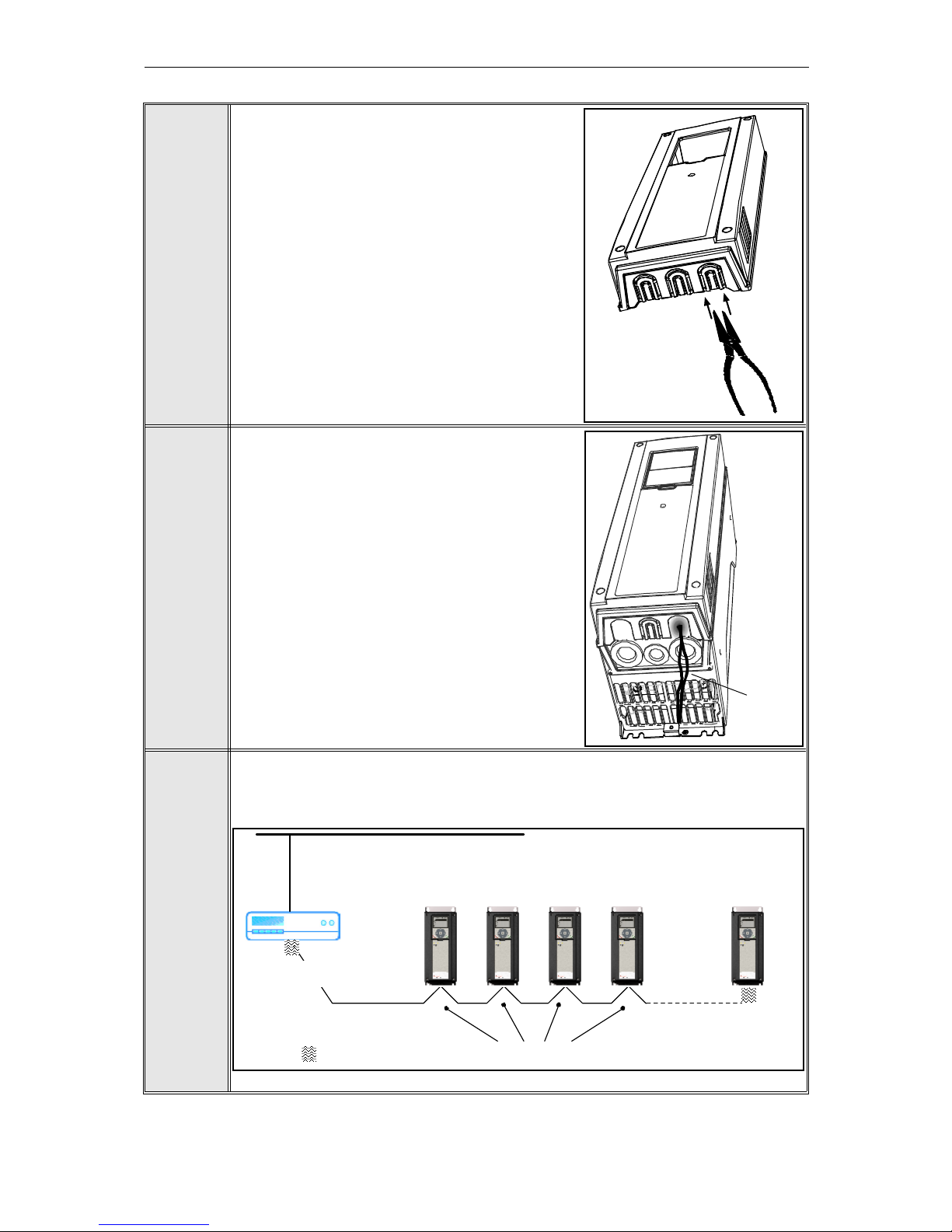

7
Unless already done for the other control cables,
cut free the opening on the VFD cover for the
RS485 cable (protection class IP21).
8
Remount the VFD cover and run the RS485
cables as shown in picture.
NOTE: When planning the cable runs, remem-
ber to keep the distance between the fieldbus
cable and the motor cable at a minimum of 30
cm.
9
The bus termination must be set for the first and the last device of the fieldbus
line. See picture below. See also step 6 on page 14. We recommend that the first
device on the bus and, thus, terminated was the Master device.
Fieldbus
cables
BACnet MS/TP
= Bus termination
Termination
activated
Termination
activated with
DIP switch
Termination
deactivated

Programming Honeywell • 16
5. Programming
Basic information on how to use the control keypad you will find in the Application Manual.
The navigation path to the fieldbus parameters may differ from application to application. The
exemplary paths below apply to the Honeywell SmartDrive.
1. First ensure that the right fieldbus protocol is selected.
2. Select ‘Fieldbus control’ as the Remote Control Place.
3. Choose source of reference.
4. Set fieldbus parameters (M5.7 and M5.8). See below.
5.1 BACnet MS/TP parameters and monitoring values (M5.7.3)
Code Parameter Min Max Unit Default ID Description
PARAMETERS
P5.7.3.1.1 Baud rate 1 4 bd 1
Communication speed
1 = 9600
2 = 19200
3 = 38400
4 = 76800
P5.7.3.1.2 Autobauding 0 1 1
Automatic baudrate
detection
0 = Off
1 = On; The automati-
cally detected baud rate
is then shown as value
of parameter P5.7.3.1.1
P5.7.3.1.3 MAC address 1 127 1
P5.7.3.1.4 Instance number 0 65535 0
Device Object's instance
number.
0 = Automatically
gegerated
P5.7.3.1.5 Communication
time-out 0 65535 s 10 0 = Not used
Navigate: Main Menu > I/O and Hardware (M5) > RS-485 (M5.7) OR Ethernet
(M5.8) > Common settings (M5.7.1) > Protocol (P5.7.1.1) > Edit >
(Choose protocol)
Navigate: Main Menu > Quick Setup (M1) > Rem. Ctrl. Place (P1.15)
OR
Navigate: Main Menu > Parameters (M3) > Start/Stop Setup (M3.2) > Rem.
Ctrl. Place (P3.2.1)
Navigate: Main Menu > Parameters (M3) > References (M3.3)

Honeywell • 17 Programming
Table 5. Parameters related with BACnet used through MS/TP
MONITORING VALUES
P5.7.3.2.1 Fieldbus protocol
status 13
1 = Stopped
2 = Operational
3 = Faulted
P5.7.3.2.2 Communication sta-
tus 0.0 99.999 0.0
0-99 Number of mes-
sages with errors
0-999 Number of mes-
sages without communi-
cation errors
P5.7.3.2.3 Actual instance
number 0 65535 Serial number
Shows actual Device
Object's instance num-
ber
P5.7.3.2.4 Fault code 0 3 0
0 = None
1 = Sole Master
2 = Duplicate MAC ID
3 = Baud rate fault
P5.7.3.2.5 Control word hex See chapters 6.2 and
6.3.
P5.7.3.2.6 Status word hex See chapters 6.2 and
6.3.
Code Parameter Min Max Unit Default ID Description

Programming Honeywell • 18
5.2 BACnet IP parameters and monitoring values
5.2.1 Ethernet common settings (M5.8.1)
Table 6. Common settings for BACnet IP
5.2.2 BACnet IP settings
Code Parameter Min Max Unit Default ID Description
P5.8.1.1 IP address mode See page 23.
P5.8.1.2 IP address See page 23.
P5.8.1.3 Subnet mask See page 23.
P5.8.1.4 Default gateway See page 23.
P5.8.1.5 MAC address See page 23.
Code Parameter Min Max Unit Default ID Description
PARAMETERS
P5.8.3.1.1 Instance number 0 4194304 0
Device Object’s instance
number
0 = Serial number
P5.8.3.1.2 Communication
time-out 0 65535 s 10 0 = Not used
P5.8.3.1.3 Protocol in use 0 1 0 0 = Not used
1 = Used
P5.8.3.1.4 BBMD IP address 192.168.0.1
BACnet/IP broadcast
management device IP
address
P5.8.3.1.5 BBMD UDP Port 1 65535 47808
BACnet/IP broadcast
management device
UDP port
P5.8.3.1.6 Time to Live 0 255 s 0
The Time-to-Live value
is the number of sec-
onds within which a for-
eign device must re-
register with a BBMD.
The value also applies
as the interval for trans-
mitting the Register-For-
eign-Device message to
BBMD device. "0"
means not in use.
MONITORING VALUES
P5.8.3.2.1 Fieldbus protocol
status 13
1 = Stopped
2 = Operational
3 = Faulted
P5.8.3.2.2 Communication sta-
tus 0.0 99.999 0.0
0-99 Number of mes-
sages with errors
0-999 Number of mes-
sages without communi-
cation errors
