Honeywell SS4-AI User manual

Installation Guide and Operating Manual
Infrared (IR) Digital
Electro-Optical Fire Detector
Model SS4-AI (For Special Applications Only – Consult Factory)
Stand-Alone Mode

OPERATOR MANUAL // NOTICES AND TRADEMARKS
HONEYWELL 1
Notices and Trademarks
Copyright 2014 by Honeywell International Inc
While this information is presented in good faith and believed to be
accurate, Honeywell disclaims the implied warranties of merchantability
and fitness for a particular purpose and makes no express warranties
except as may be stated in its written agreement with and for its
customers.
In no event is Honeywell liable to anyone for any indirect, special or
consequential damages. The information and specifications in this
document are subject to change without notice.
The detector must be installed only by qualified professional personnel in
accordance with local codes.
The protection provided by the gas detector may be impaired if it is used in
a manner not specified by Honeywell Analytics.
ACCTTL, ALERT-1, ALARM-2, ALERT-1: ALARM 2, ALERT-1: ALARM-2,
ATAG, Clean Room Sentry, COP-i, Complete Optical Path Integrity, CM1,
CM1-A, DartLogic, FireLogic, Fire Signature Analysis, FireBusI, FireBusII,
FirePic, FirePicII, FirePicIII, FirePix, FirePicture, FSC, Fire Sentry
Corporation, Fire Sentry Corp., FSX, All FSX Nomenclature Variations
(such as: FS2, FS2X, FS3, FS3X, FS4, FS4X, FS5, FS5X, FS6, FS6X,
FS7, FS7X, FS8, FS8X, FS9, FS9X, FS10X, FS10X, FS11, FS11X, FS12,
FS12X, FS14, FS14X, FS15, FS15X, FS16, FS16X, FS17, FS17X FS18,
FS18X, FS19, FS19X, FS20, FS20X, FS24, FS24X, FS24XN, FS26,
FS26X, FS26XN), FS7-2173-2RP, FS System 7, FS System 10, FS7-2173,
FS7-2173-RP, FS2000, FS System 2000, High Speed Flame &
Surveillance Detector, Multi-Spectrum QuadBand Triple IR, Multi-Spectrum
TriBand, Multi-Spectrum Tri-Band, Near Band Infrared, Near Band IR,
NearBand IR, QuadBand IR, Room Sentry, RS, RS2, SM2, SM3, SS, SS2,
SS2X, SS2-A, SS3, SS3-A, SS3X, SS4, SS4-A, SS4X, SnapShot, SLR-BIT,
SuperBus, SuperSentry, System 2000, Tri-Mode Plot, QuadBand Triple IR
Plus, TriBand, Tri-Band, “FS & FSC triangle logo’s”, WBIR, Wide Band
Infrared, WideBand IR, Wide Band IRare registered trademarks of
Honeywell International Inc.
Other brand or product names are trademarks of their respective owners.
Honeywell Analytics

OPERATOR MANUAL // SYMBOL DEFINITIONS
HONEYWELL 2
Symbol Definitions
The following table lists those symbols used in this document to denote
certain conditions.
Symbol Definition
ATTENTION: Identifies information that requires special
consideration.
TIP: Identifies advice or hints for the user, often in terms of
performing a task.
REFERENCE-EXTERNAL: Identifies an additional source of
information outside of this bookset.
REFERENCE-INTERNAL: Identifies an additional source of
information within this bookset.
Indicates a situation which, if not avoided, may result in
equipment or work (data) on the system being damaged or lost,
or may result in the inability to properly operate the process.
CAUTION: Indicates a potentially hazardous situation which, if
not avoided, may result in minor or moderate injury. It may also
be used to alert against unsafe practices.
CAUTION:Symbol on the equipment refers the user to the
product manual for additional information. The symbol appears
next to required information in the manual.

OPERATOR MANUAL // TABLE OFCONTENTS
HONEYWELL 3
TABLE OF CONTENTS
PAGE
SECTION 1 FAMILIARIZATION ..................................................................... 4
1.1 Introduction...................................................................................... 4
1.2 Stand-Alone Operation.....................................................................4
1.3 FS2000 System Operation................................................................4
1.4 Overview .........................................................................................5
1.4.1 Model SS4-AI Infrared Flame Detector................................. 5
1.4.2 Detection Range..................................................................5
1.4.3 Field-of-View.......................................................................5
1.4.4 Configuration Settings ......................................................... 5
1.4.5 Testing................................................................................7
SECTION 2 INSTALLATION .......................................................................... 8
2.1 Installation Procedure ......................................................................8
2.1.1 Installation Precautions........................................................8
2.1.2 Conduit Installation.............................................................. 8
2.1.3 Wiring Recommendations ....................................................9
2.1.4 Power Supply Considerations............................................... 9
2.2 Enclosure Installation..................................................................... 10
2.4 Configuring and Wiring Detectors ................................................... 11
SECTION 3 MAINTENANCE AND TROUBLESHOOTING...............................14
3.1 Personnel...................................................................................... 14
3.2 Cleaning Windowed Enclosures and Detectors................................ 14
3.3 Model SS4-AI Detector Faults......................................................... 15
3.3.1 Detector Faults.................................................................. 15
3.4 Model SS4-AI Detector Module Replacement.................................. 15
3.5 Detector Repair.............................................................................. 16
DETECTOR PINOUT DATA.......................................................... 17
TABLE 1: Stand-Alone Model SS4-AI Detector Connectors
Pinouts.............................................................................. 17
TABLE 2: Configuration Dip Switch Settings................................... 12
INDEX.......................................................................................13

OPERATOR MANUAL //
SECTION 1: FAMILIARIZATION
HONEYWELL 4
SECTION 1: FAMILIARIZATION
1.1 Introduction

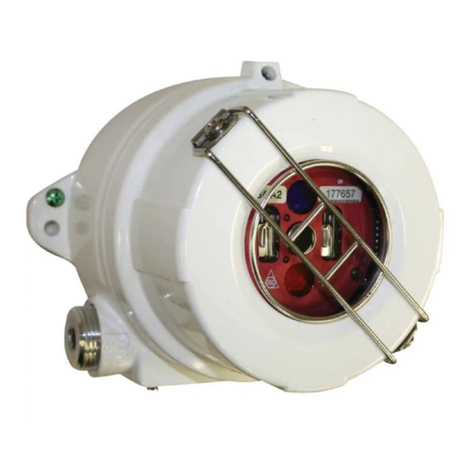

The Model SS4-AI Infrared Flame Detectors can be used in the FS2000
Fire Early Warning System or in the Stand-Alone mode. This model is
housed in an Explosion-Proof enclosure and incorporates built in optical
testing of both the Detectors and lens.
The Detector maximum alarm range is 45 feet for a one square foot
gasoline with a 120 degree circular field of view. This Detector design
features dynamic signal processing that utilizes infrared band and visible
band sensor elements. For Special Applications Only – Consult
Factory.
The only difference between a FS2000 System Model SS4-AI
Detector and a Stand-Alone SS4-AI Detector is how each is wired
and the use of the fault relay. However, there are operational
advantages when the Model SS4-AI Detector is connected to a
FS2000 Controller and FireBus.
The Model SS4-AI Detector also has the flexibility to be re-configured in
the field. It is simple to install and operate because its built in self-testing
does most of the work. The only real maintenance is to wipe the Detector
window lens clean and perform any periodic testing required by the
manufacturer of the Fire Control and Suppression System.
1.2 Stand-Alone Operation
For Stand-Alone operation, the Model SS4-AI Detector may be connected
to a FM/UL Approved Fire/Security Panel. The Model SS4-AI Detector
operates on 24 volts DC. The Model SS4-AI Detector, when operated in
the Stand-Alone mode, uses its Fire, Fault, and Verify (optional) relays to
interface to FM/UL Approved Fire /Security Panels. For Stand-Alone
operation, the Model SS4-AI's Fault relay is automatically configured by
its on-board microcomputer. The input current of the Model SS4-AI
Detector increases about 15 milliamps in the Stand-Alone mode compared
to with connected to theFS2000 System. The Fault relay is not available
for use when the Model SS4-AI Detector is wired to the FS2000 System.
1.3 FS2000 System Operation
For FS2000 System operation, the Model SS4-AI Fire and Fault signals are
sent digitally to the FS2000 System Controller using the four wire FS2000
FireBus. The FireBus provides the 24 volts DC power for the Model SS4-
AI Detector and RS-485 digital communication (Refer to Honeywell
Analytics document MN0003 entitled "FS2000 FIRE EARLY WARNING
SYSTEM - INSTALLATION and OPERATIONS GUIDE"). For special
remote alarm applications, users may connect directly to the Model SS4-
AI's Fire four pin relay connector. (Note: When the Model SS4-AI Detector
is connected to the FS2000 System using FireBus communication, the
Controller automatically disables the Model SS4-AI's Fault relay.)

OPERATOR MANUAL //
SECTION 1: FAMILIARIZATION
HONEYWELL 5
1.4 Overview
1.4.1 Model SS4-AI Infrared Flame Detector
The Model SS4-AI Infrared (IR) Flame Detectors are micro-computerized
devices that see the visible and infrared spectral bands. The SS4-AI
Detector Module is contained in an Explosion-Proof and Weather-Proof
housing which is approximately 4 3/4 inches in diameter and 4 3/4 inches
long. The housing has two integral 3/4 inch NPT conduit openings for
wiring and an optional Swivel Mount (Model SM4) for greater flexibility in
mounting locations.
There are two (2) LED's on the Model SS4-AI Detector that indicate the
state of the Detector. During normal operation both of the LED's blink will
every 10 seconds.
If a Model SS4-AI Detector has a Fault, it de-energizes its Fault relay and
turns on one (1) of its LED’s. (The LED will not light if the Fault is a “No
Power Fault”.) If the Fault condition is cured, such as a “Low Voltage
Fault”, the Detector will automatically return to Normal Operation. Faults
caused by Excessive Input Voltage or temperatures outside the operating
temperature range require factory re-certification. Re-certification required
Faults are indicated by both LED’s rapidly blinking. (about 2 Hz.)
If a Model SS4-AI Detector alarms to a fire, it energizes its Fire relay and
turns on its two LED's in the following sequence. One LED is turned on
immediately and the second LED will rapidly blink for several seconds
indicating that the Detector's FirePic is being permanently stored in the
Detector's solid-state memory. (FirePic is the several seconds of Detector
data that preceded an alarm event.) Once the FirePic data is stored the
second LED will remain on.
1.4.2 Detection Range
The detection range of the detector is field adjustable between 15 (fifteen)
and 45 (fourtyfive) feet to an industry-standard one square foot gasoline
pan fire within 5 seconds. Each detection range is calibrated to a one
square foot fire. The Detector’s ranges are optimized but not limited to a
specific distance. A larger size fire outside the set range may cause the
Detector to alarm based on the “Inverse Square Law” for radiated energy.
1.4.3 Field-of-View
120 degrees circular - minimum. The fire emissions received by the
detector diminish at extreme range and edges of the field-of-view. It is
recommended that the detector be pointed at the fire threat area for the
fastest response times to the smallest size fire. When multiple detectors
are used to cover large areas the Field-of-Views should overlap to insure
complete coverage of the fire threat area. The Field-of-View is not limited
to 120 degrees, larger fires outside the 120 degree Field-of-View may
cause the detector to alarm.
1.4.4 Configuration Settings
The SS4-AI Detector may be reconfigured in the field for special
applications. The configuration of the Detector is set from a dip switch
located on the middle circuit board of the SS4-AI Module. These settings

OPERATOR MANUAL //
SECTION 1: FAMILIARIZATION
HONEYWELL 6
allow the detectors to be optimized for the specific application. The DIP
switch settings for each configuration are listed in Table 2: Configuration
Dip Switch Settings on page 12. The reconfigurable options include:
1. Fire Verify Relay - The Verify Relay may be disabled or enabled
with several Verify Time settings. It also may be set to act as another Fire
Relay. The Verify Time may be set from 5 to 30 seconds in 5 second
increments. The Factory setting is the Verify Relay is Disabled.
With the Verify Relay enabled and a Verify Time is set the Verify Relay will
energize and the Fire Relay will de-energize if the fire conditions are still
present at the end of the Verify Time. If the fire conditions are not present
the Detector will wait 5 seconds plus another Verify Time period to test for
the fire conditions. This wait and verify time will repeat 10 times or until
the fire is verified. This ends the verify process. If the fire is not verified
the Fire Relay will remain energized unless Non-Latching mode is set. If a
subsequent fire is detected the entire verify process will repeat. The state
of the Fire and Verify Relay after the verify process will depend upon
whether Latching or Non-Latching mode is set.
NOTE: When the Verify Relay is enabled and Verify Time is
set the Fire Relay will de-energize when the Verify Relay is energized.
2. Latching / Non-Latching - The Fire Relay and Verify Relay may be
set in a Latching or Non-Latching mode. If Latching mode is set the Fire or
Verify Relay will remain energized until the Detector is reset (Powered
down and up). When Non-latching mode is set the Fire Relay will reset
after 10 seconds. Unless the Verify Relay is enabled with a Verify Time,
then the Fire Relay will remain energized until the Verify Relay is energized
or until the end of the verify process. (see Fire Verify Relay above.) If the
Verify Relay is energized the Verify Relay will de-energize after 10
seconds. The Factory setting is Latching. Non-Latching mode may not
meet some Fire Codes. Consult with authority having jurisdiction before
using the non-Latching setting.
3. Test Period - This setting if for the Through-the-Lens test. The
Through-the-Lens test is run periodically. The test period may be set to 6
or 30 minute periods. The Factory setting is 30 minutes. If 6 minute
periods are set this may affect the life expectancy of the source tube. The
6 minute period may be required in applications where the lens is obscured
with great frequency.
4. Fire Detection Range Setting - 15, 30, or 45 feet. The SS4-AI
Detector has been calibrated to alarm on an industry standard 1 sq. ft.
gasoline fire for each of the range settings. If the Range is set to 15 feet,
the detector will require a much larger gasoline fire at 45 feet to declare an
alarm. These settings are not simply sensitivity settings. They are
calibrated to the characteristics of fire emissions at the set ranges. The
Factory setting is 45 feet. This setting should only be changed if the
detector is located close to the fire threat area and there is abnormally high
IR activity.

OPERATOR MANUAL //
SECTION 1: FAMILIARIZATION
HONEYWELL 7
1.4.5 Testing
The SS4-AI Detector has both active and passive built-in self-test systems.
The detector uses passive testing for virtually all internal electronic
systems.
The Model SS4-AI Detectors and the system they are connected to should
be periodically manually tested to insure proper function of the entire Fire
Protection System. To test the Model SS4-AI Detectors manually (where
open fires are might be a safety hazard) for both optical path and window
cleanliness, use a Honeywell Analytics Model FT-2145 Test Lamp.

OPERATOR MANUAL // SECTION 2: INSTALLATION
HONEYWELL 8
SECTION 2: INSTALLATION
2.1 Installation Procedure
This section describes the installation of the Model SS4-AI Detector for the
Stand-Alone mode. It is recommended that junction boxes be used to wire
the Model SS4-AI Detectors. Determine a mounting location for the
detector which is within the detectors range (see Detection Range and
Field-of-View) and has a clear view of the fire threat area. Where multiple
detectors are used to cover a large area, the detectors should be located to
allow overlapping Field-of-Views. Determine the configuration settings for
the device and the number of connections to be used. (Fire, Fire Verify,
Fault, and Power) The configuration settings and number of connections
will depend on the Detection Range desired and the type of Fire Control
Panel used. For Configuration information see the Dip Switching Setting
chart and the manual for your Fire Control Panel.
2.1.1 Installation Precautions
The following precautions should be observed during installation of Model
SS4-AI Detectors.
1. Double-check to make sure that the external electrical power is
turned OFF before connecting to the Model SS4-AI Detector.
2. Do not handle the Model SS4-AI Detector's module (with its
printed circuit boards) without being adequately grounded.
Printed circuit board components are susceptible to damage from
electrostatic discharge. Grounding may be accomplished by
wearing an anti-static wrist strap connected to an earth ground.
2.1.2 Conduit Installation
Model SS4-AI Detectors should be located to cover the specific "fire threat"
areas.
When planning the conduit, observe the following recommendations.
1. If only one of the two ½ inch NPT conduit openings on the Model
SS4-AI Detector enclosure is used, seal the unused opening with a
threaded plug.
2. In areas where moisture may accumulate, install an approved
conduit trap or drain.
3. A seal shall be installed within 6 inches of the enclosure for
applications requiring a Class I, Div. 1 Explosion-Proof rating.

OPERATOR MANUAL // SECTION 2: INSTALLATION
HONEYWELL 9
2.1.3 Wiring Recommendations
The Honeywell Analytics recommends using junction boxes to help prevent
problems with intermittent connections. Install a junction box near each
Model SS4-AI Detector location. Next, wire each Model SS4-AI Detector to
its junction box. Use screw-down terminal strips inside the junction box to
make the connections to the Detector's terminals and a UL/FM Approved
Fire Alarm Panel. Use UL/FM Approved junction boxes and terminal strips.
Avoid wire splices. However, if wire splices are necessary, solder all
splices. The use of good wiring practices will greatly improve the ease of
installation, improve reliability, and allow easier servicing.
2.1.4 Power Supply Considerations
The Model SS4-AI Detector uses 24 volts DC at a maximum current of
75 milliamps. Make sure that the Panel's power supply can handle the
current load of the total number of Model SS4-AI Detectors connected to
it. For example, if 10 Model SS4-AI Detectors are used on one Panel's
power supply, (multiply 10 times 75 milliamps), the Panel's power supply
must be able to handle at least 750 milliamps (3/4 amps). This current
load must also be considered when calculating the Panel's power backup
requirements for 24 hour backup.
Figure 2: Model SS4-AI Detector Swivel Mount

OPERATOR MANUAL // SECTION 2: INSTALLATION
HONEYWELL 10
2.2 Enclosure Installation
1. INSTALL THE MODEL SS4-AI DETECTOR SWIVEL MOUNTS
(see Figure 2). Although not required, Honeywell Analytics
recommends using the SM4 Swivel Mounts when installing the
Model SS4-AI Detector.
a. Choose fasteners for the swivel-mount that will secure it
solidly to the type of material at the enclosure location.
b. Mount the swivel-mount to the wall. Do not install upside
down.
c. Install the mounting bracket onto the Model SS4-AI Detector
enclosure using ¼-20 screws and nuts provided. Be sure
the bracket is mounted with the correct orientation. The
outside contours of the mounting ears on the Detector
enclosure and the ends of the bracket will match. The large
diameter of the threaded insert must be facing the
enclosure.
d. Screw the enclosure/bracket assembly on to the ball stud.
Turn the Detector until the stud bottoms against the
enclosure. Do not tighten. While holding the enclosure,
tighten the jam nut against the bracket.
e. While holding the enclosure, loosen the socket head screw
on the swivel-mount. Position the enclosure so that the
conduit openings are on the bottom and horizontal. Point
the enclosure in the desired direction and tighten the socket
head screw.
INSTALL CONDUIT (If not already installed).
Figure 3: Model SS4-AI Detector Enclosure - Side View

OPERATOR MANUAL // SECTION 2: INSTALLATION
HONEYWELL 11
Figure 4: Model SS4-AI Detector Enclosure Rear View
2.4 Configuring and Wiring Detectors
To configure and wire a Model SS4-AI Detector, its module has to be
removed from the enclosure. After the configuration settings and wiring
connections are made, re-install the module in the enclosure.
Exercise caution while performing this procedure. Do not touch the
detector elements on the front of the Model SS4-AI Detector modules. If
they are accidentally touched, clean them as instructed in Section 3.2,
Cleaning Windowed Enclosures and Detectors.
Observe static protection safeguards while handling Model SS4-AI Detector
modules. Properly wear a wrist strap connected to earth ground.
1. REMOVE THE DETECTOR MODULE FROM ITS ENCLOSURE.
a. With electrical power off, loosen the Allen-head screw at the
base of the metal enclosure top windowed cover. (Double
check that electrical power is off by seeing that the Detector's
LED's do NOT blink for at least 10 seconds.)
b. Unscrew the top windowed cover and set it aside with its "O"
ring. Keep both clean.
c. Loosen/remove the three slot headed screws located on the top
circuit board. (Some models use captive screws that should not
be removed from the circuit board).
d. Gently lift out the module, sliding it along the three metal
standoffs.

OPERATOR MANUAL // SECTION 2: INSTALLATION
HONEYWELL 12
2. CONFIGURING THE DETECTOR MODULE.
a. Set the Dip switches located on the center PC board of the
detector module to the desired settings. The factory settings
should be appropriate for most applications. See Dip Switch
Setting Chart for switch functions and settings.
3. WIRE THE DETECTOR MODULE.
a. Insert the cables into the metal enclosure base through one of
the conduit openings.
Figure 5: Model SS4-AI Detector Wiring
Bottom View of SS4-AI Detector Module
b. Then connect the 24 volt DC Power Supply wires into the J1 or
J2 connector and firmly tighten down the two slotted screws
with a small screwdriver. DO NOT CONNECT ANY WIRES TO
Pin 2 or Pin 3. Do NOT over tighten or the screws may strip or
break. Refer to Figure 4, Model SS4-AI Detector Wiring.
Pin 1 Pin 2 Pin 3 Pin 4
Black Green or Blue White or Yellow Red
Ground (-) NOT USED NOT USED Power (+)

OPERATOR MANUAL // SECTION 2: INSTALLATION
HONEYWELL 13
4. WIRE THE DETECTOR RELAYS.
a. Insert the relay cables into the metal enclosure base through
one of the conduit openings.
b. Connect the Fire Alarm wires to the 4 pin WECO terminal J3.
Install the wires into J4 Pins 3 and 4 (for Normally Open relays)
and firmly tighten down the slotted screws with a small
screwdriver.
c. Connect the Fault wires to the four pin WECO terminal J5.
Install the wires into J5 Pins 1 and 2 (for Normally Closed
relays) and firmly tighten down the slotted screws with a small
screwdriver.
d. If the Fire Verify option is used, connect the Verify Fire Alarm
wires to the four pin WECO terminal J6. Install the wires into J6
Pins 1 and 2 (for Normally Open relays) and firmly tighten down
the slotted screws with a small screwdriver.
Refer to Figure 4, Model SS4-AI Detector Wiring, for more
details on relay connections.
5. REPLACE THE DETECTOR MODULE INTO THE ENCLOSURE.
a. Gently install the module back over the three metal standoffs
and screw it down with the three chrome-plated screws into the
standoffs. This secures the module to the enclosure.
b. If necessary, clean the detectors and windowed cover according
to the instructions in Section 3.2.
c. Screw down the metal enclosure top windowed cover until
secure and tighten the Allen-head "tamper-proof" screw.

OPERATOR MANUAL // SECTION 3: MAINTENANCE AND
TROUBLESHOOTING
HONEYWELL 14
SECTION 3: MAINTENANCE AND TROUBLESHOOTING
3.1 Personnel
The following will aid in troubleshooting the Model SS4-AI Detector. Tests
must be performed by qualified authorized personnel observing standard
safety practices. Although the Model SS4-AI Detector operates on safe 24
volts DC, the FM/UL Approved Fire Alarm Panel's power supply may
operate on a dangerous 120 or 240 volts AC
WARNING: Hazardous voltages may be present during testing
procedures. Serious injury or death may result if personnel fail to observe
safety precautions.
CAUTION: Model SS4-AI Detector modules and its components
are susceptible to permanent damage due to electrostatic discharge (ESD).
Do NOT handle adequate grounding precautions. If the Module must
shipped back to the factory for repair, it MUST be packed in static
protected material. If static protected material is not available, carefully
wrap the Module in aluminum foil.
3.2 Cleaning Windowed Enclosures and Detectors
The optical windows on the Model SS4-AI Detector should be cleaned
periodically on a regular maintenance schedule. For clean applications,
this may be every month. However, for extremely dirty applications, such
as a truck filling station where black carboneous smoke can cover a nearby
Detector, a cleaning schedule of every day may be necessary.
Clean the windows on the Model SS4-AI Detectors whenever they are
handled, whenever the windows look dirty, or whenever the Model SS4-AI
Detector fails to pass an end-to-end test with a Handheld Tester.
Clean the Model SS4-AI Detector Module's Detectors whenever a Detector
has been disassembled for wiring or replacement. To prevent static
damage to the Detector Module’s electronics, remember to be grounded
whenever working with exposed Model SS4-AI Detector Modules.
Use a blast of an air hose or an oil-free cloth to clean the enclosure
window. Oil degrades the performance of UV detectors. Occasionally, the
use of a solvent such as alcohol may be required. No disassembly of the
Model SS4-AI Detector is required.
DO NOT USE SILICONE-BASED OR COMMERCIAL WINDOW
CLEANING PRODUCTS. THEY WILL DEGRADE THE MODEL SS4-AI
DETECTOR PERFORMANCE.

OPERATOR MANUAL // SECTION 3: MAINTENANCE AND
TROUBLESHOOTING
HONEYWELL 15
3.3 Model SS4-AI Detector Faults
3.3.1 Detector Faults
The Model SS4-AI Detector will issue a Fault (or Trouble) condition by de-
energizing its Fault Relay (J5 connector). The following are Model SS4-AI
Detector Faults:
a. Temperature Fault. The Detector will Fault if the internal
temperature during operation is above 85°C or falls below -40°C.
Requires factory re-certification to correct. (both LED’s blink
rapidly)
b. Excessive Input Voltage Fault: The Detector will Fault if the
voltage supplied to it is too high. Requires factory re-certification to
correct. (both LED’s blink rapidly)
c. Low Input Voltage Fault: The Detector will Fault if the voltage
supplied to it is to low. Check the voltage at the power connector J1
or J2 Pins 1 and 4. If the voltage is above 15 volts factory service
may be required. (One LED is on until fault is corrected.) If the
voltage is below 15 volts check the wiring and power supply.
d. No Power Fault:The Detector will Fault if the voltage supplied to it
is interrupted or turned off. (No LED indication.) Check voltage at
the power connector J1 or J2 Pins 1 and 4. If no or very low
voltage is measured check wiring and power supply.
e. Detector Fault:The Detector will Fault if any one of its Detectors
fails the automatic built in test. (One LED is on until the fault is
corrected.) Begin by thoroughly cleaning the Lens both inside and
outside, also clean the exposed surface of the Detector elements
and the protective grill mounted on the outside of the housing
cover. Reassemble and apply power. Wait for 10 to 15 minutes if
the fault recurs factory service may be necessary.
f. Relay Fault:The Detector will Fault if one of its Relay circuit fails.
(One LED is on until the fault is corrected.) Return to factory for
service.
g. Self-Checking Fault: The Detector will Fault if its internal
microcomputer self-checking circuitry and software finds a failure.
(One LED is on until the fault is corrected.) This class of fault may
be caused by several things. Check for proper grounding of the
device and for noise on the power wires. If fault persists return
detector to factory for service.
3.4 Model SS4-AI Detector Module Replacement
CAUTION: Model SS4-AI Detector modules and its components
are susceptible to permanent damage due to electrostatic discharge
(ESD). Do NOT handle without adequate grounding precautions.

OPERATOR MANUAL // SECTION 3: MAINTENANCE AND
TROUBLESHOOTING
HONEYWELL 16
1. With electrical power off, loosen the Allen-head screw at the base
of the metal enclosure top windowed cover. (Double-check and see
that the Detector's LED's do NOT blink for at least 10 seconds.)
2. Unscrew the top windowed cover and set aside with its "O" ring.
Keep both clean.
3. Loosen, then remove the three slot headed screws located on the
top circuit board. (Some models use captive screws that should not
be removed from the circuit board).
4. Gently lift out the module, sliding it along the three metal standoffs.
5. Disconnect all of the wires from the female jacks located on the
bottom of the module. Be sure to note the connection location of
each wire.
6. Install another module. Reconnect the wires to the new module.
Make sure the module is correctly aligned. Gently re-install back
over the three metal standoffs. Next, re-install the three chrome-
plated screws. Be careful not to touch the Detector elements. If
they are accidentally touched, clean as instructed in Section 3.2,
Cleaning Windowed Enclosures and Detectors.
7. Screw down the metal enclosure top windowed cover until it is
secure and tighten the Allen-head "tamper-proof" screw.
3.5 Detector Repair
Return the defective module to the factory for repair service.
There are NO user serviceable parts in a Detector Module.
If the Model SS4-AI Module must be shipped back to the factory for repair,
it MUST be packed in static protected material. If this material is not
available, carefully wrap the Module in aluminum foil. An RMA (Return
Material Authorization) is required for all returns to the factory. Contact
Customer Service or your Distributor for an RMA number before shipping a
unit back to the factory.

OPERATOR MANUAL // SECTION 3: MAINTENANCE AND
TROUBLESHOOTING
HONEYWELL 17
DETECTOR PINOUT DATA
TABLE 1: Stand-Alone Model SS4-AI Detector Connectors - Pinouts
J1: DETECTOR INPUT POWER
PIN
1 DC Return or Ground (-)
2 NOT USED (Do not connect to this Pin.)
3 NOT USED (Do not connect to this Pin.)
4 Power (+24 Volts DC)
J2: DETECTOR POWER OUT
PIN
1 DC Return or Ground (-)
2 NOT USED (Do not connect this Pin.)
3 NOT USED (Do not connect this Pin.)
4 Power (+24 Volts DC)
J4: FIRE RELAY
PIN
1 Fire Relay Common
2 Fire Relay Normally Closed
3 Fire Relay Common
4 Fire Relay Normally Open
J5: FAULT RELAY (Energized)
PIN
1 Fault Relay Normally Open
2 Fault Relay Common
3 Fault Relay Normally Closed
4 Fault Relay Common
J6: FIRE VERIFY RELAY
PIN
1 Verify Relay Common
2 Verify Relay Normally Open
3 Verify Relay Common
4 Verify Relay Normally Closed

OPERATOR MANUAL // SECTION 3: MAINTENANCE AND
TROUBLESHOOTING
HONEYWELL 18
TABLE 2: Configuration Dip Switch Settings
Verification Time
DIP SWITCH
1
DIP SWITCH
2
DIP SWITCH
3
DESCRIPTION
closed closed closed Verify is disabled & the Verify Relay is unused.
Factory setting.
closed
open
open
Verify is enabled and the Verify time is 5 seconds.
open
closed
open
Verify is enabled and the Verify time is 10 seconds.
closed
closed
open
Verify is enabled and the Verify time is 15 seconds.
open
open
closed
Verify is enabled and the Verify time is 20 seconds.
closed
open
closed
Verify is enabled and the Verify time is 25 seconds.
open
closed
closed
Verify is enabled and the Verify time is 30 seconds.
open open open Verify is disabled and the Verify Relay operates as a
second Fire Relay.
Latching
DIP SWITCH
4
DESCRIPTION
open Non-Latching mode. If Verify is enabled then the Verify Relay will de-energize
approximately 10 seconds after it energizes. If Verify is disabled then the Fire
Relay(s) will de-energize approximately 10 seconds after it energizes.
closed
Latching mode. If Verify is enabled then when the Verify Relay energizes it will
remain energized until the detector is reset. If Verify is disabled then when the
Fire Relay energizes it will remain energized until the detector is reset.
Factory setting.
Test Cycle
DIP SWITCH
6
DESCRIPTION
open
Testing of the Lens occurs every 30 minutes. Factory setting.
closed
Testing of the Lens occurs every 6 minutes
Fire Range
DIP SWITCH
7
DIP SWITCH
8
DESCRIPTION
open open The detector is set to detect an industry standard 1 sq. ft. fire at
15 feet on axis.
closed open The detector is set to detect an industry standard 1 sq. ft. fire at
30 feet on axis.
open
closed
The detector is set to detect an industry standard 1 sq. ft. fire at
45 feet on axis.

OPERATOR MANUAL // INDEX
HONEYWELL 19
INDEX
C
Cleaning Products................. 14
Conduit................................... 8
D
Detector
Cleaning............................... 14
Enclosure............................. 10
LEDs...................................... 5
Maintenance Schedule .......... 14
Pinout................................... 17
Pinouts................................. 12
Replacement......................... 15
Status..................................... 5
Wiring..............................12, 17
Detector Fault
High Temperature ................. 15
Input Voltage ........................ 15
No Power.............................. 15
Relay.................................... 15
Self-Checking ....................... 15
E
ESD....................................... 8
F
FireBus................................... 4
FireBus
Wiring..................................... 9
Flame Detector See Detector5
G
Grounding............................... 8
I
Infrared (IR) Band ................... 5
Installation.............................. 8
Conduit................................... 8
Detector ............................... 11
Enclosure............................. 10
Precautions ............................ 8
Static Damage ........................ 8
J
Junction Box........................8, 9
L
Layout Planning...................... 8
M
Maintenance......................... 14
P
Personnel - Qualified............. 14
Power..................................... 9
R
Relay
Fault .................................... 17
Fire ...................................... 17
Removing Modules................ 11
S
Spectral Bands ....................... 5
Stand-Alone............................ 4
Static Damage ........................ 8
Swivel Mount ........................ 10
T
Test Source............................ 5
.............................................. 7
Theory of Operation ................ 5
Troubleshooting.................... 14
V
Visible Band ........................... 5
