OWNER’S GUIDE
63-2674-01
TB7100A1000 MultiPRO™
Multispeed and Multipurpose Thermostat

63-2674—01 2
CONTENTS
Features ........................................................................... 3
Main Screen Selections and Display ................................ 4
Programming Heating and Cooling Schedule .................. 5
Operating the Thermostat ................................................ 9
Replacing Batteries .......................................................... 14
Reading Remote Indoor Temperature .............................. 17
Advanced Settings ........................................................... 23
Frequently Asked Questions and Answers ...................... 27
Limited Two-Year Warranty .............................................. 28
Customer Assistance ....................................................... 29
IMPORTANT
The thermostat has an LCD. Sharp instruments like a pen or pencil point can
damage the thermostat.

3 63-2674—01
FEATURES
• Large, Clear Display with Backlighting—current temperature, set temperature and
time are easy-to-read and all are displayed on the main screen.
• Menu Driven Programming—Provides guidance through the scheduling process,
showing only necessary information and choices on each screen.
• Ability to Select Multiple Days—allows easy customizing for unique schedules.
• Real-Time Clock—keeps time during power failure; automatically updates for
daylight saving time.
• Armchair Programming—can remove thermostat from wall to set the schedule.
• Precise Temperature Control (±1°F)—reliable, consistent comfort.
• Multiple OVERRIDE options—can modify schedule for a specific period of time
(up to 365 days).
• Speedy same-schedule programming—no need to copy mulitple days.
• Programmable or non-programmable modes.
• Remote setback input for occupancy sensors or timeclocks.
• VersaSpeed™ fan ramping algorithm and fan reset algorithm (fan coil and PTAC
applications)
• Up to 3 fan speeds for fan coil and 2 fan speeds for PTAC applications.
• Remote indoor air sensing option (20 kohm or 10 kohm)

63-2674—01 4
Main Screen Selections and Display
M23039
CURRENT DAY
OF WEEK
TEMPERATURE
SETTING
CURRENT
TIME
CURRENT
SYSTEM SETTING
CURRENT
FAN SETTING
INDICATES
THERMOSTAT IS
"CALLING FOR
COOL OR HEAT"
System & Fan Override More
Fan Auto
Mon
System Auto Aux Heat On
Occupied

5 63-2674—01
Programming Heating and Cooling Schedule
IMPORTANT
Keep in mind that the up and down keys change the flashing number or word.
When multiple items are flashing, changes affect only one of the items.
The thermostat can control up to four different schedule periods per day:
Occupied1—Work arrival time. Period to keep space at a comfortable temperature.
Unocc1—Work exit time. Period to keep space at an energy-saving temperature.
Occupied2—Second occupied period.
Unocc2—Second unoccupied period.
NOTES:
— Available schedule times are at 15-minute intervals.
— With default settings, all four periods can be programmed. This can be
changed to allow only Occupied1 and Unocc1 programs. To use only
Occupied1 and Unocc1, see Step 8 in the Advanced Settings section.

63-2674—01 6
Editing Schedule
1. Press MORE.
2. Press SCHEDULE.
3. Press EDIT.
4. Use The Up and Down keys to
change the flashing day.
5. Select any combination of days.
NOTES:
— Selected days schedule
identical temperatures
and times.
— Be sure to select all days
desired before pressing
NEXT.
6. Press NEXT. M23040
Mon
Tue
Wed
Thu
Fri
Sat
Sun
Select Day
Next Cancel

7 63-2674—01
7. Use the Up and Down keys
to change the flashing
schedule period.
8. Press NEXT.
NOTE: The selections
automatically
cycle through:
Period, Time,
Temperature.
9. Use the Up and Down keys
to modify the flashing item
(e.g., time, temperature).
NOTES:
— Pressing DONE will
save all of the
changes that have
been made.
— To exit scheduling without saving the current changes, press CANCEL. If that
option is not available, press GO BACK until CANCEL is available.
M23041
DAYS
SELECTED
NEXT STEP KEY
ADVANCES PERIOD,TIME,
HEAT AND COOL TEMPERATURES
SCHEDULE
PERIOD
HEAT OR COOL
TEMPERATURES
GO BACK KEY
GOES BACK TO THE
LAST SCHEDULE STEP
DONE KEY
EXITS AND SAVES
CHANGES MADE
TO SCHEDULE
DOWN ARROW
CHANGES TIME
AND
TEMPERATURES
UP ARROW
CHANGES TIME
AND
TEMPERATURES
AM
Go Back Next Done
Mon
Tue
Wed
Thu
Fri
Period
Occupied1 Unocc1
Occupied2 Unocc2

63-2674—01 8
10. When complete, press
DONE.
“Saved” appears on the
screen to indicate changes
are saved to the day(s)
indicated.
NOTE: To schedule remaining
days of the week, repeat
steps 1-10.
Reviewing One Day’s
Schedule
1. Press MORE.
2. Press SCHEDULE.
3. Use The Up and Down keys to change the flashing day.
4. Press VIEW.
5. Use The Up and Down keys to cycle through the scheduled periods.
6. To make changes:
a. Press EDIT.
b. Proceed to step 7 of the Editing Schedule section.
M22376
Mon
Tue
Wed
Thu
Fri
Sat
Saved

9 63-2674—01
Setting Time
1. Press MORE.
2. Press CLOCK
3. Use arrows to set current
time.
4. Press DONE.
IMPORTANT
The current day of the
week should already be
set correctly. If not, see
the Advanced Settings
section to set the day.
Operating the Thermostat
Setting “System & Fan”
SETTING SYSTEM
The System selections vary based on the HVAC system type.
HEAT — thermostat controls the heating system.
OFF — both heating and cooling systems are off.
COOL — thermostat controls the cooling system.
AUTO — thermostat controls both the heating and cooling systems based on temperature.
Done
M23042
PM
Mon
Sun
Go Back

63-2674—01 10
SETTING FAN
Fan selections vary based on the HVAC system type.
ON—fan runs continuously. Use this setting for improved air circulation or for more efficient
central air cleaning.
AUTO—fan is controlled by the system. Typically, the fan runs only during cooling or
heating operation.
LO—low fan speed (fan coil, PTAC application).
MED—medium fan speed (fan coil application).
HI—high fan speed (fan coil, PTAC application).
Setting Temperature Overrides
There are three temperature override options:
— Hold Temperature Until
— Override, and
— Holiday.
HOLD TEMPERATURE UNTIL
Holds the temperature temporarily until the time set by the user, or the next scheduled
period time:
1. Press an arrow key or the Override key. TEMPORARY SET TO appears on the
screen. The time defaults to the next scheduled period start time.
2. Use the Up and Down keys to change the desired temperature.

11 63-2674—01
NOTE: If HEAT or COOL begins to flash, your temporary setting is at, or beyond,
the deadband. The thermostat operates based on the override setting
throughout the hold time.
3. Press NEXT.
NOTE: The ability to change settings remains for approximately seven seconds.
Once neither the temperature nor the time continue to flash, you must
restart at step 1 to make changes.
4. Use the Up and Down keys
to set the desired time for
the thermostat to resume
the programmed schedule.
NOTE: The installer setup
can limit the length
of time for an over-
ride to 1–12 hours
beyond the current
time.
5. Press CANCEL to cancel
“Hold Temperature Until” and
resume the schedule.
System & Fan Override More
Tue
System
Heat
M23043
Occupied
PM
Fan Auto
Hold Until

63-2674—01 12
OVERRIDE
Changes temperature setting until the next period takes effect. For use during Unoccupied
periods.
1. Press OVERRIDE. The override settings default to those contained in the next
Occupied period.
NOTE: Changes are limited to those allowed by the lockout level.
2. Use the Up and Down keys to change the override time and temperature.
HOLIDAY
Changes temperature setting for a
designated number of days.
1. Press MORE.
2. Press HOLIDAY. The temper-
ature on the screen flashes.
3. Use the Up and Down
keys to change the desired
temperature for the duration
of the holiday.
4. Press NEXT. The screen
shows “Hold Until 1 Days”.
The number flashes.
System & Fan
Holiday
Cancel
Tue
System
Heat
M23044
UnOccupied
Fan Auto
Hold Until
Days

13 63-2674—01
5. Use the Up and Down keys to change the number of days desired for the thermostat
to override the schedule.
6. Press DONE.
NOTE: During a holiday, the word “Holiday” flashes.
7. To cancel the Holiday Override early, press CANCEL.
NOTE: When the number of Holiday Override days expires, the screen shows
“Following Schedule” to indicate that the Holiday Override has ended.
Fan Status Displayed on Main Screen
AUTO—fan is controlled by the system.
ON—fan is continuously on.
LO—fan is continuously on low fan speed.
MED—fan is continuously on medium fan speed.
HI—fan is continuously on high fan speed.
When the thermostat is running the fan, the fan blade symbol appears next to FAN to
indicate the thermostat has the fan on.
NOTES:
— If the mode is Occupied, fan control is On. The only thing that allows the fan to
turn off during occupied periods is a manual fan override from On to Auto.
— If the mode is Unoccupied, fan control is the same as with the Auto setting.
This is true even when the display indicates “On”.

63-2674—01 14
Replacing Batteries

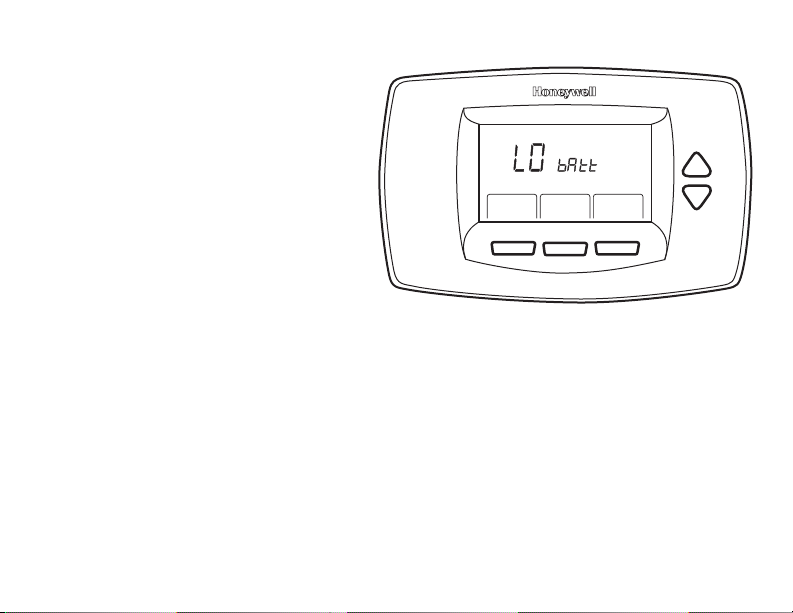

With proper power and connections, the
thermostat does not require batteries.
Thermostats with batteries provide a
warning when the batteries run low. This
warning flashes on the main screen for
approximately 30 days.
NOTES:
— If batteries are not replaced
when Low Battery warning is
flashing, the LO batt screen
displays continuously and
thermostat stops operating
until batteries are replaced.
— Despite the low battery indicator, it is recommended that you replace the
batteries once each year. Do this to prevent leakage and to prevent the
thermostat and HVAC system from shutting down due to lack of thermostat
battery power.
M22383

15 63-2674—01
Replace the batteries as follows:
1. Remove the thermostat
from the base by pulling it
straight out.
2. Install two new AA alkaline
batteries with proper
polarization.
NOTES:
— Always use AA
alkaline batteries.
— All programming
(Schedule, Date and
Time) information
is retained during
battery replacement.
M22384
WALL

63-2674—01 16
3. Place the thermostat back on
its base:
a. Align the terminal screw
blocks with the pins on the
back of the thermostat.
b. Push the thermostat
straight onto the base.
NOTES:
— After two minutes, the
device automatically
returns to the main
screen.
— To return to the main
screen before the two
minutes pass, press a
key.
M22259
BACK OF THERMOSTAT
BATTERY HOLDER
BATTERIES (2)

17 63-2674—01
Reading Remote Indoor Temperature
If connected to an installed remote
indoor temperature sensor, the
thermostat displays the indoor
temperature from the remote
sensor(s).
NOTE: When connected to an
installed remote indoor
temperature sensor, the
thermostat internal sensor
is not used.
ONE REMOTE INDOOR SENSOR
INSTALLED
If one remote indoor temperature
sensor is used, the screen showing
the Inside temperature reading
displays the temperature at the
indoor remote sensor location.
MULTIPLE REMOTE INDOOR SENSORS INSTALLED
If more than one remote indoor sensor is used, the screen showing the Inside temperature
reading displays the average of all the remote indoor sensors.
AM
System & Fan Override More
Fan Auto
Wed
System Auto
REMOTE INDOOR
TEMPERATURE READING
Occupied
Heat Off Cool
M23045

63-2674—01 18
Keys Locked
Some key control can be fully or
partially locked. When the
thermostat displays “Locked”, key
control is either fully or partially
locked.
NOTE: In order to change the key
lock setting, the user must
have details beyond the
scope of this document.
Fully Locked Keys
In this mode, the entire interface is
locked and not functional. The screen continuously displays “Locked”.
Partially Locked Screen
When partially locked:
— Pressing a locked key prompts the screen to indicate “Locked” for five to seven
seconds.
— Pressing an unlocked key with “Locked” shown removes “Locked” from the display.
— Holiday and Override options are available in all partial lockout levels.

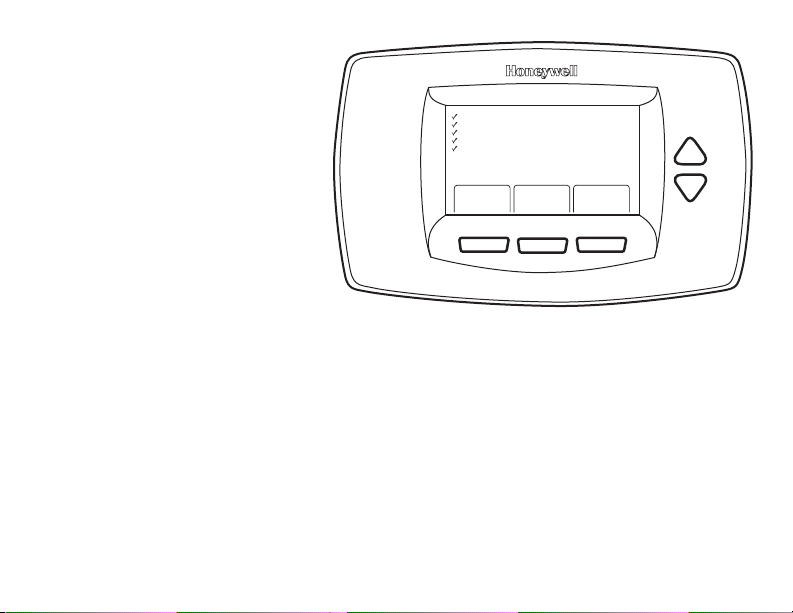

PM
System & Fan Override More
Fan Auto
Tue
System Auto
Locked
M25038
Occupied

19 63-2674—01
— Selecting HOLIDAY sets the temperature to the Unoccupied setting. The temperature
setting cannot be changed. The number of days to hold the holiday can be changed.
After this time, the next Occupied period switches back to the program settings.
— Selecting OVERRIDE sets the temperature to the Occupied setting. The temperature
setting cannot be changed. The period of time to hold the override can be changed.
After this time, the next Unoccupied period switches back to the program settings.
— To cancel the temperature override and follow the programmed schedule, press
CANCEL.
PARTIAL LOCKOUT 1
This mode locks out schedule and system changes.
— User can change the temperature setpoint and fan settings, but cannot change
schedule or system settings.
— The temporary changes last until next scheduled period. The screen displays that time.
PARTIAL LOCKOUT 2
This mode locks out schedule, system, and fan changes.
— User can change the temperature setpoint, but cannot change schedule, system, or fan
settings.
— The temporary temperature change lasts until next scheduled period. The screen
displays that time.
PARTIAL LOCKOUT 3
This mode locks out schedule, system, fan, and temperature setpoint settings:
— Users cannot make changes to the temperature setpoint or any schedule, system, or fan
settings.
— The only features available are HOLIDAY and OVERRIDE.

63-2674—01 20
Temperature Recovery
The thermostat is equipped with a
feature to eliminate guesswork
when setting a schedule. That is,
the user need not know the amount
of time for the HVAC system to
bring the space to temperature
(without overshoot) prior to the
scheduled time.The thermostat
manages that automatically.
Simply program the desired time to
have space at comfort temperature.
In addition, program temperature to
comfort temperature. The
thermostat activates the heating or
cooling at the proper time to reach the set temperature at the scheduled time.
NOTE: The setpoint changes gradually to use economical stages and avoid overshoot.
For example—the space will be occupied at 8:00 AM and the desired temperature is 70°F.
Set the Occupied1 period for 8:00 AM and 70°F. The thermostat turns on the heat prior to
8:00 AM to raise the temperature to 70°F by 8:00 AM.
The thermostat provides an alert that the heating or cooling system is coming on before a
scheduled time by displaying “Recovery” on the screen.
PM
System & Fan Override More
Fan Auto
Tue
System Auto
Recovery
M23048
Occupied
