Honeywell THX9000 Prestige HD User guide

Prestige™Thermostat
With wireless accessories
® U.S. Registered Trademark.
Copyright © 2008 Honeywell International Inc.
All rights reserved.
Control for up to 3 Heat/2 Cool heat pump systems or up to
2 Heat/2 Cool conventional systems.
DISCONNECT POWER BEFORE BEGINNING INSTALLATION. Can cause electrical
shock or equipment damage.
MERCURY NOTICE: If this product is replacing a control that contains mercury in a
sealed tube, do not place the old control in the trash. Contact your local waste
management authority for instructions regarding recycling and proper disposal.
Must be installed by a trained, experienced technician. Read these instructions
carefully. Failure to follow these instructions can damage the product or cause a
hazardous condition.
System
Installation
Guide
Français : voir la page 17 • Español: vea la página 33
Installation guide for:
• THX9000 Prestige HD and Prestige SD thermostats
• Wireless remote control
• Wireless outdoor air sensor

Prestige™ Installation Guide
2

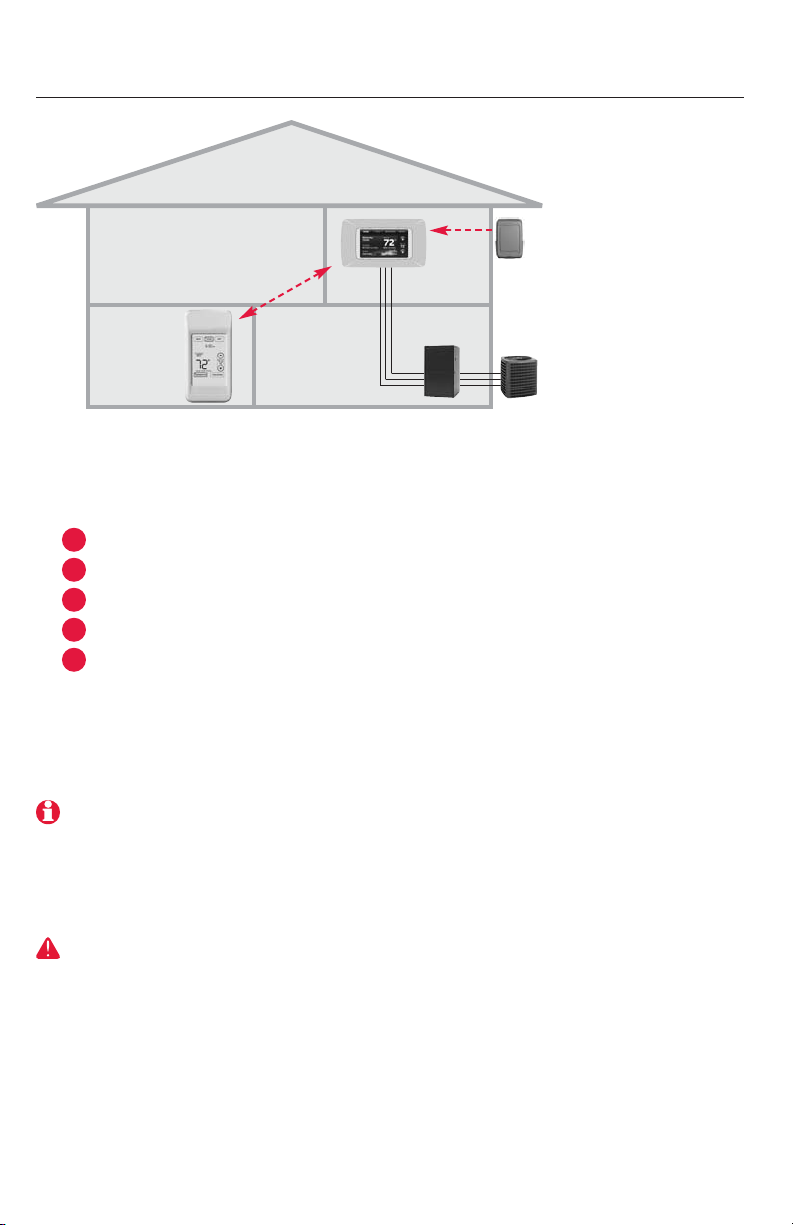

System installation at a glance
Thermostat
Outdoor
air sensor
Remote
control
Installation procedure
Mount and wire thermostat ........................................Pages 3-7
Customize thermostat (installer setup) ............................Page 8
Install batteries in wireless accessories ..........................Page 8
Link accessories to thermostat ................................Pages 9-10
Mount outdoor sensor ....................................................Page 11
To replace system components if needed, see page 14
2
5
4
3
1
DISCONNECT POWER BEFORE BEGINNING INSTALLATION. Can cause electrical
shock or equipment damage.
HVAC equipment
If you have more than one thermostat: Optional accessories must be linked
to each thermostat separately.

Français : voir la page 17 • Español: vea la página 33
3

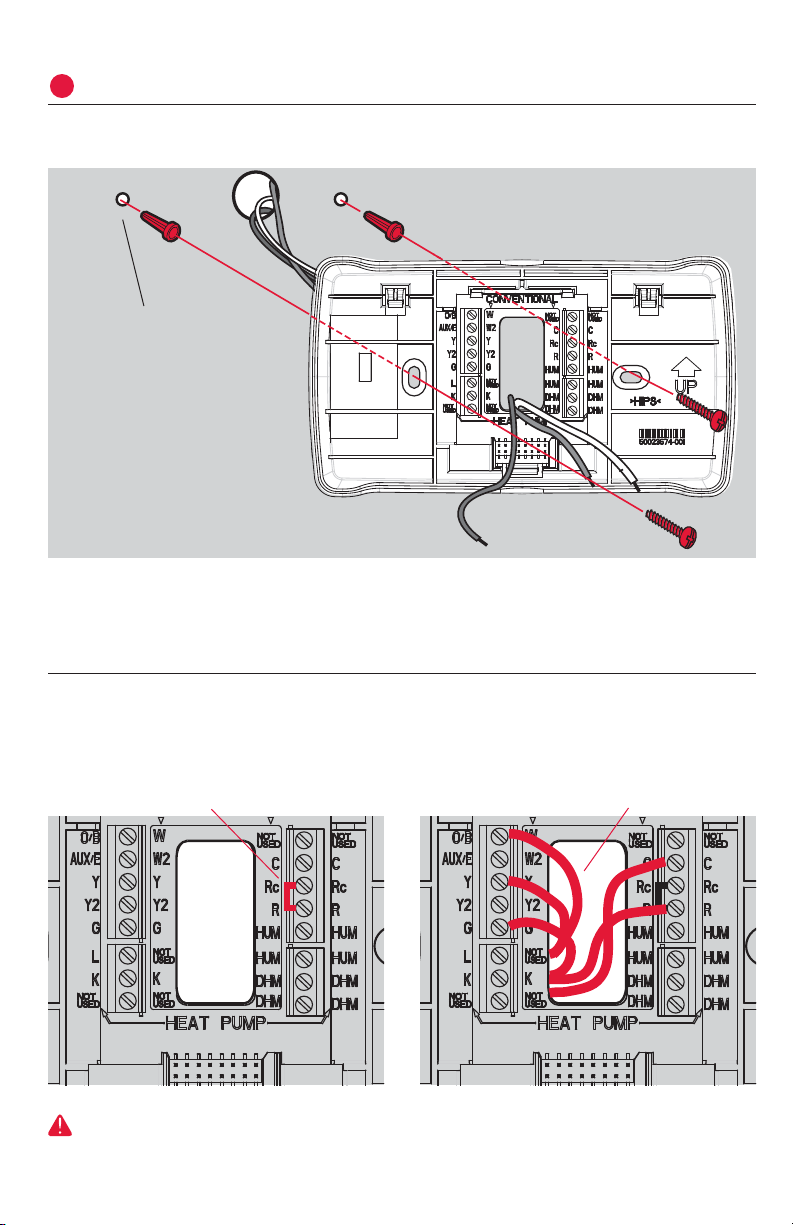

Mount and wire thermostat
1
Pull wiring through hole in wallplate and install as shown below.
Wiring
Wiring must comply with local electrical codes.
Drywall: 3/16” hole
Plaster: 7/32” hole
Wall anchor
Mounting screw
Strip 1/4” insulation and connect wires to screw terminals as shown below
(see wiring guides on following pages).
Factory-installed jumper System wiring

Prestige™ Installation Guide
4

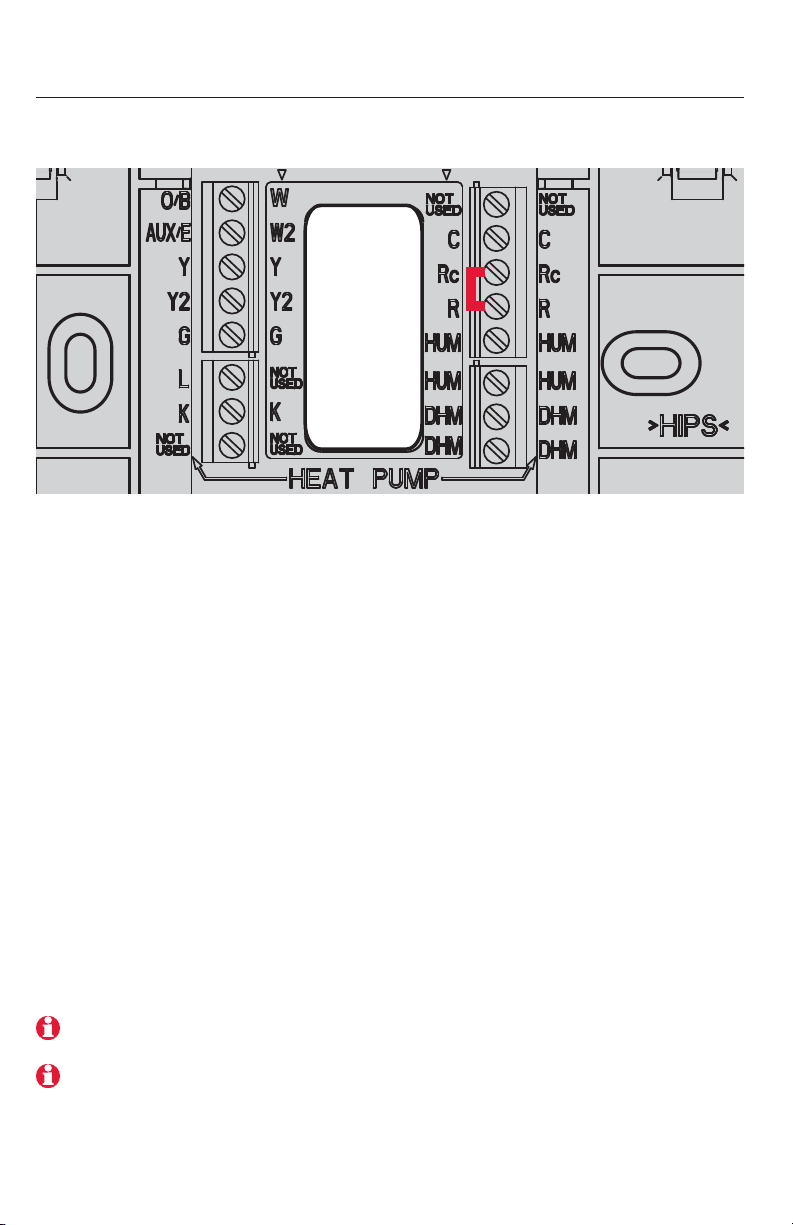

Wiring guide
See detailed wiring guides for specific system types on following pages.
Conventional Terminal Letters:
CCommon wire from secondary side of
cooling transformer.
Rc Cooling power. Connect to secondary
side of cooling system transformer.
RHeating power. Connect to secondary
side of heating system transformer.
WHeat relay (stage 1).
W2 Heat relay (stage 2).
YCompressor contactor (stage 1).
Y2 Compressor contactor (stage 2).
GFan relay.
KTHP9054 connection (see note below)
Heat Pump Terminal Letters:
CCommon wire from secondary side of
cooling system transformer.
Rc Cooling power. Connect to secondary
side of cooling system transformer.
RHeating power. Connect to secondary
side of heating system transformer.
O/B Changeover valve for heat pumps.
Aux/E Auxiliary/Emergency heat relay.
YCompressor contactor (stage 1).
Y2 Compressor contactor (stage 2).
GFan relay.
LHeat pump reset (powered continuously
when System is set to Em Heat; system
monitor when set to Heat, Cool or Off).
KTHP9054 connection (see note below)
Note: Use the Kterminal in place of the Yand Gterminals to provide full fan and com-
pressor control though a single wire. The K terminal must be connected to the THP9045
Wiresaver module (see page 14). The K terminal can not be used in heat-only applications.
Note: Do not connect wires to terminals marked “Not Used.”

Français : voir la page 17 • Español: vea la página 33
5
Conventional systems
System-specific wiring guides
1H/1C System (2 transformers)
C24VAC common
RPower (heating) [1]
Rc Power (cooling) [1, 2]
WHeat relay
YCompressor contactor **
GFan relay **
2H/2C System (1 transformer) [6]
C24VAC common
RPower [1]
Rc [R+Rc joined by jumper]
WHeat relay (stage 1)
W2 Heat relay (stage 2)
YCompressor contactor (stage 1) **
Y2 Compressor contactor (stage 2)
GFan relay **
2H/2C System (2 transformers) [6]
C24VAC common
RPower (heating) [1]
Rc Power (cooling) [1, 2]
WHeat relay (stage 1)
W2 Heat relay (stage 2)
YCompressor contactor (stage 1) **
Y2 Compressor contactor (stage 2)
GFan relay **
1H/1C System (1 transformer)
C24VAC common
RPower [1]
Rc [R+Rc joined by jumper]
WHeat relay
YCompressor contactor **
GFan relay **
Heat Only System [3]
C24VAC common
RPower [1]
Rc [R+Rc joined by jumper]
WHeat relay
Heat Only System With Fan [4]
C24VAC common
RPower [1]
Rc [R+Rc joined by jumper]
WHeat relay
GFan relay
Cool Only System [5]
C24VAC common
RPower [1]
Rc [R+Rc joined by jumper]
YCompressor contactor **
GFan relay **
See [notes] below.
** [See note on page 4]
[1] Power supply. Provide disconnect means and overload protection as required.
[2] Remove jumper (R to Rc) for systems with two transformers. Common connection
must come from cooling transformer.
[3] In Installer Setup, set system type to Heat Only, No Fan.
[4] In Installer Setup, set system type to Conventional with zero cooling stages.
[5] In Installer Setup, set system type to Conventional with zero heat stages.
[6] In Installer Setup, set system type to Conventional with 2 heat AND 2 cool stages.
[7] In Installer Setup, set changeover valve to O or B.
[8] In Installer Setup, set to Heat Pump with 1 compressor stage and no auxiliary heat stages.
[9] In Installer Setup, set to Heat Pump with 1 compressor stage and 1 auxiliary heat stage.
[10] In Installer Setup, set to Heat Pump with 2 compressor stages and no auxiliary heat stages.
[11] In Installer Setup, set to Heat Pump with 2 compressor stages and 1 auxiliary heat stage.
[12] “L” terminal sends a continuous output when thermostat is set to Em. Heat, and acts
as a system monitor when in Heat, Cool or Off modes.

Prestige™ Installation Guide
6
System-specific wiring guides
Heat pump systems
2H/2C Heat Pump [10]
C24VAC common
RPower [1]
Rc [R+Rc joined by jumper]
O/B Changeover valve [7]
YCompressor contactor (stage 1) **
Y2 Compressor contactor (stage 2)
GFan relay **
3H/2C Heat Pump [11]
C24VAC common
RPower [1]
Rc [R+Rc joined by jumper]
O/B Changeover valve [7]
Aux Auxiliary heat relay
YCompressor contactor (stage 1) **
Y2 Compressor contactor (stage 2)
GFan relay **
LRelay [12]
** [See note on page 4]
[1] Power supply. Provide disconnect means and overload protection as required.
[2] Remove jumper (R to Rc) for systems with two transformers. Common connection
must come from cooling transformer.
[3] In Installer Setup, set system type to Heat Only, No Fan.
[4] In Installer Setup, set system type to Conventional with zero cooling stages.
[5] In Installer Setup, set system type to Conventional with zero heat stages.
[6] In Installer Setup, set system type to Conventional with 2 heat AND 2 cool stages.
[7] In Installer Setup, set changeover valve to O or B.
[8] In Installer Setup, set to Heat Pump with 1 compressor stage and no auxiliary heat stages.
[9] In Installer Setup, set to Heat Pump with 1 compressor stage and 1 auxiliary heat stage.
[10] In Installer Setup, set to Heat Pump with 2 compressor stages and no auxiliary heat stages.
[11] In Installer Setup, set to Heat Pump with 2 compressor stages and 1 auxiliary heat stage.
[12] “L” terminal sends a continuous output when thermostat is set to Em. Heat, and acts
as a system monitor when in Heat, Cool or Off modes.
1H/1C Heat Pump [8]
C24VAC common
RPower [1]
Rc [R+Rc joined by jumper]
O/B Changeover valve [7]
YCompressor contactor **
GFan relay **
2H/1C Heat Pump [9]
C24VAC common
RPower [1]
Rc [R+Rc joined by jumper]
O/B Changeover valve [7]
Aux Auxiliary heat relay
YCompressor contactor **
GFan relay **
LRelay [12]
See [notes] below.

Français : voir la page 17 • Español: vea la página 33
7
System-specific wiring guides
Humidification systems
Bypass, flow-through humidifier (or
any humidifier that uses the system
transformer) [3]
Rc Power [1]
R[R+Rc joined by jumper] [2]
HUM1 Field jumper R to HUM 1 [5]
HUM2 Humidifier relay [5]
[1] Power supply. Provide disconnect means and overload protection as required.
[2] Remove jumper (R to Rc) for systems with two transformers. Common connection
must come from cooling transformer.
[3] If using a humidifier that is wired directly to the thermostat, set humidification control
to Wired in Installer Setup.
[4] If using a wireless adapter (THM4000R) with a TrueSTEAM humidifier, set humidification
control to Wireless in Installer Setup. Connect nothing to thermostat HUM terminals.
[5] Terminals are normally open dry contacts.
[6] In Installer Setup, set dehumidification setting to Whole House Dehumidifier.
[7] In Installer Setup, set dehumidification setting to Dehumidify with Air Conditioner.
[8] Terminals are normally closed dry contacts.
[9] Equipment must include dehumidification terminal for low-speed fan.
Steam humidifier (or any humidifier with
its own transformer) [3, 4]
Rc Power [1]
R[R+Rc joined by jumper] [2]
HUM1 Humidifier relay [5]
HUM2 Humidifier relay [5]
See [notes] below.
Dehumidification systems
A/C with low-speed fan [7]
Rc Power [1]
R[R+Rc joined by jumper] [2]
DHM1 Field jumper Rc to DHM 1 [8]
DHM2 Dehumidifier relay [8, 9]
Whole house dehumidifier [6]
Rc Power [1]
R[R+Rc joined by jumper] [2]
DHM1 Dehumidifier relay [5]
DHM2 Dehumidifier relay [5]
See [notes] below.

8
Prestige™ Installation Guide
Press MENU.
Customize thermostat (installer options)
2
MENU
Press ▼to scroll down, then press INSTALLER
OPTIONS. Enter security code when prompted.
Security code is the thermostat date code
(printed on back of wallplate). Or press
MENU > EQUIPMENT STATUS to find code.
Installer Options
Press CREATE SETUP to configure all system
settings one by one.
Press VIEW/EDIT to select a specific function
and make quick changes. (See complete
list of system settings on pages 12-13.)
Press INSTALLER TEST to run system tests. You
should always test the system after
making changes to settings.
Note: Press HELP for more
information on these and
other options.
Install batteries in wireless accessories
3
Remote control (optional) Outdoor air sensor (optional)
Install 3 fresh AA
batteries
Install 2 fresh AA
lithium batteries
HELP

9
Français : voir la page 17 • Español: vea la página 33
Press MENU.
Link wireless accessories to thermostat (optional)
4
MENU
Press ▼to scroll down, then press INSTALLER
OPTIONS. Enter security code when prompted.
Security code is the thermostat date code
(printed on back of wallplate). Or press
MENU > EQUIPMENT STATUS to find code.
Installer Options
Press ▼to scroll down, then press WIRELESS
DEVICE MANAGER.
Wireless Device
Manager
Press ADD DEVICE to start timer, then press
buttons on wireless accessories to link
them to the thermostat (see next page).
Add Device
Timer will re-set to 15 minutes after each
accessory is linked. Thermostat will exit
link mode after 15 minutes if there is no
activity.
Press VIEW CONNECTED DEVICES to verify that all
wireless accessories have been linked to
the thermostat
Press DONE when finished.
Note: If you are installing more than one thermostat, repeat steps above and on page 10
for each thermostat.
If you are installing multiple thermostats, you must press DONE to exit “Add Device” mode
at each thermostat before linking wireless accessories to the next thermostat.
View Connected Devices

Link remote control to thermostat (optional)
1Make sure the thermostat displays
the “Add Device” timer (see page 9).
2Press CONNECT at the remote. There will
be a short delay as the remote seeks
a signal from the thermostat.
3When the screen displays
“Connected,” press DONE.
4Press NO at the next screen to save
and exit. (Or press YES and repeat
steps 1-4 to link another thermostat.)
WIRELESS SETUP
CONNECT
Link outdoor sensor to thermostat (optional)
1Make sure the thermostat displays
the “Add Device” timer (see page 9).
2Press the CONNECT button on the back
of the sensor.
3Check thermostat to verify that the
outdoor sensor is working. After
about 15 seconds, the thermostat
should display outdoor temperature
and humidity.
Press and release
10
Prestige™ Installation Guide
YES NO
CONNECT MORE?
The linking procedure at the remote may time
out if there is no keypress within 30 minutes.
To begin again, press and hold the blank
space (or arrow if present) in the lower right
corner of the screen until the display changes
(about 3 seconds).
Press to link to
another thermostat
Press to save
and exit

11
Français : voir la page 17 • Español: vea la página 33
Place sensor securely in bracket,
facing away from wall
Mount the sensor on a vertical exterior
wall, at least 6 inches below any over-
hang. Choose a location protected
from direct sunlight.
Install outdoor sensor (optional)
5

Installer setup tables
12
Prestige™ Installation Guide
Setup functions (factory default setting listed, other options available)
100 Language English
110 Zone number Not zoned
112 Device name Thermostat
130 Date year 2008
140 Date month June
150 Date day 15
160 Schedule options Programmable
165 Restore Energy Star No
172 System selection Conventional
174 Compressor stages 1
176 Heat stages 1
180 Fan operation System (gas/oil/heat)
190 Reversing valve O/B on Cool
200 Backup heat Electric
210 External fossil fuel Yes
220 Compressor stage 1 cycle rate 3
230 Compressor stage 2 cycle rate 3
240 Heat stage 1 cycle rate (Aux) 5
250 Heat stage 2 cycle rate (Aux 2) 5
260 Heat stage 3 cycle rate 5
281 Display inactive backlight level 5 (color models only)
285 Display contrast 5 (grayscale models only)
300 Changeover Manual
310 Deadband 2° F
320 Temperature display Fahrenheit
330 Daylight savings time Auto change: On
342 Outdoor temperature sensor? No
345 Dual-fuel heat pump control Balance point + droop
346 Dual-fuel upstage timer 60 minutes
350 Compressor lockout (balance point) Off
360 Auxiliary lockout Off
365 Discharge temperature sensor? No
366 Zoning discharge high limit 160° F (71° C)
367 Zoning discharge low limit 40° F (4.5° C)
368 Staging discharge high limit 110° F (43.5° C)
369 Staging discharge low limit 55° F (13.0° C)
371 Humidification equipment None
372 Indoor humidity control Off
374 Humidifier fan action Humidify only with fan
379 Dehumidification equipment None
380 Indoor dehumidification control None
383 Overcooling limit 3° F (1.5° C)

13
Français : voir la page 17 • Español: vea la página 33
Setup functions (factory default setting listed, other options available)
384 Dehumidification fan control Forces fan on
390 Dehumidification away mode Off
391 Away mode fan operation Automatic
392 Away mode low temp. setting 76° F (24.5° C)
393 Away mode high temp. setting 85° F (29.5° C)
394 Away mode dehumidification 65% relative humidity
500 Reminder: Furnace filter Off
502 Furnace filter runtime counter Count heat and cool
510 Reminder: Humidifier pad Off
520 Reminder: UV bulb Off
530 Adaptive Intelligent Recovery On
540 Number of schedule periods 4
580 Minimum compressor off time 5 minutes
600 Maximum heat range 90° F (32° C)
610 Minimum cool range 60° F (15.5° C)
630 Minimum compressor off time Off
640 Clock format 12-hour
650 Extended fan on time (heat) Off
660 Extended fan on time (cool) Off
670 Keypad lock Unlocked
680 Temp. control (heat) Standard
690 Temp. control (cool) Standard
700 Temperature display offset No offset
701 Humidity display offset No offset
702 Outdoor temp. display offset No offset
703 Outdoor humidity display offset No offset
710 RESTORE FACTORY DEFAULTS No
Customer contact information (optional, but recommended)
1100 Dealer name Your company name
1150 Dealer phone number Your telephone contact
1200 Dealer email address Your email address
1250 Dealer website Your web site
Installer setup tables

14
Prestige™ Installation Guide
Replacing system components
THP9045 Wiresaver installation guide
W
RC
K
R
Y
G
C
Thermostat THP9045
Wiresaver
HVAC
equipment
Thermostat
After installing a new thermostat, you must re-link all accessories to the
new thermostat, as described below.
1Install and wire new thermostat (see pages 3-7)
2Customize new thermostat (see page 8)
3Link wireless accessories (see pages 9-10)
At the remote control:
• Press and hold the blank space (or arrow if present) in the lower right
corner of the screen until the display changes (see page 10).
• Press REMOVE , then YES to disconnect from old thermostat.
• Follow the procedure on page 10 to link to new thermostat.
At the outdoor air sensor:
• Press the CONNECT button to link to the new thermostat (see page 10).
4Press DONE at the thermostat.
Remote control & outdoor sensor
To replace a remote control or outdoor air sensor, install batteries and
follow the procedures on pages 9-10 to link it to the thermostat.

15
Français : voir la page 17 • Español: vea la página 33
Specifications & replacement parts
Operating Ambient Temperature
Thermostat: 32 to 120° F (0 to 48.9° C)
Remote control: 32 to 120° F (0 to 48.9° C)
Outdoor air sensor: -40 to 140° F (-40 to 60° C)
Operating Relative Humidity
Thermostat: 5% to 90% (non-condensing)
Remote control: 5% to 90% (non-condensing)
Outdoor air sensor: 0% to 100% (condensing)
Physical Dimensions (height, width, depth)
Thermostat: 3-9/16 x 5-13/16 x 1-1/2 inches (91 x 147 x 38 mm)
Outdoor air sensor: 5 x 3-1/2 x 1-11/16 inches (127 x 89 x 43 mm)
Electrical Ratings
Terminal Voltage (50/60 Hz) Max. Current Rating
W(heating) 18 to 30 VAC 1.00A
Y(cooling) 18 to 30 VAC 1.00A
G(fan) 18 to 30 VAC 0.60A
O/B (changeover) 18 to 30 VAC 0.60A
W2 (heating) 18 to 30 VAC 0.60A
Y2 (cooling) 18 to 30 VAC 0.60A
Aux/E (Auxiliary) 18 to 30 VAC 1.00A
L(Output) 18 to 30 VAC 0.60A
KN/A N/A
HUM 1 (humidifier) 30 VAC max. 0.50A
HUM 2 (humidifier) 30 VAC max. 0.50A
DHM 1 (dehumidifier) 30 VAC max. 0.50A
DHM 2 (dehumidifier) 30 VAC max. 0.50A
Accessories & Replacement Parts
Item Part Number
Wireless adapter THM4000R1000
Remote control REM5000R1001
Outdoor air sensor C7089R1013
Cover plate (covers marks left by old thermostats) 50028399-001
Wire saving module THP9045A1007

16
Prestige™ Installation Guide
Regulatory information
FCC Compliance Statement (Part 15.19) (USA only)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1 This device may not cause harmful interference, and
2 This device must accept any interference received, including interference that may cause
undesired operation.
FCC Warning (Part 15.21) (USA only)
Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
FCC Interference Statement (Part 15.105 (b)) (USA only)
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Thermostats and outdoor sensor
To comply with FCC and Industry Canada RF exposure limits for general population/ uncon-
trolled exposure, the antenna(s) used for these transmitters must be installed to provide a sep-
aration distance of at least 20 cm from all persons and must not be co-located or operating in
conjunction with any other antenna or transmitter.
Remote control
This portable transmitter with its antenna complies with FCC and Industry Canada RF
exposure limits for general population/uncontrolled exposure.
Section 7.1.5 of RSS-GEN
Operation is subject to the following two conditions:
1 this device may not cause interference, and
2 this device must accept any interference, including interference that may cause undesired
operation of the device.

Thermostat Prestige™
Avec accessoires sans fil
® Marque de commence enregistrée aux États-Unis.
Copyright © 2008 Honeywell International Inc.
Tous droits réservés.
Régulation de thermopompes offrant jusqu’à 3 étages de chauffage et 2 étages
de refroidissement ou de systèmes classiques offrant jusqu’à 2 étages de
chauffage et 2 étages de refroidissement.
COUPER L’ALIMENTATION ÉLECTRIQUE AVANT D’EFFECTUER LE
RACCORDEMENT. Peut provoquer des chocs électriques ou endommager le matériel.
AVIS SUR LE MERCURE : Si le nouveau thermostat remplace un ancien régulateur
contenant un contact à mercure, ne pas mettre l’ancien régulateur aux poubelles.
Communiquer avec le service local de cueillette des déchets pour obtenir de
l’information sur le recyclage ou sur la bonne façon de disposer d’un ancien régulateur
contenant un contact à mercure.
Doit être installé par un technicien d’expérience ayant reçu la formation
pertinente. Lire attentivement les instructions. Le fait de ne pas les suivre risque
d’endommager le produit ou de constituer un danger.
Guide
d’installation
du système
Français : voir la page 17 • Español: vea la página 33
Guide d’installation pour :
• Thermostat THX9000 Prestige haute définition et définition standard
• Télécommande sans fil
• Capteur d’air extérieur sans fil

18
Prestige™ Installation Guide
Installation du système en un coup d’oeil
Thermostat
Capteur d’air
extérieur
Télécommande
Installation
Installation et raccordement du thermostat ..........Pages 19-23
Personnalisation du thermostat
(mode de configuration par l’installateur)......................Page 24
Insertion des piles dans les accessoires sans fil ..........Page 24
Connexion des accessoires au thermostat............Pages 25-26
Installation du capteur extérieur ..................................Page 27
Pour remplacer les composants du système au besoin, voir la page 30
2
5
4
3
1
COUPER L’ALIMENTATION ÉLECTRIQUE AVANT D’EFFECTUER LE
RACCORDEMENT. Peut provoquer des chocs électriques ou endommager le matériel.
Matériel de CVCA
S’il y a plus d’un thermostat : Les accessoires en option doivent être liés à chaque
thermostat séparément.

19
Français : voir la page 17 • Español: vea la página 33
Installation et raccordement du thermostat
1
Faire passer les fils par l’ouverture dans la plaque murale et installer le
thermostat comme sur l’illustration ci-dessous.
Raccordement électrique
Tout le câblage doit être conforme aux codes locaux de l’électricité.
Placoplâtre : Ouverture
de 3/16 po (0.19 mm)
Plâtre : Ouverture de
7/32 po (0.22 mm)
Cheville d’ancrage
Vis de fixation
Dénuder l’isolant sur 1/4 po (0.25 mm) puis raccorder les fils aux bornes à
vis comme le montre l’illustration ci-dessous (consulter le guide de
raccordement à la page suivante).
Cavalier installé en usine Raccordement du système

20
Prestige™ Installation Guide
Guide de raccordement
Voir les schémas de raccordement détaillés en fonction du type de système
aux pages suivantes.
Identification des bornes pour systèmes
classiques :
CFil commun du côté secondaire du
transformateur du système de
refroidissement
Rc Alimentation électrique pour le
refroidissement. Raccorder au côté
secondaire du transformateur du
système de refroidissement.
RAlimentation électrique pour le
chauffage. Raccorder au côté
secondaire du transformateur du
système de chauffage
WRelais de chauffage (étage 1)
W2 Relais de chauffage (étage 2)
YContacteur du compresseur (étage 1)
Y2 Contacteur du compresseur (étage 2)
GRelais de ventilateur
KConnexion du THP9054 (voir la remarque
ci-dessous)
Identification des bornes pour
thermopompes :
CFil commun du côté secondaire du
transformateur du système de
refroidissement.
Rc Alimentation électrique pour le
refroidissement. Raccorder au côté
secondaire du transformateur du
système de refroidissement.
RAlimentation électrique pour le
chauffage. Raccorder au côté
secondaire du transformateur du
système de chauffage
O/B Vanne d’inversion pour thermopompes
Aux/E Relais de chauffage auxiliaire/
d’urgence
YContacteur du compresseur (étage 2)
Y2 Contacteur du compresseur (étage 2)
GRelais de ventilateur
LRéarmement de la thermopompe (ali-
menté en continu lorsque le système est
réglé au chauffage d’urgence; moniteur
système lorsqu’il est réglé pour le
chauffage, le refroidissement ou à l’arrêt)
KConnexion du THP9054 (voir la remarque
ci-dessous)
Remarque : Utiliser la borne Kplutôt que les bornes Yet Gpour assurer la commande
complète du ventilateur et du compresseur au moyen d’un seul fil. La borne K doit être
raccordée au module Wiresaver THP9045 (voir la page 46). La borne K ne peut pas être
utilisée dans les applications pour chauffage seulement.
Remarque : Ne pas raccorder de fils aux bornes marqués «Not in use» (inutilisé).
