ENGLISH INSTALLATION AND USER‟S MANUAL
FRENCH NOTICE D‟INSTALLATION ET D‟UTILISATION
ITALIAN MANUALE D‟ISTRUZIONE

2
INSTALLATION AND USER‟S MANUAL
CONTENT
INTRODUCTION 03
SAFETY PRECAUTION 03
SPECIFICATION 05
INSTALLATION (VENT OUTSIDE) 06
INSTALLATION (VENT INSIDE) 10
DESCRIPTION OF COMPONENTS 11
OPERATION 11
MAINTENANCE 13
TROBULESHOOTING 14
CONFORMITY WITH DIRECTIVES 15
ENVIRONMENTAL PROTECTION 15

3
INTRODUCTION
Thank you for choosing this cooker hood.
This instruction manual is designed to provide you with all required
instructions related to the installation, use and maintenance of the appliance.
In order to operate the unit correctly and safety, please read this instruction
manual carefully before installation and usage.
The cooker hood uses high quality materials, and is made with a streamlined
design. Equipped with large power electric motor and centrifugal fan, it also
provides strong suction power, low noise operation, non-stick grease filter and
easy assembly installation.
By placing the marking on this product, we declare, on our own
responsibility, compliance to all of European safety, health and environmental
requirements stated in the legislation for this product.
SAFETY PRECAUTION
Never let the children operate the machine.
The cooker hood is for home use only, not suitable for barbecue, roast
shop and other commercial purpose.
The cooker hood and its filter should be clean regularly in order to
keep in good working condition.
Clean the cooker hood according to the instruction manual and keep
the unit from danger of burning.
Forbid the direct baking from the gas cooker.
Please keep the kitchen room a good convection.
Before connecting this appliance check that the power supply cord is
not damaged. A damage supply cord must be replaced by qualified
service personnel only.
There shall be adequate ventilation of the room when the range hood
is used at the same time as appliances burning gas or other fuels;
The air must not be discharged into a flue that is used for exhausting
fumes from appliances burning gas or other fuels;
Regulations concerning the discharge of air have to be fulfilled.
Children should be supervised to ensure that they do not play with the
appliance.
Do not flambé under the range hood.
The range hood is not intended to be installed over a hob having more
than four hob elements

4
Electrical Shock Hazard
 Only plug this unit into a properly earthed outlet. If in doubt seek
advice from a suitably qualified engineer.
 Failure to follow these instructions can result in death, fire, or
electrical shock.

5

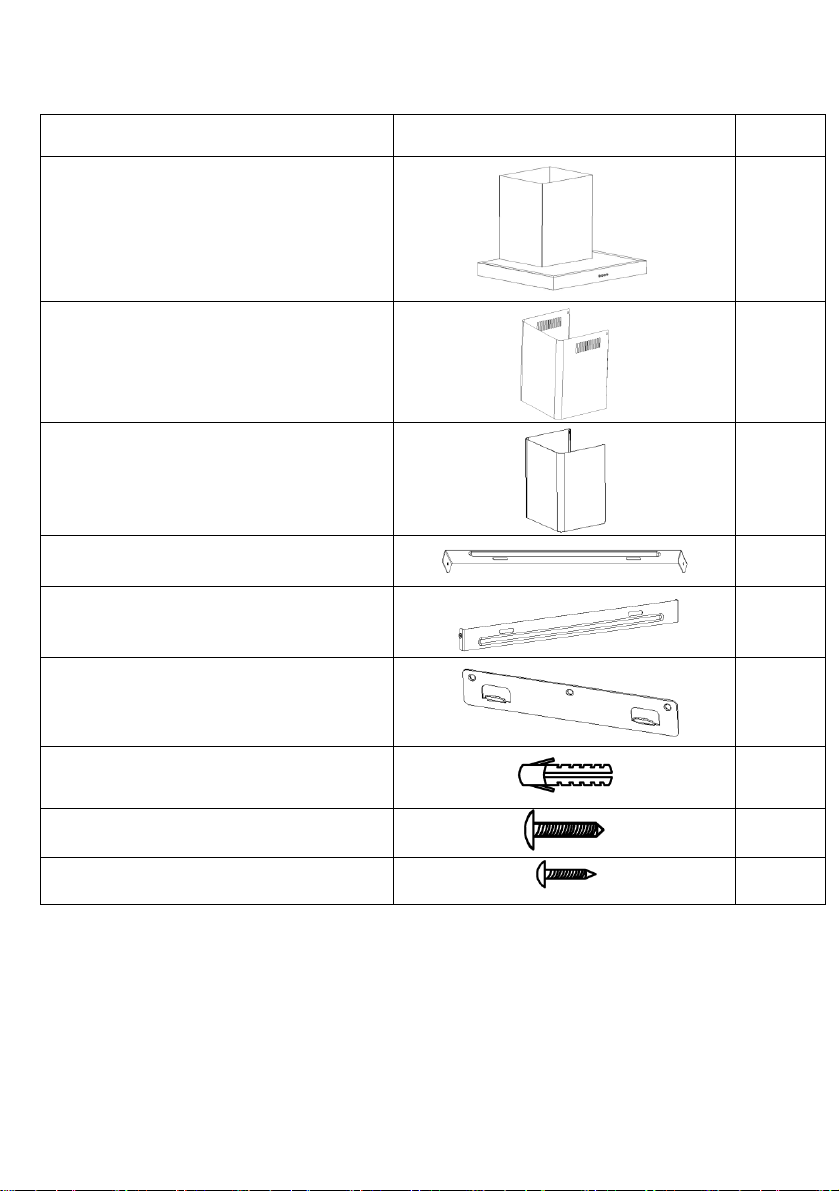

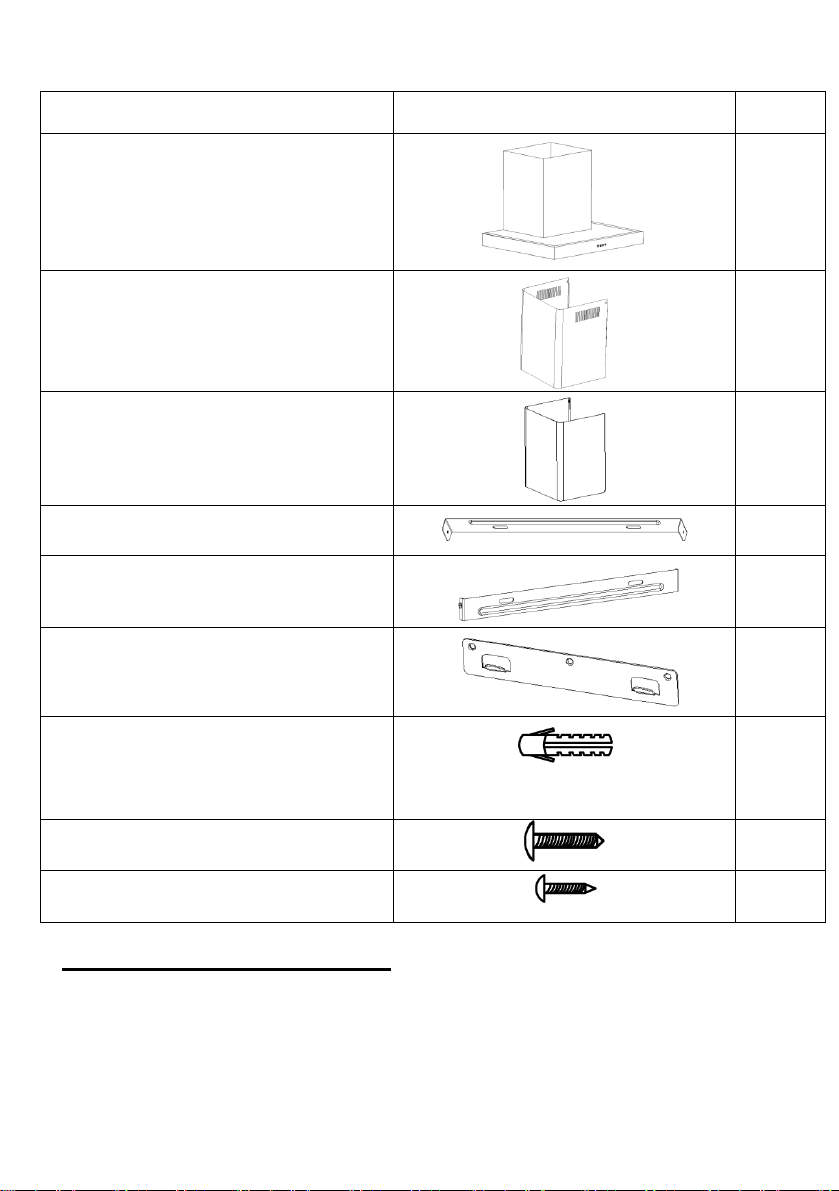

Standard Installation Accessories List
Spec.
Illustration Picture
Qty
Casing
1
Upper Chimney
1
Lower Chimney
1
Lower chimney bracket
1
Upper chimney bracket
1
Hanging Board
1
φ8 rawl plugs
φ8×φ6 white color
9
Screws
ST4.0×30
9
φ7.2screws
ST4.0×8
2

6
INSTALLATION （ wall mounting ）

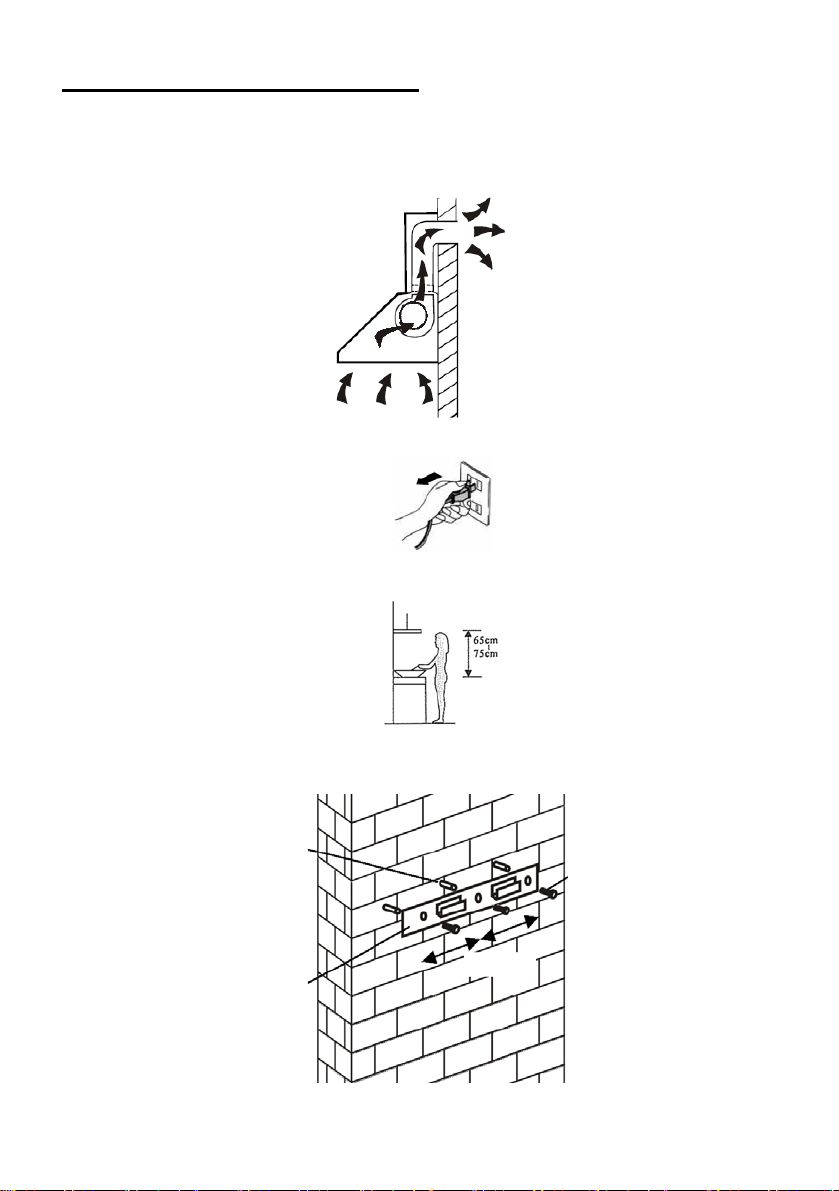

If you have an outlet to the outside, your cooker hood can be connected as
below picture by means of an extraction duct (enamel, aluminum, flexible pipe
non flammabe with an interior diameter of 150mm)
1. Before installation, turn the unit off and unplug it from the outlet.
2. The cooker hood should be placed at a distance of 65~75cm above
the cooking plane for best effect.
3. Drill 3 x 8mm holes to accommodate the bracket. Screw and tighten
the bracket onto the wall with the screws provided.
Wall plug
Wall bracket 107.5mm
Screw(4mm x 30mm)

7
4. Leave up the cooker hood and hang onto the wall bracket hook.

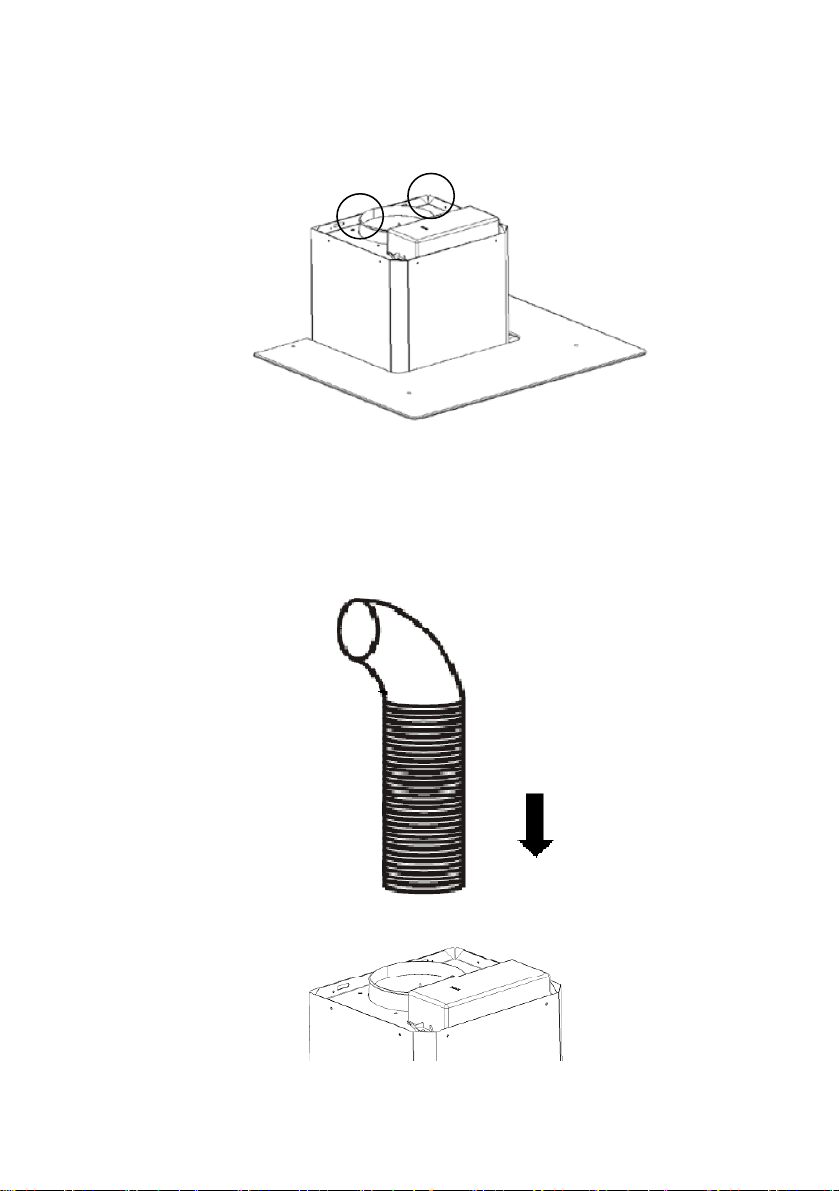

5. Fix the one-way-valve to the air outlet of the cooker hood. Then,
attached the exhaust pipe onto the one-way-valve as shown below.
Exhaust pipe
Cooker hood

8
6. i. Place the glass in appropriate position on the top the cooker
hood.
ii. Fix with 4 screws and washer. In order to avoid the glass
cracking, please do not tighten the screws too strongly.

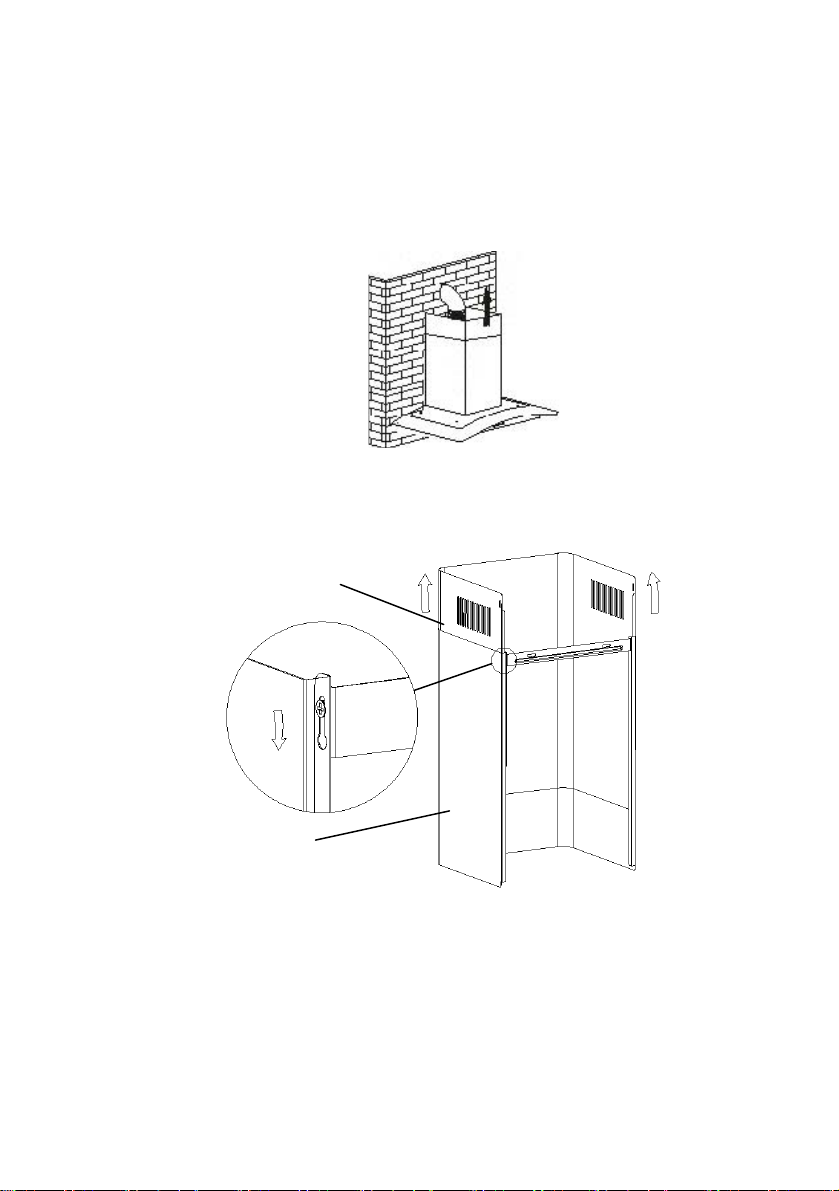

i. By Put the inner chimney into outer chimney .Then pulling out
the inner chimney upwards. Adjust to reach the height required.
ii. Sliding the chimney to adjust the chimney height. When the
height you required is reached, then hang the fixing hole to the fixing
screws as showed in below pictures.
Inner chimney
Outer chimney

9

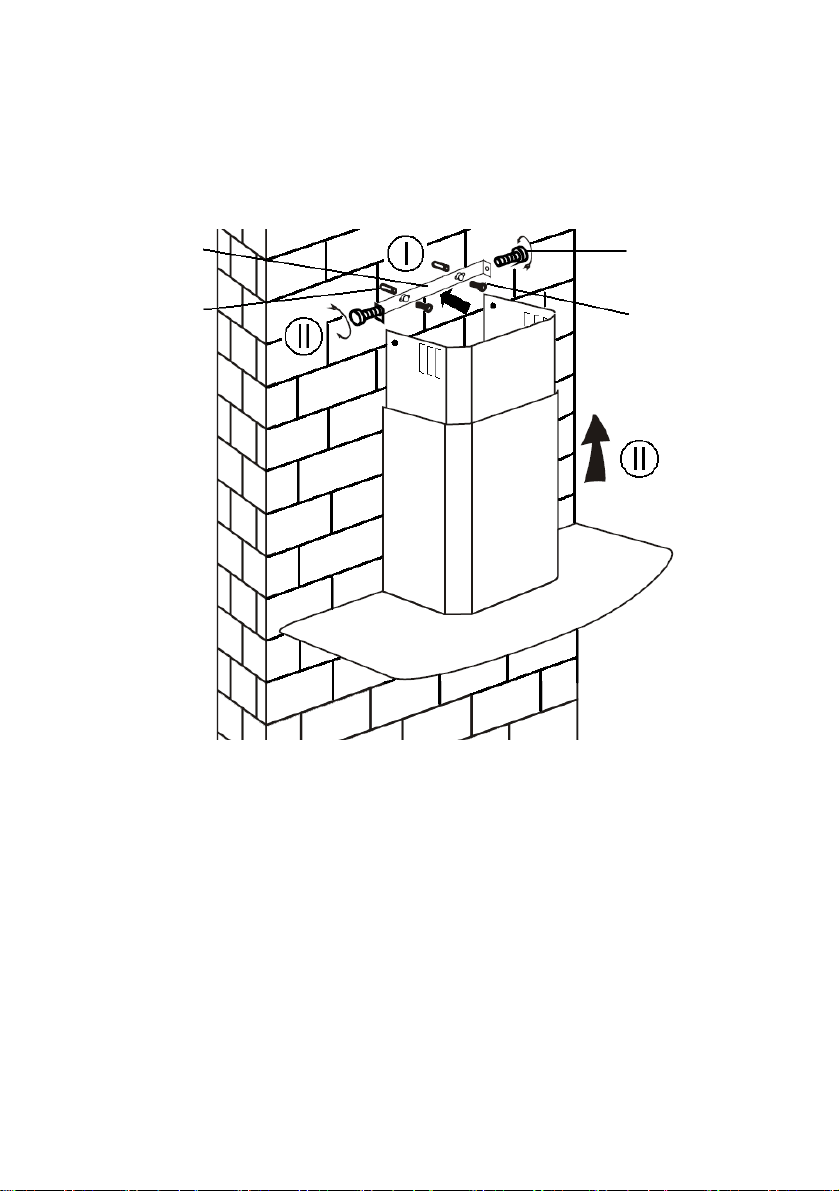

8. i. Drill 2 x 8mm holes to accommodate the plate II. Screw and
tighten the plate II onto the wall with 2 screws provided.
ii. Assembly the chimney onto the unit and fix it with 2 screws.
Plate II
Wall plug
Screw
4mm x 8mm
Screw
(4mm x 30mm)

10
INSTALLATION (VENT INSIDE)
If you do not have an outlet to the outside, exhaust pipe is not required and
the installation is similar to the one show in section “INSTALLATION (VENT
OUTSIDE)”.

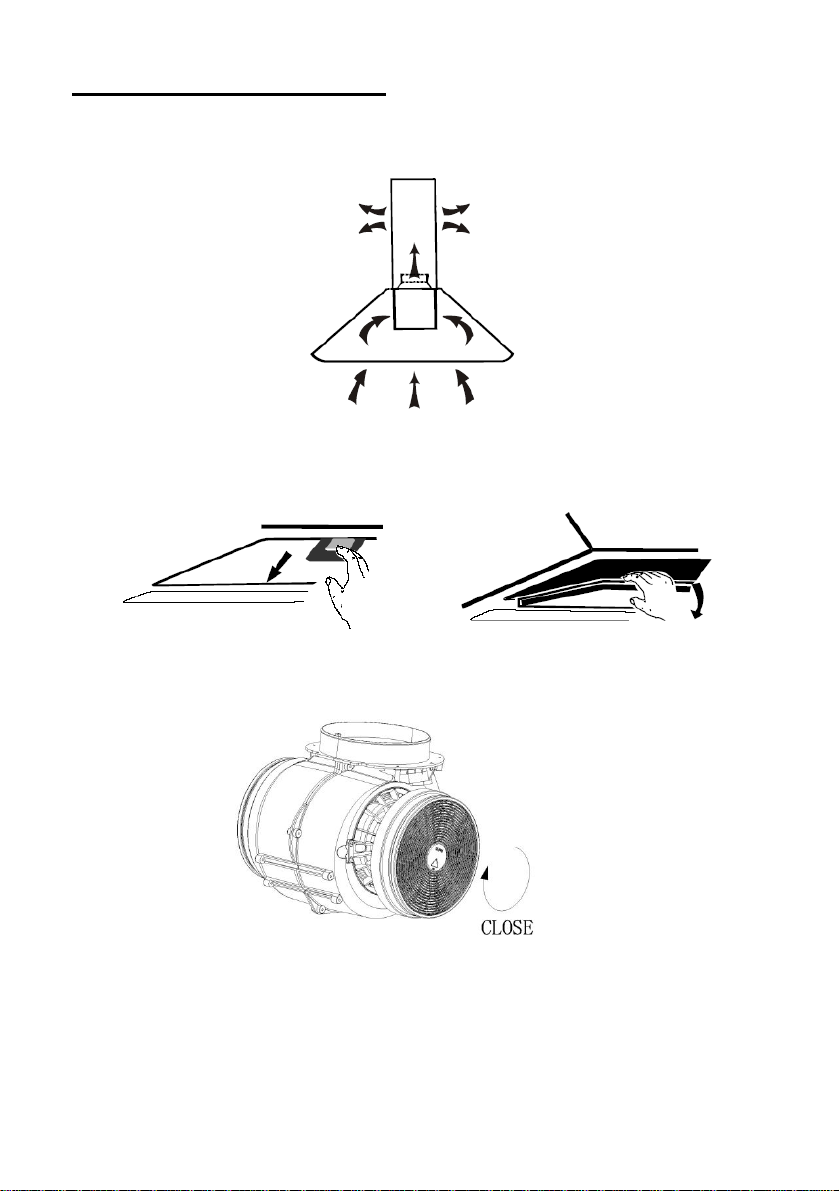

Activated carbon filter can be used to trap odors.
In order to install the activated carbon filter, the grease filter should be
detached first. Press the lock and pull it downward.
Plug the activated carbon filter into the unit and turn it in clockwise direction.
Repeat the same on the other side.
NOTE:
oMake sure the filter is securely locked. Otherwise, it would loosen and
cause dangerous.
oWhen activated carbon filter attached, the suction power will be
lowere

11
DESCRIPTION OF COMPONENTS
OPERATION

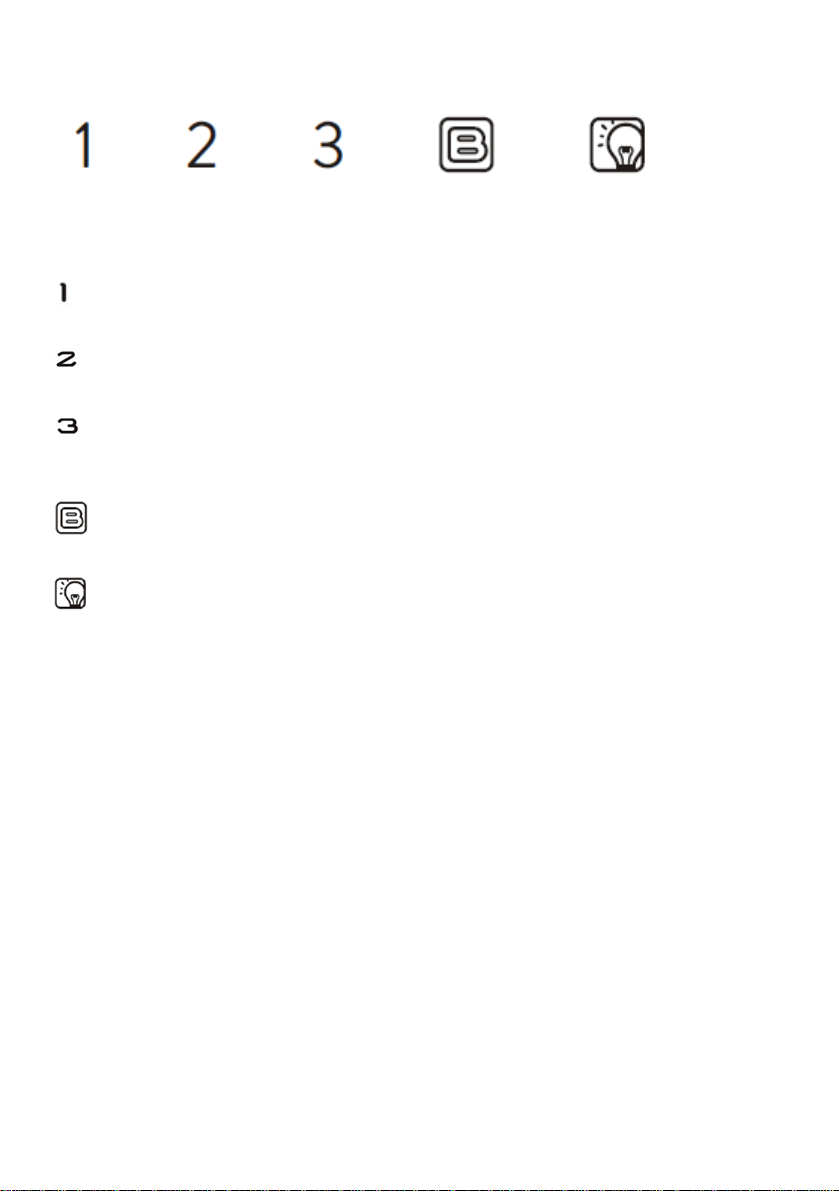

Low Speed button 1
It‟s used for Ventilation on the kitchen. It is suitable for simmering and
cooking which do not make much steam.
Medium Speed button 2
Airflow speed is ideally for ventilation in standard cooking operation.
High Speed button 3
When high density of smoke or steam produced, press high-speed button
for highest effective ventilation.
Light button
NOTE: If Low / Medium / High speed buttons are press at the same time,
the unit will only operate at the highest speed.

12

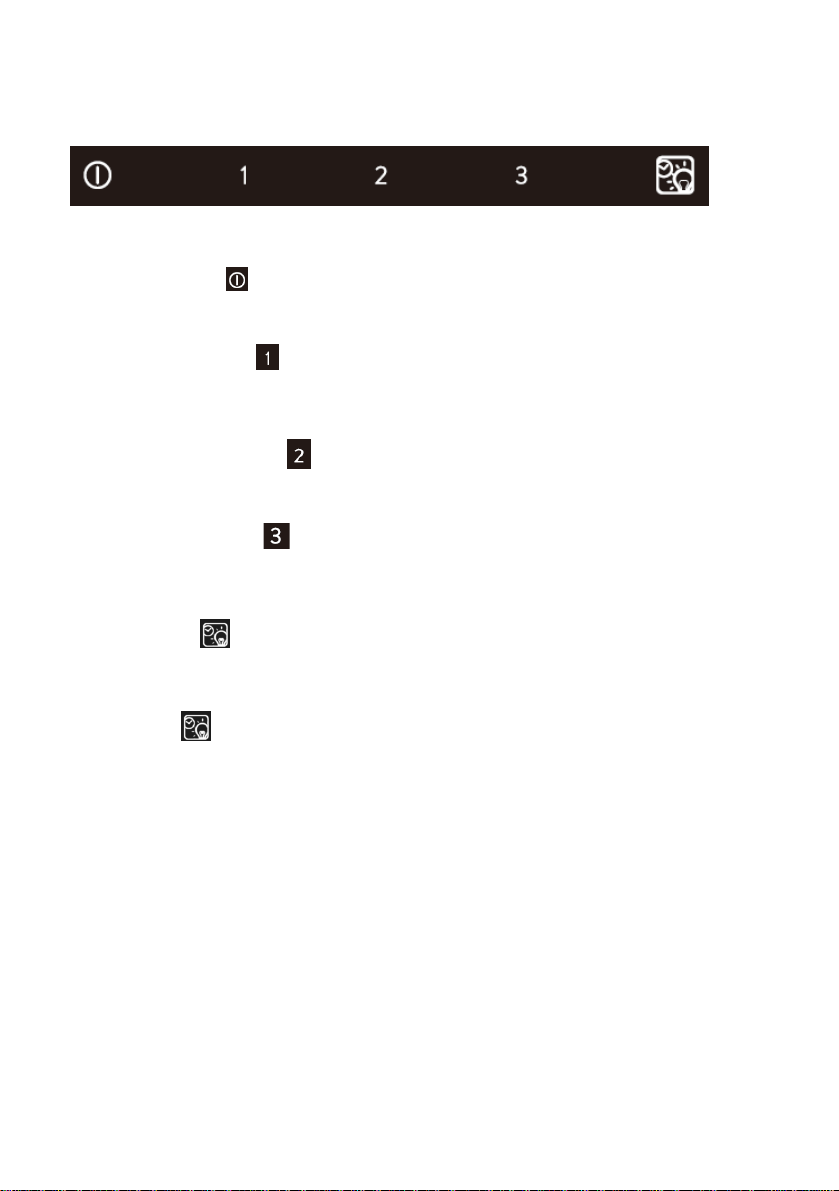

ON/OFF button
Pressing 1-2 seconds to switch on/off the cooker hood.
Low Speed button
It‟s used for Ventilation on the kitchen. It is suitable for simmering and
cooking which do not make much steam.
Medium Speed button
Airflow speed is ideally for ventilation in standard cooking operation.
High Speed button
When high density of smoke or steam produced, press high-speed button
for highest effective ventilation.
Light button
Short press the light/timer button ( 1 second) to switch on or switch off the
light.
Quick Timer
.Keep pressing the Light/timer button for 2-3 seconds to switch on the
quick timer.
The working speed button will become flashing, the quick timer will last for
5 seconds.
When the count down finish, there will be „bit‟sounds for 5 seconds.
To cancel the quick timer, press Light/Timer button again or press the
ON/OFF button.

13
STANDBY MODE.
After plug in, all lighting, system in STANDBY MODE.
Low Speed button
cooking which do not make much steam.
Medium Speed button
Airflow speed is ideally for ventilation in standard cooking operation.
High Speed button
When high density of smoke or steam produced, press high-speed button
for high effective ventilation.
Booster button
Depress this button to enter into highest speed and again to turn off motor.
Light button

14
MAINTENANCE
Before cleaning switch the unit off and pull out the plug.
I. Regular Cleaning
Use a soft cloth moistened with hand-warm mildly soapy water or
household cleaning detergent. Never use metal pads, chemical, abrasive
material or stiff brush to clean the unit.
II. Monthly Cleaning for Grease Filter
ESSENTIAL: Clean the filter every month can prevent any risk of fire.
The filter collects grease, smoke and dust…... so the filter is directly
affecting the efficiency of the cooker hood. If not cleaned, the grease
residue (potential flammable) will saturate on the filter. Clean it with
household cleaning detergent.
III. Annual Cleaning for Activated Carbon Filter
Apply SOLELY to unit that installed as a recirculation unit (not vented to
the outside). This filter traps odors and must be replaced at least once a
year
depending on how frequent the cooker hood used.
IV. Changing a light bulb
Remove the screws on the glass, take off the hood glass. Find the
bulb that requires replacement, you will find it located in the light
fixture which is inside the exposed section of the canopy.
Disconnect the light wiring point and remove the bulb holders and
wiring from the hood. Important: It‟s not possible to replace the bulbs
individually, it will be necessary to obtain the bulbs, bulb holders and
wiring as a complete part. (LED light: MAX 1.5W)
Fit the replacement bulbs, bulb holders and wiring in the same
manners as the originals. Then reconnect the light wiring point.

15
Refit the hood glass and fasten the glass screws. Make sure the screws are
fully tightened.
TROBULESHOOTING
Fault
Cause
Solution
Light on, but
fan does not
work
The fan blade is
jammed.
Switch off the unit and repair by
qualified service personnel only.
The motor is damaged.
Both light and
fan do not
work
Halogen light bulb burn.
Replace the bulb with correct
rating.
Power cord looses.
Plug in to the power supply again.
Serious
Vibration of
the unit
The fan blade is
damaged.
Switch of the unit and repair by
qualified service personnel only.
The fan motor is not
fixed tightly.
Switch off the unit and repair by
qualified service personnel only.
The unit is not hung
properly on the bracket.
Take down the unit and check
whether the bracket is in proper
location.
Suction
performance
not good
Too long distance
between the unit and
the cooking plane
Readjust the distance to 65-75cm
CUSTOMER ASSISTANCE SERVICE
If you cannot identify the cause of the operating anomaly, switch off the
appliance and contact the Assistance Service.
PRODUCT SERIAL NUMBER. Where can I find it?
It is important you to inform the Assistance Service of your product code
and its serial number (a 16 character code which begins with the number 3);
this can be found on the guarantee certificate or on the data plate located
on the appliance.
It will help to avoid wasted journeys to technicians, thereby (and most
significantly) saving the corresponding callout charges.
This appliance is marked according to the European directive
2012/19/EU on Waste Electrical and Electronic Equipment
(WEEE).
WEEE contains both polluting substances (which can cause
negative consequences for the environment) and basic components (which
can be re-used). It is important to have WEEE subjected to specific

16
treatments, in order to remove and dispose properly all pollutants, and
recover and recycle all materials.
Individuals can play an important role in ensuring that WEEE does not
become an environmental issue; it is essential to follow some basic rules:
WEEE should not be treated as household waste;
WEEE should be handed over to the relevant collection points managed by
the municipality or by registered companies. In many countries, for large
WEEE, home collection could be present.
In many countries, when you buy a new appliance, the old one may be
returned to the retailer who has to collect it free of charge on a one-to-one
basis, as long as the equipment is of equivalent type and has the same
functions as the supplied equipment.

17
NOTICE D‟INSTALLATION ET D‟UTILISATION
Sommaire
INTRODUCTION 17
Conseils pour la sécurité 17
Cahier des charges 18
Installation (Evacuation) 20
Installation (Recyclage) 24
Description des composants 25
Fonctionnement 26
Entretien 26
Dépannage 27
Service après ventes 28
Protection de l‟environnement 29

18
Introduction
Merci d‘avoir choisi cette hotte.
Ce manuel d'instructions est conçu pour vous fournir toutes les
instructions requises relatives àl'installation, l'utilisation et l'entretien de
l'appareil. Afin de faire fonctionner l'appareil correctement et en toute
sécurité, merci de lire attentivement ce manuel avant l'installation et
l'utilisation.
La hotte utilise des matériaux de haute qualité avec un design épuré.
Equipé d‟un moteur électrique de grande puissance et d‟un ventilateur
centrifuge, il fournit également une puissance d'aspiration forte, un
fonctionnement avec un bruit modéré, un filtre àgraisse et un montage
facile.
En plaçant le marquage sur ce produit , nous déclarons, sous
notre propre responsabilité, le respect àtous de la sécuritéeuropéenne,
la santéet les exigences environnementales énoncées dans la législation
pour ce produit.
Avertissement de sécurité
Ne pas laisser d‟enfants utiliser l‟appareil
Cette hotte est dédiée àun usage domestique uniquement. Elle
ne doit pas être utilisée pour les barbecues, les rôtisseries ou
toutes autres activités
La hotte et ses filtres doivent être nettoyés régulièrement pour en
garantir un bon état de fonctionnement
Respecter les consignes de ce manuel pour le nettoyage de la
hotte afin d‟empêcher tout risque d‟incendie
Merci de garder une ventilation dans la cuisine
Avant de connecter cet appareil, contrôlez que le cordon
d'alimentation n'est pas endommagé. Un cordon d'alimentation
endommagédoit être remplacépar une personne qualifiée.
Il doit y avoir une ventilation adéquate de la pièce quand la hotte
est utilisée en même temps que des appareils utilisant du gaz ou
d'autres combustibles
l'air ne doit pas être évacué par un conduit qui est utilisé pour
évacuer les fumées des appareils utilisant le gaz ou d'autres
combustibles

19
La réglementation concernant le rejet de l‟air doit être satisfaite
Cet appareil n‟est pas destiné à être utilisé par des personnes
(notamment les enfants) incapables, irresponsables ou sans
connaissance sur l‟utilisation du produit, à moins qu‟elle ne soit
surveillées ou instruites sur l‟utilisation de l‟appareil par une
personne responsable de leur sécurité
Les enfants doivent être surveillés pour s'assurer qu'ils ne jouent
pas avec l'appareil.
Ne pas faire flamber sous la hotte
La hotte n'est pas destinée àêtre installéau-dessus d‟une plaque
de cuisson ayant plus de quatre foyers de cuisson
Risque de choc électrique
Cette hotte ne peut être branchée seulement sur une prise reliée
à la terre. En cas de doute, demandez conseil à un ingénieur
qualifié
Le non-respect de ces instructions peut entraîner la mort, un
incendie ou un choc électrique.

20
Liste d’accessoires pour l’installation
Caractérisriques
Visuels
Qty
Base
1
Cheminée haute
1
Cheminée basse
1
Support de la cheminée basse
1
Support de la cheminée haute
1
Fixation murale
1
φ8 chevilles
φ8×φ6 blanches
9
Vis
ST4.0×30
9
φ7.2 Vis
ST4.0×8
2
Installation (évacuation externe)
Si vous avez une évacuation vers l‟extérieur, la hotte pourra être installée
comme suit au moyen d‟un conduit d‟extraction (émail, aluminium, tuyau
flexible et non inflammable avec un diamètre intérieur de 150mm).
