HOPEFULL F968y-ch User manual

HOPEFULL®electric bed
Instruction Manual
（Applicable model：F968y-ch）

HOPEFULL®electric bed Instruction Manual
1
Contents
Instruction summarize........................................................................................................2
1. Usage and safe notice....................................................................................................2
1.1 Usage............................................................................................................................ 2
1.2 Safe notice .................................................................................................................... 2
2. Functions introduction and Operation manual.....................................................5
2.1 Components name........................................................................................................ 5
2.2 Bed placement .............................................................................................................. 6
2.3 Functions introduction................................................................................................... 6
2.4 Main functions operation............................................................................................... 7
2.5 Manual CPR operation................................................................................................ 12
2.6 Scale function.............................................................................................................. 13
2.7 Bedside rails (Guardrail) operation............................................................................. 15
2.8 Install and dismantle the head / foot panels ............................................................... 16
2.9 Castor operation.......................................................................................................... 18
2.10 Control box connection methods & MJB instruction................................................... 19
2.11 Accessories usage...................................................................................................... 21
2.12 Backup battery maintenance ...................................................................................... 22
2.13 Cleaning and disinfection of bed................................................................................. 23
2.14 Malfunction and elimination methods ......................................................................... 24
2.15 Bed maintenance........................................................................................................ 24
2.16 After-sales service contact information....................................................................... 25

HOPEFULL®electric bed Instruction Manual
2
Instruction summarize
The instruction is applicable to F968y-ch Electric bed. It’s including the information
such as usage & safe notice, function instruction, care & maintenance, and so on.
The inside pictures are only for reference. When operation, please take the real
product for standard.
1. Usage and safe notice
1.1Usage
The electric bed is used for examination, diagnosis, nursing care and treatment for
patients.
1.2Safe notice
◼Before using the bed, make sure to read “Safe notice” carefully and operate
correctly.
◼If not operate according to “Safe notice”, the products may be damaged and
even hurt human’s life.
◼If the bed is directly operated by the patient himself or his relatives, before using
it, the doctors or nurses should give the enough explanation to them regarding
how to operate the bed, so that the operations adapt to the patient’s symptom.
◼Please do not allow the children and the person who can’t understand the
operations well to operate the bed.
◼Any safe notice is the important content, please do follow up.
◼After finish reading the instruction, it should be put on the place where can be
seen at any moment.
◼The product without the electricity cutting off itself, if want to cut off the electricity,
please put off the plug.
Warnings
1). Pay attention to use the electricity safely please.
◼Don’t use the wet hands to touch the plug.
◼Before cleaning the bed, make sure to put off the plug for safety.
◼When put off the plug, the hand has to grip the plug. If pulling the electric wire
directly, the wire may be broken off.
◼Don’t put the bed in the wet place, or else the electrical components may be
damaged and cause the accident
◼When the bed without use or move the bed, please take off the plug and
wreathe it on the electric wire rack in order to avoid damaging the plug or

HOPEFULL®electric bed Instruction Manual
3
electric wire.
◼The products may be disturbed by other wireless electronic equipment, in this
case , users may use the method to avoid the interruption.
2). In order to avoid the patient falling from the bed, please use both bedside rails.
◼Don’t put your head, hands and legs out of the bed, or else you may fall out
from the bed and get hurt.
◼Do make sure to use the bedside rails when carry the patient.
◼Please do not put your head and neck into the clearance between the bedside
rails or the head panels, or else you may fall from the clearance and get hurt.
Especially take care for the patient who can’t control himself body.
◼Don’t sit on the bedside rails or head and foot panels or stand on the bed, all
that may make you fallen out from the bed and get hurt.
◼It’s not allow to operate by the children, or else it may make the children fallen
from the clearance of the bedside rails and hurt themselves.
3). When adjust the angles of the bed board, please pay attention to patient
status.
◼When adjust the bed, please make sure there is no barrier around and your
eyes do not leave away from the patient.
◼When patient is in prostrate status, do not lift up the back bed board, or else
the patient may get hurt.
◼The angle between the back bed board and the knee bed board should be not
less than 90°, or else it will oppress the patient abdomen and get hurt (except
for the medical people have special arrangement)
◼If the patient does movement during the bed board adjustments, he/she may
fall from the bed and get hurt.
◼Please do not put your hands and feet into the clearance between the mattress
platform, head&foot panels, the bedside rails , also not get into the underside
of the bed , or else you may be clamped by the bed movement parts or the bed
frame, bedside rails and get hurt .
◼Please do not sit on the process lifting up bed board or the already risen bed
board, or else the bed board supported part may get distortion or breakage
because of the heavy pressure.
4). Before adjust the bed, please pay attention to the wall and other barriers, and
make sure the clearance between the bed and the wall or other barriers is more than
20cm.Because when adjust the bed height, the bed will do the up and down or front
and back movement, it must confirm the bed will not touch the wall or the barriers
when adjust. Or else, the bed will get distortion or breakage, and also break the
surrounding object.
5). Except for moving the beds, please make sure to lock the castors and fix the bed
well. When the patient gets up and down the bed, it may cause the unexpected hurt

HOPEFULL®electric bed Instruction Manual
4
because of the bed movement.
6). When move the beds:
◼Please make sure to install and lock well the head and foot panels. If the
panels are not locked well before moving the bed, the patient may fall from the
bed to get hurt because of the panels loose.
◼Please avoid to moving the beds on the rough road, or else it will cause the
bed distortion or breakage or other unexpected trouble. If you have to move
the bed on the rough road, the bed should be moved very slowly for safety.
◼When move the bed, the bed and both bedside rails can’t hit the surrounding
object. Or else, the bed and the bedside rails may get distorted and break.
◼Do not only grasp the bedside rails to move the bed. If the bedside rails bear
too much pressure, it may cause the distortion or breakage.
7). Don’t get close to the fire. Nearby the bed, please avoid to use the warmer or the
heating machine, or else it will cause the bad quality, distortion of the bed
components even cause a fire accident.
8). Without the nurse care, in order to avoid the patient falls from the bed when get up
and down from the bed or lies on the bed, please adjust the bed reaching the lowest
position, and the mattress platform should be adjusted to the horizontal position.
(Except for the medical people have special requirement)
9).When the patients lose the sense of direction due to drugs and clinic conditions
may cause them to be stuck.So the mattress platform should be placed in a horizontal
position (unless the medical staff require specially).

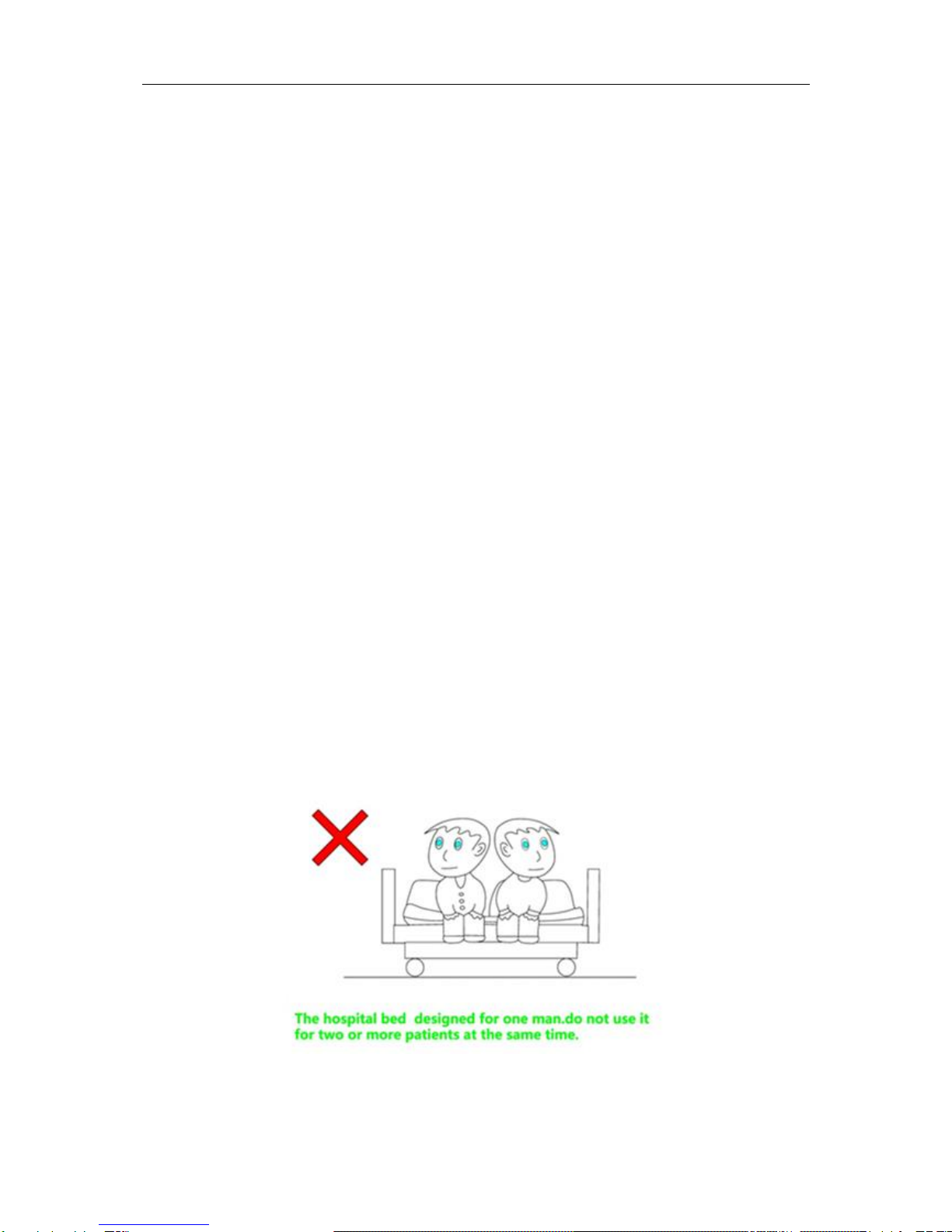

10). The bed is designed for only one patient to lie, if two or more patients lie on the
bed simultaneity, the bed may be broken.

HOPEFULL®electric bed Instruction Manual
5
11). Please lay the patient in the correct sections as the bed. If head and foot sections
are reversed, the back and knee will have wrong posture when adjust the bed and the
patient will get hurt.
12). Please do not fasten the belts on the patient’s body when adjust the bed. Or else,
it will hurt the patient or make the bed distorted or broken.
13). Make sure to check and repair the bed carefully (For example, if the bed is
broken caused by the earthquake, fire, flood or other reasons). You can ask for help
from the manufacturer or the authorized agent to check and repair, the users are not
allowed to repair or reconstruct. Wrong repair or reconstruction may cause the
abnormal case and hurt the patient.
2. Functions introduction and Operation manual
2.1 Components name
The electric bed is consist of support structure, mattress platform,actuator,control
box,handset,bedside rail,castors and accessories (urine hook,IV drip stand,bed
mattress) etc,bed structure as below:
Head panel
Lifting pole
socket
Bedside rail switch
Brake pedal
Foot panel
Central locking Castor
Bedside rail controller
Buffer
weighing screen
Mattress platform
CPR handle
Base
Bedside rail
Nurse control

HOPEFULL®electric bed Instruction Manual
6
2.2 Bed placement
Improper placement is the reason to cause the trouble of the bed.Please use the bed
in the environment as below:
⚫Temperature: 5℃-40℃
⚫Relative humidity: 20%～90% below 30℃, non-condensing
⚫Atmospheric pressure: 700-1060 hPa
Avoid to put the bed in the following sites：
⚫The place with the direct irradiated sunshine.
⚫Nearby the warmer or the heating machine and other euthermic machines
⚫The places with too much water and oil steam.
⚫High temperature, over-moisture, low temperature places.
⚫Place with much dust, smoke, salt, sulfur, corrosive object.
⚫Unventilated place.
⚫Shake or impacts place (including when carry).
⚫Flabby floor.
⚫Unbalance floor.
2.3 Functions introduction
The electric bed F968y-ch is designed base on the safe and convenient use, the bed
can be operated and adjusted different positions by the controls.
The main functions including:
1. Back section up and down adjustment
2. Knee section up and down adjustment
3. Hi-Low adjustment
4. Trendelenburg&reverse trendelenburg (Tilting) adjustment
5. Manual CPR
6. Turn-over function
7. Cardiac chair position
8. Electric CPR function for back section
9.Quick back trendelenburg position
10. Scale function
11. Backup battery

HOPEFULL®electric bed Instruction Manual
7
2.4 Main functions operation
Notices:
⚫Please stop to operate the bed when the bed is adjusted to the final
distance/angle including the height or angle adjustment.
⚫Don’t let other people sit on the bed board when adjust the bed, in order to
avoid breaking the bed board because of the imbalanced force.
⚫Before operating the whole bed, make sure there’s nothing under the bed.
⚫If there is any abnormality while in the operation,please loose the key of the
controller,then the bed will stop movement.
⚫Before operating the turn-over,trendelenburg&reverse trendelenburg (Tilting)
adjustment,hi-Low adjustment, cardiac chair position and electric CPR
function,please raise the bedside rails to avoid injury.

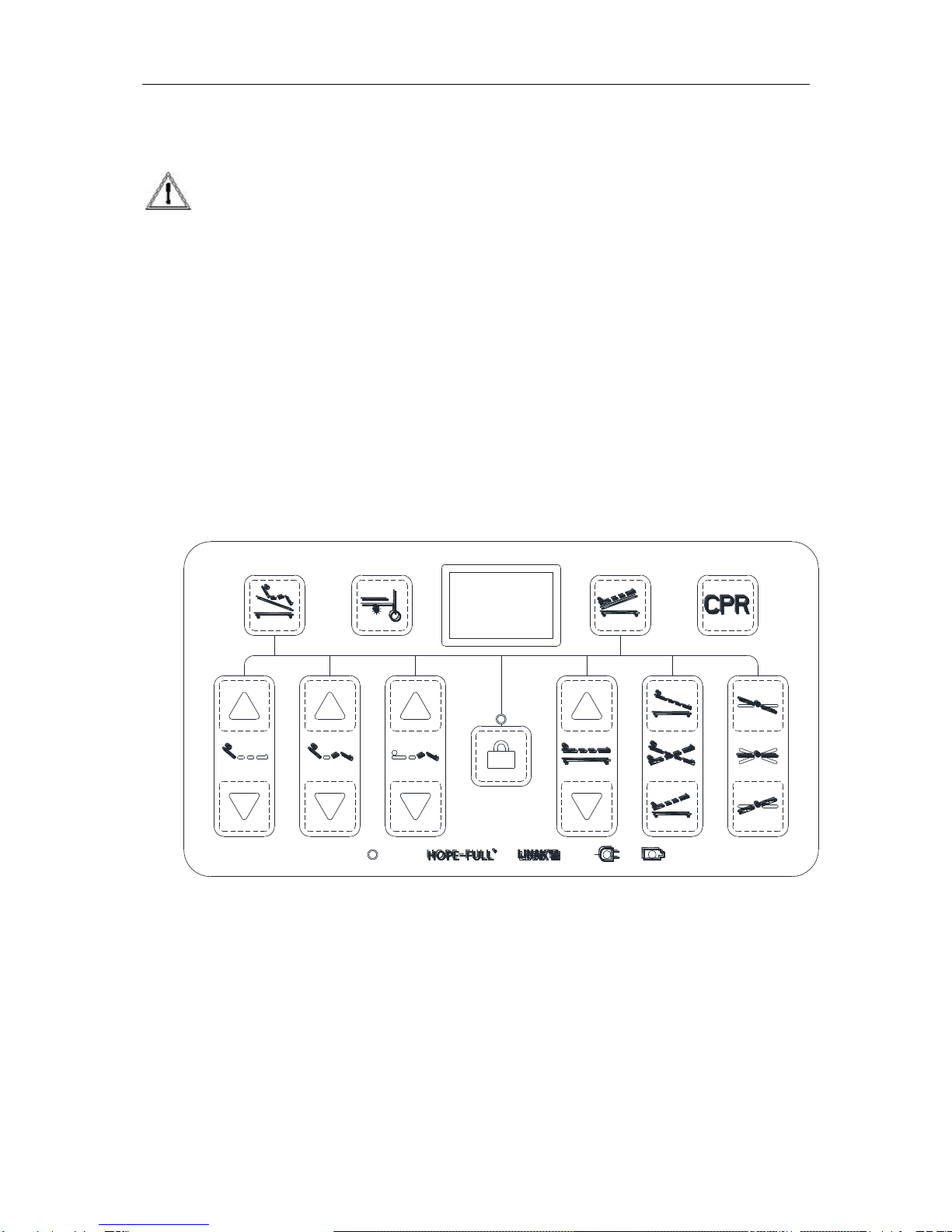

1. Nurse controller:
H C 3 0-0 1117
1.Cardiac chair position 2.Under bed light 3.Quick trendelenburg
4.Electric CPR 5.Back section up 6.Back section down
7.Back&knee section simultaneous up
8.Back&knee section simultaneous down 9.Knee section up
10.Knee section down 11. Locking key 12.Whole bed up
13.Whole bed down 14.Head tilt up 15.Leg tilt up
16. Left bed board turn-over 17.Right bed board turn-over
18.Electric indicator light 19. Backup Battery indicator light
6
5
4
3
2
（1）
（2）
1
8
7
10
9
13
12
15
14
17
16
11
18
19

HOPEFULL®electric bed Instruction Manual
8
The function instruction of the keys as follow:
1. Key 1: Cardiac chair operation
There is a “Cardiac chair” sign on the nurse control, press the button continuously,
the back section will go up and the leg section will get down to form into a chair
figure. When loose the button, the operation will be stopped.
2. Key 2:Under bed light
Press the button can turn on the lamp under the bed.
3. Key 3: Quick trendelenburg operation
Press the quick trenedelnburg button continuously, the whole bed will go into the
head down and foot up trendelenburg position, the mattress support platform will
be changed into flat board. When loose the button, the operation will be stopped.
4. Key 4: Electric CPR operation
There is “CPR” sign on the nurse control, press the “CPR” button continuously
when in the emergency condition, the mattress support platform will be changed

HOPEFULL®electric bed Instruction Manual
9
into flat board and the bed will go to the lowest position. When loose the “CPR”
button, the operation will be stopped.
5. Key5 & 6: Back section up and down adjustment
Press the button “Back section up”on the handset, the back bed board up;
release the button, the back bed board will stop movement; press the button “Back
section down”, the back bed board down; release the buttons, the back bed board
will stop movement.
6. Key 7 & 8: Back&knee section simultaneous up and down adjustment
Press the button “Back&knee section up”on the handset, the back & knee section
board up.; release the button, both of the boards will stop movement; press button
“Back&knee section down”, the back & knee section board down, release the
button, both of the boards will stop movement.
7. Key 9 & 10: Knee section up and down adjustment
Press the button “Knee section up”on the handset, the knee section board up.;
release the button, the knee section board will stop movement; press button
“Knee section down”, the knee section board down, release the button, the knee
section board will stop movement.
8. Key 11: Locking function
Press the locking key and the indicator light turns on, then the nurse control is
locked. All buttons can’t be operated except the special function keys.When
press it again and the indicator light turns off, then the nurse control becomes
unlocked and all buttons can be operated normally.

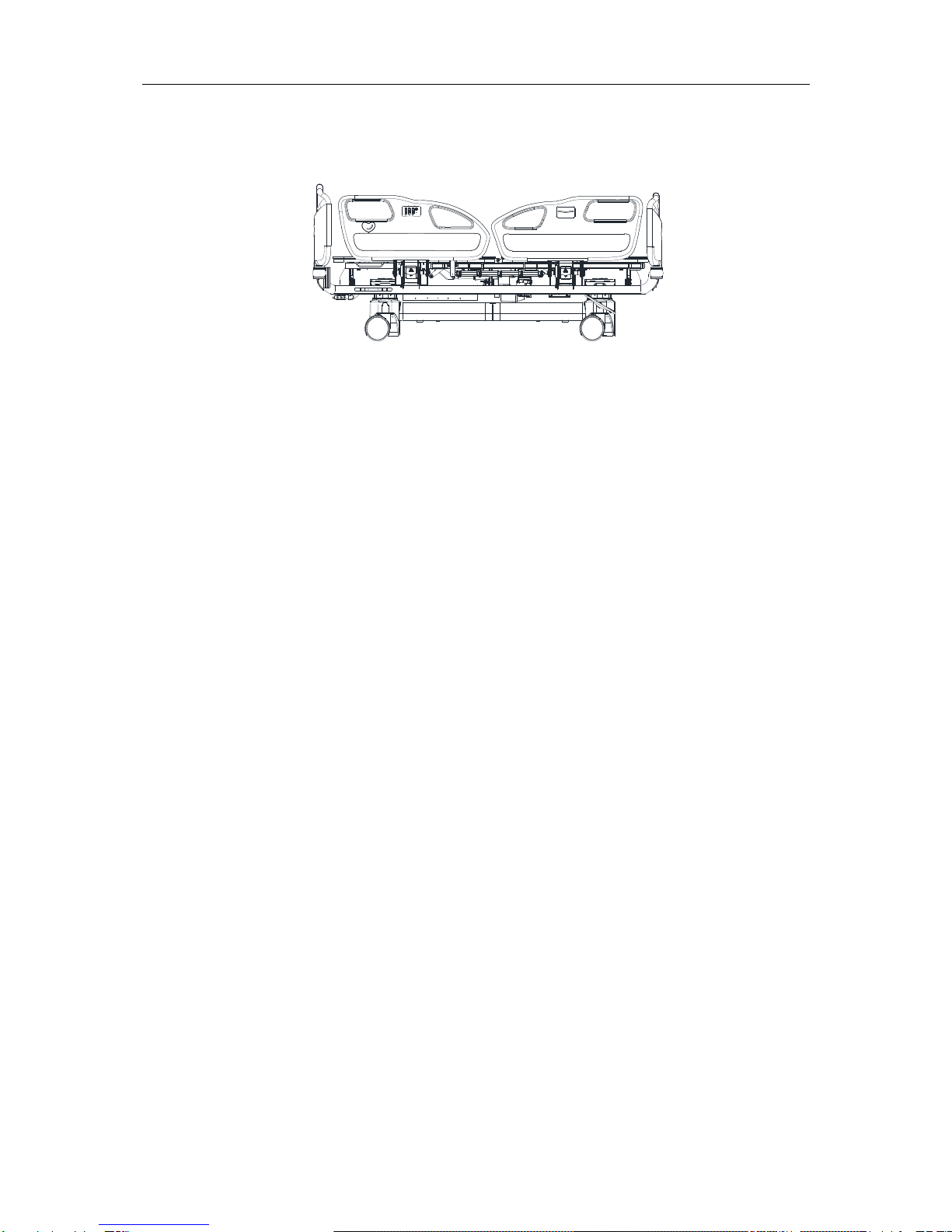

9. Key 12 & 13: Hi-low adjustment
Press the button “Whole bed up”on the handset, the whole bed up.; release the
button, the whole bed stop movement; press button “Whole bed down”, the whole
bed down, release the button, the whole bed will stop movement.

HOPEFULL®electric bed Instruction Manual
10
Notices:Before operation, make sure there’s nothing under the bed.
10.Key 14 & 15: Trendelenburg and reverse trendelenburg adjustment
A. Key 9: Press the reverse trendelenburg button(head tilt up), the head goes up
and the leg goes down, release the button, the whole bed will stop movement.
B. Key 10: Press the trendelenburg button(Leg tilt up), the head goes down and
the leg goes up, release the button, the whole bed will stop movement

HOPEFULL®electric bed Instruction Manual
11
11.Key 16: Left bed board turn-over
Press the button “left bed board turn-over”,the left bed board will move
down;release the button the movement will stop;when the left bed board move
to the lowest position,press this button again,the bed board won’t go down any
more.
12.Key 17: Right bed board turn-over
Press the button “right bed board turn-over”,the right bed board will move
down;release the button the movement will stop;when the right bed board move
to the lowest position,press this button again,the bed board won’t go down any
more.
Head

HOPEFULL®electric bed Instruction Manual
12
2. Built-in bedside rails controls (for patient use normally):
1. Back section up 2.Back section down 3.Whole bed up
4.Whole bed down 5.Knee section up 6.Knee section down
7. Under bed light 8.Indicator light
2.5 Manual CPR operation

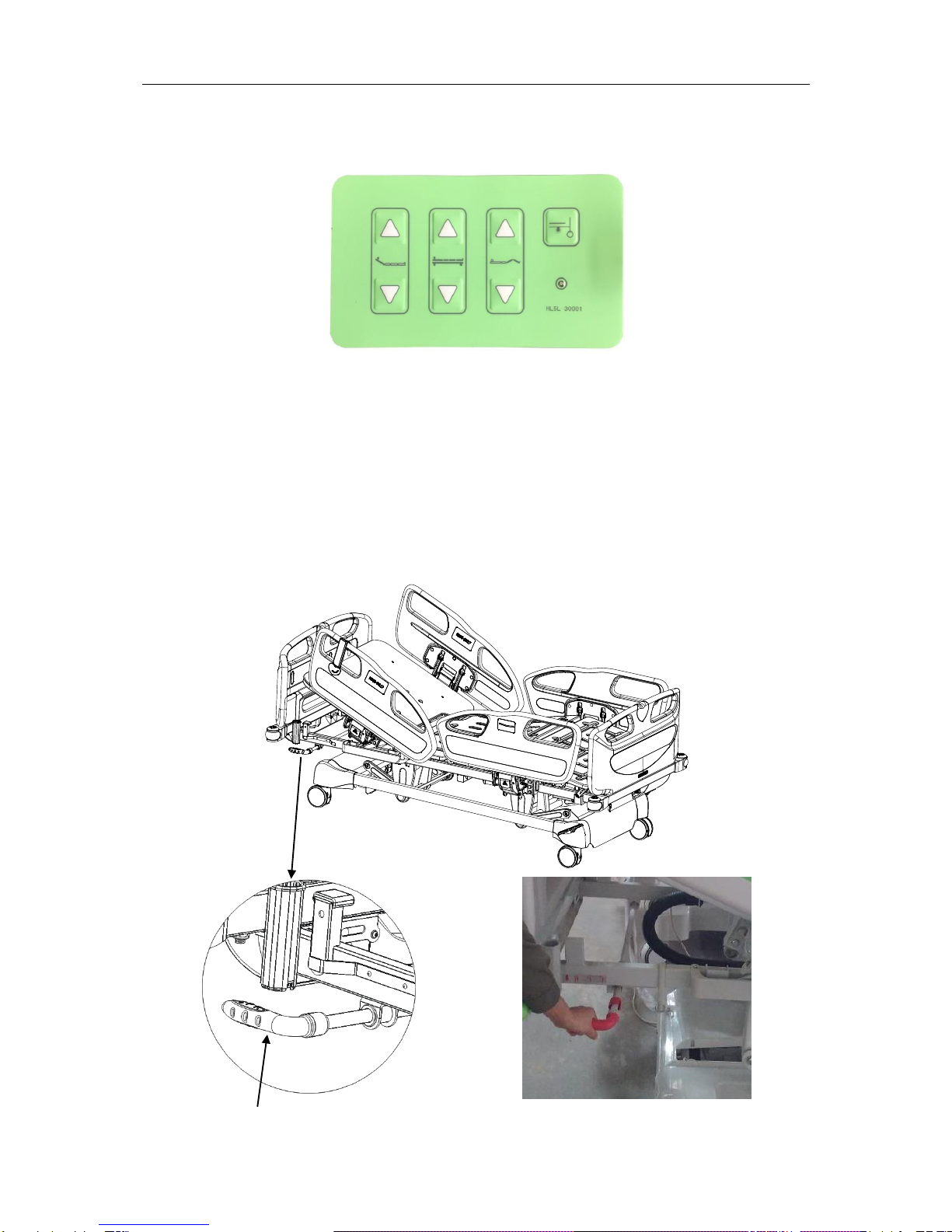

Under the back board, there are “Red CPR handle” on both sides. When in
emergency, require the back board into flat, use one hand to support the bed back
board , another hand press down the red handle , the back board will go into the flat
position quickly .
Manual CPR handle
1
2
3
4
5
6
7
8

HOPEFULL®electric bed Instruction Manual
13
2.6 Scale function
Don’t sit the bed corner to weight, or else the weight date will be wrong, and
there’s risk to damage the bed scale facilities too.
If patient sleep on bed or put some load on bed and press the zero button,
when the weight function disappear, the date maybe show the negative number,
you need to press the zero button again.
Please turn it off when power off after more than half an hour.The system is
setted in default that when the voltage is lower than 22V the power supply will
be cut off automatically. Please connect the power supply and press the
weighing power button to wake up the weighing system.
Please follow the steps before scaling:
1. Firstly, power on the whole bed and make sure the power is on.
2. After confirming that the power is on, turn on the scale function by
pressing the weighing power button of the weighing frame for 2
seconds. The weighing screen will light up.
3. Before make the scale function, pls keep the mattress platform into
flat position, move away the patient.When no any stress, press the
scale function switch on and press the zero button, when show zero,
Weighing frame
clear button
weighing power button
weighing display frame
unit of weight

HOPEFULL®electric bed Instruction Manual
14
patient comes back to the bed to start the scale.

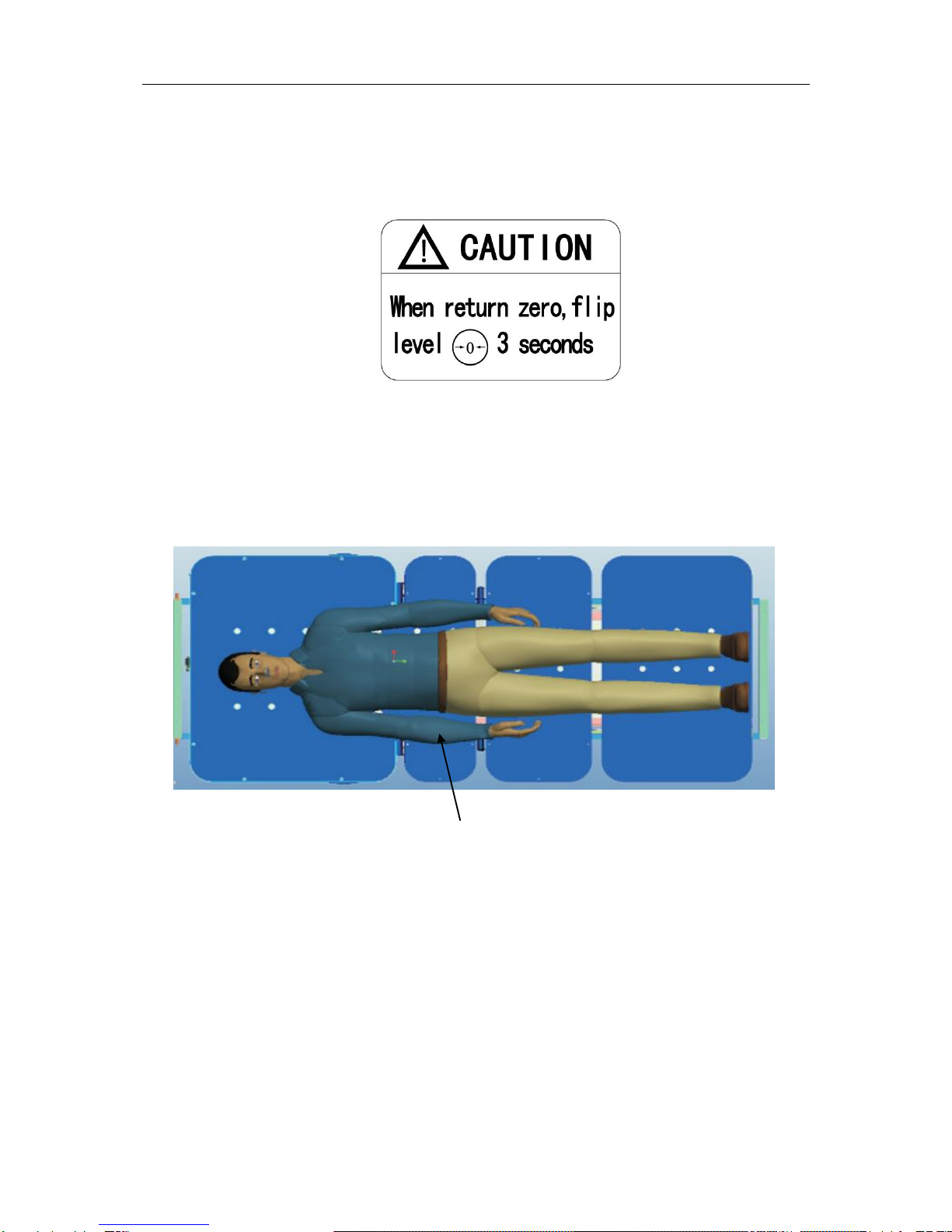

4. When weight, the patient should sleep on the middle of the bed and
the weight data is correct, as below photo.
5. Don’t sit the bed corner to weight, or else the weight date will be
wrong, and there’s risk to damage the bed scale facilities too.
6. If patient sleep on bed or put some load on bed and press the zero
button, when the weight function disappear, the date maybe show the
negative number, you need to press the zero button again.
Make sure the patient in the middle

HOPEFULL®electric bed Instruction Manual
15
2.7 Bedside rails (Guardrail) operation
When patient lies on the bed, please keep the bedside rails risen in order to
avoid the patient falling from the bed to cause the accident.
When operating, please pay attention whether there is barrier in the gaps
between the bedside rails and bed frame, If yes, please eliminate.
1. Lift up the bedside rails：
Lift up the bedside rails slowly from the bottom of the bed surface, till hearing a
sound of “ka”,that means the bedside rail goes up to the correct position.
2. Put down the bedside rails：
Use one hand to hold the bedside rail’s holes and the other hand to open the switch,
when hearing a sound of “ka”，then put down the bedside rails slowly (Re. the
picture as below)

HOPEFULL®electric bed Instruction Manual
16

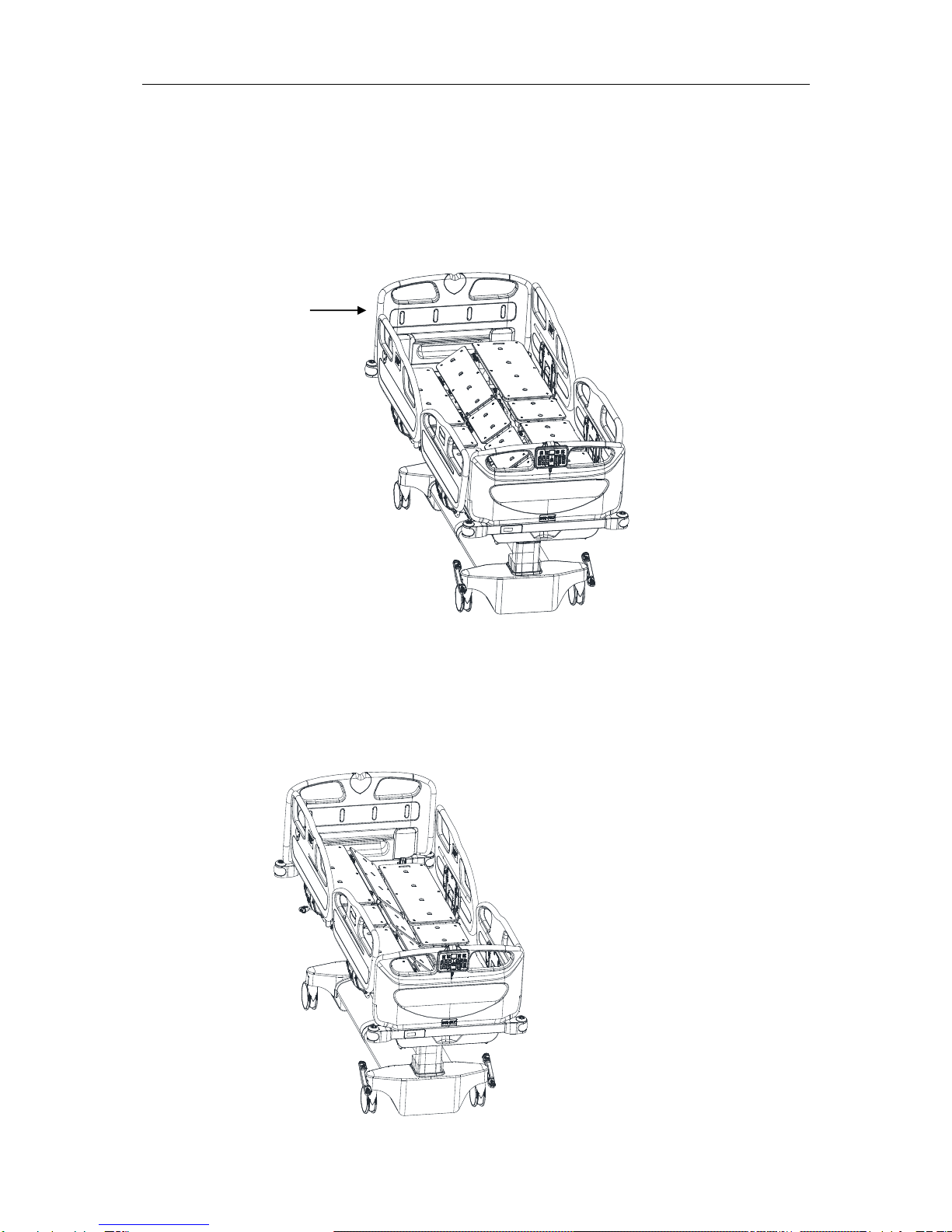

2.8 Install and dismantle the head / foot panels
1. Installation of plungers
Insert the plungers into the holes of the head and foot bars,and fasten them with
screws and flat washers.Fix the four plungers of head & foot panel with 17 #
wrench and screwdriver one by one.
2. Install the head / foot panels
2.1 Turn the lock to the unlock state as below picture:
Unlocked
2.2 The lock is horizontal when unlocked. At this time,put down the head & foot
panel vertically and make sure the plungers insert the holes of the panels
correctly.Then turn the lock to the lock state. (Re. the picture as below)
Plunger,screw,flat washer

HOPEFULL®electric bed Instruction Manual
17
Lock of head & foot panel
Turn the lock 90°anticlockwise Locked
3. Dismantle the head /foot panels
Turn the lock to the unlock state firstly,then straightly lift up the panels with two
hands.(Re. the picture as below)
Turn the lock 90°clockwise Unlocked

HOPEFULL®electric bed Instruction Manual
18
2.9 Castor operation
When there is patient on the bed, please lift up the bedside rails before moving
the bed.
Before moving the bed,please pull out the power cord and circle it on the hook
under the bedside rail. Don't drop it on the ground to avoid rolling or squeezing
while moving.Otherwise it will cause the safety accident because of the broken
power cord.

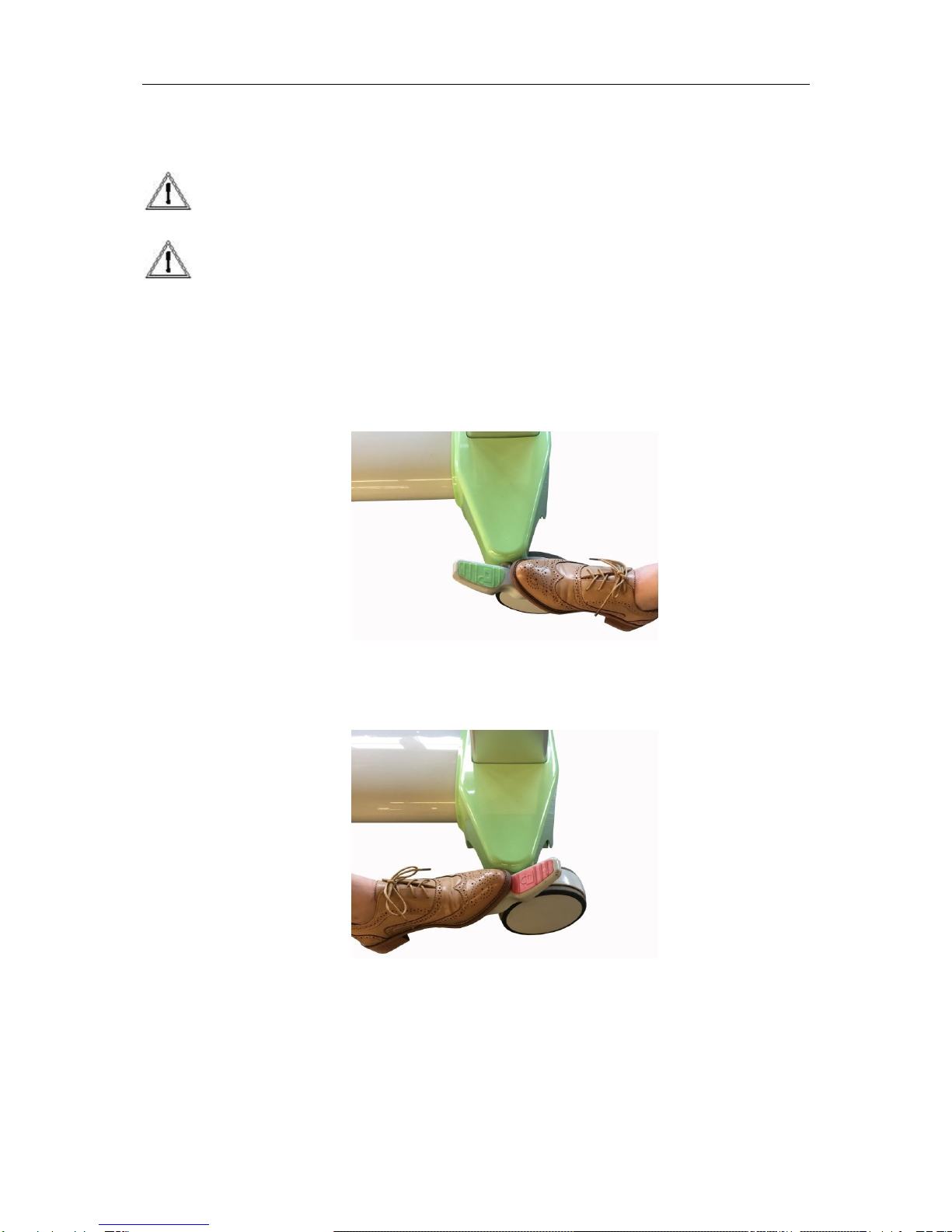

1. When move the bed to the required place,step on the red sign until hear “ka”, that
means locked. (Re. the picture as below)
2. Before moving the bed, please step on the green sign till hear “ka”sound to
release the brake system. (Re. the picture as below)

HOPEFULL®electric bed Instruction Manual
19

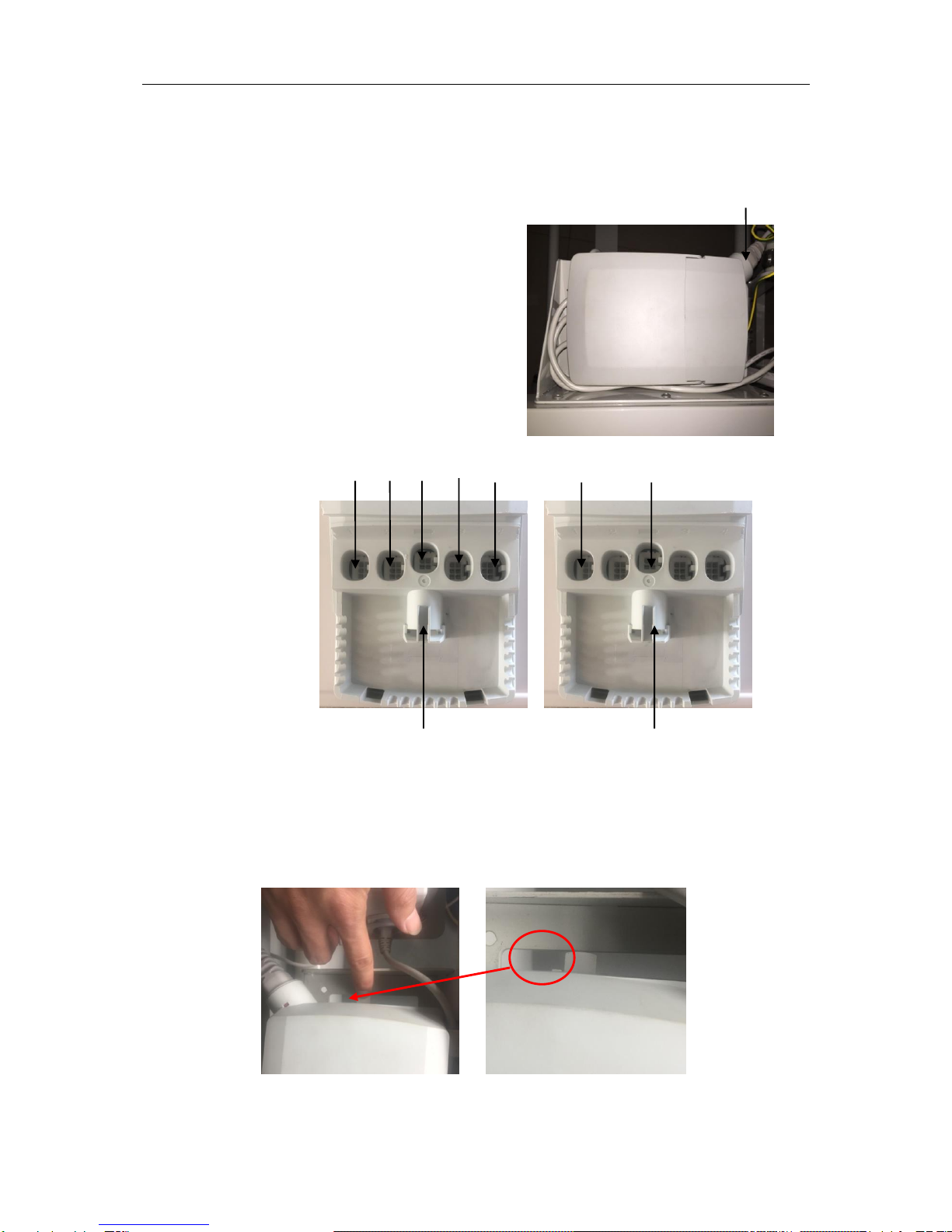

2.10 Control box connection methods & MJB instruction
2. Method of changing control box
2.1 Press the slider switch of the control box,when you hear a sound of
"ka" ,that means the switch has been opened.
slider switch
1. Wire connection methods:
1). Power supply (Electric source)
2). Motor socket for back section
3). Column motor socket for back section
4). Backup battery socket
5). Motor socket for knee section
6). Column motor socket for knee section
7). MJB socket
8). Turn-over motor socket
9). Backup battery socket
10). MJB socket
1
2
3
10
4
5
6
8
9
7
