Hoppe AUDIO SHADE Service manual
INSTALLATION INSTRUCTIONS / OWNER’S MANUAL:
AUDIO SHADE
OFF-ROAD TOP FOR HONDA PIONEER 1000-5
www.hoppeindustries.com
22667 FM 15 Troup, TX 75789
(262) 552-2770
Revision - 2 of 22
Thank you for choosing the Hoppe Audio Shade off-road top. We hope you enjoy the
off-road top, and we ask that you follow these instructions very closely. Doing so will
save you time and ensure that your experience with the new Audio Shade is a positive
one.
We strongly suggest that you read the complete instructions before beginning the
installation process to eliminate the possibility of performing unnecessary work.
Having a safe and clean environment and using the proper tools is essential for a
successful installation.
It is critical that proper eye wear, ear protection, and protective clothing is worn
throughout the top installation.
When you receive your Audio Shade off-road top, please check to ensure that all parts
and hardware are included. If there are any parts missing or if you have any questions
concerning the top at this time call Hoppe at (262)-552-2770 Mon-Thur. 8am-5pm CST,
Hoppe reserves the right to change specifications, equipment, or designs at any time
without notice and without incurring obligation.
Revision - 3 of 22
TABLE OF CONTENTS
SECTION 1 –Tools Required............................................................................................ 4
SECTION 2 –About your Audio Shade Top...................................................................... 4
2.1 Applicable Year Models:.......................................................................................... 4
2.2 Audio Equipment Details:......................................................................................... 4
2.3 Warranty: .................................................................................................................. 5
2.4 Care and Maintenance: ............................................................................................. 5
2.5 Warnings:.................................................................................................................. 6
SECTION 3 –Pre-Installation Inspection ......................................................................... 7
SECTION 4 –Installation.................................................................................................. 8
Revision - 4 of 22
SECTION 1 – Tools Required
Socket wrench set
Combination wrench set
Wire cutters
Screw drivers
In addition to the above items, you may need shop supplies such as electrical tape, wire
ties, thread locking compound, or RTV silicone.
SECTION 2 – About your Audio Shade Top
2.1 Applicable Year Models:
This Audio Shade off-road top is designed to fit Honda Pioneer 1000-5 models.
2016-2022 Pioneer 1000-5 (all trim levels)
2.2 Audio Equipment Details:
Your Audio Shade off-road top is powered by using their
premium quality power sports series audio equipment. This equipment is designed to
function in all weather conditions with an IPX6 water resistance (powerful water jet)
rating. The stereo is specifically engineered to provide excellent sound quality and
volume in an open air power sports enviroment so you can enjoy your music on the go.
To learn more details about your stereo system, you can access product information and
manuals for the stereo equipment here:
KMC2 receiver: https://www.kicker.com/46KMC2
Sub-woofer amplifier: https://www.kicker.com/key-5001-1-channel-smart-
amplifier
Speaker amplifier: https://www.kicker.com/pxa3004-4-channel-compact-
powersports-amplifier
Sub-woofers: https://www.kicker.com/2016-comprt-subwoofers
Speakers: https://www.kicker.com/42PSC654
Your amplifier gains comes pre-adjusted from the factory and are tuned for optimum
sound quality and system protection. This means you can feel free to crank the volume
without much worry of harming your system. However, it is wise to use a little common
sense. If you hear any distortion, back off a little. We recommend you do not adjust the
gains from the factory settings without first consulting Hoppe Industries.
Please note that your subwoofer will take 20 to 30 hours of play time to fully break in and
reach its maximum output. You do not need to do anything different during this break in
Revision - 5 of 22
period. In fact, the more you listen and the louder you turn it up, the quicker you will
reach the maximum potential. Use the equalizer settings in your KMC2 receiver to adjust
the bass as needed throughout the break in period.
2.3 Warranty:
Your Audio Shade comes equipped with a 1 year limited warranty covering the lights, the
stereo equipment, and the fiberglass top. The date of warranty coverage will be
determined by the registration date of the warranty card or online warranty registration.
http://www.motortrike.com/TrikeAccWarranty.aspx
If the warranty is not registered with Hoppe, the warranty period will begin when the
Audio Shade was shipped from Hoppe's factory.
2.4 Care and Maintenance:
Your off-road top does not require any maintenance other than an occasional cleaning. To
clean your top, simply hose off or power wash from a distance. If needed, use a mild
automotive soap and sponge or brush. Use common sense. Do not use a high pressure
power washer up close where it could cut, scar, or force water beyond the design intent of
the top, lights, or stereo equipment.
The fuse box for the amplifier, radio, light bars, and interior lights can be accessed by
removing the cover plate located on the underside of your roof.
There is also a mini 40 amp ignition relay built into the chassis harness near the battery
terminal end of the harness, as shown in Figure 1.
Figure 1: Chassis harness relay.
CHASSIS HARNESS
RELAY
Revision - 6 of 22

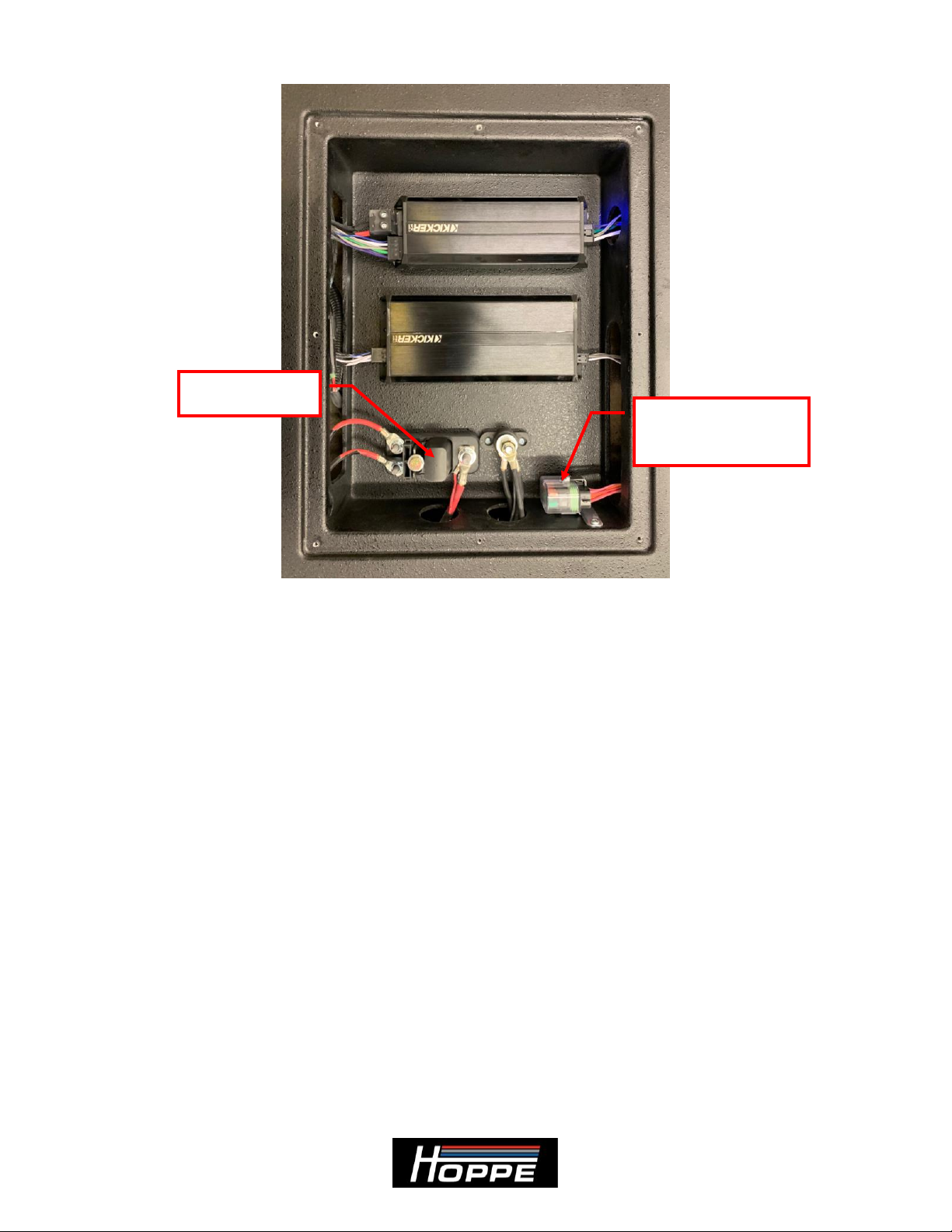

Figure 2: Fuse locations.
Fuse 1 Box A: 30 amp mini fuse for rear light bar
Fuse 2 Box A: 10 amp mini fuse for interior light
Fuse 3 Box A: 30 amp mini fuse for front light bar / radio receiver power.
Fuse 4 Box A: 10 amp mini fuse for illumination / radio receiver ignition.
Fuse Box B: Each amplifier uses a 40 amp J-Case fuse located under the black
plastic cover shown in Figure 2.
2.5 Warnings:
This off-road top adds up to 150 lbs. to your vehicle and is located up high on the roll
cage. This increases the vehicles center of gravity and changes the vehicle dynamics and
handling characteristics. Use extra caution as you learn the driving characteristics of your
vehicles performance with your new off-road top installed. High speed cornering, off
camber or side hill, acceleration, and braking performance will be negatively impacted by
the weight of the top.
Do not listen to your stereo at an uncomfortable volume for extended periods of time.
Potential hearing loss may result.
The driving lights provided with your Audio Shade are blinding to oncoming drivers.
These are made for off road use only, and should be turned off when another vehicle is
approaching on the trail.
FUSE BOX B
40A J-CASE FUSE
FUSE BOX A
30A MINI FUSE (2X)
10A MINI FUSE (2X)
Revision - 7 of 22
SECTION 3 – Pre-Installation Inspection
Included in your off-road top are the following components:
Pre-assembled Audio Shade off-road top. (All speakers and electronics come
preinstalled with interior wire harness.)
Chassis wire harness.
Rear light bar extension harness.
Four (4) cage clamps.
Hardware bag.
If any of the parts are missing, damaged, or you have any questions concerning them,
please call Hoppe at (262)-552-2770 Mon-Thur. 8am-5pm CST.
In addition to accounting for all of the parts that you should receive with the top, you
should inspect the vehicle in the following ways.
Ensure that the vehicle is equipped with the factory roll cage, and the roll cage has
not been bent out of shape in a roll over.
Make sure the vehicle does not have any aftermarket accessories that are
incompatible with the top. Note: This top is designed to be compatible with
most factory windshields.
Make sure the battery is in good condition and holds a charge.
Make sure the charging system is in good condition.
Revision - 8 of 22
SECTION 4 – Installation
Note: The factory roof must be removed prior to performing this installation.
1. Remove the cage clamps and 3/8”-16 bolts and washers that come pre-installed on
the top. Save the hardware for installation. See Figure 3 and Figure 4.

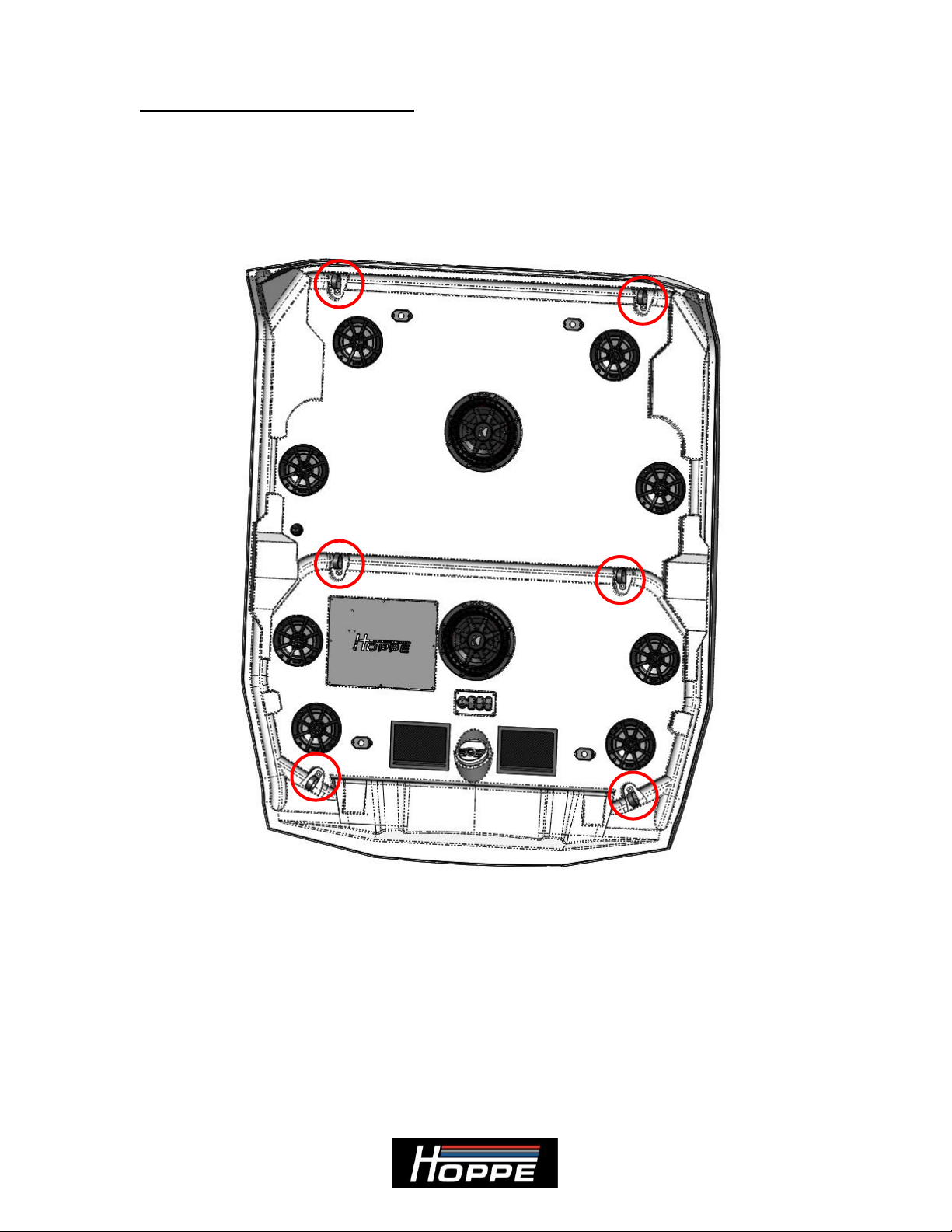

Figure 3: Remove the 6 clamps from the top.
Revision - 9 of 22
Figure 4: Close up of cage clamp hardware.
2. Spread the clamps by hand and slide them over the cage tubing. Place them on the
cage in the approximate locations shown in Figure 5. Note the orientation of the
clamp tab. It must line up with the hole, flat against the top, on the correct side of
the tubing.
3/8” -16 BOLT
AND WASHER
CAGE CLAMP
Revision - 10 of 22

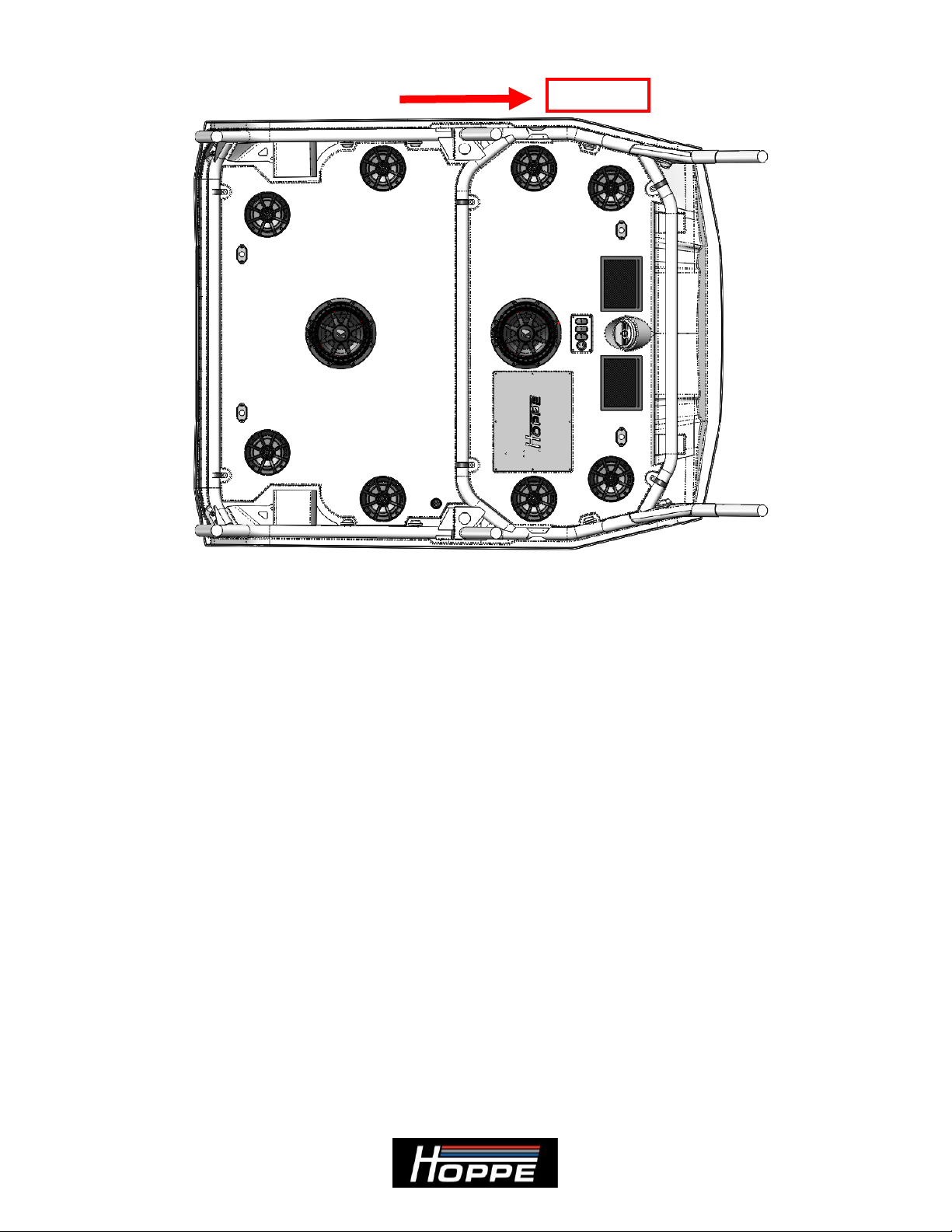

Figure 5: Approximate clamp locations cage shown.
3. Using a few assistants, set the Audio Shade off-road top on the cage. The top is
contoured such that the cage fits inside the grooves on the top. Note: The top
weighs up to 150 lbs. depending on your configuration. Since you will have to
lift and reach, it is helpful to have 4 people for this step. See Figure 6.
FRONT
Revision - 11 of 22
Figure 6: Install the top on the cage.
4. Slide the clamps into position so they line up with the threaded holes in the top.
For the two rear clamps and two front clamps, install the 3/8-16 x 1” bolts with
washers through both clamp tabs and into the threaded hole in the top. For the
center two clamps, install 3/8-16 x 1 ¼” bolts. Note: if you install the wrong
bolt in the wrong location, it may push against the outer skin of the top and
damage the surface. Use caution. Use blue Loctite 243 (medium strength) and
torque the bolts to 25 ft.*lbs. See Figure 4.
5. Remove the radiator hood access panel from the front of the vehicle by lifting and
rotating the ¼ turn clips, lifting the hood, and sliding it towards the front of the
vehicle. See Figure 7.
FRONT
Revision - 13 of 22

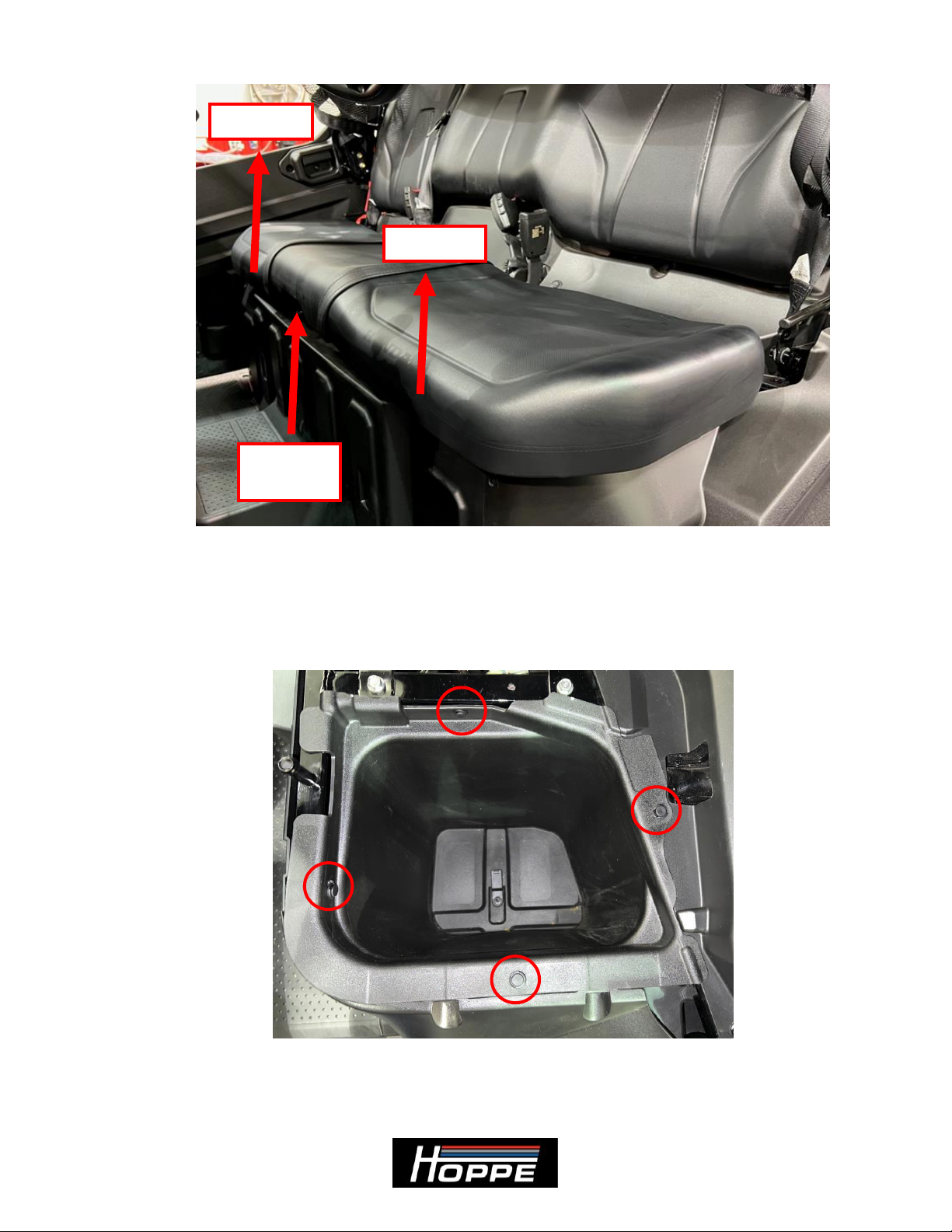

Figure 8: Remove the front seat.
7. Remove the plastic tub from under the driver’s side seat. The tub is held in place
with 4 plastic rivets. Pry the raised center of the plastic rivet out first, then pry the
outside of the rivet. Save the rivets for installation later. See Figure 9.
Figure 9: Remove the driver's seat tub.
CENTER
LATCH
DETENT
DETENT
Revision - 14 of 22
8. Remove the center under seat cover. There are no fasteners holding it in place. It
just lifts off.

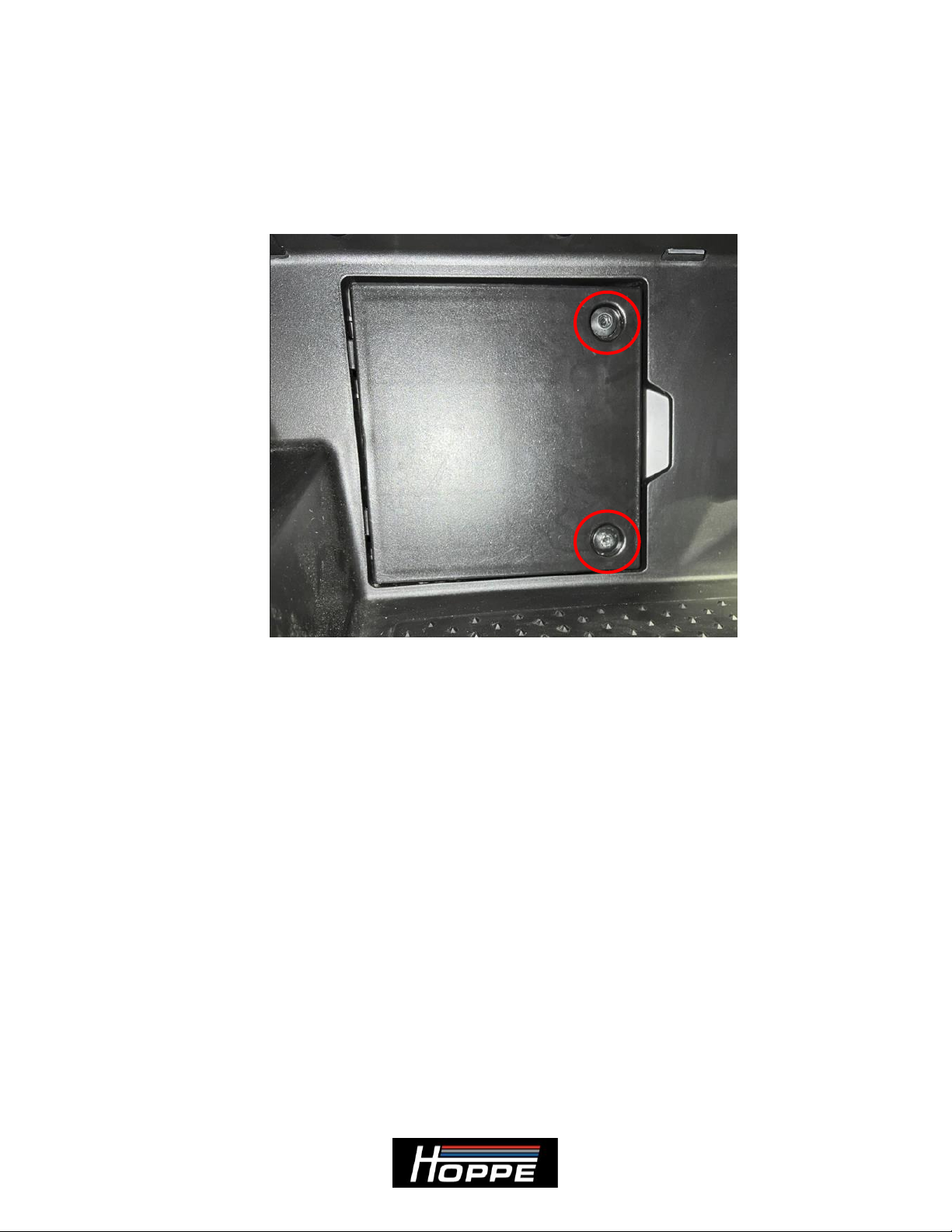

9. Remove the access panel located on the bottom of the firewall between the driver
and passenger foot wells. There are two 5 mm allen head bolts you must unscrew.
See Figure 10.
Figure 10: Remove the firewall access panel.
10. Route the chassis wiring harness along the down tube on the driver’s side center
chassis tube (“B pillar”). The ends with the battery terminals and relay block
extend through the plastic trim, into the area under the driver’s side seat. Note:
The plastic rivet on the trim must be temporarily removed so the relay connector
can fit through the opening. See Figure 11.
Revision - 16 of 22

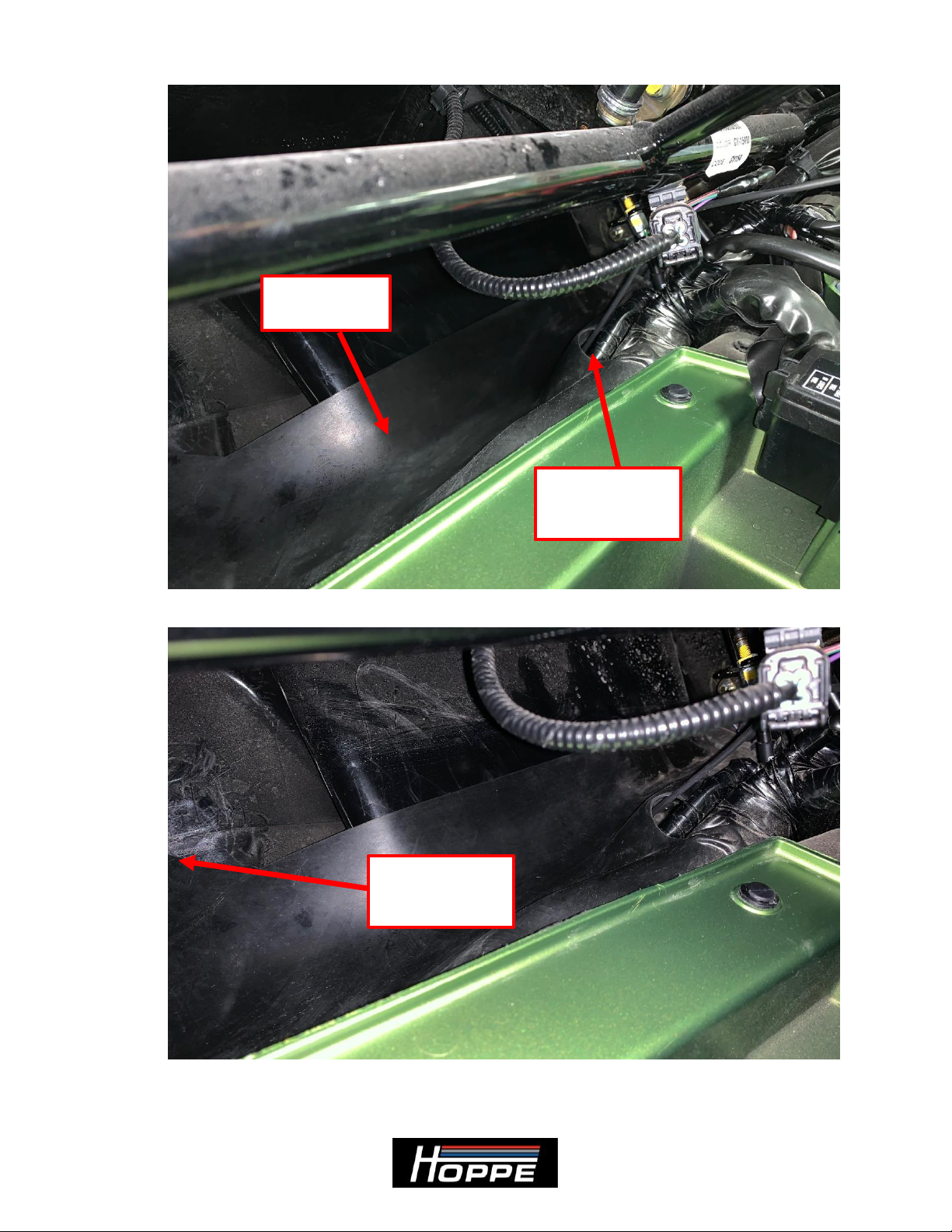

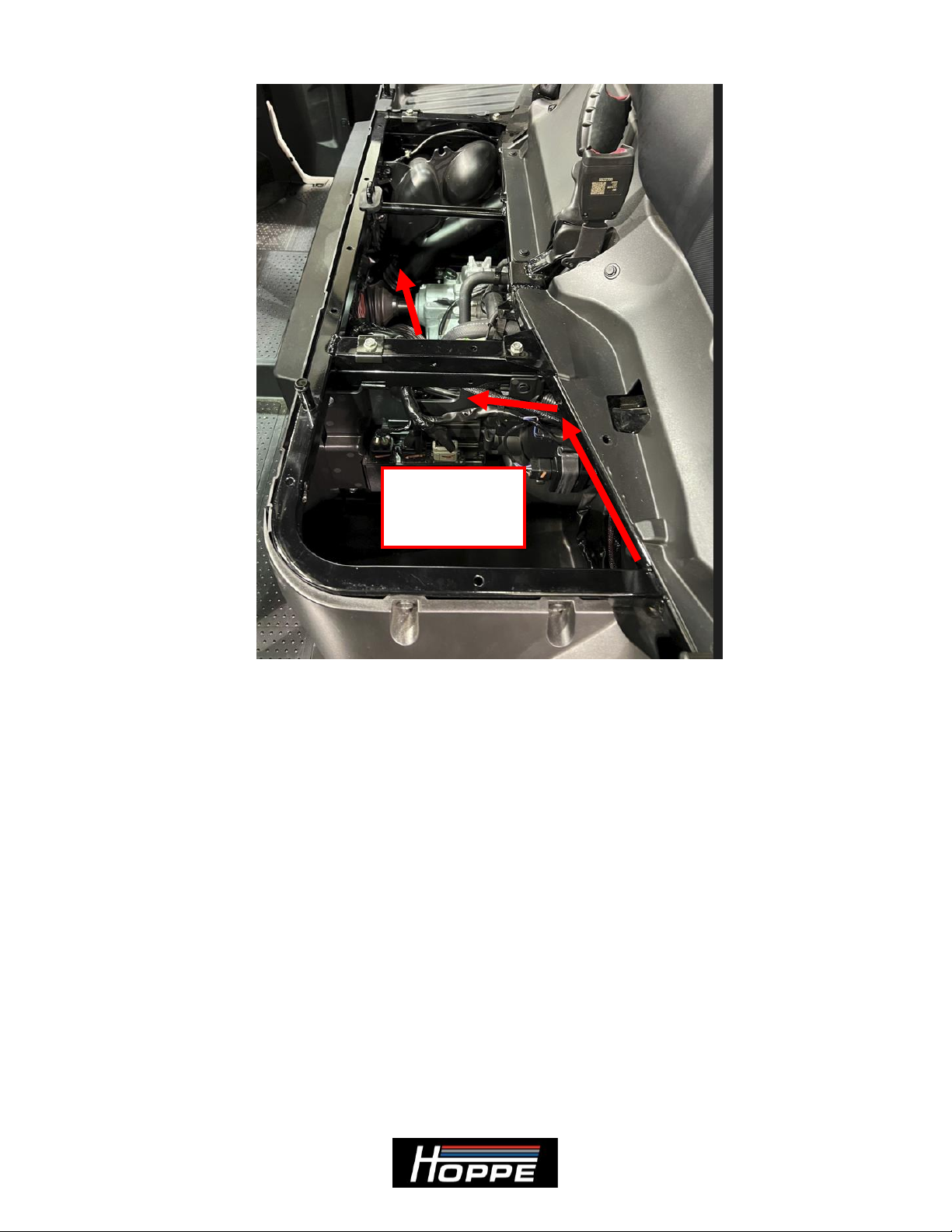

Figure 12: Route the harness through the divider.
12. Once under the center seat, feed the harness under the center floor board area up
to the firewall access panel. Follow the path of the coolant pipes.
13. Reach through the wheel well and feed the harness through the rubber firewall
flap up to the under hood battery compartment. See Figure 13.
WIRE
ROUTING
PATH
Revision - 17 of 22

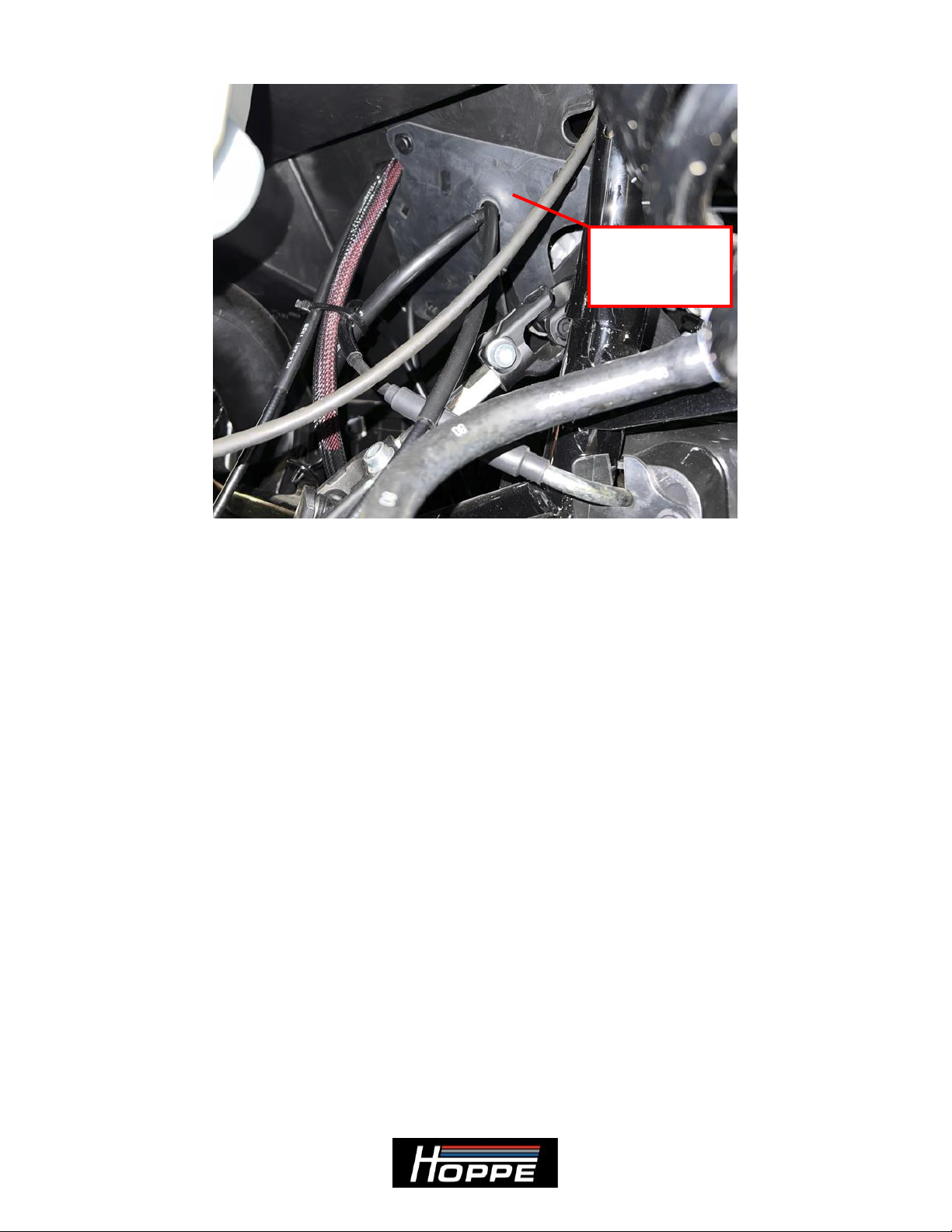

Figure 13: Feed the harness up to the under hood area.
14. Connect the red power wire to the positive terminal of the battery. Connect the
black ground wire to the negative terminal of the battery. Use the supplied M6 x
20mm bolts and washers in place of the factory hardware. You may need to use
two washers per bolt if the bolt bottoms out on the battery terminal before it
tightens the cables. See Figure 14.
RUBBER
FIREWALL
FLAP
Revision - 18 of 22
Figure 14: Attach the main power / ground wire.
15. Run the pink ignition wire, with the two attached connectors, through the hole in
the rubber protector (with the factory wire harness). The connectors are accessible
under the rubber protector by lifting the left rear corner of the rubber protector.
See Figure 15 and Figure 16.
GROUND WIRE TO
–TERMINAL
+ POWER WIRE
TO +
TERMINAL
Revision - 19 of 22
Figure 15: Ignition wire and connector routing.
Figure 16: Rubber protector access location.
RUBBER
PROTECTOR
IGNITION
WIRE AND
CONNECTORS
UNHOOK
AT THE
CORNER
Revision - 20 of 22

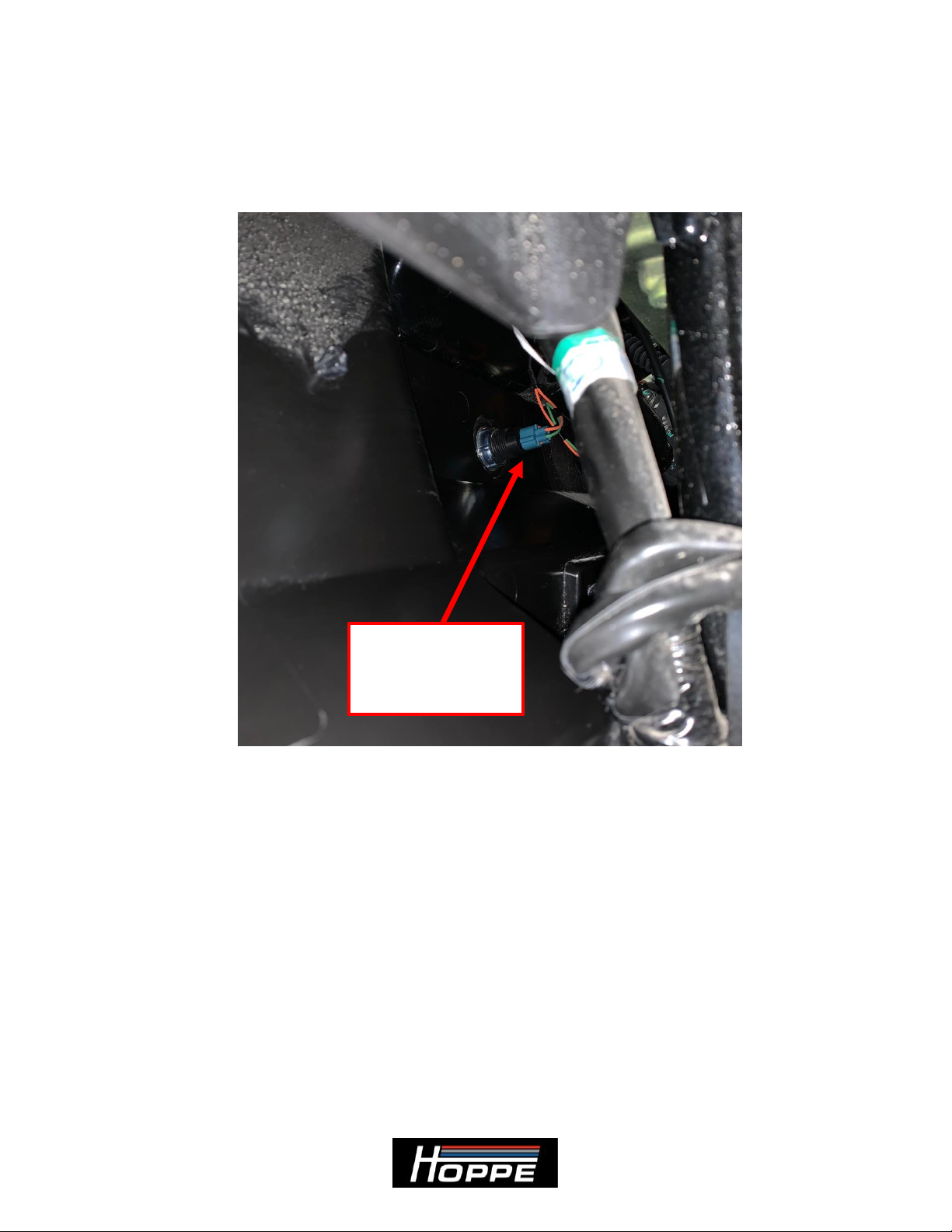

16. The female ignition connector will replace the OEM connector attached to the
back of the accessory cigarette lighter as shown in Figure 17. This connection
point is accessible through the hood opening under the rubber protector (Figure 17
from wheel well shown for a better view). The male connector on the chassis
harness can then be connected to the OEM female connector.
Figure 17: Connection location for chassis harness connectors.
17. Connect the Audio Shade roof to the chassis wire harness. Align the connector
terminals and rotate the connector housing ¼ turn to lock in place. See Figure 17.
FEMALE CHASSIS
CONNECTOR TO
CIGARETTE
LIGHTER
Other manuals for AUDIO SHADE
4
Table of contents
Other Hoppe Automobile Accessories manuals
