horiba OPSA-150 User manual

ORGANIC POLLUTANT MONITOR
OPSA-150
Installation Manual
CODE:GZ0000054386

August,2006 © 2006 HORIBA, Ltd.
Preface
This manual describes the installation procedure of the ORGANIC POLLUTANT MONITOR,
OPSA-150.
Be sure to read this manual before installation of the product. Also safely store the manual so
it is readily available whenever necessary.
Product specifications and appearance, as well as the contents of this manual are subject to
change without notice.
■Warranty and Responsibility
HORIBA warrants that the Product shall be free from defects in material and workmanship
and agrees to repair or replace free of charge, at HORIBA’s option, any malfunctioned or
damaged Product attributable to HORIBA’s responsibility for a period of one (1) year from the
delivery unless otherwise agreed with a written agreement. In any one of the following cases,
none of the warranties set forth herein shall be extended;
zAny malfunction or damage attributable to improper operation
zAny malfunction attributable to repair or modification by any person not authorized by
HORIBA
zAny malfunction or damage attributable to the use in an environment not specified in this
manual
zAny malfunction or damage attributable to violation of the instructions in this manual or
operations in the manner not specified in this manual
zAny malfunction or damage attributable to any cause or causes beyond the reasonable
control of HORIBA such as natural disasters
zAny deterioration in appearance attributable to corrosion, rust, and so on
zReplacement of consumables
HORIBA SHALL NOT BE LIABLE FOR ANY DAMAGES RESULTING FROM ANY
MALFUNCTIONS OF THE PRODUCT, ANY ERASURE OF DATA, OR ANY OTHER USES
OF THE PRODUCT.
■Trademarks
Generally, company names and brand names are either registered trademarks or trademarks
of the respective companies.

Conformable Directive
This equipment conforms to the following directives and standards:
●Installation Environment
This product is designed for the following environment.
zInstallation Categories II
zPollution degree 2
●Information on Disposal of Electrical and Electronic Equipment
FCC Rules
Any changes or modifications not expressly approved by the party responsible for compliance
shall void the user's authority to operate the equipment.
■WARNING
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provided
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in
which case the user will be required to correct the interference at his own expense.
Directives: the EMC Directive 89/336/EEC, in accordance with Article 10
(1) of the Directive
the Low Voltage Directive 73/23/EEC
Standards: [the EMC Directive]
EN61326: A3: 2003 Class A, Industry
[the Low Voltage Directive] EN61010-1: 2001
The crossed out wheeled bin symbol shown on the product or
accompanying documents indicates separate collection for waste electrical
and electronic equipment (WEEE) under the WEEE Directive 2002/96/EC in
the European Union.
This product should not be disposed of as unsorted household waste.
Your correct disposal of WEEE will contribute to reducing wasteful consumption of natural
resources and protecting human health and the environment from potential negative effects
caused by hazardous substances in products.
Contact your supplier for information on applicable disposal methods.

For your safety
Warning messages are described in the following manner. Read the messages and follow the
instructions carefully.
●Meaning of warning messages
●Symbols
This indicates an imminently hazardous situation which, if not avoided, will
result in death or serious injury. This signal word is to be limited to the most
extreme situations.
This indicates a potentially hazardous situation which, if not avoided, could
result in death or serious injury.
This indicates a potentially hazardous situation which, if not avoided, may
result in minor or moderate injury. It may also be used to alert against
unsafe practices.
Without safety alert indication of hazardous situation which, if not avoided,
could result in property damage.
Description of what should be done, or what should be followed
Description of what should never be done, or what is prohibited

■Safety Precautions
This section provides precautions to enable you to use the product safely and correctly and to
prevent injury and damage. The terms of DANGER, WARNING, and CAUTION indicate the
degree of imminency and hazardous situation. Read the precautions carefully as it contains
important safety messages.
WARNING
Do not open the cover inside the door of the control unit while the power is ON.
Before opening the cover, unplug or turn off the power of the unit to avoid the danger of electric
shock.
Do not attempt to disassemble or modify the unit.
Doing so could lead to bodily harm and/or injury or may cause damage to the unit or the sample.
Maintain ground to avoid electric shock.
CAUTION
The motor generates a high temperature.
When replacing the components of the motor, disassemble the motor after it has cooled down
sufficiently.
Take care when handling the cell of the analyzer unit.
The cell of the analyzer unit is made of glass. Handle with great care so as not to break the glass.
Do not touch the cell or directly view the UV lamp of the analyzer unit when you check the unit
operation.

Points of concern
Use of the equipment in a manner not specified by the manufacturer may impair the protection
provided by the equipment. And it may also reduce equipment performance.
Exercise the following precautions:
zUse the unit in the temperature range shown in the general specifications.
zUse the unit in an environment free from corrosive gas.
zAvoid using the unit in a location close to equipment using strong electric power (such as
an electric furnace), or near a radio or sound wave source.
zDo not give a shock or large vibrations to the unit. To move the unit to another location,
contact our service or sales office.
zAvoid turning ON the power again immediately after turning it OFF.
zDo not press buttons using wet hands, or sharp objects such as pen tips or screwdrivers.
Disposal of the product
When disposing of the product, follow the related laws and/or regulations of your country for
disposal of the product.
Description in this manual
Note
This interprets the necessary points for correct operation and notifies the important points for
handling the unit.
Reference
This indicates the part of where to refer the information.
Tip
This indicates reference information.
Documents related to this product
The following documents are related to this product.
●Instruction Manual for OPSA-150
Contains information about necessary work and procedures for daily measurement
operations.
●Installation Manual for OPSA-150 (this manual)
Contains information about the installation procedure.

Contents
1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.1 Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.2 Composition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
2 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2.1 Selecting an installation location . . . . . . . . . . . . . . . . . . . . . . . . . 2
2.2 Cautions for installation environment . . . . . . . . . . . . . . . . . . . . . . 2
2.2.1 Sample water condition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2.2.2 Surrounding environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2.3 Installing OPSA-150 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2.3.1 Positions of foundation bolts for pole stand . . . . . . . . . . . . . . . . . . . . 2
2.3.2 Service and maintenance space . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2.3.3 Figure of completed pole stand mount . . . . . . . . . . . . . . . . . . . . . . . 3
2.3.4 Pole stand assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

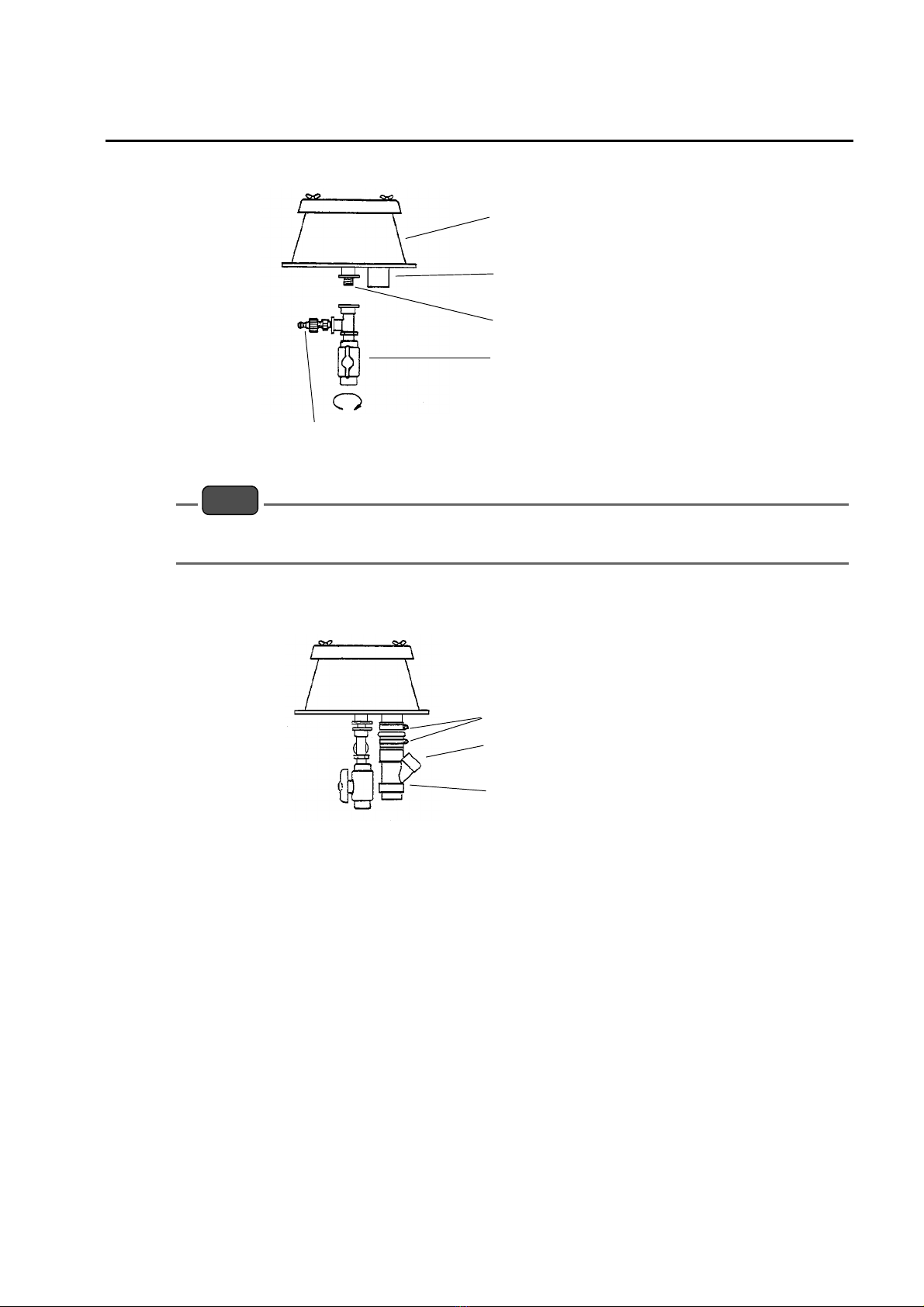

2.3.5 Measuring tank assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.3.6 Overflow tank assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.3.7 Operating unit assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3 Piping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3.1 Piping procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4 Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4.1 Wiring procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4.1.1 Earth connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4.1.2 Power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4.1.3 Cable connection for analysis unit . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4.1.4 Float switch cable connection for overflow tank . . . . . . . . . . . . . . . . 12
4.1.5 Signal line connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5 Related Figures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

1 Overview
1
1 Overview
1.1 Cautions
This manual provides the procedure for assembling and installing the UV meter and pole
stand, and cautions.
To obtain stable operation and reliable measurement of the UV meter for a long period of time,
you need correct installation work from setup through piping.
If the meter is not installed correctly, unexpected problems may occur such as incorrect
analyzer indications, frequent malfunctions, and increases in required inspection and
maintenance.
Problems due to incorrect installation or use are not covered by the warranty. Be sure to fully
follow the manual.
1.2 Composition
For OPSA-150 installation, both the UV meter itself and OPSA-150 pole stand are required.
The following table shows the components included with the UV meter and pole stand.
Table 1 Components included with UV meter
Table 2 Components included with the pole stand
Component Name Specifications Quantity
Operation unit OPSA-150 operation unit Standard specification (outdoor case) 1
Analysis unit OPSA-150 analysis unit 1
Overflow tank
Overflow tank Float switch 1
U bolt (large) set M8, screw nut 2
Pipe stay set Pipe, U bolt, screw nut 1
Hose set 1.2 m, with one-touch joint 1
Measuring tank
and accessory
Measuring tank 1
Blind plate 1
Calibration tank 2
V-4 pipe set V-4 valve, pipe 1
V-2 pipe set V-2 valve, T-pipe 1
Y-pipe set Y-pipe, hose clip 1
M8 bolt set Used for attaching the measuring tank 4
Accessories for analysis unit Drying agent, calibrating solution,
wiper, washer 1
OPSA-150 Operation Manual Standard specification 1
Component Name Specifications Quantity
Pole stand OPSA-150 pole stand Standard specification 1
Analysis unit mount
Operation unit bracket
OPSA-150 analysis unit mount Analysis unit mount 1
Converter bracket Converter bracket 1

2 Installation
2
2 Installation
2.1 Selecting an installation location
OPSA-150 is intended for indoor use. When installing OPSA-150, select a location that
satisfies the requirements below.
2.2 Cautions for installation environment
2.2.1 Sample water condition
zWater temperature: 2°C to 40°C (must not be frozen)
zWater flow rate: 2 L/min to 20 L/min
2.2.2 Surrounding environment
zNo direct sunlight to the meter
zClose to the water sampling point
zClose to a water pipe and drain facility/accessible to power supply
zNo dust, mist or corrosive gas in the air
zGood ventilation
zProtected from rain and wind
zSurrounding temperature: 0°C to 40°C/relative humidity: 85% or less
zStable location with few vibrations or shocks
zAltitude of 2000 m or less
2.3 Installing OPSA-150
2.3.1 Positions of foundation bolts for pole stand

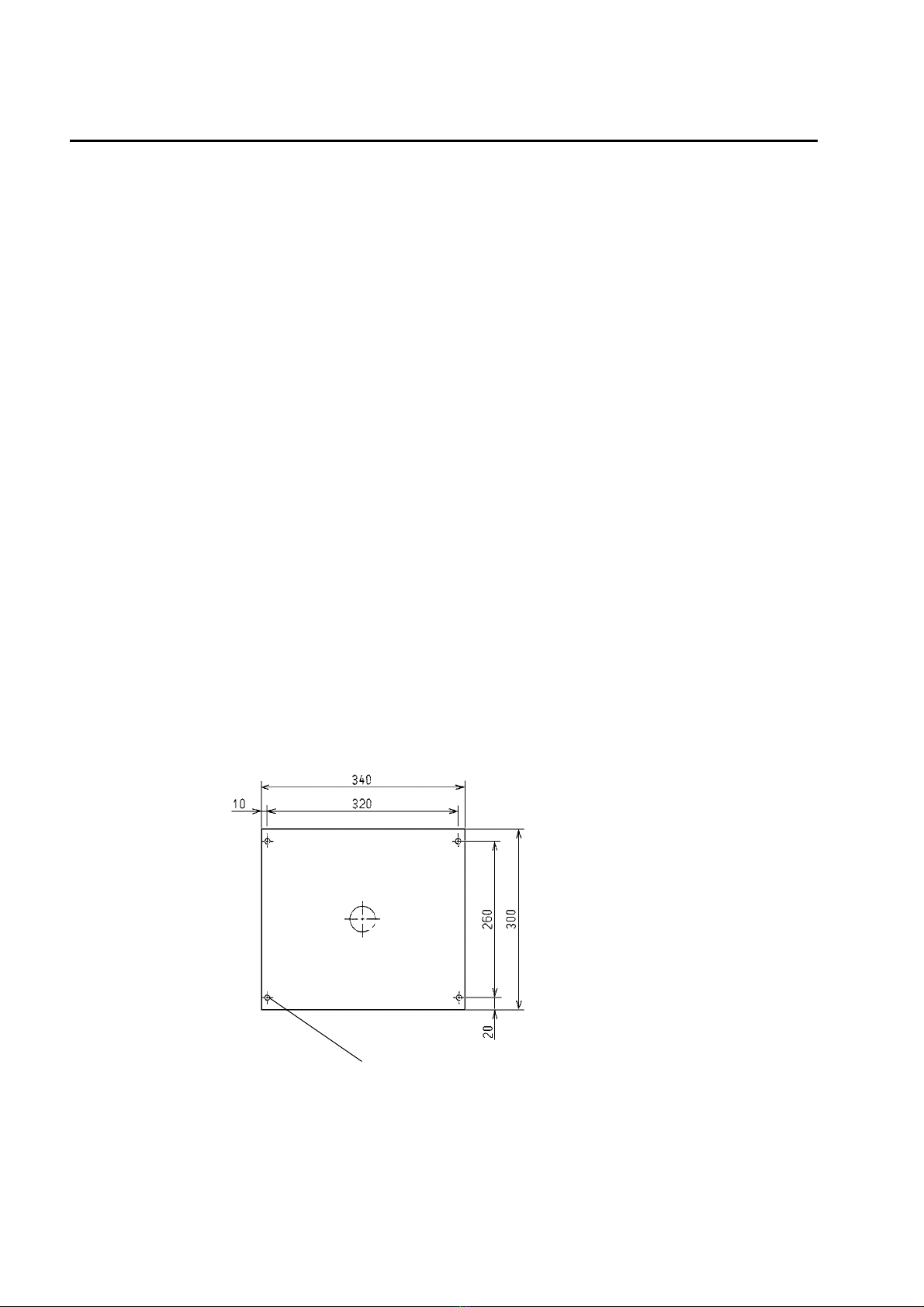

Firmly attach M8 foundation bolts as shown below.
Fig. 1 Positions of the foundation bolts
M8 foundation bolts (four bolts)
Front
Unit: [mm]

2 Installation
3
2.3.2 Service and maintenance space
Prepare the space shown below for service and maintenance.
Fig. 2 Service and maintenance space

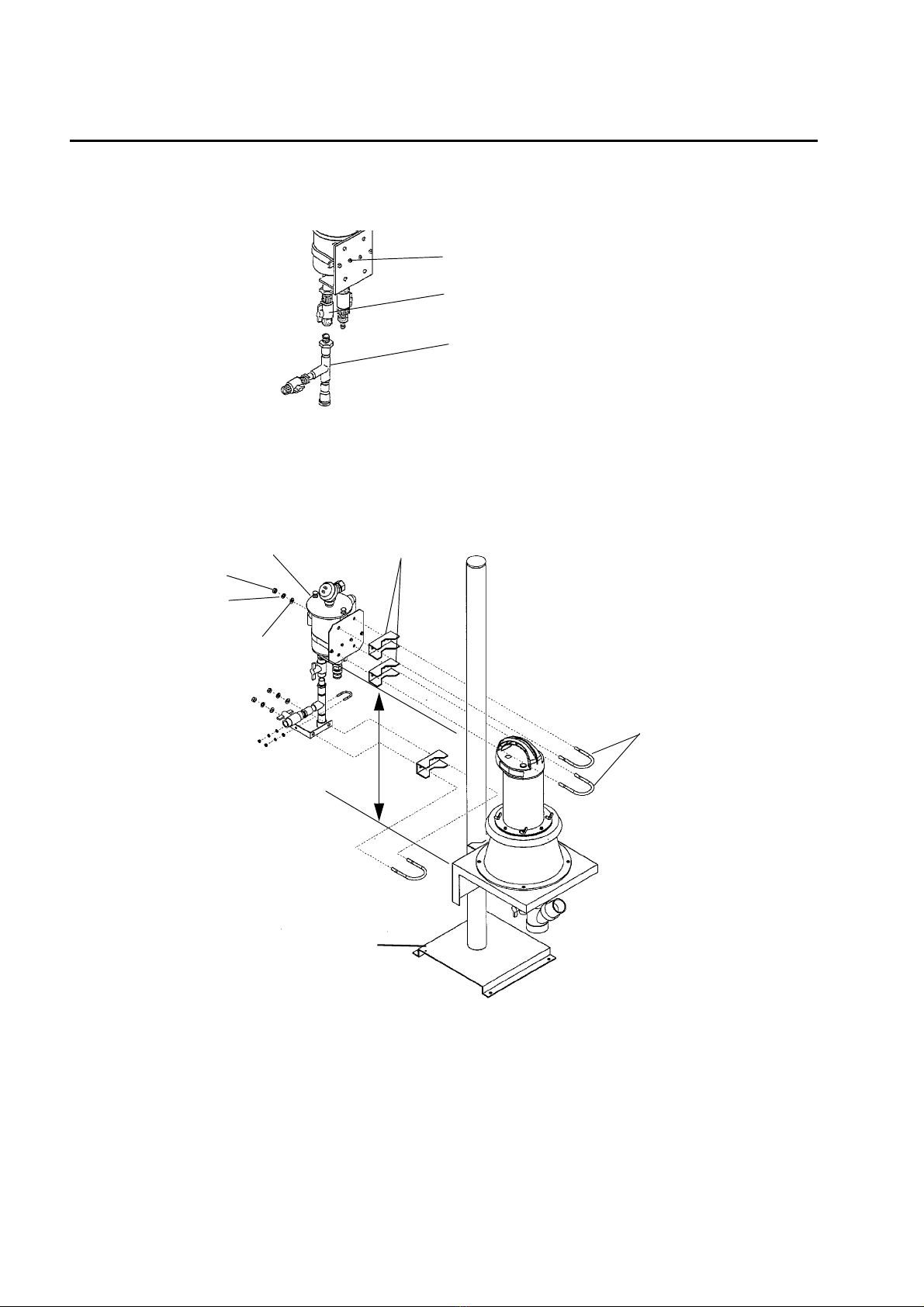

2.3.3 Figure of completed pole stand mount
The following figure shows the completed pole stand mount.
Fig. 3 OPSA-150 completed pole stand
Front
Unit: [mm]
Operation unit
Hood (optional)
Analysis unit
Measuring tank
Overflow tank
Mount
Analysis unit mount
Earth logo

2 Installation
4
2.3.4 Pole stand assembly
1. Use four M8 bolts to prevent the mount from moving.
Make sure to locate the earth logo on the mount at the front left (looking from the front).
2. Use two U bolts and attach the analysis unit mount to the pole as shown below.
Make sure that there is a 350 mm to 500 mm distance between the mount and floor. (450
mm is recommended.)
Fig. 4 Analysis unit mount installation
2.3.5 Measuring tank assembly
1. Attach the measuring tank included in the meter to the analysis unit mount using
four M8 × 16 bolts.
Make sure to locate the thicker drain of the pipe on the right (looking from the front).
Fig. 5 Measuring tank assembly
2. Remove the four butterfly nuts, attach the blind plate and reattach the butterfly
nuts.
Fig. 6 Blind plate installation
U bolts
M8 flat washer
M8 SW
M8 nut
Analysis unit mount
Attach the mount 350 mm to 500 mm
Mount
Earth logo
above the floor.
M8 × 16 bolts
M8-washer
Drain
Front
Butterfly nuts (four nuts)
Blind plate

2 Installation
5
3. Screw the pipe unit with V-4 valve attached into the bottom of the measuring tank.
Fig. 7 V-4 valve installation
Note
Make sure that Teflon tape is attached to the screw on the bottom of the measuring tank before
screwing in the pipe unit.
4. Insert the Y-pipe into the drain on the bottom of the measuring tank and attach it
with the hose clip.
Fig. 8 Y-pipe installation
Measuring tank
Drain
Make sure that Teflon tape is attached.
Pipe unit (V-4 valve)
Turn the pipe unit right to screw it into the measuring tank.
Screw the pipe unit in until this part faces the rear.
Hose clip
Air outlet
Y-pip e

2 Installation
6
2.3.6 Overflow tank assembly
1. Screw the pipe unit with the valve V-2 attached into the valve V-1 valve on the
bottom of the overflow tank.
Fig. 9 Installation of valve V-2
2. Use U bolts (large/M8) to attach the overflow tank to the pole. Make sure that there
is a distance of approximately 400 mm between the analysis unit mount and the
bottom of the overflow tank.
Fig. 10 Overflow tank installation
Overflow tank
Valve V-1
Pipe with valve V-2 attached
Overflow tank Tightening plates
U bolts (large)
M8 nuts (4)
M8 SWs (4)
M8 flat washers (4)
400 mm
Earth logo

2 Installation
7
3. Attach the pipe stay to the pipe unit (V-2 valve attached) temporally using a U bolt
(small/M5), and then fasten the pipe stay to the pole stand using another U bolt
(large/M8). After making sure that there is no excess pressure on the pipe unit,
firmly fasten the U bolt (small/M5) attached first.
Fig. 11 Pipe stay installation
4. Connect the outlet hose end of the valve V-3 on the bottom of the overflow tank to
the flexible tube that is attached to the hose end on the bottom of the measuring
tank. One-touch joints are attached to both ends of the flexible tube. Push the
joints together until they click.
Fig. 12 One-touch joint installation
Note
To remove the flexible tube, pull the red part of the joint.
U bolt (large)
M8 SW
M8 nut
Tightening plate
V-2 valve
Pipe stay
Pipe unit
U bolt (small)
M5 nut
M5 SW
M5 flat washer
One-touch joint
Hose end

2 Installation
8
2.3.7 Operating unit assembly
1. Attach the converter bracket to the operation unit using four M6 hexagon head
bolts. If you want to attach the optional hood, attach the components in this order:
1. operation unit; 2. converter bracket; 3. hood.
2. Attach the operation unit to the pole using U bolts (large/M8).
Fig. 13 Operation unit installation
Operation unit
Converter bracket
U bolts (large)
Tightening plate
M8 nuts (4)
M8 SWs (4)
M8 flat washers (4)
M6 hexagon head bolts (4)
Hood (optional)

3 Piping
9
3 Piping
3.1 Piping procedure
zWhen there imay be pipe freezing, install a pipe warming device.
zTo prevent backpressure, make the exit-side pipes as short as possible. In addition, the
pipe exit must allow air to flow out freely, and must not be submerged in water. Do not
install the pipe vertically.
zBefore connecting the device, make sure to flush the sampling line.
Fig. 14 Piping
zRefer to the following table for diameters of the pipes and the pipe connectors.
Table 3 Diameters of pipes and pipe connectors
Overflow tank
Measuring tank
Air outlet
Drain pipe
Discharge pipe
Sampling pump
Bypass pipe
Sampling pipe
Overflow pipe (1)
Overflow pipe (2)
Connector name Pipe connector Nominal pipe diameter
(When a standard hard vinyl chloride pipe is used)
Sample water inlet Rp-1/2 socket 13 mm or larger
Bypass outlet Rc-1/2 socket 13 mm or larger
Overflow outlet (1) Port diameter 13A
socket 13 mm or larger
Overflow outlet (2) Port diameter 20A
socket 20 mm or larger
Drain outlet Rc-1/2 socket 13 mm or larger
Discharge outlet Port diameter 50A
socket 50 mm or larger

3 Piping
10
Note
zThe diameters of the pipes shown in Table 3 match the diameters of connectors for OPSA-150. If
the water sampling point is distant from the device, use pipes with larger diameters than those
mentioned in Table 3.
zWhen piping the drain pipe, overflow pipes (1) and (2), and the discharge pipe, slope them
sufficiently so that the ends of the pipes can not be submerged in water.
zWhen using a flexible vinyl tube pipe, use a pressure-proof vinyl tube containing blade.
zRemovable piping is recommended so that the pipes can be disconnected for periodic cleaning.

4 Wiring
11
4 Wiring
4.1 Wiring procedure
4.1.1 Earth connection
zConnect the earth according to Type D earth connection procedures.
zBe sure to connect the earth bolt.
Fig. 15 Earth connection
Note
To prevent electric shocks, ensure correct earthing.
4.1.2 Power supply
Connect the power supply of the operation unit according to the signal table.
zUse a power cable of 1.25 mm2(AWG 16) or more in size.
zThe surge absorbers in the power terminal block are connected in parallel to prevent
noise. Tighten them together with the power cable.
zThe earth must be connected for safe operation.
zBe sure to connect the power terminals in the order of L phase, E (earth) phase and N
phase from the left. Ensure correct connection.
Fig. 16 Power terminal connection
Earth bolt (M5)
Power terminal block
L phase E (earth) phase N phase
Operation unit

4 Wiring
12
4.1.3 Cable connection for analysis unit
zPass the connector of the analysis unit through the cable clamp from the bottom left of the
operation unit.
zConnect the connector of the analysis unit to the connectors CN 1 and CN 2 located in the
bottom left of the inside of operation unit.
zAttach the round shield terminal to the screw hole under the connectors using a screw.
Fig. 17 Cable connection for analysis unit
4.1.4 Float switch cable connection for overflow tank
zPass the float switch cable of the overflow tank through the cable clamp from the bottom
of the operation unit.
zConnect cables to the No. 7 and 8 terminals on the power terminal block in the center
bottom of the operation unit.
4.1.5 Signal line connection
zConnect the signal lines according to the external connection-wiring figure (V1039557A).
zUse a 2-pin shield cable for the current power output signal line and earth the shield at the
receiver side.
zConnect such devices as a surge absorber and noise killer in parallel to prevent noise in
contact output signals.
Note
zRefer to the separate OPSA-150 Operation Manual.
zDo not connect the power cable to the signal line wiring section. Doing so will cause
malfunctions.
zDo not turn the power on before introducing water to the system. The cell will rotate without
water, which can cause malfunctions.
Operation unit
CN 1
Attach the round shield terminal
2-pin connector
4-pin connector
Analysis unit cable
using an M3 screw.
CN 2
