Horizon Hobby Onyx KX80 User manual

ONXC4101
®
80W AC/DC Multi-Chemistry Charger
KX80

2
Age Recommendation: Not for children under 14 years. This is not a toy.
WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating.
Failure to operate the product correctly can result in damage to the product, personal property and cause serious injury.
This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic
mechanical ability. Failure to operate this Product in a safe and responsible manner could result in injury or damage to the
product or other property. This product is not intended for use by children without direct adult supervision. Do not attempt
disassembly, use with incompatible components or augment product in any way without the approval of Horizon Hobby, LLC.
This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions
and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.
Meaning of Special Language
The following terms are used throughout the product literature to indicate various levels of potential harm when operating this
product:
WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and
serious injury OR create a high probability of supercial injury.
CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of
serious injury.
NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND a little or no
possibility of injury.
NOTICE
All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For
up-to-date product literature, visit horizonhobby.com or towerhobbies.com and click on the support or resources tab for this product.
Table of Contents
Charging Warnings........................................................ 3
Box Contents.................................................................. 4
Features ......................................................................... 4
Specifications ................................................................ 5
Special Features ............................................................ 6
Standard Battery Parameters........................................ 7
Program Flow Chart................................................... 7–8
Operation........................................................................ 9
Program Operation ........................................................ 9
DC Power Supply ......................................................... 12
Battery Memory Settings and Usage .......................... 13
System Setting............................................................. 14

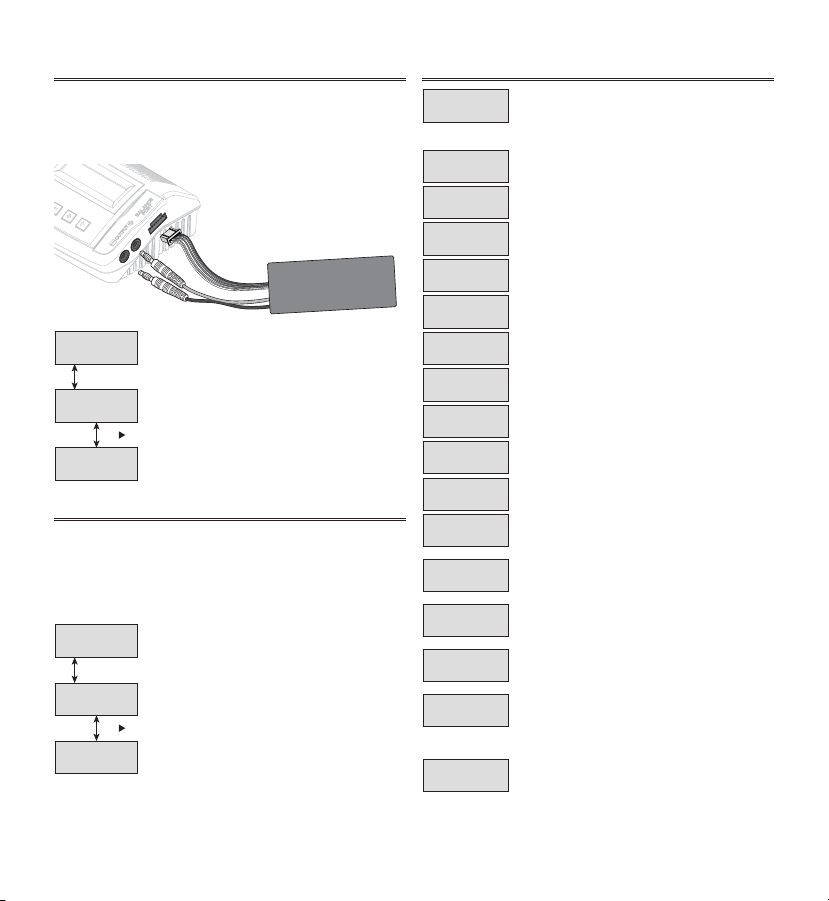

Battery Meter ............................................................... 15
Battery Resistance Meter............................................ 15
Warning And Error Message ....................................... 15
Limited Warranty ................................................... 16–17
Warranty and Contact Information ............................. 17
Supplier’s Declaration of Conformity.......................... 18
NOTICE: This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack
of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
DANGER: To reduce the risk of re or electric shock, carefully follow these instructions.

3
CHARGING WARNINGS
WARNING: Failure to exercise caution while using this
product and comply with the following warnings could
result in product malfunction, electrical issues, excessive heat,
FIRE, and ultimately injury and property damage.
• NEVER LEAVE CHARGING BATTERIES UNATTENDED.
• NEVER CHARGE BATTERIES OVERNIGHT.
• Never attempt to charge non-rechargeable batteries.
• Never leave the power supply, charger and battery
unattended during use.
• Never attempt to charge dead, damaged or wet battery packs.
• Never attempt to charge a battery pack containing different
types of batteries.
• Never allow children under 14 years of age to charge
battery packs.
• Never charge batteries in extremely hot or cold places or
place in direct sunlight.
• Never charge a battery if the cable has been pinched or shorted.
• Never connect the charger if the power cable has been
pinched or shorted.
• Never attempt to dismantle the charger or use a damaged
charger.
• Never drop charger or batteries.
• Never place the charger or battery on a car seat, carpet or similar.
• Never attempt to charge a battery that is already fully
charged or just slightly discharged.
• Never attempt to charge batteries that require a different
charge technique from NiCd, NiMh, LiPo or Gel cell
(Pb, Lead acid).
• Never attempt to charge a battery tted with an integral
charge circuit or a protection circuit.
• Never attempt to charge batteries installed in a device or
which are electrically linked to other components.
• Never attempt to charge batteries that are not expressly
stated by the manufacturer to be suitable for the currents
the charger delivers during the charge process.
• Always place the charger and the battery on a heat-
resistant, inammable and nonconductive surface.
• Always keep all the inammable volatile materials away
from operating area.
• Always keep the charger well away from dust, damp, rain,
heat, direct sunshine and vibration.
• Always use only rechargeable Li-Po batteries designed for
use with this type of charger.
• Always inspect the battery before charging.
• Always keep the battery away from any material that could
be affected by heat.
• Always monitor the charging area and have a re
extinguisher available at all times.
• Always end the charging process if the battery becomes
hot to the touch or starts to change form (swell) during the
charge process.
• Always connect the charge cable to the charger rst, then
connect the battery to avoid short circuit between the charge
leads. Reverse the sequence when disconnecting.
• Always connect the positive red leads (+) and negative
black leads (–) correctly.
• Always disconnect the battery after charging, and let the
charger cool between charges.
• Always charge in a well-ventilated area.
• Always terminate all processes and contact Horizon Hobby if
the product malfunctions.
• Always supervise children and ensure they DO NOT play
with or attempt to use this appliance.
WARNING: Never leave charger unattended, exceed
maximum charge rate, charge with non-approved
batteries or charge batteries in the wrong mode. Failure to
comply may result in excessive heat, re and serious injury.
CAUTION: Always ensure the battery you are
charging meets the specications of this charger and
that the charger settings are correct. Not doing so can result
in excessive heat and other related product malfunctions,
which can lead to user injury or property damage. Please
contact Horizon Hobby or an authorized retailer with
compatibility questions.

4
Features
Output Socket
4mm Banana
Plug
DC Input/Output
1
Box Contents
1. Onyx®KX80 Multi-Chemistry Charger
2. AC Power Cord
3. Charging Cable, Banana to Deans
4. DC Cable with Alligator Clip Connector
5. Balance adaptor, JST-XH
2 3
45
Balance Port
LCD Display
Resume or Start
Charge Processes
Temperature Sensor Port
AC Socket
100–240V
Scroll Through the Main Menu
Stop Any Charge Processes
Alter Values
View Status of
Individual Cells
in Balance
Charge Mode

5
ONXC4101
Net Weight 390g
Dimensions (L × W × H) 135 × 110 × 60mm
AC Power Input Voltage 100–240V
Display Type 2 × 16 LCD, Blue backlight
External Port 1 6S Balance Socket-XH, Temperature Probe Socket,
Battery Socket, DC Input/Output
Delta Peak Detection:
NiMH/NiCd 3–15mV/cell / Default: 4mV/cell
Battery Cutoff Temperature 20ºC/68ºF–80ºC/176ºF (adjustable)
Charge Voltage
NiMH/NiCd: Delta peak detection
LiHV: 4.20–4.35V/cell
LiIon: 4.08–4.1V/cell
Pb AGM: 2.45V/cell
LiPo: 4.18–4.20V/cell
LiFe: 3.58–3.6V/cell
Pb Normal: 2.4V/cell
Pb Cold: 2.45V/cell
Balance Current 300mA/cell
Reading Voltage Range 0.1–26.1V/cell
Battery Types/Cells NiMH/NiCd: 1–15 cells, LiPo/LiHV/LiFe/LiIon: 1–6 cells, Pb: 2–20V
Battery Capacity Range NiMH/NiCd: 100–50000mAh, LiPo/LiHV/LiFe/LiIon: 100–50000mAh, Pb: 100–50000mAh
Charge Current 0.1A–8.0A
Safety Timer 1–120 minutes / OFF
Charge Wattage 80W
Discharge Current 0.1A–2.0A
Discharge Cut-off Voltage
NiMH/NiCd: 0.1–1.1V/cell
LiHV: 3.1–3.4V/Cell
LiIon: 2.9–3.2V/cell
LiPo: 3.0–3.3V/cell
LiFe: 2.6–2.9V/cell
Pb: 1.8–2.0V/cell
Discharge Wattage 10W
Balance Cells 2–6 cells
Memory 10 different charge/discharge proles
Charge Method NiMH/NiCd: Delta-Peak Sensitivity, LiPo/LiHV/LiFe/LiIon/PB: CC/CV
Specifications

6
Special Features
DC Power Supply
The Onyx®KX80 is integrated with a DC power supply
function with a 13.8V output and 10W–80W power range.
AGM Charge and Cold Charge
For Pb batteries, there are two charging modes: AGM charge
and cold charge.
Optimized Operating Software
The Onyx KX80 features an AUTO function that automatically
sets the current during charging/discharging. When charging
lithium batteries, this may prevent overcharging. If the
charger detects a malfunction, it will disconnect the circuit
automatically and sound an alarm. You can congure the
settings accordingly.
Battery Memory (Data Store/Load)
Store up to 10 different charge/discharge proles for each
channel. You can keep the data pertaining to program setting
of the battery of continuous charging or discharging. Users
can call out these data at any time without any special
program setting.
Terminal Voltage Control (TVC)
TVC is the maximum voltage that a cell within a pack will
charge to. Users cannot charge above the maximum voltage;
however, users can charge to a lower termanal voltage, which
will not fully charge a battery.
Internal Independent Lithium Battery Balancer
The Onyx KX80 features an individual cell voltage balancer,
rendering an external balancer for balance charging
unnecessary.
Balancing Individual Cells Battery During Discharging
During the process of discharging, the Onyx KX80 can
monitor and balance each cell of the battery individually. An
error message appears and the process automatically stops if
the voltage of a single cell is abnormal.
• See the status of individual Lithium cells (works with any
charge, discharge and storage mode)
• Capacity percentage
• Final voltage when the program ends
• Input voltage
• Safety timer and duration of time in minutes
• Cutoff temperature
• Internal and external temperature (Connect temperature
probe to display external temperature.)
• Capacity cut-off and value of the set capacity limit
Fast Charge and Storage Mode of Lithium Battery
Fast charge mode shortens the overall charge time required
for lithium batteries with a slight reduction in overall capacity.
Storage mode is used for charging or discharging lithium
batteries not used for an extended period.
Re-Peak Mode of NiMH/NiCd Battery
In re-peak charge mode, the charger can peak charge the
battery one, two, or three times in a row automatically.
Delta-Peak Sensitivity for NiMH/NiCd Battery
When the battery’s voltage exceeds the threshold, the process
automatically terminates.
Cyclic Charging/Discharging
A series of 1 to 5 charge to discharge (>) or discharge to
charge cycles can be used for refreshing older batteries and
improving cell balance.
Automatic Charging Current Limit
Allows you to set the upper limit of the charging current when
charging your NiMH or NiCd battery.
Battery Meter
Allows you to check battery voltage and internal resistance.
Battery Internal Resistance Meter
Allows you to check the battery’s total internal resistance as
well as each cell’s internal resistance.
Capacity Limit
The charging capacity is always calculated as the charging
current multiplied by time. If the charging capacity exceeds
the limit, the process automatically terminates when the
maximum value is reached.
Temperature Threshold
The battery’s internal chemical reaction causes the battery
temperature to rise. The process terminates if the temperature
limit is reached. This function is only available when
connecting the optional temperature probe (DYN5033).
Processing Time Limit
Allows you to limit the maximum process time to avoid
overcharging the battery.

7
Standard Battery Parameters
LiPo LiIon LiFe LiHV NiCd NiMH Pb
Nominal Voltage 3.7V/cell 3.6V/cell 3.3V/cell 3.7V/cell 1.2V/cell 1.2V/cell 2.0V/cell
Max Charge Voltage 4.2V/cell 4.1V/cell 3.6V/cell 4.35V/cell 1.5V/cell 1.5V/cell 2.46V/cell
Storage Voltage 3.8V/cell 3.7V/cell 3.3V/cell 3.85V/cell N/A N/A N/A
Allowable Fast Charge ≤1C ≤1C ≤4C ≤1C 1C–2C 1C–2C ≤0.4C
Min. Discharge Voltage 3.0–3.3
V/cell
2.9–3.2
V/cell
2.6–2.9
V/cell
3.1–3.4
V/cell
0.1–1.1
V/cell
0.1–1.1
V/cell 1.8V/cell
WARNING: Always ensure you are inputting the correct voltage for your battery type. Incorrect settings may result
in re, causing personal injury or damage to property.
Program Flow Chart
– +
BATT/PROGRAM
LiPO BATT
ENTER
–
+
LiPo BALANCE CHG
2.0A 7.4V (2S)
LiPo CHARGE
2.0A 7.4V (2S)
–
+
–
+
–
+
LiPo FAST CHARGE
2.0A 7.4V (2S)
LiPo STORAGE
2.0A7.4V (2S)
LiPo DISCHARGE
2.0A 7.4V (2S)
– +
BATT/PROGRAM
LiFe BATT
ENTER
–
+
LiFe BALANCE CHG
2.0A 6.6V (2S)
LiFe CHARGE
2.0A 6.6V (2S)
–
+
–
+
–
+
LiFe FAST CHARGE
2.0A 6.6V (2S)
LiFe STORAGE
2.0A 6.6V (2S)
LiFe DISCHARGE
2.0A 6.6V (2S)
– +
BATT/PROGRAM
LiIo BATT
ENTER
–
+
LiIo BALANCE CHG
2.0A 7.2V (2S)
LiIo CHARGE
2.0A 7.2V (2S)
–
+
–
+
–
+
LiIo FAST CHARGE
2.0A 7.2V (2S)
LiIo STORAGE
2.0A 7.2V (2S)
LiIo DISCHARGE
2.0A 7.2V (2S)
– +
BATT/PROGRAM
LiHV BATT
ENTER
–
+
LiHV BALANCE CHG
2.0A 7.6V (2S)
LiHV CHARGE
2.0A 7.6V (2S)
–
+
–
+
–
+
LiHV FAST CHARGE
2.0A 7.6V (2S)
LiHV STORAGE
2.0A 7.6V (2S)
LiHV DISCHARGE
2.0A 7.6V (2S)
– +
BATT/PROGRAM
NiMH BATT
ENTER
–
+
NiMH CHARGE
CURRENT 2.0A
NiMH AUTO CHG
CURRENT 2.0A
–
+
–
+
–
+
NiMH DISCHARGE
0.1A CUT:1.0V
NiMH RE-PEAK
1
NiMH CYCLE
CHG > DCHG 1
– +
BATT/PROGRAM
NiCd BATT
ENTER
–
+
NiCd CHARGE
CURRENT 2.0A
NiCd AUTO CHG
CURRENT 2.0A
LH3S STORAGE
TURN ON BATTERY
–
+
–
+
–
+
NiCd DISCHARGE
0.1A CUT: 1.0V
NiCd RE-PEAK
1
NiCd CYCLE
CHG > DCHG 1
BATT/PROGRAM
SYSTEM SETTING->
ENTER
–
+
–
+
Version
HW 1.00 FW1.00
Safety Timer
ON 120 Min
–
+
–
+
–
+
Capacity Cut-Off
ON 5000mAH
Temp Cut-Off
ON 50°C 122°F
Temperature Unit
Celsius
–
+
Rest Time
CHG>DCHG 10Min
ENTER
[ BATT MEMORY 1 ]
ENTER SET->
BATT TYPE
LiPo
–
+
–
+
–
+
BATT VOLTAGE
7.4V (2S)
CHARGE CURRENT
4.9A
–
+
–
+
Key Beep ON
Buzzer ON
DISCHG CURRENT
2.2A
–
+
DISCHG VOLTAGE
3.0V/CELL
– +
BATT/PROGRAM
BATT MEMORY
ENTER
– +
– +
START/ENTER > 3 seconds
[ BATT MEMORY 1 ]
C:4.9A D:2.2A
ENTER
[ BATT MEMORY 1 ]
LiPo 7.4V (2S)
SAVE PROGRAM
SAVE...
SAVE PROGRAM
ENTER
–
+
TVC=YOUR RISK
4.2V
–
+
ENTER CHARGER
LOAD...
LiPo BALANCE CHG
4.9V 7.4V(2S)
–
+
–
+
–
+
LiPo CHARGE
4.9A 7.4V(2S)
LiPo FAST CHARGE
4.9A 7.4V(2S)
LiPo STORAGE
4.9A 7.4V(2S)
–
+
LiPo DISCHARGE
2.2A 7.4V(2S)
ENTERENTER
[ BATT MEMORY 2 ]
ENTER SET->
BATT TYPE
NiMH
–
+
–
+
–
+
BATT VOLTAGE
2.4V (2S)
TRICKLE
100mA
–
+
PEAK DELAY
1Min
– +
[ BATT MEMORY 2 ]
C:1.0A D:1.0A
[ BATT MEMORY 2 ]
NiMH 2.4V (2S)
ENTER
–
+
SAVE PROGRAM
SAVE...
SAVE PROGRAM
ENTER
DISCHG VOLTAGE
1.1V/CELL
–
+
DISCHG CURRENT
2.2A
–
+
ENTER CHARGER
LOAD...
NiMH CHARGE
CURRENT 1.0A
–
+
v –
+
NiMH Auto CHARGE
CURRENT 1.2A
NiMH DISCHARGE
1.0A CUT:2.0V
NiMH RE-PEAK
2
–
+
NiMH CYCLE
DCHG>CHG 1
ENTERENTER
[ BATT MEMORY 3 ]
ENTER SET->
BATT TYPE
Pb
–
+
–
+
–
+
BATT VOLTAGE
4.0V (2P)
CHARGE CURRENT
3.3A
DISCHG CURRENT
1.5A
–
+
DISCHG VOLTAGE
1.7V/CELL
– +
–
+
Pb NORMAL CHG
2.0A 2.0V (1P)
ENTER CHARGER
LOAD...
ENTER > 3 Seconds
[ BATT MEMORY 3 ]
C:3.3A D:1.5A
[ BATT MEMORY 3 ]
Pb 4.0V (2P)
SAVE PROGRAM
SAVE...
ENTER
SAVE PROGRAM
ENTER
INC
DEC
Pb AGM CHG
0.1A 2.0V (1P)
Pb COLD CHG
0.1A 2.0V (1P)
PB DISCHARGE
0.1A 4.0V (2P)
Stop
Batt prog
Load Factory Set
Enter
–
+
DC Input Low
Cut-off 11.0V
NiCd Sensitivity
D.Peak 4mV
–
+
NiMH Sensitivity
D.Peak 4mV
– +
BATT/PROGRAM
Pb BATT
ENTER
INC
DEC
Pb NORMAL CHG
2.0A 2.0V (1P)
Pb AGM CHG
0.1A 2.0V (1P)
INC
DEC
–
+
Pb COLD CHG
0.1A 2.0V (1P)
Pb DISCHARGE
0.1A 2.0V (1P)
– +
BATT/PROGRAM
BATT RESISTANCE
ENTER
BATT/PROGRAM
BATT METER
ENTER
–
+
5 3 3 mΩ
5 0 0 mΩ
TOTAL: 16 mΩ
4.20 4.19 4.19V
0.00 0.00 0.00V
–
+
MAIN 12.58V
H4.20V L4.19V
– +
– +
CHARGE CURRENT
3.3A
DC SUPPLY: OFF
CHARGE POWR:80W
Continued on page 8

8
Program Flow Chart
– +
BATT/PROGRAM
LiPO BATT
ENTER
–
+
LiPo BALANCE CHG
2.0A 7.4V (2S)
LiPo CHARGE
2.0A 7.4V (2S)
–
+
–
+
–
+
LiPo FAST CHARGE
2.0A 7.4V (2S)
LiPo STORAGE
2.0A7.4V (2S)
LiPo DISCHARGE
2.0A 7.4V (2S)
– +
BATT/PROGRAM
LiFe BATT
ENTER
–
+
LiFe BALANCE CHG
2.0A 6.6V (2S)
LiFe CHARGE
2.0A 6.6V (2S)
–
+
–
+
–
+
LiFe FAST CHARGE
2.0A 6.6V (2S)
LiFe STORAGE
2.0A 6.6V (2S)
LiFe DISCHARGE
2.0A 6.6V (2S)
– +
BATT/PROGRAM
LiIo BATT
ENTER
–
+
LiIo BALANCE CHG
2.0A 7.2V (2S)
LiIo CHARGE
2.0A 7.2V (2S)
–
+
–
+
–
+
LiIo FAST CHARGE
2.0A 7.2V (2S)
LiIo STORAGE
2.0A 7.2V (2S)
LiIo DISCHARGE
2.0A 7.2V (2S)
– +
BATT/PROGRAM
LiHV BATT
ENTER
–
+
LiHV BALANCE CHG
2.0A 7.6V (2S)
LiHV CHARGE
2.0A 7.6V (2S)
–
+
–
+
–
+
LiHV FAST CHARGE
2.0A 7.6V (2S)
LiHV STORAGE
2.0A 7.6V (2S)
LiHV DISCHARGE
2.0A 7.6V (2S)
– +
BATT/PROGRAM
NiMH BATT
ENTER
–
+
NiMH CHARGE
CURRENT 2.0A
NiMH AUTO CHG
CURRENT 2.0A
–
+
–
+
–
+
NiMH DISCHARGE
0.1A CUT:1.0V
NiMH RE-PEAK
1
NiMH CYCLE
CHG > DCHG 1
– +
BATT/PROGRAM
NiCd BATT
ENTER
–
+
NiCd CHARGE
CURRENT 2.0A
NiCd AUTO CHG
CURRENT 2.0A
LH3S STORAGE
TURN ON BATTERY
–
+
–
+
–
+
NiCd DISCHARGE
0.1A CUT: 1.0V
NiCd RE-PEAK
1
NiCd CYCLE
CHG > DCHG 1
BATT/PROGRAM
SYSTEM SETTING->
ENTER
–
+
–
+
Version
HW 1.00 FW1.00
Safety Timer
ON 120 Min
–
+
–
+
–
+
Capacity Cut-Off
ON 5000mAH
Temp Cut-Off
ON 50°C 122°F
Temperature Unit
Celsius
–
+
Rest Time
CHG>DCHG 10Min
ENTER
[ BATT MEMORY 1 ]
ENTER SET->
BATT TYPE
LiPo
–
+
–
+
–
+
BATT VOLTAGE
7.4V (2S)
CHARGE CURRENT
4.9A
–
+
–
+
Key Beep ON
Buzzer ON
DISCHG CURRENT
2.2A
–
+
DISCHG VOLTAGE
3.0V/CELL
– +
BATT/PROGRAM
BATT MEMORY
ENTER
– +
– +
START/ENTER > 3 seconds
[ BATT MEMORY 1 ]
C:4.9A D:2.2A
ENTER
[ BATT MEMORY 1 ]
LiPo 7.4V (2S)
SAVE PROGRAM
SAVE...
SAVE PROGRAM
ENTER
–
+
TVC=YOUR RISK
4.2V
–
+
ENTER CHARGER
LOAD...
LiPo BALANCE CHG
4.9V 7.4V(2S)
–
+
–
+
–
+
LiPo CHARGE
4.9A 7.4V(2S)
LiPo FAST CHARGE
4.9A 7.4V(2S)
LiPo STORAGE
4.9A 7.4V(2S)
–
+
LiPo DISCHARGE
2.2A 7.4V(2S)
ENTERENTER
[ BATT MEMORY 2 ]
ENTER SET->
BATT TYPE
NiMH
–
+
–
+
–
+
BATT VOLTAGE
2.4V (2S)
TRICKLE
100mA
–
+
PEAK DELAY
1Min
– +
[ BATT MEMORY 2 ]
C:1.0A D:1.0A
[ BATT MEMORY 2 ]
NiMH 2.4V (2S)
ENTER
–
+
SAVE PROGRAM
SAVE...
SAVE PROGRAM
ENTER
DISCHG VOLTAGE
1.1V/CELL
–
+
DISCHG CURRENT
2.2A
–
+
ENTER CHARGER
LOAD...
NiMH CHARGE
CURRENT 1.0A
–
+
v –
+
NiMH Auto CHARGE
CURRENT 1.2A
NiMH DISCHARGE
1.0A CUT:2.0V
NiMH RE-PEAK
2
–
+
NiMH CYCLE
DCHG>CHG 1
ENTERENTER
[ BATT MEMORY 3 ]
ENTER SET->
BATT TYPE
Pb
–
+
–
+
–
+
BATT VOLTAGE
4.0V (2P)
CHARGE CURRENT
3.3A
DISCHG CURRENT
1.5A
–
+
DISCHG VOLTAGE
1.7V/CELL
– +
–
+
Pb NORMAL CHG
2.0A 2.0V (1P)
ENTER CHARGER
LOAD...
ENTER > 3 Seconds
[ BATT MEMORY 3 ]
C:3.3A D:1.5A
[ BATT MEMORY 3 ]
Pb 4.0V (2P)
SAVE PROGRAM
SAVE...
ENTER
SAVE PROGRAM
ENTER
INC
DEC
Pb AGM CHG
0.1A 2.0V (1P)
Pb COLD CHG
0.1A 2.0V (1P)
PB DISCHARGE
0.1A 4.0V (2P)
Stop
Batt prog
Load Factory Set
Enter
–
+
DC Input Low
Cut-off 11.0V
NiCd Sensitivity
D.Peak 4mV
–
+
NiMH Sensitivity
D.Peak 4mV
– +
BATT/PROGRAM
Pb BATT
ENTER
INC
DEC
Pb NORMAL CHG
2.0A 2.0V (1P)
Pb AGM CHG
0.1A 2.0V (1P)
INC
DEC
–
+
Pb COLD CHG
0.1A 2.0V (1P)
Pb DISCHARGE
0.1A 2.0V (1P)
– +
BATT/PROGRAM
BATT RESISTANCE
ENTER
BATT/PROGRAM
BATT METER
ENTER
–
+
5 3 3 mΩ
5 0 0 mΩ
TOTAL: 16 mΩ
4.20 4.19 4.19V
0.00 0.00 0.00V
–
+
MAIN 12.58V
H4.20V L4.19V
– +
– +
CHARGE CURRENT
3.3A
DC SUPPLY: OFF
CHARGE POWR:80W
Continued from page 7

9
Operation Program Operation
BATT PROG/STOP Button
Press to stop the current process or revert to previous step/
screen.
DEC – Button
Press to cycle through the menus and decrease the
parameter value.
INC + Button
Press to cycle through the menus and increase the parameter
value.
ENTER/START Button
Press to enter the parameter or store the current parameter.
To change the parameter value, press the START/ENTER
button once. The parameter will blink. Change the value by
pressing the DEC or INC button. Store the value by pressing
the START/ENTER button again. If there is another adjustable
parameter available, it will blink. Change the value by pressing
DEC or INC button. Store the value by pressing the START/
Enter button again. Once the blinking stops, the charging
process is ready to initiate.
To start charging, press and hold the START/ENTER button for
3 seconds. To stop charging or to go back to a previous step/
screen, press the BATT PROG/STOP button once.
The charger defaults to the most used battery type program.
Press the DEC or INC button to change the program mode
from Normal, Fast Charge, Storage, or Discharge. Once
nished, press the BATT PROG/STOP button to enter the BATT
PROGRAM screen.
1. Connection
Connecting to a power
source
There are two kinds of power
inputs for the Onyx KX80, DC
11-18V and AC 100-240V.
Choose one or the other and
connect as shown.
WARNING: Never connect AC and DC power to the
charger at the same time.
Connecting the battery
WARNING: Before connecting the battery, verify the
parameters are set correctly. Incorrect settings may
result in re, causing personal injury or damage to property.
To avoid short circuit, always connect the charge leads to the
charger rst, then connect them to the battery. Reverse the
sequence when disconnecting the pack.
Using balance charge mode
Balance lead connection is required for operation in all
Lithium modes except 1S batteries.
WARNING: Failure to connect the battery and
charger properly may result in damage to the
charger. To avoid short circuit, plug the charger into the
power supply before connecting a battery to the charger.
Battery
Battery

10
2. Getting Started
The owcharts show the entire programming menu. Use these
owcharts while learning to operate this charger.
There are two main ways to set the charger.
3. A memory prole is available for setting and storing
pertinent information for up to 10 different batteries. Once
battery information is stored into memory, it is retained
until it is manually changed. Recalling a battery’s memory
number makes the charger instantly ready to go!
4. If you do not wish to use the battery memory, manually set
the charger before each use.
To manually set:
1. BATT/PROGRAM Selection
Press INC and DEC to search the programs.
Press START/ENTER to enter LiPo BATT Program.
2. Mode Selection
Press INC and DEC to search the modes. Press
START/ENTER to enter LiPo Balance Charge Mode.
3. Battery Setting
Press START/ENTER. The current value blinks.
Press INC and DEC to change the value. Press
START/ENTER to conrm your setting.
The battery cell number blinks. Press INC
and DEC to change the value. Press START/
ENTER to conrm your setting.
4. Program Start
Press and hold START/ENTER for 3 seconds
to start the program.
The charger detects the battery cell.
R displays the cell number detected by the
charger. S displays the number of cells set
at the previous screen. If the numbers are
different, press STOP to go back to Battery
Setting to recheck the number of cells of the
battery pack before moving forward.
If the numbers are identical, press START/
ENTER to start charging process.
5. Charging Status Monitor
During charging process, real-time status
displays (see image, left).
BATT/PROGRAM
LiPO BATT
START/ENTER
START/ENTER
LiPo BALANCE CHG
2.0A 11.1V (3S)
START/ENTER
START/ENTER
LiPo BALANCE CHG
2.0A 11.1V (3S)
START/ENTER
LiPo BALANCE CHG
2.0A 11.1V (3S)
START/ENTER
> 3 seconds
LiPo BALANCE CHG
2.0A 11.1V (3S)
BATTERY CHECK
R: 3SER S: SER
CANCEL (STOP)
R: 3SER S: SER
CONFIRM (ENTER)
LP4s 1.5A 12.14V
BAL 000: 50 00022
BATT/PROGRAM
LiPO BATT
START/ENTER
START/ENTER
LiPo BALANCE CHG
2.0A 11.1V (3S)
START/ENTER
START/ENTER
LiPo BALANCE CHG
2.0A 11.1V (3S)
START/ENTER
LiPo BALANCE CHG
2.0A 11.1V (3S)
START/ENTER
> 3 seconds
LiPo BALANCE CHG
2.0A 11.1V (3S)
BATTERY CHECK
R: 3SER S: SER
CANCEL (STOP)
R: 3SER S: SER
CONFIRM (ENTER)
LP4s 1.5A 12.14V
BAL 000: 50 00022
Important Information
Press INC or DEC during the charging or discharging process
to see information on the LCD screen.
Real-time status: battery type, cell, voltage;
charge current and capacity; elapsed time
Voltage of each cell in the battery pack when
the battery is connected with balance lead
Charged capacity percentage and average
cell voltage of the battery pack
Resistance of each cell in the battery pack
when connected with balance lead
Final voltage when the program ends
In Power voltage
Internal temperature (use temperature
probe to show external temperature)
Cut off temperature
Safety timer ON and duration of time in
minutes
Capacity cut-off ON and the setting value
of capacity
INC
LP4s 1.5A 12.14V
BAL 000: 50 00022
INC
4070 4060mV
4110 0mV
5.1 5.2 mΩ
3.2 0 mΩ
INC
Fuel = 90%
Cell = 4.10V
DEC
LP4s 1.5A 12.14V
BAL 000: 50 00022
DEC
End Voltage
12.6V (3S)
Ext. Temp ---
Int. Temp 37°C
DEC
IN Power Voltage
13.7V
Temp Cut-Off
50°C
DEC
Safety Time
ON 200min
DEC
Capacity Cut-Off
ON 5000mAh
DEC
