Hoshizaki DKM-500BAH User manual

Hoshizaki
“A Superior Degree
of Reliability”
www.hoshizaki.com
Models
DKM-500BAH
DKM-500BWH
Crescent Cube Icemaker / Dispenser
Hoshizaki America, Inc.
Issued: 3-24-2006
Revised: 8-10-2010
INSTRUCTION MANUAL
™

2
IMPORTANT
Only qualied service technicians should install, service, and maintain the
icemaker. No installation, service, or maintenance should be undertaken until
the technician has thoroughly read this Instruction Manual. Likewise, the owner/
manager should not proceed to operate the icemaker until the installer has
instructed them on its proper operation. Failure to install, operate, and
maintain the equipment in accordance with this manual may adversely affect
safety, performance, component life, and warranty coverage.
Hoshizaki provides this manual primarily to assist qualied service technicians in the
installation, maintenance, and service of the icemaker.
Should the reader have any questions or concerns which have not been satisfactorily
addressed, please call, write, or send an e-mail message to the Hoshizaki Technical
Support Department for assistance.
HOSHIZAKI AMERICA, INC.
618 Highway 74 South
Peachtree City, GA 30269
Attn: Hoshizaki Technical Support Department
Phone: [phone] Technical Support
[phone]
Fax: [phone]
[phone]
E-mail: [email protected]
Web Site: www.hoshizaki.com
NOTE: To expedite assistance, all correspondence/communication MUST include the
following information:
  •ModelNumber________________________
  •SerialNumber________________________
  •Completeanddetailedexplanationoftheproblem.

3
CONTENTS
Important Safety Information ................................................................................................. 4
I. Specications...................................................................................................................... 5
A. Nameplate Rating ......................................................................................................... 5
1. DKM-500BAH........................................................................................................... 5
2. DKM-500BWH ......................................................................................................... 6
B. Dimensions/Connections .............................................................................................. 7
1. DKM-500BAH........................................................................................................... 7
2. DKM-500BWH ......................................................................................................... 8
II. Installation and Operating Instructions .............................................................................. 9
A. Checks Before Installation............................................................................................. 9
B. How to Remove Panels ............................................................................................... 10
C. Location .......................................................................................................................11
D. Setup............................................................................................................................11
E. Electrical Connection .................................................................................................. 12
F. Water Supply and Drain Connections .......................................................................... 13
1. Icemaker ................................................................................................................ 14
2. Water-Cooled Condenser....................................................................................... 15
a) Connection to an Open-Drain System ................................................................ 15
b) Connection to a Closed-Loop System ................................................................ 16
G. Final Checklist ............................................................................................................ 17
H. Startup ........................................................................................................................ 18
III. Cleaning and Maintenance ............................................................................................. 20
A. Cleaning and Sanitizing Instructions ........................................................................... 20
1. Cleaning Procedure – Icemaker............................................................................. 20
2. Sanitizing Procedure – Icemaker ........................................................................... 22
3. Cleaning Procedure – Storage Bin ........................................................................ 22
4. Sanitizing Procedure – Storage Bin ....................................................................... 22
B. Maintenance................................................................................................................ 23
C. Preparing the Icemaker For Long Storage .................................................................. 24
IMPORTANT
This manual should be read carefully before the icemaker is installed and
operated. Only qualied service technicians should install, service, and
maintain the icemaker. Read the warnings contained in this booklet carefully as
they give important information regarding safety. Please retain this booklet for
any further reference that may be necessary.

4
Important Safety Information
Throughout this manual, notices appear to bring your attention to situations which could
result in death, serious injury, or damage to the unit.
WARNING Indicates a hazardous situation which could result in death or
serious injury.
CAUTION Indicates a situation which could result in damage to the unit.
IMPORTANT Indicates important information about the use and care of the
unit.
WARNING
This icemaker should be destined only to the use for which it has been
expressly conceived. Any other use should be considered improper and
therefore dangerous. The manufacturer cannot be held responsible for injury or
damage resulting from improper, incorrect, and unreasonable use.
To reduce the risk of death, electric shock, serious injury, or re, follow
basic precautions including the following:
•Thisunitrequiresanindependentpowersupply.Seethenameplateforproper
voltage and breaker/fuse size. Failure to use a proper breaker or fuse can
result in a tripped breaker, blown fuse, or damage to existing wiring. This
could lead to heat generation or re.
•THIS APPLIANCE MUST BE GROUNDED: This unit is equipped with a
3-prong grounding plug to reduce the risk of potential shock hazards. It must
be plugged into a properly grounded, independent wall outlet. If the outlet is a
2-prong outlet, it is your personal responsibility to have a qualied electrician
replace it with a properly grounded, independent 3-prong wall outlet. Do not
remove the ground prong from the power cord and do not use an adapter
plug.
•Donotuseanextensioncord.
•Makesurethecontrolswitchisinthe"OFF"positionbeforeplugginginor
unplugging the unit to reduce the risk of electric shock.
•Donotuseaunitwithadamagedpowercord.Thepowercordshouldnotbe
altered, jerked, bundled, weighed down, pinched, or tangled. Such actions
could result in electric shock or re. To unplug the unit, be sure to pull the
plug, not the cord, and do not jerk the cord.
•Toreducetheriskofelectricshock,donottouchtheplug,controlswitch,or
service switch with damp hands.
•Thisunitshouldbedisassembledorrepairedonlybyqualiedservice
personnel to reduce the risk of electric shock, injury, or re.
•Donotmakeanyalterationstotheunit.Alterationscouldresultinelectric
shock, injury, re, or damage to the unit.

5
I. Specications
A. Nameplate Rating
1. DKM-500BAH
See the nameplate for electrical and refrigeration specications. This nameplate is located
on the rear panel.
Since this nameplate is located on the rear panel of the icemaker, it cannot be read when
the back of the icemaker is against a wall or against another piece of kitchen equipment.
Therefore, the necessary electrical and refrigeration information is also on the rating label,
which can be easily seen by removing only the front panel of the icemaker.
We reserve the right to make changes in specications and design without prior notice.
HOSHIZAKI ICE MAKER
MODEL NUMBER DKM-500BAH
SERIAL NUMBER
AC SUPPLY VOLTAGE 115-120/60/1
AMPERES 15 AMPS
DESIGN PRESSURE HI-467PSI LO-170PSI
REFRIGERANT 404A 2.0 LB.
MOTOR-COMPRESSOR THERMALLY PROTECTED,
NOT INTENDED FOR OUTDOOR USE!
Hoshizaki America, Inc.
Peachtree City, GA
www.hoshizaki.com
ICE MAKER
946Z

6
2. DKM-500BWH
HOSHIZAKI ICE MAKER
MODEL NUMBER DKM-500BWH
SERIAL NUMBER
AC SUPPLY VOLTAGE 115-120/60/1
AMPERES 12 AMPS
DESIGN PRESSURE HI-427PSI LO-230PSI
REFRIGERANT 404A 1 LB. 2 OZ.
See the nameplate for electrical and refrigeration specications. This nameplate is located
on the rear panel.
Since this nameplate is located on the rear panel of the icemaker, it cannot be read when
the back of the icemaker is against a wall or against another piece of kitchen equipment.
Therefore, the necessary electrical and refrigeration information is also on the rating label,
which can be easily seen by removing only the front panel of the icemaker.
We reserve the right to make changes in specications and design without prior notice.
MOTOR-COMPRESSOR THERMALLY PROTECTED,
NOT INTENDED FOR OUTDOOR USE!
Hoshizaki America, Inc.
Peachtree City, GA
www.hoshizaki.com
ICE MAKER
946Z

7

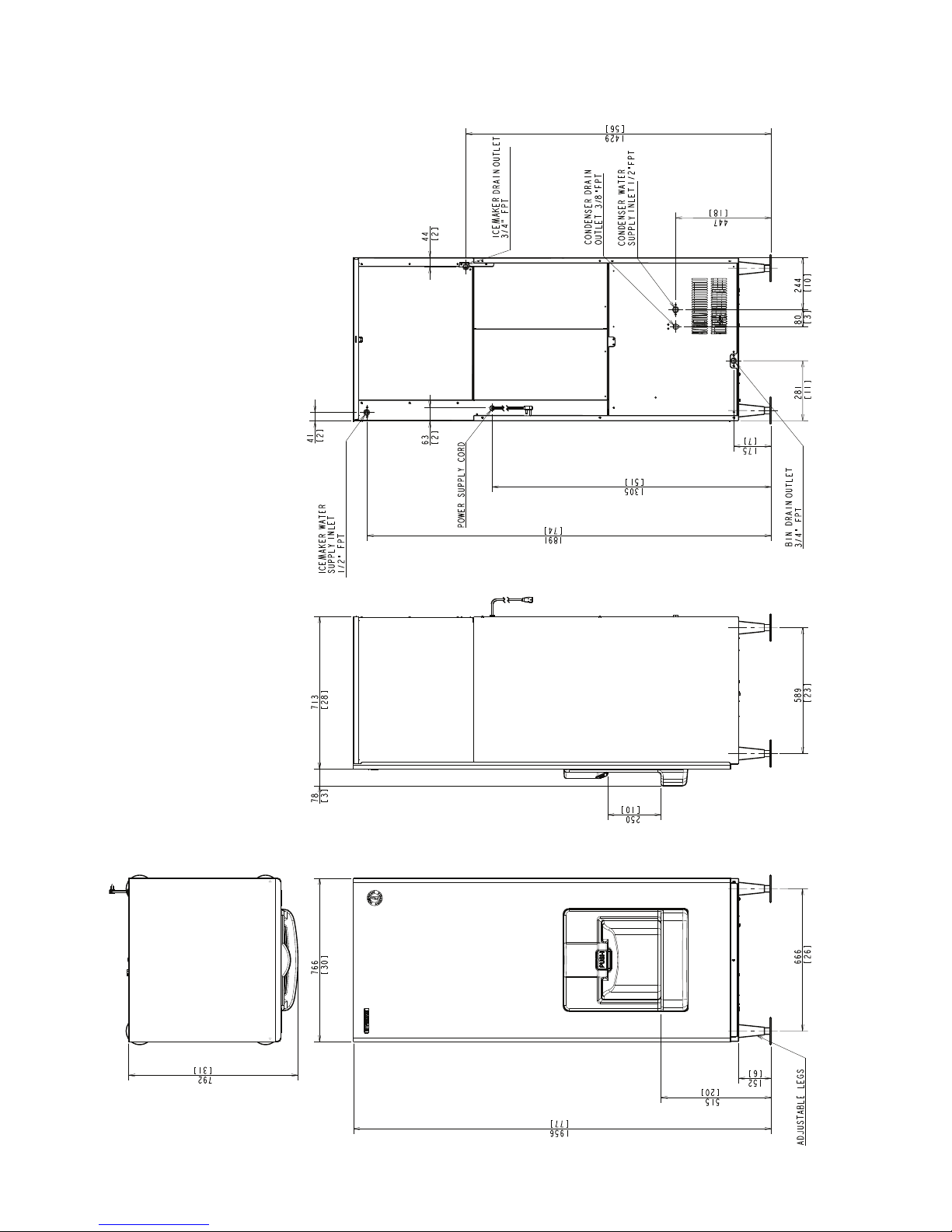

B. Dimensions/Connections
1. DKM-500BAH
Unit: mm [in.]

8
2. DKM-500BWH
Unit: mm [in.]

9
II. Installation and Operating Instructions
A. Checks Before Installation
WARNING
1. This icemaker must be installed in accordance with applicable national, state,
and local regulations.
2. CHOKING HAZARD: Ensure all components, fasteners, and thumbscrews
are securely in place after installation. Make sure that none have fallen into
the storage bin.
•Visuallyinspecttheexterioroftheshippingcontainerandimmediatelyreportany
damage to the carrier. Upon opening the container, any concealed damage should also
be immediately reported to the carrier.
•Removetheshippingcarton,tape,andpackingmaterial.Ifanyareleftintheicemaker,
it will not work properly.
•Removethefrontpaneltopreventdamagewheninstallingtheicemaker.See"II.B.How
toRemovePanels"fordetails.
•Removethepackagecontainingtheaccessories.
•Removetheprotectiveplasticlmfromthepanels.Iftheicemakerisexposedtothesun
or to heat, remove the lm after the icemaker cools.
•Checkthattherefrigerantlinesdonotrubortouchlinesorothersurfaces,andthatthe
fan blade (if applicable) turns freely.
•Checkthatthecompressorissnugonallmountingpads.
•Seethenameplateontherearpanelandcheckthatyourvoltagesuppliedcorresponds
with the voltage specied on the nameplate.

10

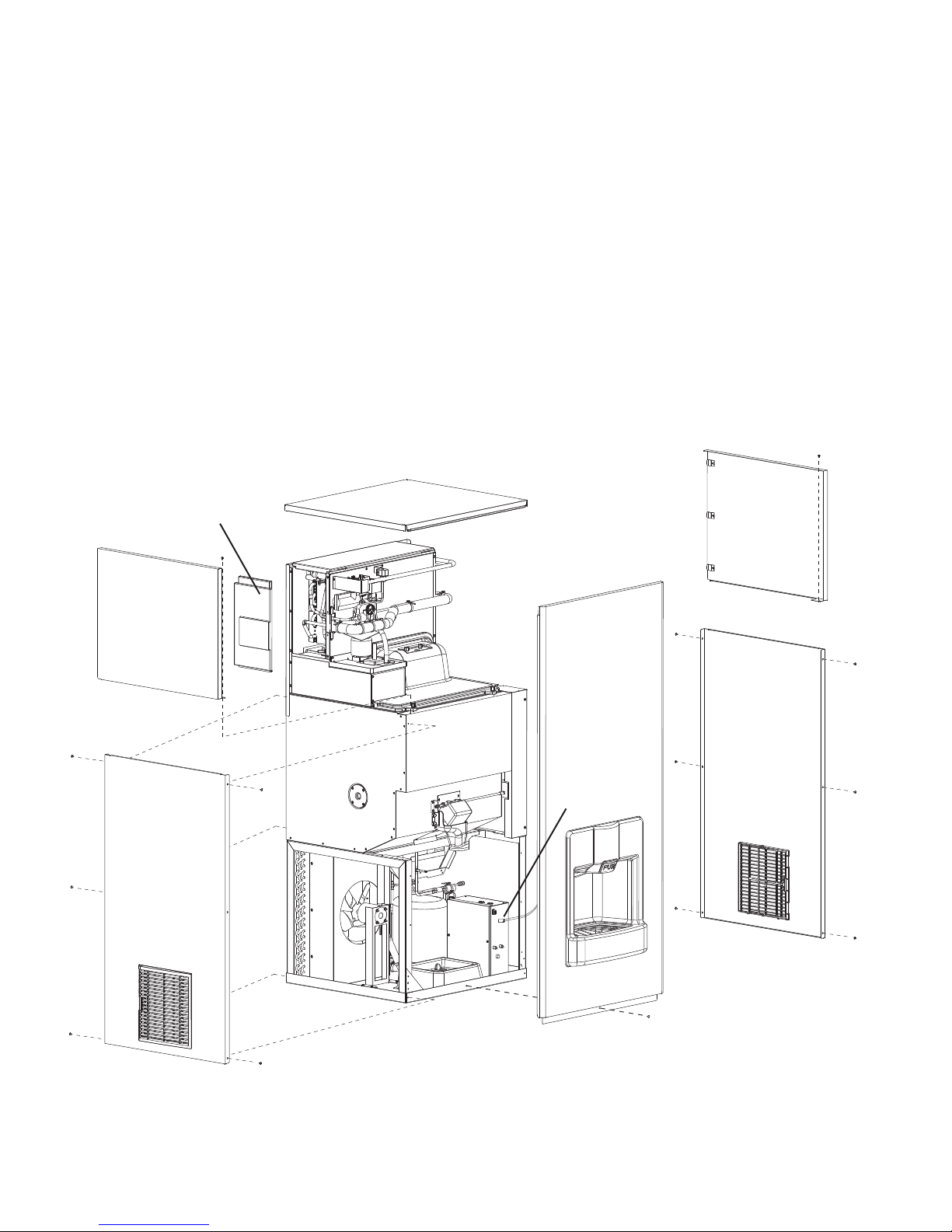

B. How to Remove Panels
See Fig. 1
•FrontPanel:Removethescrew,liftupandslightlytowardsyou.Disconnectthe
connector from the control box.
•TopPanel:Liftupatfrontslightly,pushrearward,andliftoff.
•SidePanels(R1andL1):Removethetoppanel.Removethescrew.Slideforward
slightly, and lift off.
•SidePanels(lower):Removethetoppanel.Removethescrewsandliftoff.
•InstulationPanel:Removethetoppanel.Removesidepanel(L1),thenliftupandout.
Fig. 1
Top Panel
Side Panel
(R1)
Side Panel
(Lower)
Side Panel
(Lower)
Side Panel
(L1)
Insulation Panel
Front Panel
Connector

11
C. Location
CAUTION
1. This icemaker is not intended for outdoor use. Normal operating ambient
temperature should be within 45°F to 100°F (7°C to 38°C); Normal operating
water temperature should be within 45°F to 90°F (7°C to 32°C). Operation
of the icemaker, for extended periods, outside of these normal temperature
ranges may affect icemaker performance.
2. This icemaker will not work at sub-freezing temperatures. To prevent damage
to the water supply line, drain the icemaker if the air temperature is going to
gobelow32°F(0°C).See"III.C.PreparingtheIcemakerforLongStorage."
For best operating results:
•Icemakershouldnotbelocatednexttoovens,grills,orotherhighheatproducing
equipment.
•Onair-cooledmodel,allowatleast12"(30cm)clearanceontheleftsideand
6"(15cm)clearanceatrear,rightside,andtopforproperaircirculationandeaseof
maintenance and/or service should they be required. On water-cooled model, allow
6"(15cm)clearanceatrear,sides,andtop.
•Locationshouldprovidearmandlevelfoundationfortheequipment.
D. Setup
1) Attach the 4 adjustable legs provided to the bottom of the icemaker.
2) Position the icemaker in the selected permanent location.
3) Level the icemaker in both the left-to-right and front-to-rear directions. Adjust the legs to
make the icemaker level.
Fig. 2
Adjustable Leg
Control Box
Connector
Screw
Front Panel
Side Panel (Lower)
(removed in illustration
for clarity)

12
E. Electrical Connection
WARNING
1. Electrical connection must meet national, state, and local electrical code
requirements. Failure to meet these code requirements could result in death,
electric shock, serious injury, re, or severe damage to equipment.
2. This unit requires an independent power supply. See the nameplate for proper
voltage and breaker/fuse size. Failure to use a proper breaker or fuse can
result in a tripped breaker, blown fuse, or damage to existing wiring. This
could lead to heat generation or re.
3. THIS APPLIANCE MUST BE GROUNDED: This unit is equipped with a
3-prong grounding plug to reduce the risk of potential shock hazards. It must
be plugged into a properly grounded, independent wall outlet. If the outlet is a
2-prong outlet, it is your personal responsibility to have a qualied electrician
replace it with a properly grounded, independent 3-prong wall outlet. Do not
remove the ground prong from the power cord and do not use an adapter
plug.
4. Do not use an extension cord.
5.Makesurethecontrolswitchisinthe"OFF"positionbeforeplugginginor
unplugging the unit to reduce the risk of electric shock.
6. Do not use a unit with a damaged power cord. The power cord should not be
altered, jerked, bundled, weighed down, pinched, or tangled. Such actions
could result in electric shock or re. To unplug the unit, be sure to pull the
plug, not the cord, and do not jerk the cord.
7. To reduce the risk of electric shock, do not touch the plug, control switch, or
service switch with damp hands.
8. The GREEN ground wire in the factory-installed power cord is connected to
a screw on the interior panel where the cord enters the unit. If it becomes
necessary to remove or replace the power cord, be sure to connect the
power cord's ground wire to this screw upon reattachment.
•Usuallyanelectricalpermitandservicesofalicensedelectricianarerequired.
•Themaximumallowablevoltagevariationis±10percentofthenameplaterating.
•Foroptionalwaterdispenserkitinstallation,refertotheinstructionmanualincludedwith
the kit.

13
F. Water Supply and Drain Connections
See Fig. 3, 4, or 5.
WARNING
1. Water supply and drain connections must be installed in accordance with
applicable national, state, and local regulations.
2. Normal operating water temperature should be within 45°F to 95°F (7°C
to 35°C). Operation of the icemaker, for extended periods, outside of this
normal temperature range may affect icemaker performance.
3. To prevent damage to equipment, do not operate the icemaker when the
water supply is off, or if the pressure is below 10 PSIG. Do not run the
icemaker until the proper water pressure is reached.
•Aplumbingpermitandservicesofalicensedplumbermayberequiredinsomeareas.
•Externallters,strainers,orsoftenersmayberequireddependingonwaterquality.Contact
your local Hoshizaki distributor for recommendations.
•Watersupplypressureshouldbeaminimumof10PSIGandamaximumof113PSIG.If
the pressure exceeds 113 PSIG, the use of a pressure reducing valve is required.
•Theicemakerdrainline,storagebindrainline,andwater-cooledcondenserdrainline(if
applicable) must be run separatley.
•Drainlinesmusthave1/4"fallperfoot(2cmper1m)onhorizontalrunstogetagood
ow. A vented tee connection is also required for proper ow.
•Drainlinesshouldnotbepipeddirectlytothesewersystem.Anairgapofaminimumof
2 vertical inches (5 cm) should be between the end of the drain pipes from the icemaker,
storage bin, and water-cooled condenser (if applicable) and the oor drain.

14
DKM-500BAH
Icemaker Water Supply Line
Shut-OffValve
Icemaker Water Supply Line
DrainValve
Icemaker
Water Supply
Inlet
1/2"FPT
Storage Bin
Drain Outlet
3/4"FPT
2-inch (5-cm) air gap
Floor Drain
Icemaker
Drain Outlet
3/4"FPT
1. Icemaker
•Icemakerwatersupplyinletis1/2"femalepipethread(FPT).Aminimumof3/8"nominal
copper water tubing is recommended for the icemaker water supply line.
•Anicemakerwatersupplylineshut-offvalveanddrainvalveshouldbeinstalled.
•Icemakerdrainoutletis3/4"FPT.Aminimumof3/4"nominalhardpipeisrecommended
for the icemaker drain line.
Separate piping to approved drain.
Leave a 2-inch (5-cm) vertical air
gap between the end of each pipe
and the drain.
Icemaker
Minimum3/8"NominalCopperWaterTubing
Minimum3/4"NominalHardPipe
VentTube
Minimum3/4"NominalHardPipe
VentTube
Fig. 3

15
DKM-500BWH
Connection to an Open-Drain System
2. Water-Cooled Condenser
a) Connection to an Open-Drain System
•Condenserwatersupplyinletis1/2"femalepipethread(FPT).Aminimumof
3/8"nominalcopperwatertubingisrecommendedforthecondenserwatersupplyline.
•Acondenserwatersupplylineshut-offvalveanddrainvalveshouldbeinstalled.
•Condenserdrainoutletis3/8"FPT.Aminimumof3/8"nominalhardpipeis
recommended for the condenser drain line.
•Insomeareas,abackowpreventermayberequiredinthecoolingwatercircuit.
•Inordertomaintaintheproperhighsidepressure,thecondenserwatersupply
inlet temperature should not drop below 45°F (7°C) and the condenser drain
outlet temperature must be in the 104°F to 115°F (40°C to 46°C) range. Once the
icemaker installation is complete, conrm the condenser drain outlet temperature
5 minutes after a freeze cycle starts. If the condenser drain outlet temperature is
not in the proper range, use a at blade screwdriver to rotate the adjustment screw
on the water-regulating valve until the temperature is in the proper range (rotate
counterclockwise to raise temperature or clockwise to lower temperature).
Fig. 4
Icemaker
Drain Outlet
3/4"FPT
Icemaker Water
Supply Inlet
1/2"FPT
Condenser Water
Supply Inlet
1/2"FPT
Condenser Drain
Outlet3/8"FPT
Storage Bin Drain
Outlet3/4"FPT
Floor Drain
Condenser Water Supply
LineShut-OffValve
Condenser Water Supply
LineDrainValve
2-inch (5-cm) air gap
Separate piping to approved drain.
Leave a 2-inch (5-cm) vertical air
gap between the end of each pipe
and the drain.
Icemaker Water Supply
LineShut-OffValve
Icemaker Water Supply
LineDrainValve
Minimum3/8"
Nominal Copper
Water Tubing
Minimum3/8"
Nominal Copper
Water Tubing
Minimum3/4"
Nominal Hard Pipe
Minimum3/4"
Nominal Hard Pipe
VentTube
VentTube
VentTube
Icemaker
Minimum3/8"
Nominal Hard Pipe

16
Icemaker Drain
Outlet3/4"FPT
Icemaker Water
SupplyInlet1/2"FPT
Condenser Water
SupplyInlet1/2"FPT
Condenser Return
Outlet3/8"FPT
Storage Bin Drain
Outlet3/4"FPT
Floor Drain
Icemaker Water Supply
LineShut-OffValve
Icemaker Water Supply
LineDrainValve
Condenser Water
Supply Line Drain
Valve
2-inch (5-cm) air gap
Separate piping to
approved drain. Leave a
2-inch (5-cm) vertical air
gap between the end of
each pipe and the drain.
Condenser Water Supply
LineShut-OffValve
Condenser Return
LineShut-OffValve
Condenser Return
LineDrainValve
Minimum1/2"Nominal
Copper Water Tubing
Minimum3/8"
Nominal Copper
Water Tubing
Minimum3/4"
Nominal Hard
Pipe
Minimum3/4"
Nominal Hard Pipe
VentTube
VentTube
b) Connection to a Closed-Loop System
•Condenserwatersupplyinletis1/2"femalepipethread(FPT).Aminimumof
3/8"nominalcopperwatertubingisrecommendedforthecondenserwatersupplyline.
•Condenserreturnoutletis3/8"FPT.Aminimumof3/8"nominalcopperwatertubingis
recommended for the condenser return line.
•Shut-offvalvesanddrainvalvesshouldbeinstalledatboththecondenserwatersupply
inlet and condenser return outlet.
•Thewatersupplytothecondensershouldnotdropbelow4GPM.
•Thepressuredifferentialbetweenthecondenserwatersupplyinletandcondenser
return outlet must be no less than 10 PSIG.
•Whenusingaglycolblend,thesolutionmixtureshouldbelessthan30%glycol.
•Inordertomaintaintheproperhighsidepressure,thecondenserwatersupply
inlet temperature should not drop below 45°F (7°C) and the condenser return
outlet temperature must be in the 104°F to 115°F (40°C to 46°C) range. Once the
icemaker installation is complete, conrm the condenser return outlet temperature
5 minutes after a freeze cycle starts. If the condenser return outlet temperature is
not in the proper range, use a at blade screwdriver to rotate the adjustment screw
on the water-regulating valve until the temperature is in the proper range (rotate
counterclockwise to raise temperature or clockwise to lower temperature).
DKM-500BWH
Connection to a Closed-Loop System
Fig. 5
Icemaker

17
G. Final Checklist
WARNING
CHOKING HAZARD: Ensure all components, fasteners, and thumbscrews
are securely in place after installation. Make sure that none have fallen into the
storage bin.
1) Is the icemaker level?
2) Is the icemaker in a site where the ambient temperature is within 45°F to 100°F (7°C to
38°C) and the water temperature within 45°F to 90°F (7°C to 32°C) all year around?
3)Onair-cooledmodel,isthereatleast12"(30cm)clearanceontheleftsideand
6"(15cm)clearanceatrear,rightside,andtopoftheicemakerforproperaircirculation
andmaintenanceorservice?Onwater-cooledmodel,isthereatleast6"(15cm)
clearance at rear, sides, and top?
4) Have the shipping carton, tape, and packing material been removed from the icemaker?
Is the cube guide in the correct position?
5) Are all components, fasteners, and thumbscrews securely in place?
6) Have all electrical and water connections been made? Do electrical and water
connections meet all national, state, and local code and regulation requirements?
7) Has the power supply voltage been checked or tested against the nameplate rating? Is
the power supply a properly grounded, independent 3-prong wall outlet?
8) Are the water supply line shut-off valve(s) and drain valve(s) installed? Has the water
supply pressure been checked to ensure a minimum of 10 PSIG and a maximum of
113 PSIG?
Note: The icemaker may stop running when the water supply is off, or if the pressure
is below 10 PSIG. When the proper water pressure is reached, the icemaker
automatically starts running again.
9) Are the compressor hold-down bolts snug? Have the refrigerant lines been checked
to make sure they do not rub or touch other lines or surfaces? Has the fan blade (if
applicable) been checked to make sure it turns freely?
10) Has the end user been given the instruction manual, and instructed on how to operate
the icemaker and the importance of the recommended periodic maintenance?
11) Has the end user been given the name and telephone number of an authorized service
agent?
12) Has the warranty card been lled out and forwarded to the factory for warranty
registration?

18
H. Startup
WARNING
1. All parts are factory-adjusted. Improper adjustments may adversely affect
safety, performance, component life, and warranty coverage.
2. If the icemaker is turned off, wait for at least 3 minutes before restarting the
icemaker to prevent damage to the compressor.
3. To prevent damage to the water pump, do not leave the control switch in the
"SERVICE"positionforextendedperiodsoftimewhenthewatertankis
empty.
4. At startup, conrm that all internal and external connections are free of leaks.
1) Open the water supply line shut-off valve(s).
2) Remove the front panel and disconnect the connector from the control box (if the front
panel is not already removed).
3)Makesurethecontrolswitchonthecontrolboxisinthe"OFF"position,thenplugthe
icemaker into the electrical outlet.
4)Movethecontrolswitchtothe"ICE"position.
5) Replace the front panel in its correct position.
6) Allow the icemaker to operate for 5 minutes to ll the water tank.
7)Removethefrontpanel,thenmovetheserviceswitchtothe"WASH"position.Movethe
controlswitchtothe"SERVICE"position.
8) Replace the front panel in its correct position and allow the icemaker to run for
5 minutes.
9)Removethefrontpanel,thenmovetheserviceswitchtothe"DRAIN"position.
10) Replace the front panel in its correct position and allow the icemaker to drain for
2 minutes.
11)Removethefrontpanel,thenmovethecontrolswitchtothe"OFF"position.Unplugthe
icemaker from the electrical outlet.

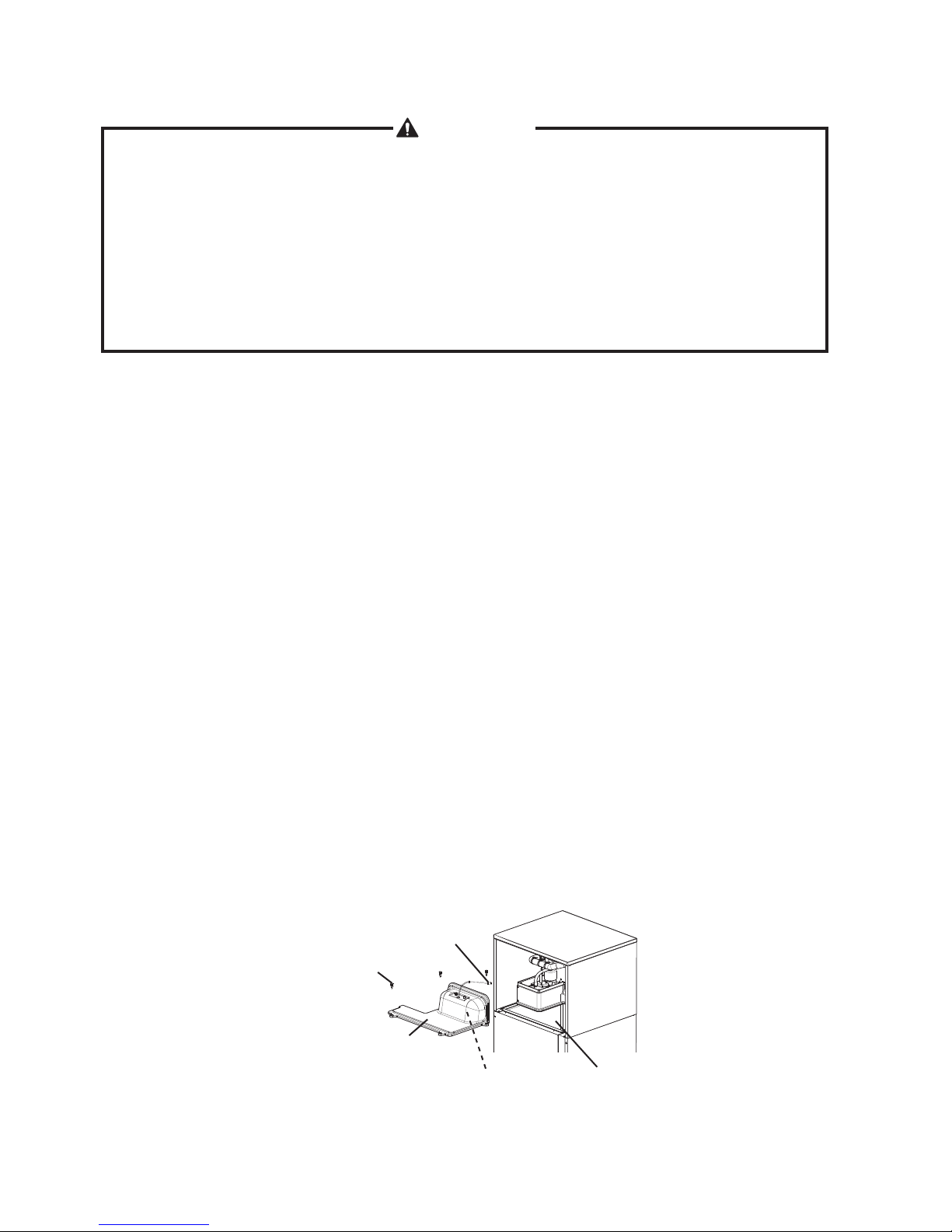

12) Disconnect the bin control connector. See Fig. 6. Remove the 3 thumbscrews securing
the bin cover, then remove the bin cover with the bin control attached.
Thumbscrew
Bin Cover
Bin
Control
Connector
Storage Bin
Fig. 6
Bin Control
Actuator Paddle

19
13) Clean the storage bin liner using a neutral cleaner. Rinse thoroughly after cleaning.
14) Reconnect the bin control connector.
15)Plugtheicemakerbackin.Movethecontrolswitchtothe"ICE"positiontostartthe
automatic icemaking process.
16) To conrm bin control operation, press and hold the bin control's actuator paddle during
the rst 5 minutes of the freeze cycle. The icemaker should shut down in approximately
5 seconds.
17) Replace the bin cover in its correct position.
18) Reconnect the connector from the front panel to the control box and replace the front
panel in its correct position.
19) On water-cooled model, conrm proper condenser drain outlet/return outlet
temperatureasoutlinedin"II.F.2.Water-CooledCondenser."

20
III. Cleaning and Maintenance
This icemaker must be cleaned and maintained in accordance with the instruction
manual and labels provided with the icemaker. Consult with your local distributor
about cleaning and maintenance service. To obtain the name and phone number of
your local distributor, visit www.hoshizaki.com or call Hoshizaki Technical Support at
1-800-233-1940 in the USA.
WARNING
1. Only qualied service technicians should attempt to service this icemaker.
2. CHOKING HAZARD: Ensure all components, fasteners, and thumbscrews
are securely in place after any cleaning or maintenance is done to the unit.
Make sure that none have fallen into the storage bin.
3. The storage bin is for ice use only. Do not store anything else in the storage
bin.
A. Cleaning and Sanitizing Instructions
Hoshizaki recommends cleaning and sanitizing this unit at least once a year. More
frequent cleaning and sanitizing, however, may be required in some existing water
conditions.
WARNING
1. To prevent injury to individuals and damage to the icemaker, do not use
ammonia type cleaners.
2. Carefully follow any instructions provided with the bottles of cleaning and
sanitizing solution.
3. Always wear liquid-proof gloves and goggles to prevent the cleaning and
sanitizing solutions from coming into contact with skin or eyes.
4. To prevent damage to the water pump, do not leave the control switch in the
"SERVICE"positionforextendedperiodsoftimewhenthewatertankis
empty.
1. Cleaning Procedure – Icemaker
1)Dilute10.5.oz.(311ml)ofHoshizaki"ScaleAway"with2gal.(7.6l)ofwarmwater.
2) Remove all ice from the evaporator.
Note: To remove cubes on the evaporator, remove the front panel and disconnect the
connector from the control box. See Fig. 7. Move the control switch on the control box to
the"OFF"positionandmoveitbacktothe"ICE"positionafter3minutes.Theharvest
cycle starts and the cubes will be removed from the evaporator.
3) Reconnect the connector from the front panel to the control box and replace the front
panel in its correct position. Dispense all of the ice from the storage bin.
4) Remove the front panel and disconnect the connector from the control box.
5)Movetheserviceswitchonthecontrolboxtothe"DRAIN"position,thenmovethe
controlswitchtothe"SERVICE"position.
