Hoshizaki KM-1600MRE User manual

NO.
ISSUED:
MODEL
HOSHIZAKI
MODULAR CRESCENT CUBER
(FINAL) PARTS LIST
KM-1600MRE
KM-1600MRE3
AUGUST3,1994
JUNE 12, 2000
71088
REVISED:

HA
2
KM-1600MRE
D-1 June, 1994
E-0 Jan., 1995
E-1 June, 1995
E-2 Oct., 1995
F-0 May, 1996
F-1 July, 1996
G-0 Dec., 1996
G-1 Aug., 1997
H-0 Jan., 1998
H-1 May, 1998
KM-1600MRE3
D-1 June, 1994
E-0 Dec., 1994
E-1 A ril, 1995
E-2 Oct., 1995
F-1 Dec., 1995
F-2 July, 1996
G-0 Jan., 1997
G-1 Se t., 1997
H-0 March, 1998
H-1 May, 1998
H-2 June, 1998

HA
3
MATERIAL ABBREVIATIONS
ALUMINUM
AL = Aluminum
COPPER
CU = Copper
PLASTIC
ABS = Acrylonitrile -butadiene - styrene
AC = Polyacetal
EVA = Ethylene vinyl acetate
PA = Polyamide = Nylon
PC = Polycarbonate
PE = Polyethylene
PES = Polyester
PE P = Polyethylene terephthalate = etlon
PP = Polypropylene
PS = Polystyrene
P FE = Polytetrafluoroethylene = eflon
PUR = Polyurethane
PVC = Polyvinyl chloride
RUBBER
VN = Vinyl Nitrile
EPDM = EP rubber
NBR = Nitrile butadiene rubber
NR = Natural rubber
NP = Neoprene
SI.R = Silicone rubber
SY.R = Synthetic rubber
EPH = Epichlorohydrin
STEEL
GS = Galvanized steel
SS = Stainless steel
PS = Plated steel
PAS = Primed steel
AUXILIARY CODE
Ex.1 K-0
Parts are the same as in the preceding (Note) - = Part deleted.
year.
x = Part deleted and replaced
"K" is the tenth in alphabetical order with "I" by "o" part.
skipped. So, "K" indicates "1990" or "2000".
o = New part for "x"
Ex.2 A-1 in the same auxiliary
code.
"A" is the first in alphabetical
order. So, "A" indicates "1991".
Ex.3 A-2
Each time a part is changed non-interchangeably
in a year, this number advances.

HA
4
FASTENER ABBREVIATION LIST
S Phillips russ Machine Screw
SP Phillips Pan Head Machine Screw
SF Phillips Flat Head Machine Screw
SS Phillips Pan Head Machine Screw with Split Lock Washer
SW Phillips Pan Head Machine Screw with Split Lock Washer
and Flat Washer
1 Phillips russ Head apping Screw (Correspond to ype A)
2 Phillips russ Head apping Screw (Correspond to ype B)
3 Phillips russ Head apping Screw (Correspond to ype C)
F Phillips russ Head apping Screw (Special)
BH Hexagon Head Bolt
BC Socket Head Cap Screw
BS Hexagon Bolt with Split Washer
BW Hexagon Bolt with Split Washer and Flat Washer
BF Hexagon Flange Bolt
BR Cross-Recessed Hexagon Head Bolt
BRW Cross-Recessed Hexagon Head Bolt with Split Lock Washer
and Flat Washer
WL Split Lock Washer
W External ooth Washer
WF Flat Washer
WS Spring Washer
NH Hexagon Nut
NF Hexagon Flange Nut
NC Hexagon Cap Nut
NS Square Nut
NW Wing Nut
Ex. S 0308S (Phillips russ Head Machine Screw
3x8, made of stainless steel)
Material None: Plated Steel
Length (mm) S: Stainless Steel
Nominal Diameter (mm) B: Brass
Form of Head P: Plastic
Description
(Note) Second character is numerical except toe list.
Ex. S1, S2, B3 etc.
And abbreviations and names are shown under the illustration.

HA
5

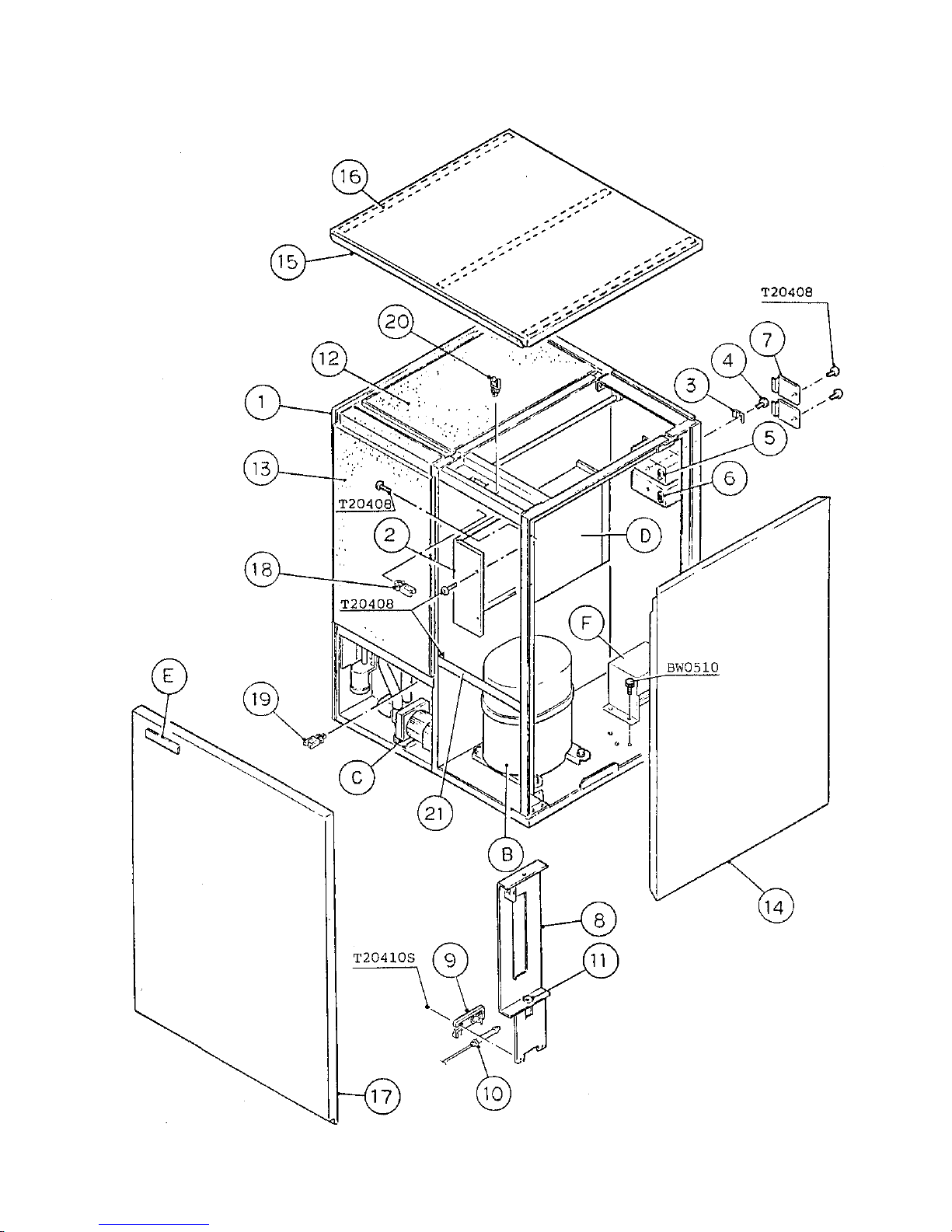

KM-1600MRE A. ICE CUBER ASSEMBLY D-1, E-0, E-1, E-2, F-0,
F-1, G-0, G-1, H-0, H-1

HA
6
MODEL: KM-1600MRE TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO. DESCRIPTION MATERIAL
OR MODEL PART NUMBER REQUIRED NUMBER
NUMBER D-1 E-0 E-1 E-2 F-0 F-1 G-0 G-1 H-0 H-1
B REFRIGERATION CIRCUIT - 107213A01 1 1 -
- 107213A03 1 1 1 1 1 1 1 1
C WATER CIRCUIT - 1A0094A01 1 1 x1
- 1A0094A02 o1 1 1 1 1 1 1 -
- 1A0094A04 1
D CONT. BOX ASSEMBLY - 219335A05 1 1 1 1 1 1 1 1 1 1
E LABEL LOCATION - 222014A01 1 1 1 1 1 1 1 1 1 1
F CAPACITOR BOX
ASSEMBLY
- 326126A02 1 1 1 1 1 1 1 1 1 1
1 EVAPORATOR CASE - 105061G03 1 1 1 x1
- 105061G04 o1 1 1 1 1 1 x1
- 105061G06 o1
2 CONT. BOX COVER GS 3A0174-01 1 1 1 1 1 1 1 1 1 1
3 SQUARE WASHER COPPER 433537-02 2 2 2 2 2 2 2 2 2 2
4 SCREW - GROUNDING BRASS 433304-02 2 2 2 2 2 2 2 2 2 2
5 BUSHING SR-30-1 420472-03 1 1 1 1 1 1 1 1 1 1
6 BUSHING SR-34-2 420472-05 1 1 1 1 1 1 1 1 1 1
7 JUNCTION BOX COVER GS 433410-01 2 2 2 2 2 2 2 2 2 2
8 BULB HOLDER - 322815G02 1 1 1 1 1 1 1 1 1 1
9 BULB HOLDER ABS 328919-01 1 1 1 1 1 1 1 1 1 1
10 SPACER PE 443545-01 2 2 2 2 2 2 2 2 2 2
11 BUSHING EPDM 425307-01 1 1 1 1 1 1 1 1 1 1
12 TOP INSULATION ABS, PE 322714G01 1 1 1 1 1 1 1 1 1 1
13 FRONT INSULATION ABS, PE 322711G01 1 1 1 1 1 1 1 1 1 1
14 SIDE PANEL (R) SS 212688G01 1 1 1 1 1 1 1 1 1 1
15 TOP PANEL (323836A01) 212687-01 1 1 1 1 1 1 1 1 1 1
16 GASKET (323836A01) 427014-04 3 3 3 3 3 3 3 3 3 3
17 FRONT PANEL SS 212686-01 1 1 1 1 1 1 1 1 1 1
18 WIRE SADDLE - 4A0338-03 5 5 5 5 5 5 5 5 5 5
19 WIRE SADDLE - 4A0338-02 2 2 2 2 2 2 2 2 2 2

HA
7
MODEL: KM-1600MRE TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO. DESCRIPTION MATERIAL
OR MODEL PART NUMBER REQUIRED NUMBER
NUMBER D-1 E-0 E-1 E-2 F-0 F-1 G-0 G-1 H-0 H-1
20WIRESADDLE - 4A0338-012222222222
21FRAME(F) GS 324093-011111111111

HA
8
KM-1600MRE3 A. ICE CUBERASSEMBLY D-1, E-0, E-1, E-2, F-1, F-2,
G-0, G-1, H-0, H-1, H-2

HA
9
MODEL: KM-1600MRE3 TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO. DESCRIPTION MATERIAL
OR MODEL PART NUMBER REQUIRED NUMBER
NUMBER D-1 E-0 E-1 E-2 F-1 F-2 G-0
G-1
H-0 H-1 H-2
B REFRIGERATION CIRCUIT - 107213A02 1 1 -
- 107213A04 111111111
C WATER CIRCUIT - 1A0094A01 1 1 x1
- 1A0094A02 o1111111-
- 1A0094A04 1
D CONTROL BOX ASSEMBLY - 219335A05 1 111111111
E LABEL LOCATION - 222014A02 1 111111111
F TRANSFORMER BOX
ASSEMBLY
- 333073A011111111111
1 EVAPORATOR CASE - 105061G03 1 1 1 x1
- 105061G04 o111111x1
- 105061G06 o1
2CONT.BOXCOVER GS 3A0174-011111111111
3 SQUARE WASHER COPPER 433537-02 2 222222222
4SCREW-GROUNDING BRASS 433304-022222222222
5BUSHING SR-30-1 420472-031111111111
6BUSHING SR-34-2 420472-051111111111
7 JUNCTION BOX COVER GS 433410-01 2 222222222
8BULBHOLDER - 322815G021111111111
9BULBHOLDER ABS 328919-011111111111
10SPACER PE 443545-012222222222
11BUSHING EPDM 425307-011111111111
12 TOP INSULATION ABS, PE 322714G01 1 111111111
13 FRONT INSULATION ABS, PE 322711G01 1 111111111
14SIDEPANEL(R) SS 212688G011111111111
15TOPPANEL (323836A01)212687-011111111111
16 GASKET (323836A01) 427014-04 3 333333333
17FRONTPANEL SS 212686-011111111111
18WIRESADDLE - 4A0338-035555555555

HA
10
MODEL: KM-1600MRE3 TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO. DESCRIPTION MATERIAL
OR MODEL PART NUMBER REQUIRED NUMBER
NUMBER D-1 E-0 E-1 E-2 F-1 F-2 G-0
G-1
H-0 H-1 H-2
19WIRESADDLE - 4A0338-022222222222
20WIRESADDLE - 4A0338-012222222222
21 FRAME (F) GS 324093-01 1 1 1 1 1 1 1 1 1 1

HA
11

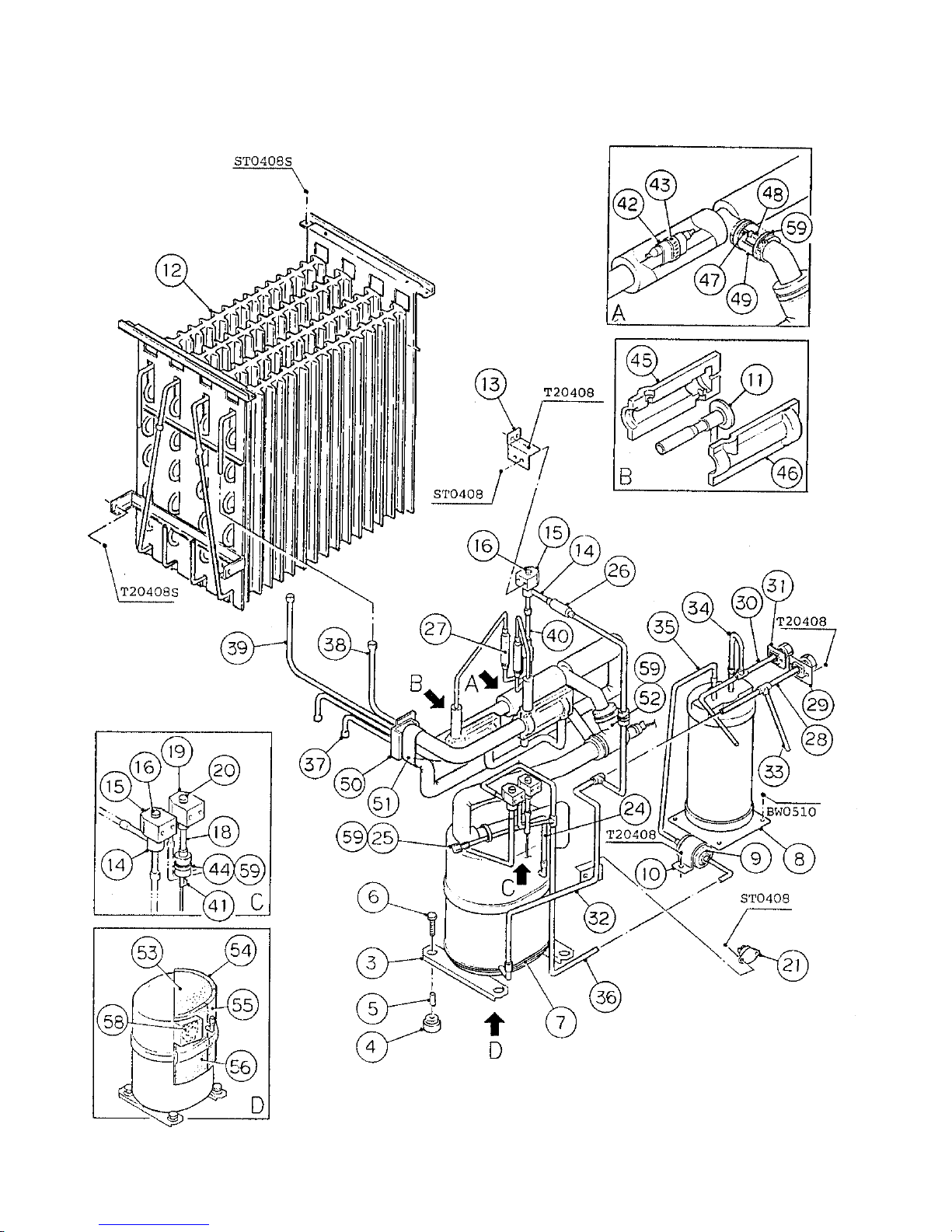

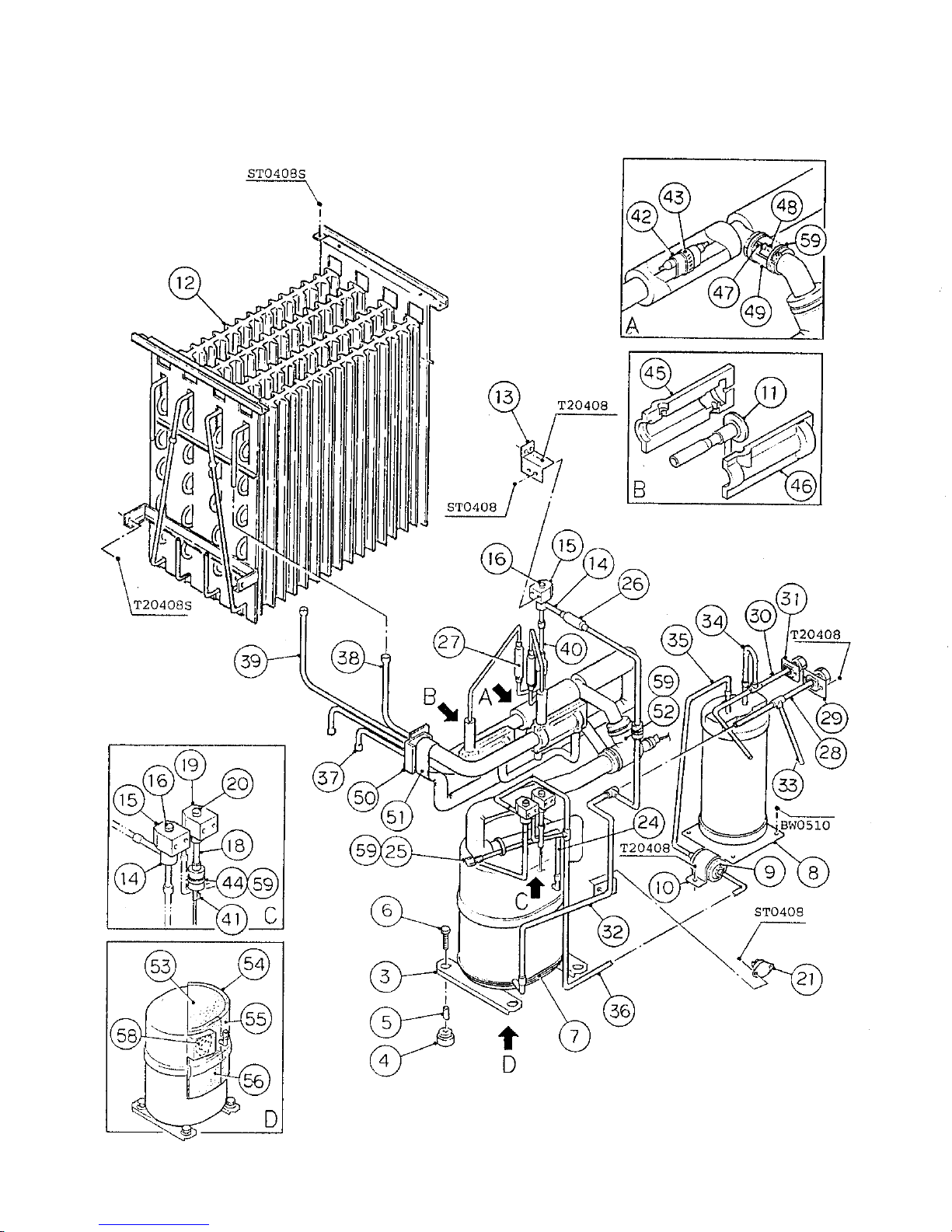

KM-1600MRE B. REFRIGERATION CIRCUIT (1/2) D-1, E-0, E-1, E-2, F-0,
F-1,G-0, G-1, H-0,H-1

HA
12

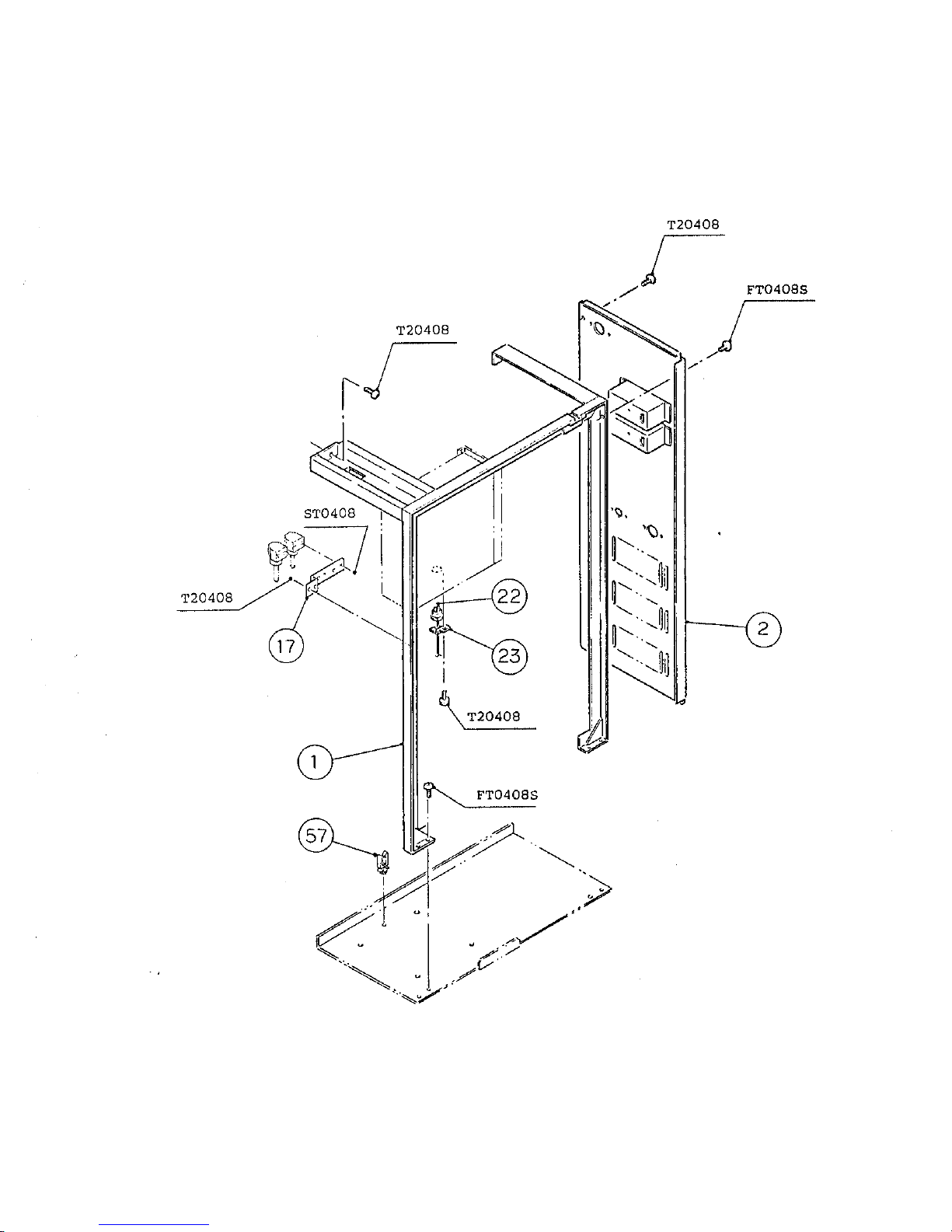

KM-1600MRE B. REFRIGERATION CIRCUIT (2/2) D-1, E-0, E-1, E-2, F-0,
F-1,G-0, G-1, H-0,H-1

HA
13
MODEL: KM-1600MRE TITLE:B. REFRIGERATION CIRCUIT
INDEX
NO. DESCRIPTION MATERIAL
OR MODEL PART NUMBER REQUIRED NUMBER
D-1 E-0 E-1 E-2 F-0 F-1 G-0 G-1 H-0 H-1
1 FRAME GS 222024G01 1 1 1 1 1 1 1 1 1 1
2 REAR PANEL GS 222025G01 1 1 -
GS 222025G02 1 1 1 1 1 1 1 1
3 COMPRESSOR H23A463ABCA 438202-01 1 1 1 1 1 1 1 1 1 1
4 GROMMET - 434922-01 4 4 4 4 4 4 4 4 4 4
5 SPACER - 434921-01 4 4 4 4 4 4 4 4 4 4
6 BOLT 8x45 437889-01 4 4 4 4 4 4 4 4 4 4
7 CRANKCASE HEATER T.I. 8HT5-505 438208-01 1 1 1 1 1 1 1 1 1 1
8 RECEIVER RR MN WP450 438209-01 1 1 1 1 1 1 1 1 1 1
9 DRIER C-053-S 445011-01 1 1 1 1 1 1 1 1 1 1
10 DRIER BRACKET GS 445251-01 1 1 1 1 1 1 1 1 1 1
11 EXPANSION VALVE HFE-15HHD-2 445542-01 2 2 2 2 2 2 2 2 2 2
12 EVAPORATOR - 104442G01 1 1 1 1 1 1 1 1 1 1
13 HOT GAS VALVE BRACKET GS 444816-01 1 1 1 1 1 1 1 1 1 1
14 VALVE BODY 70 440352-01 2 2 2 2 2 2 2 2 2 2
15 COIL - VALVE ABS-25-1-HD-2 440353-01 2 2 2 2 2 2 2 2 2 2
16 BOLT 4x6 440353F01 2 2 2 2 2 2 2 2 2 2
17 LINE VALVE BRACKET GS 438213-01 1 1 1 1 1 1 1 1 1 1
18 VALVE BODY 24 440351-01 1 1 1 1 1 1 1 1 1 1
19 COIL - VALVE ADS-24HD-3 440354-01 1 1 1 1 1 1 1 1 1 1
20 BOLT 4x6 440354F01 1 1 1 1 1 1 1 1 1 1
21 THERMOSTAT US-602SXTTBL 445595-01 1 1 1 1 1 1 1 1 1 1
22 PRESSURE SWITCH ACB-2UB04 433441-05 1 1 1 1 1 1 1 1 1 1
23 PRESS. SWITCH BRACKET GS 434938-01 1 1 1 1 1 1 1 1 1 1
24 COPPER TUBE - ACCESS VALVE COPPER 439761-02 1 1 1 1 1 1 1 1 1 1
25 ACCESS VALVE TCJ-2F15-HD 417366-01 1 1 1 1 1 1 1 1 1 1
26 STRAINER - 441569-02 1 1 1 1 1 1 1 1 1 1
27 CHECK VALVE YCV5-2 425342-01 2 2 2 2 2 2 2 2 2 2
28 COUPLING - 434136G01 1 1 1 1 1 1 1 1 1 1

HA
14
MODEL: KM-1600MRE TITLE:B. REFRIGERATION CIRCUIT
INDEX
NO. DESCRIPTION MATERIAL
OR MODEL PART NUMBER REQUIRED NUMBER
D-1 E-0 E-1 E-2 F-0 F-1 G-0 G-1 H-0 H-1
29TUBEHOLDER-L GS 438245-011111111111
30COUPLING - 433751G011111111111
31TUBEHOLDER-S GS 438246-011111111111
32 COPPER TUBE (A) - HIGH SIDE COPPER 222027G01 1111111111
33 COPPER TUBE (B) - HIGH SIDE COPPER 447737G01 1111111111
34 COPPER TUBE (D) - HIGH SIDE COPPER 334095G01 1111111111
35 COPPER TUBE (E) - HIGH SIDE COPPER 334096-01 1111111111
36 COPPER TUBE (F) - HIGH SIDE COPPER 222028G01 1111111111
37 HEAT EXCHANGER COPPER 107214G01 1111111111
38 COPPER TUBE (R) - LOW SIDE COPPER 222029G01 1111111111
39 COPPER TUBE (L) - LOW SIDE COPPER 222030G01 1111111111
40 COPPER TUBE - HOT GAS COPPER 3A0213G01 1111111111
41 COPPER TUBE - CAPILLARY COPPER 445174G03 1111111111
42 HOLDER / EXPANSION
VALVE - 3/8
SS 3A0107-012222222222
43CLAMP SS 443461-012222222222
44INSULATIONTUBE L=40 7762-10203333333333
45 EXPANSION VALVE COVER (A) PEFOAM 324214-012222222222
46 EXPANSION VALVE COVER (B) PEFOAM 324214-022222222222
47THERMISTOR - 429006-031111111111
48 HOLDER - THERMISTOR COPPER 438247-01 1111111111
49INSULATION-THERMISTORPEFOAM 427441-011111111111
50INSULATEDRUBBERTUBEEPDM 323975G011111111111
51INSULATION PEFOAM 436671-011111111111
52INSULATIONTUBE L=150 7762-35551111111111
53 INSULATION -
COMPRESSOR TOP
VNN2C1(SOFT) 447118-011111111111
54 INSULATION -
COMPRESSOR RIGHT
VNN2C1(SOFT) 447119-011111111111

HA
15
MODEL: KM-1600MRE TITLE:B. REFRIGERATION CIRCUIT
INDEX
NO. DESCRIPTION MATERIAL
OR MODEL PART NUMBER REQUIRED NUMBER
D-1 E-0 E-1 E-2 F-0 F-1 G-0 G-1 H-0 H-1
55 INSULATION -
COMPRESSOR CENTER
VNN2C1(SOFT) 447120-011111111111
56 INSULATION -
COMPRESSOR LEFT
VNN2C1(SOFT) 447121-011111111111
57WIRESADDLE - 4A0338-023333333333
58TERMINALGASKET - 334084-011111111111
59 TIE CV-200 7920-0010 12 12 12 12 12 12 12 12 12 12

HA
16
KM-1600MRE3 B. REFRIGERATION CIRCUIT (1/2) D-1, E-0, E-1, E-2, F-1, F-2
G-0,G-1, H-0, H-1, H-2

HA
17
KM-1600MRE3 B. REFRIGERATION CIRCUIT (2/2) D-1, E-0, E-1, E-2, F-1, F-2
G-0,G-1, H-0, H-1, H-2

HA
18
MODEL: KM-1600MRE3 TITLE:B. REFRIGERATION CIRCUIT
INDEX
NO. DESCRIPTION MATERIAL
OR MODEL PART NUMBER REQUIRED NUMBER
D-1 E-0 E-1 E-2 F-1 F-2 G-0
G-1
H-0 H-1 H-2
1 FRAME GS 222024G01 1 1 1 1 1 1 1 1 1 1
2 REAR PANEL GS 222025G01 1 1 -
GS 222025G02 1 1 1 1 1 1 1 1
3 COMPRESSOR M53A273DBDA 4A0333-01 1 1 1 1 1 1 1 1 1 1
4 GROMMET - 434922-01 4 4 4 4 4 4 4 4 4 4
5 SPACER - 434921-01 4 4 4 4 4 4 4 4 4 4
6 BOLT 8x45 437889-01 4 4 4 4 4 4 4 4 4 4
7 CRANKCASE HEATER T.I. 8HT5-505 438208-01 1 1 1 1 1 1 1 1 1 1
8 RECEIVER RR MN WP450 438209-01 1 1 1 1 1 1 1 1 1 1
9 DRIER C-053-S 445011-01 1 1 1 1 1 1 1 1 1 1
10 DRIER BRACKET GS 445251-01 1 1 1 1 1 1 1 1 1 1
11 EXPANSION VALVE HFE-15HHD-2 445542-01 2 2 2 2 2 2 2 2 2 2
12 EVAPORATOR - 104442G01 1 1 1 1 1 1 1 1 1 1
13 HOT GAS VALVE BRACKET GS 444816-01 1 1 1 1 1 1 1 1 1 1
14 VALVE BODY 70 440352-01 2 2 2 2 2 2 2 2 2 2
15 COIL - VALVE ABS-25-1-HD-2 440353-01 2 2 2 2 2 2 2 2 2 2
16 BOLT 4x6 440353F01 2 2 2 2 2 2 2 2 2 2
17 LINE VALVE BRACKET GS 438213-01 1 1 1 1 1 1 1 1 1 1
18 VALVE BODY 24 440351-01 1 1 1 1 1 1 1 1 1 1
19 COIL - VALVE ADS-24HD-3 440354-01 1 1 1 1 1 1 1 1 1 1
20 BOLT 4x6 440354F01 1 1 1 1 1 1 1 1 1 1
21 THERMOSTAT US-602SXTTBL 445595-01 1 1 1 1 1 1 1 1 1 1
22 PRESSURE SWITCH ACB-2UB04 433441-05 1 1 1 1 1 1 1 1 1 1
23 PRESS. SWITCH BRACKET GS 434938-01 1 1 1 1 1 1 1 1 1 1
24 COPPER TUBE - ACCESS VALVE COPPER 439761-02 1 1 1 1 1 1 1 1 1 1
25 ACCESS VALVE TCJ-2F15-HD 417366-01 1 1 1 1 1 1 1 1 1 1
26 STRAINER - 441569-02 1 1 1 1 1 1 1 1 1 1
27 CHECK VALVE YCV5-2 425342-01 2 2 2 2 2 2 2 2 2 2
28 COUPLING - 434136G01 1 1 1 1 1 1 1 1 1 1

HA
19
MODEL: KM-1600MRE3 TITLE:B. REFRIGERATION CIRCUIT
INDEX
NO. DESCRIPTION MATERIAL
OR MODEL PART NUMBER REQUIRED NUMBER
D-1 E-0 E-1 E-2 F-1 F-2 G-0
G-1
H-0 H-1 H-2
29 TUBE HOLDER - L GS 438245-01 1 1 1 1 1 1 1 1 1 1
30 COUPLING - 433751G01 1 1 1 1 1 1 1 1 1 1
31 TUBE HOLDER - S GS 438246-01 1 1 1 1 1 1 1 1 1 1
32 COPPER TUBE (A) - HIGH SIDE COPPER 222027G01 1 1 1 1 1 1 1 1 1 1
33 COPPER TUBE (B) - HIGH SIDE COPPER 447737G01 1 1 1 1 1 1 1 1 1 1
34 COPPER TUBE (D) - HIGH SIDE COPPER 334095G01 1 1 1 1 1 1 1 1 1 1
35 COPPER TUBE (E) - HIGH SIDE COPPER 334096-01 1 1 1 1 1 1 1 1 1 1
36 COPPER TUBE (F) - HIGH SIDE COPPER 222028G01 1 1 1 1 1 1 1 1 1 1
37 HEAT EXCHANGER COPPER 107214G01 1 1 1 1 1 1 1 1 1 1
38 COPPER TUBE (R) - LOW SIDE COPPER 222029G01 1 1 1 1 1 1 1 1 1 1
39 COPPER TUBE (L) - LOW SIDE COPPER 222030G01 1 1 1 1 1 1 1 1 1 1
40 COPPER TUBE - HOT GAS COPPER 3A0213G01 1 1 1 1 1 1 1 1 1 1
41 COPPER TUBE - CAPILLARY COPPER 445174G02 1 1 1 1 1 1 1 1 1 1
42 HOLDER / EXPANSION
VALVE - 3/8
SS 3A0107-01 2 2 2 2 2 2 2 2 2 2
43 CLAMP SS 443461-01 2 2 2 2 2 2 2 2 2 2
44 INSULATION TUBE L=40 7762-1020 3 3 3 3 3 3 3 3 3 3
45 EXPANSION VALVE COVER (A) PE FOAM 324214-01 2 2 2 2 2 2 2 2 2 2
46 EXPANSION VALVE COVER (B) PE FOAM 324214-02 2 2 2 2 2 2 2 2 2 2
47 THERMISTOR - 429006-03 1 1 1 1 1 1 1 1 1 1
48 HOLDER - THERMISTOR COPPER 438247-01 1 1 1 1 1 1 1 1 1 1
49 INSULATION - THERMISTOR PE FOAM 427441-01 1 1 1 1 1 1 1 1 1 1
50 INSULATED RUBBER TUBE EPDM 323975G01 1 1 1 1 1 1 1 1 1 1
51 INSULATION PE FOAM 436671-01 1 1 1 1 1 1 1 1 1 1
52 INSULATION TUBE L=150 7762-3555 1 1 1 1 1 1 1 1 1 1
53 INSULATION -
COMPRESSOR TOP
VNN2C1(SOFT) 447118-01 1 1 1 1 1 1 1 1 1 1
54 INSULATION -
COMPRESSOR RIGHT
VNN2C1(SOFT) 447119-01 1 1 1 1 1 1 1 1 1 1

HA
20
MODEL: KM-1600MRE3 TITLE:B. REFRIGERATION CIRCUIT
INDEX
NO. DESCRIPTION MATERIAL
OR MODEL PART NUMBER REQUIRED NUMBER
D-1 E-0 E-1 E-2 F-1 F-2 G-0
G-1
H-0 H-1 H-2
55 INSULATION -
COMPRESSOR CENTER
VNN2C1(SOFT) 447120-011111111111
56 INSULATION -
COMPRESSOR LEFT
VNN2C1(SOFT) 447121-011111111111
57WIRESADDLE - 4A0338-023333333333
58TERMINALGASKET - 334084-011111111111
59 TIE CV-200 7920-0010 12 12 12 12 12 12 12 12 12 12
