Hoshizaki KML-600MAF User manual

NO.
ISSUED: 71145
OCT.12,1999
MODEL
KML-600MAF
KML-600MWF
KML-600MRF
HOSHIZAKI
MODULAR CRESCENT CUBER
(FINAL) PARTS LIST
REVISED: AUG.2,2002

HA
2
KML-600MAF
J-0 APRIL 1999
K-0 JAN. 2000
L-0 DEC. 2000
KML-600MWF
J-0 MAY 1999
K-0 DEC. 1999
L-0 JAN. 2001
KML-600MRF
J-0 JUNE 1999
K-0 DEC. 1999
L-0 FEB. 2001

HA
3
MATERIAL ABBREVIATIONS
ALUMINUM
AL = Aluminum
COPPER
CU = Copper
PLASTIC
ABS = Acrylonitrile -butadiene - styrene
AC = Polyacetal
EVA = Ethylene vinyl acetate
PA = Polyamide=Nylon
PC = Polycarbonate
PE = Polyethylene
PES = Polyester
PETP = Polyethylene terephthalate = Tetlon
PP = Polypropylene
PS = Polystyrene
PIFE = Polytetrafluoroethylene = Teflon
PUR = Polyurethane
PVC = Polyvinyl chloride
RUBBER
VN = VinylNitrile
EPDM = EP rubber
NBR = Nitrile butadiene rubber
NR = Natural rubber
NP = Neoprene
SI.R = Silicone rubber
SY.R = Synthetic rubber
EPH = Epichlorohydrin
STEEL
GS = Galvanizedsteel
SS = Stainless steel
PS = Plated steel
PAS = Primed steel
AUXILIARYCODE
Ex.1 K-0Parts are the same as in the preceding (Note) - = Part deleted.
year. x = Part deleted and replaced
"K" is the tenth in alphabetical order with "I" by "o" part.
skipped. So, "K" indicates "2000". o = New part for "x"
Ex.2 L-0 in the same auxiliary code.
"L" is the next in alphabetical
order. So, "L" indicates "2001".
Ex.3 L-1Each time a part is changed non-interchangeably,
in a year, this number advances.

HA
4

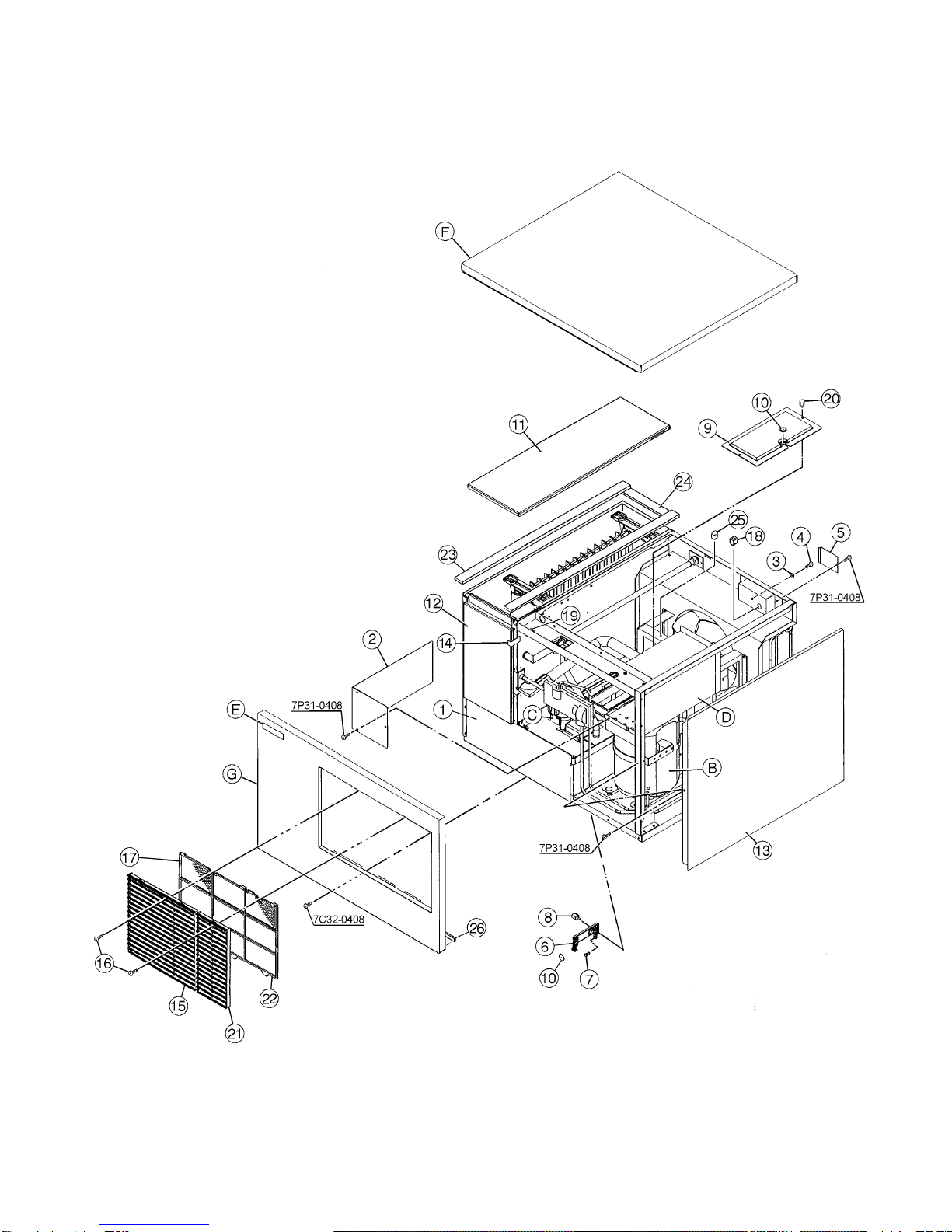

KML-600MAF A. ICE CUBER ASSEMBLY J-0, K-0, L-0

HA
5
MODEL: KML-600MAF TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO.
DESCRIPTION
MATERIAL OR
MODEL
PART
NUMBER
REQUIREDNUMBER
NUMBER J-0 K-0 L-0
B REFRIGERATION CIRCUIT - 1A0280A01 1 1 1
C WATER CIRCUIT HS-1202 2A1195A02 1 1 1
D CONTROL BOX ASSEMBLY HS-1106 2A0657A09 1 1 1
T2 SCREW 4 X 8 7P31-0408 3 3 3
E LABEL LOCATION - 3A1077A01 1 1 1
F TOP PANEL ASSEMBLY - 3A0674A01 1 1 1
G FRONT PANEL - 3A1083A01 1 1 1
TRUSS HEAD SCREW 4 X 8, SS 7C32-0408 1 1 1
1 EVAPORATOR CASE HS-1007 2A1179G02 1 1 1
2 CONTROL BOX COVER GS 3A0594-01 1 1 1
T2 SCREW 4 X 8 7P31-0408 3 3 3
3 SQUARE WASHER BRASS 433537-02 1 1 1
4 SCREW - GROUNDING BRASS 433304-02 1 1 1
5 JUNCTION BOX COVER GS 433410-01 1 1 1
T2 SCREW 4 X 8 7P31-0408 1 1 1
6 THERMOSTAT EXTENSION BRACKET SS 4A1722-01 1 1 1
7 SPACER PE 443545-01 1 1 1
8 THUMBSCREW SS, ABS 415949G03 2 2 2
9 BIN CONTROL COVER GS 3A0664G01 1 1 1
10 CAPILLARY RING EP RUBBER 425307-01 2 2 2
11 TOP INSULATION PP 215730G01 1 1 1
12 FRONT INSULATION PP 2A0664G02 1 1 1
13 SIDE PANEL (R) SS 2A1198G01 1 1 1
T2 SCREW 4 X 8, SS 7P32-0408 1 1 1
14 BARRIER - INSULATION GS 4A1167-01 1 1 1
T2 SCREW 4 X 8 7P31-0408 2 2 2
15 LOUVER (B) ABS 103121-05 1 1 1
16 TAPPING SCREW (BLACK) STEEL, 4 X 8 433954-01 2 2 2

HA
6
MODEL: KML-600MAF TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO.
DESCRIPTION
MATERIAL OR
MODEL
PART
NUMBER
REQUIREDNUMBER
NUMBER J-0 K-0 L-0
17 AIR FILTER (B) ABS 208283G03 1 1 1
18 BUSHING SR-30-1 420472-03 1 1 1
19 WIRE SADDLE VWS4238-C 4A0338-02 2 2 2
20 THUMBSCREW SS, ABS 415949G04 2 2 2
21 LOUVER (C) ABS 103122-03 1 1 1
22 AIR FILTER (C) ABS 208284G01 1 1 1
23 GASKET L=655 4A0808L02 2 2 2
24 GASKET L=190 4A0808L02 1 1 1
25 BUSHING OCB-625 428394-01 1 1 1
26 GASKET L=762 4A0808L02 1 1

HA
7

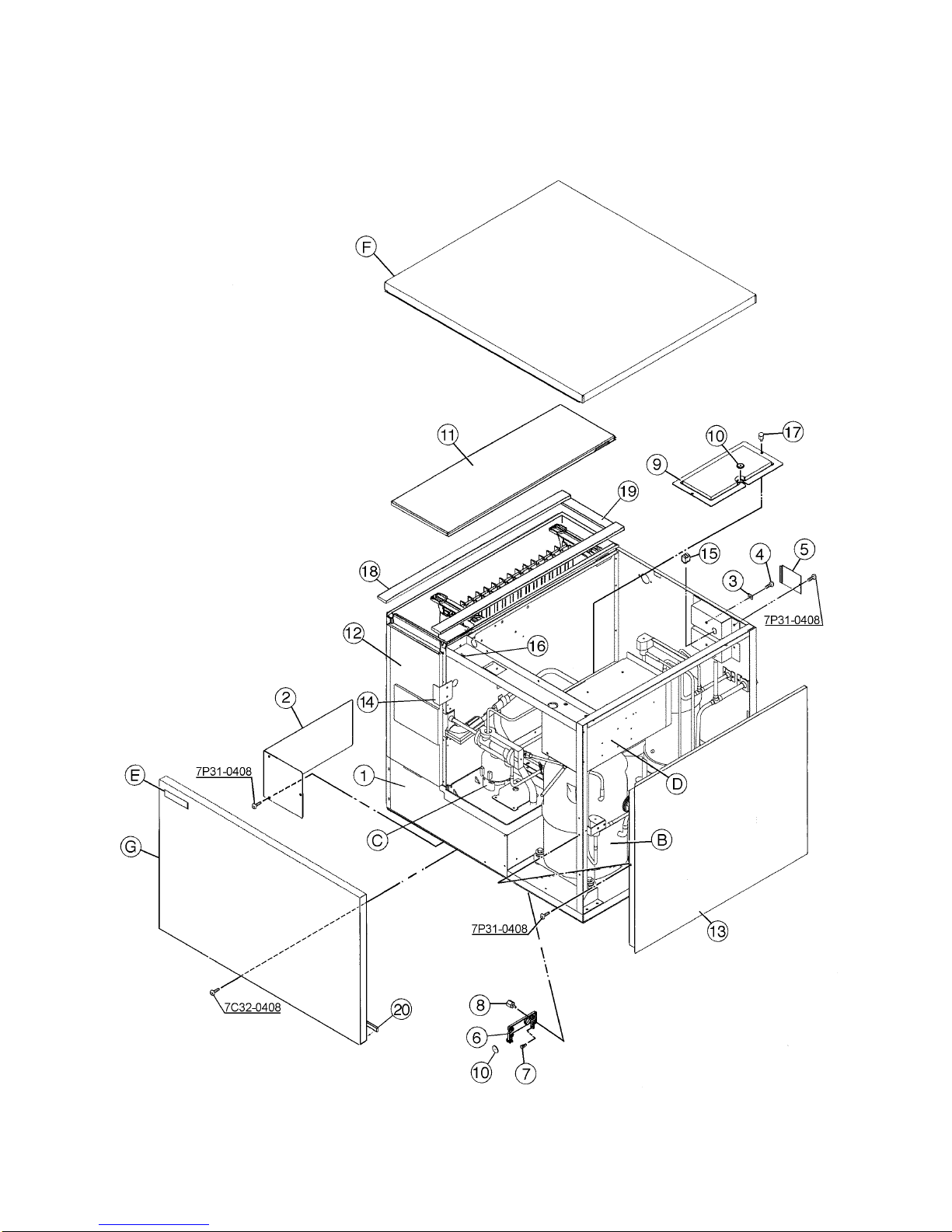

KML-600MWF A. ICE CUBER ASSEMBLY J-0, K-0, L-0

HA
8
MODEL: KML-600MWF TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO.
DESCRIPTION
MATERIAL OR
MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER J-0 K-0 L-0
B REFRIGERATION CIRCUIT - 1A0300A01 1 1 1
C WATER CIRCUIT HS-1202 2A1195A02 1 1 1
D CONTROL BOX ASSEMBLY HS-1107 2A0657A10 1 1 1
T2 SCREW 4 X 8 7P31-0408 3 3 3
E LABEL LOCATION - 3A1079A01 1 1 1
F TOP PANEL ASSEMBLY - 3A0674A01 1 1 1
G FRONT PANEL - 3A1083A02 1 1 1
TRUSS HEAD SCREW 4 X 8, SS 7C32-0408 1 1 1
1 EVAPORATOR CASE HS-1007 2A1179G02 1 1 1
2 CONTROL BOX COVER GS 3A0594-01 1 1 1
T2 SCREW 4 X 8 7P31-0408 3 3 3
3 SQUARE WASHER BRASS 433537-02 1 1 1
4 SCREW - GROUNDING BRASS 433304-02 1 1 1
5 JUNCTION BOX COVER GS 433410-01 1 1 1
T2 SCREW 4 X 8 7P31-0408 1 1 1
6 THERMOSTAT EXTENSION BRACKET SS 4A1722-01 1 1 1
7 SPACER PE 443545-01 1 1 1
8 THUMBSCREW SS, ABS 415949G03 2 2 2
9 BIN CONTROL COVER GS 3A0664G01 1 1 1
10 CAPILLARY RING EP RUBBER 425307-01 2 2 2
11 TOP INSULATION PP 215730G01 1 1 1
12 FRONT INSULATION PP 2A0664G02 1 1 1
13 SIDE PANEL (R) SS 2A1198G01 1 1 1
T2 SCREW 4 X 8, SS 7P32-0408 1 1 1
14 BARRIER - INSULATION GS 4A1167-01 1 1 1
T2 SCREW 4 X 8, SS 7P32-0408 2 2 2
15 BUSHING SR-30-1 420472-03 1 1 1

HA
9
MODEL: KML-600MWF TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO.
DESCRIPTION
MATERIAL OR
MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER J-0 K-0 L-0
16 WIRE SADDLE VWS4238-C 4A0338-02 2 2 2
17 THUMBSCREW SS, ABS 415949G04 2 2 2
18 GASKET L=655 4A0808L02 2 2 2
19 GASKET L=190 4A0808L02 1 1 1
20 GASKET L=762 4A0808L02 1 1

HA
10
KML-600MRF A. ICE CUBER ASSEMBLY J-0, K-0, L-0

HA
11
MODEL: KML-600MRF TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO.
DESCRIPTION
MATERIAL OR
MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER J-0 K-0 L-0
B REFRIGERATION CIRCUIT - 1A0281A01 1 1 1
C WATER CIRCUIT HS-1202 2A1195A02 1 1 1
D CONTROL BOX ASSEMBLY HS-1107 2A0657A10 1 1 1
T2 SCREW 4 X 8 7P31-0408 3 3 3
E LABEL LOCATION - 3A1078A01 1 1 1
F TOP PANEL ASSEMBLY - 3A0674A01 1 1 1
G FRONT PANEL - 3A1083A02 1 1 1
TRUSS HEAD SCREW 4 X 8, SS 7C32-0408 1 1 1
1 EVAPORATOR CASE HS-1007 2A1179G02 1 1 1
2 CONTROL BOX COVER GS 3A0594-01 1 1 1
T2 SCREW 4 X 8 7P31-0408 3 3 3
3 SQUARE WASHER BRASS 433537-02 1 1 1
4 SCREW - GROUNDING BRASS 433304-02 2 2 2
5 JUNCTION BOX COVER GS 433410-01 2 2 2
T2 SCREW 4 X 8 7P31-0408 2 2 2
6 THERMOSTAT EXTENSION BRACKET SS 4A1722-01 1 1 1
7 SPACER PE 443545-01 1 1 1
8 THUMBSCREW SS, ABS 415949G03 2 2 2
9 BIN CONTROL COVER GS 3A0664G01 1 1 1
10 CAPILLARY RING EP RUBBER 425307-01 2 2 2
11 TOP INSULATION PP 215730G01 1 1 1
12 FRONT INSULATION PP 2A0664G02 1 1 1
13 SIDE PANEL (R) SS 2A1198G01 1 1 1
T2 SCREW 4 X 8, SS 7P32-0408 1 1 1
14 BARRIER - INSULATION GS 4A1167-01 1 1 1
T2 SCREW 4 X 8, SS 7P32-0408 2 2 2
15 BUSHING SR-30-1 420472-03 1 1 1

HA
12
MODEL: KML-600MRF TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO.
DESCRIPTION
MATERIAL OR
MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER J-0 K-0 L-0
16 WIRE SADDLE VWS4238-C 4A0338-02 2 2 2
17 THUMBSCREW SS, ABS 415949G04 2 2 2
18 GASKET L=655 4A0808L02 2 2 2
19 GASKET L=190 4A0808L02 1 1 1
20 GASKET L=762 4A0808L02 1 1

HA
13
KML-600MAF B. REFRIGERATION CIRCUIT J-0, K-0, L-0
1
2
3
4
910 11
12 13
15
16
56
78
20 21
22
47
23
24
25
26
43
41 50
52
48
44
51
46
45
42
38 39 37
36
43
43
32
52
27
43
28
33 34
30
31
40
18
17 19
29
35 14
DETAIL A
49

HA
14
MODEL: KML-600MAF TITLE:B. REFRIGERATION CIRCUIT
INDEX
NO.
DESCRIPTION
MATERIAL OR
MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER J-0 K-0 L-0
1 CONDENSER SUPPORT GS 3A0589-01 1 1 1
T2 SCREW 4 X 8 7P31-0408 5 5 5
2 CONDENSER HEATCRAFT 1A0261-01 1 1 1
T2 SCREW 4 X 8 7P31-0408 3 3 3
3 BARRIER GS 4A1496-01 1 1 1
T2 SCREW 4 X 8 7P31-0408 2 2 2
4 SHROUD GS 3A1027G01 1 1 1
T2 SCREW 4 X 8 7P31-0408 5 5 5
5 COMPRESSOR CS10K6E-PFV-237 4A1539-01 1 1 1
6 BOLT 8 x45 437889-01 4 4 4
7 SPACER 028-0188-02 434921-01 4 4 4
8 GROMMET 027-0167-00 434922-01 4 4 4
9 FAN MOTORBRACKET GS 2A0181-01 1 1 1
HEX HEAD BOLT W/WASHER(LF) 5X12 7B0130512 4 4 4
10 FAN MOTOR U90B1 7190-1031 440911-01 1 1 1
SELF LOCKING NUT NO. 8-32 7N21I0832 4 4 4
11 FAN BLADE AD10CW32 444898-01 1 1 1
12 DRIER CW-0325-S 4A1413-01 1 1 1
13 DRIER BRACKET GS 4A0807-01 1 1 1
T2 SCREW 4X8 7P31-0408 2 2 2
14 EXP. VALVE HFE-15 NHD-2 4A1482-01 1 1 1
15 EVAPORATOR - 106492G01 1 1 1
T2 SCREW 4X16, SS 7P32-0416 4 4 4
16 HOT GAS VALVE BRACKET GS 4A1999-01 1 1 1
T2 SCREW 4X8 7P31-0408 2 2 2
17 VALVE BODY 70 440352-01 1 1 1
18 COIL-VALVE ABS-25-1-HD-2 440353-01 1 1 1
19 BOLT M4 X 0.7 440353F01 1 1 1
TRUSS HEADSCREW 4X8 7C31-0408 2 2 2

HA
15
MODEL: KML-600MAF TITLE:B. REFRIGERATION CIRCUIT
INDEX
NO.
DESCRIPTION
MATERIAL OR
MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER J-0 K-0 L-0
20 PRESSURE SWITCH ACB-1UB09 433441-07 1 1 1
21 PRESSURE SWITCH BRACKET GS 434938-01 1 1 1
T2 SCREW 4X8 7P31-0408 1 1 1
22 COPPER TUBE-HIGH SIDE COPPER 1A0264G01 1 1 1
23 COPPER TUBE (D)-HIGH SIDE COPPER 4A0991-01 1 1 1
24 TEE COPPER 420041-11 1 1 1
25 EVACUATION TUBE COPPER 4A1212-02 1 1 1
26 COPPER TUBE (D2)-HIGH SIDE COPPER 4A1213-01 1 1 1
27 HEAT EXCHANGER COPPER 1A0256G01 1 1 1
28 COPPER TUBE (C) -HOT GAS COPPER 3A1024-01 1 1 1
29 TEE COPPER 436000-08 1 1 1
30 COPPER TUBE (A)-LOW SIDE COPPER 4A1515-01 1 1 1
31 ELBOW COPPER 417395-03 1 1 1
32 ACCESSVALVE - 457729-01 1 1 1
33 HOLDER / EXP. VALVE-3/8 SS 3A0107-01 1 1 1
34 CLAMP SS 443461-02 1 1 1
35 EXP. VALVE COVER PE FOAM 3A0944-01 1 1 1
36 THERMISTOR - 429006-03 1 1 1
37 HOLDER-THERMISTOR COPPER 427430-01 1 1 1
38 INSULATION-THERMISTOR(A) PE FOAM 439368-01 1 1 1
39 INSULATION-THERMISTOR(B) PE FOAM 439368-02 1 1 1
40 INSULATED RUBBER TUBE - 4A1008G01 1 1 1
41 FRAME (A) GS 2A1153-01 1 1 1
T2 SCREW 4X8 7P31-0408 4 4 4
42 FRAME (B) GS 3A0595-01 1 1 1
T2 SCREW 4X8 7P31-0408 4 4 4
CABLE TIE CV-200 7920-0010 14 14 14
43 INSULATION TUBE L=125 7762-1030 1 1 1
44 INSULATION TUBE L=300 7762-1330 1 1 1
45 INSULATION TUBE L=200 7762-2943 1 1 1

HA
16
MODEL: KML-600MAF TITLE:B. REFRIGERATION CIRCUIT
INDEX
NO.
DESCRIPTION
MATERIAL OR
MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER J-0 K-0 L-0
46 INSULATION TUBE L=570 7762-2040 1 1 1
47 INSULATION TUBE L=520 7762-1020 1 1 1
48 INSULATION TUBE L=130 7762-1020 1 1 1
49 INSULATION TUBE L=30 7762-1020 3 3 3
50 INSULATION HOLDER SS 3A1084-01 1 1 1
T2 SCREW 4X8 7P31-0408 2 2 2
51 END CAP RUBBER 4A1413F01 2 2 2

HA
17
KML-600MWF B. REFRIGERATION CIRCUIT J-0, K-0, L-0
1
13
51
12 49
37 38 20
26
25
22 23 24
29
32
31
14 15 16
30
33
36
44
35 34 40
45
54
56
6
28
27
8
17 18
910
19
23
45
52
39
21
11
53
55
48
46
50
41
42 43 DETAIL A

HA
18
MODEL: KML-600MWF TITLE:B. REFRIGERATION CIRCUIT
INDEX
NO.
DESCRIPTION
MATERIAL OR
MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER J-0 K-0 L-0
1 REARPANEL GS 3A1115G01 1 1 1
T2 SCREW 4X8 7P31-0408 9 9 9
2 COMPRESSOR CS10K6E-PFV-237 4A1539-01 1 1 1
3 BOLT 8X45 437889-01 4 4 4
4 SPACER 028-0188-02 434921-01 4 4 4
5 GROMMET 027-0167-00 434922-01 4 4 4
6 CONDENSER – WATERCOOLED H-2 ¼-1 4A1536-01 1 1 1
HEX. HEAD BOLT W/WASHER (LF) 4X12 7B0130512 3 3 3
8 COND. SUPPORT GS 2A0655-01 1 1 1
T2 SCREW 4X8 7P31-0408 4 4 4
9 DRIER CW-0325-S 4A1413-01 1 1 1
10 DRIER BRACKET GS 4A0807-01 1 1 1
T2 SCREW 4X8 7P31-0408 2 2 2
11 EXP. VALVE HFE-15 NHD-2 4A1482-01 1 1 1
12 EVAPORATOR - 106492G01 1 1 1
T2 SCREW 4X16, SS 7P31-0408 4 4 4
13 HOT GAS VALVE BRACKET GS 4A1999-01 1 1 1
T2 SCREW 4X8 7P31-0408 2 2 2
14 VALVE BODY 70 440352-01 1 1 1
15 COIL – VALVE ABS-25-1-HD-2 440353-01 1 1 1
16 BOLT M4 X 0.7 440353F01 1 1 1
TRUSS HEAD SCREW 4X8 7C31-0408 2 2 2
17 PRESSURE SWITCH ACB-2UB04 433441-05 1 1 1
18 PRESSURE SWITCH BRACKET GS 434938-01 1 1 1
T2 SCREW 4X8 7P31-0408 1 1 1
19 COPPER TUBE-HIGH SIDE COPPER 3A1114G01 1 1 1
20 COPPER TUBE (C) – HOT GAS COPPER 3A1024-01 1 1 1
21 TEE COPPER 436000-08 1 1 1
22 WATER REGULATOR V46DA-3 4A0911-03 1 1 1
23 TRUSS HEAD SCREW 4X6 7C31-0406 2 2 2

HA
19
MODEL: KML-600MWF TITLE:B. REFRIGERATION CIRCUIT
INDEX
NO.
DESCRIPTION
MATERIAL OR
MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER J-0 K-0 L-0
24 MALE CONNECTOR BRASS 4A1087-01 1 1 1
25 COPPER TUBE-CONDENSER OUTLET COPPER 4A1634G01 1 1 1
26 COPPER TUBE-CONDENSER INLET COPPER 3A1112G01 1 1 1
27 COPPER TUBE (D1) – HIGH SIDE COPPER 4A1654-01 1 1 1
28 TEE COPPER 436000-06 1 1 1
29 COPPER TUBE (D2) – HIGH SIDE COPPER 4A1649-01 1 1 1
30 COPPER TUBE (D3) – HIGH SIDE COPPER 4A1648-01 1 1 1
31 TEE COPPER 420041-11 1 1 1
32 EVACUATION TUBE COPPER 4A1212-02 1 1 1
33 HEAT EXCHANGER COPPER 1A0256G01 1 1 1
34 ACCESS VALVE COPPER 457729-01 1 1 1
35 COPPER TUBE (A) – LOW SIDE COPPER 4A1515-01 1 1 1
36 ELBOW COPPER 417395-03 1 1 1
37 HOLDER/EXP. VALVE-3/8 SS 3A0107-01 1 1 1
38 CLAMP SS 443461-02 1 1 1
39 EXP.VALVE COVER PE FOAM 3A0944-01 1 1 1
40 THERMISTOR - 429006-03 1 1 1
41 HOLDER-THERMISTOR COPPER 427430-01 1 1 1
42 INSULATION-THERMISTOR (A) PE FOAM 439368-01 1 1 1
43 INSULATION-THERMISTOR (B) PE FOAM 439368-02 1 1 1
44 INSULATED RUBBER TUBE - 4A1008G01 1 1 1
45 FRAME (A) GS 2A1153-01 1 1 1
T2 SCREW 4X8 7P31-0408 4 4 4
46 FRAME (B) GS 3A0595-01 1 1 1
T2 SCREW 4X8 7P31-0408 4 4 4
47 CABLE TIE CV-200 7920-0010 14 14 14
48 INSULATION TUBE L=125 7762-1030 1 1 1
49 INSULATION TUBE L=300 7762-1330 1 1 1
50 INSULATION TUBE L=200 7762-2943 1 1 1
51 INSULATION TUBE L=570 7762-2040 1 1 1

HA
20
MODEL: KML-600MWF TITLE:B. REFRIGERATION CIRCUIT
INDEX
NO.
DESCRIPTION
MATERIAL OR
MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER J-0 K-0 L-0
52 INSULATION TUBE L=520 7762-1020 1 1 1
53 INSULATION TUBE L=130 7762-1020 1 1 1
54 INSULATION TUBE L=30 7762-1020 4 4 4
55 INSULATION HOLDER SS 3A1084-01 1 1 1
T2 SCREW 4X8 7P31-0408 2 2 2
56 INSULATION TUBE L=740 7762-1330 1 1 1
