Hoshizaki KM-1600SRE User manual

NO.
ISSUED:
MODEL
HOSHIZAKI
STACKABLE CRESCENT CUBER
(FINAL) PARTS LIST
KM-1600SWE
KM-1600SWE3
KM-1600SRE
KM-1600SRE3
DEC.22,1992
JULY 3, 2000
71089
REVISED:

HA
2
KM-1600SWE
D-0 May, 1994
E-0 Jan., 1995
E-1 June, 1995
F-0 Jan., 1996
F-1 Sept., 1996
G-0 June, 1997
H-0 March, 1998
KM-1600SWE3
D-0 Apr l, 1994
E-0 March, 1995
F-1 Sept., 1996
G-1 June, 1997
H-0 Dec., 1997
KM-1600SRE
D-0 Apr l, 1994
E-0 Jan., 1995
E-1 May, 1995
F-0 Jan., 1996
F-1 July, 1996
G-0 Jan., 1997
G-1 June, 1997
G-2 Nov., 1997
H-0 Jan., 1998
H-1 June, 1998
KM-1600SRE3
D-0 Apr l, 1994
E-0 Dec., 1994
E-1 May, 1995
F-0 Dec., 1995
F-1 July., 1996
G-0 Jan., 1997
G-1 June, 1997
H-0 Dec, 1997

HA
3
MATERIAL ABBREVIATIONS
ALUMINUM
AL = Aluminum
COPPER
CU = Copper
PLASTIC
ABS = Acrylonitrile -butadiene - styrene
AC = Polyacetal
EVA = Ethylene vinyl acetate
PA = Polyamide = Nylon
PC = Polycarbonate
PE = Polyethylene
PES = Polyester
PE P = Polyethylene terephthalate = etlon
PP = Polypropylene
PS = Polystyrene
P FE = Polytetrafluoroethylene = eflon
PUR = Polyurethane
PVC = Polyvinyl chloride
RUBBER
VN = Vinyl Nitrile
EPDM = EP rubber
NBR = Nitrile butadiene rubber
NR = Natural rubber
NP = Neoprene
SI.R = Silicone rubber
SY.R = Synthetic rubber
EPH = Epichlorohydrin
STEEL
GS = Galvanized steel
SS = Stainless steel
PS = Plated steel
PAS = Primed steel
AUXILIARY CODE
Ex.1 K-0
Parts are the same as in the preceding (Note) - = Part deleted.
year.
x = Part deleted and replaced
"K" is the tenth in alphabetical order with "I" by "o" part.
skipped. So, "K" indicates "1990" or "2000".
o = New part for "x"
Ex.2 A-1 in the same auxiliary code.
"A" is the first in alphabetical
order. So, "A" indicates "1991".
Ex.3 A-2
Each time a part is changed non-interchangeably
in a year, this number advances.

HA
4
FASTENER ABBREVIATION LIST
S Phillips russ Machine Screw
SP Phillips Pan Head Machine Screw
SF Phillips Flat Head Machine Screw
SS Phillips Pan Head Machine Screw with Split Lock Washer
SW Phillips Pan Head Machine Screw with Split Lock Washer
and Flat Washer
1 Phillips russ Head apping Screw (Correspond to ype A)
2 Phillips russ Head apping Screw (Correspond to ype B)
3 Phillips russ Head apping Screw (Correspond to ype C)
F Phillips russ Head apping Screw (Special)
BH Hexagon Head Bolt
BC Socket Head Cap Screw
BS Hexagon Bolt with Split Washer
BW Hexagon Bolt with Split Washer and Flat Washer
BF Hexagon Flange Bolt
BR Cross-Recessed Hexagon Head Bolt
BRW Cross-Recessed Hexagon Head Bolt with Split Lock Washer
and Flat Washer
WL Split Lock Washer
W External ooth Washer
WF Flat Washer
WS Spring Washer
NH Hexagon Nut
NF Hexagon Flange Nut
NC Hexagon Cap Nut
NS Square Nut
NW Wing Nut
Ex. S 0308S (Phillips russ Head Machine Screw
3x8, made of stainless steel)
Material None: Plated Steel
Length (mm) S: Stainless Steel
Nominal Diameter (mm) B: Brass
Form of Head P: Plastic
Description
(Note) Second character is numerical except toe list.
Ex. S1, S2, B3 etc.
And abbreviations and names are shown under the illustration.

HA
5

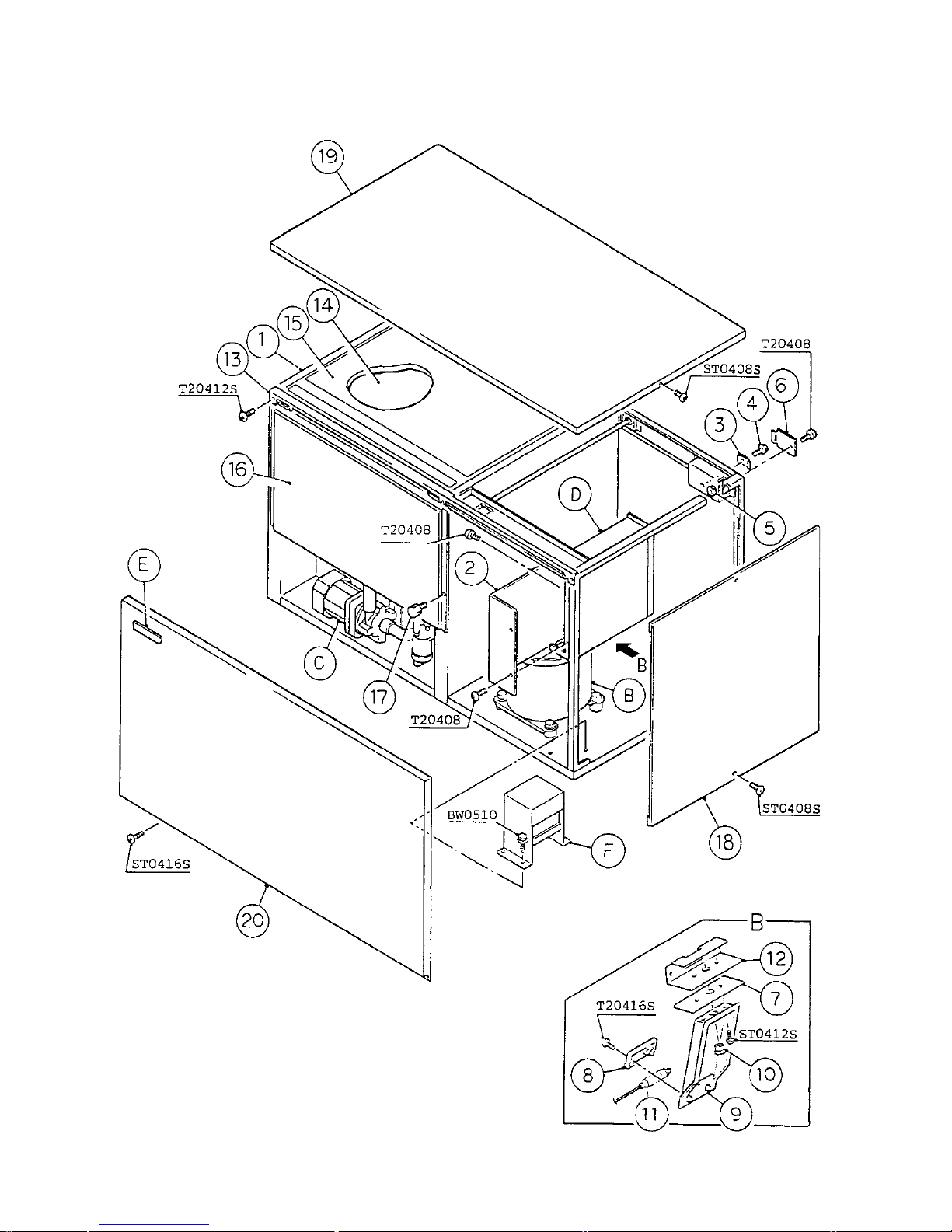

KM-1600SWE A. ICE CUBER ASSEMBLY D-0, E-0, E-1, F-0,
F-1, G-0, H-0

HA
6
MODEL: KM-1600SWE TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO. DESCRIPTION MATERIAL
OR MODEL PART NUMBER REQUIRED NUMBER
NUMBER D-0 E-0 E-1 F-0 F-1 G-0 H-0
B REFRIGERATION CIRCUIT - 106530A01 1 1 -
- 106530A03 1 1 1 1 1
C WATER CIRCUIT - 105109A02 1 1 -
- 105109A03 1 1 1 1 -
- 105109A04 1
D CONTROL BOX ASSEMBLY - 219335A04 1111111
E LABEL LOCATION - 219473A01 1111111
FCAPACITOR BOX ASSEMBLY - 326126A02 1111111
1 EVAPORATOR CASE - 105860G04 1 1 -
- 105860G12 1 1 1 1 -
- 105860G23 1
2 CONTROL BOX COVER GS 3A0174-01 1111111
3 SQUARE WASHER BRASS 433537-02 1111111
4 SCREW - GROUNDING BRASS 433304-02 1111111
5 BUSHING SR-34-2 420472-05 1111111
6 JUNCTION BOX COVER GS 433410-01 1111111
7 SPACER ABS 440907-01 111111-
- 439727-01 1
8 BULB HOLDER PE 328919-01 1111111
9 BULB HOLDER (C) ABS 216340G01 1111111
10 BUSHING EPDM 425307-01 1111111
11 SPACER PE 443545-01 1111111
12 BULB HOLDER (D) GS 328742-01 1111111
13 FRONT PANEL - BRACKET SS 323903-01 1111111
14 SPACER ABS 324321-01 1111111
15 TOP INSULATION ABS, PE 324216G01 1111111
16 FRONT INSULATION ABS, PE 324215G01 1111111
17 THUMBSCREW ABS, SS 415949G01 1111111
18 SIDE PANEL (R) SS 213668G01 1111111

HA
7
MODEL: KM-1600SWE TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO. DESCRIPTION MATERIAL
OR MODEL PART NUMBER REQUIRED NUMBER
NUMBER D-0E-0E-1F-0F-1G-0H-0
19 TOP PANEL (A) SS 213669-01 1 x1
SS 213669-02 o1 1 1 1 x1
SS 213669-01 o1 1
20FRONTPANEL SS 325508G011111111

HA
8
KM-1600SWE3 A. ICE CUBER ASSEMBLY D-0, E-0, F-1, G-1, H-0

HA
9
MODEL: KM-1600SWE3 TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO. DESCRIPTION MATERIAL
OR MODEL PART NUMBER REQUIRED NUMBER
NUMBER D-0 E-0 F-1 G-1 H-0
B REFRIGERATION CIRCUIT - 106530A02 1 1 -
- 106530A04 1 1 1
C WATER CIRCUIT - 105109A02 1 1 -
- 105109A03 1 1 -
- 105109A04 1
D CONTROL BOX ASSEMBLY - 219335A04 1 1 1 1 1
E LABEL LOCATION - 219473A02 1 1 1 1 1
FCAPACITOR BOX ASSEMBLY - 326126A02 1 1 1 1 1
1 EVAPORATOR CASE - 105860G04 1 1 -
- 105860G12 1 1 -
- 105860G23 1
2 CONTROL BOX COVER GS 3A0174-01 1 1 1 1 1
3 SQUARE WASHER BRASS 433537-02 1 1 1 1 1
4 SCREW - GROUNDING BRASS 433304-02 1 1 1 1 1
5 BUSHING SR-34-2 420472-05 1 1 1 1 1
6 JUNCTION BOX COVER GS 433410-01 1 1 1 1 1
7 SPACER ABS 440907-01 1 1 1 1 x1
- 439727-01 o1
8 BULB HOLDER PE 328919-01 1 1 1 1 1
9 BULB HOLDER (C) ABS 216340G01 1 1 1 1 1
10 BUSHING EPDM 425307-01 1 1 1 1 1
11 SPACER PE 443545-01 1 1 1 1 1
12 BULB HOLDER (D) GS 328742-01 1 1 1 1 1
13 FRONT PANEL - BRACKET SS 323903-01 1 1 1 1 1
14 SPACER ABS 324321-01 1 1 1 1 1
15 TOP INSULATION ABS, PE 324216G01 1 1 1 1 1
16 FRONT INSULATION ABS, PE 324215G01 1 1 1 1 1
17 THUMBSCREW ABS, SS 415949G01 1 1 1 1 1
18 SIDE PANEL (R) SS 213668G01 1 1 1 1 1

HA
10
MODEL: KM-1600SWE3 TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO. DESCRIPTION MATERIAL
OR MODEL PART NUMBER REQUIRED NUMBER
NUMBER D-0 E-0 F-1 G-1 H-0
19 TOP PANEL (A) SS 213669-01 1 x1
SS 213669-02 o1 1 1 x1
SS 213669-01 o1
20 FRONT PANEL SS 325508G01 11111

HA
11

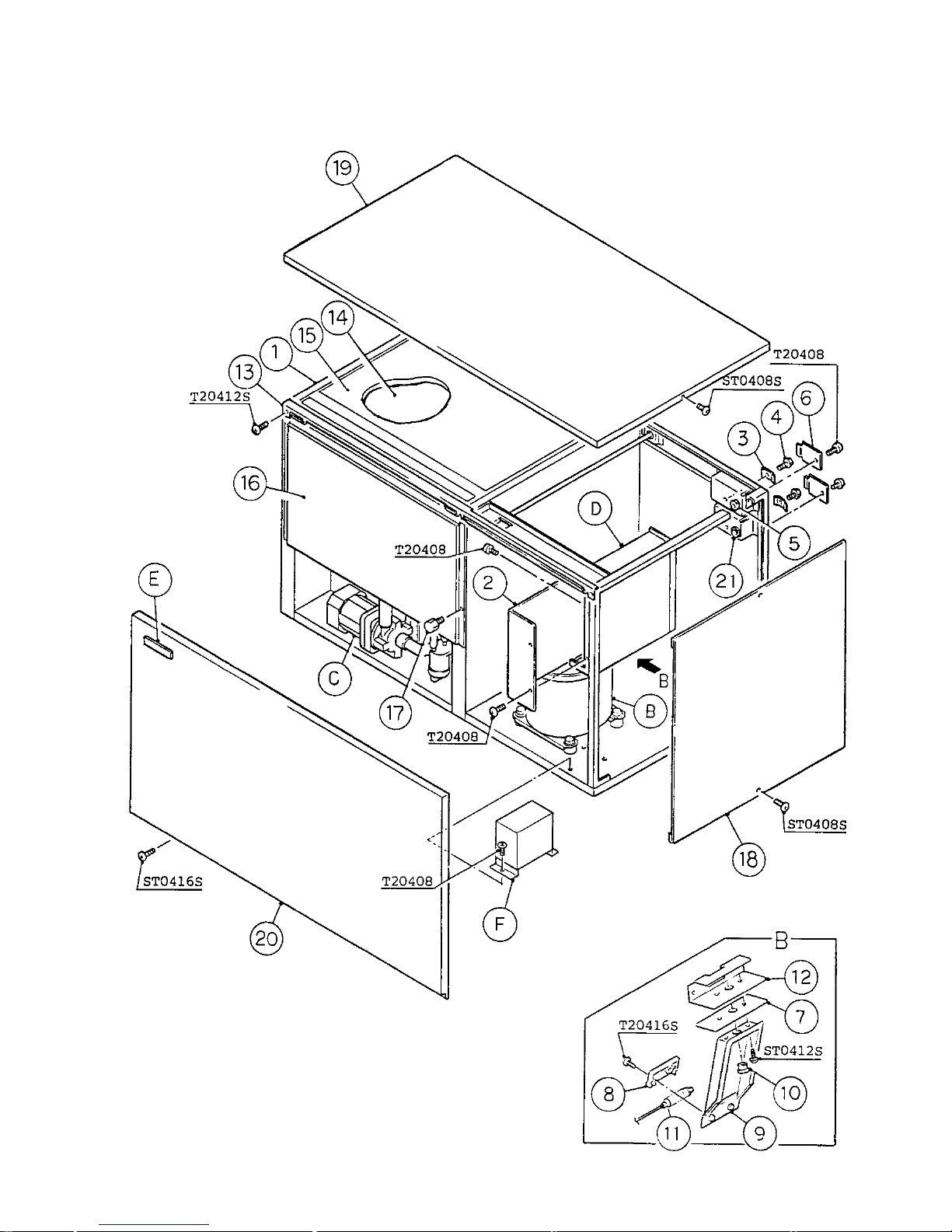

KM-1600SRE A. ICE CUBER ASSEMBLY D-0, E-0, E-1, F-0, F-1,
G-0, G-1, G-2, H-0, H-1

HA
12
MODEL: KM-1600SRE TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO. DESCRIPTION MATERIAL
OR MODEL PART NUMBER REQUIRED NUMBER
D-0 E-0 E-1 F-0 F-1 G-0 G-1 G-2 H-0 H-1
B REFRIGERATION CIRCUIT - 106530A01 1 1 -
- 106530A03 1 1 1 1 1 1 1 1
C WATER CIRCUIT - 105109A02 1 1 -
- 105109A03 1 1 1 1 1 1 1 -
- 105109A04 1
D CONTROL BOX ASSEMBLY - 219335A04 1 1 1 1 1 1 1 1 1 1
E LABEL LOCATION - 219332A01 1 1 1 1 1 1 1 1 1 1
F CAPACITOR BOX
ASSEMBLY
- 326126A02 1 1 1 1 1 1 1 1 1 1
1 EVAPORATOR CASE - 105860G05 1 1 -
- 105860G13 1 1 1 1 1 1 -
- 105860G24 1 1
2CONTROLBOXCOVER GS 3A0174-011111111111
3 SQUARE WASHER BRASS 433537-02 2 2 2 2 2 2 2 2 2 2
4 SCREW - GROUNDING BRASS 433304-02 2 2 2 2 2 2 2 2 2 2
5 BUSHING SR-30-1 420472-03 1 1 1 1 1 1 1 1 1 1
6 JUNCTION BOX COVER GS 433410-01 2 2 2 2 2 2 2 2 2 2
7 SPACER ABS 440907-01 1 1 1 1 1 1 1 1 x1
- 439727-01 o1 1
8 BULB HOLDER PE 328919-01 1 1 1 1 1 1 1 1 1 1
9 BULB HOLDER (C) ABS 216340G01 1 1 1 1 1 1 1 1 1 1
10 BUSHING EPDM 425307-01 1 1 1 1 1 1 1 1 1 1
11 SPACER PE 443545-01 1 1 1 1 1 1 1 1 1 1
12 BULB HOLDER (D) GS 328742-01 1 1 1 1 1 1 1 1 1 1
13 FRONT PANEL - BRACKET SS 323903-01 1 1 1 1 1 1 1 1 1 1
14 SPACER ABS 324321-01 1 1 1 1 1 1 1 1 1 1
15 TOP INSULATION ABS, PE 324216G01 1 1 1 1 1 1 1 1 1 1
16 FRONT INSULATION ABS, PE 324215G01 1 1 1 1 1 1 1 1 1 1
17 THUMBSCREW ABS, SS 415949G01 1 1 1 1 1 1 1 1 1 1

HA
13
MODEL: KM-1600SRE TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO. DESCRIPTION MATERIAL
OR MODEL PART NUMBER REQUIRED NUMBER
D-0 E-0 E-1 F-0 F-1 G-0 G-1 G-2 H-0 H-1
18 SIDE PANEL (R) SS 213668G01 1 1 1 1 1 1 1 1 1 1
19 TOP PANEL (A) SS 213669-01 1 x1
SS 213669-02 o1 1 1 1 1 1 1 1 x1
SS 213669-01 o1
20 FRONT PANEL SS 325508G01 1 1 1 1 1 1 1 1 1 1
21 BUSHING SR-34-2 420472-05 1 1 1 1 1 1 1 1 1 1

HA
14
KM-1600SRE3 A. ICE CUBERASSEMBLY D-0, E-0, E-1, F-0,
F-1, G-0, G-1, H-0

HA
15
MODEL: KM-1600SRE3 TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO. DESCRIPTION MATERIAL
OR MODEL PART NUMBER REQUIRED NUMBER
D-0 E-0 E-1 F-0 F-1 G-0 G-1 H-0
B REFRIGERATION CIRCUIT - 106529A02 1 1 -
- 106529A04 1 1 1 1 1 1
C WATER CIRCUIT - 105109A02 1 1 -
- 105109A03 1 1 1 1 1 x1
- 105109A04 o1
D CONTROL BOX ASSEMBLY - 219335A04 11111111
E LABEL LOCATION - 219332A02 11111111
FTRANSFORMER BOX ASSEMBLY - 333073A01 11111111
1 EVAPORATOR CASE - 105860G05 1 1 -
- 105860G13 1 1 1 1 1 -
- 105860G24 1
2 CONTROL BOX COVER GS 3A0174-01 11111111
3 SQUARE WASHER BRASS 433537-02 22222222
4 SCREW - GROUNDING BRASS 433304-02 22222222
5 BUSHING SR-30-1 420472-03 11111111
6 JUNCTION BOX COVER GS 433410-01 22222222
7 SPACER ABS 440907-01 1111111x1
- 439727-01 o1
8 BULB HOLDER PE 328919-01 11111111
9 BULB HOLDER (C) ABS 216340G01 11111111
10 BUSHING EPDM 425307-01 11111111
11 SPACER PE 443545-01 11111111
12 BULB HOLDER (D) GS 328742-01 11111111
13 FRONT PANEL - BRACKET SS 323903-01 11111111
14 SPACER ABS 324321-01 11111111
15 TOP INSULATION ABS, PE 324216G01 11111111
16 FRONT INSULATION ABS, PE 324215G01 11111111
17 THUMBSCREW ABS, SS 415949G01 11111111
18 SIDE PANEL (R) SS 213668G01 11111111

HA
16
MODEL: KM-1600SRE3 TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO. DESCRIPTION MATERIAL
OR MODEL PART NUMBER REQUIRED NUMBER
D-0 E-0 E-1 F-0 F-1 G-0 G-1 H-0
19 TOP PANEL (A) SS 213669-01 1 x1
SS 213669-02 o1 11111x1
SS 213669-01 o1
20 FRONT PANEL SS 325508G01 11111111
21 BUSHING SR-34-2 420472-05 11111111

HA
17
KM-1600SWE, SWE3 B. REFRIGERATION CIRCUIT (1/2) D-0, E-0, E-1, F-0,
F-1, G-0, H-0

HA
18
KM-1600SWE, SWE3 B. REFRIGERATION CIRCUIT (2/2) D-0, E-0, E-1, F-0,
F-1, G-0, H-0

HA
19
MODEL: KM-1600SWE TITLE:B. REFRIGERATION CIRCUIT
INDEX
NO. DESCRIPTION MATERIAL
OR MODEL PART NUMBER REQUIRED NUMBER
D-0 E-0 E-1 F-0 F-1 G-0 H-0
G EVAPORATOR - 104696A01 1 1 1 1 1 1 1
1 REAR FRAME GS 439285G03 1 1 -
GS 439285G04 1 1 1 1 1
2 SIDE FRAME (A) GS 219472G01 1 1 1 1 1 1 1
3 SIDE FRAME (B) GS 323901G01 1 1 1 1 1 1 1
4 FRONT FRAME GS 325857-01 1 1 1 1 1 1 1
5 REAR PANEL (A) GS 219569-01 1 1 -
GS 219569-02 1 1 1 1 1
6 COMPRESSOR H23A463ABCA 438202-02 1 1 1 1 1 1 1
7 GROMMET 027-0167-00 434922-01 4 4 4 4 4 4 4
8 SPACER 028-0188-02 434921-01 4 4 4 4 4 4 4
9 BOLT 8 x 45 437889-01 4 4 4 4 4 4 4
10 CONDENSER - WATER-COOLED - 219382-01 1 1 1 1 1 1 1
11 DRIER C-530-S 445011-01 1 1 1 1 1 1 1
12 DRIER BRACKET GS 445251-01 1 1 1 1 1 1 1
13 EXPANSION VALVE HFE-15HHD-2 445542-01 2 2 2 2 2 2 2
14 TERMINAL GASKET -334084-01 1 1 1 1 1 1 1
15 FRAME SEAL EPDM 323925-01 4 4 4 4 4 4 4
16 HOT GAS VALVE BRACKET GS 440507-01 1 1 1 1 1 1 1
17 VALVE BODY 70 440352-01 2 2 2 2 2 2 2
18 COIL - VALVE ABS-25-1-HD-2 440353-01 2 2 2 2 2 2 2
19 BOLT 4 x 6 440353F01 2 2 2 2 2 2 2
20 LINE VALVE BRACKET GS 438213-01 1 1 1 1 1 1 1
21 VALVE BODY 24 440351-01 1 1 1 1 1 1 1
22 COIL - VALVE ADS-24HD-3 440354-01 1 1 1 1 1 1 1
23 BOLT 4 x 6 440354F01 1 1 1 1 1 1 1
24 THERMOSTAT US-602SXTTBL 445595-01 1 1 1 1 1 1 1
25 PRESSURE SWITCH ACB-2UB02 433441-01 1 1 1 1 1 1 1
26 PRESSURE SWITCH BRCKT. GS 434938-01 1 1 1 1 1 1 1
27 COPPER TUBE - ACCESS VALVE COPPER 439761-02 1 1 1 1 1 1 1

HA
20
MODEL: KM-1600SWE TITLE:B. REFRIGERATION CIRCUIT
INDEX
NO. DESCRIPTION MATERIAL
OR MODEL PART NUMBER REQUIRED NUMBER
D-0 E-0 E-1 F-0 F-1 G-0 H-0
28 ACCESS VALVE TCJ-2F15-HD 417366-01 2222222
29 STRAINER - 441569-02 1111111
30 CHECK VALVE YCV5-2 425342-01 2222222
31 WATER REGULATOR BRCKT. GS 445172-01 1111111
32 WATER REG. ASSEMBLY (S-0815) 446716G01 1111111
33 COPPER TUBE (A) - HIGH SIDE COPPER 219470G01 1111111
34 COPPER TUBE (B) - HIGH SIDE COPPER 331186-01 1111111
35 COPPER TUBE (C) - HIGH SIDE COPPER 446548G01 1111111
36 COPPER TUBE (F) - HIGH SIDE COPPER 219590G01 1111111
37 HEAT EXCHANGER COPPER 106498G01 1111111
38 COPPER TUBE (R) - HIGH SIDE COPPER 219591G01 1111111
39 COPPER TUBE (L) - LOW SIDE COPPER 219593G01 1111111
40 COPPER TUBE - HOT GAS COPPER 3A0212G01 1111111
41 INSULATION -
COMPRESSOR TOP
VNN 2C1
(SOFT)
447118-01 1111111
42 INSULATION -
COMPRESSOR RIGHT
VNN 2C1
(SOFT)
447119-01 1111111
43 INSULATION -
COMPRESSOR CENTER
VNN 2C1
(SOFT)
447120-01 1111111
44 INSULATION -
COMPRESSOR LEFT
VNN 2C1
(SOFT)
447121-01 1111111
45 COPPER TUBE - CAPILLARY COPPER 445174G02 1111111
46 COPPER TUBE (A) COPPER 2A0163G01 x1
COPPER 2A0421G01 o1 1 -
COPPER 2A0515G01 11111
47 COPPER TUBE (B) COPPER 445176G01 1111111
48 COPPER TUBE (C) COPPER 4A0209G01 1 1 -
COPPER 4A0771G01 11111
49 HOLDER / EXPANSION
VALVE - 3/8
SS 3A0107-012222222
