Hotpoint HP21WC-Cooling Only User manual

Thank you for selecting Hotpoint air conditioners.
Please read this manual carefully before operation and keep it for further reference.
Room Air Conditioner
OPERATING INSTRUCTIONS
HP21WC-Cooling Only
HP21WR-Reverse Cycle

Please read this operating manual care-
fully before operating the unit.
Thank you for choosing a Hotpoint air conditioner. Our design is based on the best efficiency and the lowest
noise operation and it can keep the room comfortable. Please read this operating manual carefully before
operating the unit and keep it for consultation.
CONTENTS
Function
Operating condition
power requirement
Installation
Notes for installation
Partidentification 6
Air direction adjustment 6
Main switch operation procedure 7
Operation tips 14
Caution 15
Care and maintenance 16
Trouble shooting guide 17
Structuremechanismand Installation
Operation of wireless remote control 8
Operation procedure
Care and maintenance
2
2
3
5
1
Note: All the pictures in this manual are just schematic diagrams.
The actual product is the standard.
After service 18

1

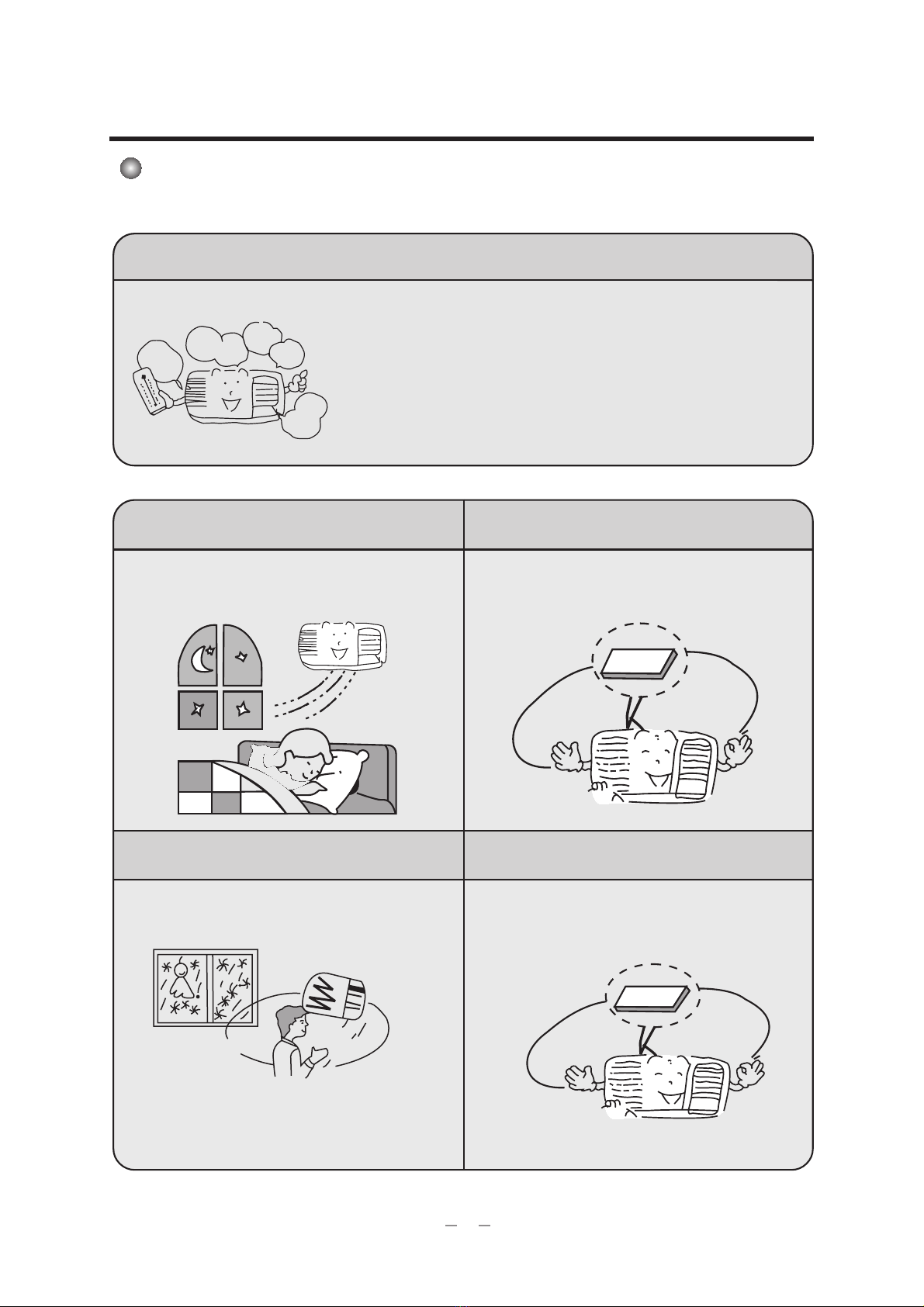

Function
Introduction
Window type room air conditioners of Hotpoint can regulate the room
temperature and dry the room. It is convenient for your work,study
and life. It can be widely used in residence, shop, hotel, office, library
and laboratory, and so on.
Room
temp.
Spring Summer
Autumn
Wind
direction
Winter
Cooling in summer
In hot summer, Air conditioner can cool down
the room air by transferring heat out.
Without reducing the room temp., air conditioner
can dehumidify and make the room air dry and
comfortable.
Dehumidifying in rainy or
humid season
Exchange fresh air
Open storm door to keep the fresh air in the room.
Dry
Fresh Air
Heating in winter
In cold winter, Air conditioner can heat up room air.
(Only for heat unit)

2 2

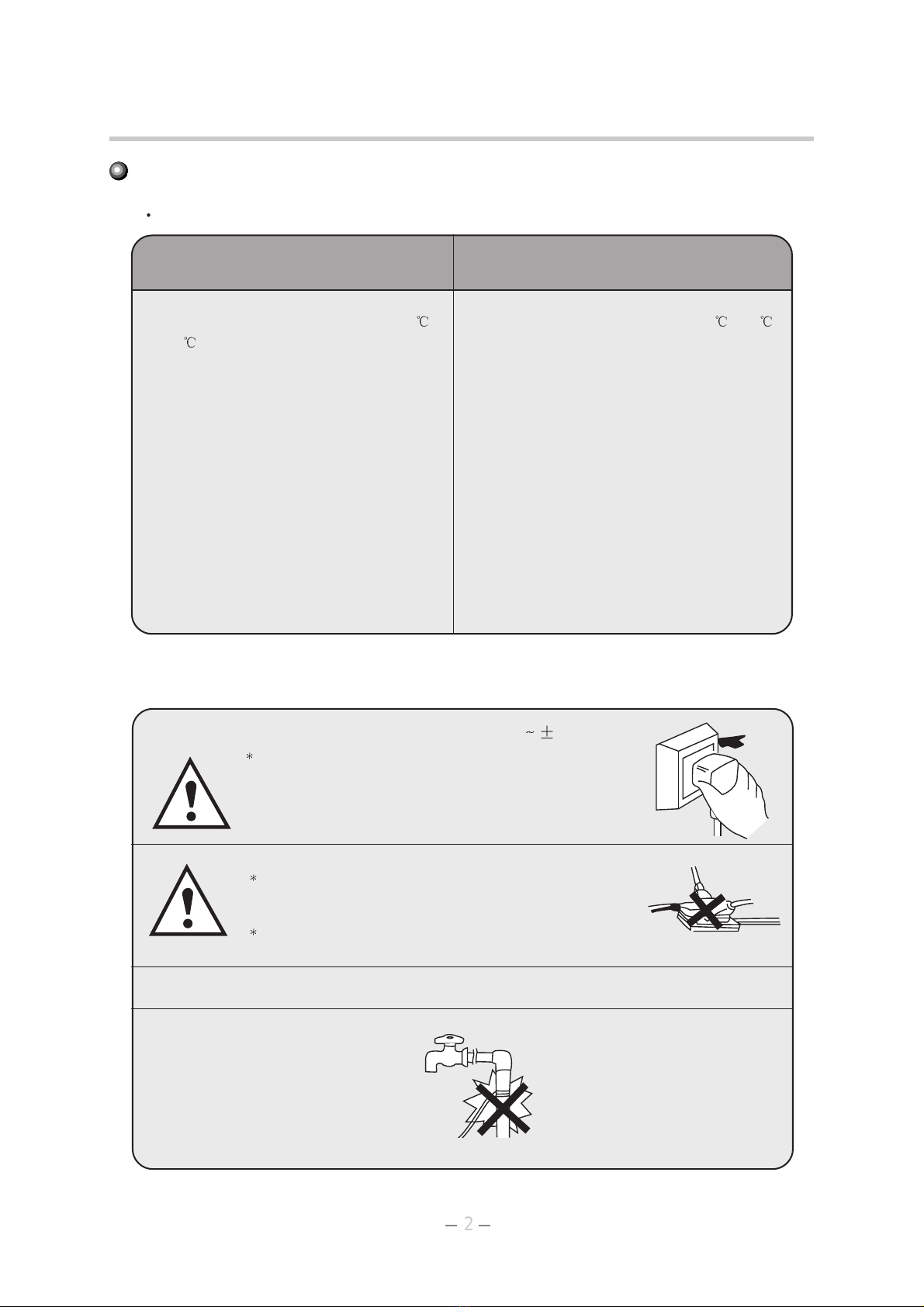

Operating Condition
Please operate air conditioner in the correct conditions as follows.
Power requirement (15Amp/15Amp Circuit)
COOL mode operation
DRY mode operation
Outdoor temperature should be in range of 18 to 43 ,
otherwise it is possible for air conditioner to breakdown.
Outdoor temperature should be in range of 18
to 43 , otherwise it is possible for air conditioner
to breakdown.
Room humidity should be lower than 90%.
Otherwise, it is possible for air conditioner to dew
at air conditioner surface and even drop water af-
ter running for so much time. But this is normal.
Water pipe
Rated voltage and voltage range: 230V 10%
The electric components will be damaged when the voltage is too high.
If the voltage is too low, the compressor will vibrate violently to dam-
age the refrigerant system and easily cause the compressor and elec-
tric components not work.
The ground must be connected.
Special socket must be used. Furthermore, the socket and wiring
must conform to Australian National Standards.
And the earthing method must be reliable.
In fixed circuit, there must be electricity leakage protection switch
of enough power capacity and air switch with enough space.
Earth wire To ensure the reliable earthing, please do not connect earth wire to the following places:

The distance of obstructions from window unit
inside should be upper 300mm, lower 1500mm,
left 500mm,right 500mm, front1500mm.
3
Installation
Installation precaution:
Window type conditioner is so valuable and the improper installa-
tion of it will cause a lot of damage! Please consult with a licenced
technician to install the unit and don’t install it by yourself.
Hotpoint is not responsible for incorrect installation.
Location:
The condensation water must be drained away conveniently.
Install air conditioner unit far away from TV set or radio
etc. to avoid disturbing video or voice.
In salt and coastal area or place where is near thermal springs
and polluted by sulphurous gas, or other special areas, please
contact the seller before use.
Avoid a place where is possible for inflammable gas to leak out.
Avoid other heat sources or direct sun light.
Avoid a place where is easy for children to touch.
For window type air conditioner with remote
control, install in a location away from strong elec-
tromagnetic disturbance, you should contact the
seller in advance to avoid the malfunction in use.
How to install:
Choose a location where there are no any obstacle surrounding
the unit, and the plug is accessible.
Prepare the installation hole slightly bigger than unit size.

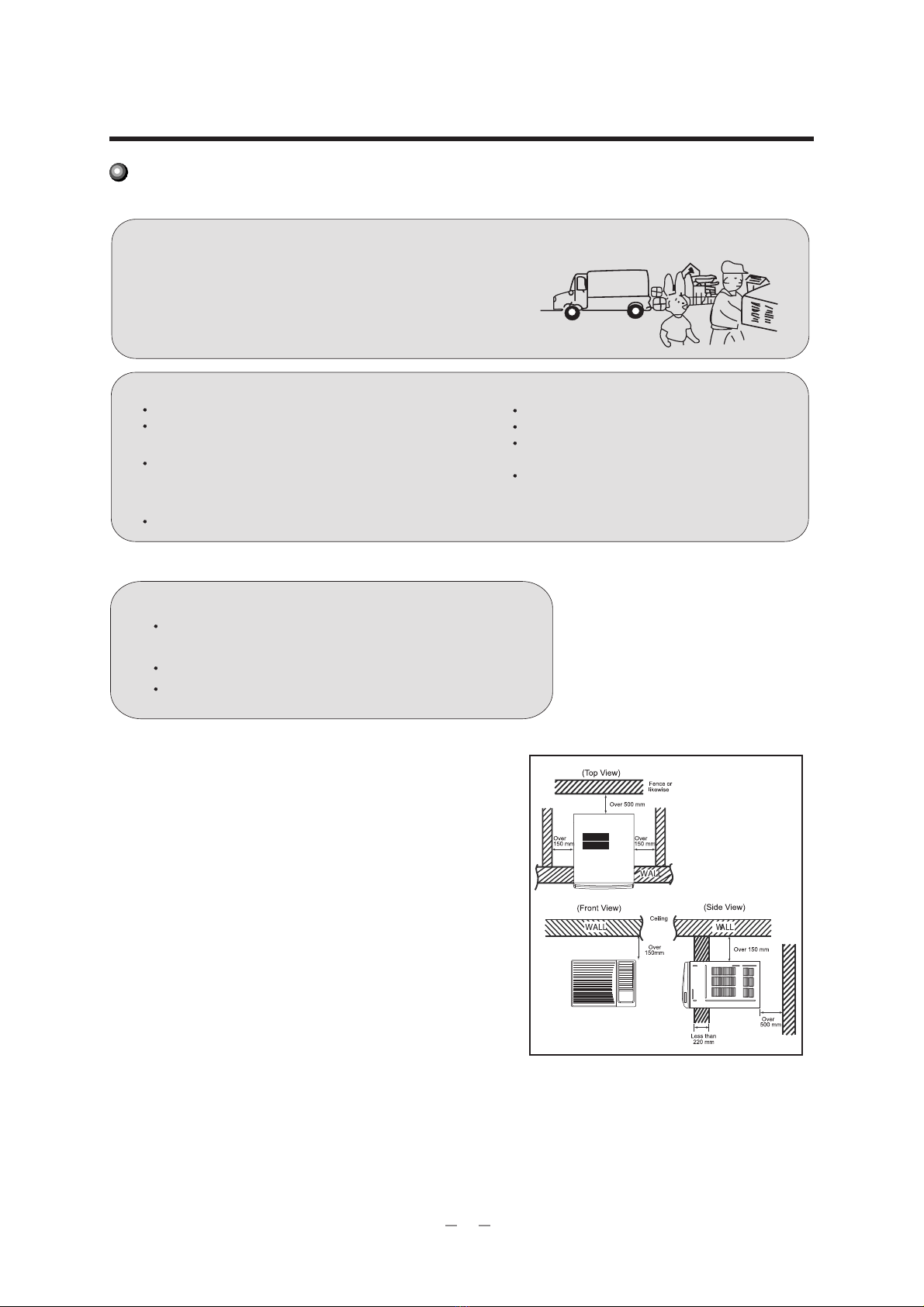

Choose the installation space according to the following diagram.
Don't use the unit in the immediate surrondings of
a laundry,a bath,a shower or a swimming pool.

Sunshade board
Wall
Wooden frame
Rubber plate
Support
4
Horizontal line
Horizontal line
Drain water:
To get the maximum cooling efficiency, the air conditioner is designed to splash the condensation water on the
condenser coil.
To the cooling only unit,If the splashing sound annoys you, you can provide an outside drain by using the follo
-wing procedure, whichmay however cause a small loss of performance.
1. Slide out the chassis from the cabinet.
2. Remove the rubber plug from the body base plate.
3. Install the drain pan to the corner of the cabinet with 2 screws.
4. Connect the drain hose to the outlet on the drain pan bottom.
5. Slide the chassis into its original place in the cabinet.
Installation procedure:
1) Remove the sticker from the front panel.
2) Put the unit into the installation hole.
When installing the unit, it should be slanted
down to the back to avoid the enlargement of
noise or vibration. (Slant between 6-10mm.)
(Shown at right figure.)
The installation place should be strong enough
to avoid the enlargement of noise or vibration.
3) Fill up sews in the cabinet with sponge or foam.
Installation assistance:
Use iron support
The installation hole should be strong enough to
support the air conditioner. If it cannot, iron sup-
port has to be used outdoors.
Iron support should be fixed on the building (Shown
at right figure.)
Use sunshade board
Air conditioner should avoid anything to be dropped
into it and avoid direct sunshine. If there is no cover
on it, you should contact the seller for installing
the sunshade board. When installing the sunshade
board, don’t let it block the air inlet at the side grille.

5
Notes for installation
Remove
Before removing air conditioner to another place, you should
contact the installer first.
Then it must be done under the direction of a licenced
technician. In addition, the charge of this must be paid.
Noise
Electric wiring
Install in a location that is firm enough to avoid the enlargement of noise
and vibration.
Don’t put anything in front of the outlet of outdoor unit to avoid increasing
noise.
Be sure that hot air ornoise will not inconvenience neighbors.
Please contact the seller as soon as there is strange noise during operation.
Please use the safety support.
Must connect with ground reliably.
The exclusive circuit must be used. But removable socket can’t be used because poor
contact of it can cause over heat or fire.
If the supply cord is damaged,it must be replaced by the manufacturer or your dealer
In fixed circuit, there must be electricity leakage protection switch and leakage current
is less than 30mA.
Air switch (thermal-magnetic breaker) should be installed in the circuit.
Note:
Drain pan and drain hose must be installed before using reverse cycle models.
Drain hose or tubing can be purchased locally to satisfy your particular needs.
Don’t pull the power cord strongly.
or a qualified person to avoid a hazard.
All The dectrical work must be done according to the local wiring regulations.
An all-pole disconnection switch having a contact separation of at least 3mm in all poles
should be connected in fixed wiring
Connecting method between air conditioners and power cord and interconnecting method
of each individual element with one another should accord with wiring diagram on the unit.
The air conditioner should be installed in accordance with national wiring regulation.
In case necessary, please consult your supply authority for system impedance information.

6
PART IDENTIFICATION
Vertical airflow direction vane
(Airflow direction adjustment up and down).
The vertical airflow direction vane is controlled by
positioning the vane to discharge the air upwards,
downwards or straight out.
Air direction adjustment
Air filter
(behind the front intake grille)
Front intake grille)
Control panel Power cord
Front grille
Air inlet louver
Cabinet
Front grille
Air inlet louver
Cabinet
Air filter
(behind the front intake grille)
Front intake grille)
Remote control panel Power cord

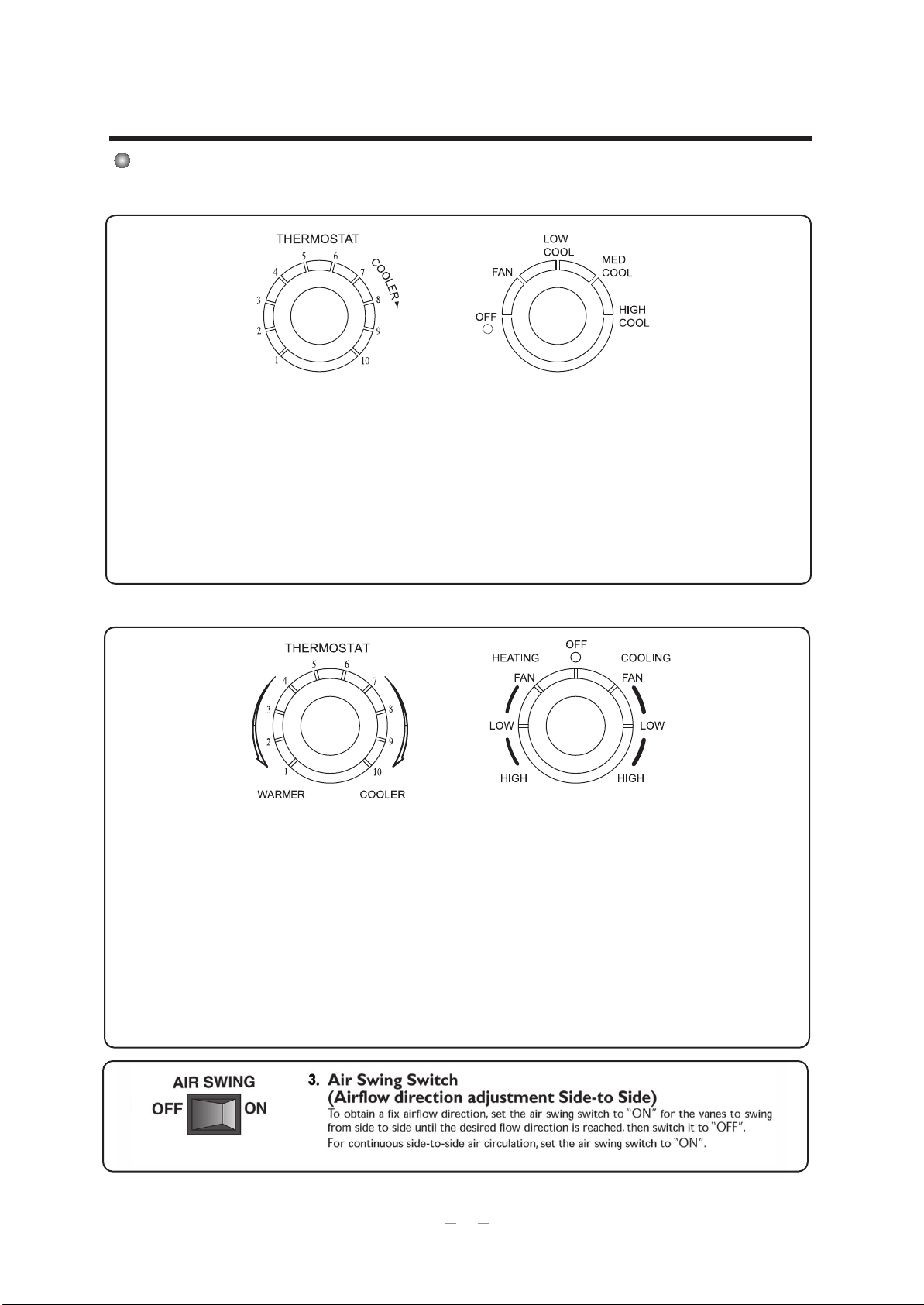

Main switch operation procedure
1.Main Control Knob
Set to Low Cool,Med Cool or High Cool as desired(FAN setting operates the fan only.)
CAUTION:If the main control knob is turned off of changed to a fan setting from a cooling operation setting.
2.Thermostat control Knob
WAIT at teast 3minutes before resetting to cooling operation.
not as desired after a reasonable period,turn the thermostat.When the thermostat control knobis set to 10moisture
Set the thermostat control knob to your desired setting(Usually 6-7 is recommended),If the room temperature is
evaporator fins so that normal cooling can be resumed.
may freeze onto the evaporator fins by turning the thermostat control knob counter clockwise,This will quickly defrost the
1.Main Control Knob
Set either Low Cooling or High Cooling and Low Heating or High Heating as desired.
CAUTION:If the main control knob is turned off orchanged to a fan setting from a cooling operation setting.
2.Thermostat control K nob
WAIT at teast 3minutes before resetting to cooling operation.
and 6-7 for cooling),If the room temperature is not as desired after a reasonable period,turn the thermostat.When
Set the thermostat control knob to your desired setting(Usually 4-5 is recommended setting for setting for heating
counter clockwise,This will quickly defrost the evaporator fins so that normal cooling can be resumed.
the thermostat control know is set to 10moisture may freeze onto evaporator fins by turning the thermostat control knob
(FAN setting operates the fan only.)
1.Only Cooling
2.Cooling and Heating
7

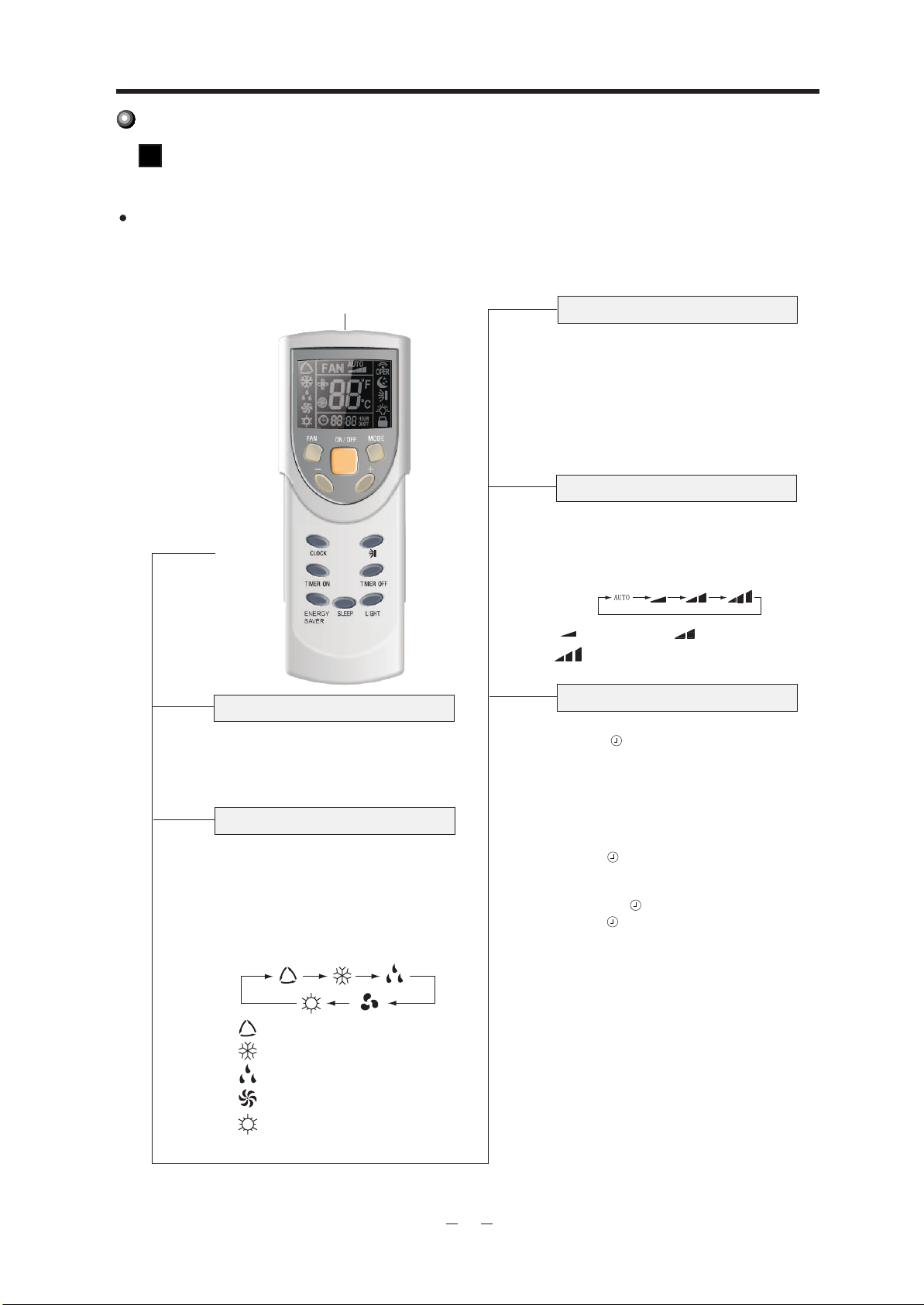

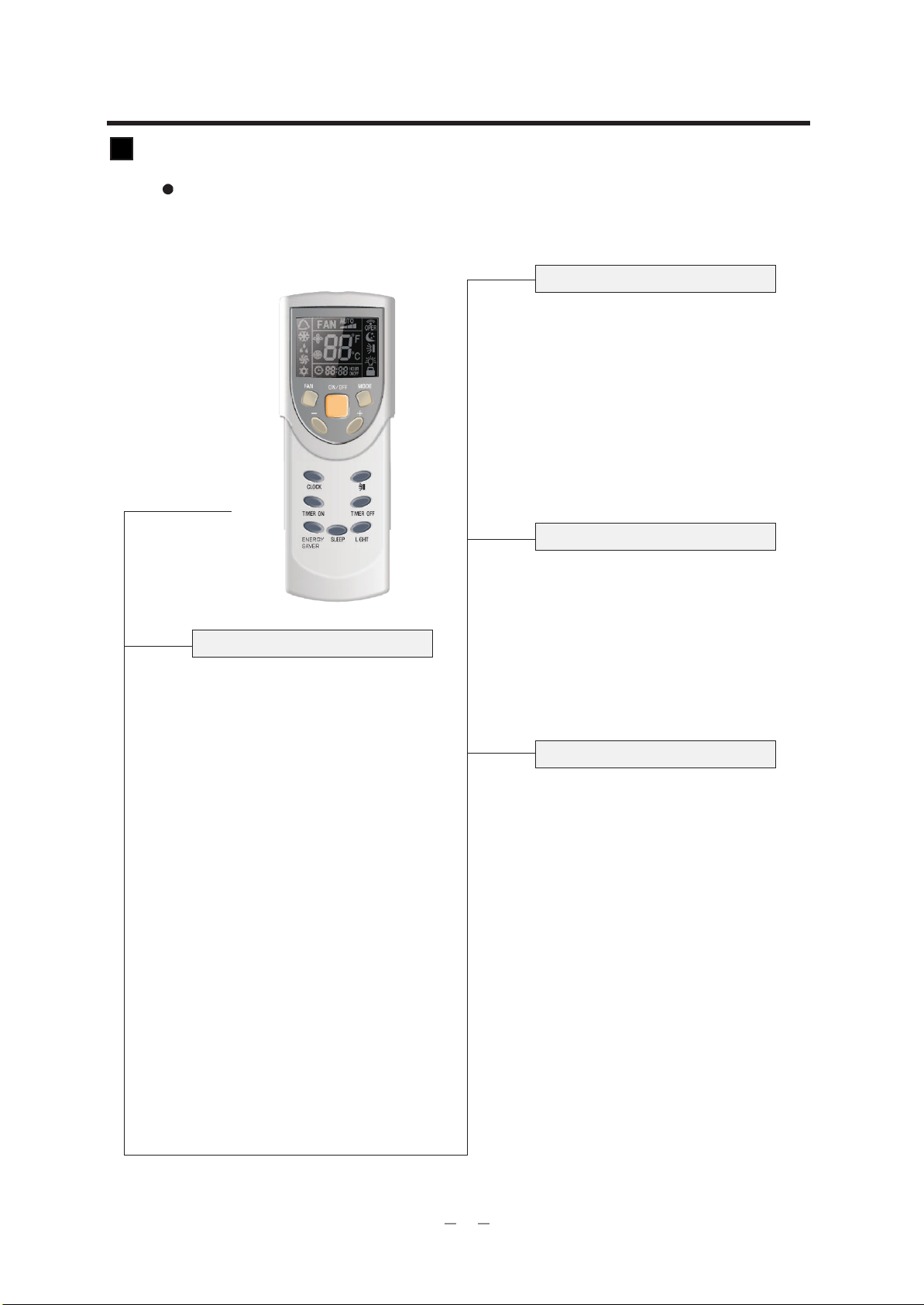

ON/OFF button
ON/OFF
Remote control
Signal transmitter
AUTO
COOL
DRY
FAN
Middle fan
●Press this button, Auto, Cool,Dry, Fan,
Heat mode can be selected circularly.
MODE button
MODE
Auto mode is default while power on.
Under Auto mode,the temperature will not
be displayed; Under Heat mode, the
●Press this button, Sleep On and Sleep
Offcanbeselected.Afterpoweredon,Sleep
SLEEP button
SLEEP
Off is defaulted. After the unit is turned
off, the Sleep function is canceled. After
Sleep function set up, the signal of Sleep
will display. In this mode, the time of timer
can be adjusted. Under Fan and Auto
modes, this function is not available.
●Press this button, Auto, Low, Middle, High
speed can be circularly selected. After
FAN button
FAN
powered on,Auto fan speed is default.
Under Blow mode, Low fan speed only
can be set up.
Low fan
High fan
●Press this button, the clock can be set up,
signal blink and display.Within 5
CLOCK button
CLOCK
seconds, the value can be adjusted by
pressing + or - button, if continuously
press this button for 2 seconds above,
in every 0.5 seconds, the value on ten place
ofMinutewillbeincreased1.Duringblinking,
represstheClockbuttonorConfirmbutton,
signal will be constantly displayed and
it denotes the setting succeeded. After
powered on, 12:00 is defaulted to display
and signal will be displayed. If there is
current time value is Clock value, otherwise
is Timer value.
signal be displayed that denotes the
●Press this button, the unit will be turned
on, press it once more, the unit will be
turned off. Sleep function will be canceled,
while unit off.
(only for cooling and heating unit)
HEAT
initial value is 28℃;Under other
modes,the initial value is 25℃ .
(oF)
82
(oF)
77
Operation of wireless remote control
Name and function of wireless remote control
Note:
Besure that there are no obstructions between receiver and remote controller; Don't
drop or throw the remote control; Don't let any liquid in the remote control and
put the remote control directly under the sunlight or any place where is very hot.
8

Name and function of wireless remote control
Note: This wireless remote control is universal, and it could be used for many
units, some buttons of this control which are not available to this unit will
not be described below.
Remote control
●Under the Cool and Dry mode, press this
button once, the unit will enter "energy
ENERGY SAVER button
●Press this button at unit On or Off status,
Light On and Light Off can be set up.
LIGHT button
LIGHT
After powered on, Light On is defaulted.
●Presetting temperature can be increased.
Press this button, the temperature can be
+ button
+
set up, continuously press this button
and hold for two seconds, the relative
contents can quickly change, until unhold
this button and send the order that the ℃
(oF) signal will be displayed all the time.
The temperature adjustment is unava-
ilable under the Auto mode, but the order
can be sent if pressing this button.
Temperature of Celsius degree setting:
16-30 ; for Fahrenheit degree setting:
61-86.
●Presetting temperature can be decreased.
Press this button, the temperature can be
- button
-
set up, continuously press this button
and hold for two seconds, the relative
contents can quickly change, until unhold
this button and send the order that the ℃
(oF) signal will be displayed all the time.
The temperature adjustment is unav-
ailable under the Auto mode, but the order
can be sent by if pressing this button.
saver" mode.Repress this button ,the
unit will exit "energy saver" mode.
ENERGY
SAVER
9

Note:
This wireless remote control is universal, and it could be used for many units, some
buttons of this control which are not available to this unit will not be described below.
Name and function of wireless remote control
●When it is pressed,the louvers start to
rotate automatically and stop when
SWING BUTTON
TIMER OFF BUTTON
●At unit on, press Timer Off button to enter
into Timer Off setting.The method of
setting is the same as for TIMER ON.
TIMER OFF
●
Remote control
repressed.
TIMER ON TIMER ON BUTTON
At unit off, press Timer On button,
"HOUR ON" will blink and display,signal
will be concealed, in the timer on
setting.During 5 seconds blinking,the value
can be adjusted by pressing + or - button,
every press of this button, 0.5hour will
be increased or decreased, but contin-
uously press the + or - button, 2 seconds
later,the value will be changed quickly,
0.5hour will be increased in every 0.25
second automatically by the remote controller.
During blinking, press the Timer On button
to confirm the time.After Timer On set up,
when repressing the Timer On button, the
Timer On setting will be canceled. After
powered on, no Timer is defaulted, signal
"HOUR ON (OFF)" will not display,and only
the clock is displayed.After the timer
reached, the relative contents with Timer
will conceal.Before setting the Tmer,
please adsult the clock to the current
actual time.
10

Guide for operation- general operation
or timer off.
When AUTO RUN mode is selected, the setting temperature will not be displayed on the
LCD, the unit will be in accordance with the room temp. automatically to select the suitable
running method and to make ambient comfortable.
About lock
Press +and - buttons simultaneously to lock or unlock the keyboard. If the remote controller
is locked, the icon
★
★
About AUTO RUN
Guide for operation- Optional operation
Introduction for special function
1.Afterpoweredon,pressON/OFFbutton,theunitwillstarttorun.(Note:When
it is powered off, the guide louver of main unit will close automatically.)
2. Press MODE button, select desired running mode, or press COOL or HEAT
mode to enter into the corresponding operation directly.
3. Pressing + or - button, to set the desired temperature (It is unnecessary
to set the temp. at AUTO mode.)
4. Pressing FAN button, set fan speed, can select AUTO FAN, LOW, MID
and HIGH.
5. Pressing button, to select the swing.
1. Press SLEEP button, to set sleep.
2. Press TIMER ON and TIMER OFF button, can set the scheduled timer on
3. Press LIGHT button, to control the on and off of the displaying part of the
unit (This function may be not available for some units).
4. Press ENERGY SAVER button, can realize the ON and OFF of
ENERGY SAVER function.
will be displayed on it, in which case, press any button, the mark will
flicker for three times. If the keyboard is unlocked, the mark will disappear.
11

1. Press swing up and down button continuously more than 2s,the main unit will swing back
and forth from up to down, and then loosen the button, the unit will stop swinging and present
position of guide louver will be kept immediately.
2. Under swing up and down mode, when the status is switched from off to , if press this
button again 2s later, status will switch to off status directly; if press this button again
within 2s,the change of swing status will also depend on the circulation sequence statedabove.
About switch between Fahrenheit and Centigrade
Under status of unit off, press MODE and - buttons simultaneously to switch℃ and ℉.
It indicates: after starting this function by remote controller and the unit has been under
defrost status, If you turn off the unit by remote controller, the unit will not stop defrosting until
it is finished; if changing the setting mode by remote controller, the function ,which is set last
time, won't be carried out until defrosting is finished.
Operation of this function on or off: If remote controller is under off status, press mode button
rednusitinuehtfI.noitcnufwensihtlecnacroretneotredroniylsuoenatlumisnottubwolbdna
defrost mode, dual eight position on remote controller will display H1.If switch to heat mode,
the position will display H1, which flickers for 5s, in which case, press MODE/- button, H1 will
disappear and setting temp. be displayed.
After remote controller is powered on, the new defrost function will be defaulted to beclosed.
★
★
★
About swing up and down
About new function of defrosting
1.
4.
2.
3.
★
●
●
●
●
●

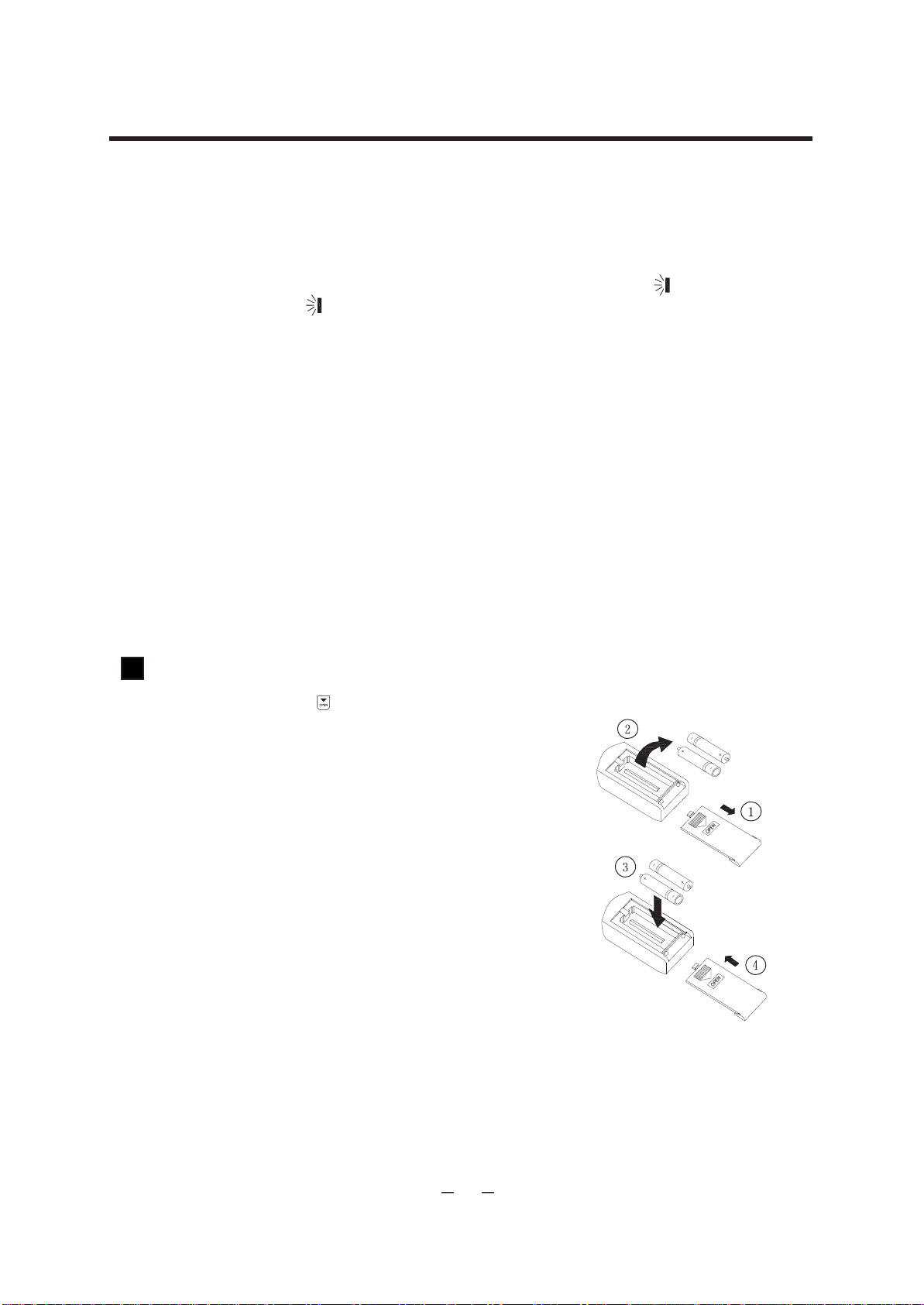

Slightly press the placewith, along the arrowhead direction topushthe back cover of wireless
remotecontrol. (As show in figure)
Takeout the old batteries. (As show in figure)
Insert two new AAA1.5V dry batteries, and pay attentiontothe polarity.
(As show in figure)
Attachthe backcover of wireless remotecontrol.(Asshow in figure)
When changing the batteries, do not use the old or different batteries,
If the wireless remotecontrol willnot be used foralongtime, please
otherwise, it can causethe malfunction of the wireless remotecontrol.
takethem out, and don't let the leakage liquid damagethe wireless
remotecontrol.
The operation should be in itsreceiving range.
It should be placed 1m away from the TV set or stereosoundsets.
If the wireless remote control can not operate normally, please take them out,
after 30s later and reinsert, if they cannot normally run, please changethem.Sketch map for
changing batteries
NOTE:
Changing batteries and notices
12

If wireless remote controller is lost, open the surface panel and operate manually.
Note:
ＣＬＯＳＥ ＶＥＮＴ ＯＰＥＮ
ＣＬＯＳＥ ＶＥＮＴ ＯＰＥＮ
-"OPEN" position,the ventilation door
opens to allow air,smoke or odors to
be expelled from the room.
-"CLOSE" position,the ventilation door
is closed and the air will be circulated
inside the room and conditioned.
VENTILATION LEVER
Ventilation Lever
When the slider at the: When the slider at the:
Remote control panel
1POWER BUTTON
Operationstartswhenpressingthisbutton,andstops
when pressing this button again.
2
FAN SPEED BUTTON
Select the fan speed HIGH, MID, LOW and AUTO in sequence.
3
Press the keypad also to increase the selected time
in 1 hour increments,and Press the keypad to
decrease the selected time in 1 hour decrements,The
time seting rangeis from 0~24 hours.
4
TEMP/TIMER BUTTON
Press the keypad to increase the set (operating)
temperature of the unit.and Press the keypad to
decreasetheset(operating)temperatureoftheunit.
The temperature seting range is from 16~30℃
MODE BUTTON
Select the operation mode, AUTO, HEAT, COOL, FAN,
DRY (for reverse cycle model) or AUTO,COOL,FAN, DRY
(for cooling only model).
5SIGNAL RECEIVER
6
SWINGBUTTON
Activatetheautomaticairswingfunction.
7FILTER BUTTON
This feature is a reminder to clean the Air Filter (See
Care and Cleaning) for more efficient operation and
cooling. The LED (light) will illuminate after 250 hours
"Check Filter"button and the light will go off. Before the
of operation. To reset after cleaning the filter, press the
13
after 3 seconds, the accumulated time of. Operation will be
LED(light) illuminate, press the "Check filter" button until
canceled.

Operation Tips

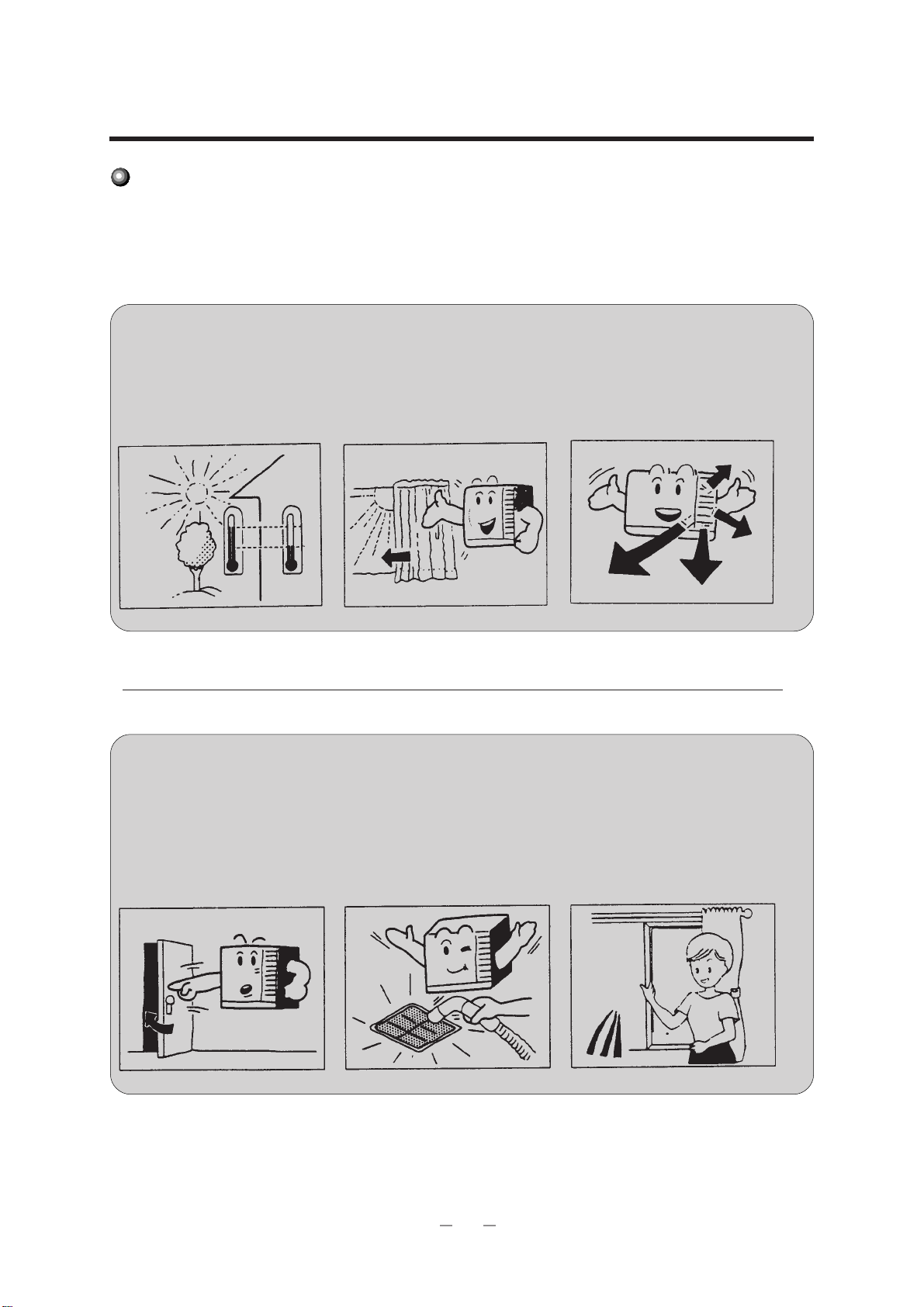

Operation for comfort and economy
Do not overcool the room
temperature. This is not good
for health and wastes electricity.
Keep blind or curtains closed.
Do not let sunshine enter the
room directly when the air con-
dition is in operation.
Keep the room temp. uniform.
Adjust the vertical and horizon-
tal airflow direction to ensure a
uniform temperature in the room.
Air can’t be discharged to the di-
rection of air-in.
Make sure that the doors and win-
dows are tightly closed.Avoid open-
ing doors and windows as much as
possible to keep air conditioning in the
room.
Clean the air filter regularly.
Blockages in the air filter re-
duce dehumidifying effects.
Clean the air filter at least once
every two weeks.
Ventilate the room occasionally.
Since windows are kept closed, it
is a good idea to open them and
ventilate the room now and then.
When starting the unit, curtains or
windows should be closed to pre-
vent the heat/cool leakage.
14

15
Caution
Do not use the air conditioner
for other purposes except for
cooling the room.
Do not use the air conditioner
for other purposes such as
drying clothes, preserving
foods, or cultivating
vegetables.
Do not block the air intake and
outlet vents.
This causes lowered perfor-
mance and irregular operation.
Do not insert sticks or other
objects into these vents as it is
dangerous to touch the electric
components and the fan.
Always wait at least 3 minutes before switching the
air conditioner on again after you have switched it
off during cooling or heating.
Always wait
at least 3 minutes
Do not pull out the power cord.
Damage to the cord may result
in serious electric shocks.
s
plastic parts will melt if exposed to
excessive heat.
Avoid exposing the body directly to
a continuous unidirectional air flow
for long periods.
This is not recommended for health
reason.
Select the most appropriate
temperature.
Pay attention to adjust the tempera-
ture to suit the conditions.
Rooms occupied by infants,the
elderly, or the sick should be kept at
an appropriate temperature.
Do not use heating apparatuses in
the vicinity.The air conditioner
Operations for safety and health
1) The plug must be accessible after the appliance is positioned.
2) Do not use this appliance in the laundry.
3) If the power cord is damaged, it must be replaced by the manufacture or its service agent in void of hazard.

16
Care and maintenance
Always turn off the air conditioner and main power supply before cleaning to ensure safety.
Cleaning unit
1. Cut power off before cleaning.
3. Don’t use gas, benzene, solvent,wash, chemical
solvent, etc. for cleaning.
4. Do not splash water directly into indoor
* Check earth wire
Vacuum cleaner
Plug out only after
air conditioner
stops at all.
Dry the cloth by
hands before
cleaning.
unit, in which
there are micro-
computer and
circuit plate,
they must not be
drenched with
water.
Accident could
happen.
Is it broken
or loose?
Air lock could result
in bad efficiency.
* Check if air inlet and outlet of outdoor unit
are blocked or not.
Let the filter dry thoroughly before reinstalling it.
If necessary, please ask the professional personnel to
clean it.
2. Vacuum the filter on the dusty side to remove light dust.
3. Wash the filter, cleaner side up under gently flowing water
to wash out accumulated dust and lint.
4. If the filter is very dirty, use a mild household detergent in
the wash water.
2. Use soft cloth when
cleaning cabinet.
If the cabinet is very
dirty, dip cloth into warm
water below 40
Air filter
The air filter behind the intake grille should be washed at least
once every two weeks or as often as it needs cleaning.
How to clean the air filter:
1. To remove the air intake grille, grasp the tab on the filter and
pull to take out.
dry
the cloth and then rub off
the dirt.

Trouble shooting guide
Fault phenomenon Trouble-shooting
Air conditioner dose not
operate at all.
* Is there a power failure?
* Is the plug out?
* Is power fuse or switch off ?
* Whether the voltage is too high or too low?
* Is air inlet or outlet locking?
* Is there any other heat/cool source in room?
* Are air filters dirty very much?
* Is indoor fan speed set at LOW?
* Maybe the room is too hot/cool when the unit is
started.
* At COOL mode operation, sometimes there is foggy
air flowing out of indoor unit, this is because the room
humid air has been cooling rapidly.
* The unit is normal while the indoor outlet is sending
out some odor, because the inlet air may be mixed
with the smell of furniture and smoke.
* For a noise that sounds like water flowing:
This is the sound of freon flowing inside the air con-
ditioner unit.
* For a noise that sounds like a shower:
This is the sound of the dehumidifying water being
processed inside the air conditioner unit.
* Condensation occurs when the airflow from the air
conditioner cools the warm room air.
* This is to protect the mechanism.
* Wait about three minutes and operation will begin.
Cool or heat efficiency is
not good.
Foggy air
flows out.
The air conditioner opera-
tion is noisy.
It seems that condensation is leaking from air conditioner.
Air conditioner dose not operate for about 3 minutes when
restart.
Please check the following items before asking for repair,it saves your time and
money.
17
