Safety Information
Safety Precautions . . . . . . . . . . . . . . . .3
How to Connect Electricity . . . . . . . .3
Use of Extension Cords . . . . . . . . . . .4
Use of Adapter Plugs . . . . . . . . . . . . .4
Operating Instructions
About the Controls . . . . . . . . . . . . .5, 6
Care and Cleaning
Grille and Case . . . . . . . . . . . . . . . . . . .7
Outdoor Coils . . . . . . . . . . . . . . . . . . .7
Air Filter . . . . . . . . . . . . . . . . . . . . . . . .7
Installation Instructions
Window Installation–5000 BTU
Model (HSV05) . . . . . . . . . . . .8, 9–12
Window Installation–7000, 8000,
and 10,000 BTU Models (HSV07,
HSV08, and HSV10) . . . . . .8, 13–17
Window Installation–12,000, 14,000,
18,000 and 24,000 BTU Models
(HSV12, HSV14, HSV18, and
HSV24) . . . . . . . . . . . . . . . . . .8, 18–23
Through the Wall
Installation–Optional
All Models . . . . . . . . . . . . . . . . . . . . . .24
Troubleshooting Tips
Before You
Call For Service . . . . . . . . . . . . . . . . .25
Normal Operating Sounds . . . . . . .25
Customer Service
Product Registration . . . . . . .2, 29, 30
Warranty . . . . . . . . . . . . . . . . . . . . . . .31
Service Telephone
Numbers . . . . . . . . . . . .2, Back Cover
www.geappliances.com
E DB68-00954A(2)

Customer Service Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions
FOR YOUR RECORDS
Write the model and serial numbers here:
#
#
You can find them on a label on the side of the air conditioner.
Staple sales slip or cancelled check here.
Proof of the original purchase date is needed to obtain service under the warranty.
Inside you will find many helpful hints on how to use and maintain your air conditioner properly.
Just a little preventive care on your part can save you a great deal of time and money over the life
of your air conditioner.
READ THIS MANUAL
IF YOU NEED SERVICE
You’ll find many answers to common problems in the Before You Call For Service section. If you
review our chart of Troubleshooting Tips first, you may not need to call for service at all.
If you do need service, you can relax knowing help is only a phone call away. A list of toll-free
customer service numbers is included in the back section. Or, you can always call the GE Answer
Center® at 800.626.2000, 24 hours a day, 7 days a week.
2
IMPORTANT!
Fill out the Consumer Product Registration Card.
Two easy ways to register your appliance!
■Through the internet at www.geappliances.com
■Complete and mail the enclosed Product Registration Card
GE & You, A Service Partnership.

IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
WARNING!
For your safety, the information in this manual must be followed to minimize the risk of fire, electric shock
or personal injury.
■ Use this appliance only for its intended
purpose as described in this Owner’s
Manual.
■This air conditioner must be properly
installed in accordance with the Installation
Instructions before it is used.
■Never unplug your air conditioner by pulling
on the power cord. Always grip plug firmly
and pull straight out from the receptacle.
■ Repair or replace immediately all electric
service cords that have become frayed or
otherwise damaged. Do not use a cord that
shows cracks or abrasion damage along its
length or at either the plug or connector end.
■ Turn the mode control to OFF and unplug
your air conditioner before making any
repairs or cleaning.
NOTE: We strongly recommend that any
servicing be performed by a qualified
individual.
■ For your safety…do not store or use
combustible materials, gasoline or other
flammable vapors or liquids in the vicinity
of this or any other appliance.
SAFETY PRECAUTIONS
3
Customer ServiceTroubleshooting Tips
Operating Instructions
Safety Instructions Installation Instructions
Do not, under any circumstances, cut or remove
the third (ground) prong from the power cord. For
personal safety, this appliance must be properly
grounded.
The power cord of this appliance is equipped
with a 3-prong (grounding) plug which mates
with a standard 3-prong (grounding) wall
outlet to minimize the possibility of electric
shock hazard from this appliance.
Have the wall outlet and circuit checked by a
qualified electrician to make sure the outlet is
properly grounded.
Where a 2-prong wall outlet is encountered,
it is your personal responsibility and obligation
to have it replaced with a properly grounded
3-prong wall outlet.
The air conditioner should always be
plugged into its own individual electrical
outlet which has a voltage rating that matches
the rating plate.
This provides the best performance and also
prevents overloading house wiring circuits
which could cause a fire hazard from
overheated wires.
See the Installation Instructions,
Electrical
Requirements
section for specific electrical
connection requirements.
HOW TO CONNECT ELECTRICITY

Customer Service Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions
4
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
WARNING!
Because of potential safety hazards under certain
conditions, we strongly recommend against the
use of an extension cord.
However, if you must use an extension cord,
it is absolutely necessary that it be a UL-listed,
14 gauge, 3-wire grounding type appliance
extension cord having a grounding type plug
and outlet and that the electrical rating of the
cord be 15 amperes (minimum) and 125 volts.
CAUTION:
DO NOT use an extension cord with any of
the 230/208 volt models.
USE OF EXTENSION CORDS – 115-Volt models only
Because of potential safety hazards under certain
conditions, we strongly recommend against the use
of an adapter plug.
However, if you must use an adapter, where
local codes permit, a
temporary connection may
be made to a properly grounded 2-prong wall
outlet by use of a UL-listed adapter available at
most local hardware stores.
The larger slot in the adapter must be aligned
with the larger slot in the wall outlet to provide
proper polarity in the connection of the power
cord.
When disconnecting the power cord from the
adapter, always hold the adapter in place with
one hand while pulling the power cord plug
with the other hand. If this is not done, the
adapter ground terminal is very likely to break
with repeated use.
If the adapter ground terminal breaks,
DO NOT
USE
the air conditioner until a proper ground
has been established.
Attaching the adapter ground terminal to a wall outlet
cover screw does not ground the appliance unless the
cover screw is metal, and not insulated, and the wall
outlet is grounded through the house wiring. You should
have the circuit checked by a qualified electrician to
make sure the outlet is properly grounded.
USE OF ADAPTER PLUGS – 115-Volt models only
Read and follow this Safety Information carefully.
SAVE THESE INSTRUCTIONS

Customer ServiceTroubleshooting Tips
Operating InstructionsSafety Instructions Installation Instructions

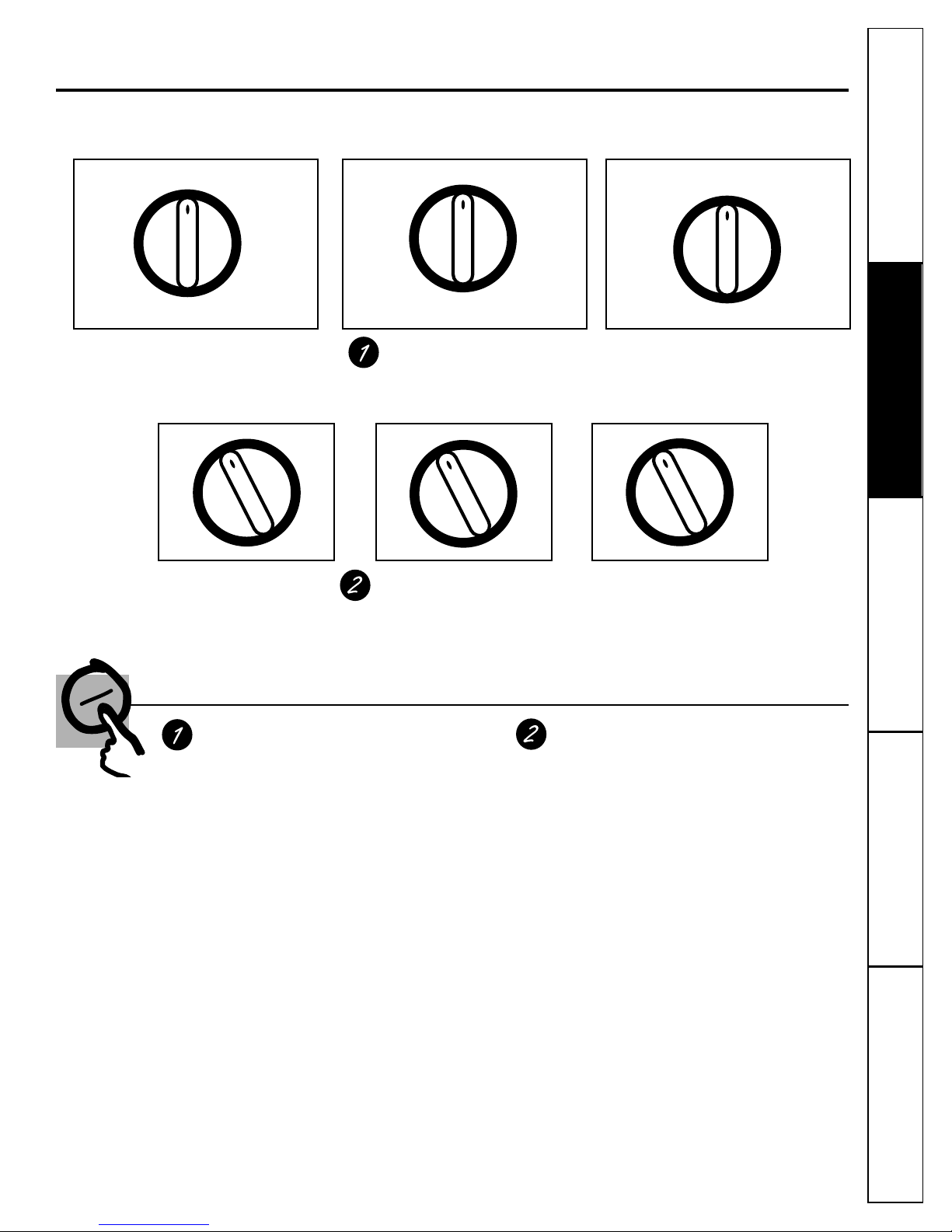

About the controls on the air conditioner.
Features and appearance will vary.
Controls
Mode Controls
HIGH COOL, MED COOL and LOW COOL provide
cooling with different fan speeds.
LOW FAN or HIGH FAN provides air circulation
and filtering without cooling.
NOTE: If you move the switch from a cool setting to OFF or to
a fan setting, wait at least 3 minutes before switching back to
a cool setting.
Cooling Descriptions
For Normal Cooling —Select HIGH COOL or MED
COOL with the temp control at midpoint.
For Maximum Cooling —Select HIGH COOL with the
temp control at the highest number available
on your knob.
For Quieter & Nighttime Cooling —Select LOW COOL
with the temp control at midpoint.
Temp Controls
The temp control is used to maintain the
room temperature. The compressor will cycle
on and off to keep the room at the same level
of comfort. When you turn the knob to a
higher number the indoor air will become
cooler. Turn the knob to a lower number
and the indoor air will become warmer.
5
MODE CONTROLS
Your model will have one of the above type controls.
TEMP CONTROLS
Your model will have one of the above type controls.
OFF
LOW
FAN
LOW
COOL
HIGH
FAN
HIGH
COOL
MED
COOL
OFF
LOW
FAN
LOW
COOL
HI
FAN
HI
COOL
1
2
3
4
56
7
8
9
10
1
2
3
45
6
7
81
2
34
5
6
OFF
LOW
FAN
LOW
COOL
HI
FAN
HI
COOL
MED COOL

6
Customer Service Troubleshooting Tips Operating Instructions Safety InstructionsInstallation InstructionsCustomer Service Troubleshooting Tips Installation Instructions Safety Instructions
Operating Instructions
Customer Service Troubleshooting Tips Installation Instructions Safety Instructions
Operating Instructions
About the controls on the air conditioner.
Additional controls and important information.

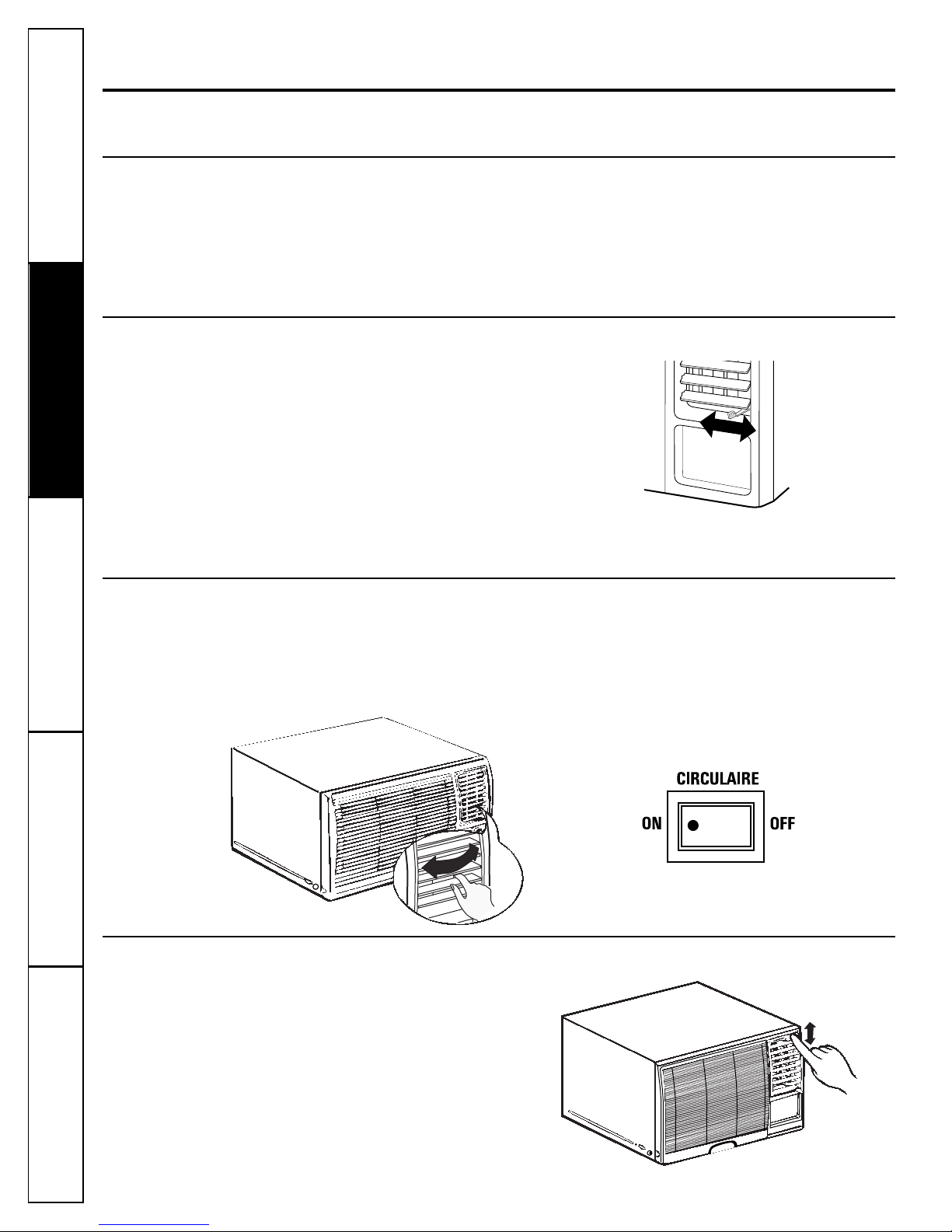

Vent Control
The vent control is located above the control knobs.
When set at CLOSE , only the air inside the room will
be circulated and conditioned. When set at OPEN ,
some inside air is exhausted outside.
To open the vent, push the lever to the right.
To close it, push it to the left.
Air Direction – Side-to-Side
On some models, the side-to-side air direction is
adjusted by grasping and moving the inner vertical
louvers to the desired position.
CIRCULAIRE (on some models)
For fixed side-to-side air direction, set the
Circulaire switch to ON until the desired air
direction is obtained, then move it to OFF .
For continuous side-to-side air circulation, set the
Circulaire switch to ON and leave it there.
Energy Saver (on some models)
The energy saver switch controls the fan.
ON —The fan and compressor cycle on and off
together. This results in wider variations of room
temperature and humidity. Normally used when
the room is unoccupied.
OFF — The fan runs all the time, while the
compressor cycles on and off.
This switch must be set at OFF in order to use the
fan settings (on the mode control).
Air Direction – Up and Down
Fingertip pressure on the horizontal louvers adjusts
the air direction up or down.

Air Filter
The air filter behind the front grille should be
checked and cleaned at least every 30 days or more
often if necessary.
To remove (on some models):
Clean the filter with warm, soapy water. Rinse and
let the filter dry before replacing it.
CAUTION: DO NOT operate the air conditioner without a
filter because dirt and lint will clog it and reduce performance.
To remove (on some models):
Open the inlet grille upward by pulling out the
bottom of the inlet grille.
Using the tab, pull up slightly on the filter to
release it and pull it down.
2
1
Outdoor Coils
The coils on the outdoor side of the air conditioner
should be checked regularly. If they are clogged
with dirt or soot they may be professionally steam
cleaned, a service available through your GE
service outlet.
Grille and Case
Turn the air conditioner off and remove the plug
from the wall outlet before cleaning.
To clean, use water and a mild detergent. Do not
use bleach or abrasives.
Customer ServiceTroubleshooting Tips
Operating InstructionsSafety Instructions Installation Instructions
Care and cleaning of the air conditioner.
7
Grab the tab on the filter
and pull it to the right.

8
Customer Service Troubleshooting Tips Operating Instructions Safety InstructionsInstallation InstructionsCustomer Service Troubleshooting Tips Installation Instructions Safety Instructions
Operating Instructions
Customer Service Troubleshooting Tips Installation Instructions Safety Instructions
Operating Instructions
Preparing to install the air conditioner–All models.
Read these instructions completely and carefully.
NOTE TO INSTALLER: Leave these instructions with
the air conditioner after installation is completed.
NOTE TO CONSUMER: Keep this Owner’s Manual
and Installation Instructions for future use.
IMPORTANT NOTES:
For personal safety, this air conditioner must be
properly grounded.
It is important to have the wall outlet and circuit
checked by a qualified electrician if there is any
doubt as to whether a proper ground exists.
Follow National Electric Codes (NEC) and/or local
codes and ordinances.
CAUTION:
Do not, under any circumstances, cut or
remove the third (ground) prong from the
power cord.
Do not change the plug on the power cord
of this air conditioner.
Aluminum house wiring may present
special problems—consult a qualified
electrician.
Before You Begin
Some models require 115/120-volt a.c.,
60 Hz grounded outlet protected with
a 15-amp time delay fuse or circuit breaker.
The 3-prong grounding plug minimizes the
possibility of electric shock hazard. If the wall outlet
you plan to use is only a 2-prong outlet, it is your
responsibility to have it replaced with a properly
grounded 3-prong wall outlet.
Some models require 230/208-volt a.c.,
protected with a time delay fuse or circuit
breaker. These models should be installed
on their own single branch circuit for best
performance and to prevent overloading
house or apartment wiring circuits, which
could cause a possible fire hazard from
overheating wires.
Electrical Requirements

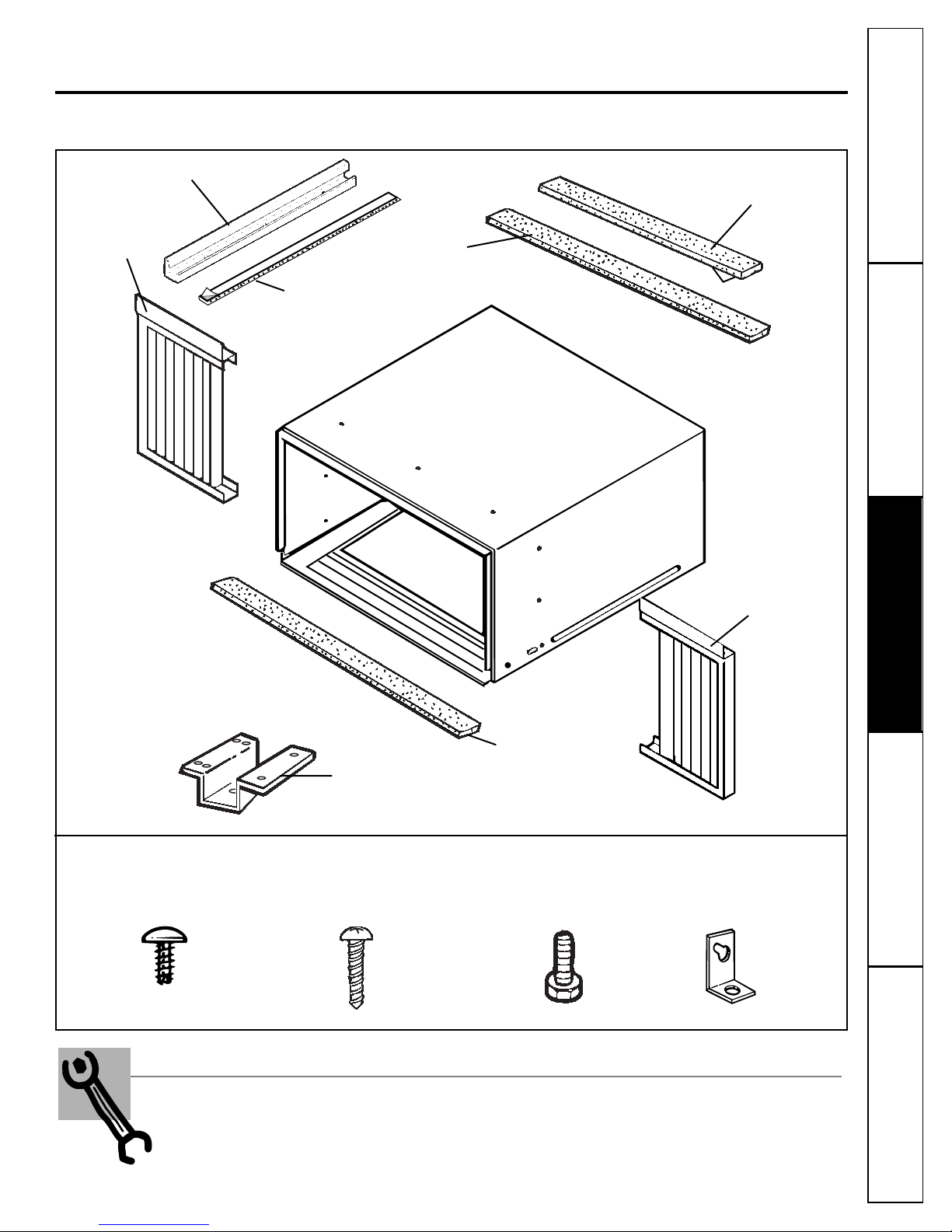

Parts Included
Type A (9) Security bracket (3)
Top mounting rail
Right
accordion
panel
Foam top
window gasket
Window
sash seal
Left
accordion
panel
Type B (8)
Customer ServiceTroubleshooting Tips
Operating InstructionsSafety Instructions Installation Instructions
9
Window Installation Instructions for 5000 BTU Units (model HSV05)
■ Phillips-head screwdriver
■ Adjustable wrench
■ Ruler or tape measure
■ Scissors or knife
■ Pencil
■ Level
Tools You Will Need
HSV05
air conditioner
Top mounting rail
seal strip

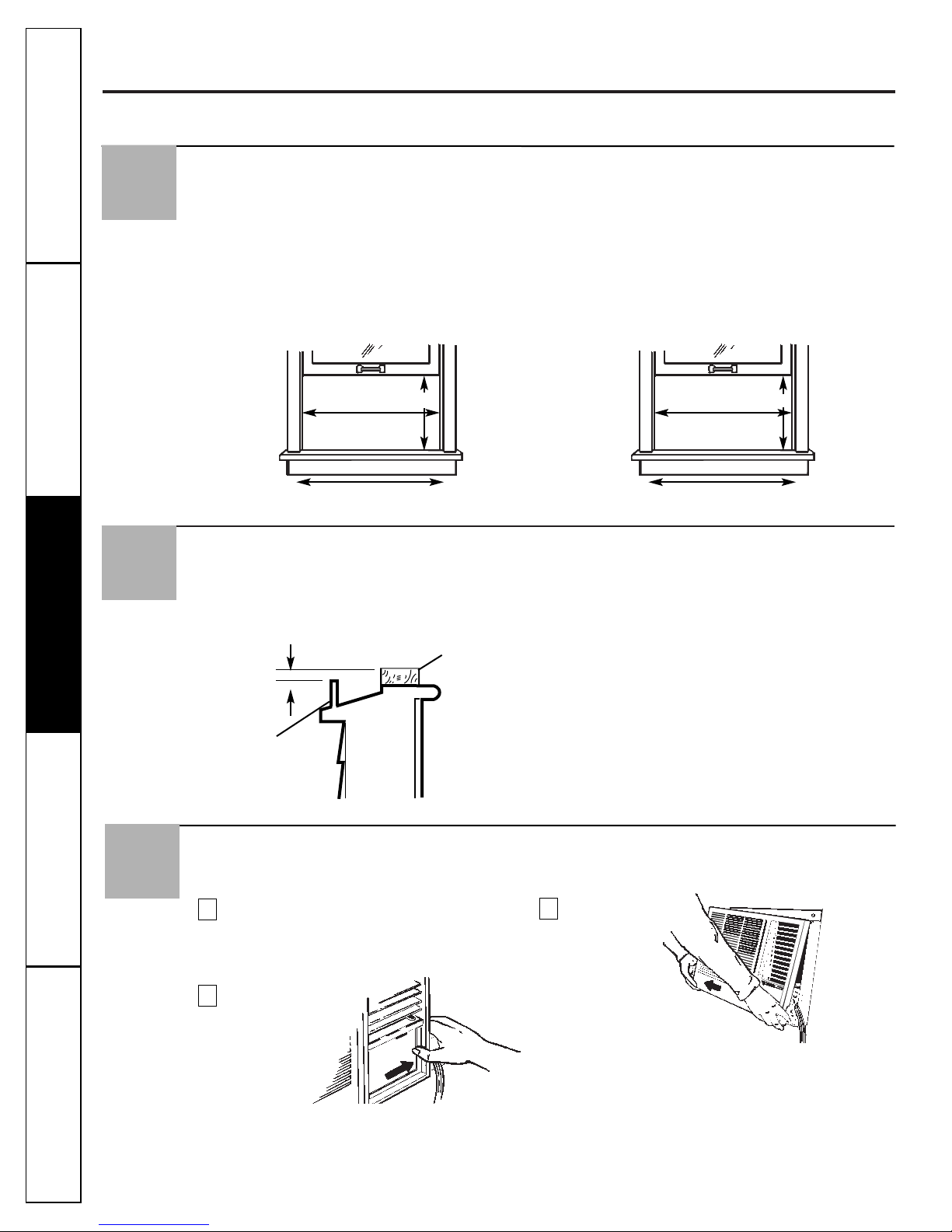

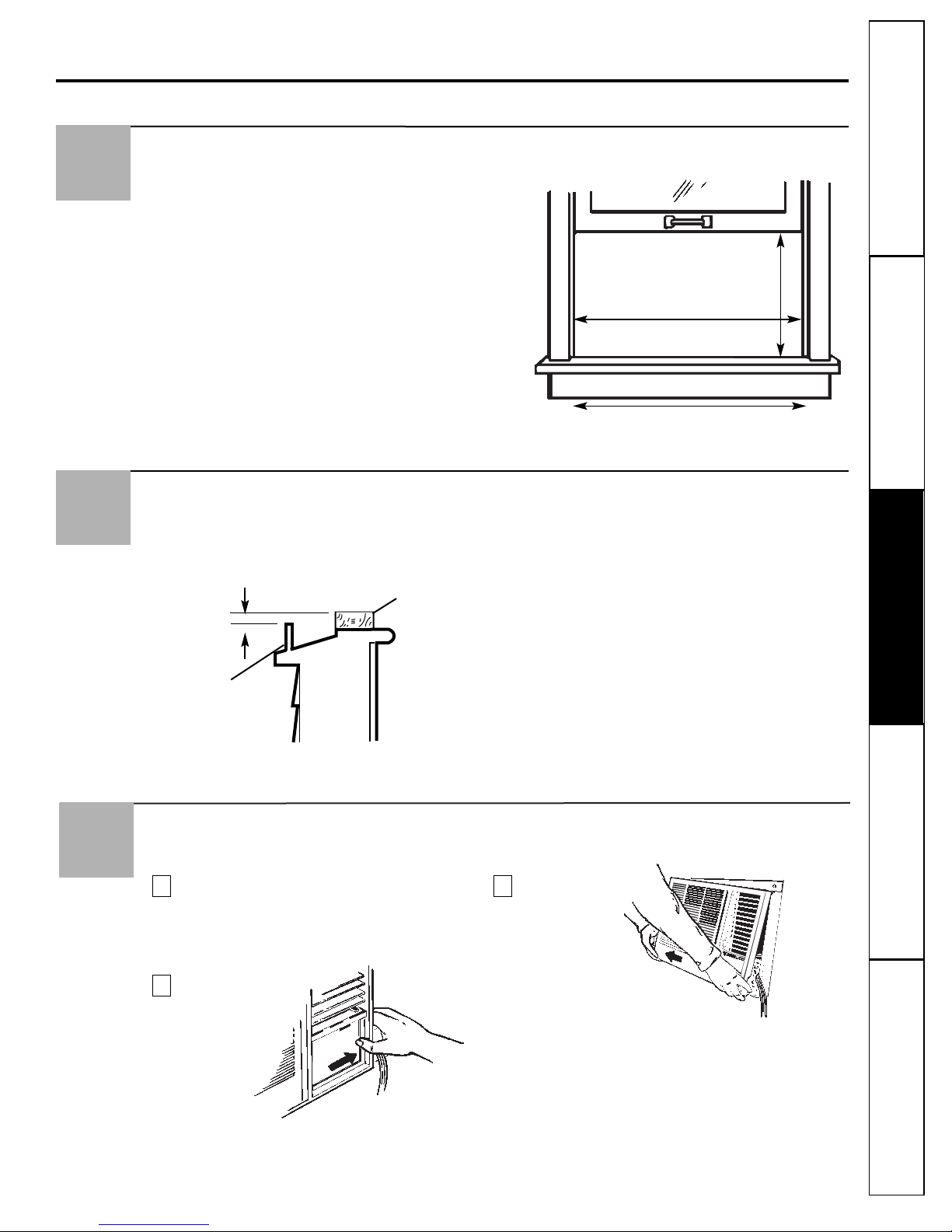

Storm Window Requirements
A storm window frame will not allow the air
conditioner to tilt towards the outside and will keep
it from draining properly. To adjust for this, attach a
piece of wood to the stool.
WOOD PIECES—
WIDTH: 2″
LENGTH: Long enough to fit inside the window
frame.
THICKNESS: To determine the thickness, place a
piece of wood on the stool to make it 1/2″higher
than the top of the storm window frame.
Attach securely with nails or screws provided by
the installer.
2
10
Customer Service Troubleshooting Tips Operating Instructions Safety InstructionsInstallation InstructionsCustomer Service Troubleshooting Tips Installation Instructions Safety Instructions
Operating Instructions
Customer Service Troubleshooting Tips Installation Instructions Safety Instructions
Operating Instructions
Window Installation Instructions for 5000 BTU Units (model HSV05)
Read completely, then follow step-by-step.

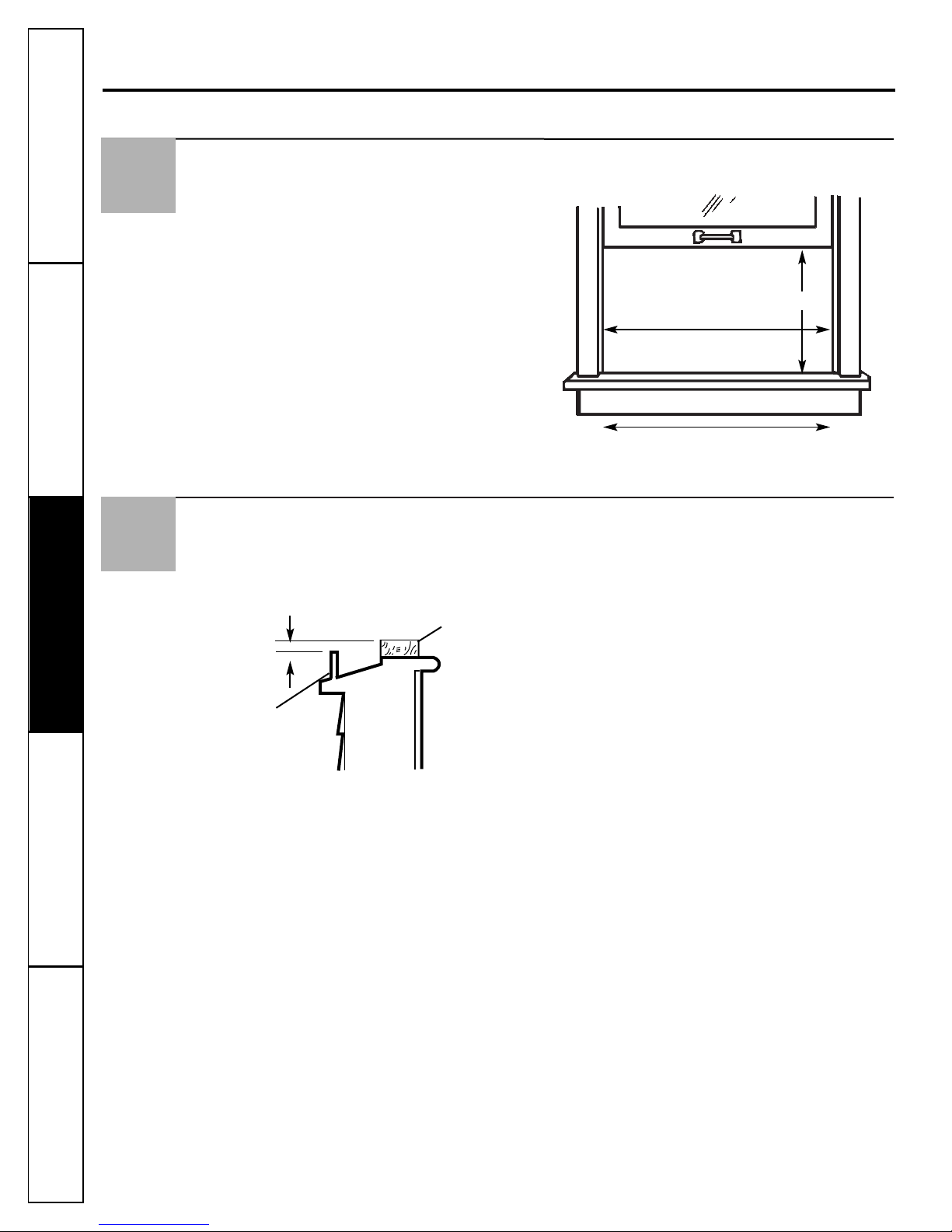

Window Requirements
■These instructions are for a standard double-
hung window. You will need to modify them for
other types of windows.
■The air conditioner can be installed without
the accordion panels if needed to fit in a narrow
window. See the window opening dimensions
below.
■All supporting parts must be secured to firm
wood, masonry or metal.
■The electrical outlet must be within reach of the
power cord.
1/2″higher
than frame
Storm window
frame
Wood
Stool
1
127⁄8″min.
22″to 36″
(With accordion panels)
1713⁄16″ min.
(Without accordion panels)

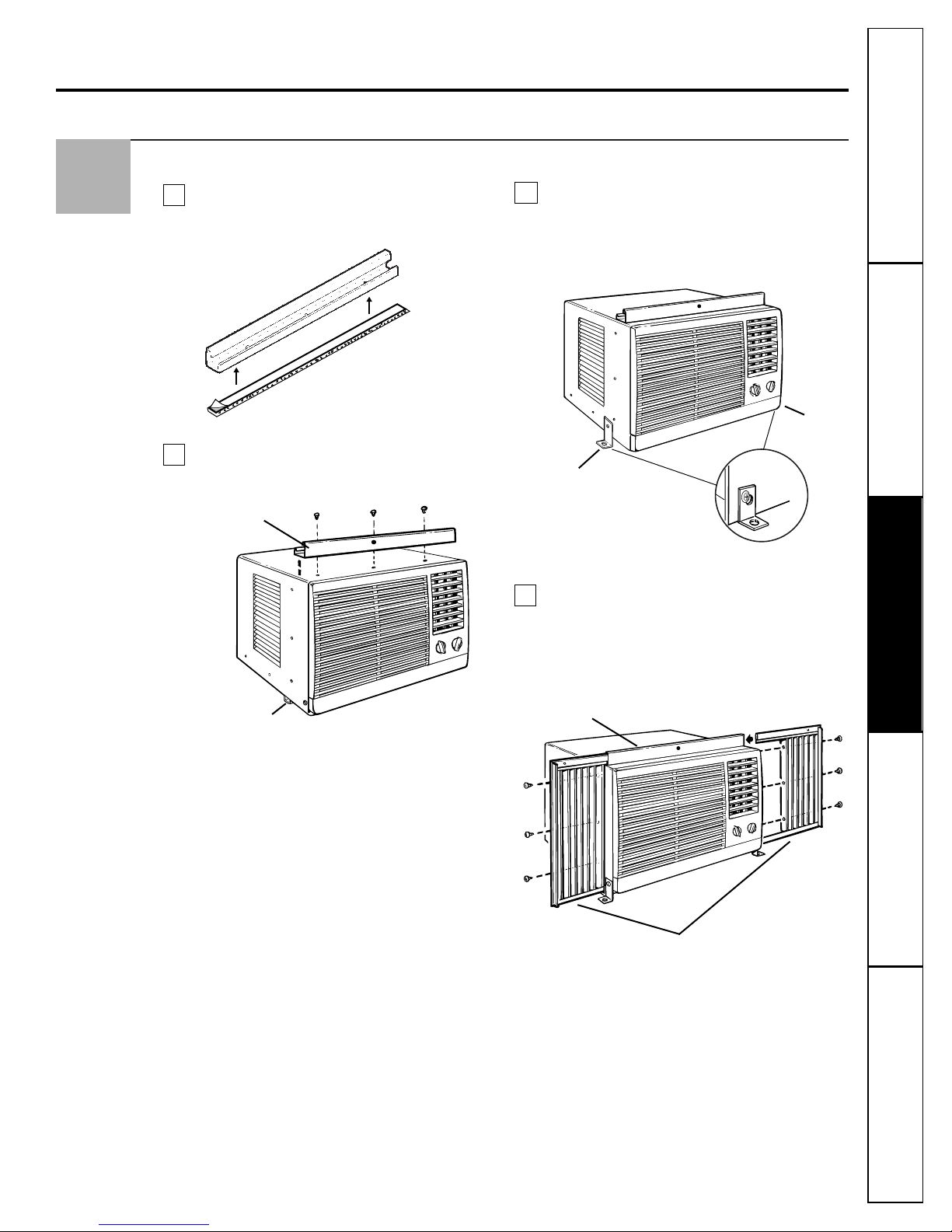

Prepare the Air Conditioner
Remove the backing from the top mounting
rail seal strip and attach it to the bottom of the
top mounting rail.
Install the top mounting rail with 3 type A
screws from the outside of the case.
Loosen the lower screw on each side of the case
and hook a security bracket on each side.
Tighten the screws to secure the brackets
in place.
Insert the frames of the accordion panels into
the top and bottom mounting rails. Attach the
accordion panels to the side of the case using 6
type A screws.
B
A
3
Customer ServiceTroubleshooting Tips
Operating InstructionsSafety Instructions Installation Instructions
11
D
Top mounting rail
Bottom mounting rail
C
Security bracket
Security bracket
Top mounting rail
Accordion panels

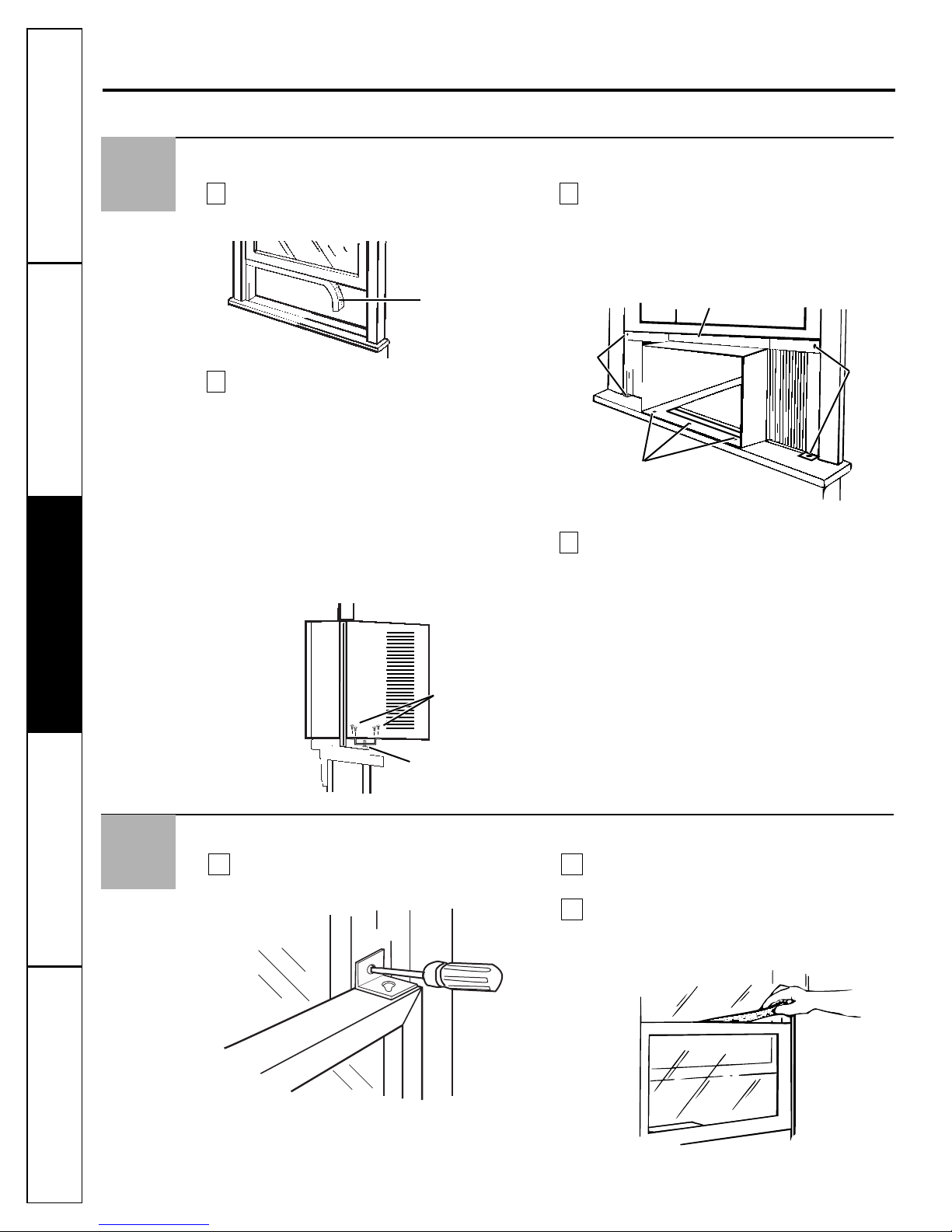

Install the Air Conditioner in the Window
Cut the window sash seal to the window
width and stick the adhesive side to the
bottom of the sash.
Place the air conditioner on the stool with
the bottom mounting rail against its back
edge. Center it and close the window
securely behind the top mounting rail.
It should be level or slightly tilted to the
outside. Use a level; about a 1/2 bubble will
be the correct case slant to the outside.
Extend the left and right accordion panels
to the vertical window sashes and attach
with 4 type B screws. Attach the top
mounting rail to the sash with a type
B screw.
Attach the brackets to the stool on both
sides using two type B screws.
C
B
A

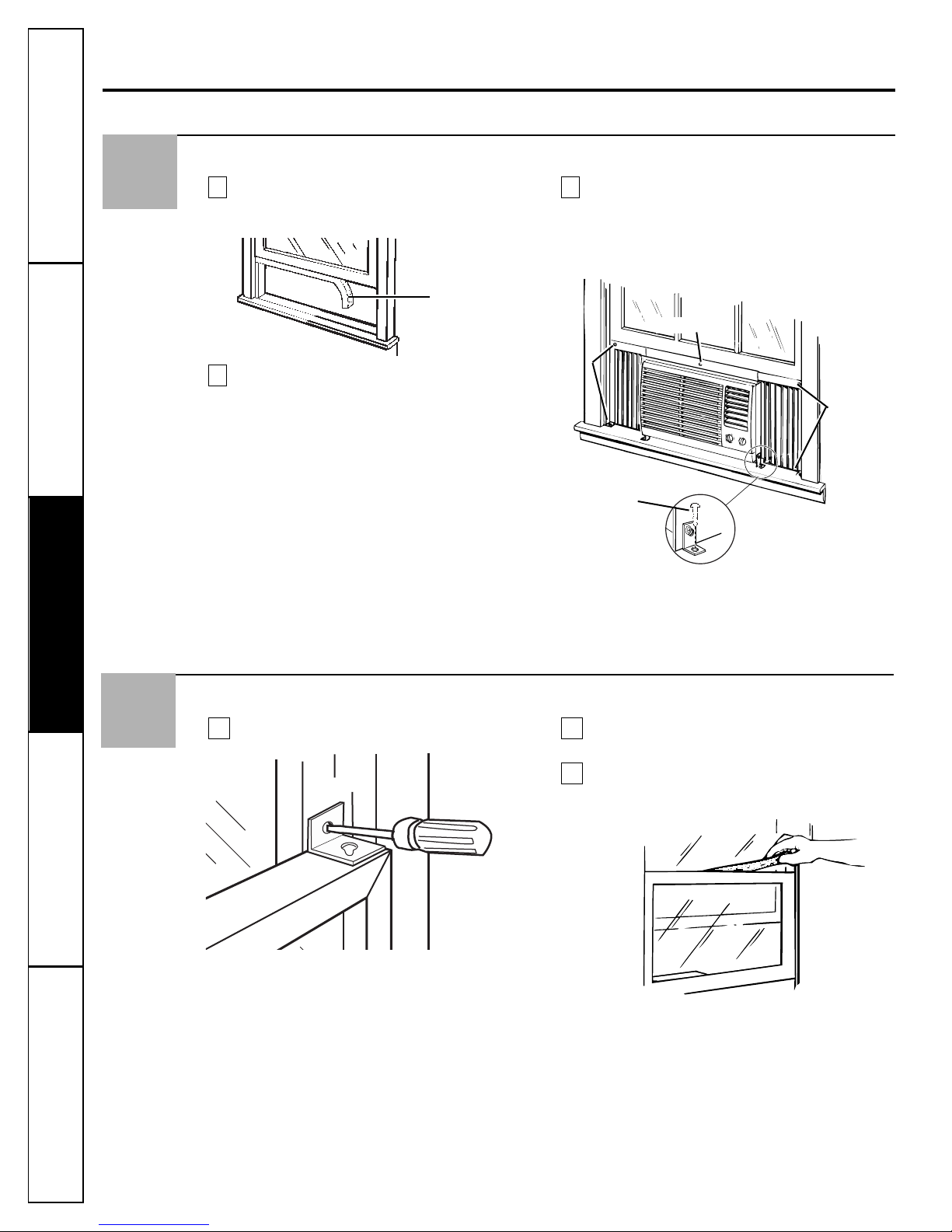

Install the Security Bracket and the Foam Top Window Gasket
Attach a security bracket with a type B screw. Cut the foam top window gasket to the
window width.
Stuff the foam between the glass and the
window to prevent air and insects from
getting into the room.
The installation is now complete.
C
BA
5
12
Customer Service Troubleshooting Tips Operating Instructions Safety InstructionsInstallation InstructionsCustomer Service Troubleshooting Tips Installation Instructions Safety Instructions
Operating Instructions
Customer Service Troubleshooting Tips Installation Instructions Safety Instructions
Operating Instructions
Window Installation Instructions for 5000 BTU Units (model HSV05)
4
Window sash seal
Type B
screws
Type B
screw
Type B screw
Type B
screws

Customer ServiceTroubleshooting Tips
Operating InstructionsSafety Instructions Installation Instructions
13
Read the section Preparing to Install the Air Conditioner before beginning.
Type A

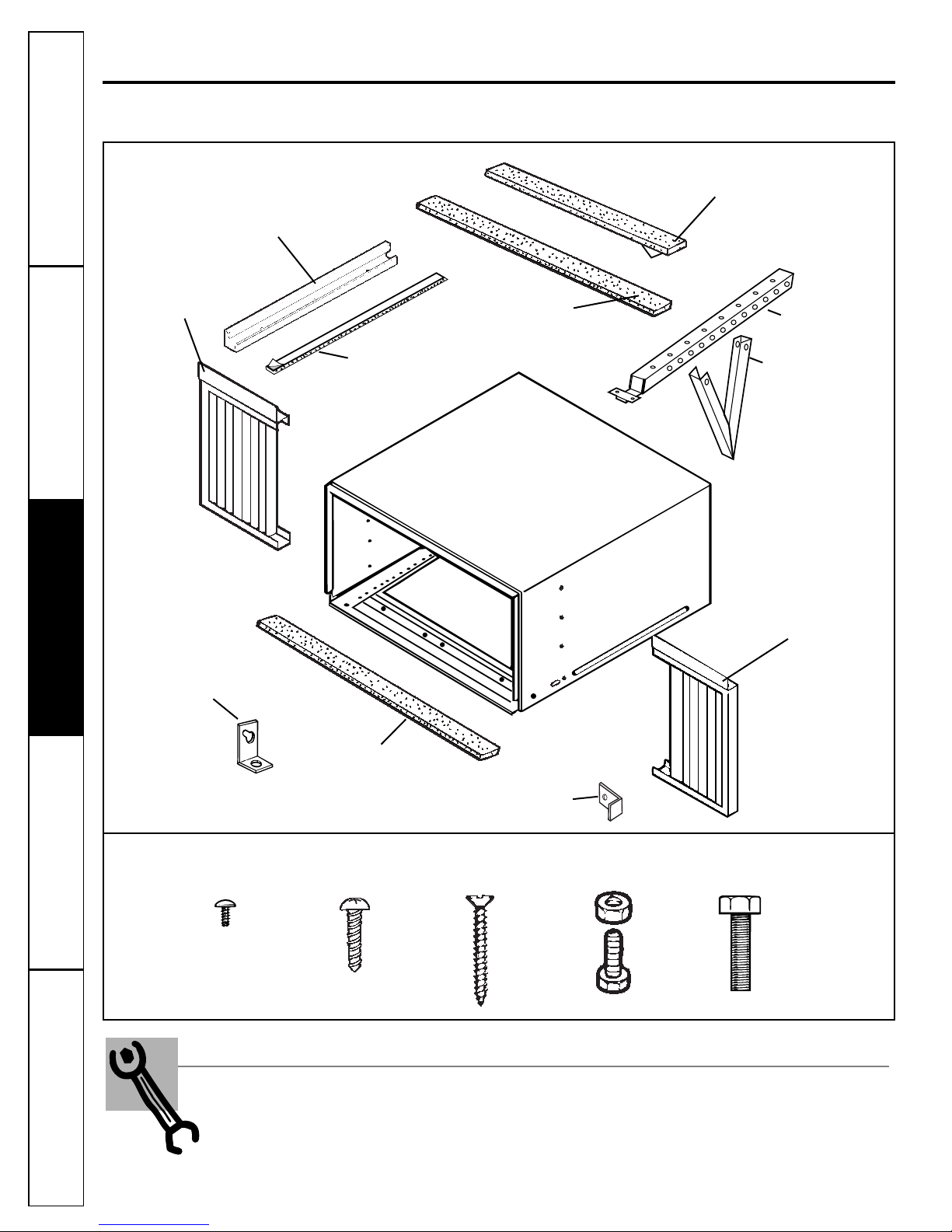

HSV07 and HSV08 (17)
HSV10 (19)
Sill support (2)
Top mounting rail
Right
accordion
panel
Foam top
window gasket
Window
sash seal
Left
accordion
panel
Type B (8) Type C
Bolt (2)
Window Installation Instructions for 7000, 8000, and 10,000 BTU Units
(models HSV07, HSV08, and HSV10)
■ Phillips-head screwdriver
■ Adjustable wrench
■ Ruler or tape measure
■ Scissors or knife
■ Pencil
■ Level
Tools You Will Need
Security bracket
Top mounting rail
seal strip
Bottom inner
case gasket

Window Installation Instructions for 7000, 8000, and 10,000 BTU Units
(models HSV07, HSV08, and HSV10)
Storm Window Requirements
A storm window frame will not allow the air
conditioner to tilt towards the outside and will keep
it from draining properly. To adjust for this, attach
a piece of wood to the stool.
WOOD PIECES—
WIDTH: 2″
LENGTH: Long enough to fit inside the window
frame.
THICKNESS: To determine the thickness, place a
piece of wood on the stool to make it 1/2″higher
than the top of the storm window frame.
Attach securely with nails or screws provided by
the installer.
2
Read completely, then follow step-by-step.
Window Requirements
■These instructions are for a standard double-
hung window. You will need to modify them for
other types of windows.
■The air conditioner can be installed without
the accordion panels if needed to fit in a
narrow window. See the window opening
dimensions below.
■All supporting parts must be secured to firm
wood, masonry or metal.
■The electrical outlet must be within reach of the
power cord.
1/2″higher
than frame
Storm window
frame
Wood
Stool
1

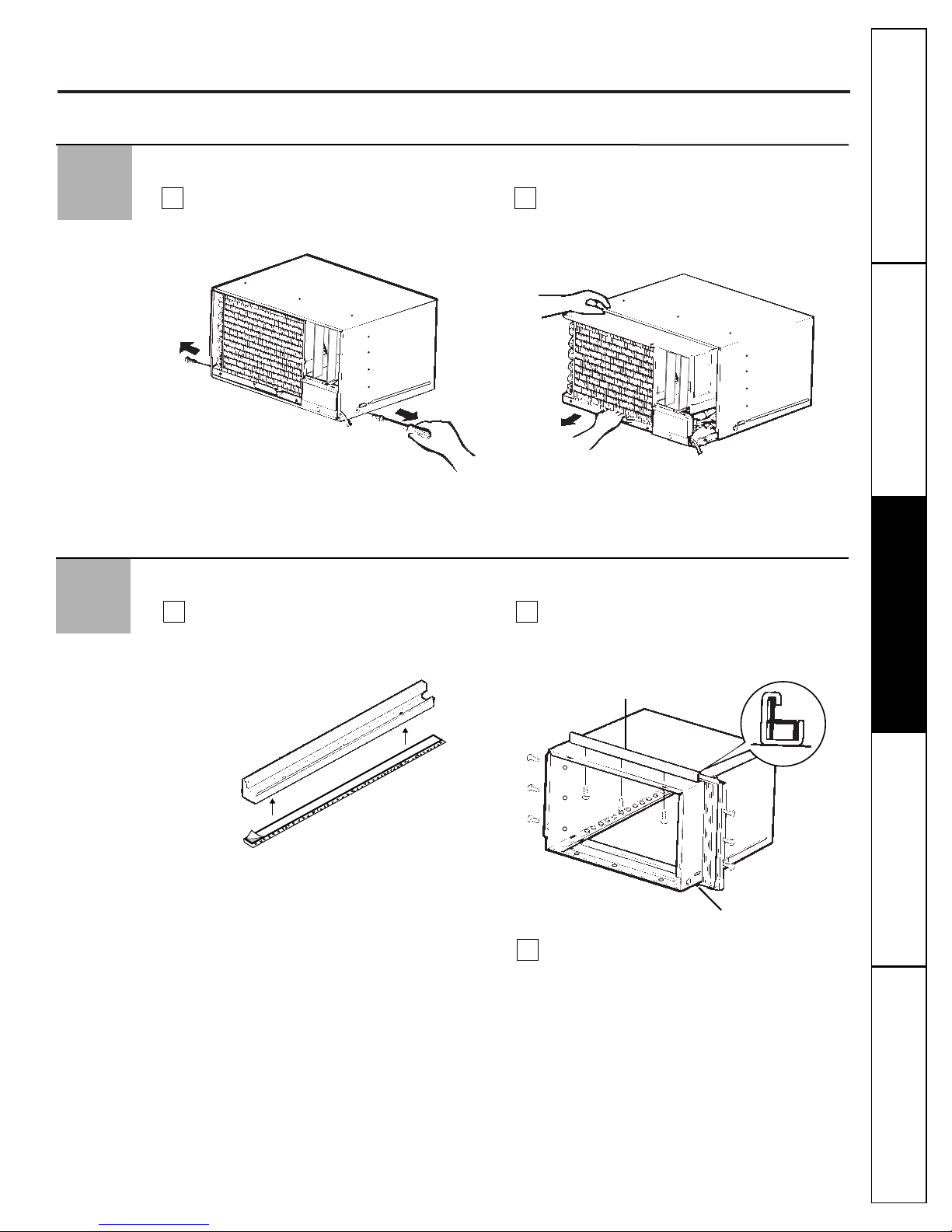

Remove the Front Grille, if attached
To remove the grille:
Remove shipping tape if present.
Lift the inlet grille (see the Care and Cleaning
section) and remove the screw behind it
(if present) that holds the grille in place.
A
Pull the grille with
your thumb while
pushing the case
with your fingers.
B
NOTE: Do not pull the bottom edge toward you more
than 3 inches or you may damage the tabs of the grille.
Customer Service Troubleshooting Tips Operating Instructions Safety InstructionsInstallation InstructionsCustomer Service Troubleshooting Tips Installation Instructions Safety InstructionsOperating InstructionsCustomer Service Troubleshooting Tips Installation Instructions Safety InstructionsOperating Instructions
143⁄4″min.
251⁄2″to 37″
(With accordion panels)
201⁄2″ min.
(Without accordion panels)
161⁄8″min.
275⁄8″to 41″
(With accordion panels)
235⁄8″ min.
(Without accordion panels)
HSV07
and
HSV08
HSV10
Push the grille
to the left and
raise it up.
C
14
3

Customer ServiceTroubleshooting TipsOperating InstructionsSafety Instructions Installation Instructions
Prepare the Case
Remove the backing from the top mounting
rail seal strip and attach it to the bottom of the
top mounting rail.
Install the top mounting rail with 3 type A
or 5 type A screws (as the installation requires)
from the inside of the case.
Insert the frames for the accordion panels into
the top and bottom mounting rails. Attach the
accordion panels to the side of the case using 6
type A screws.
BA

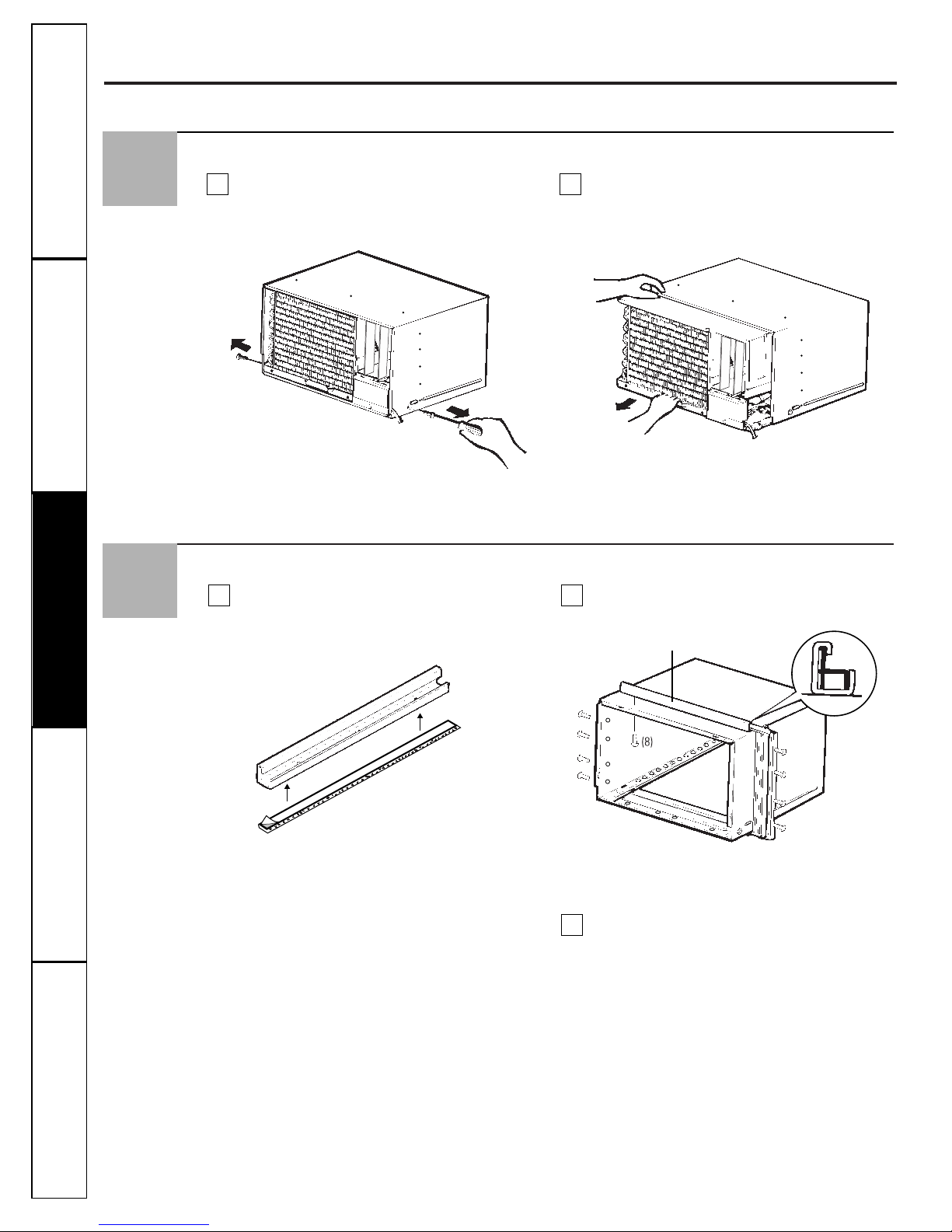

Remove the Air Conditioner From the Case
Remove the 2 screws on each side of the case.
Keep these for later use.
Slide the air conditioner from the case by
gripping the base pan handle and pulling
forward while bracing the case.
BA
5
4
Remove packing cardboard and tape if present.
C
Top mounting rail
Bottom mounting rail
15

Install the Case in the Window
Cut the window sash seal to the window width
and stick the adhesive side to the bottom of
the sash.
Thread two type C bolts into the support
brackets.
Slide the case into the window and lower the
window behind the top mounting rail.
Position the brackets on the case bottom so
they will be near the outermost point on the
window sill. Attach the support brackets to
each side of the case bottom using 4 type A
screws on each side. The case should be
slightly tilted to the outside. Use a level;
about a 1/2 bubble will be the correct
case slant to the outside.
Locate the 3 screw holes along the bottom front
edge of the case. Center the case, side to side,
in the window and mount it to the window sill
using 3 type B screws.
Extend the left and right accordion panels to
the vertical window sashes and attach with 4
type B screws.
D
C
B
A
Window Installation Instructions for 7000, 8000, and 10,000 BTU Units
(models HSV07, HSV08, and HSV10)
6
Window sash seal
Type B
screws Type B
screws
16
Customer Service Troubleshooting Tips Operating Instructions Safety InstructionsInstallation InstructionsCustomer Service Troubleshooting Tips Installation Instructions Safety InstructionsOperating InstructionsCustomer Service Troubleshooting Tips Installation Instructions Safety InstructionsOperating Instructions
Top mounting rail
Type B screws
Install the Security Bracket and the Foam Top Window Gasket
Attach the security bracket with a type B screw. Cut the foam top window gasket to the
window width.
Stuff the foam between the glass and the
window to prevent air and insects from
getting into the room.
C
BA
7
Type C bolts
Type A screws

Customer ServiceTroubleshooting TipsOperating InstructionsSafety Instructions Installation Instructions
17
Install the Air Conditioner in the Case
Slide the air conditioner into the case.
Reinstall the 2 screws removed earlier on each
side of the case.
Place the bottom inner case gasket between the
bottom of the air conditioner and the inside
bottom of the case. Fold up the ends on both
sides and push them in.
Attach the front grille to the case by inserting the
tabs on the grille into the slots on the front of the
case. Push the grille in until it snaps into place.
Secure the front grille to the case by replacing
the screw removed in Step 3.
The installation is now complete.
D
C
B
A
Guide the lever carefully
through the grille as you
push it in.
Bottom inner
case gasket
8

18
Customer Service Troubleshooting Tips Operating Instructions Safety InstructionsInstallation InstructionsCustomer Service Troubleshooting Tips Installation Instructions Safety InstructionsOperating InstructionsCustomer Service Troubleshooting Tips Installation Instructions Safety InstructionsOperating Instructions
Read the section Preparing to Install the Air Conditioner before beginning.
Parts Included
Type A (23)
Security bracket
Top mounting rail
Right
accordion
panel
Foam top
window gasket
Window
sash seal
Left
accordion
panel
Type B (6) Type C (4)
Bolt (4)
Nut (4)
Window Installation Instructions for 12,000, 14,000, 18,000,
and 24,000 BTU Units (models HSV12, HSV14, HSV18, and HSV24)
■ Phillips-head screwdriver
■ Adjustable wrench
■ Ruler or tape measure
■ Drill
■ Scissors or knife
■ Pencil
■ Level
Tools You Will Need
Type D Type E (2)
Accordion
panel clamp (2)
Bottom inner
case gasket
Support rail (2)
V-support (2)
Top mounting rail
seal strip

Customer Service
Troubleshooting Tips
Operating InstructionsSafety Instructions Installation Instructions
19
Storm Window Requirements
A storm window frame will not allow the air
conditioner to tilt towards the outside and will keep
it from draining properly. To adjust for this, attach
a piece of wood to the stool.
WOOD PIECES—
WIDTH: 2″
LENGTH: Long enough to fit inside the window
frame.
THICKNESS: To determine the thickness, place a
piece of wood on the stool to make it 1/2″higher
than the top of the storm window frame.
Attach securely with nails or screws provided by
the installer.
2
3
Read completely, then follow step-by-step.
Window Requirements
■These instructions are for a standard double-
hung window. You will need to modify them for
other types of windows.
■The air conditioner can be installed without
the accordion panels if needed to fit in a narrow
window. See the window opening dimensions
at right.
■All supporting parts must be secured to firm
wood, masonry or metal.
■The electrical outlet must be within reach of the
power cord.
1/2″higher
than frame
Storm window
frame
Wood
Stool
1
Remove the Front Grille, if attached
To remove the grille:
Remove shipping tape if present. Lift the inlet
grille (see the Care and Cleaning section) and
remove the screw behind it (if present) that
holds the grille in place.
A
Pull the grille
with your thumb
while pushing
the case with
your fingers.
B
NOTE: Do not pull the bottom edge toward you more
than 3 inches or you may damage the tabs of the grille.
173⁄8″min.
30″to 41″
(With accordion panels)
26″ min.
(Without accordion panels)
Push the grille
to the left and
raise it up.
C

Window Installation Instructions for 12,000, 14,000, 18,000,
and 24,000 BTU Units (models HSV12, HSV14, HSV18, and HSV24)
Prepare the Case
Remove the backing from the top mounting
rail seal strip and attach it to the bottom of the
top mounting rail.
Install the top mounting rail with 8 type A
screws from the inside of the case.
Insert the frames for the accordion panels into
the top and bottom mounting rails. Attach the
accordion panels to the side of the case using 8
type A screws.
A
Remove the Air Conditioner From the Case
Remove the 2 screws on each side of the case.
Keep these for later use.
Slide the air conditioner from the case by
gripping the base pan handle and pulling
forward while bracing the case.
BA
5
4
Remove packing cardboard and tape if present.
B
Top mounting rail
20
Customer Service Troubleshooting Tips Operating Instructions Safety InstructionsInstallation InstructionsCustomer Service Troubleshooting Tips Installation Instructions Safety InstructionsOperating InstructionsCustomer Service Troubleshooting Tips Installation Instructions Safety InstructionsOperating Instructions
C
