■ BXA-252739 ■ BXA-373539
BXA
OPERATOR’S MANUAL
8.917-989.0
To locate your local Hotsy Commercial Pressure Washer Dealer nearest you,
visit www.hotsy.com

3
CONTENTS
Model Number ______________________________
Serial Number ______________________________
Date of Purchase ___________________________
The model and serial numbers will be found on a decal attached
to the pressure washer.You should record both serial number and
date of purchase and keep in a safe place for future reference.
BXA • 8.917-989.0 • Rev. 12/13
Important Safety Information ................................................................4-6
Component Identification......................................................................... 7
Assembly Instructions.............................................................................. 8

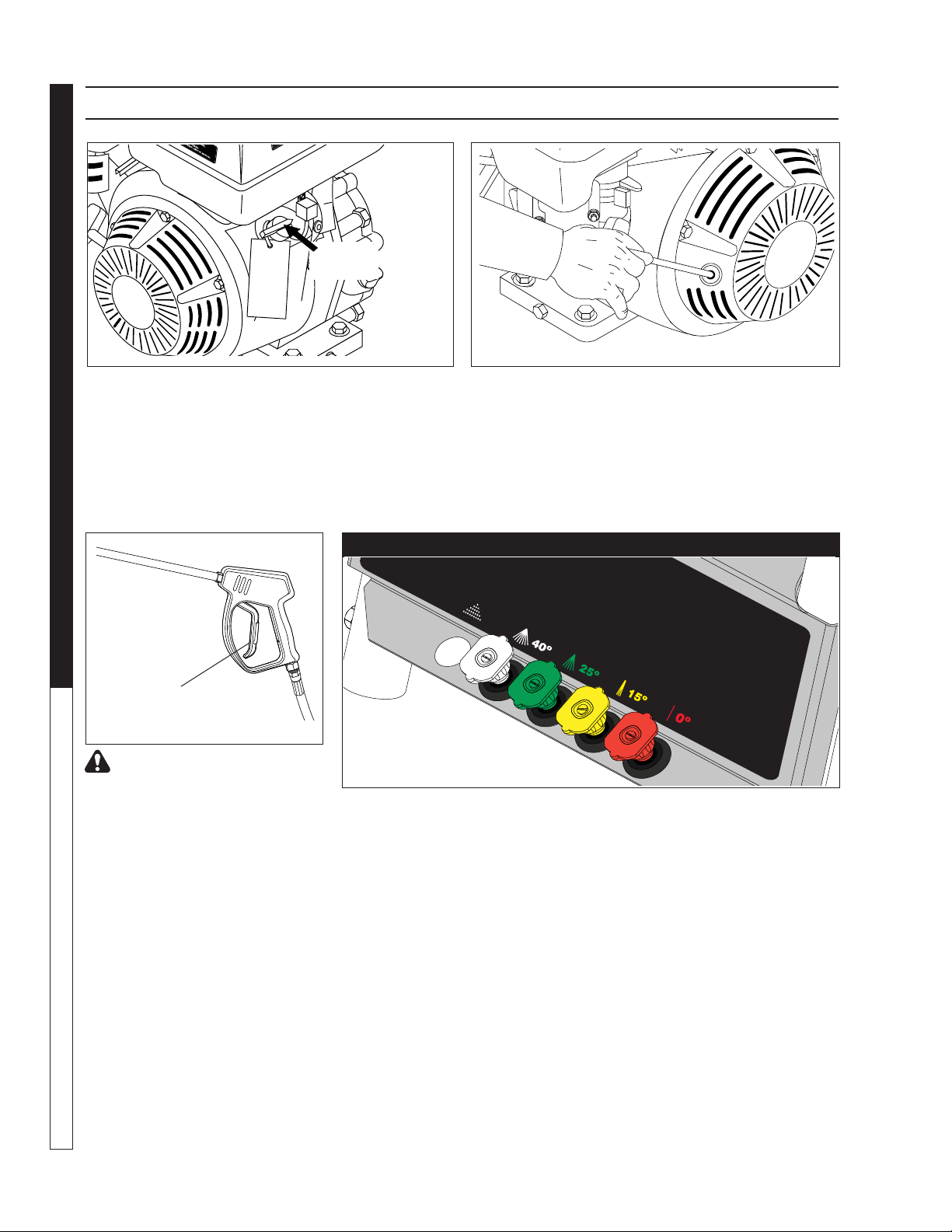

Operating Instructions.........................................................................9-10

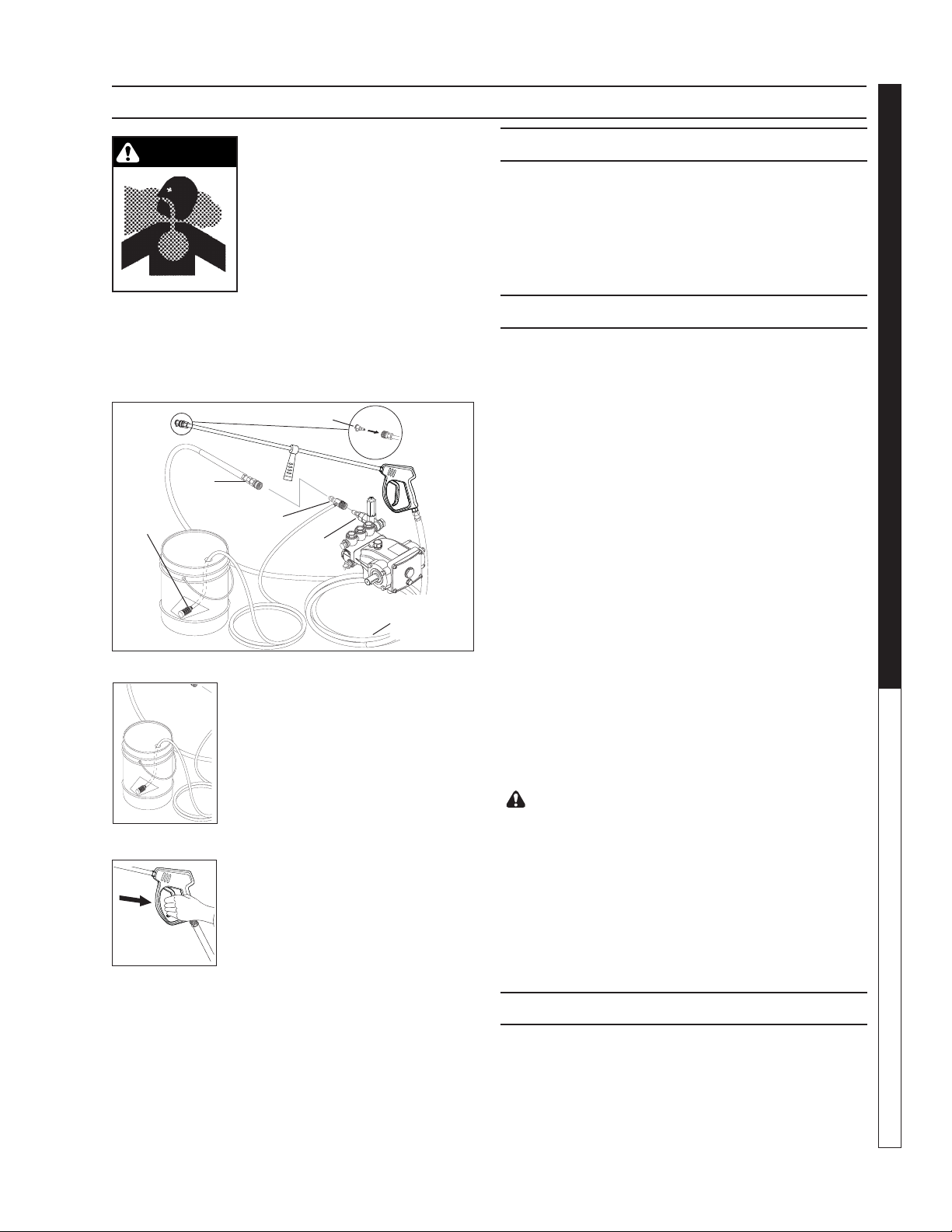

Detergent and General Operating Techniques ...................................... 11
Shut Down and Clean-Up...................................................................... 12
Storage .................................................................................................. 13
Troubleshooting ................................................................................14-15
Preventive Maintenance ........................................................................ 16

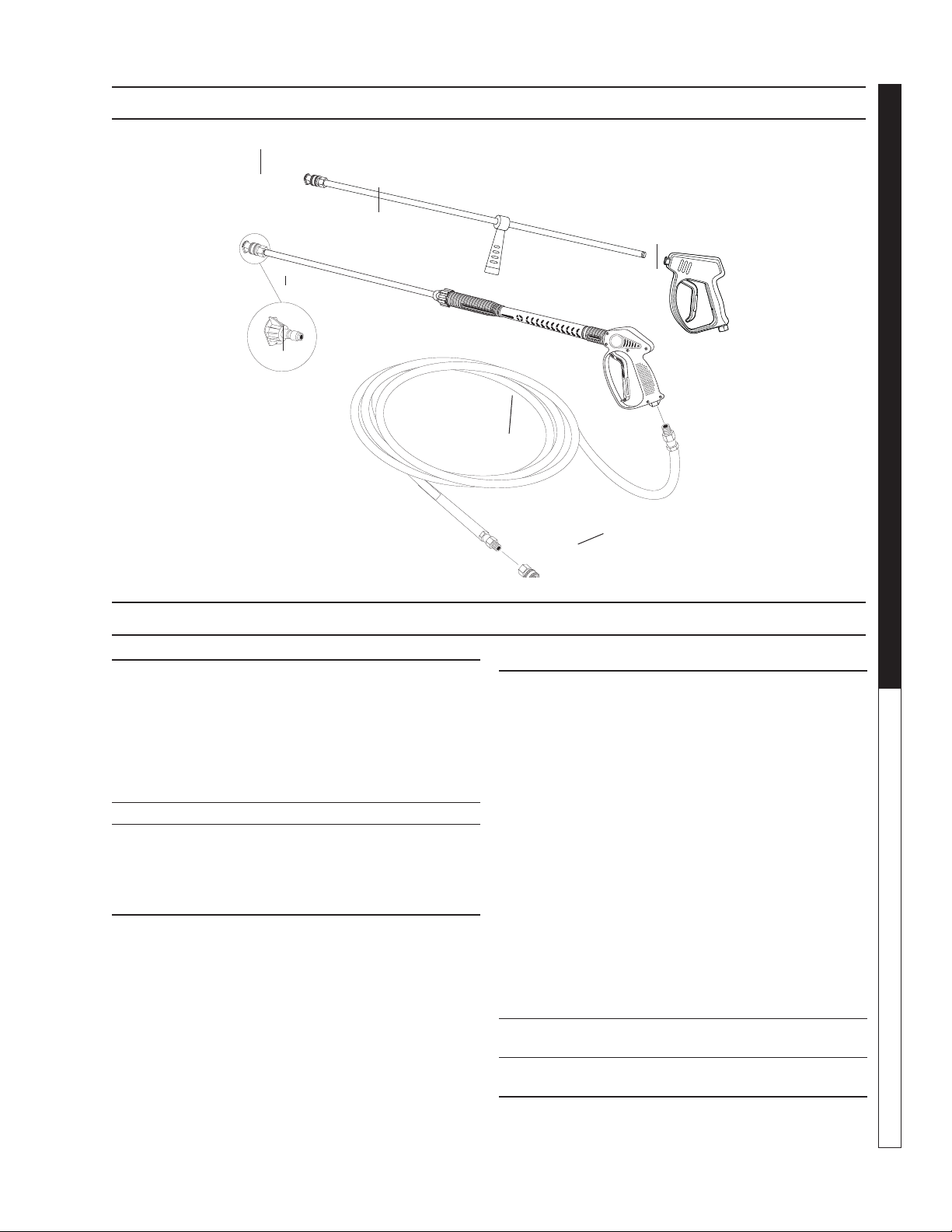

Hose and Spray Gun Assembly and Parts list....................................... 17
Oil Change Record ................................................................................ 18
Warranty ............................................................................................... 19

BXA • 8.917-989.0 • Rev. 12/13
OPERATOR’S MANUAL PRESSURE WASHER
4
INTRODUCTION & IMPORTANT SAFETY INFORMATION
Thank you for purchasing this Pressure Washer.
We reserve the right to make changes at any time
without incurring any obligation.
Owner/User Responsibility:
The owner and/or user must have an understanding of
the manufacturer’s operating instructions and warnings
before using this pressure washer.Warning information
should be emphasized and understood. If the operator
is not fluent in English, the manufacturer’s instructions
and warnings shall be read to and discussed with
the operator in the operator’s native language by the
purchaser/owner, making sure that the operator com-
prehends its contents.
Owner and/or user must study and maintain for future
reference the manufacturers’ instructions.
The operator must know how to stop the machine
quickly and understand the operation of all controls.
Never permit anyone to operate the engine without
proper instructions.
SAVE THESE INSTRUCTIONS
This manual should be considered a permanent
part of the machine and should remain with it if
machine is resold.
When ordering parts, please specify model and
serial number. Use only identical replacement parts.
This machine is to be used only by trained operators.
IMPORTANT SAFETY
INFORMATION
READ OPERATOR’S
MANUAL THOROUGHLY
PRIOR TO USE.
WARNING:To reduce the risk of
injury, read operating instruc-
tions carefully before using.
1. Read the owner's manual
thoroughly. Failure to follow
instructions could cause mal-
function of the machine and
result in death, serious bodily
injury and/or property damage.
2. Know how to stop the
machine and bleed pressure quickly. Be thoroughly
familiar with the controls.
3. Stay alert — watch what you are doing.
4. All installations must comply with local codes.
Contact your electrician, plumber, utility company
or the selling distributor for specific details.
WARNING
RISK OF
ASPHYXIATION: USE
THIS PRODUCT ONLY
IN A WELL
VENTILATED AREA.
WARNING: Risk of asphyxiation.
Use this product only in a well
ventilated area.
5. Avoid installing machines in
small areas or near exhaust
fans. Exhaust contains poi-
sonous carbon monoxide
gas; exposure may cause loss
of consciousness and may
lead to death. It also contains
chemicals known, in certain quantities, to cause
cancer, birth defects or other reproductive harm.
WARNING
RISK OF FIRE.
DO NOT ADD FUEL
WHEN OPERATING
MACHINE.
WARNING: Risk of fire. Do not
add fuel when the product is
operating.
WARNING: Risk of explosion —
do not spray flammable liquids.
6. Do not place machine
near flammable ob-
jects as the engine is hot.
WARNING:This product contains chemicals known
to the state of California to cause cancer and birth
defects or other reproductive harm. Operation of
this equipment may create sparks that can start
fires around dry vegetation. A spark arrestor may
be required. The operator should contact: Local
fire agencies for laws or regulations relating to fire
prevention requirements.
7.Allow engine to cool for 1-2 minutes before refueling. If
any fuel is spilled, make sure the area is dry before
testing the spark plug or starting the engine. (Fire
and/or explosion may occur if this is not done.)
Gasoline engines on mobile or portable equipment
shall be refueled:
a. outdoors;
b. with the engine on the equipment stopped;
c. with no source of ignition within 10 feet of
the dispensing point; and
d. with an allowance made for expansion of the
fuel should the equipment be exposed to a
higher ambient temperature.
In an overfilling situation, additional precautions are
necessary to ensure that the situation is handled in
a safe manner.
WARNING: Risk of injury. Disconnect battery
ground terminal before servicing.
8. Transport/repair with fuel tank EMPTY or with fuel
shut-off valve OFF.

BXA • 8.917-989.0 • Rev. 12/13
5
PRESSURE WASHER OPERATOR’S MANUAL

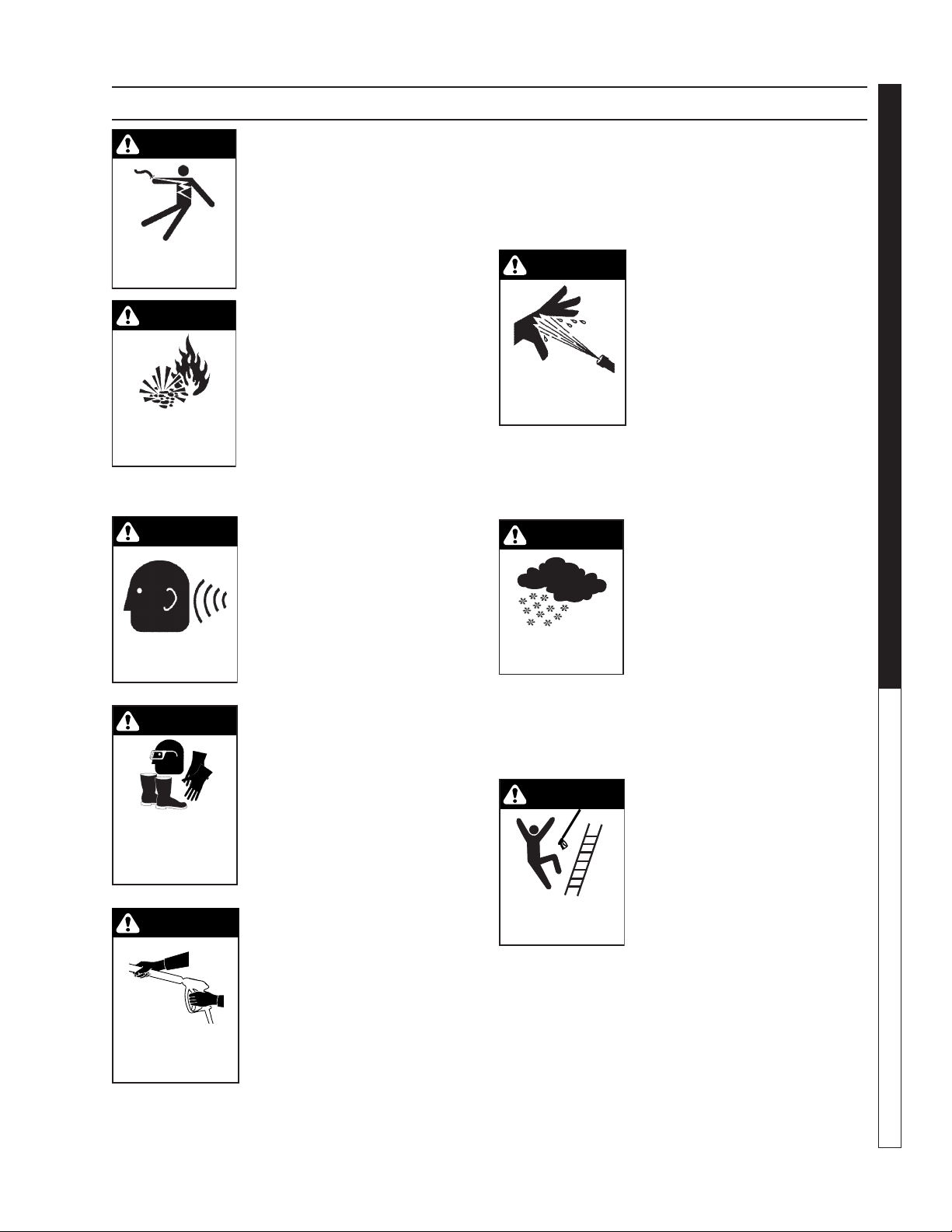

IMPORTANT SAFETY INFORMATION
WARNING
KEEP WATER
SPRAY AWAY FROM
ELECTRICAL WIRING.
WARNING: Keep wand, hose, and
water spray away from electric
wiring or fatal electric shock may
result.
9. Do not spray water on or near
electrical components.
RISK OF EXPLOSION:
DO NOT SPRAY
FLAMMABLE
LIQUIDS.
WARNING
WARNING: Flammable liquids
can create fumes which can ig-
nite, causing property damage
or severe injury.
WARNING: Risk of explosion —
Do not spray flammable liquids.
10. Keep operating area clear of
all persons.
WARNING
EAR PROTECTION
MUST BE WORN
WARNING: This machine ex-
ceeds 85 db appropriate ear
protection must be worn.
WARNING
USE PROTECTIVE
EYE WEAR
AND CLOTHING
WHEN OPERATING
THIS EQUIPMENT.
WARNING: High pressure spray
can cause paint chips or other
particles to become airborne
and fly at high speeds. To avoid
personal injury, eye, hand and
foot safety devices must be
worn.
11. Eye, hand, and foot pro-
tection must be worn when
using this equipment.
TRIGGER GUN KICKS
BACK - HOLD WITH
BOTH HANDS
WARNING
WARNING: Grip cleaning wand
securely with both hands before
starting. Failure to do this could
result in injury from a whipping
wand.
12.To reduce the risk of injury, close supervision
is necessary when a machine is used near
children. Do not allow children to operate the pres-
sure washer. This machine must be attended
during operation.
RISK OF INJECTION
OR SEVERE INJURY
TO PERSONS. KEEP
CLEAR OF NOZZLE.
WARNING
WARNING: High pressure devel-
oped by these machines will
cause personal injury or equip-
ment damage. Keep clear of
nozzle. Use caution when oper-
ating. Do not direct discharge
stream at people, or severe in-
jury or death will result.
13. Never make adjustments on machine while in
operation.
14. Be certain all quick coupler fittings are secured
before using pressure washer.
WARNING
PROTECT FROM
FREEZING
WARNING: Protect machine from
freezing.
15. To keep machine in best
operating conditions, it is
important you protect machine
from freezing.Failure to protect
machine from freezing could
cause malfunction of the
machine and result in death,
serious bodily injury, and/or property damage. Fol-
low storage instructions specified in this manual.
16. The best insurance against an accident is precau-
tion and knowledge of the machine.
WARNING
RISK OF INJURY
FROM FALLS WHEN
USING LADDER.
WARNING: Be extremely careful
when using a ladder, scaffolding
or any other relatively unstable
location. The cleaning area
should have adequate slopes
and drainage to reduce the pos-
sibility of a fall due to slippery
surfaces.
17. Do not overreach or stand on
unstable support. Keep good footing and balance
at all times.

BXA • 8.917-989.0 • Rev. 12/13
OPERATOR’S MANUAL PRESSURE WASHER
6
IMPORTANT SAFETY INFORMATION
18. Do not operate this machine when fatigued or under
the influence of alcohol, prescription medications,
or drugs.
19.Inlet water must be clean fresh water and no hotter
then 90°F.
20. Manufacturer will not be liable for any changes
made to our standard machines or any components
not purchased from us.
21. Do not allow acids, caustic or abrasive fluids to
pass through the pump.
22. Never run pump dry or leave spray gun closed
longer than 1-2 minutes.
26.When servicing belts, don't exceed 14 lb-ft on pump
mounting screws.Failure to do so will cause pump
thread damage.
Follow the maintenance instructions
specified in the manual.

BXA • 8.917-989.0 • Rev. 12/13
7
PRESSURE WASHER OPERATOR’S MANUAL
Pump — Develops high pressure.
Starter Grip — Used for starting the engine manu-
ally.
Spray Gun — Controls the application of water and
detergent onto cleaning surface with trigger device.
Includes safety latch.
Unloader valve — Safety device which allows pres-
sure tu be released when spray gun is closed
Detergent Injector — Allows you to siphon and mix
detergents. (Not included with machine)
Wand — Must be connected to the spray gun.
High Pressure Hose — Connect one end to water
pump discharge nipple and the other end to spray
gun.
Pump Protector — Cycles fresh cool water through
pump when recirculating water reaches 140°F/60°C.
Note: If trigger on spray gun is released for more
than 1-2 minutes, water will leak from valve.
Warm water will discharge from pump protec-
tor onto floor. This system prevents internal
pump damage.

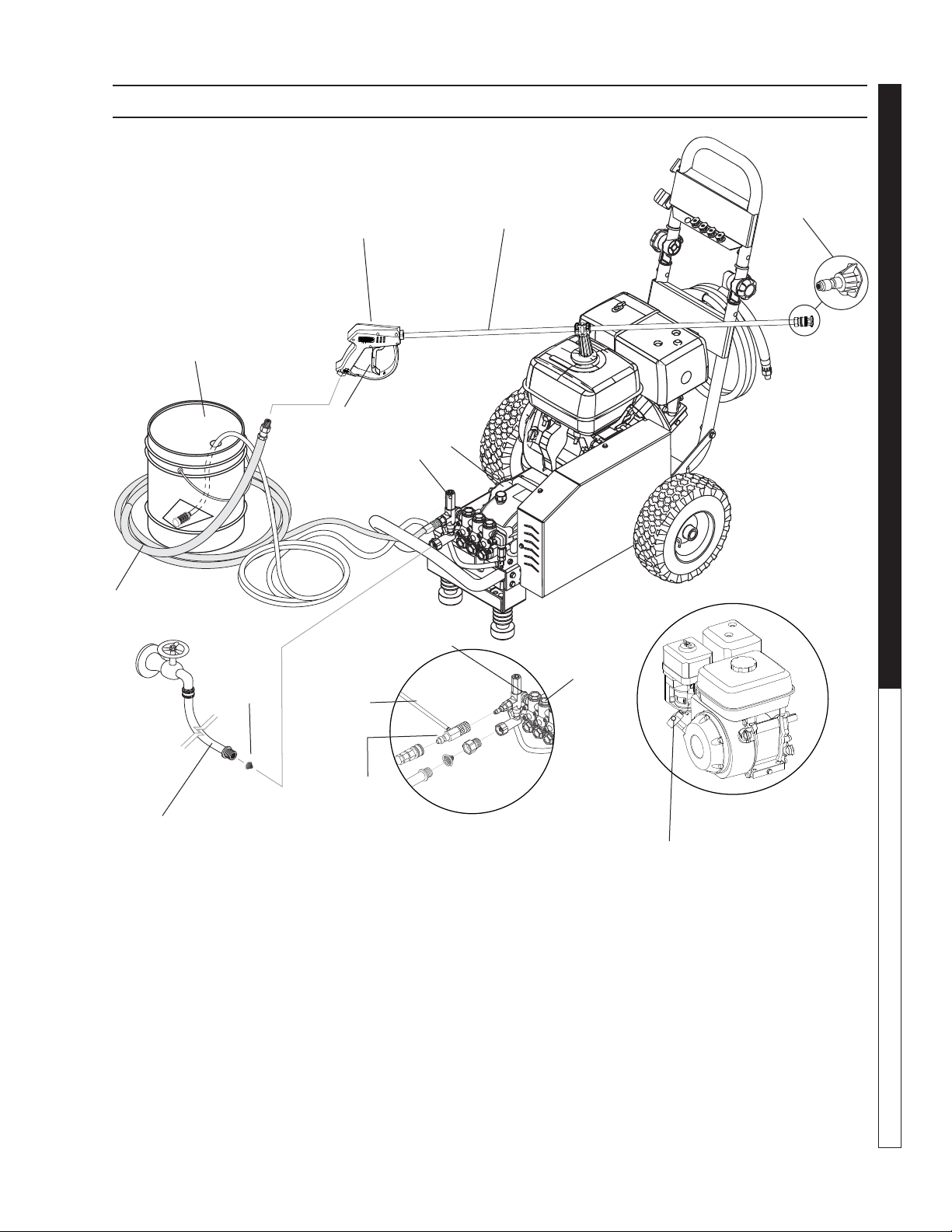

COMPONENT IDENTIFICATION
Starter Grip
Trigger
Spray Gun
High Pressure
Hose
Pump
Straight
Through Wand
Pressure
Nozzle
Garden Hose
(not included)
Inlet
Screen
Pump
Protector
Unloader
Detergent
Bucket
(not included)
Hose
Detergent
ENGINE
Detergent
Injector
(Not Included)
PUMP

BXA • 8.917-989.0 • Rev. 12/13
OPERATOR’S MANUAL PRESSURE WASHER
8
ASSEMBLY INSTRUCTIONS
STEP 1: Adjust handle at the de-
sired position.
STEP 2: Attach the high pressure
hose to the spray gun using teflon
tape on hose threads.
STEP 5: Release the coupler collar
and push the nozzle until the collar
clicks. Pull the nozzle to make sure
it is seated properly.
STEP 6: Connect the high pres-
sure hose to the discharge nipple.
Push coupler collar forward until
secure.
STEP 3: Attach wand to spray gun
using teflon tape on wand threads.
STEP 4: Pull spring-loaded collar
of the wand coupler back to insert
your choice of pressure nozzle.
STEP 7: Connect garden hose to
the cold water source.
STEP 8: Check inlets filters, re-
move debris, then connect the
garden hose to pump water inlet.
CAUTION: Do not run the pump
without water or pump damage
will result.
Safety
Latch
Spray
Gun
High
Pressure Hose
Wand
Spray
Gun/Wand
Wand
Coupler
Pressure
Nozzle
Pressure
Nozzle
Wand
Coupler
Coupler
Collar
Discharge
Nipple
High
Pressure
Hose
Cold
Water
Source
Garden
Hose
Pump
Water Inlet
Garden
Hose
Coupler Collar

BXA • 8.917-989.0 • Rev. 12/13
9
PRESSURE WASHER OPERATOR’S MANUAL
OPERATING INSTRUCTIONS
STEP 1: Check engine oil level. Oil level should be level with the bottom
of the oil filler neck. Be sure the machine is level when checking the oil
level. (Refer to the engine's operating manual included with machine.)
We recommend that the oil be changed after the first 5 hours of use, then
once every 50 hours. Note: Improper oil levels will cause low oil sensor
to shut off engine. IMPORTANT! Do not run engine with high or low
oil levels as this will cause engine damage.
STEP 2: Remove shipping cap
and install oil dipstick. Check
pump oil level by using dipstick
or observe oil level in oil window
(if equipped). Use 40 wt. non
detergent oil.
STEP 4: Connect garden hose
to the cold water source and turn
water on completely. Never use
hot water.
STEP 6: Slide the fuel valve lever to the "ON" position.
When the engine is not in use, leave the fuel valve in
the "OFF" position.
STEP 5: Trigger the spray gun to
eliminate trapped air then wait for
a steady flow of water to emerge
from the spray nozzle.
STEP 3: Fill gas tank with unleaded
gasoline. Do not use leaded gaso-
line.
STEP 7: Move the choke lever to the "Choke" posi-
tion (on a warm engine, leave the choke lever in the
run position).
Oil Dipstick
Dipstick
Oil Window
Gas
Tank
Cold
Water
Source
Garden
Hose
Choke
Lever
Fuel
Valve
Choke
Off On
Choke
Run
Fuel
Valve

BXA • 8.917-989.0 • Rev. 12/13
OPERATOR’S MANUAL PRESSURE WASHER
10
STEP 8: Turn the engine switch to "On" position.
On Vanguard engines, move the throttle lever to
"Fast" position, shown on the engine as a rabbit.
STEP 9: Pull the starter grip. If the engine fails to start
after 2 pulls, squeeze the trigger gun to release pres-
sure and repeat step. Return starter gently. After the
engine warms up enough to run smoothly, move choke
to run position and throttle to fast position.
CAUTION: Small engines may kick back. Do not
hold pull starter grip tightly in hand.
OPERATING INSTRUCTIONS
WARNING! Never replace
nozzles without engaging the
safety latch on the spray gun
trigger. The four color-coded quick connect nozzles provide a wide array of
spray widths from 0° to 40° and are easily accessible when placed in the
convenient rubber nozzle holder, which is provided on the front of the
machine.
NOTE: For a more gentle rinse, select the white 40° or green 25° nozzle.
To scour the surface, select the yellow 15° or red 0° nozzle. To apply
detergent select the black nozzle. (Detergent injector and black nozzle
not included)
NOZZLES
Safety
Latch
On-Off
Switch
SOAP

BXA • 8.917-989.0 • Rev. 12/13
11
PRESSURE WASHER OPERATOR’S MANUAL
WARNING: Some detergents
may be harmful if inhaled or in-
gested, causing severe nausea,
fainting or poisoning.The harm-
ful elements may cause property
damage or severe injury.
STEP 1: Connect the optional
detergent injector to discharge nipple on machine. Con-
nect high pressure hose to injector with quick coupler.
(Check to make sure locking coupler sleeves are in
proper position before applying water pressure).
STEP 2: Use detergent designed specifically for pres-
sure washers. Household detergents
damage the pump. Prepare detergent
solution as required by manufac-
turer. Fill a container with pressure
washer detergent. Place filter end of
detergent suction tube into detergent
container.
STEP 3: With safety latch on spray
gun engaged, secure black detergent nozzle into quick
coupler. NOTE: Detergent cannot
be applied using red, yellow, green or
white nozzles.
STEP 4: With the engine running, pull
trigger to operate machine. Liquid
detergent is drawn into the machine
and mixed with water. Apply detergent to work area.
Do not allow detergent to dry on surface.
IMPORTANT:You must flush the detergent injection
system after each use by placing the suction tube
into a bucket of clean water, then run the pressure
washer in low pressure for 1-2 minutes.
Soap Nozzle
Detergent
Injector
(Not Included)
Discharge
Nipple
Strainer
Quick
Coupler
High
Pressure
Hose
THERMAL PUMP PROTECTION
If you run the engine on your pressure washer for 1-2
minutes without pressing the trigger on the spray gun,
circulating water in the pump can reach high tempera-
tures. When the water reaches this temperature, the
pump protector engages and cools the pump by dis-
charging the warm water onto the ground.This thermal
device prevents internal damage to the pump.
CLEANING TIPS
Pre-rinse cleaning surface with fresh water. Place de-
tergent suction tube directly into cleaning solution and
apply to surface at low pressure (for best results, limit
your work area to sections approximately 6 feet square
and always apply detergent from bottom to top). Allow
detergent to remain on surface 1-3 minutes. Do not al-
low detergent to dry on surface. If surface appears to
be drying, simply wet down surface with fresh water. If
needed, use brush to remove stubborn dirt. Rinse at
high pressure from top to bottom in an even sweep-
ing motion keeping the spray nozzle approximately
1 foot from cleaning surface. Use overlapping strokes
as you clean and rinse any surface. For best surface
cleaning action spray at a slight angle.
Recommendations:
• Before cleaning any surface, an inconspicuous
area should be cleaned to test spray pattern and
distance for maximum cleaning results.
• If painted surfaces are peeling or chipping, use
extreme caution as pressure washer may remove
the loose paint from the surface.
• Keep the spray nozzle a safe distance from the
surface you plan to clean. High pressure wash a
small area, then check the surface for damage. If no
damage is found, continue to pressure washing.
CAUTION - Never use:
• Bleach, chlorine products and other corrosive
chemicals
• Liquids containing solvents (i.e., paint thinner,
gasoline, oils)
• Tri-sodium phosphate products
• Ammonia products
• Acid-based products
These chemicals will harm the machine and will dam-
age the surface being cleaned.
RINSING
It will take a few seconds for the detergent to clear.
Apply safety latch to spray gun. Remove black soap
nozzle from the quick coupler. Select and install the
desired high pressure nozzle. NOTE: You can also stop
detergent from flowing by simply removing detergent
siphon tube from bottle.
WARNING
DETERGENT AND GENERAL CLEANING TECHNIQUES

BXA • 8.917-989.0 • Rev. 12/13
OPERATOR’S MANUAL PRESSURE WASHER
12

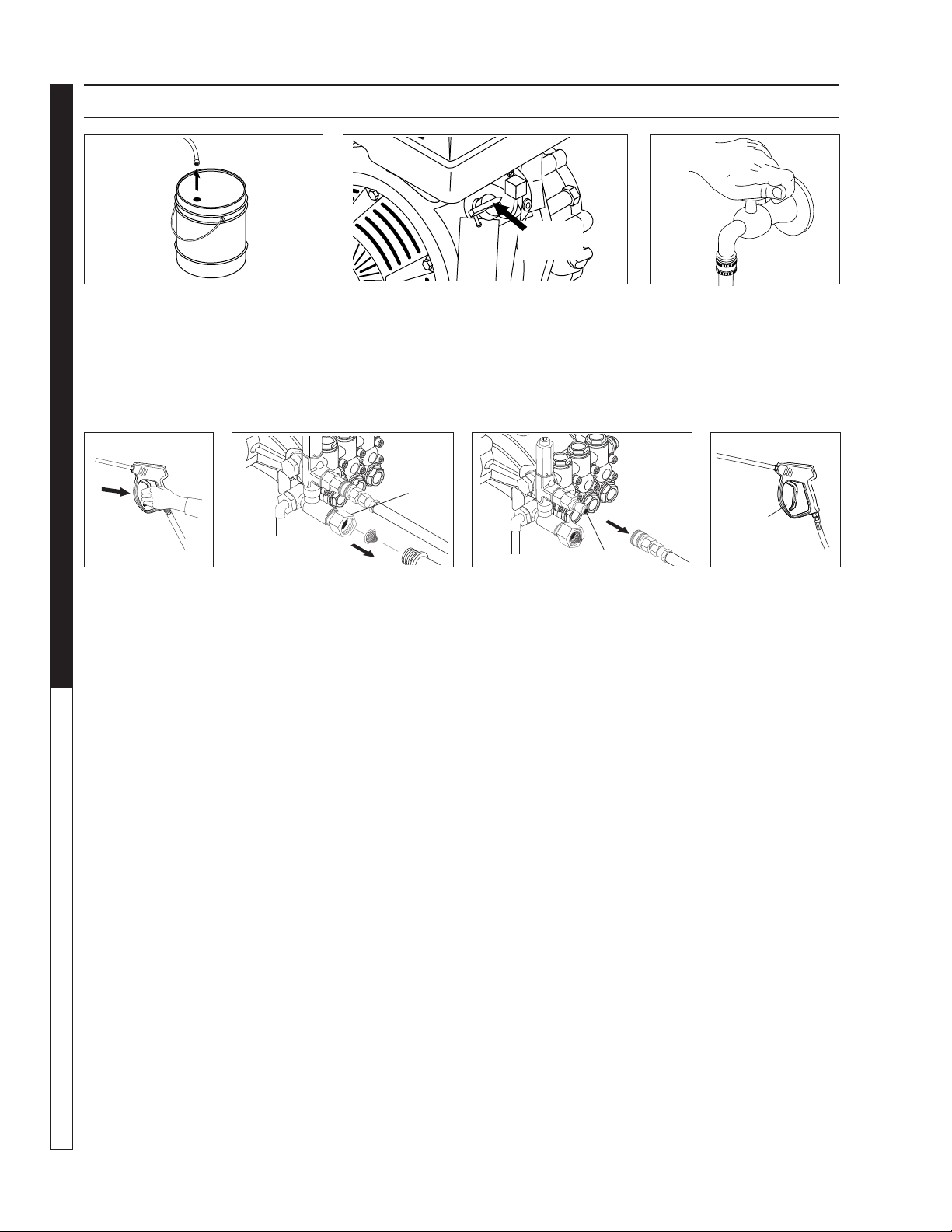

SHUTTING DOWN AND CLEAN-UP
STEP 1: Remove detergent suc-
tion tube from container and insert
into one gallon of fresh water. Slide
nozzle forward for low pressure or
to connect black detergent nozzle.
Pull trigger on spray gun and siphon
water for one minute.
STEP 2: Turn off the engine. STEP 3: Turn off water
supply.
STEP 5: Disconnect the garden
hose from the water inlet on the
machine.
STEP 6: Disconnect the high
pressure hose from discharge
nipple.
STEP 7: Engage
the spray gun safe-
ty lock.
STEP 4: Press trig-
ger to release water
pressure.
On-Off
Switch
Pump
Water Inlet
Discharge Nipple
Safety
Latch

BXA • 8.917-989.0 • Rev. 12/13
13
PRESSURE WASHER OPERATOR’S MANUAL
CAUTION: Always store your pressure washer in a
location where the temperature will not fall below
32°F (0°C).The pump in this machine is susceptible
to permanent damage if frozen. FREEZE DAMAGE
IS NOT COVERED BY WARRANTY.
1. Stop the pressure washer, squeeze spray gun trig-
ger to release pressure.
2. Detach water supply hose and high pressure hose.
3. Turn on the machine for a few seconds, until re-
maining water exits. Turn engine off immediately.
4. Drain the gas and oil from the engine.
5. Do not allow high pressure hose to become kinked.
6. Store the machine and accessories in a room which
does not reach freezing temperatures.
CAUTION: Failure to follow the above directions will
result in damage to your pressure washer.
When the pressure washer is not being operated or is
being stored for more than one month, follow these
instructions:
1. Replenish engine oil to upper level.
2. Drain gasoline from fuel tank, fuel line, fuel valve
and carburetor.
3. Pour about one teaspoon of engine oil through the
spark plug hole, pull the starter grip several times
and replace the plug. Then pull the starter grip
slowly until you feel increased pressure which in-
dicates the piston is on its compression stroke and
leave it in that position. This closes both the intake
and exhaust valves to prevent rusting of cylinder.
4. Cover pressure washer and store in a clean, dry
place that is well ventilated away from open flame
or sparks. NOTE: The use of a fuel additive, such
as STA-BIL®, or an equivalent, will minimize the
formulation of fuel deposits during shortage. Such
additives may be added to the gasoline in the fuel
tank of the engine, or to gasoline in a storage con-
tainer.
After Extended Storage
CAUTION: Prior to restarting, thaw out
any possible ice from pressure washer
hoses, spray gun or wand.
Engine Maintenance
During the winter months, rare atmospheric conditions
may develop which will cause an icing condition in the
carburetor. If this develops, the engine may run rough,
lose power and may stall.This temporary condition can
be overcome by deflecting some of the hot air from the
engine over the carburetor area. NOTE: Refer to the
engine manufacturer's manual for service and mainte-
nance of the engine.
STORAGE

BXA • 8.917-989.0 • Rev. 12/13
PRESSURE WASHER Troubleshooting Guide
14
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
LOW OPERATING
PRESSURE Faulty pressure gauge Install new gauge.
Insufficient water supply Use larger supply hose; clean filter at water
inlet.
Old, worn or incorrect spray nozzle Match nozzle number to machine and/or
replace with new nozzle.
Belt slippage Tighten or replace; use correct belt.
Plumbing or hose leak Check plumbing system for leaks. Re-tape
leaks with teflon tape.
Faulty or mis-adjusted unloader
valve
Adjust unloader for proper pressure. Install
repair kit when needed.
Worn packing in pump Install new packing kit.
Fouled or dirty inlet or discharge
valves in pump Clean inlet and discharge valves.
Worn inlet or discharge valves Replace with valve kit.
Obstruction in spray nozzle Remove obstruction.
Leaking pressure control valve Rebuild or replace as needed.
Slow engine RPM Set engine speed at proper specifications.
Pump sucking air Check water supply and possibility of air
seepage.
Valves sticking Check and clean or replace if necessary.
Unloader valve seat faulty Check and replace if necessary.
FLUCTUATING
PRESSURE
Worn or dirty pump valves Call local distributor.
Nozzle is obstructed Blow out or remove debris with fine needle.
Pump sucking air, inlet hose
leaking
Check that all hoses and fittings are airtight.
Turn off machine and trigger spray gun until
a steady flow of water emerges through the
nozzle.
Insufficient water supply Turn water on full force. Check garden hose
for kinks, leaks or blockage.
PRESSURE LOW
AFTER PERIOD OF
NORMAL USE
Nozzle worn Replace nozzle.
Unloader valve worn Replace unloader valve.
ENGINE WILL NOT
START OR STOPS
WHILE OPERATING
Low oil shutdown Fill engine with oil.
Out of gas Fill fuel tank.
Water in gasoline Drain gas tank; fill with clean fuel.
ENGINE IS
OVERLOADED
Nozzle partially blocked Clean nozzle.
Excessive pressure from high
engine RPM
Adjust engine throttle to lower RPM.

BXA • 8.917-989.0 • Rev. 12/13
15
PRESSURE WASHER Troubleshooting Guide
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
WATER OR OIL
LEAKING FROM
BOTTOM OF PUMP
A small amount of leaking is
normal
If excessive leaking occurs, call local
distributor.
PRESENCE OF
WATER IN PUMP
OIL
Water sprayed at machine Change oil. Direct spray away from ma-
chine.
High humidity in air Check and change oil twice as often.
Piston packing worn. Oil seal worn. Call local distributor.
ENGINE OPERATES
FOR 15 MINUTES
THEN STOPS
Not enough gas or engine oil Fill tank with gas. Check oil level.
Vapor lock developed by heat of day Keep gas tank full to avoid vapor locking.
Obstruction in fuel filter Clean or replace fuel filter.
ENGINE LACKS
POWER
Dirty air filter Replace air filter.
ENGINE FALTERS Choke is opened too soon Move choke to halfway position until engine
runs smoothly.
WATER DRIPPING
FROM UNDER
PUMP
Piston packing worn Call local distributor.
O-Ring plunger retainer worn Call local distributor.
Cracked piston Call local distributor.
OIL DRIPPING
FROM UNDER
PUMP
Oil seal worn or damaged Call local distributor.
WATER LEAKING
FROM PUMP
PROTECTOR
Spray gun closed with machine
running 5 minutes or longer
Open spray gun or turn off machine.
Excess water supply pressure Place a pressure regulator at end of 50'
garden hose.
NO DETERGENT Detergent suction tube not properly
connected to machine
Check connection.
Detergent is too thick Dilute detergent. For best results, use
manufacturers detergent.
Detergent filter valve is at lowest
setting
Set detergent filter valve to a higher setting.
Filter on detergent suction tube is
clogged
Run warm water through filter to remove
debris.
Damaged or clogged detergent suc-
tion tube
Remove obstruction or replace detergent
suction tube.
A high pressure nozzle is attached. Replace with black detergent nozzle.
Discharge nozzle is obstructed Blow out or remove debris with fine needle.
GARDEN HOSE
CONNECTION
LEAKS
Loose fittings Tighten fittings.
Missing/worn rubber washer Insert new washer.

BXA • 8.917-989.0 • Rev. 12/13
PRESSURE WASHER Troubleshooting Guide
16
PREVENTATIVE MAINTENANCE
This pressure washer was produced with the best available materials and quality craftsmanship. However, you
as the owner have certain responsibilities for the correct care of the equipment. Attention to regular preventa-
tive maintenance procedures will assist in preserving the performance of your equipment. Contact your dealer
for maintenance. Regular preventative maintenance will add many hours to the life of your pressure washer.
Perform maintenance more often under severe conditions. Check pump oil and engine oil level before first use
of your new pressure washer.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
SPRAY WAND
LEAKS
Spray wand not properly attached Slide the spray wand into the gun. Turn the
wand collar clockwise onto the spray gun
threads until tight.
Broken o-ring Call local distributor and order an o-ring.
PUMP IS NOISY Pump is sucking air Check that hoses and fittings are air tight.
Turn off machine and purge pump by
squeezing trigger gun until a steady flow of
water emerges through nozzle.
MAINTENANCE SCHEDULE
Engine Oil
Inspect Daily
Change First month or 20 hours.
Every 100 hours or every 6 months after first month
Filter Every 50 hours
Air Cleaner/Filter Inspect Daily
Clean Every 3 months or 50 hours
Engine Fuel Filter 500 hours or 6 months
Spark Plug
Maintenance
Inspect Every 6 months or 100 hours
Change Every year or 300 hours
Clean Fuel Tank(s) Annually
Pump Oil Inspect Oil level daily
Change After first 50 hours, then every 500 hours or annually (or 3 months)
Replace High Pressure Nozzle Every 6 months
Replace Quick Connects Annually
Clean Water Screen/Filter Weekly
Replace HP Hose Annually (if there are any signs of wear)
Belts* Tighten Every 6 months
Inspect/Replace Every 6 months
*Note: When servicing belts, don't exceed 14 lb-ft on pump mounting screws.Failure to do so will cause
pump thread damage.

BXA • 8.917-989.0 • Rev. 12/13
17
PRESSURE WASHER OPERATOR’S MANUAL
HOSE & SPRAY GUN ASSEMBLY
HOSE & SPRAY GUN ASSEMBLY PARTS LIST
1
2
3
5
ITEM PART NO. DESCRIPTION QTY
1 8.916-740.0 Hose, 3/8" x 50',
1 Wire Tuff-Skin (BGA Models) 1
8.739-011.0 Hose, 3/8" x 50',
1 Wire Tuff-Skin (BXA Models) 1
8.739-021.0 Hose, 3/8" x 50',
1 Wire Tuff-Skin (HD Models) 1
8.739-026.0 Hose, 3/8" x 50',
1 Wire Tuff-Skin (PGA Models) 1
2 8.750-247.0 Gun, M407 1
3 8.783-039.0 Wand 30" Zinc Plated,
Handle & Coupler
(2700 PSI Models) 1
8.783-040.0 Wand 44" Zinc Plated, Handle
& Coupler (3500 PSI Models) 1
4
6
ITEM PART NO. DESCRIPTION QTY
4 Quick Connect
Nozzle Kit (3500 PSI Models) 1
8.712-345.0 ▲Nozzle,
SAQCMEG 0004, RED
8.712-346.0 ▲Nozzle,
SAQCMEG 1504, YELLOW
8.712-347.0 ▲Nozzle,
SAQCMEG 2504, GREEN
8.712-348.0 ▲Nozzle,
SAQCMEG 4004, WHITE
Quick Connect
Nozzle Kit (2700 PSI Models) 1
8.712-331.0 ▲Nozzle,
SAQCMEG 0003, Red
8.712-333.0 ▲Nozzle,
SAQCMEG 1503, Yellow
8.712-334.0 ▲Nozzle,
SAQCMEG 2503, Green
8.712-335.0 ▲Nozzle,
SAQCMEG 4003, White
5 9.802-166.0 Coupler, 3/8" Female, Brass 1
8.702-088.0 ▲O-Ring, Viton, 3/8” 1
6 9.802-164.0 Coupler, ¼” Female Brass 1
8.702-084.0 ▲ O-Ring, Viton, ¼” 1
▲ Not Shown

BXA • 8.917-989.0 • Rev. 12/13
OPERATOR’S MANUAL PRESSURE WASHER
18
Date Oil Changed
Month/Day/Year
Estimated Operating
Hours Since Last
Oil Change
Date Oil Changed
Month/Day/Year
Estimated Operating
Hours Since Last
Oil Change
OIL CHANGE RECORD
Check pump oil and engine oil level before first use of your new pressure washer.

BXA • 8.917-989.0 • Rev. 12/13
PRESSURE WASHER WARRANTY
19
HOTSY LIMITED NEW PRODUCT WARRANTY
PRESSURE WASHERS
WHAT THIS WARRANTY COVERS
All Hotsy pressure washers are warranted by Hotsy to the original purchaser to be free from defects in materials and work-
manship under normal use, for the periods specified below.This Limited Warranty is subject to the exclusions shown below,
is calculated from the date of the original purchase, and applies to the original components only. Any parts replaced under
this warranty will assume the remainder of the part’s warranty period.
SEVEN YEAR PARTS AND ONE YEAR LABOR WARRANTY:
Components manufactured by Hotsy, such as frames, handles, top and bottom wraps, float tanks, fuel tanks, belt guards, and
internal components on the oil-end of HOTSY manufactured pumps. General, AR, Liberty, Comet and swash and wobble
plate pumps have a one year warranty. Heating coils have a five year warranty from date of original machine purchase.
ONE YEAR PARTS AND ONE YEAR LABOR WARRANTY:
All other components, excluding normal wear items as described below, will be warranted for one year on parts and
labor. Parts and labor warranty on these parts will be for one year regardless of the duration of the original component
manufacturer’s part warranty.
WARRANTY PROVIDED BY OTHER MANUFACTURERS:
Motors, generators, and engines, which are warranted by their respective manufacturers, are serviced through these manu-
facturers’ local authorized service centers. Hotsy is not authorized and has no responsibility to provide warranty service
for such components.
WHAT THIS WARRANTY DOES NOT COVER
This warranty does not cover the following items:
1. Normal wear items, such as nozzles, spray guns, discharge hoses, wands, quick couplers, seals, filters, gaskets,
O-rings, packings, pistons, pump valve assemblies, strainers, belts, brushes, relief valves, fuses, pump protec -
tors.
2. Damage or malfunctions resulting from accidents, abuse, modifications, alterations, incorrect installation, improper
servicing, failure to follow manufacturer’s maintenance instructions, or use of the equipment beyond its stated us-
age specifications as contained in the operator’s manual.
3. Damage due to freezing, chemical deterioration, scale build up, rust, corrosion, or thermal expansion.
4. Damage to components from fluctuations in electrical or water supply.
5. Normal maintenance service, including adjustments, fuel system cleaning, and clearing of obstructions.
6. Transportation to service center, field labor charges, or freight damage.
WHAT YOU MUST DO TO OBTAIN WARRANTY SERVICE
In order to obtain warranty service on items warranted by Hotsy, you must return the product to your Authorized Hotsy
Distributor, freight prepaid, with proof of purchase, within the applicable warranty period. If the product is permanently
installed, you must notify your Authorized Hotsy Distributor of the defect. Your Authorized Hotsy Distributor will file a claim
with Hotsy, who must subsequently verify the defect. In most cases, the part must be returned to Hotsy freight prepaid
with the claim. For warranty service on components warranted by other manufacturer’s, your Authorized Hotsy Distributor
can help you obtain warranty service through these manufacturers’ local authorized service centers.
LIMITATION OF LIABILITY
Hotsy’s liability for special, incidental, or consequential damages is expressly disclaimed. In no event shall Hotsy’s liability
exceed the purchase price of the product in question. Hotsy makes every effort to ensure that all illustrations and specifica-
tions are correct, however, these do not imply a warranty that the product is merchantable or fit for a particular purpose, or
that the product will actually conform to the illustrations and specifications. Our obligation under this warranty is expressly
limited at our option to the replacement or repair at a service facility or factory designated by us, of such part or parts as
inspection shall disclose to have neen defective. THE WARRANTY CONTAINED HEREIN IS IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTY OF MERCANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE ARE EXPRESSLY LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY.
Hotsy does not authorize any other party, including authorized Hotsy Distributors, to make any representation or promise
on behalf of Hotsy, or to modify the terms, conditions, or limitations in any way. It is the buyer’s responsibility to ensure that
the installation and use of Hotsy products conforms to local codes. While Hotsy attempts to assure that its products meet
national codes, it cannot be responsible for how the customer chooses to use or install the product. Some states do not al-
low limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages,
so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights and you may also
have other rights which vary from state to state.
HOTSY
www.hotsy.com
