Hougen 10937 User manual

The 40341 Kit is used to install a Tapping Attachment onto a 10914 & HMD914 spindle. These machines use
2 mounting styles. One style incorporates a set screw with an access window in the Brass Coolant Inducer
(see diagrams A1-A3). The other style uses a retaining ring around the base of the Brass Coolant Inducer
(see diagrams B1-B3).
Button Head
Cap Screw End of the Spiral Ring.
Remove the 10-32 X 5/8”
Bracket Screw
5/16- 18 X 3/8
Arbor Body set-screw
10-32 X 5/8
Bracket Screw
3/8-24 X 3”
Front Support Bracket Bolts
3/8-24 X 3”
Front Support Bracket Bolts
A1
Locate and remove the 1/4-28 X 1/4 Button Head
Cap Screw from the Coolant Inducer with a 5/32 Hex
Wrench.
A2
Rotate the Arbor Body so the 5/16-18 X 3/8 set screw
inside, aligns with the hole in the Coolant inducer. In-
sert the 5/32 Hex Wrench and turn the inside set screw
1 full turn counterclock-wise or until loose.
A3
Locate and remove the 10-32 X 5/8” Bracket Screw
with a 5/32 Hex Wrench. Remove both 3/8-24 X 3”
Hex Bolts from the Front Support Bracket using a 9/16
wrench. Now the entire Arbor Body Assembly can be
removed.
Locate the end of the Spiral Retaining Ring under the
Brass Coolant Inducer, and with a pick, pull the end
down. Once started, pull the rest of the Retaining Ring
down the Arbor Body.
Remove the 10-32 X 5/8” Bracket Screw with a 5/32
Hex Wrench and slide the Brass Coolant Inducer down.
Turn the 5/16-18 X 3/8 Set Screw until loose and slide
the Arbor Body OFF the Motor Spindle.
Remove both 3/8-24 X 3” Hex Bolts from the Front
Support Bracket using a 9/16 wrench. Now the entire
Arbor Body Assembly can be removed.
Continued on next page
B1
B2
B3
TAPPING ATTACHMENT KIT 10937
For use on Hougen Drill Models 10914 & HMD914

Collet
Collet Retainer
Tap
Jaws
89
Select the correct size Collet
for the Tap that will be used
and install it into the bottom
of the Tap-Matic.
Collet 10807 - Taps #10 thru 1/2”
Collet 10808 - Taps 1/2” thru 3/4”
Thread the Collet Retainer
onto the Tap-Matic holding the
Collet in place. Do not tighten
the Collet Retainer until the
next step.
Install the appropriate Tap
up thru the Collet Retainer
until the at sides of the
Tap are in the Jaws of the
Tap-Matic. Tighten the
Jaws so the Tap is held.
Then tighten the Collet
Retainer with the supplied
wrenches.
Adjust the long Stop Screw
to the appropriate depth and
lock in place with the lock
nut.
CAUTION
When the Tap is working down into the material the
Stop Arm will rotate and make contact with the Drill
Housing on the opposite side that is shown. When the
Tap direction changes and the Tap is working out of the
material it will rotate again to the opposite side. Keeps
hands clear of the Stop Arm while operating.
Stop Arm
Stop Screw
NOTE: Installation of the Tapping Attachment is the same on either system covered by the rst page.
4
Install the Stop Arm to the Tap-Matic Assembly
with the 3 Button Head Screws supplied with the
Tap-Matic. Thread the Adapter (40226) into the top of
the Tap-Matic Assembly and install the 5/16-18 X 3/8
Set Screw (40256) into the side of the Adapter.
Install the 1/4-20 X 2-1/2 Set Screw (02432) and
1/4-20 Lock Nut (10859) into the Stop Block as shown.
Mount the Stop Block Assembly to the Magnet with
the supplied 3/8-24 Hex Bolts and tighten with a 9/16
Wrench.
Slide the Adapter and
Tap-Matic Assembly up onto
the Motor Spindle at the base
of the Motor making sure the
Spindle sits down in the notch
of the Adapter. While holding
the Assembly up, tighten the
5/16-18 X 3/8 Set Screw at
the top of the Adapter.
5
67
Continued on next page

1. Produce the Correct size hole for the Tap you are
using.
2. Install the Tap-Matic unit using the instructions
above.
3. Position the machine so the Tap is centered and
just above the hole.
4. Applied Slick-Stik Lube or a alternative oil appro-
priate for tapping.
4. Lock the magnet in position and verify the Tap is
still centered over the hole.
5. Start the Motor using the Operating Instruction in
the Operators Manual.
10 10-32 X 1/2”
Stop Screw
With either system, verify that the 10-32 X 1/2” Stop Screw
(10648) is in place and tight.
Your 3-Jaw Chuck is now installed. Select the proper twist bit
for your application and follow Operating Procedures for the
Hougen Magnet Based Drill you are using.
6. Rotate the Feed Handles down until the Tap pulls
thru the material. Feed handles are not used to drive
the Tap down.
7. When the Tap-matic Assembly makes contact with
the Stop Screw the gears will disengage and the Tap
will stop turning.
8. While rotating Feed Handles to bring the Tap-Matic
UP, the Tap will engage and turn counter- clock-
wise.
9. Rotate the Feed Handles until the Tap is clear of
the work piece and push the Motor OFF button.

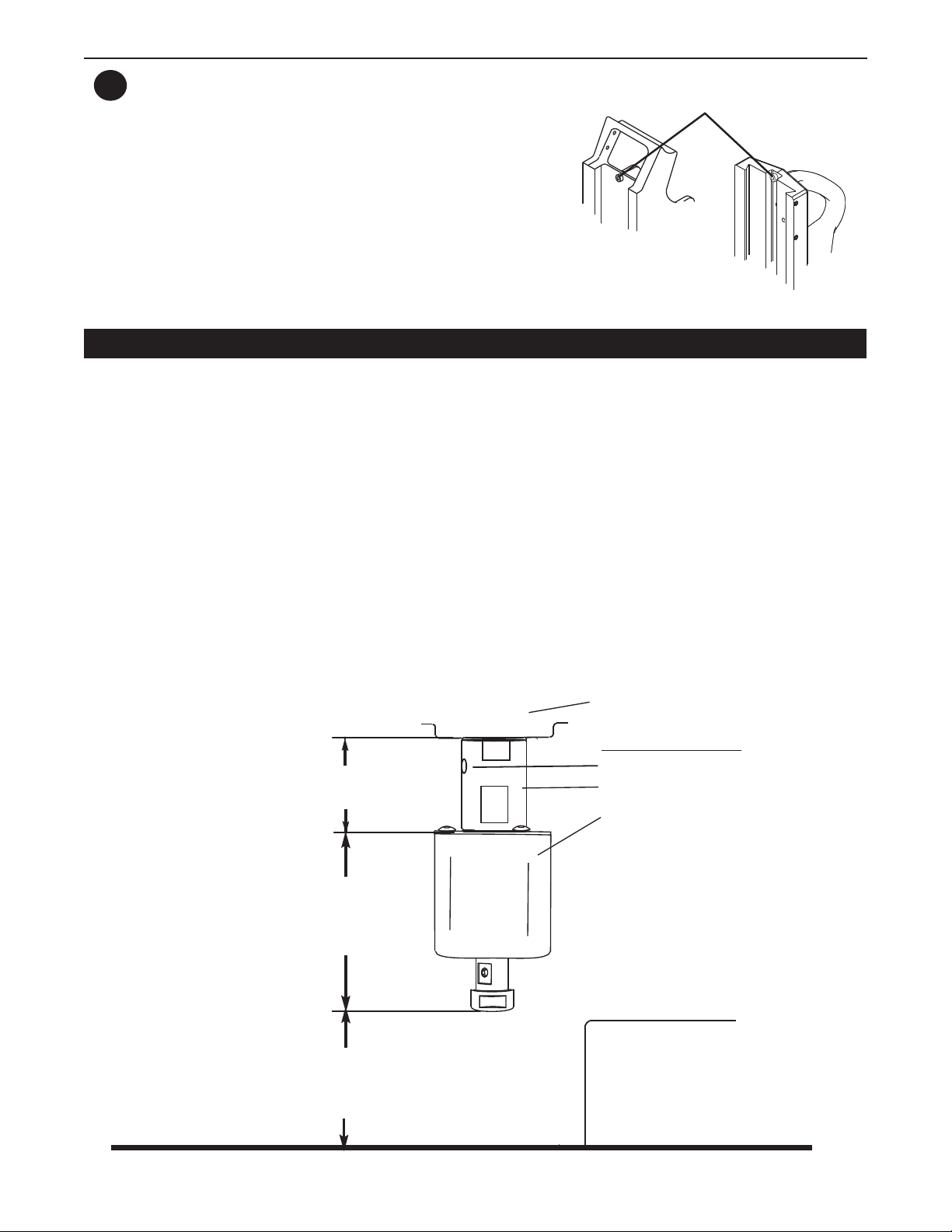

MOTOR
10937 TAPPING ATTACHMENT KIT
Set-Screw
Spindle Adapter
Approx. 1.625”
3.875” when the Motor is in the UP position
with 4” of stroke down. Magnet
Tapping Attachment
Included in the Kit
Approx. 6”
OPERATING THE TAPPING ATTACHMENT

Hougen Manufacturing, Inc.
P.O. Box 2005 • Flint, MI 48501-2005
3001 Hougen Drive • Swartz Creek, MI 48473
Phone [phone] • Fax [phone]
www.hougen.com • [email protected]
© 2019 Hougen Manufacturing, Inc.
FORM 01229
