Hoval TopVent TV Series User manual

TopVent ®TV
Design, installation and operation
TopVent®TV
Recirculation unit
for heating spaces
up to 6 m in height

1 Use 3
1.1 Intended use .................................................................. 3
1.2 User group..................................................................... 3
2 Safety 4
2.1 Symbols......................................................................... 4
2.2 Operational safety.......................................................... 4
3 Construction and operation 5
3.1 Unit construction ............................................................ 5
3.2 Operating modes ........................................................... 6
4 Technical data 8
4.1 Application limits ............................................................ 8
4.2 Flow rate, product parameters ....................................... 8
4.3 Heat output .................................................................... 8
4.4 Sound data .................................................................... 9
4.5 Dimensions and weights ................................................ 9
4.6 Specication text............................................................ 9
5 Transport and installation 10
5.1 Delivery........................................................................ 10
5.2 Requirements for the installation site ........................... 10
5.3 Installation.....................................................................11
5.4 Hydraulic installation.................................................... 12
5.5 Electrical installation .................................................... 13
6 Operation 17
6.1 Initial commissioning.................................................... 17
6.2 Operation..................................................................... 17
7 Maintenance and repair 18
7.1 Safety .......................................................................... 18
7.2 Maintenance ................................................................ 18
7.3 Repair .......................................................................... 18
8 Dismantling 19
9 Disposal 19
2
TopVent ®TV
Design, installation and operation
4 216 284-en-05
Content

1 Use
1.1 Intended use
TopVent®TV units are recirculation units intended for heating spaces up to 6 m in
height. They have the following functions:
■Heating (with connection to a hot water supply)
■Recirculation operation
■Air distribution via air outlet louvre
Intended use also includes compliance with the operating instructions. Any usage
over and above this use is considered to be not as intended. The manufacturer
can accept no liability for damage resulting from improper use.
1.2 User group
The units are only allowed to be installed, operated and maintained by authorised
and instructed personnel who are well acquainted with the units and are informed
about possible dangers.
The operating instructions are for operating engineers and technicians as well as
specialists in building, heating and ventilation technology.
3
TopVent ®TV
Design, installation and operation
Use
4 216 284-en-05

2 Safety
2.1 Symbols
Caution
This symbol warns against risk of injury. Please heed all instructions
designated by this symbol to prevent injuries and/or death.
Attention
This symbol warns against property damage. Please heed the respective
instructions to prevent risk of damage to the unit and its functions.
Notice
This symbol denotes information about the economic use of the equipment
or special tips.
2.2 Operational safety
The unit is built to conform to the state-of-the-art and is operationally safe. Despite
every precaution being taken, potential and not immediately obvious risks always
remain, for example:
■Dangers when working with the electrical system
■Parts (e.g. tools) can fall down below when working on the ventilation unit.
■Malfunctions as a result of defective parts
■Hazards from hot water when working on the hot water supply
Therefore:
■Please read the operating instructions before unpacking, installing, commis-
sioning and before maintaining the equipment.
■Store the operating instructions so that they are easily accessible.
■Observe any attached information and warning signs.
■Immediately replace damaged or removed informational and warning signs.
■Follow the local safety and accident prevention regulations at all times.
■Disconnect the power supply and wait at least 5 minutes before opening the
unit.
■When working in the unit, take precautions against unprotected, sharp metal
edges.
■The unit may only be installed, operated and serviced by authorised, trained
and instructed skilled personnel:
– Specialists as dened by these operating instructions are those persons
who, based on their training, knowledge and experience as well as their
knowledge of the relevant regulations and guidelines, can carry out the work
assigned to them and recognise potential hazards.
■Unauthorised reconguration or modication of the unit is not permitted.
4
TopVent ®TV
Design, installation and operation
Safety
4 216 284-en-05

3 Construction and operation
The TopVent®TV is used to heat in recirculation operation; it was developed
specially for use in rooms up to 6 m in height. The unit is installed on the wall or
under the ceiling. It takes in room air, heats it in the heating coil and blows it back
into the room through the air outlet louvre.
There are 3 unit sizes, which are each equipped with an innitely variable fan and
a custom-made heating coil.
3.1 Unit construction
The TopVent®TV consists of the following components:
■Heat exchanger consisting of copper tubes and aluminium ns
■Axial fan with energy-saving EC motor and ow-optimised fan blades, innitely
variable, maintenance-free and quiet with a high degree of e󰀩ciency
■Compact casing in modern industrial design, consisting of high-quality ABS,
robust and easy to clean
■Suspension set for installing the unit on the ceiling or the wall
■Air outlet louvre with vanes for manual adjustment of air distribution
1 2 3 34 5
■
1
Suspension set
■
2
Fan
■
3
Casing
■
4
Heat exchanger
■
5
Air outlet louvre
Fig. 1: Unit construction
5
TopVent ®TV
Design, installation and operation
Construction and operation
4 216 284-en-05

3.2 Operating modes
A room temperature controller with or without a timer regulates the operation of
the unit.
EasyTronic EC
The EasyTronic EC is a room temperature controller with a timer. A maximum of
10 TopVent®units can be connected to 1 controller.
Function
■Recording the room temperature with the integrated temperature sensor
– Optional: Recording the room temperature with the external temperature
sensor
■Room temperature control in on/o󰀨 mode: If the room temperature falls below
the setpoint value, the connected TopVent®units switch on. Upon reaching the
setpoint value, the units switch o󰀨 again.
■Lowering of the room temperature setpoint value via week programme
■Controlling the TopVent®units using a door contact switch: The connected units
are switched on via door contact if the door is open (digital input).
■Adjusting the fan speed: The required speed can be innitely adjusted.
■Pump or valve control: The EasyTronic EC provides a signal for switching a
pump or a valve (digital output).
Fig. 2: EasyTronic EC room temperature controller
EasyTronic EC
Power supply 110…230 VAC, ±10%, 50/60 Hz
Power consumption max. 1.3 W
Temperature range 0...50 °C
Dimensions (W x H x D) 128 × 80 × 56 mm
Protection rating IP 30, class 2
Installation In a flush-mounted box (spacing between mounting holes
83.5 mm) or on the supplied base
Table 1: Technical data EasyTronic EC
Room temperature sensor ET-R
Temperature range -30...+70 °C
Dimensions (W x H x D) 93 × 70 × 46 mm
Protection rating IP 65
Installation in plastic casing for wall mounting
Table 2: Technical data EasyTronic EC
6
TopVent ®TV
Design, installation and operation
Construction and operation
4 216 284-en-05

EasyTronic TV
The EasyTronic TV is a room temperature controller without a timer. A maximum of
8 TopVent®units can be connected to 1 controller.
Function
■Recording the room temperature with the integrated temperature sensor
■Room temperature control in on/o󰀨 mode: If the room temperature falls below
the setpoint value, the connected TopVent®units switch on. Upon reaching the
setpoint value, the units switch o󰀨 again.
■Adjusting the fan speed: The required speed can be innitely adjusted.
Fig. 3: EasyTronic TV room temperature controller
EasyTronic TV
Power supply 230 VAC, ±10%, 50 Hz
Working temperature 0...60 °C
Temperature control range 5...30 °C
Dimensions (W x H x D) 99 × 96 × 43 mm
Casing material ABS
Protection rating IP 30
Installation Wall mounting (surface mounting)
Table 3: Technical data EasyTronic TV
7
TopVent ®TV
Design, installation and operation
Construction and operation
4 216 284-en-05

4 Technical data
4.1 Application limits
Maximum operating pressure 1600 kPa
Maximum heating medium temperature 90 °C
Maximum supply air temperature 60 °C
Maximum extract air temperature 50 °C
The units cannot be used in:
■Areas where there is danger of explosion
■Places with a corrosive or aggressive environment
■Damp locations
■Spaces with a large amount of dust
Table 4: Application limits
4.2 Flow rate, product parameters
Type TV-2 TV-4 TV-5
Nominal air flow rate m³/h 2100 4850 5700
Power consumption kW 0.10 0.25 0.37
Current consumption A0.51 1.30 1.70
Supply voltage VAC 230 230 230
Frequency Hz 50 50 50
Max. mounting height m5.5 5.5 5.5
Max. horizontal reach m14.0 22.0 25.0
Table 5: Technical data
4.3 Heat output
Temperature of the
heating medium
80/60 °C 60/40 °C
Type troom Q tS∆pWmWQ tS∆pWmW
°C kW °C kPa l/h kW °C kPa l/h
TV-2 15 13.9 34.8 6.7 610 8.3 26.6 3.2 360
20 12.6 37.9 5.6 560 6.8 29.7 2.3 300
TV-4 15 33.5 35.6 11.5 1480 19.4 26.9 4.8 850
20 30.3 38.6 9.5 1340 15.9 29.8 3.5 700
TV-5 15 50.2 41.3 15.7 2220 29.2 30.3 6.5 1280
20 45.4 43.8 13.0 2000 23.9 32.5 4.7 980
Legend: troom = Room air temperature
Q = Heat output
tS= Supply air temperature
∆pW = Water pressure drop
mW = Water quantity
Table 6: Heat output
8
TopVent ®TV
Design, installation and operation
Technical data
4 216 284-en-05

4.4 Sound data
Type TV-2 TV-4 TV-5
Sound pressure level (at a distance of 5 m) 1) dB(A) 50 54 56
Total sound power level dB(A) 72 76 78
1) Reference: room volume 1500 m³
Table 7: Sound levels
4.5 Dimensions and weights
A C
D
A
B
Type TV-2 TV-4 TV-5
Amm 530 700 700
Bmm 381 550 550
Cmm 517 610 610
Dmm 300 350 350
Water content of the coil l1.12 2.16 3.10
Connection (external thread) "R ¾ R ¾ R ¾
Weight kg 16.2 23.0 24.4
Table 8: Dimensions and weights
4.6 Specification text
TopVent®TV – Recirculation unit for heating spaces up to 6 m in height
Sturdy casing made of ABS with pigment additive for UV protection, front in RAL
9016 (Tra󰀩c white) and back in RAL 7037 (Dusty grey); heat exchanger consisting
of copper tubes and aluminium ns; axial fan with highly e󰀩cient EC motor,
innitely variable, maintenance-free and quiet, protection rating IP 54, insulation
class F; air outlet louvre with vanes for manual adjustment of air distribution;
including suspension set for wall or ceiling installation. Electrical connection via
connection box provided by the installer.
1
Return
2
Flow
9
TopVent ®TV
Design, installation and operation
Technical data
4 216 284-en-05

5 Transport and installation
Caution
Risk of injury from incorrect handling. Transport, assembly and installation
work may only be performed by specialists. Observe safety and accident
prevention regulations.
5.1 Delivery
TopVent®TV units are packed in cardboard boxes and delivered on a pallet.
■The scope of delivery includes:
– Recirculation unit heater
– Suspension set
– Accessories for installation
■Ensure that the unit is undamaged.
■Report any missing parts, wrong deliveries and possible transport damage
immediately in writing.
5.2 Requirements for the installation site
■Position the units according to the system layout. Comply with the minimum
and maximum distances.
■All air inlet and air outlet openings must be freely accessible. The supply air jet
must be free to spread out unhindered.
X
Y
X
≥
0.4 m
Y
Size TV-2 TV-4 TV-5
Distance X m3…7 6…12 6…12
Distance Y m2.5…5.5 2.5…5.5 2.5…5.5
Minimum distance to the ceiling/wall m0.4 0.4 0.4
Table 9: Minimum and maximum distances
Fig. 4: Examples of unit arrangement for wall installation (top view)
10
TopVent ®TV
Design, installation and operation
Transport and installation
4 216 284-en-05

5.3 Installation
Caution
Risk of injury caused by falling load and improper handling. During
installation:
– Wear protective equipment (safety helmet, safety goggles, safety shoes).
– Do not stand under suspended loads.
– Use a forklift with su󰀩cient load-bearing capacity.
Preparation
■Make sure that the following items are on hand for the assembly:
– Installation platform
– Drill Ø 16 mm
– Socket wrench, width 17
– Socket or open-end wrench, width 13
Installation
■Install the retaining bracket:
– Cut 1 opening at the top and at the bottom of the casing with the drill (Ø
16 mm, see
7
in Fig. 6).
– Insert the assembly bush
6
into the top opening.
– Position the retaining bracket
3
over the openings.
– Insert M10 screws
4
into the bushes.
– Turn the retaining bracket to the desired position in relation to the unit.
– Tighten the screws to secure the position.
– Place the plugs
5
on the retaining bracket.
■Install both mounting angles
2
with the M8 screws onto the retaining bracket.
– 3 di󰀨erent inclination angles can be used.
■Install the unit on the wall or on the ceiling (on-site fastening material).
– Use the packaging box as a drilling template.
± 60°
Fig. 5: Angle of rotation, left/right 60°
■
1
M8 screw with spring washer, nut and
washers (2 sets)
■
2
Mounting angles (x2)
■
3
Retaining bracket
■
4
M10 screw (x2)
■
5
Plug (x2)
■
6
Assembly bush
■
7
Opening
Fig. 6: Unit installation
1 2 3 4 5 6
11
TopVent ®TV
Design, installation and operation
Transport and installation
4 216 284-en-05

5.4 Hydraulic installation
■Connect the heating coil according to the hydraulic circuit diagram.
■Depending on local conditions, check whether compensators for linear expan-
sion are required for the supply and return lines.
■If necessary, connect the unit with articulated connections so that it can be
moved to adjust the air distribution.
■Insulate the hydraulic lines.
■Hydraulically balance the pipework for the the individual units within a control
zone to ensure even distribution.
Attention
Danger of damaging the units. Do not fasten any loads to the coil,
e.g. by means of the ow or return lines.
■
1
Air vent with shut-off
■
2
Control valve
■
3
Balancing valve
■
4
Drain valves
■
5
Shut-off valves
■
6
Flow
■
7
Return
Fig. 7: Connecting the heating coil
12
TopVent ®TV
Design, installation and operation
Transport and installation
4 216 284-en-05

5.5 Electrical installation
Caution
Danger of electric shocks. The electrical installation is to be carried out only
by a qualied electrician.
Please note the following:
■Observe all relevant regulations.
■Choose the dimensions of the cable cross sections in line with the applicable
regulations.
■Carry out the electrical installation according to the wiring diagram.
■Route the signal lines separately from the supply lines.
■Secure all connections against working loose.
Proceed as follows:
■Connect the power supply and the fan control to the units via eld-supplied
connection boxes.
– Install the connection box close to the unit (distance ≤0.5 m).
■Options for EasyTronic EC:
– Wire the external room temperature sensor to the EasyTronic EC.
– Wire the door contact to the EasyTronic EC.
– Wire the pump/valve control to the EasyTronic EC.
Designation Voltage Cable Comments
Power supply for TopVent®1 × 230 VAC NYM 3 × 1.5 mm² (min.)
Power supply EasyTronic EC / TV 1 × 230 VAC NYM 2 × 1.5 mm² (min.)
Fan control 0-10 V DC NYM 2 × 1.0 mm²
External room temperature sensor J-Y(St)Y 2 × 2 × 0.8 mm shielded, max. 30 m length
Door contact 24 V DC NYM 2 × 1.0 mm²
Pump / Valve control Volt-free NYM
… × 1.5 mm² (min.) max. 3 A
max. 230 V AC
max. 24 V DC
Table 10: Cable list for on-site connections
13
TopVent ®TV
Design, installation and operation
Transport and installation
4 216 284-en-05

AO1 GND DI1 DO2COMGND DI2
L N
brown
blue
yellow/green
black
white
GNDAI1
brown
blue
yellow/green
black
white
...A
16 14 10 3132
PE
L
11 12
L PE
L N PE AIN GND
3G1,5 mm²
(min.)
1 2 GNYE 2x1,0 mm² 1 2
N
N
1 2
1 2
3G1,5 mm²
(min.)
1 2 GNYE
2x1,5 mm²
21
2x1,0 mm²
13 44
L PE
L N PE AIN GND
N 1 2
3G1,5 mm²
(min.)
1 2 GNYE 2x1,0 mm² 1 2
PE
N L
1 2
PE N L
1 2
1 2L
N
PE
Connection box by the installer
TopVent®TV
Door contact
Pump or valve
External room temperature sensor
further TopVent®TV (max. 10)
110...230 VAC on site
EasyTronic EC

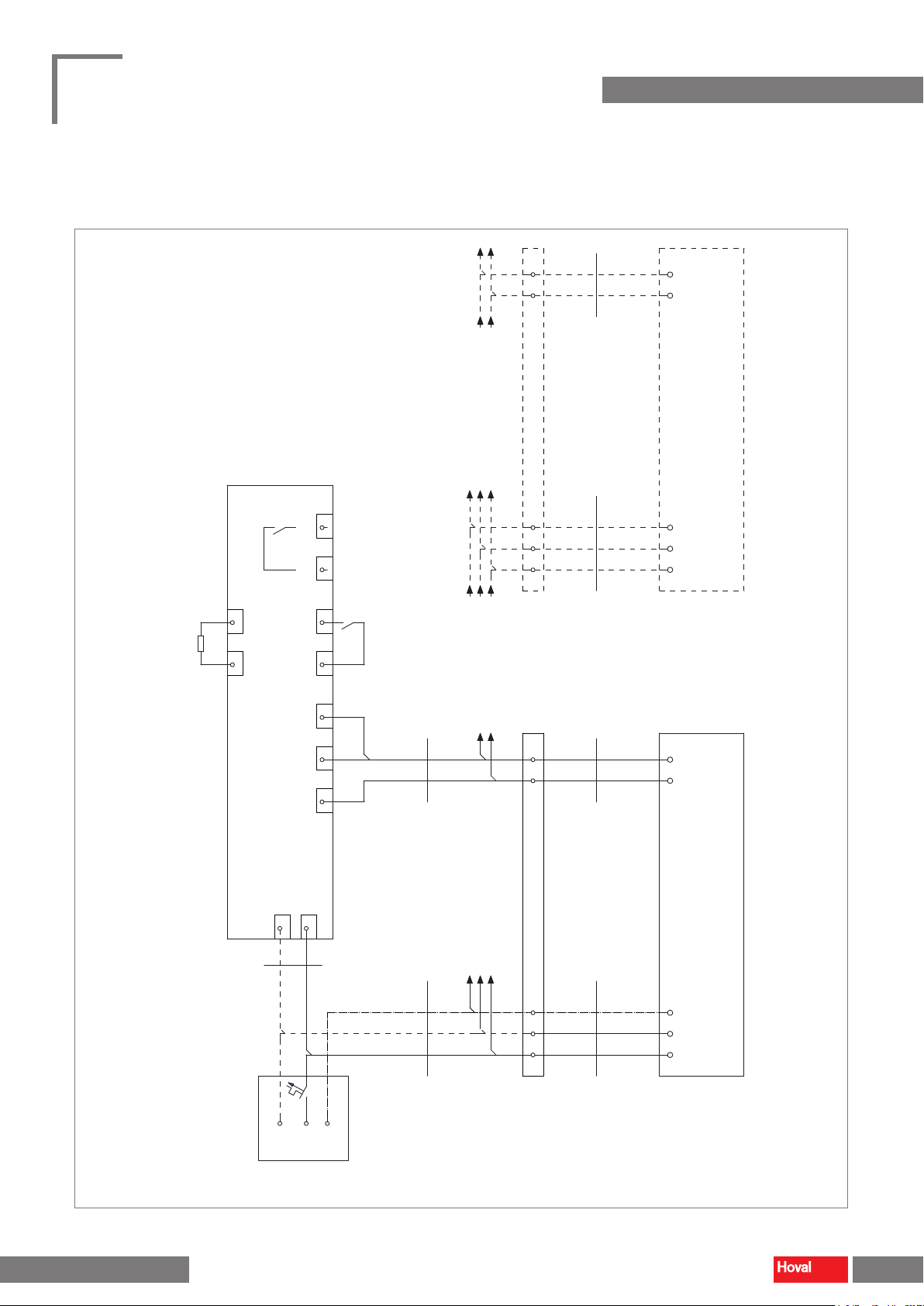

Fig. 8: Wiring diagram TopVent®TV with EasyTronic EC
14
TopVent ®TV
Design, installation and operation
Transport and installation
4 216 284-en-05

brown
blue
yellow/green
black
white
brown
blue
yellow/green
black
white
3G1,5 mm²
(min.)
1 2 GNYE 21
2x1,0 mm²
L
NTC NTC AO GND
L PE
L N PE AIN GND
3G1,5 mm²
(min.)
1 2 GNYE 2x1,0 mm² 1 2
N1 2
PE
L
N
2x1,5 mm²
N
L PE
L N PE AIN GND
N 1 2
3G1,5 mm²
(min.)
1 2 GNYE 2x1,0 mm² 1 2
PE
N L
1 2
PE N L
1 2
1 2L
N
PE
EasyTronic TV
Connection box by the installer
TopVent®TV further TopVent®TV (max. 8)
230 VAC on site
Fig. 9: Wiring diagram TopVent®TV with EasyTronic TV
15
TopVent ®TV
Design, installation and operation
Transport and installation
4 216 284-en-05

Installation EasyTronic EC
■Follow the installation instructions included.
Installation EasyTronic TV
■Install the room temperature controller:
– In the occupied area, at a height of about 1.5 m
– Not near sources of heat or cold (windows, doors, machines, etc.)
– Protected from sunlight
■Detach the casing base (e.g. using a screw driver).
■Break through the casing base along the perforation.
■Insert the cables through this opening.
■Connect the cables to the connectors.
■Screw the base onto a ush-mounted box (60 × 60 mm).
■Place the device on the base.
■Set the slide switch to the 'A+T' position.
AA+T0
Fig. 10: Opening the casing Fig. 11: Installing the EasyTronic TV Fig. 12: Position of the slide switch
16
TopVent ®TV
Design, installation and operation
Transport and installation
4 216 284-en-05

6 Operation
6.1 Initial commissioning
Attention
Risk of damage to property as a result of performing initial commissioning
on your own authority. Initial commissioning must be performed by the
manufacturer’s customer service technicians .
Preparing for initial commissioning:
Checklist:
■Have all the media connections been made (electric cabling and water piping)?
■Is the heating medium available?
■Are the hydraulics aligned and balanced?
■Are all the control components installed and wired?
■Are all of the respective trade groups (installer, electrician, etc.) present at the
scheduled time?
■Are the system operating personnel present for training at the scheduled time?
6.2 Operation
The system runs automatically.
■Observe the operating instructions for the control system.
■Ensure free air outlet and unhindered dispersion of the supply air.
■If necessary, the air outlet direction can be adjusted manually:
– Hold the vanes of the air outlet louvre at both ends and turn them in the
required direction.
17
TopVent ®TV
Design, installation and operation
Operation
4 216 284-en-05

7 Maintenance and repair
Caution
Risk of injury from incorrect work. Maintenance work must be carried out by
trained personnel.
7.1 Safety
Before performing any work on the unit:
■Turn the on-site main switch to the ‘O󰀨’ position and secure it against being
switched back on.
■Wait at least 5 minutes after switching the unit o󰀨.
Caution
The use of condensers can pose a danger of fatal injury from directly
touching live parts even after the unit is switched o󰀨. Only open the unit
after waiting 5 minutes.
■Observe the accident prevention regulations.
■Observe the particular dangers involved when working on electrical systems.
■When working in the unit, take precautions against unprotected, sharp metal
edges.
■Immediately replace damaged or removed informational and warning signs.
■Following maintenance work, professionally reassemble all dismantled protec-
tive devices.
7.2 Maintenance
Maintenance schedule
Activity Interval
Cleaning the heat exchanger If required,
at least once per year before the heating season
Check function 1 x per year
Cleaning the heat exchanger
■Carefully clean the heat exchanger with compressed air via the air outlet louvre.
– It is not necessary to dismantle the unit.
– Ensure that you do not damage the ns.
7.3 Repair
If repairs are necessary, contact the manufacturer’s customer service department.
18
TopVent ®TV
Design, installation and operation
4 216 284-en-05

8 Dismantling
Caution
Risk of injury caused by falling load and improper handling.
– Wear protective equipment (fall protection, safety helmet, safety shoes).
– Do not stand under suspended loads.
■Disconnect the power supply to the unit.
■Wait at least 5 minutes after switching the unit o󰀨.
Caution
The use of condensers can pose a danger of fatal injury from directly
touching live parts even after the unit is switched o󰀨. Only open the unit
after waiting 5 minutes.
■Drain the heating medium circuit.
■Dismantle all media connections.
■Disconnect the unit from any fastenings.
■Remove the unit.
9 Disposal
■Recycle metal components.
■Recycle plastic parts.
■Dispose of electric and electronic parts via hazardous waste.
■If required, dispose of oil-fouled parts in accordance with local regulations.
19
TopVent ®TV
Design, installation and operation
Dismantling
4 216 284-en-05
Notes

Contact
International
Hoval Aktiengesellschaft
9490 Vaduz
Liechtenstein
Tel. [phone]
[email protected]
www.hoval.com
United Kingdom
Hoval Ltd.
Northgate, Newark
Notts
NG24 1JN
Tel. [phone]
[email protected]
www.hoval.co.uk
20
4 216 284-en-05
Contact
TopVent ®TV
Operating instructions
